Included schema sportsml-specific-baseball.xsd
Namespace http://iptc.org/std/nar/2006-10-01/
Properties
attribute form default unqualified
element form default qualified

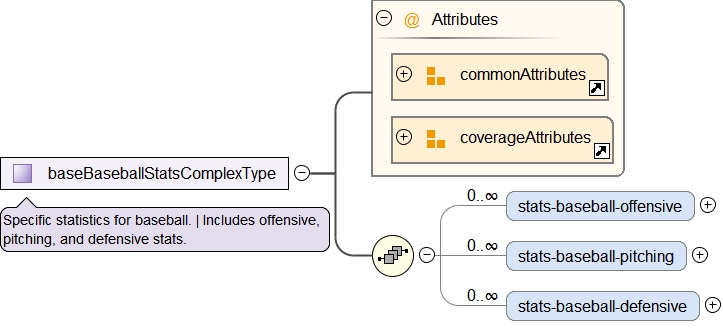

Element baseBaseballStatsComplexType / stats-baseball-offensive
Namespace http://iptc.org/std/nar/2006-10-01/

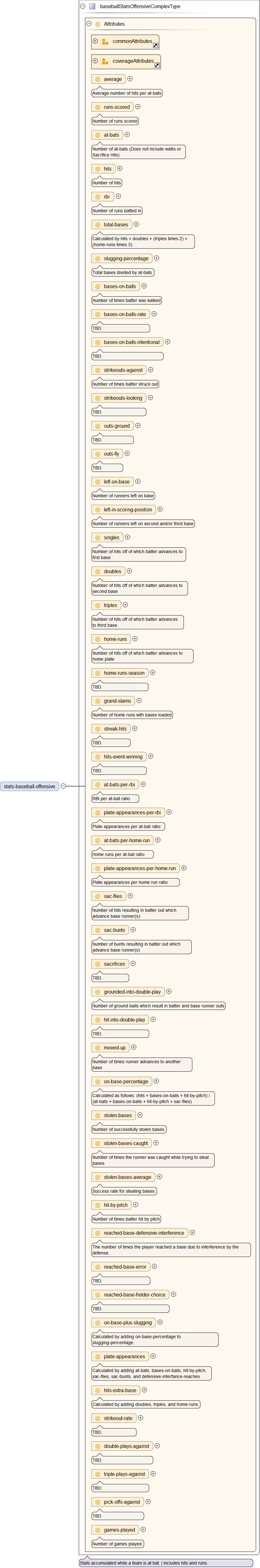

Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_average sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_runs-scored sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_at-bats sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_hits sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_rbi sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_total-bases sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_slugging-percentage sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_bases-on-balls sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_bases-on-balls-rate sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_bases-on-balls-intentional sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_strikeouts-against sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_strikeouts-looking sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_outs-ground sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_outs-fly sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_left-on-base sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_left-in-scoring-position sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_singles sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_doubles sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_triples sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_home-runs sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_home-runs-season sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_grand-slams sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_streak-hits sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_hits-event-winning sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_at-bats-per-rbi sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_plate-appearances-per-rbi sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_at-bats-per-home-run sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_plate-appearances-per-home-run sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_sac-flies sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_sac-bunts sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_sacrifices sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_grounded-into-double-play sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_hit-into-double-play sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_moved-up sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_on-base-percentage sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_stolen-bases sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_stolen-bases-caught sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_stolen-bases-average sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_hit-by-pitch sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_reached-base-defensive-interference sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_reached-base-error sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_reached-base-fielder-choice sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_on-base-plus-slugging sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_plate-appearances sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_hits-extra-base sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_strikeout-rate sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_double-plays-against sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_triple-plays-against sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_pick-offs-against sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_games-played sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType
Type baseballStatsOffensiveComplexType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
at-bats xs:string optional
Number of at-bats  (Does not include walks or Sacrifice Hits)
at-bats-per-home-run xs:string optional
Home runs per at-bat ratio
at-bats-per-rbi xs:string optional
RBI per at-bat ratio
average xs:string optional
Average number of hits per at-bats
bases-on-balls xs:string optional
Number of times batter was walked
bases-on-balls-intentional xs:string optional
TBD.
bases-on-balls-rate xs:string optional
TBD.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
double-plays-against xs:string optional
TBD.
doubles xs:string optional
Number of hits off of which batter advances to second base
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
games-played xs:string optional
Number of games played.
grand-slams xs:string optional
Number of home runs with bases loaded
grounded-into-double-play xs:string optional
Number of ground balls which result in batter and base runner outs
hit-by-pitch xs:string optional
Number of times batter hit by pitch
hit-into-double-play xs:string optional
TBD.
hits xs:string optional
Number of hits
hits-event-winning xs:string optional
TBD.
hits-extra-base xs:string optional
Calculated by adding doubles, triples, and home-runs.
home-runs xs:string optional
Number of hits off of which batter advances to home plate
home-runs-season xs:string optional
TBD.
id xs:ID optional
An XML-specific identifier for the element.
left-in-scoring-position xs:string optional
Number of runners left on second and/or third base
left-on-base xs:string optional
Number of runners left on base
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
moved-up xs:string optional
Number of times runner advances to another base
on-base-percentage xs:string optional
Calculated as follows: (hits + bases-on-balls + hit-by-pitch) / (at-bats + bases-on-balls + hit-by-pitch + sac-flies)
on-base-plus-slugging xs:string optional
Calculated by adding on-base-percentage to slugging-percentage.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
outs-fly xs:string optional
TBD.
outs-ground xs:string optional
TBD.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
pick-offs-against xs:string optional
TBD.
plate-appearances xs:string optional
Calculated by adding at-bats, bases-on-balls, hit-by-pitch, sac-flies, sac-bunts, and defensive-interfance-reaches.
plate-appearances-per-home-run xs:string optional
Plate appearances per home run ratio
plate-appearances-per-rbi xs:string optional
Plate appearances per at-bat ratio
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
rbi xs:string optional
Number of runs batted in
reached-base-defensive-interference xs:string optional
The number of times the player reached a base due to interference by the defense.
reached-base-error xs:string optional
TBD.
reached-base-fielder-choice xs:string optional
TBD.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
runs-scored xs:string optional
Number of runs scored
sac-bunts xs:string optional
Number of bunts resulting in batter out which advance base runner(s)
sac-flies xs:string optional
Number of hits resulting in batter out which advance base runner(s)
sacrifices xs:string optional
TBD.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
singles xs:string optional
Number of hits off of which batter advances to first base
situation QCodeType optional
Final or current score of the team or player.
slugging-percentage xs:string optional
Total bases divided by at-bats.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
stolen-bases xs:string optional
Number of successfully stolen bases.
stolen-bases-average xs:string optional
Success rate for stealing bases.
stolen-bases-caught xs:string optional
Number of times the runner was caught while trying to steal bases.
streak-hits xs:string optional
TBD.
strikeout-rate xs:string optional
TBD.
strikeouts-against xs:string optional
Number of times batter struck out
strikeouts-looking xs:string optional
TBD.
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
total-bases xs:string optional
Calculated by hits + doubles + (triples times 2) + (home-runs times 3).
triple-plays-against xs:string optional
TBD.
triples xs:string optional
Number of hits off of which batter advances to third base
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:element name="stats-baseball-offensive" type="baseballStatsOffensiveComplexType" minOccurs="0" maxOccurs="unbounded"/>

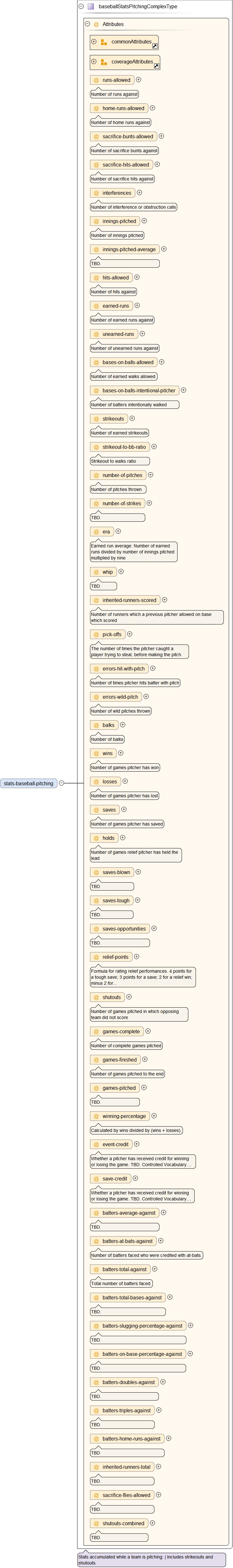

Element baseBaseballStatsComplexType / stats-baseball-pitching
Namespace http://iptc.org/std/nar/2006-10-01/

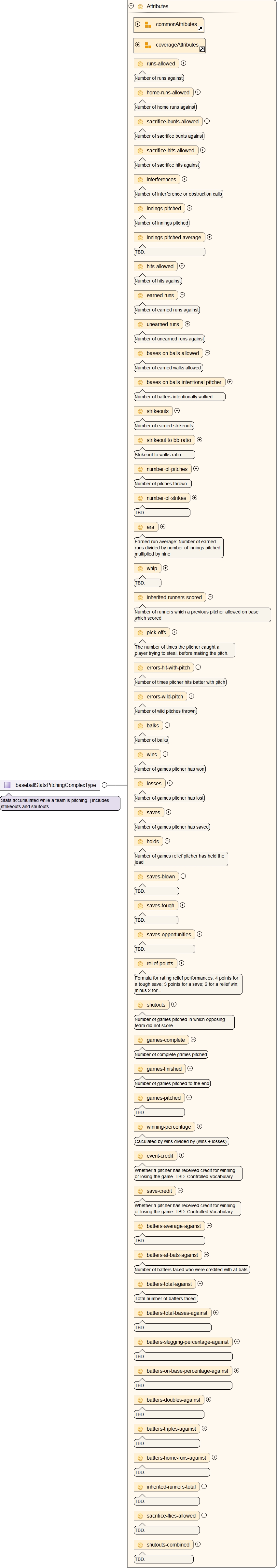

Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_runs-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_home-runs-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_sacrifice-bunts-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_sacrifice-hits-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_interferences sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_innings-pitched sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_innings-pitched-average sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_hits-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_earned-runs sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_unearned-runs sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_bases-on-balls-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_bases-on-balls-intentional-pitcher sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_strikeouts sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_strikeout-to-bb-ratio sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_number-of-pitches sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_number-of-strikes sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_era sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_whip sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_inherited-runners-scored sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_pick-offs sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_errors-hit-with-pitch sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_errors-wild-pitch sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_balks sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_wins sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_losses sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_saves sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_holds sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_saves-blown sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_saves-tough sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_saves-opportunities sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_relief-points sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_shutouts sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_games-complete sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_games-finished sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_games-pitched sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_winning-percentage sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_event-credit sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_save-credit sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-average-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-at-bats-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-total-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-total-bases-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-slugging-percentage-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-on-base-percentage-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-doubles-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-triples-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-home-runs-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_inherited-runners-total sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_sacrifice-flies-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_shutouts-combined sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType
Type baseballStatsPitchingComplexType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
balks xs:string optional
Number of balks
bases-on-balls-allowed xs:string optional
Number of earned walks allowed
bases-on-balls-intentional-pitcher xs:string optional
Number of batters intentionally walked
batters-at-bats-against xs:string optional
Number of batters faced who were credited with at-bats.
batters-average-against xs:string optional
TBD.
batters-doubles-against xs:string optional
TBD.
batters-home-runs-against xs:string optional
TBD.
batters-on-base-percentage-against xs:string optional
TBD.
batters-slugging-percentage-against xs:string optional
TBD.
batters-total-against xs:string optional
Total number of batters faced.
batters-total-bases-against xs:string optional
TBD.
batters-triples-against xs:string optional
TBD.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
earned-runs xs:string optional
Number of earned runs against
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
era xs:string optional
Earned run average: Number of earned runs divided by number of innings pitched multiplied by nine
errors-hit-with-pitch xs:string optional
Number of times pitcher hits batter with pitch
errors-wild-pitch xs:string optional
Number of wild pitches thrown
event-credit restriction of xs:string optional
Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
games-complete xs:string optional
Number of complete games pitched
games-finished xs:string optional
Number of games pitched to the end
games-pitched xs:string optional
TBD.
hits-allowed xs:string optional
Number of hits against
holds xs:string optional
Number of games relief pitcher has held the lead
home-runs-allowed xs:string optional
Number of home runs against
id xs:ID optional
An XML-specific identifier for the element.
inherited-runners-scored xs:string optional
Number of runners which a previous pitcher allowed on base which scored
inherited-runners-total xs:string optional
TBD.
innings-pitched xs:string optional
Number of innings pitched
innings-pitched-average xs:string optional
TBD.
interferences xs:string optional
Number of interference or obstruction calls
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
losses xs:string optional
Number of games pitcher has lost
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
number-of-pitches xs:string optional
Number of pitches thrown
number-of-strikes xs:string optional
TBD.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
pick-offs xs:string optional
The number of times the pitcher caught a player trying to steal, before making the pitch.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
relief-points xs:string optional
Formula for rating relief performances. 4 points for a tough save; 3 points for a save; 2 for a relief win; minus 2 for a relief loss and blown save.
runs-allowed xs:string optional
Number of runs against
sacrifice-bunts-allowed xs:string optional
Number of sacrifice bunts against
sacrifice-flies-allowed xs:string optional
TBD.
sacrifice-hits-allowed xs:string optional
Number of sacrifice hits against
save-credit restriction of xs:string optional
Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)
saves xs:string optional
Number of games pitcher has saved
saves-blown xs:string optional
TBD.
saves-opportunities xs:string optional
TBD.
saves-tough xs:string optional
TBD.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
shutouts xs:string optional
Number of games pitched in which opposing team did not score
shutouts-combined xs:string optional
TBD.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
strikeout-to-bb-ratio xs:string optional
Strikeout to walks ratio
strikeouts xs:string optional
Number of earned strikeouts
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
unearned-runs xs:string optional
Number of unearned runs against
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
whip xs:string optional
TBD.
winning-percentage xs:string optional
Calculated by wins divided by (wins + losses).
wins xs:string optional
Number of games pitcher has won
Source
<xs:element name="stats-baseball-pitching" type="baseballStatsPitchingComplexType" minOccurs="0" maxOccurs="unbounded"/>

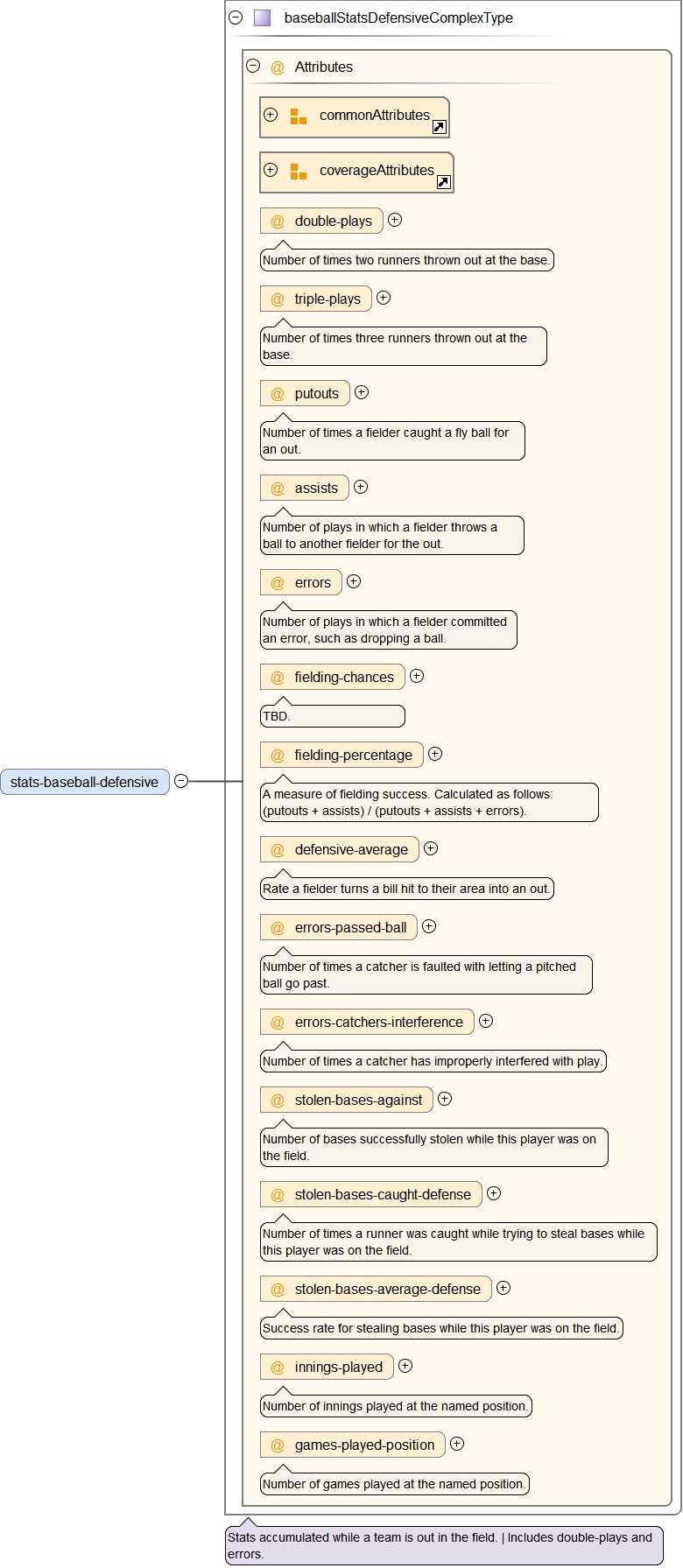

Element baseBaseballStatsComplexType / stats-baseball-defensive
Namespace http://iptc.org/std/nar/2006-10-01/
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_double-plays sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_triple-plays sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_putouts sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_assists sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_errors sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_fielding-chances sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_fielding-percentage sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_defensive-average sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_errors-passed-ball sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_errors-catchers-interference sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_stolen-bases-against sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_stolen-bases-caught-defense sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_stolen-bases-average-defense sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_innings-played sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_games-played-position sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType
Type baseballStatsDefensiveComplexType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
assists xs:string optional
Number of plays in which a fielder throws a ball to another fielder for the out.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
defensive-average xs:string optional
Rate a fielder turns a bill hit to their area into an out.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
double-plays xs:string optional
Number of times two runners thrown out at the base.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
errors xs:string optional
Number of plays in which a fielder committed an error, such as dropping a ball.
errors-catchers-interference xs:string optional
Number of times a catcher has improperly interfered with play.
errors-passed-ball xs:string optional
Number of times a catcher is faulted with letting a pitched ball go past.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
fielding-chances xs:string optional
TBD.
fielding-percentage xs:string optional
A measure of fielding success. Calculated as follows: (putouts + assists) / (putouts + assists + errors).
games-played-position xs:string optional
Number of games played at the named position.
id xs:ID optional
An XML-specific identifier for the element.
innings-played xs:string optional
Number of innings played at the named position.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
putouts xs:string optional
Number of times a fielder caught a fly ball for an out.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
stolen-bases-against xs:string optional
Number of bases successfully stolen while this player was on the field.
stolen-bases-average-defense xs:string optional
Success rate for stealing bases while this player was on the field.
stolen-bases-caught-defense xs:string optional
Number of times a runner was caught while trying to steal bases while this player was on the field.
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
triple-plays xs:string optional
Number of times three runners thrown out at the base.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:element name="stats-baseball-defensive" type="baseballStatsDefensiveComplexType" minOccurs="0" maxOccurs="unbounded"/>

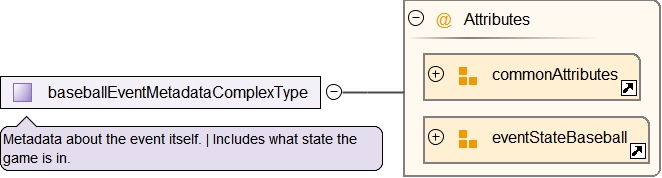

Complex Type baseballEventMetadataComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Metadata about the event itself. | Includes what state the game is in.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml-specific-baseball_xsd.tmp#eventStateBaseball
Used by
Attributes
QName Type Use Annotation
at-bat-number xs:string optional
Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.
balls xs:string optional
Either 1, 2, 3, or 4.
batter-idref xs:IDREF optional
A pointer to the player element for the batter at the plate.
batter-side bodySideList optional
Which side of the plate the batter was on when taking the pitch.
class xs:string optional
An open placeholder for categorization.
id xs:ID optional
An XML-specific identifier for the element.
inning-half restriction of xs:string optional
Either top or bottom.
inning-value xs:string optional
An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.
outs xs:string optional
Either 1, 2, or 3.
pitcher-idref xs:IDREF optional
A pointer to the player element for the pitcher standing on the mound.
runner-on-first xs:string optional
Whether or not a player is standing on first base. Either true or false.
runner-on-first-idref xs:IDREF optional
A pointer to the player on first base.
runner-on-second xs:string optional
Whether or not a player is standing on second base. Either true or false.
runner-on-second-idref xs:IDREF optional
A pointer to the player on second base.
runner-on-third xs:string optional
Whether or not a player is standing on third base. Either true or false.
runner-on-third-idref xs:IDREF optional
A pointer to the player on third base.
runs-this-inning-half xs:string optional
An integer.
strikes xs:string optional
Either 1, 2, or 3.
style xs:string optional
An open placeholder for reference by an external stylesheet.
Source
<xs:complexType name="baseballEventMetadataComplexType">
  <xs:annotation>
    <xs:documentation>Metadata about the event itself. | Includes what state the game is in.</xs:documentation>
  </xs:annotation>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attributeGroup ref="eventStateBaseball"/>
</xs:complexType>

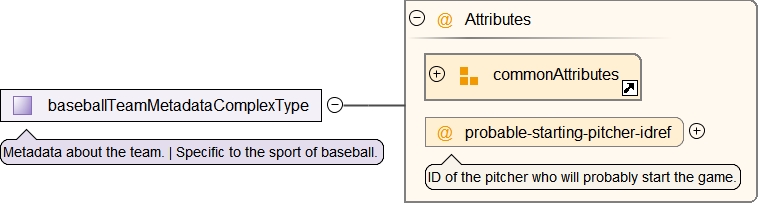

Complex Type baseballTeamMetadataComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Metadata about the team. | Specific to the sport of baseball.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml-specific-baseball_xsd.tmp#baseballTeamMetadataComplexType_probable-starting-pitcher-idref
Used by
Attributes
QName Type Use Annotation
class xs:string optional
An open placeholder for categorization.
id xs:ID optional
An XML-specific identifier for the element.
probable-starting-pitcher-idref xs:IDREF optional
ID of the pitcher who will probably start the game.
style xs:string optional
An open placeholder for reference by an external stylesheet.
Source
<xs:complexType name="baseballTeamMetadataComplexType">
  <xs:annotation>
    <xs:documentation>Metadata about the team. | Specific to the sport of baseball.</xs:documentation>
  </xs:annotation>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attribute name="probable-starting-pitcher-idref" type="xs:IDREF" use="optional">
    <xs:annotation>
      <xs:documentation>ID of the pitcher who will probably start the game.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Complex Type baseballTeamStatsComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Specific statistics for baseball. | Includes offensive, pitching, and defensive stats.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#baseBaseballStatsComplexType_stats-baseball-offensive sportsml-specific-baseball_xsd.tmp#baseBaseballStatsComplexType_stats-baseball-pitching sportsml-specific-baseball_xsd.tmp#baseBaseballStatsComplexType_stats-baseball-defensive sportsml-specific-baseball_xsd.tmp#baseBaseballStatsComplexType
Type extension of baseBaseballStatsComplexType
Type hierarchy
Used by
Model
Children stats-baseball-defensive, stats-baseball-offensive, stats-baseball-pitching
Attributes
QName Type Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:complexType name="baseballTeamStatsComplexType">
  <xs:annotation>
    <xs:documentation>Specific statistics for baseball. | Includes offensive, pitching, and defensive stats.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="baseBaseballStatsComplexType"/>
  </xs:complexContent>
</xs:complexType>
Complex Type baseBaseballStatsComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Specific statistics for baseball. | Includes offensive, pitching, and defensive stats.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#baseBaseballStatsComplexType_stats-baseball-offensive sportsml-specific-baseball_xsd.tmp#baseBaseballStatsComplexType_stats-baseball-pitching sportsml-specific-baseball_xsd.tmp#baseBaseballStatsComplexType_stats-baseball-defensive
Used by
Model
Children stats-baseball-defensive, stats-baseball-offensive, stats-baseball-pitching
Attributes
QName Type Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:complexType name="baseBaseballStatsComplexType">
  <xs:annotation>
    <xs:documentation>Specific statistics for baseball. | Includes offensive, pitching, and defensive stats.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="stats-baseball-offensive" type="baseballStatsOffensiveComplexType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="stats-baseball-pitching" type="baseballStatsPitchingComplexType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="stats-baseball-defensive" type="baseballStatsDefensiveComplexType" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attributeGroup ref="coverageAttributes"/>
</xs:complexType>

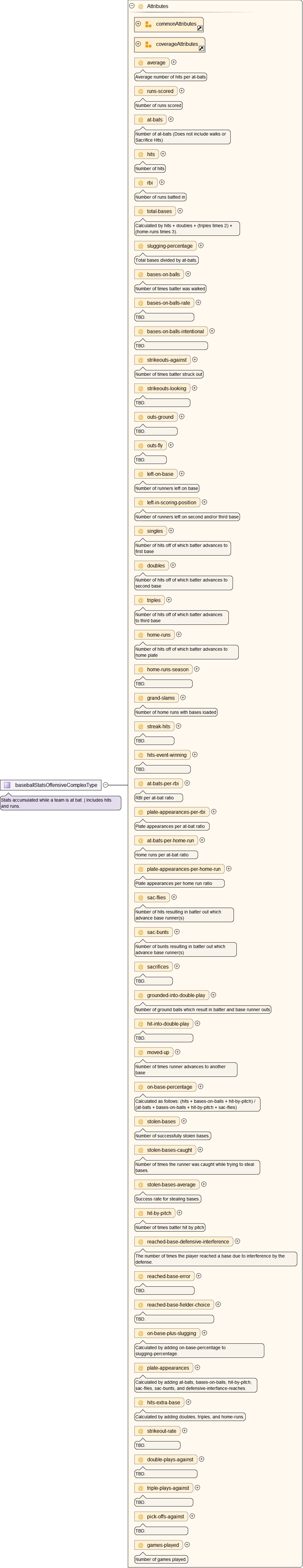

Complex Type baseballStatsOffensiveComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Stats accumulated while a team is at bat. | Includes hits and runs.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_average sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_runs-scored sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_at-bats sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_hits sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_rbi sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_total-bases sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_slugging-percentage sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_bases-on-balls sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_bases-on-balls-rate sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_bases-on-balls-intentional sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_strikeouts-against sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_strikeouts-looking sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_outs-ground sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_outs-fly sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_left-on-base sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_left-in-scoring-position sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_singles sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_doubles sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_triples sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_home-runs sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_home-runs-season sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_grand-slams sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_streak-hits sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_hits-event-winning sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_at-bats-per-rbi sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_plate-appearances-per-rbi sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_at-bats-per-home-run sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_plate-appearances-per-home-run sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_sac-flies sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_sac-bunts sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_sacrifices sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_grounded-into-double-play sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_hit-into-double-play sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_moved-up sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_on-base-percentage sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_stolen-bases sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_stolen-bases-caught sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_stolen-bases-average sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_hit-by-pitch sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_reached-base-defensive-interference sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_reached-base-error sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_reached-base-fielder-choice sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_on-base-plus-slugging sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_plate-appearances sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_hits-extra-base sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_strikeout-rate sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_double-plays-against sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_triple-plays-against sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_pick-offs-against sportsml-specific-baseball_xsd.tmp#baseballStatsOffensiveComplexType_games-played
Used by
Attributes
QName Type Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
at-bats xs:string optional
Number of at-bats  (Does not include walks or Sacrifice Hits)
at-bats-per-home-run xs:string optional
Home runs per at-bat ratio
at-bats-per-rbi xs:string optional
RBI per at-bat ratio
average xs:string optional
Average number of hits per at-bats
bases-on-balls xs:string optional
Number of times batter was walked
bases-on-balls-intentional xs:string optional
TBD.
bases-on-balls-rate xs:string optional
TBD.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
double-plays-against xs:string optional
TBD.
doubles xs:string optional
Number of hits off of which batter advances to second base
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
games-played xs:string optional
Number of games played.
grand-slams xs:string optional
Number of home runs with bases loaded
grounded-into-double-play xs:string optional
Number of ground balls which result in batter and base runner outs
hit-by-pitch xs:string optional
Number of times batter hit by pitch
hit-into-double-play xs:string optional
TBD.
hits xs:string optional
Number of hits
hits-event-winning xs:string optional
TBD.
hits-extra-base xs:string optional
Calculated by adding doubles, triples, and home-runs.
home-runs xs:string optional
Number of hits off of which batter advances to home plate
home-runs-season xs:string optional
TBD.
id xs:ID optional
An XML-specific identifier for the element.
left-in-scoring-position xs:string optional
Number of runners left on second and/or third base
left-on-base xs:string optional
Number of runners left on base
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
moved-up xs:string optional
Number of times runner advances to another base
on-base-percentage xs:string optional
Calculated as follows: (hits + bases-on-balls + hit-by-pitch) / (at-bats + bases-on-balls + hit-by-pitch + sac-flies)
on-base-plus-slugging xs:string optional
Calculated by adding on-base-percentage to slugging-percentage.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
outs-fly xs:string optional
TBD.
outs-ground xs:string optional
TBD.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
pick-offs-against xs:string optional
TBD.
plate-appearances xs:string optional
Calculated by adding at-bats, bases-on-balls, hit-by-pitch, sac-flies, sac-bunts, and defensive-interfance-reaches.
plate-appearances-per-home-run xs:string optional
Plate appearances per home run ratio
plate-appearances-per-rbi xs:string optional
Plate appearances per at-bat ratio
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
rbi xs:string optional
Number of runs batted in
reached-base-defensive-interference xs:string optional
The number of times the player reached a base due to interference by the defense.
reached-base-error xs:string optional
TBD.
reached-base-fielder-choice xs:string optional
TBD.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
runs-scored xs:string optional
Number of runs scored
sac-bunts xs:string optional
Number of bunts resulting in batter out which advance base runner(s)
sac-flies xs:string optional
Number of hits resulting in batter out which advance base runner(s)
sacrifices xs:string optional
TBD.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
singles xs:string optional
Number of hits off of which batter advances to first base
situation QCodeType optional
Final or current score of the team or player.
slugging-percentage xs:string optional
Total bases divided by at-bats.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
stolen-bases xs:string optional
Number of successfully stolen bases.
stolen-bases-average xs:string optional
Success rate for stealing bases.
stolen-bases-caught xs:string optional
Number of times the runner was caught while trying to steal bases.
streak-hits xs:string optional
TBD.
strikeout-rate xs:string optional
TBD.
strikeouts-against xs:string optional
Number of times batter struck out
strikeouts-looking xs:string optional
TBD.
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
total-bases xs:string optional
Calculated by hits + doubles + (triples times 2) + (home-runs times 3).
triple-plays-against xs:string optional
TBD.
triples xs:string optional
Number of hits off of which batter advances to third base
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:complexType name="baseballStatsOffensiveComplexType">
  <xs:annotation>
    <xs:documentation>Stats accumulated while a team is at bat. | Includes hits and runs.</xs:documentation>
  </xs:annotation>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attributeGroup ref="coverageAttributes"/>
  <xs:attribute name="average" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Average number of hits per at-bats</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="runs-scored" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of runs scored</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="at-bats" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of at-bats (Does not include walks or Sacrifice Hits)</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="hits" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of hits</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="rbi" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of runs batted in</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="total-bases" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Calculated by hits + doubles + (triples times 2) + (home-runs times 3).</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="slugging-percentage" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Total bases divided by at-bats.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="bases-on-balls" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times batter was walked</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="bases-on-balls-rate" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="bases-on-balls-intentional" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="strikeouts-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times batter struck out</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="strikeouts-looking" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="outs-ground" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="outs-fly" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="left-on-base" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of runners left on base</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="left-in-scoring-position" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of runners left on second and/or third base</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="singles" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of hits off of which batter advances to first base</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="doubles" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of hits off of which batter advances to second base</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="triples" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of hits off of which batter advances to third base</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="home-runs" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of hits off of which batter advances to home plate</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="home-runs-season" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="grand-slams" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of home runs with bases loaded</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="streak-hits" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="hits-event-winning" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="at-bats-per-rbi" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>RBI per at-bat ratio</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="plate-appearances-per-rbi" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Plate appearances per at-bat ratio</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="at-bats-per-home-run" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Home runs per at-bat ratio</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="plate-appearances-per-home-run" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Plate appearances per home run ratio</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="sac-flies" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of hits resulting in batter out which advance base runner(s)</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="sac-bunts" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of bunts resulting in batter out which advance base runner(s)</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="sacrifices" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="grounded-into-double-play" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of ground balls which result in batter and base runner outs</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="hit-into-double-play" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="moved-up" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times runner advances to another base</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="on-base-percentage" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Calculated as follows: (hits + bases-on-balls + hit-by-pitch) / (at-bats + bases-on-balls + hit-by-pitch + sac-flies)</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="stolen-bases" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of successfully stolen bases.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="stolen-bases-caught" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times the runner was caught while trying to steal bases.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="stolen-bases-average" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Success rate for stealing bases.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="hit-by-pitch" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times batter hit by pitch</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="reached-base-defensive-interference" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>The number of times the player reached a base due to interference by the defense.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="reached-base-error" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="reached-base-fielder-choice" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="on-base-plus-slugging" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Calculated by adding on-base-percentage to slugging-percentage.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="plate-appearances" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Calculated by adding at-bats, bases-on-balls, hit-by-pitch, sac-flies, sac-bunts, and defensive-interfance-reaches.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="hits-extra-base" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Calculated by adding doubles, triples, and home-runs.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="strikeout-rate" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="double-plays-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="triple-plays-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="pick-offs-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="games-played" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of games played.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Complex Type baseballStatsPitchingComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Stats accumulated while a team is pitching. | Includes strikeouts and shutouts.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_runs-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_home-runs-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_sacrifice-bunts-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_sacrifice-hits-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_interferences sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_innings-pitched sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_innings-pitched-average sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_hits-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_earned-runs sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_unearned-runs sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_bases-on-balls-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_bases-on-balls-intentional-pitcher sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_strikeouts sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_strikeout-to-bb-ratio sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_number-of-pitches sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_number-of-strikes sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_era sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_whip sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_inherited-runners-scored sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_pick-offs sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_errors-hit-with-pitch sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_errors-wild-pitch sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_balks sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_wins sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_losses sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_saves sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_holds sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_saves-blown sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_saves-tough sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_saves-opportunities sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_relief-points sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_shutouts sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_games-complete sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_games-finished sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_games-pitched sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_winning-percentage sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_event-credit sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_save-credit sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-average-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-at-bats-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-total-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-total-bases-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-slugging-percentage-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-on-base-percentage-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-doubles-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-triples-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_batters-home-runs-against sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_inherited-runners-total sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_sacrifice-flies-allowed sportsml-specific-baseball_xsd.tmp#baseballStatsPitchingComplexType_shutouts-combined
Used by
Attributes
QName Type Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
balks xs:string optional
Number of balks
bases-on-balls-allowed xs:string optional
Number of earned walks allowed
bases-on-balls-intentional-pitcher xs:string optional
Number of batters intentionally walked
batters-at-bats-against xs:string optional
Number of batters faced who were credited with at-bats.
batters-average-against xs:string optional
TBD.
batters-doubles-against xs:string optional
TBD.
batters-home-runs-against xs:string optional
TBD.
batters-on-base-percentage-against xs:string optional
TBD.
batters-slugging-percentage-against xs:string optional
TBD.
batters-total-against xs:string optional
Total number of batters faced.
batters-total-bases-against xs:string optional
TBD.
batters-triples-against xs:string optional
TBD.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
earned-runs xs:string optional
Number of earned runs against
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
era xs:string optional
Earned run average: Number of earned runs divided by number of innings pitched multiplied by nine
errors-hit-with-pitch xs:string optional
Number of times pitcher hits batter with pitch
errors-wild-pitch xs:string optional
Number of wild pitches thrown
event-credit restriction of xs:string optional
Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
games-complete xs:string optional
Number of complete games pitched
games-finished xs:string optional
Number of games pitched to the end
games-pitched xs:string optional
TBD.
hits-allowed xs:string optional
Number of hits against
holds xs:string optional
Number of games relief pitcher has held the lead
home-runs-allowed xs:string optional
Number of home runs against
id xs:ID optional
An XML-specific identifier for the element.
inherited-runners-scored xs:string optional
Number of runners which a previous pitcher allowed on base which scored
inherited-runners-total xs:string optional
TBD.
innings-pitched xs:string optional
Number of innings pitched
innings-pitched-average xs:string optional
TBD.
interferences xs:string optional
Number of interference or obstruction calls
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
losses xs:string optional
Number of games pitcher has lost
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
number-of-pitches xs:string optional
Number of pitches thrown
number-of-strikes xs:string optional
TBD.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
pick-offs xs:string optional
The number of times the pitcher caught a player trying to steal, before making the pitch.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
relief-points xs:string optional
Formula for rating relief performances. 4 points for a tough save; 3 points for a save; 2 for a relief win; minus 2 for a relief loss and blown save.
runs-allowed xs:string optional
Number of runs against
sacrifice-bunts-allowed xs:string optional
Number of sacrifice bunts against
sacrifice-flies-allowed xs:string optional
TBD.
sacrifice-hits-allowed xs:string optional
Number of sacrifice hits against
save-credit restriction of xs:string optional
Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)
saves xs:string optional
Number of games pitcher has saved
saves-blown xs:string optional
TBD.
saves-opportunities xs:string optional
TBD.
saves-tough xs:string optional
TBD.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
shutouts xs:string optional
Number of games pitched in which opposing team did not score
shutouts-combined xs:string optional
TBD.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
strikeout-to-bb-ratio xs:string optional
Strikeout to walks ratio
strikeouts xs:string optional
Number of earned strikeouts
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
unearned-runs xs:string optional
Number of unearned runs against
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
whip xs:string optional
TBD.
winning-percentage xs:string optional
Calculated by wins divided by (wins + losses).
wins xs:string optional
Number of games pitcher has won
Source
<xs:complexType name="baseballStatsPitchingComplexType">
  <xs:annotation>
    <xs:documentation>Stats accumulated while a team is pitching. | Includes strikeouts and shutouts.</xs:documentation>
  </xs:annotation>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attributeGroup ref="coverageAttributes"/>
  <xs:attribute name="runs-allowed" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of runs against</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="home-runs-allowed" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of home runs against</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="sacrifice-bunts-allowed" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of sacrifice bunts against</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="sacrifice-hits-allowed" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of sacrifice hits against</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="interferences" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of interference or obstruction calls</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="innings-pitched" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of innings pitched</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="innings-pitched-average" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="hits-allowed" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of hits against</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="earned-runs" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of earned runs against</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="unearned-runs" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of unearned runs against</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="bases-on-balls-allowed" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of earned walks allowed</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="bases-on-balls-intentional-pitcher" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of batters intentionally walked</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="strikeouts" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of earned strikeouts</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="strikeout-to-bb-ratio" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Strikeout to walks ratio</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="number-of-pitches" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of pitches thrown</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="number-of-strikes" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="era" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Earned run average: Number of earned runs divided by number of innings pitched multiplied by nine</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="whip" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="inherited-runners-scored" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of runners which a previous pitcher allowed on base which scored</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="pick-offs" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>The number of times the pitcher caught a player trying to steal, before making the pitch.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="errors-hit-with-pitch" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times pitcher hits batter with pitch</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="errors-wild-pitch" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of wild pitches thrown</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="balks" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of balks</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="wins" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of games pitcher has won</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="losses" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of games pitcher has lost</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="saves" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of games pitcher has saved</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="holds" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of games relief pitcher has held the lead</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="saves-blown" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="saves-tough" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="saves-opportunities" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="relief-points" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Formula for rating relief performances. 4 points for a tough save; 3 points for a save; 2 for a relief win; minus 2 for a relief loss and blown save.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="shutouts" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of games pitched in which opposing team did not score</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="games-complete" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of complete games pitched</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="games-finished" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of games pitched to the end</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="games-pitched" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="winning-percentage" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Calculated by wins divided by (wins + losses).</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="event-credit" use="optional">
    <xs:annotation>
      <xs:documentation>Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)</xs:documentation>
    </xs:annotation>
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="win"/>
        <xs:enumeration value="loss"/>
        <xs:enumeration value="save"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="save-credit" use="optional">
    <xs:annotation>
      <xs:documentation>Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)</xs:documentation>
    </xs:annotation>
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="hold"/>
        <xs:enumeration value="blown"/>
        <xs:enumeration value="save"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="batters-average-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="batters-at-bats-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of batters faced who were credited with at-bats.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="batters-total-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Total number of batters faced.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="batters-total-bases-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="batters-slugging-percentage-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="batters-on-base-percentage-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="batters-doubles-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="batters-triples-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="batters-home-runs-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="inherited-runners-total" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="sacrifice-flies-allowed" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="shutouts-combined" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Complex Type baseballStatsDefensiveComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Stats accumulated while a team is out in the field. | Includes double-plays and errors.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_double-plays sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_triple-plays sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_putouts sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_assists sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_errors sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_fielding-chances sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_fielding-percentage sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_defensive-average sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_errors-passed-ball sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_errors-catchers-interference sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_stolen-bases-against sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_stolen-bases-caught-defense sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_stolen-bases-average-defense sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_innings-played sportsml-specific-baseball_xsd.tmp#baseballStatsDefensiveComplexType_games-played-position
Used by
Attributes
QName Type Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
assists xs:string optional
Number of plays in which a fielder throws a ball to another fielder for the out.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
defensive-average xs:string optional
Rate a fielder turns a bill hit to their area into an out.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
double-plays xs:string optional
Number of times two runners thrown out at the base.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
errors xs:string optional
Number of plays in which a fielder committed an error, such as dropping a ball.
errors-catchers-interference xs:string optional
Number of times a catcher has improperly interfered with play.
errors-passed-ball xs:string optional
Number of times a catcher is faulted with letting a pitched ball go past.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
fielding-chances xs:string optional
TBD.
fielding-percentage xs:string optional
A measure of fielding success. Calculated as follows: (putouts + assists) / (putouts + assists + errors).
games-played-position xs:string optional
Number of games played at the named position.
id xs:ID optional
An XML-specific identifier for the element.
innings-played xs:string optional
Number of innings played at the named position.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
putouts xs:string optional
Number of times a fielder caught a fly ball for an out.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
stolen-bases-against xs:string optional
Number of bases successfully stolen while this player was on the field.
stolen-bases-average-defense xs:string optional
Success rate for stealing bases while this player was on the field.
stolen-bases-caught-defense xs:string optional
Number of times a runner was caught while trying to steal bases while this player was on the field.
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
triple-plays xs:string optional
Number of times three runners thrown out at the base.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:complexType name="baseballStatsDefensiveComplexType">
  <xs:annotation>
    <xs:documentation>Stats accumulated while a team is out in the field. | Includes double-plays and errors.</xs:documentation>
  </xs:annotation>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attributeGroup ref="coverageAttributes"/>
  <xs:attribute name="double-plays" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times two runners thrown out at the base.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="triple-plays" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times three runners thrown out at the base.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="putouts" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times a fielder caught a fly ball for an out.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="assists" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of plays in which a fielder throws a ball to another fielder for the out.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="errors" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of plays in which a fielder committed an error, such as dropping a ball.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="fielding-chances" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>TBD.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="fielding-percentage" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>A measure of fielding success. Calculated as follows: (putouts + assists) / (putouts + assists + errors).</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="defensive-average" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Rate a fielder turns a bill hit to their area into an out.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="errors-passed-ball" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times a catcher is faulted with letting a pitched ball go past.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="errors-catchers-interference" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times a catcher has improperly interfered with play.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="stolen-bases-against" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of bases successfully stolen while this player was on the field.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="stolen-bases-caught-defense" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of times a runner was caught while trying to steal bases while this player was on the field.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="stolen-bases-average-defense" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Success rate for stealing bases while this player was on the field.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="innings-played" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of innings played at the named position.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="games-played-position" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of games played at the named position.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Complex Type baseballPlayerMetadataComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Metadata about the player. | Specific to the sport of baseball.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml-specific-baseball_xsd.tmp#baseballPlayerMetadataComplexType_batting-hand sportsml-specific-baseball_xsd.tmp#baseballPlayerMetadataComplexType_throwing-hand
Used by
Attributes
QName Type Use Annotation
batting-hand bodySideList optional
Indicates whether player bats left, right, or is a switch-hitter.
class xs:string optional
An open placeholder for categorization.
id xs:ID optional
An XML-specific identifier for the element.
style xs:string optional
An open placeholder for reference by an external stylesheet.
throwing-hand bodySideList optional
Indicates whether player throws left, right, or is a switch-thrower.
Source
<xs:complexType name="baseballPlayerMetadataComplexType">
  <xs:annotation>
    <xs:documentation>Metadata about the player. | Specific to the sport of baseball.</xs:documentation>
  </xs:annotation>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attribute name="batting-hand" type="bodySideList" use="optional">
    <xs:annotation>
      <xs:documentation>Indicates whether player bats left, right, or is a switch-hitter.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="throwing-hand" type="bodySideList" use="optional">
    <xs:annotation>
      <xs:documentation>Indicates whether player throws left, right, or is a switch-thrower.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Complex Type baseballPlayerStatsComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Stats collected by a player. | Includes offensive, pitching, and defensive stats.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-baseball_xsd.tmp#baseBaseballStatsComplexType_stats-baseball-offensive sportsml-specific-baseball_xsd.tmp#baseBaseballStatsComplexType_stats-baseball-pitching sportsml-specific-baseball_xsd.tmp#baseBaseballStatsComplexType_stats-baseball-defensive sportsml-specific-baseball_xsd.tmp#baseBaseballStatsComplexType
Type extension of baseBaseballStatsComplexType
Type hierarchy
Used by
Model
Children stats-baseball-defensive, stats-baseball-offensive, stats-baseball-pitching
Attributes
QName Type Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:complexType name="baseballPlayerStatsComplexType">
  <xs:annotation>
    <xs:documentation>Stats collected by a player. | Includes offensive, pitching, and defensive stats.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="baseBaseballStatsComplexType"/>
  </xs:complexContent>
</xs:complexType>
Attribute eventStateBaseball / @inning-value
Namespace No namespace
Annotations
An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.
Type xs:string
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="inning-value" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @inning-half
Namespace No namespace
Annotations
Either top or bottom.
Type restriction of xs:string
Properties
use optional
Facets
enumeration top
enumeration bottom
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="inning-half" use="optional">
  <xs:annotation>
    <xs:documentation>Either top or bottom.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="top"/>
      <xs:enumeration value="bottom"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute eventStateBaseball / @outs
Namespace No namespace
Annotations
Either 1, 2, or 3.
Type xs:string
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="outs" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Either 1, 2, or 3.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @balls
Namespace No namespace
Annotations
Either 1, 2, 3, or 4.
Type xs:string
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="balls" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Either 1, 2, 3, or 4.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @strikes
Namespace No namespace
Annotations
Either 1, 2, or 3.
Type xs:string
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="strikes" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Either 1, 2, or 3.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @runner-on-first
Namespace No namespace
Annotations
Whether or not a player is standing on first base. Either true or false.
Type xs:string
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="runner-on-first" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Whether or not a player is standing on first base. Either true or false.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @runner-on-first-idref
Namespace No namespace
Annotations
A pointer to the player on first base.
Type xs:IDREF
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="runner-on-first-idref" type="xs:IDREF" use="optional">
  <xs:annotation>
    <xs:documentation>A pointer to the player on first base.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @runner-on-second
Namespace No namespace
Annotations
Whether or not a player is standing on second base. Either true or false.
Type xs:string
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="runner-on-second" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Whether or not a player is standing on second base. Either true or false.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @runner-on-second-idref
Namespace No namespace
Annotations
A pointer to the player on second base.
Type xs:IDREF
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="runner-on-second-idref" type="xs:IDREF" use="optional">
  <xs:annotation>
    <xs:documentation>A pointer to the player on second base.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @runner-on-third
Namespace No namespace
Annotations
Whether or not a player is standing on third base. Either true or false.
Type xs:string
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="runner-on-third" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Whether or not a player is standing on third base. Either true or false.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @runner-on-third-idref
Namespace No namespace
Annotations
A pointer to the player on third base.
Type xs:IDREF
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="runner-on-third-idref" type="xs:IDREF" use="optional">
  <xs:annotation>
    <xs:documentation>A pointer to the player on third base.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @runs-this-inning-half
Namespace No namespace
Annotations
An integer.
Type xs:string
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="runs-this-inning-half" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>An integer.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @pitcher-idref
Namespace No namespace
Annotations
A pointer to the player element for the pitcher standing on the mound.
Type xs:IDREF
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="pitcher-idref" type="xs:IDREF" use="optional">
  <xs:annotation>
    <xs:documentation>A pointer to the player element for the pitcher standing on the mound.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @batter-idref
Namespace No namespace
Annotations
A pointer to the player element for the batter at the plate.
Type xs:IDREF
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="batter-idref" type="xs:IDREF" use="optional">
  <xs:annotation>
    <xs:documentation>A pointer to the player element for the batter at the plate.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @batter-side
Namespace No namespace
Annotations
Which side of the plate the batter was on when taking the pitch.
Type bodySideList
Properties
use optional
Facets
enumeration right
enumeration left
enumeration both
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="batter-side" type="bodySideList" use="optional">
  <xs:annotation>
    <xs:documentation>Which side of the plate the batter was on when taking the pitch.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateBaseball / @at-bat-number
Namespace No namespace
Annotations
Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.
Type xs:string
Properties
use optional
Used by
Attribute Group eventStateBaseball
Source
<xs:attribute name="at-bat-number" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballTeamMetadataComplexType / @probable-starting-pitcher-idref
Namespace No namespace
Annotations
ID of the pitcher who will probably start the game.
Type xs:IDREF
Properties
use optional
Used by
Source
<xs:attribute name="probable-starting-pitcher-idref" type="xs:IDREF" use="optional">
  <xs:annotation>
    <xs:documentation>ID of the pitcher who will probably start the game.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @average
Namespace No namespace
Annotations
Average number of hits per at-bats
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="average" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Average number of hits per at-bats</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @runs-scored
Namespace No namespace
Annotations
Number of runs scored
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="runs-scored" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of runs scored</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @at-bats
Namespace No namespace
Annotations
Number of at-bats  (Does not include walks or Sacrifice Hits)
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="at-bats" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of at-bats (Does not include walks or Sacrifice Hits)</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @hits
Namespace No namespace
Annotations
Number of hits
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="hits" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of hits</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @rbi
Namespace No namespace
Annotations
Number of runs batted in
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="rbi" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of runs batted in</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @total-bases
Namespace No namespace
Annotations
Calculated by hits + doubles + (triples times 2) + (home-runs times 3).
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="total-bases" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Calculated by hits + doubles + (triples times 2) + (home-runs times 3).</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @slugging-percentage
Namespace No namespace
Annotations
Total bases divided by at-bats.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="slugging-percentage" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Total bases divided by at-bats.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @bases-on-balls
Namespace No namespace
Annotations
Number of times batter was walked
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="bases-on-balls" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times batter was walked</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @bases-on-balls-rate
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="bases-on-balls-rate" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @bases-on-balls-intentional
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="bases-on-balls-intentional" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @strikeouts-against
Namespace No namespace
Annotations
Number of times batter struck out
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="strikeouts-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times batter struck out</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @strikeouts-looking
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="strikeouts-looking" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @outs-ground
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="outs-ground" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @outs-fly
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="outs-fly" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @left-on-base
Namespace No namespace
Annotations
Number of runners left on base
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="left-on-base" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of runners left on base</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @left-in-scoring-position
Namespace No namespace
Annotations
Number of runners left on second and/or third base
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="left-in-scoring-position" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of runners left on second and/or third base</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @singles
Namespace No namespace
Annotations
Number of hits off of which batter advances to first base
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="singles" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of hits off of which batter advances to first base</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @doubles
Namespace No namespace
Annotations
Number of hits off of which batter advances to second base
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="doubles" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of hits off of which batter advances to second base</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @triples
Namespace No namespace
Annotations
Number of hits off of which batter advances to third base
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="triples" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of hits off of which batter advances to third base</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @home-runs
Namespace No namespace
Annotations
Number of hits off of which batter advances to home plate
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="home-runs" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of hits off of which batter advances to home plate</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @home-runs-season
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="home-runs-season" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @grand-slams
Namespace No namespace
Annotations
Number of home runs with bases loaded
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="grand-slams" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of home runs with bases loaded</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @streak-hits
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="streak-hits" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @hits-event-winning
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="hits-event-winning" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @at-bats-per-rbi
Namespace No namespace
Annotations
RBI per at-bat ratio
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="at-bats-per-rbi" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>RBI per at-bat ratio</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @plate-appearances-per-rbi
Namespace No namespace
Annotations
Plate appearances per at-bat ratio
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="plate-appearances-per-rbi" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Plate appearances per at-bat ratio</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @at-bats-per-home-run
Namespace No namespace
Annotations
Home runs per at-bat ratio
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="at-bats-per-home-run" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Home runs per at-bat ratio</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @plate-appearances-per-home-run
Namespace No namespace
Annotations
Plate appearances per home run ratio
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="plate-appearances-per-home-run" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Plate appearances per home run ratio</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @sac-flies
Namespace No namespace
Annotations
Number of hits resulting in batter out which advance base runner(s)
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="sac-flies" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of hits resulting in batter out which advance base runner(s)</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @sac-bunts
Namespace No namespace
Annotations
Number of bunts resulting in batter out which advance base runner(s)
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="sac-bunts" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of bunts resulting in batter out which advance base runner(s)</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @sacrifices
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="sacrifices" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @grounded-into-double-play
Namespace No namespace
Annotations
Number of ground balls which result in batter and base runner outs
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="grounded-into-double-play" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of ground balls which result in batter and base runner outs</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @hit-into-double-play
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="hit-into-double-play" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @moved-up
Namespace No namespace
Annotations
Number of times runner advances to another base
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="moved-up" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times runner advances to another base</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @on-base-percentage
Namespace No namespace
Annotations
Calculated as follows: (hits + bases-on-balls + hit-by-pitch) / (at-bats + bases-on-balls + hit-by-pitch + sac-flies)
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="on-base-percentage" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Calculated as follows: (hits + bases-on-balls + hit-by-pitch) / (at-bats + bases-on-balls + hit-by-pitch + sac-flies)</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @stolen-bases
Namespace No namespace
Annotations
Number of successfully stolen bases.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="stolen-bases" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of successfully stolen bases.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @stolen-bases-caught
Namespace No namespace
Annotations
Number of times the runner was caught while trying to steal bases.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="stolen-bases-caught" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times the runner was caught while trying to steal bases.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @stolen-bases-average
Namespace No namespace
Annotations
Success rate for stealing bases.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="stolen-bases-average" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Success rate for stealing bases.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @hit-by-pitch
Namespace No namespace
Annotations
Number of times batter hit by pitch
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="hit-by-pitch" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times batter hit by pitch</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @reached-base-defensive-interference
Namespace No namespace
Annotations
The number of times the player reached a base due to interference by the defense.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="reached-base-defensive-interference" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>The number of times the player reached a base due to interference by the defense.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @reached-base-error
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="reached-base-error" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @reached-base-fielder-choice
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="reached-base-fielder-choice" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @on-base-plus-slugging
Namespace No namespace
Annotations
Calculated by adding on-base-percentage to slugging-percentage.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="on-base-plus-slugging" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Calculated by adding on-base-percentage to slugging-percentage.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @plate-appearances
Namespace No namespace
Annotations
Calculated by adding at-bats, bases-on-balls, hit-by-pitch, sac-flies, sac-bunts, and defensive-interfance-reaches.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="plate-appearances" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Calculated by adding at-bats, bases-on-balls, hit-by-pitch, sac-flies, sac-bunts, and defensive-interfance-reaches.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @hits-extra-base
Namespace No namespace
Annotations
Calculated by adding doubles, triples, and home-runs.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="hits-extra-base" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Calculated by adding doubles, triples, and home-runs.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @strikeout-rate
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="strikeout-rate" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @double-plays-against
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="double-plays-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @triple-plays-against
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="triple-plays-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @pick-offs-against
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="pick-offs-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsOffensiveComplexType / @games-played
Namespace No namespace
Annotations
Number of games played.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="games-played" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of games played.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @runs-allowed
Namespace No namespace
Annotations
Number of runs against
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="runs-allowed" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of runs against</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @home-runs-allowed
Namespace No namespace
Annotations
Number of home runs against
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="home-runs-allowed" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of home runs against</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @sacrifice-bunts-allowed
Namespace No namespace
Annotations
Number of sacrifice bunts against
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="sacrifice-bunts-allowed" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of sacrifice bunts against</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @sacrifice-hits-allowed
Namespace No namespace
Annotations
Number of sacrifice hits against
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="sacrifice-hits-allowed" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of sacrifice hits against</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @interferences
Namespace No namespace
Annotations
Number of interference or obstruction calls
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="interferences" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of interference or obstruction calls</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @innings-pitched
Namespace No namespace
Annotations
Number of innings pitched
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="innings-pitched" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of innings pitched</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @innings-pitched-average
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="innings-pitched-average" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @hits-allowed
Namespace No namespace
Annotations
Number of hits against
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="hits-allowed" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of hits against</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @earned-runs
Namespace No namespace
Annotations
Number of earned runs against
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="earned-runs" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of earned runs against</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @unearned-runs
Namespace No namespace
Annotations
Number of unearned runs against
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="unearned-runs" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of unearned runs against</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @bases-on-balls-allowed
Namespace No namespace
Annotations
Number of earned walks allowed
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="bases-on-balls-allowed" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of earned walks allowed</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @bases-on-balls-intentional-pitcher
Namespace No namespace
Annotations
Number of batters intentionally walked
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="bases-on-balls-intentional-pitcher" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of batters intentionally walked</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @strikeouts
Namespace No namespace
Annotations
Number of earned strikeouts
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="strikeouts" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of earned strikeouts</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @strikeout-to-bb-ratio
Namespace No namespace
Annotations
Strikeout to walks ratio
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="strikeout-to-bb-ratio" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Strikeout to walks ratio</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @number-of-pitches
Namespace No namespace
Annotations
Number of pitches thrown
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="number-of-pitches" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of pitches thrown</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @number-of-strikes
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="number-of-strikes" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @era
Namespace No namespace
Annotations
Earned run average: Number of earned runs divided by number of innings pitched multiplied by nine
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="era" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Earned run average: Number of earned runs divided by number of innings pitched multiplied by nine</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @whip
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="whip" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @inherited-runners-scored
Namespace No namespace
Annotations
Number of runners which a previous pitcher allowed on base which scored
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="inherited-runners-scored" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of runners which a previous pitcher allowed on base which scored</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @pick-offs
Namespace No namespace
Annotations
The number of times the pitcher caught a player trying to steal, before making the pitch.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="pick-offs" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>The number of times the pitcher caught a player trying to steal, before making the pitch.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @errors-hit-with-pitch
Namespace No namespace
Annotations
Number of times pitcher hits batter with pitch
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="errors-hit-with-pitch" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times pitcher hits batter with pitch</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @errors-wild-pitch
Namespace No namespace
Annotations
Number of wild pitches thrown
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="errors-wild-pitch" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of wild pitches thrown</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @balks
Namespace No namespace
Annotations
Number of balks
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="balks" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of balks</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @wins
Namespace No namespace
Annotations
Number of games pitcher has won
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="wins" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of games pitcher has won</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @losses
Namespace No namespace
Annotations
Number of games pitcher has lost
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="losses" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of games pitcher has lost</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @saves
Namespace No namespace
Annotations
Number of games pitcher has saved
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="saves" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of games pitcher has saved</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @holds
Namespace No namespace
Annotations
Number of games relief pitcher has held the lead
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="holds" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of games relief pitcher has held the lead</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @saves-blown
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="saves-blown" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @saves-tough
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="saves-tough" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @saves-opportunities
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="saves-opportunities" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @relief-points
Namespace No namespace
Annotations
Formula for rating relief performances. 4 points for a tough save; 3 points for a save; 2 for a relief win; minus 2 for a relief loss and blown save.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="relief-points" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Formula for rating relief performances. 4 points for a tough save; 3 points for a save; 2 for a relief win; minus 2 for a relief loss and blown save.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @shutouts
Namespace No namespace
Annotations
Number of games pitched in which opposing team did not score
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="shutouts" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of games pitched in which opposing team did not score</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @games-complete
Namespace No namespace
Annotations
Number of complete games pitched
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="games-complete" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of complete games pitched</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @games-finished
Namespace No namespace
Annotations
Number of games pitched to the end
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="games-finished" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of games pitched to the end</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @games-pitched
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="games-pitched" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @winning-percentage
Namespace No namespace
Annotations
Calculated by wins divided by (wins + losses).
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="winning-percentage" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Calculated by wins divided by (wins + losses).</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @event-credit
Namespace No namespace
Annotations
Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)
Type restriction of xs:string
Properties
use optional
Facets
enumeration win
enumeration loss
enumeration save
Used by
Source
<xs:attribute name="event-credit" use="optional">
  <xs:annotation>
    <xs:documentation>Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="win"/>
      <xs:enumeration value="loss"/>
      <xs:enumeration value="save"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @save-credit
Namespace No namespace
Annotations
Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)
Type restriction of xs:string
Properties
use optional
Facets
enumeration hold
enumeration blown
enumeration save
Used by
Source
<xs:attribute name="save-credit" use="optional">
  <xs:annotation>
    <xs:documentation>Whether a pitcher has received credit for winning or losing the game. TBD. Controlled Vocabulary. (win|loss|save|blown-save|win-blown-save|loss-blown-save|hold-win|hold-loss)</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="hold"/>
      <xs:enumeration value="blown"/>
      <xs:enumeration value="save"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @batters-average-against
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="batters-average-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @batters-at-bats-against
Namespace No namespace
Annotations
Number of batters faced who were credited with at-bats.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="batters-at-bats-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of batters faced who were credited with at-bats.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @batters-total-against
Namespace No namespace
Annotations
Total number of batters faced.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="batters-total-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Total number of batters faced.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @batters-total-bases-against
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="batters-total-bases-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @batters-slugging-percentage-against
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="batters-slugging-percentage-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @batters-on-base-percentage-against
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="batters-on-base-percentage-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @batters-doubles-against
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="batters-doubles-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @batters-triples-against
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="batters-triples-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @batters-home-runs-against
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="batters-home-runs-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @inherited-runners-total
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="inherited-runners-total" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @sacrifice-flies-allowed
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="sacrifice-flies-allowed" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsPitchingComplexType / @shutouts-combined
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="shutouts-combined" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @double-plays
Namespace No namespace
Annotations
Number of times two runners thrown out at the base.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="double-plays" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times two runners thrown out at the base.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @triple-plays
Namespace No namespace
Annotations
Number of times three runners thrown out at the base.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="triple-plays" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times three runners thrown out at the base.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @putouts
Namespace No namespace
Annotations
Number of times a fielder caught a fly ball for an out.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="putouts" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times a fielder caught a fly ball for an out.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @assists
Namespace No namespace
Annotations
Number of plays in which a fielder throws a ball to another fielder for the out.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="assists" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of plays in which a fielder throws a ball to another fielder for the out.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @errors
Namespace No namespace
Annotations
Number of plays in which a fielder committed an error, such as dropping a ball.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="errors" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of plays in which a fielder committed an error, such as dropping a ball.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @fielding-chances
Namespace No namespace
Annotations
TBD.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="fielding-chances" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>TBD.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @fielding-percentage
Namespace No namespace
Annotations
A measure of fielding success. Calculated as follows: (putouts + assists) / (putouts + assists + errors).
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="fielding-percentage" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>A measure of fielding success. Calculated as follows: (putouts + assists) / (putouts + assists + errors).</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @defensive-average
Namespace No namespace
Annotations
Rate a fielder turns a bill hit to their area into an out.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="defensive-average" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Rate a fielder turns a bill hit to their area into an out.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @errors-passed-ball
Namespace No namespace
Annotations
Number of times a catcher is faulted with letting a pitched ball go past.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="errors-passed-ball" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times a catcher is faulted with letting a pitched ball go past.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @errors-catchers-interference
Namespace No namespace
Annotations
Number of times a catcher has improperly interfered with play.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="errors-catchers-interference" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times a catcher has improperly interfered with play.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @stolen-bases-against
Namespace No namespace
Annotations
Number of bases successfully stolen while this player was on the field.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="stolen-bases-against" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of bases successfully stolen while this player was on the field.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @stolen-bases-caught-defense
Namespace No namespace
Annotations
Number of times a runner was caught while trying to steal bases while this player was on the field.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="stolen-bases-caught-defense" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of times a runner was caught while trying to steal bases while this player was on the field.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @stolen-bases-average-defense
Namespace No namespace
Annotations
Success rate for stealing bases while this player was on the field.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="stolen-bases-average-defense" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Success rate for stealing bases while this player was on the field.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @innings-played
Namespace No namespace
Annotations
Number of innings played at the named position.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="innings-played" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of innings played at the named position.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballStatsDefensiveComplexType / @games-played-position
Namespace No namespace
Annotations
Number of games played at the named position.
Type xs:string
Properties
use optional
Used by
Source
<xs:attribute name="games-played-position" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of games played at the named position.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballPlayerMetadataComplexType / @batting-hand
Namespace No namespace
Annotations
Indicates whether player bats left, right, or is a switch-hitter.
Type bodySideList
Properties
use optional
Facets
enumeration right
enumeration left
enumeration both
Used by
Source
<xs:attribute name="batting-hand" type="bodySideList" use="optional">
  <xs:annotation>
    <xs:documentation>Indicates whether player bats left, right, or is a switch-hitter.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute baseballPlayerMetadataComplexType / @throwing-hand
Namespace No namespace
Annotations
Indicates whether player throws left, right, or is a switch-thrower.
Type bodySideList
Properties
use optional
Facets
enumeration right
enumeration left
enumeration both
Used by
Source
<xs:attribute name="throwing-hand" type="bodySideList" use="optional">
  <xs:annotation>
    <xs:documentation>Indicates whether player throws left, right, or is a switch-thrower.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute Group eventStateBaseball
Namespace http://iptc.org/std/nar/2006-10-01/
Diagram
Diagram sportsml-specific-baseball_xsd.tmp#eventStateBaseball_inning-value sportsml-specific-baseball_xsd.tmp#eventStateBaseball_inning-half sportsml-specific-baseball_xsd.tmp#eventStateBaseball_outs sportsml-specific-baseball_xsd.tmp#eventStateBaseball_balls sportsml-specific-baseball_xsd.tmp#eventStateBaseball_strikes sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-first sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-first-idref sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-second sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-second-idref sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-third sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runner-on-third-idref sportsml-specific-baseball_xsd.tmp#eventStateBaseball_runs-this-inning-half sportsml-specific-baseball_xsd.tmp#eventStateBaseball_pitcher-idref sportsml-specific-baseball_xsd.tmp#eventStateBaseball_batter-idref sportsml-specific-baseball_xsd.tmp#eventStateBaseball_batter-side sportsml-specific-baseball_xsd.tmp#eventStateBaseball_at-bat-number
Used by
Attributes
QName Type Use Annotation
at-bat-number xs:string optional
Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.
balls xs:string optional
Either 1, 2, 3, or 4.
batter-idref xs:IDREF optional
A pointer to the player element for the batter at the plate.
batter-side bodySideList optional
Which side of the plate the batter was on when taking the pitch.
inning-half restriction of xs:string optional
Either top or bottom.
inning-value xs:string optional
An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.
outs xs:string optional
Either 1, 2, or 3.
pitcher-idref xs:IDREF optional
A pointer to the player element for the pitcher standing on the mound.
runner-on-first xs:string optional
Whether or not a player is standing on first base. Either true or false.
runner-on-first-idref xs:IDREF optional
A pointer to the player on first base.
runner-on-second xs:string optional
Whether or not a player is standing on second base. Either true or false.
runner-on-second-idref xs:IDREF optional
A pointer to the player on second base.
runner-on-third xs:string optional
Whether or not a player is standing on third base. Either true or false.
runner-on-third-idref xs:IDREF optional
A pointer to the player on third base.
runs-this-inning-half xs:string optional
An integer.
strikes xs:string optional
Either 1, 2, or 3.
Source
<xs:attributeGroup name="eventStateBaseball">
  <xs:attribute name="inning-value" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>An integer. 1 through 9 for the main innings. 10, 11, 12, etc. for extra innings.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="inning-half" use="optional">
    <xs:annotation>
      <xs:documentation>Either top or bottom.</xs:documentation>
    </xs:annotation>
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="top"/>
        <xs:enumeration value="bottom"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="outs" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Either 1, 2, or 3.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="balls" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Either 1, 2, 3, or 4.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="strikes" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Either 1, 2, or 3.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="runner-on-first" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Whether or not a player is standing on first base. Either true or false.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="runner-on-first-idref" type="xs:IDREF" use="optional">
    <xs:annotation>
      <xs:documentation>A pointer to the player on first base.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="runner-on-second" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Whether or not a player is standing on second base. Either true or false.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="runner-on-second-idref" type="xs:IDREF" use="optional">
    <xs:annotation>
      <xs:documentation>A pointer to the player on second base.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="runner-on-third" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Whether or not a player is standing on third base. Either true or false.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="runner-on-third-idref" type="xs:IDREF" use="optional">
    <xs:annotation>
      <xs:documentation>A pointer to the player on third base.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="runs-this-inning-half" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>An integer.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="pitcher-idref" type="xs:IDREF" use="optional">
    <xs:annotation>
      <xs:documentation>A pointer to the player element for the pitcher standing on the mound.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="batter-idref" type="xs:IDREF" use="optional">
    <xs:annotation>
      <xs:documentation>A pointer to the player element for the batter at the plate.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="batter-side" type="bodySideList" use="optional">
    <xs:annotation>
      <xs:documentation>Which side of the plate the batter was on when taking the pitch.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="at-bat-number" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Incremented throughout game on a per-team basis. A perfect game would have at-bat-number go from 1 to 27 for the team that didn't get any hits.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>
