Included schema NewsML-G2_2.22-spec-All-Power.xsd
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
NewsML-G2 2.22 XML Schema, document version 1
Date of creation/approval of this XML Schema version: 2015-10-26
Any changes applied to this version of the XML Schema can be found at http://dev.iptc.org/G2-Approved-Changes
Date of creation of this XML Schema document version: 2015-12-01
Schema design created for the IPTC in 2008 by Jay Cousins, RivCom Ltd (jay.cousins@rivcom.com),  Ulf Wingstedt, CNet Svenska AB (ulf.wingstedt@cnet.se)
Schema maintained for the IPTC by Michael Steidl (IPTC), prior to 2009 by Laurent Le Meur (AFP)
NewsML-G2 2.21 News Architecture (NAR) for IPTC G2-Standards - Framework XML Schema, document version 1
Date of creation/approval of this XML Schema version: 2015-06-03
Any changes applied to this version of the XML Schema can be found at http://dev.iptc.org/G2-Approved-Changes
Date of creation of this XML Schema document version: 2015-06-19
Schema design created for the IPTC in 2008 by Jay Cousins, RivCom Ltd (jay.cousins@rivcom.com),  Ulf Wingstedt, CNet Svenska AB (ulf.wingstedt@cnet.se)
Schema maintained for the IPTC by Michael Steidl (IPTC), prior to 2009 by Laurent Le Meur (AFP)
NewsML-G2 2.11: catalog's child element scheme: name, definition and note added as children, 2.15: attributes url, authority, guid, version added. scheme: schemeName, schemeDefinition, schemeNote added, name, definition, note deprecate
NewsML-G2 2.11: catalogRef was made a global declaration
NewsML-G2 2.11: rightsInfo was made a global declaration
NewsML-G2 2.12: link property added to RightsInfoType

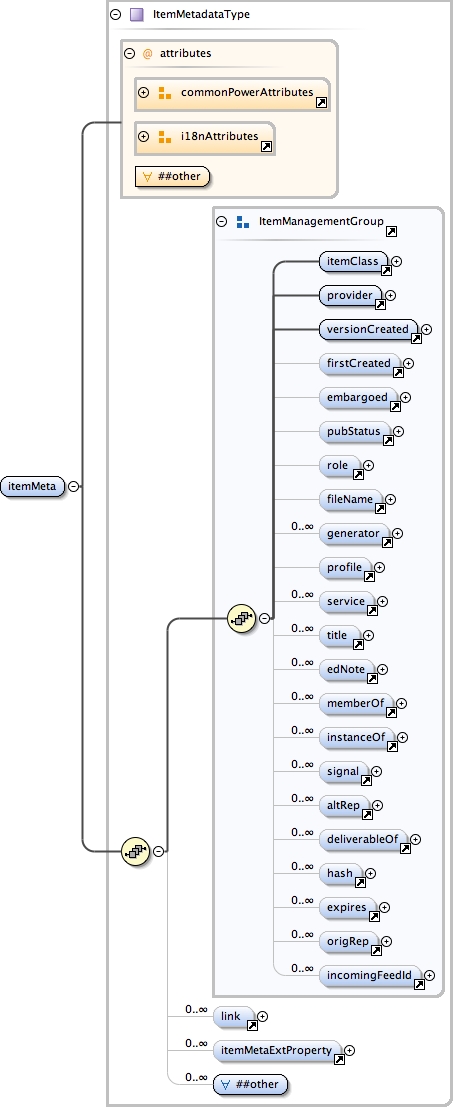

NewsML-G2 2.11: itemMeta was made a global declaration
NAR 1.5_1: ItemMetadataType - card of generator changed.

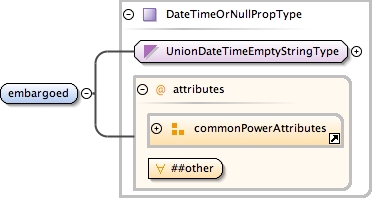

NAR 1.4_1: embargoed datatype changed to DateTimeOrNullPropType
NAR-1.5_1: generator: @role added
NAR 1.8_1: add deliverableOf

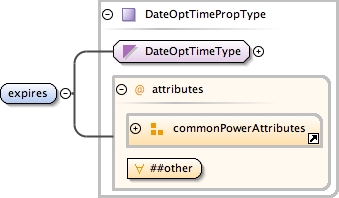

NewsML-G2 2.17: expires added

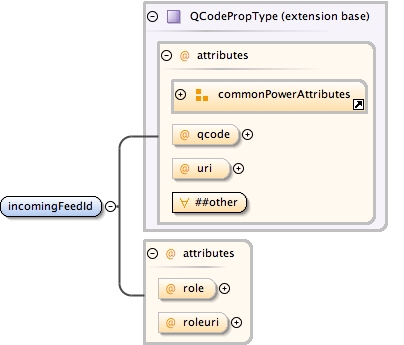

NewsML-G2 2.20: origRep and incomingFeedId added

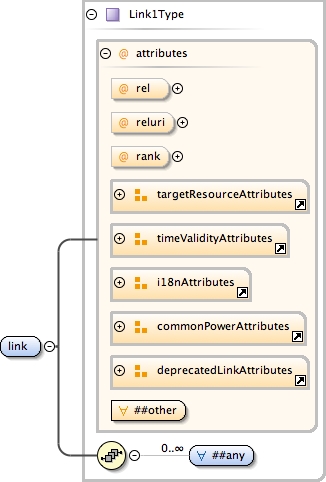

NewsML-G2 2.11: link was made a global declaration

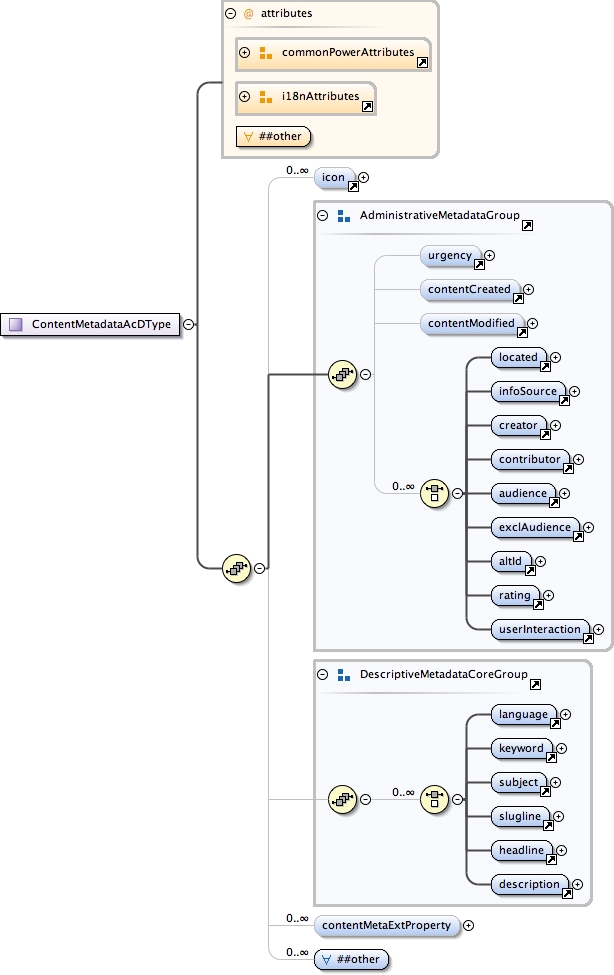

NAR 1.8_1: ContentMetadataAcDType added

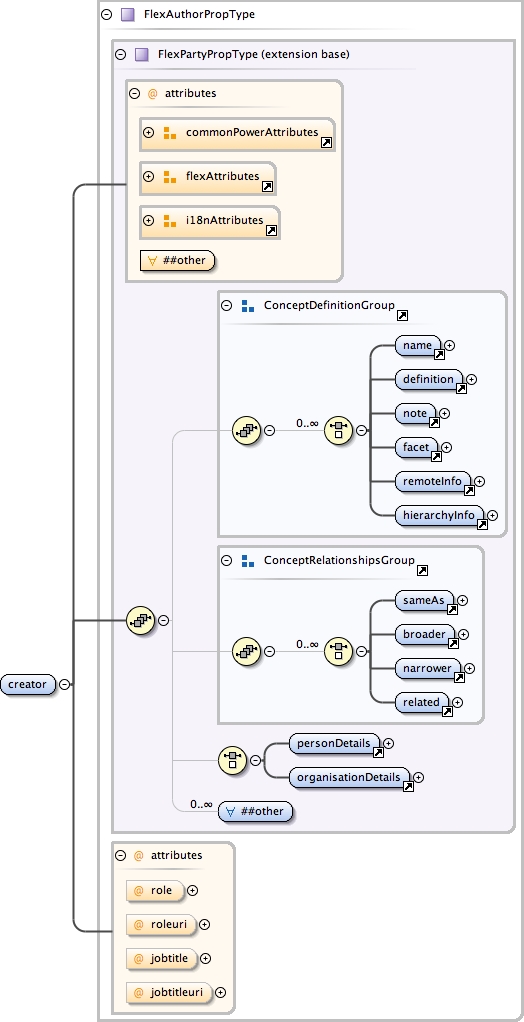

NAR-1.3_2: add @jobtitle to creator

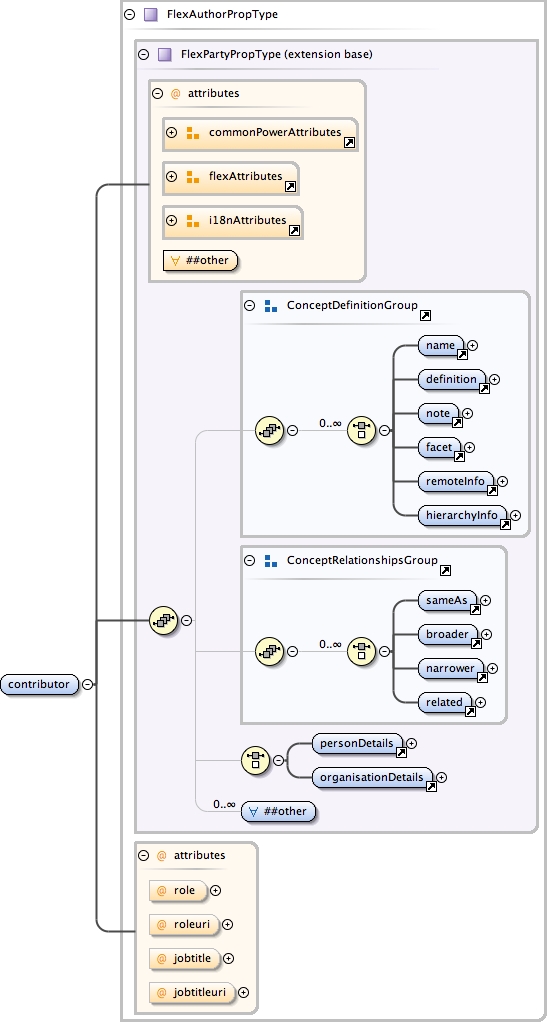

NAR-1.3_2: add @jobtitle to contributor
NewsML-G2 2.11: rating and userinteraction added
NAR-1.5_1: keyword element added

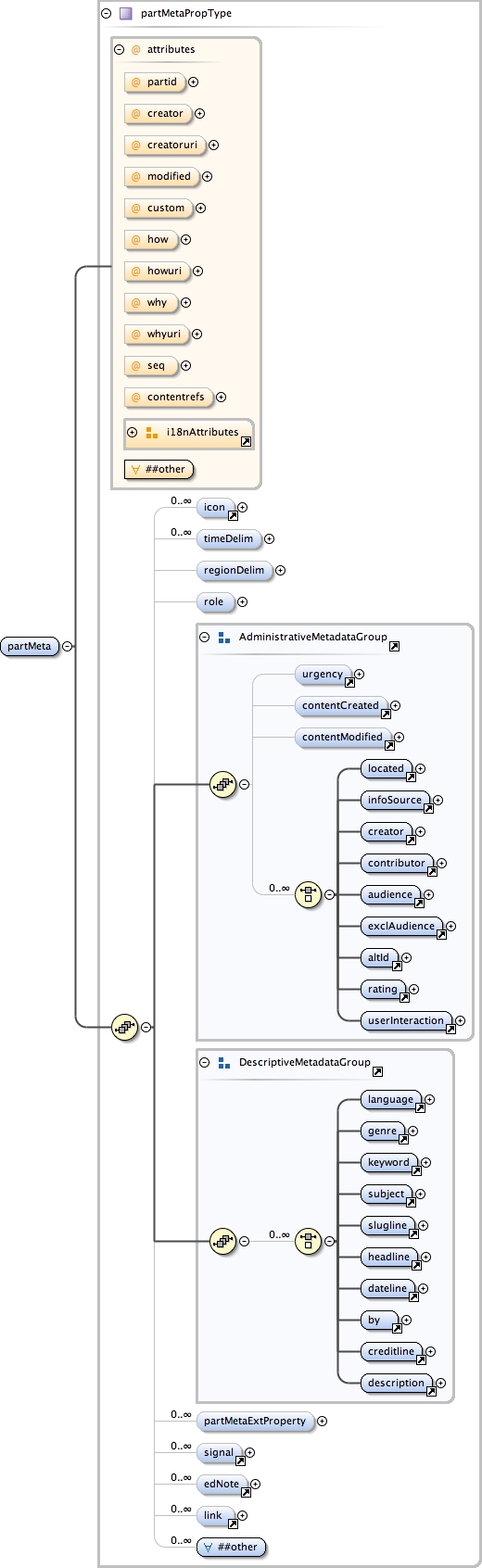

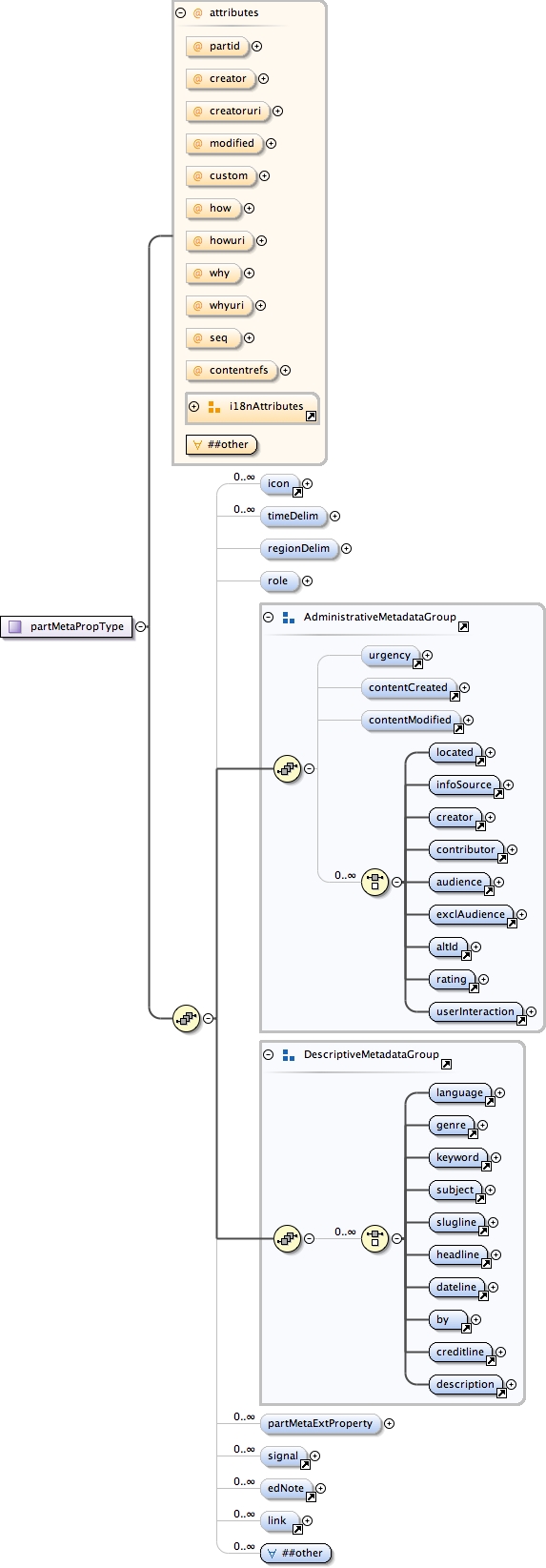

NewsML-G2 2.13: partMetaPropType fleshed out from partMeta. v2.18: signal added, v2.21: edNote, link added

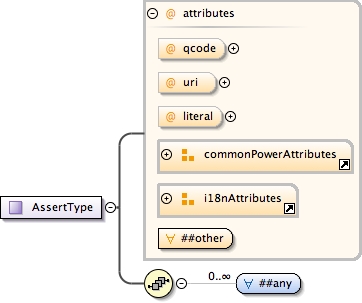

NAR-1.5_1: AssertType changed

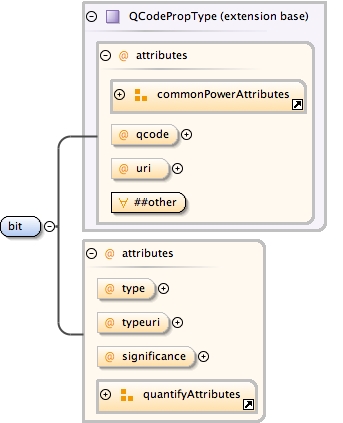

NAR 1.8_2: bit extended by @type, Quantify Attributes Group

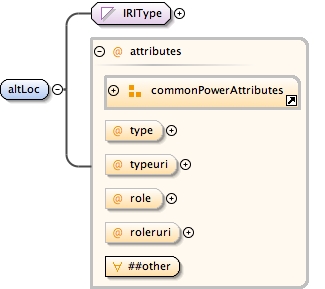

NAR-1.3_4: create altLoc
NAR 1.6_1: hierarchyInfor added
NewsML-G2 2.11: conceptId was made a global declaration
NewsML-G2 2.11: type was made a global declaration

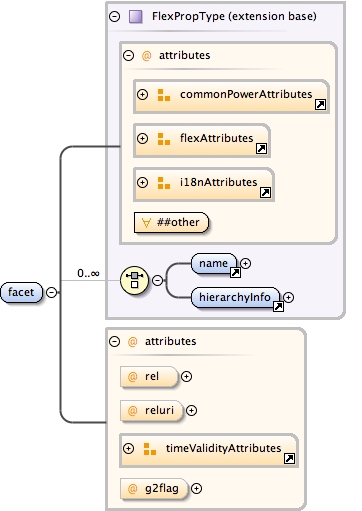

NAR 1.3_3: facet type changed from TypedQualPropType to FlexPropType (erratum) NAR 1.8: use of facet deprecated
NAR 1.4_1: remoteInfo added
NAR1.8_2: "related" element added/NAR 1.10=NewsML-G2 2.9 "related" element made local to avoid recursion (erratum)

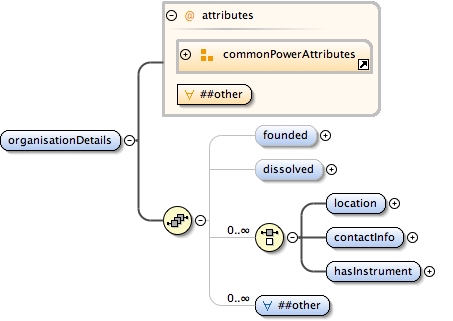

NewsML-G2 2.12: element hasInstrument added to organisationDetails, v2.19: hasInstrument/@rank added

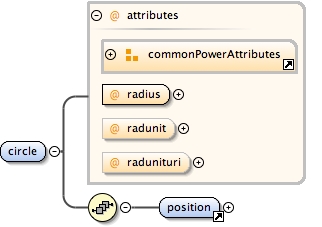

NewsML-G2 2.12: elements line, circle, polygon added to geoAreaDetails

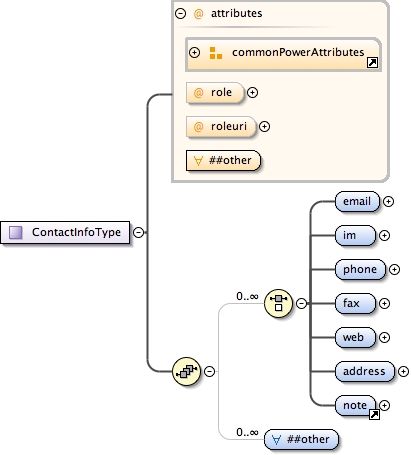

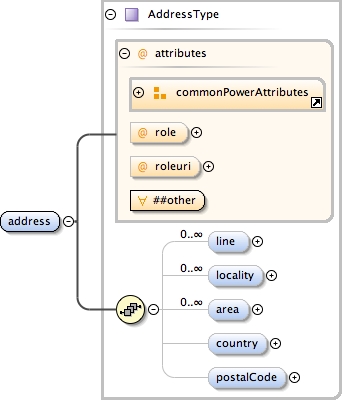

NewsML-G2 2.11: AddressType created from contactInfoType.address for generic use
NewsML-G2 2.12: line, locality, area: @role added / locality, area: cardinality opened to "unbounded"
NewsML-G2 2.11: group commonPowerAttributes added
NewsML-G2 2.10: quantifyAttributes extended by @derivedfrom, v 2.12: use of @derivedfrom DEPRECATED, use element derivedFrom

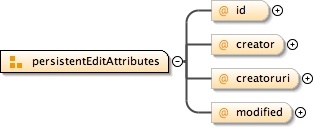

NAR 1.8_1: added persistentEditAttributes
NAR 1.8_1: added arbitraryValueAttributes
mediaContentCharacteristics1: NewsML-G2 2.10: @orientation, @colourspace, @colourinidcator, @videocoded added, 2.13: colourdepth, 2.14 layoutorientation  added

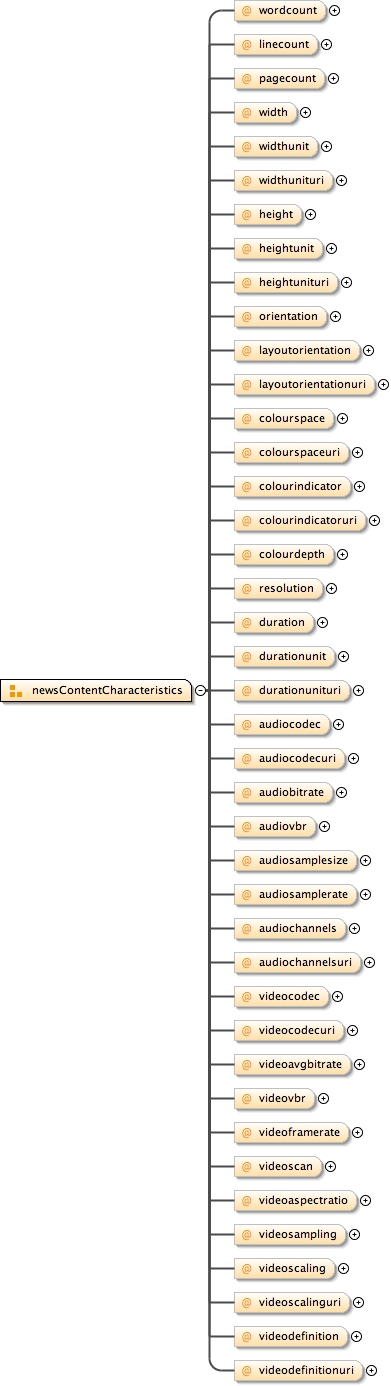

NewsML-G2 2.3r1: newsContentCharacteristics: @durationUnit added, NewsML-G2 2.4: @widthunit, @heightunit added
newsContentCharacteristics: @duration data type changed in 2.14, v 2.18: linecount, pagecount added and moved over from NewsItem file
NAR 1.4_1: added UnionDateTimeEmptyStringType
NAR 1.4_1: added EmptyStringType

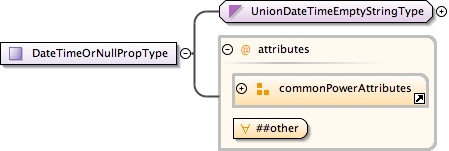

NAR 1.4_1: added DateTimeOrNullPropType
NewsML-G2 2.10: FlexProp2Type added

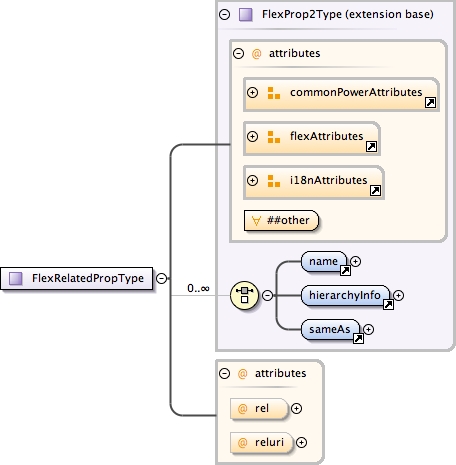

NAR 1.8_1: FlexRelatedPropType added, NewsML-G2 2.10: extended base type change to FlexProp2Type

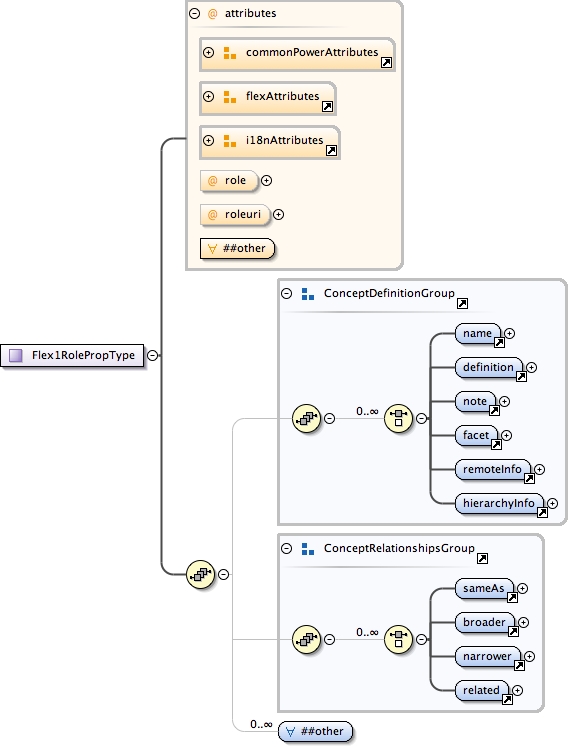

NewsML-G2 2.12: Flex1RolePropType added

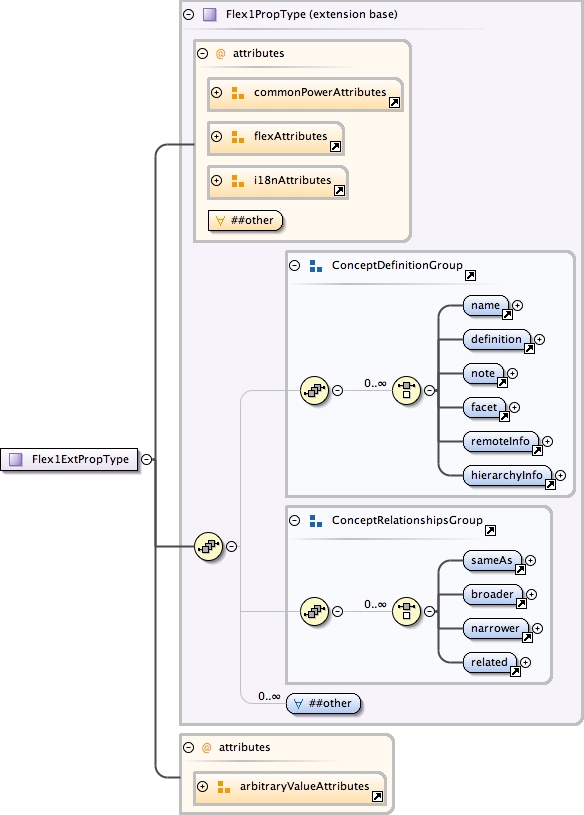

NAR 1.10=NewsML-G2 2.9: Flex1ExtProp type added - recommended as datatype for proprietary properties of Extension Points
NewsML-G2 2.17: Flex2ExtPropType added
NAR 1.3_2: add @jobtitle to creator and contributor
Properties
attribute form default: unqualified
element form default: qualified
version: 2.22
Element catalogRef
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A reference to a remote catalog. A hyperlink to a set of scheme alias declarations.

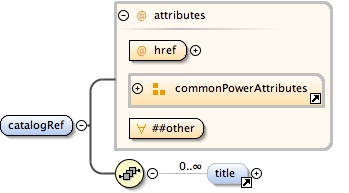

Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#catalogRef_href NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#title
Properties
content: complex
Used by
Model title*
Children title
Instance
<catalogRef creator="" creatoruri="" custom="" how="" howuri="" href="" id="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="" xmlns="http://iptc.org/std/nar/2006-10-01/">
  <title creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" media="" modified="" pubconstraint="" pubconstrainturi="" role="" roleuri="" why="" whyuri="">{0,unbounded}</title>
</catalogRef>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
href IRIType required
A hyperlink to a remote Catalog.
id xs:ID optional
The local identifier of the property.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
Source
<xs:element name="catalogRef">
  <xs:annotation>
    <xs:documentation>A reference to a remote catalog. A hyperlink to a set of scheme alias declarations.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="title" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>A short natural language name for the catalog.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="href" type="IRIType" use="required">
      <xs:annotation>
        <xs:documentation>A hyperlink to a remote Catalog.</xs:documentation>
      </xs:annotation>
    </xs:attribute>

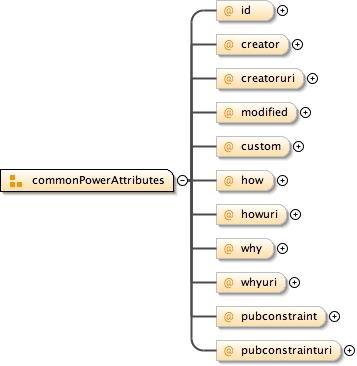

    <xs:attributeGroup ref="commonPowerAttributes"/>
    <xs:anyAttribute namespace="##other" processContents="lax">
      <xs:annotation>
        <xs:documentation>Any other attributes from other namespaces.</xs:documentation>
      </xs:annotation>
    </xs:anyAttribute>
  </xs:complexType>
</xs:element>

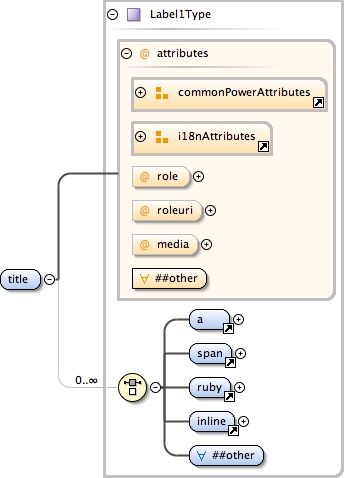

Element title
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A short, natural-language name
Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#Label1Type_role NewsML-G2_2_22-spec-All-Power_xsd.tmp#Label1Type_roleuri NewsML-G2_2_22-spec-All-Power_xsd.tmp#Label1Type_media NewsML-G2_2_22-spec-All-Power_xsd.tmp#a NewsML-G2_2_22-spec-All-Power_xsd.tmp#span NewsML-G2_2_22-spec-All-Power_xsd.tmp#ruby NewsML-G2_2_22-spec-All-Power_xsd.tmp#inline NewsML-G2_2_22-spec-All-Power_xsd.tmp#Label1Type

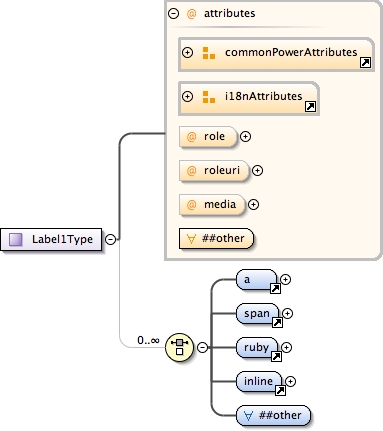

Type Label1Type
Properties
content: complex
mixed: true
Used by
Model a | span | ruby | inline | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children a, inline, ruby, span
Instance
<title creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" media="" modified="" pubconstraint="" pubconstrainturi="" role="" roleuri="" why="" whyuri="" xmlns="http://iptc.org/std/nar/2006-10-01/">
  <a class="" creator="" creatoruri="" custom="" dir="" how="" howuri="" href="" hreflang="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" rel="" rev="" why="" whyuri="">{1,1}</a>
  <span class="" creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</span>

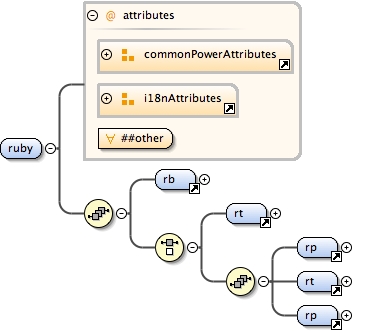

  <ruby creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</ruby>
  <inline class="" confidence="" creator="" creatoruri="" custom="" derivedfrom="" dir="" how="" howuri="" id="" xml:lang="" literal="" modified="" pubconstraint="" pubconstrainturi="" qcode="" relevance="" type="" typeuri="" uri="" why="" whyuri="">{1,1}</inline>
</title>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
media xs:NMTOKENS optional
An indication of the target media type(s), values as defined by the Cascading Style Sheets specification [CSS].
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
role QCodeListType optional
A refinement of the semantics of the label - expressed by a QCode
roleuri IRIListType optional
A refinement of the semantics of the label - expressed by a URI
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="title" type="Label1Type">
  <xs:annotation>
    <xs:documentation>A short, natural-language name</xs:documentation>
  </xs:annotation>
</xs:element>
Element a
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An anchor for inline linking like in HTML
Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#a_class NewsML-G2_2_22-spec-All-Power_xsd.tmp#a_href NewsML-G2_2_22-spec-All-Power_xsd.tmp#a_hreflang NewsML-G2_2_22-spec-All-Power_xsd.tmp#a_rel NewsML-G2_2_22-spec-All-Power_xsd.tmp#a_rev NewsML-G2_2_22-spec-All-Power_xsd.tmp#inline NewsML-G2_2_22-spec-All-Power_xsd.tmp#span NewsML-G2_2_22-spec-All-Power_xsd.tmp#ruby
Properties
content: complex
mixed: true
Used by
Model inline | span | ruby | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children inline, ruby, span
Instance
<a class="" creator="" creatoruri="" custom="" dir="" how="" howuri="" href="" hreflang="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" rel="" rev="" why="" whyuri="" xmlns="http://iptc.org/std/nar/2006-10-01/">
  <inline class="" confidence="" creator="" creatoruri="" custom="" derivedfrom="" dir="" how="" howuri="" id="" xml:lang="" literal="" modified="" pubconstraint="" pubconstrainturi="" qcode="" relevance="" type="" typeuri="" uri="" why="" whyuri="">{1,1}</inline>
  <span class="" creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</span>
  <ruby creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</ruby>
</a>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
class xs:string optional
An equivalent of the html class attribute
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
href IRIType optional
An equivalent of the html href attribute
hreflang xs:string optional
An equivalent of the html hreflang attribute
id xs:ID optional
The local identifier of the property.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
rel xs:string optional
An equivalent of the html rel attribute
rev xs:string optional
An equivalent of the html rev attribute
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="a">
  <xs:annotation>
    <xs:documentation>An anchor for inline linking like in HTML</xs:documentation>
  </xs:annotation>
  <xs:complexType mixed="true">
    <xs:choice maxOccurs="unbounded">
      <xs:element ref="inline"/>
      <xs:element ref="span"/>
      <xs:element ref="ruby"/>
      <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
        </xs:annotation>
      </xs:any>
    </xs:choice>
    <xs:attributeGroup ref="commonPowerAttributes"/>
    <xs:attributeGroup ref="i18nAttributes"/>
    <xs:attribute name="class" type="xs:string" use="optional">
      <xs:annotation>
        <xs:documentation>An equivalent of the html class attribute</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="href" type="IRIType" use="optional">
      <xs:annotation>
        <xs:documentation>An equivalent of the html href attribute</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="hreflang" type="xs:string" use="optional">
      <xs:annotation>
        <xs:documentation>An equivalent of the html hreflang attribute</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="rel" type="xs:string" use="optional">
      <xs:annotation>
        <xs:documentation>An equivalent of the html rel attribute</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="rev" type="xs:string" use="optional">
      <xs:annotation>
        <xs:documentation>An equivalent of the html rev attribute</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>
Element inline
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An inline markup tag to be used with any concept
Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#flexAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#quantifyAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#inline_class NewsML-G2_2_22-spec-All-Power_xsd.tmp#span NewsML-G2_2_22-spec-All-Power_xsd.tmp#ruby
Properties
content: complex
mixed: true
Used by
Model span | ruby | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children ruby, span
Instance
<inline class="" confidence="" creator="" creatoruri="" custom="" derivedfrom="" dir="" how="" howuri="" id="" xml:lang="" literal="" modified="" pubconstraint="" pubconstrainturi="" qcode="" relevance="" type="" typeuri="" uri="" why="" whyuri="" xmlns="http://iptc.org/std/nar/2006-10-01/">
  <span class="" creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</span>
  <ruby creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</ruby>
</inline>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
class xs:string optional
An equivalent of the html class attribute
confidence Int100Type optional
The confidence with which the metadata has been assigned.
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
derivedfrom QCodeListType optional
A reference to the concept from which the concept identified by qcode was derived/inferred - use DEPRECATED in NewsML-G2 2.12 and higher, use the derivedFrom element
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
literal g2normalizedString optional
A free-text value assigned as property value.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
qcode QCodeType optional
A qualified code which identifies a concept.
relevance Int100Type optional
The relevance of the metadata to the news content to which it is attached.
type QCodeType optional
The type of the concept assigned as controlled property value - expressed by a QCode
typeuri IRIType optional
The type of the concept assigned as controlled property value - expressed by a URI
uri IRIType optional
A URI which identifies a concept.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="inline">
  <xs:annotation>
    <xs:documentation>An inline markup tag to be used with any concept</xs:documentation>
  </xs:annotation>
  <xs:complexType mixed="true">
    <xs:choice maxOccurs="unbounded">
      <xs:element ref="span"/>
      <xs:element ref="ruby"/>
      <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
        </xs:annotation>
      </xs:any>
    </xs:choice>
    <xs:attributeGroup ref="commonPowerAttributes"/>
    <xs:attributeGroup ref="flexAttributes"/>
    <xs:attributeGroup ref="i18nAttributes"/>
    <xs:attributeGroup ref="quantifyAttributes"/>
    <xs:attribute name="class" type="xs:string" use="optional">
      <xs:annotation>
        <xs:documentation>An equivalent of the html class attribute</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>
Element span
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A generic mechanism for adding inline information to parts of the textual content

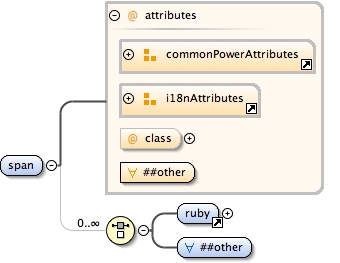

Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#span_class NewsML-G2_2_22-spec-All-Power_xsd.tmp#ruby
Properties
content: complex
mixed: true
Used by
Model ruby | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children ruby
Instance
<span class="" creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="" xmlns="http://iptc.org/std/nar/2006-10-01/">
  <ruby creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</ruby>
</span>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
class xs:string optional
An equivalent of the html class attribute
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="span">
  <xs:annotation>
    <xs:documentation>A generic mechanism for adding inline information to parts of the textual content</xs:documentation>
  </xs:annotation>
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="ruby"/>
      <xs:any namespace="##other" processContents="lax">
        <xs:annotation>
          <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
        </xs:annotation>
      </xs:any>
    </xs:choice>
    <xs:attributeGroup ref="commonPowerAttributes"/>
    <xs:attributeGroup ref="i18nAttributes"/>
    <xs:attribute name="class" type="xs:string" use="optional">
      <xs:annotation>
        <xs:documentation>An equivalent of the html class attribute</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>
Element ruby
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Simple W3C Ruby Annotation - see http://www.w3.org/TR/ruby/#simple-ruby1
Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#rb NewsML-G2_2_22-spec-All-Power_xsd.tmp#rt NewsML-G2_2_22-spec-All-Power_xsd.tmp#rp NewsML-G2_2_22-spec-All-Power_xsd.tmp#rt NewsML-G2_2_22-spec-All-Power_xsd.tmp#rp
Properties
content: complex
Used by
Model rb , (rt | (rp , rt , rp))
Children rb, rp, rt
Instance
<ruby creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="" xmlns="http://iptc.org/std/nar/2006-10-01/">
  <rb>{1,1}</rb>
  <rt>{1,1}</rt>
  <rp>{1,1}</rp>
  <rt>{1,1}</rt>
  <rp>{1,1}</rp>
</ruby>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="ruby">
  <xs:annotation>
    <xs:documentation>Simple W3C Ruby Annotation - see http://www.w3.org/TR/ruby/#simple-ruby1</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:annotation>
      <xs:documentation>Simple W3C Ruby Annotation - see http://www.w3.org/TR/ruby/.</xs:documentation>
    </xs:annotation>
    <xs:sequence>
      <xs:element ref="rb"/>
      <xs:choice>
        <xs:element ref="rt"/>
        <xs:sequence>
          <xs:element ref="rp"/>
          <xs:element ref="rt"/>
          <xs:element ref="rp"/>
        </xs:sequence>
      </xs:choice>
    </xs:sequence>
    <xs:attributeGroup ref="commonPowerAttributes"/>
    <xs:attributeGroup ref="i18nAttributes"/>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>
Element rb
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Ruby base
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element ruby
Source
<xs:element name="rb" type="xs:string">
  <xs:annotation>
    <xs:documentation>Ruby base</xs:documentation>
  </xs:annotation>
</xs:element>
Element rt
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Ruby text
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element ruby
Source
<xs:element name="rt" type="xs:string">
  <xs:annotation>
    <xs:documentation>Ruby text</xs:documentation>
  </xs:annotation>
</xs:element>
Element rp
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Ruby parenthesis
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element ruby
Source
<xs:element name="rp" type="xs:string">
  <xs:annotation>
    <xs:documentation>Ruby parenthesis</xs:documentation>
  </xs:annotation>
  <!--NAR1.1 rev3 : correction. datatype is xs:string, not empty -->
</xs:element>

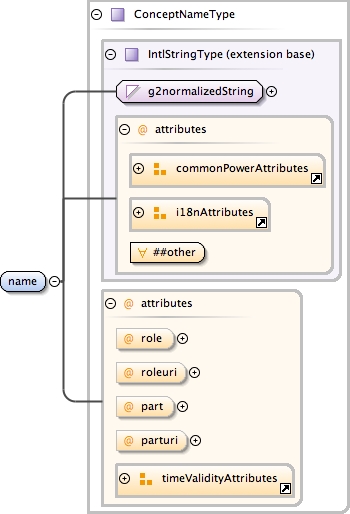

Element name
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A natural language name for the concept.
Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#g2normalizedString NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#IntlStringType NewsML-G2_2_22-spec-All-Power_xsd.tmp#ConceptNameType_role NewsML-G2_2_22-spec-All-Power_xsd.tmp#ConceptNameType_roleuri NewsML-G2_2_22-spec-All-Power_xsd.tmp#ConceptNameType_part NewsML-G2_2_22-spec-All-Power_xsd.tmp#ConceptNameType_parturi NewsML-G2_2_22-spec-All-Power_xsd.tmp#timeValidityAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#ConceptNameType
Type ConceptNameType
Type hierarchy
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
part QCodeType optional
Specifies which part of a full name this property provides - expressed by a QCode
parturi IRIType optional
Specifies which part of a full name this property provides - expressed by a URI
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
role QCodeListType optional
A refinement of the semantics of the name - expressed by a QCode
roleuri IRIListType optional
A refinement of the semantics of the name - expressed by a URI
validfrom DateOptTimeType optional
The date (and, optionally, the time) before which a relationship is not valid.
validto DateOptTimeType optional
The date (and, optionally, the time) after which a relationship is not valid.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="name" type="ConceptNameType">
  <xs:annotation>
    <xs:documentation>A natural language name for the concept.</xs:documentation>
  </xs:annotation>
  <!-- rev3: name, definition, note and facet made global -->
</xs:element>
Element definition
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A natural language definition of the semantics of the concept. This definition is normative only for the scope of the use of this concept.

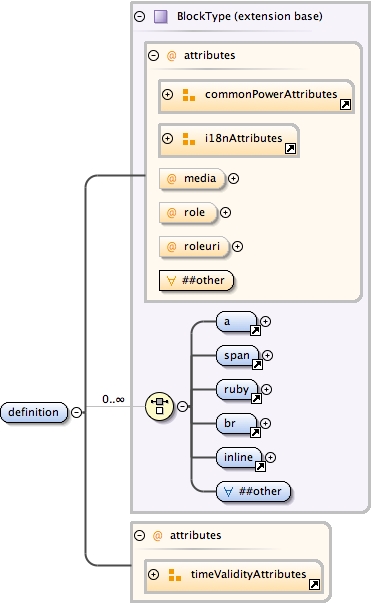

Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#BlockType_media NewsML-G2_2_22-spec-All-Power_xsd.tmp#BlockType_role NewsML-G2_2_22-spec-All-Power_xsd.tmp#BlockType_roleuri NewsML-G2_2_22-spec-All-Power_xsd.tmp#a NewsML-G2_2_22-spec-All-Power_xsd.tmp#span NewsML-G2_2_22-spec-All-Power_xsd.tmp#ruby NewsML-G2_2_22-spec-All-Power_xsd.tmp#br NewsML-G2_2_22-spec-All-Power_xsd.tmp#inline NewsML-G2_2_22-spec-All-Power_xsd.tmp#BlockType NewsML-G2_2_22-spec-All-Power_xsd.tmp#timeValidityAttributes

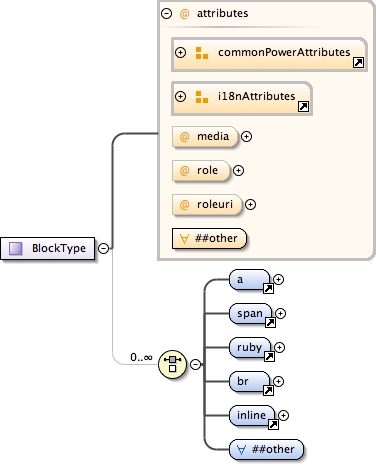

Type extension of BlockType
Type hierarchy
Properties
content: complex
mixed: true
Used by
Model a | span | ruby | br | inline | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children a, br, inline, ruby, span
Instance
<definition creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" media="" modified="" pubconstraint="" pubconstrainturi="" role="" roleuri="" validfrom="" validto="" why="" whyuri="" xmlns="http://iptc.org/std/nar/2006-10-01/">
  <a class="" creator="" creatoruri="" custom="" dir="" how="" howuri="" href="" hreflang="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" rel="" rev="" why="" whyuri="">{1,1}</a>
  <span class="" creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</span>
  <ruby creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</ruby>
  <br creator="" creatoruri="" custom="" how="" howuri="" id="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</br>
  <inline class="" confidence="" creator="" creatoruri="" custom="" derivedfrom="" dir="" how="" howuri="" id="" xml:lang="" literal="" modified="" pubconstraint="" pubconstrainturi="" qcode="" relevance="" type="" typeuri="" uri="" why="" whyuri="">{1,1}</inline>
</definition>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
media xs:NMTOKENS optional
An indication of the target media type(s)
values as defined by the Cascading Style Sheets (CSS) specification.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
role QCodeListType optional
A refinement of the semantics of the block.
roleuri IRIType optional
A URI identifying the refined semantics of the definition.
validfrom DateOptTimeType optional
The date (and, optionally, the time) before which a relationship is not valid.
validto DateOptTimeType optional
The date (and, optionally, the time) after which a relationship is not valid.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="definition">
  <xs:annotation>
    <xs:documentation>A natural language definition of the semantics of the concept. This definition is normative only for the scope of the use of this concept.</xs:documentation>
  </xs:annotation>
  <xs:complexType mixed="true">
    <xs:complexContent>
      <xs:extension base="BlockType">
        <xs:attributeGroup ref="timeValidityAttributes"/>
      </xs:extension>
    </xs:complexContent>
    <!-- NAR 1.2 erratum 2 correction: specify mixed content-->
  </xs:complexType>
</xs:element>

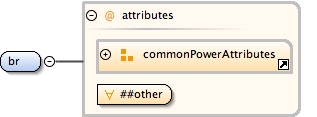

Element br
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A line break
Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
Source
<xs:element name="br">
  <xs:annotation>
    <xs:documentation>A line break</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:attributeGroup ref="commonPowerAttributes"/>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>

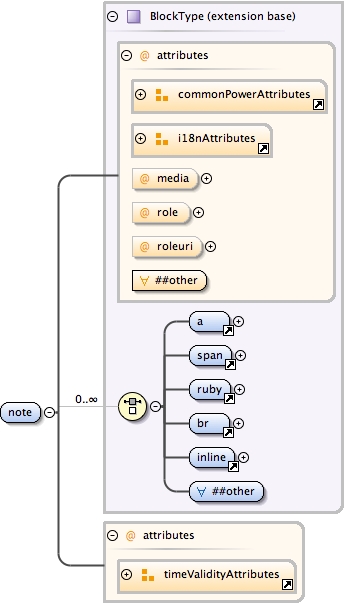

Element note
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Additional natural language information about the concept.
Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#BlockType_media NewsML-G2_2_22-spec-All-Power_xsd.tmp#BlockType_role NewsML-G2_2_22-spec-All-Power_xsd.tmp#BlockType_roleuri NewsML-G2_2_22-spec-All-Power_xsd.tmp#a NewsML-G2_2_22-spec-All-Power_xsd.tmp#span NewsML-G2_2_22-spec-All-Power_xsd.tmp#ruby NewsML-G2_2_22-spec-All-Power_xsd.tmp#br NewsML-G2_2_22-spec-All-Power_xsd.tmp#inline NewsML-G2_2_22-spec-All-Power_xsd.tmp#BlockType NewsML-G2_2_22-spec-All-Power_xsd.tmp#timeValidityAttributes
Type extension of BlockType
Type hierarchy
Properties
content: complex
mixed: true
Used by
Model a | span | ruby | br | inline | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children a, br, inline, ruby, span
Instance
<note creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" media="" modified="" pubconstraint="" pubconstrainturi="" role="" roleuri="" validfrom="" validto="" why="" whyuri="" xmlns="http://iptc.org/std/nar/2006-10-01/">
  <a class="" creator="" creatoruri="" custom="" dir="" how="" howuri="" href="" hreflang="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" rel="" rev="" why="" whyuri="">{1,1}</a>
  <span class="" creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</span>
  <ruby creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</ruby>
  <br creator="" creatoruri="" custom="" how="" howuri="" id="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</br>
  <inline class="" confidence="" creator="" creatoruri="" custom="" derivedfrom="" dir="" how="" howuri="" id="" xml:lang="" literal="" modified="" pubconstraint="" pubconstrainturi="" qcode="" relevance="" type="" typeuri="" uri="" why="" whyuri="">{1,1}</inline>
</note>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
media xs:NMTOKENS optional
An indication of the target media type(s)
values as defined by the Cascading Style Sheets (CSS) specification.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
role QCodeListType optional
A refinement of the semantics of the block.
roleuri IRIType optional
A URI identifying the refined semantics of the definition.
validfrom DateOptTimeType optional
The date (and, optionally, the time) before which a relationship is not valid.
validto DateOptTimeType optional
The date (and, optionally, the time) after which a relationship is not valid.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="note">
  <xs:annotation>
    <xs:documentation>Additional natural language information about the concept.</xs:documentation>
  </xs:annotation>
  <xs:complexType mixed="true">
    <xs:complexContent>
      <xs:extension base="BlockType">
        <xs:attributeGroup ref="timeValidityAttributes"/>
      </xs:extension>
    </xs:complexContent>
    <!-- NAR 1.2 erratum 2 correction: specify mixed content-->
  </xs:complexType>
</xs:element>
Element facet
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
In NAR 1.8 and later, facet is deprecated and SHOULD NOT (see RFC 2119) be used, the "related" property should be used instead (was: An intrinsic property of the concept.)
Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#flexAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#name NewsML-G2_2_22-spec-All-Power_xsd.tmp#hierarchyInfo NewsML-G2_2_22-spec-All-Power_xsd.tmp#FlexPropType NewsML-G2_2_22-spec-All-Power_xsd.tmp#facet_rel NewsML-G2_2_22-spec-All-Power_xsd.tmp#facet_reluri NewsML-G2_2_22-spec-All-Power_xsd.tmp#timeValidityAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#facet_g2flag
Type extension of FlexPropType
Type hierarchy
Properties
content: complex
Used by
Model name | hierarchyInfo
Children hierarchyInfo, name
Instance
<facet creator="" creatoruri="" custom="" dir="" g2flag="DEPR" how="" howuri="" id="" xml:lang="" literal="" modified="" pubconstraint="" pubconstrainturi="" qcode="" rel="" reluri="" type="" typeuri="" uri="" validfrom="" validto="" why="" whyuri="" xmlns="http://iptc.org/std/nar/2006-10-01/">
  <name creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" part="" parturi="" pubconstraint="" pubconstrainturi="" role="" roleuri="" validfrom="" validto="" why="" whyuri="">{1,1}</name>
  <hierarchyInfo creator="" creatoruri="" custom="" how="" howuri="" id="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</hierarchyInfo>
</facet>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
g2flag xs:string DEPR optional
DO NOT USE this attribute, for G2 internal maintenance purposes only.
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
literal g2normalizedString optional
A free-text value assigned as property value.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
qcode QCodeType optional
A qualified code which identifies a concept.
rel QCodeType optional
The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value - expressed by a QCode
reluri IRIType optional
The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value - expressed by a URI
type QCodeType optional
The type of the concept assigned as controlled property value - expressed by a QCode
typeuri IRIType optional
The type of the concept assigned as controlled property value - expressed by a URI
uri IRIType optional
A URI which identifies a concept.
validfrom DateOptTimeType optional
The date (and, optionally, the time) before which a relationship is not valid.
validto DateOptTimeType optional
The date (and, optionally, the time) after which a relationship is not valid.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="facet">
  <xs:annotation>
    <xs:documentation>In NAR 1.8 and later, facet is deprecated and SHOULD NOT (see RFC 2119) be used, the "related" property should be used instead (was: An intrinsic property of the concept.)</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="FlexPropType">
        <xs:attribute name="rel" type="QCodeType" use="optional">
          <xs:annotation>
            <xs:documentation>The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value - expressed by a QCode</xs:documentation>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="reluri" type="IRIType" use="optional">
          <xs:annotation>
            <xs:documentation>The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value - expressed by a URI</xs:documentation>
          </xs:annotation>
        </xs:attribute>
        <xs:attributeGroup ref="timeValidityAttributes"/>
        <xs:attribute name="g2flag" type="xs:string" use="optional" fixed="DEPR">
          <xs:annotation>
            <xs:documentation>DO NOT USE this attribute, for G2 internal maintenance purposes only.</xs:documentation>
          </xs:annotation>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Element hierarchyInfo
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Represents the position of a concept in a hierarchical taxonomy tree by a sequence of QCode tokens representing the ancestor concepts and this concept

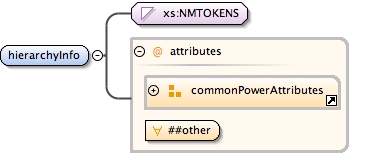

Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes
Type extension of xs:NMTOKENS
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
Source
<xs:element name="hierarchyInfo">
  <xs:annotation>
    <xs:documentation>Represents the position of a concept in a hierarchical taxonomy tree by a sequence of QCode tokens representing the ancestor concepts and this concept</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:NMTOKENS">
        <xs:attributeGroup ref="commonPowerAttributes"/>
        <xs:anyAttribute namespace="##other" processContents="lax"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element remoteInfo
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A link to an item or a web resource which provides information about the concept
Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#Link1Type_rel NewsML-G2_2_22-spec-All-Power_xsd.tmp#Link1Type_reluri NewsML-G2_2_22-spec-All-Power_xsd.tmp#Link1Type_rank NewsML-G2_2_22-spec-All-Power_xsd.tmp#targetResourceAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#timeValidityAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#deprecatedLinkAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#Link1Type
Type Link1Type
Properties
content: complex
Used by
Element Group ConceptDefinitionGroup
Element concept
Model ANY element from ANY namespace
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
contenttype xs:string optional
The IANA (Internet Assigned Numbers Authority) MIME type of the target resource.
contenttypevariant xs:string optional
A refinement of a generic content type (i.e. IANA MIME type) by a literal string value.
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
format QCodeType optional
A refinement of a generic content type (i.e. IANA MIME type) by a value from a controlled vocabulary - expressed by a QCode
formaturi IRIType optional
A refinement of a generic content type (i.e. IANA MIME type) by a value from a controlled vocabulary - expressed by a URI
guidref xs:string optional
The use of this attribute is DEPRECATED, use @residref instead. (was: The globally unique Identifier of the target Item.)
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
href IRIType optional
The locator of the target resource.
hreftype xs:string optional
The use of this attribute is DEPRECATED, use @contenttype instead. (was: An IANA MIME type.)
id xs:ID optional
The local identifier of the property.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
persistidref xs:string optional
Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8)
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
rank xs:nonNegativeInteger optional
The rank of the link among other links
rel QCodeType optional
The identifier of the relationship between the current Item and the target resource - expressed by a QCode
reluri IRIType optional
The identifier of the relationship between the current Item and the target resource - expressed by a URI
residref xs:string optional
The  provider’s identifier of the target resource.
size xs:nonNegativeInteger optional
The size in bytes of the target resource.
title xs:string optional
A short natural language name for the target resource.
validfrom DateOptTimeType optional
The date (and, optionally, the time) before which a relationship is not valid.
validto DateOptTimeType optional
The date (and, optionally, the time) after which a relationship is not valid.
version xs:positiveInteger optional
The version of the target resource. By default, the latest revision is retrieved when the link is activated.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="remoteInfo" type="Link1Type">
  <xs:annotation>
    <xs:documentation>A link to an item or a web resource which provides information about the concept</xs:documentation>
  </xs:annotation>
</xs:element>
Element sameAs
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An identifier of a concept with equivalent semantics
Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#flexAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#name NewsML-G2_2_22-spec-All-Power_xsd.tmp#hierarchyInfo NewsML-G2_2_22-spec-All-Power_xsd.tmp#FlexPropType NewsML-G2_2_22-spec-All-Power_xsd.tmp#timeValidityAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#SameAsType
Type SameAsType
Type hierarchy
Properties
content: complex
Used by
Model name | hierarchyInfo
Children hierarchyInfo, name
Instance
<sameAs creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" literal="" modified="" pubconstraint="" pubconstrainturi="" qcode="" type="" typeuri="" uri="" validfrom="" validto="" why="" whyuri="" xmlns="http://iptc.org/std/nar/2006-10-01/">
  <name creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" part="" parturi="" pubconstraint="" pubconstrainturi="" role="" roleuri="" validfrom="" validto="" why="" whyuri="">{1,1}</name>
  <hierarchyInfo creator="" creatoruri="" custom="" how="" howuri="" id="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</hierarchyInfo>
</sameAs>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
literal g2normalizedString optional
A free-text value assigned as property value.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value - expressed by a QCode
typeuri IRIType optional
The type of the concept assigned as controlled property value - expressed by a URI
uri IRIType optional
A URI which identifies a concept.
validfrom DateOptTimeType optional
The date (and, optionally, the time) before which a relationship is not valid.
validto DateOptTimeType optional
The date (and, optionally, the time) after which a relationship is not valid.
why QCodeType optional
Why the metadata has been included - expressed by a QCode
whyuri IRIType optional
Why the metadata has been included - expressed by a URI
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="sameAs" type="SameAsType">
  <xs:annotation>
    <xs:documentation>An identifier of a concept with equivalent semantics</xs:documentation>
  </xs:annotation>
</xs:element>
Element broader
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An identifier of a more generic concept.
Diagram
Diagram NewsML-G2_2_22-spec-All-Power_xsd.tmp#commonPowerAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#flexAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#i18nAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#name NewsML-G2_2_22-spec-All-Power_xsd.tmp#hierarchyInfo NewsML-G2_2_22-spec-All-Power_xsd.tmp#FlexPropType NewsML-G2_2_22-spec-All-Power_xsd.tmp#RelatedConceptType_rel NewsML-G2_2_22-spec-All-Power_xsd.tmp#RelatedConceptType_reluri NewsML-G2_2_22-spec-All-Power_xsd.tmp#RelatedConceptType_rank NewsML-G2_2_22-spec-All-Power_xsd.tmp#timeValidityAttributes NewsML-G2_2_22-spec-All-Power_xsd.tmp#facet NewsML-G2_2_22-spec-All-Power_xsd.tmp#RelatedConceptType_related NewsML-G2_2_22-spec-All-Power_xsd.tmp#sameAs NewsML-G2_2_22-spec-All-Power_xsd.tmp#RelatedConceptType
Type RelatedConceptType
Type hierarchy
Properties
content: complex
Used by
Model (name | hierarchyInfo) , (facet | related | sameAs)
Children facet, hierarchyInfo, name, related, sameAs
Instance
<broader creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" literal="" modified="" pubconstraint="" pubconstrainturi="" qcode="" rank="" rel="" reluri="" type="" typeuri="" uri="" validfrom="" validto="" why="" whyuri="" xmlns="http://iptc.org/std/nar/2006-10-01/">
  <name creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" modified="" part="" parturi="" pubconstraint="" pubconstrainturi="" role="" roleuri="" validfrom="" validto="" why="" whyuri="">{1,1}</name>
  <hierarchyInfo creator="" creatoruri="" custom="" how="" howuri="" id="" modified="" pubconstraint="" pubconstrainturi="" why="" whyuri="">{1,1}</hierarchyInfo>
  <facet creator="" creatoruri="" custom="" dir="" g2flag="DEPR" how="" howuri="" id="" xml:lang="" literal="" modified="" pubconstraint="" pubconstrainturi="" qcode="" rel="" reluri="" type="" typeuri="" uri="" validfrom="" validto="" why="" whyuri="">{1,1}</facet>
  <related creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" literal="" modified="" pubconstraint="" pubconstrainturi="" qcode="" rank="" rel="" reluri="" type="" typeuri="" uri="" validfrom="" validto="" why="" whyuri="">{1,1}</related>
  <sameAs creator="" creatoruri="" custom="" dir="" how="" howuri="" id="" xml:lang="" literal="" modified="" pubconstraint="" pubconstrainturi="" qcode="" type="" typeuri="" uri="" validfrom="" validto="" why="" whyuri="">{1,1}</sameAs>
</broader>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
creator QCodeType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri IRIType optional
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
custom xs:boolean optional
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
dir restriction of xs:NMTOKEN optional
The directionality of textual content (enumeration: ltr, rtl)
how QCodeType optional
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri IRIType optional
Indicates by which means the value was extracted from the content - expressed by a URI
id xs:ID optional
The local identifier of the property.
literal g2normalizedString optional
A free-text value assigned as property value.
modified DateOptTimeType optional
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
pubconstraint QCodeListType optional
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi IRIListType optional
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
qcode QCodeType optional
A qualified code which identifies a concept.
rank xs:nonNegativeInteger optional
The rank of the current concept among concepts having a relationship to the target concept.
rel QCodeType optional
The identifier of the relationship between the current concept and the target concept - expressed by a QCode
reluri IRIType optional
The identifier of the relationship between the current concept and the target concept - expressed by a URI
type QCodeType optional
The type of the concept assigned as controlled property value - expressed by a QCode
typeuri IRIType optional
The type of the concept assigned as controlled property value - expressed by a URI
uri IRIType optional
A URI which identifies a concept.
validfrom DateOptTimeType optional
The date (and, optionally, the time) before which a relationship is not valid.
validto DateOptTimeType optional
The date (and, optionally, the time) after which a relationship is not valid.
why QCodeType optional
