Included schema sportsml-specific-ice-hockey.xsd
Namespace http://iptc.org/std/SportsML/2008-04-01/
Properties
attribute form default: unqualified
element form default: unqualified
version: 2.2
Element sportsml:event-metadata-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Metadata about the event itself. | Specific to ice-hockey.

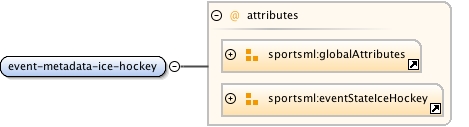

Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
power-play-player-advantage string optional
The number of extra players on ice for the team on power play.
power-play-team-idref string optional
The key of the team on power-play.
power-play-time-remaining string optional
The time remaining in the power-play.
score-team string optional
After an action has taken place, the score of the team that team-idref points to.
score-team-opposing string optional
After an action has taken place, the score of the team opposing that listed in team-idref.
Source
<element name="event-metadata-ice-hockey">
  <annotation>
    <documentation>Metadata about the event itself. | Specific to ice-hockey.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
  </complexType>
</element>

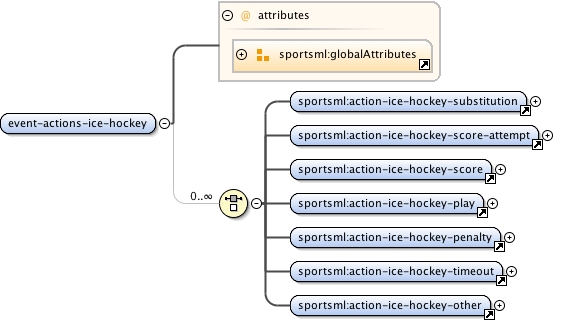

Element sportsml:event-actions-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Event actions specific to ice-hockey. | Include scores, penalties, timeouts, etc.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-timeout sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-other
Properties
content: complex
Used by
Model sportsml:action-ice-hockey-substitution | sportsml:action-ice-hockey-score-attempt | sportsml:action-ice-hockey-score | sportsml:action-ice-hockey-play | sportsml:action-ice-hockey-penalty | sportsml:action-ice-hockey-timeout | sportsml:action-ice-hockey-other
Children sportsml:action-ice-hockey-other, sportsml:action-ice-hockey-penalty, sportsml:action-ice-hockey-play, sportsml:action-ice-hockey-score, sportsml:action-ice-hockey-score-attempt, sportsml:action-ice-hockey-substitution, sportsml:action-ice-hockey-timeout
Instance
<sportsml:event-actions-ice-hockey id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-ice-hockey-substitution comment="" id="" location="" period-time-elapsed="" period-time-remaining="" period-value="" person-original-idref="" person-original-position="" person-replacing-idref="" person-replacing-position="" person-type="" player-count="" player-count-opposing="" power-play-player-advantage="" power-play-team-idref="" power-play-time-remaining="" score-team="" score-team-opposing="" substitution-reason="" zone="">{1,1}</sportsml:action-ice-hockey-substitution>
  <sportsml:action-ice-hockey-score-attempt comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" power-play-player-advantage="" power-play-team-idref="" power-play-time-remaining="" score-attempt-result="" score-attempt-type="" score-team="" score-team-opposing="" shootout-shot-order="" skaters-on-ice="" skaters-on-ice-opposing="" team-idref="">{1,1}</sportsml:action-ice-hockey-score-attempt>
  <sportsml:action-ice-hockey-score comment="" goal-zone="" id="" location="" period-time-elapsed="" period-time-remaining="" period-value="" player-count="" player-count-opposing="" player-idref="" power-play-player-advantage="" power-play-team-idref="" power-play-time-remaining="" score-attempt-type="" score-team="" score-team-opposing="" sequence-number="" shootout-shot-order="" shot-distance="" shot-type="" skaters-on-ice="" skaters-on-ice-opposing="" strength="" team-idref="" zone="">{1,1}</sportsml:action-ice-hockey-score>
  <sportsml:action-ice-hockey-play comment="" goal-zone="" id="" location="" period-time-elapsed="" period-time-remaining="" period-value="" person-type="" player-count="" player-count-opposing="" play-type="" power-play-player-advantage="" power-play-team-idref="" power-play-time-remaining="" score-attempt-result="" score-attempt-type="" score-team="" score-team-opposing="" sequence-number="" shootout-shot-order="" shot-distance="" shot-type="" strength="" team-idref="" zone="">{1,1}</sportsml:action-ice-hockey-play>

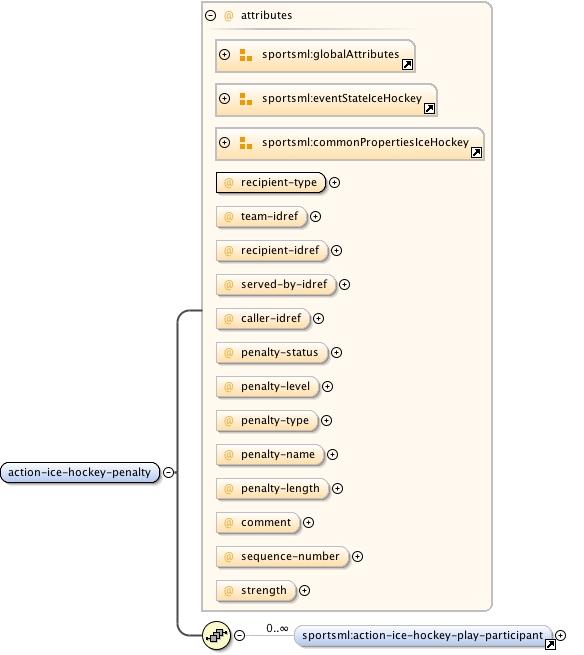

  <sportsml:action-ice-hockey-penalty caller-idref="" comment="" id="" location="" penalty-length="" penalty-level="" penalty-name="" penalty-status="" penalty-type="" period-time-elapsed="" period-time-remaining="" period-value="" player-count="" player-count-opposing="" power-play-player-advantage="" power-play-team-idref="" power-play-time-remaining="" recipient-idref="" recipient-type="" score-team="" score-team-opposing="" sequence-number="" served-by-idref="" strength="" team-idref="" zone="">{1,1}</sportsml:action-ice-hockey-penalty>

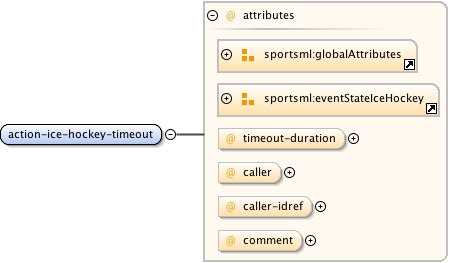

  <sportsml:action-ice-hockey-timeout caller="" caller-idref="" comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" power-play-player-advantage="" power-play-team-idref="" power-play-time-remaining="" score-team="" score-team-opposing="" timeout-duration="">{1,1}</sportsml:action-ice-hockey-timeout>

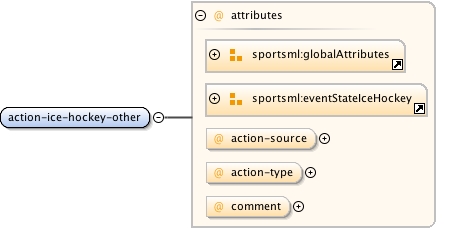

  <sportsml:action-ice-hockey-other action-source="" action-type="" comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" power-play-player-advantage="" power-play-team-idref="" power-play-time-remaining="" score-team="" score-team-opposing="">{1,1}</sportsml:action-ice-hockey-other>
</sportsml:event-actions-ice-hockey>
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="event-actions-ice-hockey">
  <annotation>
    <documentation>Event actions specific to ice-hockey. | Include scores, penalties, timeouts, etc.</documentation>
  </annotation>
  <complexType>
    <choice minOccurs="0" maxOccurs="unbounded">
      <element ref="sportsml:action-ice-hockey-substitution"/>
      <element ref="sportsml:action-ice-hockey-score-attempt"/>
      <element ref="sportsml:action-ice-hockey-score"/>
      <element ref="sportsml:action-ice-hockey-play"/>
      <element ref="sportsml:action-ice-hockey-penalty"/>
      <element ref="sportsml:action-ice-hockey-timeout"/>
      <element ref="sportsml:action-ice-hockey-other"/>
    </choice>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Element sportsml:action-ice-hockey-substitution
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
DEPRECATE: in favour of action-ice-hockey-play with play-type vocab.

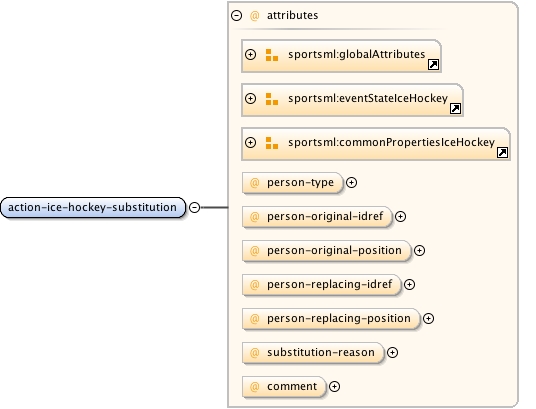

Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_person-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_person-original-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_person-original-position sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_person-replacing-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_person-replacing-position sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_substitution-reason sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-substitution_comment
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
location string optional
Location of the action on the rink.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
person-original-idref IDREF optional
A pointer to the player who left the ice.
person-original-position sportsml:position.IceHockey optional
The position of the player who left the ice. Could be a goalie.
person-replacing-idref IDREF optional
A pointer to the player who now went on the ice.
person-replacing-position sportsml:position.IceHockey optional
The position of the player who went on the ice. If original player was a goalie, and this value is a forward, than the goalie has been pulled.
person-type restriction of string optional
The type of person who is substituting, for example: a player, a coach, a referree.
player-count string optional
Number of players on the ice for the stat or action.
player-count-opposing string optional
Number of opposing players on the ice for the stat or action.
power-play-player-advantage string optional
The number of extra players on ice for the team on power play.
power-play-team-idref string optional
The key of the team on power-play.
power-play-time-remaining string optional
The time remaining in the power-play.
score-team string optional
After an action has taken place, the score of the team that team-idref points to.
score-team-opposing string optional
After an action has taken place, the score of the team opposing that listed in team-idref.
substitution-reason string optional
The reason why a substitution was made.
zone restriction of string optional
The zone on the rink for the stat or action: offensive | defensive | neutral.
Source
<element name="action-ice-hockey-substitution">
  <annotation>
    <documentation>DEPRECATE: in favour of action-ice-hockey-play with play-type vocab.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attributeGroup ref="sportsml:commonPropertiesIceHockey"/>
    <attribute name="person-type" use="optional">
      <annotation>
        <documentation>The type of person who is substituting, for example: a player, a coach, a referree.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="player"/>
          <enumeration value="auxilliary"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="person-original-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player who left the ice.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-original-position" type="sportsml:position.IceHockey" use="optional">
      <annotation>
        <documentation>The position of the player who left the ice. Could be a goalie.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player who now went on the ice.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-position" type="sportsml:position.IceHockey" use="optional">
      <annotation>
        <documentation>The position of the player who went on the ice. If original player was a goalie, and this value is a forward, than the goalie has been pulled.</documentation>
      </annotation>
    </attribute>
    <attribute name="substitution-reason" type="string" use="optional">
      <annotation>
        <documentation>The reason why a substitution was made.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

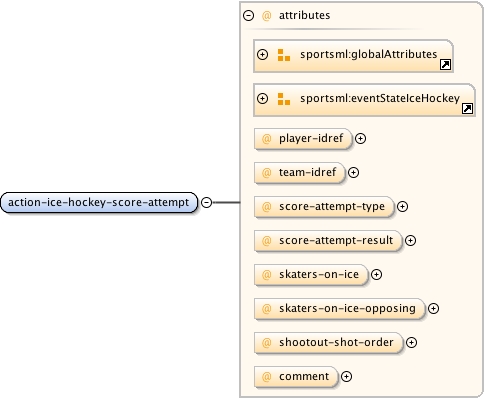

Element sportsml:action-ice-hockey-score-attempt
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
DEPRECATE: in favour of action-ice-hockey-play with play-type vocab.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_player-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_team-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_score-attempt-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_score-attempt-result sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_skaters-on-ice sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_skaters-on-ice-opposing sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_shootout-shot-order sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score-attempt_comment
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
player-idref IDREF optional
A pointer to the player that attempted to score.
power-play-player-advantage string optional
The number of extra players on ice for the team on power play.
power-play-team-idref string optional
The key of the team on power-play.
power-play-time-remaining string optional
The time remaining in the power-play.
score-attempt-result sportsml:scoreAttemptResult.IceHockey optional
The result of the shot.
score-attempt-type sportsml:scoreAttemptType.IceHockey optional
The type of shot.
score-team string optional
After an action has taken place, the score of the team that team-idref points to.
score-team-opposing string optional
After an action has taken place, the score of the team opposing that listed in team-idref.
shootout-shot-order string optional
When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).
skaters-on-ice string optional
The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.
skaters-on-ice-opposing string optional
The number of non-goalie skaters on the ice for the team that was shot upon.
team-idref IDREF optional
A pointer to the team that attempted to score.
Source
<element name="action-ice-hockey-score-attempt">
  <annotation>
    <documentation>DEPRECATE: in favour of action-ice-hockey-play with play-type vocab.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attribute name="player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player that attempted to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the team that attempted to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-type" type="sportsml:scoreAttemptType.IceHockey" use="optional">
      <annotation>
        <documentation>The type of shot.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-result" type="sportsml:scoreAttemptResult.IceHockey" use="optional">
      <annotation>
        <documentation>The result of the shot.</documentation>
      </annotation>
    </attribute>
    <attribute name="skaters-on-ice" type="string" use="optional">
      <annotation>
        <documentation>The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.</documentation>
      </annotation>
    </attribute>
    <attribute name="skaters-on-ice-opposing" type="string" use="optional">
      <annotation>
        <documentation>The number of non-goalie skaters on the ice for the team that was shot upon.</documentation>
      </annotation>
    </attribute>
    <attribute name="shootout-shot-order" type="string" use="optional">
      <annotation>
        <documentation>When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

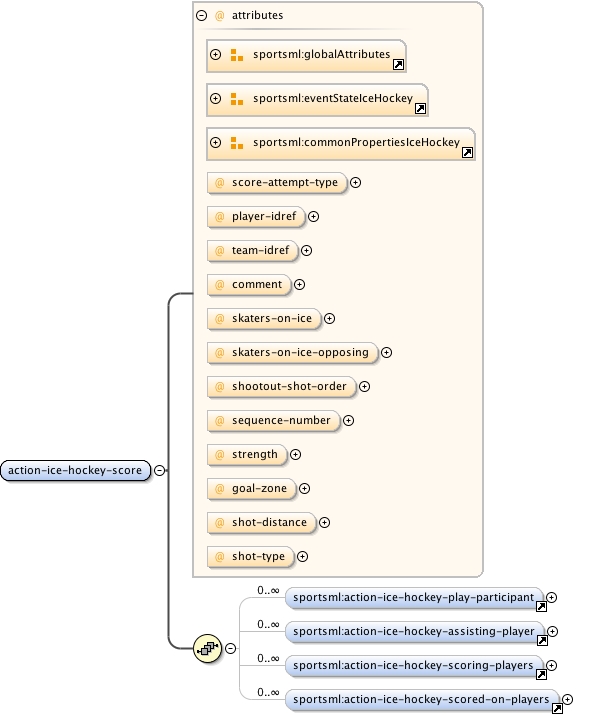

Element sportsml:action-ice-hockey-score
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Data about a score in ice-hockey. | Includes elements detailing who was on the ice during the score.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_score-attempt-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_player-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_team-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_comment sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_skaters-on-ice sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_skaters-on-ice-opposing sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_shootout-shot-order sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_sequence-number sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_strength sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_goal-zone sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_shot-distance sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-score_shot-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play-participant sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-assisting-player sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-scoring-players sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-scored-on-players
Properties
content: complex
Used by
Model sportsml:action-ice-hockey-play-participant* , sportsml:action-ice-hockey-assisting-player* , sportsml:action-ice-hockey-scoring-players* , sportsml:action-ice-hockey-scored-on-players*
Children sportsml:action-ice-hockey-assisting-player, sportsml:action-ice-hockey-play-participant, sportsml:action-ice-hockey-scored-on-players, sportsml:action-ice-hockey-scoring-players
Instance
<sportsml:action-ice-hockey-score comment="" goal-zone="" id="" location="" period-time-elapsed="" period-time-remaining="" period-value="" player-count="" player-count-opposing="" player-idref="" power-play-player-advantage="" power-play-team-idref="" power-play-time-remaining="" score-attempt-type="" score-team="" score-team-opposing="" sequence-number="" shootout-shot-order="" shot-distance="" shot-type="" skaters-on-ice="" skaters-on-ice-opposing="" strength="" team-idref="" zone="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-ice-hockey-play-participant assists-cumulative="" goals-cumulative="" id="" player-idref="" role="" team-idref="">{0,unbounded}</sportsml:action-ice-hockey-play-participant>
  <sportsml:action-ice-hockey-assisting-player id="" player-idref="">{0,unbounded}</sportsml:action-ice-hockey-assisting-player>
  <sportsml:action-ice-hockey-scoring-players id="" player-idref="">{0,unbounded}</sportsml:action-ice-hockey-scoring-players>
  <sportsml:action-ice-hockey-scored-on-players id="" player-idref="">{0,unbounded}</sportsml:action-ice-hockey-scored-on-players>
</sportsml:action-ice-hockey-score>
Attributes
QName Type Fixed Default Use Annotation
comment string optional
A textual comment.
goal-zone string optional
Area of the goal at which the scoring shot was aimed.
id ID optional
An XML-specific identifier for the element.
location string optional
Location of the action on the rink.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
player-count string optional
Number of players on the ice for the stat or action.
player-count-opposing string optional
Number of opposing players on the ice for the stat or action.
player-idref IDREF optional
DEPRECATE: in favour of action-ice-hockey-play-participant with role of "scorer".
power-play-player-advantage string optional
The number of extra players on ice for the team on power play.
power-play-team-idref string optional
The key of the team on power-play.
power-play-time-remaining string optional
The time remaining in the power-play.
score-attempt-type sportsml:scoreAttemptType.IceHockey optional
The type of shot. Called attempt because it shares the same values as score-attempt element.
score-team string optional
After an action has taken place, the score of the team that team-idref points to.
score-team-opposing string optional
After an action has taken place, the score of the team opposing that listed in team-idref.
sequence-number string optional
The sequence number of the play within the game as a whole.
shootout-shot-order string optional
The sequence number of the shootout goal.
shot-distance string optional
The distance of the shot from the net.
shot-type string optional
The type of shot taken.
skaters-on-ice string optional
DEPRECATE: in favour of player-count.
skaters-on-ice-opposing string optional
DEPRECATE: in favour of player-count-opposing.
strength sportsml:strength.IceHockey optional
Denotes play-strength situation of the goal: even-strength | power-play | short-handed
team-idref IDREF optional
A pointer to the team that scored the goal.
zone restriction of string optional
The zone on the rink for the stat or action: offensive | defensive | neutral.
Source
<element name="action-ice-hockey-score">
  <annotation>
    <documentation>Data about a score in ice-hockey. | Includes elements detailing who was on the ice during the score.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:action-ice-hockey-play-participant" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:action-ice-hockey-assisting-player" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:action-ice-hockey-scoring-players" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:action-ice-hockey-scored-on-players" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>

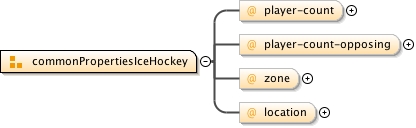

    <attributeGroup ref="sportsml:commonPropertiesIceHockey"/>
    <attribute name="score-attempt-type" type="sportsml:scoreAttemptType.IceHockey" use="optional">
      <annotation>
        <documentation>The type of shot. Called attempt because it shares the same values as score-attempt element.</documentation>
      </annotation>
    </attribute>
    <attribute name="player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>DEPRECATE: in favour of action-ice-hockey-play-participant with role of "scorer".</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the team that scored the goal.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
    <attribute name="skaters-on-ice" type="string" use="optional">
      <annotation>
        <documentation>DEPRECATE: in favour of player-count.</documentation>
      </annotation>
    </attribute>
    <attribute name="skaters-on-ice-opposing" type="string" use="optional">
      <annotation>
        <documentation>DEPRECATE: in favour of player-count-opposing.</documentation>
      </annotation>
    </attribute>
    <attribute name="shootout-shot-order" type="string" use="optional">
      <annotation>
        <documentation>The sequence number of the shootout goal.</documentation>
      </annotation>
    </attribute>
    <attribute name="sequence-number" type="string" use="optional">
      <annotation>
        <documentation>The sequence number of the play within the game as a whole.</documentation>
      </annotation>
    </attribute>
    <attribute name="strength" type="sportsml:strength.IceHockey" use="optional">
      <annotation>
        <documentation>Denotes play-strength situation of the goal: even-strength | power-play | short-handed</documentation>
      </annotation>
    </attribute>
    <attribute name="goal-zone" type="string" use="optional">
      <annotation>
        <documentation>Area of the goal at which the scoring shot was aimed.</documentation>
      </annotation>
    </attribute>
    <attribute name="shot-distance" type="string" use="optional">
      <annotation>
        <documentation>The distance of the shot from the net.</documentation>
      </annotation>
    </attribute>
    <attribute name="shot-type" type="string" use="optional">
      <annotation>
        <documentation>The type of shot taken.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

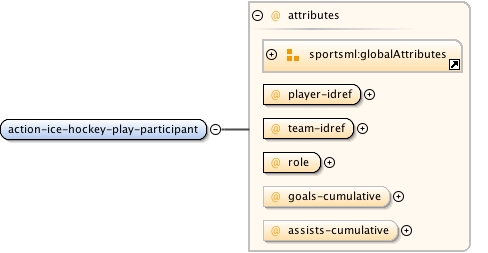

Element sportsml:action-ice-hockey-play-participant
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A generic play participant element.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play-participant_player-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play-participant_team-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play-participant_role sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play-participant_goals-cumulative sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play-participant_assists-cumulative
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
assists-cumulative string optional
Total number assists at time of assist scored.
goals-cumulative string optional
Total number goals at time of goal scored.
id ID optional
An XML-specific identifier for the element.
player-idref IDREF required
A pointer to a player who participated in the play.
role sportsml:participantRole.IceHockey required
A controlled vocabulary specifying a player's role during the play.
team-idref IDREF required
A pointer to the participant's team.
Source
<element name="action-ice-hockey-play-participant">
  <annotation>
    <documentation>A generic play participant element.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="player-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to a player who participated in the play.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to the participant's team.</documentation>
      </annotation>
    </attribute>
    <attribute name="role" type="sportsml:participantRole.IceHockey" use="required">
      <annotation>
        <documentation>A controlled vocabulary specifying a player's role during the play.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-cumulative" type="string" use="optional">
      <annotation>
        <documentation>Total number goals at time of goal scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-cumulative" type="string" use="optional">
      <annotation>
        <documentation>Total number assists at time of assist scored.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

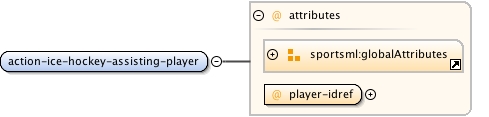

Element sportsml:action-ice-hockey-assisting-player
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
DEPRECATE: in favour of action-ice-hockey-play-participant with role of "assist".
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-assisting-player_player-idref
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
player-idref IDREF required
A pointer to a player who assisted in the score.
Source
<element name="action-ice-hockey-assisting-player">
  <annotation>
    <documentation>DEPRECATE: in favour of action-ice-hockey-play-participant with role of "assist".</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="player-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to a player who assisted in the score.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:action-ice-hockey-scoring-players
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
DEPRECATE: in favour of action-ice-hockey-play-participant with role vocabulary.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-scoring-players_player-idref
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
player-idref IDREF required
A pointer to a player on ice during a score.
Source
<element name="action-ice-hockey-scoring-players">
  <annotation>
    <documentation>DEPRECATE: in favour of action-ice-hockey-play-participant with role vocabulary.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="player-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to a player on ice during a score.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

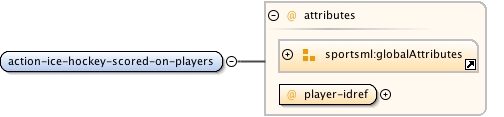

Element sportsml:action-ice-hockey-scored-on-players
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
DEPRECATE: in favour of action-ice-hockey-play-participant with role vocabulary.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-scored-on-players_player-idref
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
player-idref IDREF required
A pointer to a player who was on ice when a score was made.
Source
<element name="action-ice-hockey-scored-on-players">
  <annotation>
    <documentation>DEPRECATE: in favour of action-ice-hockey-play-participant with role vocabulary.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="player-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to a player who was on ice when a score was made.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

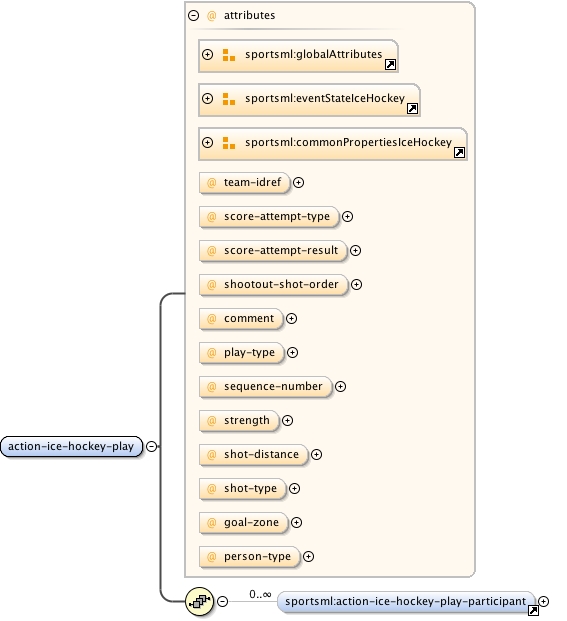

Element sportsml:action-ice-hockey-play
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Any kind of on-ice play indicated by play-type vocabulary.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_team-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_score-attempt-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_score-attempt-result sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_shootout-shot-order sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_comment sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_play-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_sequence-number sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_strength sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_shot-distance sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_shot-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_goal-zone sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play_person-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play-participant
Properties
content: complex
Used by
Model sportsml:action-ice-hockey-play-participant*
Children sportsml:action-ice-hockey-play-participant
Instance
<sportsml:action-ice-hockey-play comment="" goal-zone="" id="" location="" period-time-elapsed="" period-time-remaining="" period-value="" person-type="" player-count="" player-count-opposing="" play-type="" power-play-player-advantage="" power-play-team-idref="" power-play-time-remaining="" score-attempt-result="" score-attempt-type="" score-team="" score-team-opposing="" sequence-number="" shootout-shot-order="" shot-distance="" shot-type="" strength="" team-idref="" zone="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-ice-hockey-play-participant assists-cumulative="" goals-cumulative="" id="" player-idref="" role="" team-idref="">{0,unbounded}</sportsml:action-ice-hockey-play-participant>
</sportsml:action-ice-hockey-play>
Attributes
QName Type Fixed Default Use Annotation
comment string optional
A textual comment.
goal-zone string optional
Area of the goal at which the score-attempt was aimed.
id ID optional
An XML-specific identifier for the element.
location string optional
Location of the action on the rink.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
person-type restriction of string optional
The type of person who is substituting, for example: a player, a coach, a referree.
play-type sportsml:playType.IceHockey optional
The type of play.
player-count string optional
Number of players on the ice for the stat or action.
player-count-opposing string optional
Number of opposing players on the ice for the stat or action.
power-play-player-advantage string optional
The number of extra players on ice for the team on power play.
power-play-team-idref string optional
The key of the team on power-play.
power-play-time-remaining string optional
The time remaining in the power-play.
score-attempt-result sportsml:scoreAttemptResult.IceHockey optional
The result of the score attempt.
score-attempt-type sportsml:scoreAttemptType.IceHockey optional
The type of goal attempted.
score-team string optional
After an action has taken place, the score of the team that team-idref points to.
score-team-opposing string optional
After an action has taken place, the score of the team opposing that listed in team-idref.
sequence-number string optional
The sequence number of the play within the game as a whole.
shootout-shot-order string optional
When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).
shot-distance string optional
The distance of the shot from the net.
shot-type string optional
The type of shot taken.
strength sportsml:strength.IceHockey optional
Denotes play-strength situation of the goal: even-strength | power-play | short-handed
team-idref IDREF optional
A pointer to the team that attempted to score.
zone restriction of string optional
The zone on the rink for the stat or action: offensive | defensive | neutral.
Source
<element name="action-ice-hockey-play">
  <annotation>
    <documentation>Any kind of on-ice play indicated by play-type vocabulary.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:action-ice-hockey-play-participant" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>

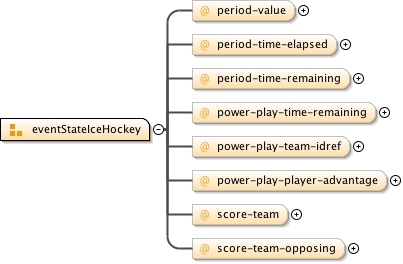

    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attributeGroup ref="sportsml:commonPropertiesIceHockey"/>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the team that attempted to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-type" type="sportsml:scoreAttemptType.IceHockey" use="optional">
      <annotation>
        <documentation>The type of goal attempted.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-result" type="sportsml:scoreAttemptResult.IceHockey" use="optional">
      <annotation>
        <documentation>The result of the score attempt.</documentation>
      </annotation>
    </attribute>
    <attribute name="shootout-shot-order" type="string" use="optional">
      <annotation>
        <documentation>When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
    <attribute name="play-type" type="sportsml:playType.IceHockey" use="optional">
      <annotation>
        <documentation>The type of play.</documentation>
      </annotation>
    </attribute>
    <attribute name="sequence-number" type="string" use="optional">
      <annotation>
        <documentation>The sequence number of the play within the game as a whole.</documentation>
      </annotation>
    </attribute>
    <attribute name="strength" type="sportsml:strength.IceHockey" use="optional">
      <annotation>
        <documentation>Denotes play-strength situation of the goal: even-strength | power-play | short-handed</documentation>
      </annotation>
    </attribute>
    <attribute name="shot-distance" type="string" use="optional">
      <annotation>
        <documentation>The distance of the shot from the net.</documentation>
      </annotation>
    </attribute>
    <attribute name="shot-type" type="string" use="optional">
      <annotation>
        <documentation>The type of shot taken.</documentation>
      </annotation>
    </attribute>
    <attribute name="goal-zone" type="string" use="optional">
      <annotation>
        <documentation>Area of the goal at which the score-attempt was aimed.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-type" use="optional">
      <annotation>
        <documentation>The type of person who is substituting, for example: a player, a coach, a referree.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="player"/>
          <enumeration value="auxilliary"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
  </complexType>
</element>
Element sportsml:action-ice-hockey-penalty
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Action describing a penalty. | Includes who caused and who called the penalty. One element is used per penalized player.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_recipient-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_team-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_recipient-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_served-by-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_caller-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_penalty-status sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_penalty-level sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_penalty-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_penalty-name sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_penalty-length sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_comment sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_sequence-number sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-penalty_strength sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-play-participant
Properties
content: complex
Used by
Model sportsml:action-ice-hockey-play-participant*
Children sportsml:action-ice-hockey-play-participant
Instance
<sportsml:action-ice-hockey-penalty caller-idref="" comment="" id="" location="" penalty-length="" penalty-level="" penalty-name="" penalty-status="" penalty-type="" period-time-elapsed="" period-time-remaining="" period-value="" player-count="" player-count-opposing="" power-play-player-advantage="" power-play-team-idref="" power-play-time-remaining="" recipient-idref="" recipient-type="" score-team="" score-team-opposing="" sequence-number="" served-by-idref="" strength="" team-idref="" zone="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-ice-hockey-play-participant assists-cumulative="" goals-cumulative="" id="" player-idref="" role="" team-idref="">{0,unbounded}</sportsml:action-ice-hockey-play-participant>
</sportsml:action-ice-hockey-penalty>
Attributes
QName Type Fixed Default Use Annotation
caller-idref IDREF optional
A pointer to the official who called the penalty.
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
location string optional
Location of the action on the rink.
penalty-length string optional
In minutes:seconds. Not necessarily the time actually served.
penalty-level sportsml:penaltyLevel.IceHockey optional
The severity or classification of the penalty eg. major, minor, game misconduct.
penalty-name string optional
A non-code string describing the penalty.
penalty-status restriction of string optional
Whether this action indicates the start of a penalty, or the end of a penalty.
penalty-type sportsml:penaltyType.IceHockey optional
A Vocabulary of controlled codes describing the penalty. Called while a play is in progress.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
player-count string optional
Number of players on the ice for the stat or action.
player-count-opposing string optional
Number of opposing players on the ice for the stat or action.
power-play-player-advantage string optional
The number of extra players on ice for the team on power play.
power-play-team-idref string optional
The key of the team on power-play.
power-play-time-remaining string optional
The time remaining in the power-play.
recipient-idref IDREF optional
A pointer to the receiver of the penalty.
recipient-type restriction of string required
Whether the receiver of the penalty was the team, the player, a coach, a ref, etc.
score-team string optional
After an action has taken place, the score of the team that team-idref points to.
score-team-opposing string optional
After an action has taken place, the score of the team opposing that listed in team-idref.
sequence-number string optional
The sequence number of the play within the game as a whole.
served-by-idref IDREF optional
A pointer to the player that served the penalty.
strength sportsml:strength.IceHockey optional
Denotes play-strength situation of the goal: even-strength | power-play | short-handed
team-idref IDREF optional
A pointer to the team of the penalized or the penalized team itself.
zone restriction of string optional
The zone on the rink for the stat or action: offensive | defensive | neutral.
Source
<element name="action-ice-hockey-penalty">
  <annotation>
    <documentation>Action describing a penalty. | Includes who caused and who called the penalty. One element is used per penalized player.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:action-ice-hockey-play-participant" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attributeGroup ref="sportsml:commonPropertiesIceHockey"/>
    <attribute name="recipient-type" use="required">
      <annotation>
        <documentation>Whether the receiver of the penalty was the team, the player, a coach, a ref, etc.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="team"/>
          <enumeration value="player"/>
          <enumeration value="auxilliary"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the team of the penalized or the penalized team itself.</documentation>
      </annotation>
    </attribute>
    <attribute name="recipient-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the receiver of the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="served-by-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player that served the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="caller-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the official who called the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-status" use="optional">
      <annotation>
        <documentation>Whether this action indicates the start of a penalty, or the end of a penalty.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="start"/>
          <enumeration value="end"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="penalty-level" type="sportsml:penaltyLevel.IceHockey" use="optional">
      <annotation>
        <documentation>The severity or classification of the penalty eg. major, minor, game misconduct.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-type" type="sportsml:penaltyType.IceHockey" use="optional">
      <annotation>
        <documentation>A Vocabulary of controlled codes describing the penalty. Called while a play is in progress.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-name" type="string" use="optional">
      <annotation>
        <documentation>A non-code string describing the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-length" type="string" use="optional">
      <annotation>
        <documentation>In minutes:seconds. Not necessarily the time actually served.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
    <attribute name="sequence-number" type="string" use="optional">
      <annotation>
        <documentation>The sequence number of the play within the game as a whole.</documentation>
      </annotation>
    </attribute>
    <attribute name="strength" type="sportsml:strength.IceHockey" use="optional">
      <annotation>
        <documentation>Denotes play-strength situation of the goal: even-strength | power-play | short-handed</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:action-ice-hockey-timeout
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Description of a timeout. | Includes the duration of the timeout, and who called for the timeout.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-timeout_timeout-duration sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-timeout_caller sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-timeout_caller-idref sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-timeout_comment
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
caller restriction of string optional
Who called the timeout, either team or official.
caller-idref IDREF optional
If caller is team, say, a pointer to the team element.
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
power-play-player-advantage string optional
The number of extra players on ice for the team on power play.
power-play-team-idref string optional
The key of the team on power-play.
power-play-time-remaining string optional
The time remaining in the power-play.
score-team string optional
After an action has taken place, the score of the team that team-idref points to.
score-team-opposing string optional
After an action has taken place, the score of the team opposing that listed in team-idref.
timeout-duration string optional
How long a timeout was called for.
Source
<element name="action-ice-hockey-timeout">
  <annotation>
    <documentation>Description of a timeout. | Includes the duration of the timeout, and who called for the timeout.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attribute name="timeout-duration" type="string" use="optional">
      <annotation>
        <documentation>How long a timeout was called for.</documentation>
      </annotation>
    </attribute>
    <attribute name="caller" use="optional">
      <annotation>
        <documentation>Who called the timeout, either team or official.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="team"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="caller-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>If caller is team, say, a pointer to the team element.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:action-ice-hockey-other
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A custom action. | For use when none of the pre-build actions apply.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-other_action-source sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-other_action-type sportsml-specific-ice-hockey_xsd.tmp#action-ice-hockey-other_comment
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
action-source string optional
The name of the controlled-vocabulary for the action-type attribute.
action-type string optional
A selection from a controlled-vocabulary list maintained by the publisher.
comment string optional
Textual comment about the action.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
power-play-player-advantage string optional
The number of extra players on ice for the team on power play.
power-play-team-idref string optional
The key of the team on power-play.
power-play-time-remaining string optional
The time remaining in the power-play.
score-team string optional
After an action has taken place, the score of the team that team-idref points to.
score-team-opposing string optional
After an action has taken place, the score of the team opposing that listed in team-idref.
Source
<element name="action-ice-hockey-other">
  <annotation>
    <documentation>A custom action. | For use when none of the pre-build actions apply.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateIceHockey"/>
    <attribute name="action-source" type="string" use="optional">
      <annotation>
        <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
      </annotation>
    </attribute>
    <attribute name="action-type" type="string" use="optional">
      <annotation>
        <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:team-metadata-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Metadata about one team. | Specific to ice-hockey.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="team-metadata-ice-hockey">
  <annotation>
    <documentation>Metadata about one team. | Specific to ice-hockey.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>

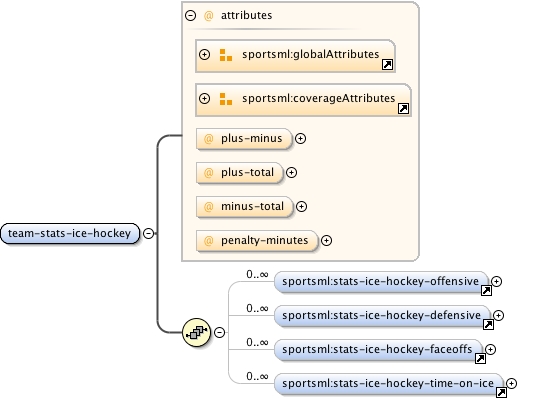

Element sportsml:team-stats-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Stats about one team. | Specific to ice-hockey.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-ice-hockey_xsd.tmp#team-stats-ice-hockey_plus-minus sportsml-specific-ice-hockey_xsd.tmp#team-stats-ice-hockey_plus-total sportsml-specific-ice-hockey_xsd.tmp#team-stats-ice-hockey_minus-total sportsml-specific-ice-hockey_xsd.tmp#team-stats-ice-hockey_penalty-minutes sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice
Properties
content: complex
Used by
Model sportsml:stats-ice-hockey-offensive* , sportsml:stats-ice-hockey-defensive* , sportsml:stats-ice-hockey-faceoffs* , sportsml:stats-ice-hockey-time-on-ice*
Children sportsml:stats-ice-hockey-defensive, sportsml:stats-ice-hockey-faceoffs, sportsml:stats-ice-hockey-offensive, sportsml:stats-ice-hockey-time-on-ice
Instance
<sportsml:team-stats-ice-hockey alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" minus-total="" penalty-minutes="" period-value="" plus-minus="" plus-total="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-ice-hockey-offensive alignment-scope="" assists="" assists-game-tying="" assists-game-winning="" assists-overtime="" assists-power-play="" assists-short-handed="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" faceoff-losses="" faceoff-win-percentage="" faceoff-wins="" giveaways="" goals-empty-net="" goals-even-strength="" goals-game-tying="" goals-game-winning="" goals-overtime="" goals-penalty-shot="" goals-per-game="" goals-power-play="" goals-shootout="" goals-shootout-attempts="" goals-short-handed="" goals-total="" hat-tricks="" id="" location="" minutes-power-play="" period-value="" player-count="" player-count-opposing="" points="" points-power-play="" points-short-handed="" position-scope="" power-play-amount="" power-play-percentage="" record-making-scope="" scoping-label="" scoring-chances="" shot-attempts-blocked="" shots-blocked="" shots-even-strength="" shots-missed="" shots-penalty-shot-missed="" shots-penalty-shot-percentage="" shots-penalty-shot-taken="" shots-power-play="" shots-short-handed="" stats-coverage="" team-coverage="" zone="">{0,unbounded}</sportsml:stats-ice-hockey-offensive>
  <sportsml:stats-ice-hockey-defensive alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" goals-against-average="" goals-against-total="" goals-empty-net-allowed="" goals-penalty-shot-allowed="" goals-power-play-allowed="" goals-shootout-allowed="" goals-short-handed-allowed="" goaltender-losses="" goaltender-losses-overtime="" goaltender-ties="" goaltender-wins="" goaltender-wins-overtime="" hits="" id="" location="" minutes-penalty-killing="" penalty-killing-amount="" penalty-killing-percentage="" period-value="" player-count="" player-count-opposing="" position-scope="" record-making-scope="" save-percentage="" saves="" scoping-label="" shots-blocked="" shots-penalty-shot-allowed="" shots-power-play-allowed="" shots-shootout-allowed="" shutouts="" stats-coverage="" takeaways="" team-coverage="" zone="">{0,unbounded}</sportsml:stats-ice-hockey-defensive>
  <sportsml:stats-ice-hockey-faceoffs alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" faceoff-losses="" faceoffs-even-strength-losses="" faceoffs-even-strength-total="" faceoffs-even-strength-win-percentage="" faceoffs-even-strength-wins="" faceoffs-power-play-losses="" faceoffs-power-play-total="" faceoffs-power-play-win-percentage="" faceoffs-power-play-wins="" faceoffs-short-handed-losses="" faceoffs-short-handed-total="" faceoffs-short-handed-win-percentage="" faceoffs-short-handed-wins="" faceoffs-total="" faceoff-win-percentage="" faceoff-wins="" id="" location="" period-value="" player-count="" player-count-opposing="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" zone="">{0,unbounded}</sportsml:stats-ice-hockey-faceoffs>
  <sportsml:stats-ice-hockey-time-on-ice alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" location="" period-value="" player-count="" player-count-opposing="" position-scope="" record-making-scope="" scoping-label="" shifts="" shifts-average="" shifts-power-play="" shifts-short-handed="" stats-coverage="" team-coverage="" time-average-even-strength="" time-average-per-shift="" time-average-power-play="" time-average-short-handed="" time-empty-net="" time-even-strength="" time-even-strength-empty-net="" time-power-play="" time-power-play-empty-net="" time-short-handed="" time-short-handed-empty-net="" zone="">{0,unbounded}</sportsml:stats-ice-hockey-time-on-ice>
</sportsml:team-stats-ice-hockey>
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
minus-total string optional
Number of times players were on ice when opponent scored.
penalty-minutes string optional
Total number of penalty minutes accrued by a single team.
period-value string optional
Used for tracking stats and events by period.
plus-minus string optional
Number of times players on this team were on ice when own team scored minus the number of times players were on ice when opponent scored.
plus-total string optional
Number of times players on this team were on ice when own team scored.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source
<element name="team-stats-ice-hockey">
  <annotation>
    <documentation>Stats about one team. | Specific to ice-hockey.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-ice-hockey-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-ice-hockey-defensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-ice-hockey-faceoffs" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-ice-hockey-time-on-ice" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="plus-minus" type="string" use="optional">
      <annotation>
        <documentation>Number of times players on this team were on ice when own team scored minus the number of times players were on ice when opponent scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="plus-total" type="string" use="optional">
      <annotation>
        <documentation>Number of times players on this team were on ice when own team scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="minus-total" type="string" use="optional">
      <annotation>
        <documentation>Number of times players were on ice when opponent scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-minutes" type="string" use="optional">
      <annotation>
        <documentation>Total number of penalty minutes accrued by a single team.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

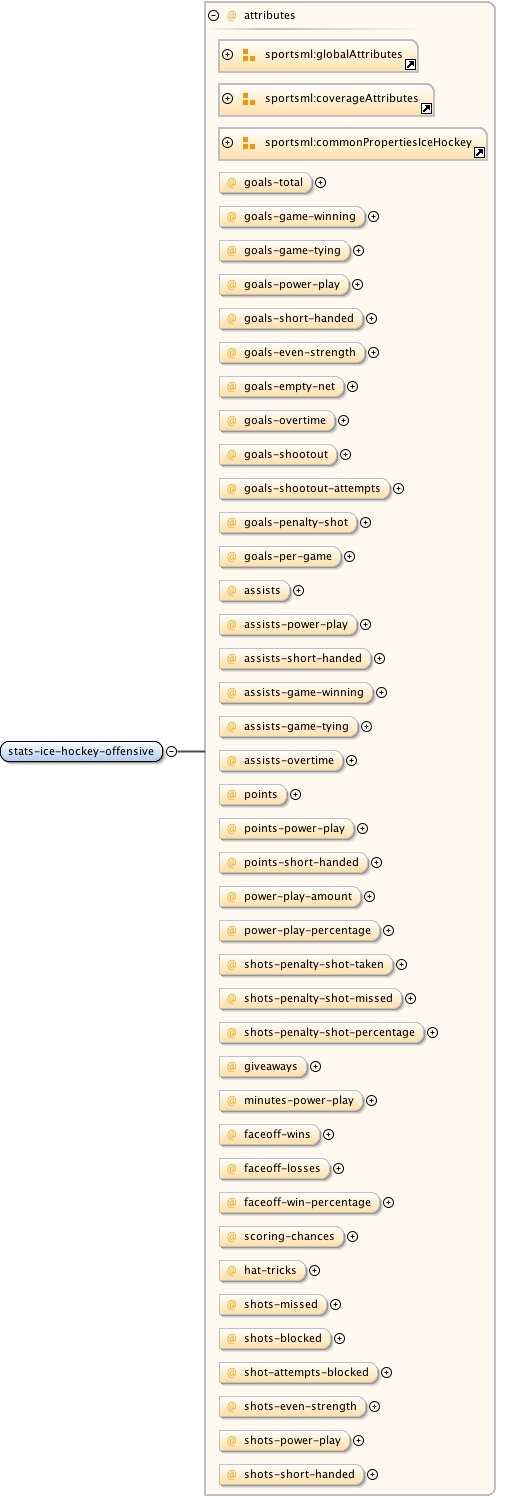

Element sportsml:stats-ice-hockey-offensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Offensive stats for one team. | Specific to ice-hockey, including stats on shots, goals, and faceoffs.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-total sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-game-winning sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-game-tying sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-short-handed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-even-strength sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-empty-net sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-overtime sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-shootout sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-shootout-attempts sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-penalty-shot sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_goals-per-game sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists-short-handed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists-game-winning sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists-game-tying sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_assists-overtime sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_points sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_points-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_points-short-handed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_power-play-amount sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_power-play-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shots-penalty-shot-taken sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shots-penalty-shot-missed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shots-penalty-shot-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_giveaways sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_minutes-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_faceoff-wins sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_faceoff-losses sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_faceoff-win-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_scoring-chances sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_hat-tricks sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shots-missed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shots-blocked sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shot-attempts-blocked sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shots-even-strength sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shots-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive_shots-short-handed
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
assists string optional
Total number of assists.
assists-game-tying string optional
Assists on goals that caused the game to be tied.
assists-game-winning string optional
Assists on goals that provided the winning margin in a game.
assists-overtime string optional
Assists on goals scored during overtime.
assists-power-play string optional
Total number of assists made during a power play.
assists-short-handed string optional
Total number of assists made while short-handed.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
faceoff-losses string optional
DEPRECATE: moved to stats-ice-faceoffs element
faceoff-win-percentage string optional
DEPRECATE: moved to stats-ice-faceoffs element
faceoff-wins string optional
DEPRECATE: moved to stats-ice-faceoffs element
giveaways string optional
Number of times that passes were attempted but intercepted. A judgment call whose exact conditions vary.
goals-empty-net string optional
Goals scored on an empty goal, with the opposing goalie pulled from the net.
goals-even-strength string optional
Goals scored while the teams were at even strength.
goals-game-tying string optional
Goals that caused the game to be tied.
goals-game-winning string optional
Goals that provided the winning margin in a game.
goals-overtime string optional
Goals scored during overtime.
goals-penalty-shot string optional
Goals scored as penalty shots.
goals-per-game string optional
Average of goals scored per game.
goals-power-play string optional
Goals scored while the team was having a power-play.
goals-shootout string optional
Goals scored during a shootout.
goals-shootout-attempts string optional
Goals attempted during a shootout.
goals-short-handed string optional
Goals scored while the team was playing short-handed.
goals-total string optional
Total number of goals by the team. Could differ from the score if score-points are awarded for shootout, for example.
hat-tricks string optional
Total number of hat-trick games.
id ID optional
An XML-specific identifier for the element.
location string optional
Location of the action on the rink.
minutes-power-play string optional
Total number of minutes played in a power-play.
period-value string optional
Used for tracking stats and events by period.
player-count string optional
Number of players on the ice for the stat or action.
player-count-opposing string optional
Number of opposing players on the ice for the stat or action.
points string optional
Total number of points, with a score and an assist generally counted as one point each.
points-power-play string optional
Total number of points during power plays, with a score and an assist generally counted as one point each.
points-short-handed string optional
Total number of points while short-handed, with a score and an assist generally counted as one point each.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
power-play-amount string optional
Number of power-play opportunities a team has had.
power-play-percentage string optional
Measure of success at power plays. Figured by dividing goals-power-play by power-play-amount.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
scoring-chances string optional
Total number of qualified chances to score.
shot-attempts-blocked string optional
Number of shots taken which were blocked by an opponent.
shots-blocked string optional
DEPRECATED: shot-attemts-blocked. Number of shots taken which were blocked by an opponent.
shots-even-strength string optional
Number of shots taken at even strength.
shots-missed string optional
Total number of shots missed.
shots-penalty-shot-missed string optional
Total number of penalty shots missed by a shooting player.
shots-penalty-shot-percentage string optional
Percentage of penalty shots that resulted in goals.
shots-penalty-shot-taken string optional
Total number of penalty shots taken by a shooting player.
shots-power-play string optional
Number of shots taken on power play.
shots-short-handed string optional
Number of shots taken while short-handed.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
zone restriction of string optional
The zone on the rink for the stat or action: offensive | defensive | neutral.
Source
<element name="stats-ice-hockey-offensive">
  <annotation>
    <documentation>Offensive stats for one team. | Specific to ice-hockey, including stats on shots, goals, and faceoffs.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attributeGroup ref="sportsml:commonPropertiesIceHockey"/>
    <attribute name="goals-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of goals by the team. Could differ from the score if score-points are awarded for shootout, for example.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-game-winning" type="string" use="optional">
      <annotation>
        <documentation>Goals that provided the winning margin in a game.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-game-tying" type="string" use="optional">
      <annotation>
        <documentation>Goals that caused the game to be tied.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-power-play" type="string" use="optional">
      <annotation>
        <documentation>Goals scored while the team was having a power-play.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-short-handed" type="string" use="optional">
      <annotation>
        <documentation>Goals scored while the team was playing short-handed.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-even-strength" type="string" use="optional">
      <annotation>
        <documentation>Goals scored while the teams were at even strength.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-empty-net" type="string" use="optional">
      <annotation>
        <documentation>Goals scored on an empty goal, with the opposing goalie pulled from the net.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-overtime" type="string" use="optional">
      <annotation>
        <documentation>Goals scored during overtime.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-shootout" type="string" use="optional">
      <annotation>
        <documentation>Goals scored during a shootout.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-shootout-attempts" type="string" use="optional">
      <annotation>
        <documentation>Goals attempted during a shootout.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-penalty-shot" type="string" use="optional">
      <annotation>
        <documentation>Goals scored as penalty shots.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average of goals scored per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists" type="string" use="optional">
      <annotation>
        <documentation>Total number of assists.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-power-play" type="string" use="optional">
      <annotation>
        <documentation>Total number of assists made during a power play.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-short-handed" type="string" use="optional">
      <annotation>
        <documentation>Total number of assists made while short-handed.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-game-winning" type="string" use="optional">
      <annotation>
        <documentation>Assists on goals that provided the winning margin in a game.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-game-tying" type="string" use="optional">
      <annotation>
        <documentation>Assists on goals that caused the game to be tied.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-overtime" type="string" use="optional">
      <annotation>
        <documentation>Assists on goals scored during overtime.</documentation>
      </annotation>
    </attribute>
    <attribute name="points" type="string" use="optional">
      <annotation>
        <documentation>Total number of points, with a score and an assist generally counted as one point each.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-power-play" type="string" use="optional">
      <annotation>
        <documentation>Total number of points during power plays, with a score and an assist generally counted as one point each.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-short-handed" type="string" use="optional">
      <annotation>
        <documentation>Total number of points while short-handed, with a score and an assist generally counted as one point each.</documentation>
      </annotation>
    </attribute>
    <attribute name="power-play-amount" type="string" use="optional">
      <annotation>
        <documentation>Number of power-play opportunities a team has had.</documentation>
      </annotation>
    </attribute>
    <attribute name="power-play-percentage" type="string" use="optional">
      <annotation>
        <documentation>Measure of success at power plays. Figured by dividing goals-power-play by power-play-amount.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-taken" type="string" use="optional">
      <annotation>
        <documentation>Total number of penalty shots taken by a shooting player.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-missed" type="string" use="optional">
      <annotation>
        <documentation>Total number of penalty shots missed by a shooting player.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of penalty shots that resulted in goals.</documentation>
      </annotation>
    </attribute>
    <attribute name="giveaways" type="string" use="optional">
      <annotation>
        <documentation>Number of times that passes were attempted but intercepted. A judgment call whose exact conditions vary.</documentation>
      </annotation>
    </attribute>
    <attribute name="minutes-power-play" type="string" use="optional">
      <annotation>
        <documentation>Total number of minutes played in a power-play.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoff-wins" type="string" use="optional">
      <annotation>
        <documentation>DEPRECATE: moved to stats-ice-faceoffs element</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoff-losses" type="string" use="optional">
      <annotation>
        <documentation>DEPRECATE: moved to stats-ice-faceoffs element</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoff-win-percentage" type="string" use="optional">
      <annotation>
        <documentation>DEPRECATE: moved to stats-ice-faceoffs element</documentation>
      </annotation>
    </attribute>
    <attribute name="scoring-chances" type="string" use="optional">
      <annotation>
        <documentation>Total number of qualified chances to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="hat-tricks" type="string" use="optional">
      <annotation>
        <documentation>Total number of hat-trick games.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-missed" type="string" use="optional">
      <annotation>
        <documentation>Total number of shots missed.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-blocked" type="string" use="optional">
      <annotation>
        <documentation>DEPRECATED: shot-attemts-blocked. Number of shots taken which were blocked by an opponent.</documentation>
      </annotation>
    </attribute>
    <attribute name="shot-attempts-blocked" type="string" use="optional">
      <annotation>
        <documentation>Number of shots taken which were blocked by an opponent.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-even-strength" type="string" use="optional">
      <annotation>
        <documentation>Number of shots taken at even strength.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-power-play" type="string" use="optional">
      <annotation>
        <documentation>Number of shots taken on power play.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-short-handed" type="string" use="optional">
      <annotation>
        <documentation>Number of shots taken while short-handed.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:stats-ice-hockey-defensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Defensive stats for the team. | Specific to ice-hockey, including saves and shots allowed.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_shots-power-play-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_shots-penalty-shot-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-power-play-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-penalty-shot-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-empty-net-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-short-handed-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-against-total sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-against-average sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_saves sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_save-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goals-shootout-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_shots-shootout-allowed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_penalty-killing-amount sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_penalty-killing-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_shots-blocked sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_takeaways sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_shutouts sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_minutes-penalty-killing sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_hits sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goaltender-wins sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goaltender-losses sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goaltender-ties sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goaltender-wins-overtime sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive_goaltender-losses-overtime
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
goals-against-average string optional
Average number of goals per game allowed by the team.
goals-against-total string optional
Total number of goals against for the given period. Could differ from the score if score-points are deducted for some reason.
goals-empty-net-allowed string optional
Total number of goals allowed while the net was empty.
goals-penalty-shot-allowed string optional
Total number of goals allowed as penalty-shots.
goals-power-play-allowed string optional
Total number of goals allowed while the opposing team has a power-play.
goals-shootout-allowed string optional
Number of shootout goals that went in for a score for the opposing team.
goals-short-handed-allowed string optional
Total number of goals allowed while playing short-handed.
goaltender-losses string optional
Total number of games lost with this goaltender.
goaltender-losses-overtime string optional
Number of games lost while play is in overtime.
goaltender-ties string optional
Total number of games tied with this goaltender.
goaltender-wins string optional
Total number of games with this goaltender.
goaltender-wins-overtime string optional
Number of games won while play is in overtime.
hits string optional
Number of body checks made against an opposing player.
id ID optional
An XML-specific identifier for the element.
location string optional
Location of the action on the rink.
minutes-penalty-killing string optional
Total number of minutes played short-handed, while the other team had a power-play.
penalty-killing-amount string optional
Number of penalty-killing sessions, aka number of short-handed sessions.
penalty-killing-percentage string optional
Equals goals-penalty-allowed divided by penalty-killing-amount.
period-value string optional
Used for tracking stats and events by period.
player-count string optional
Number of players on the ice for the stat or action.
player-count-opposing string optional
Number of opposing players on the ice for the stat or action.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
save-percentage string optional
Percentage of saves compared to total number of shots.
saves string optional
Total number of saves.
scoping-label string optional
A textual description for the scope.
shots-blocked string optional
Number of shots that were blocked. This statistic is generally tracked for non-goalies.
shots-penalty-shot-allowed string optional
Total number of shots allowed as penalty-shots.
shots-power-play-allowed string optional
Total number of shots on goal allowed during power-play.
shots-shootout-allowed string optional
Number of shootout shots that were attempted by the opposing team.
shutouts string optional
Total number of games where the opposing team did not score.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
takeaways string optional
Number of intercepted passes. A judgment call whose exact conditions vary.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
zone restriction of string optional
The zone on the rink for the stat or action: offensive | defensive | neutral.
Source
<element name="stats-ice-hockey-defensive">
  <annotation>
    <documentation>Defensive stats for the team. | Specific to ice-hockey, including saves and shots allowed.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attributeGroup ref="sportsml:commonPropertiesIceHockey"/>
    <attribute name="shots-power-play-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of shots on goal allowed during power-play.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-penalty-shot-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of shots allowed as penalty-shots.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-power-play-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of goals allowed while the opposing team has a power-play.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-penalty-shot-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of goals allowed as penalty-shots.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-empty-net-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of goals allowed while the net was empty.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-short-handed-allowed" type="string" use="optional">
      <annotation>
        <documentation>Total number of goals allowed while playing short-handed.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-against-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of goals against for the given period. Could differ from the score if score-points are deducted for some reason.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-against-average" type="string" use="optional">
      <annotation>
        <documentation>Average number of goals per game allowed by the team.</documentation>
      </annotation>
    </attribute>
    <attribute name="saves" type="string" use="optional">
      <annotation>
        <documentation>Total number of saves.</documentation>
      </annotation>
    </attribute>
    <attribute name="save-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of saves compared to total number of shots.</documentation>
      </annotation>
    </attribute>
    <attribute name="goals-shootout-allowed" type="string" use="optional">
      <annotation>
        <documentation>Number of shootout goals that went in for a score for the opposing team.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-shootout-allowed" type="string" use="optional">
      <annotation>
        <documentation>Number of shootout shots that were attempted by the opposing team.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-killing-amount" type="string" use="optional">
      <annotation>
        <documentation>Number of penalty-killing sessions, aka number of short-handed sessions.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-killing-percentage" type="string" use="optional">
      <annotation>
        <documentation>Equals goals-penalty-allowed divided by penalty-killing-amount.</documentation>
      </annotation>
    </attribute>
    <attribute name="shots-blocked" type="string" use="optional">
      <annotation>
        <documentation>Number of shots that were blocked. This statistic is generally tracked for non-goalies.</documentation>
      </annotation>
    </attribute>
    <attribute name="takeaways" type="string" use="optional">
      <annotation>
        <documentation>Number of intercepted passes. A judgment call whose exact conditions vary.</documentation>
      </annotation>
    </attribute>
    <attribute name="shutouts" type="string" use="optional">
      <annotation>
        <documentation>Total number of games where the opposing team did not score.</documentation>
      </annotation>
    </attribute>
    <attribute name="minutes-penalty-killing" type="string" use="optional">
      <annotation>
        <documentation>Total number of minutes played short-handed, while the other team had a power-play.</documentation>
      </annotation>
    </attribute>
    <attribute name="hits" type="string" use="optional">
      <annotation>
        <documentation>Number of body checks made against an opposing player.</documentation>
      </annotation>
    </attribute>
    <attribute name="goaltender-wins" type="string" use="optional">
      <annotation>
        <documentation>Total number of games with this goaltender.</documentation>
      </annotation>
    </attribute>
    <attribute name="goaltender-losses" type="string" use="optional">
      <annotation>
        <documentation>Total number of games lost with this goaltender.</documentation>
      </annotation>
    </attribute>
    <attribute name="goaltender-ties" type="string" use="optional">
      <annotation>
        <documentation>Total number of games tied with this goaltender.</documentation>
      </annotation>
    </attribute>
    <attribute name="goaltender-wins-overtime" type="string" use="optional">
      <annotation>
        <documentation>Number of games won while play is in overtime.</documentation>
      </annotation>
    </attribute>
    <attribute name="goaltender-losses-overtime" type="string" use="optional">
      <annotation>
        <documentation>Number of games lost while play is in overtime.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:stats-ice-hockey-faceoffs
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Defensive stats for the team. | Specific to ice-hockey, including saves and shots allowed.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-total sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoff-wins sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoff-losses sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoff-win-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-even-strength-total sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-even-strength-wins sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-even-strength-losses sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-even-strength-win-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-power-play-total sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-power-play-wins sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-power-play-losses sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-power-play-win-percentage sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-short-handed-total sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-short-handed-wins sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-short-handed-losses sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs_faceoffs-short-handed-win-percentage
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
faceoff-losses string optional
Total number of lost faceoffs.
faceoff-win-percentage string optional
Percentage of faceoffs that were won.
faceoff-wins string optional
Total number of won faceoffs.
faceoffs-even-strength-losses string optional
Number of faceoffs lost at even strength.
faceoffs-even-strength-total string optional
Number of faceoffs taken at even strength.
faceoffs-even-strength-win-percentage string optional
Percentage of faceoffs won at even strength.
faceoffs-even-strength-wins string optional
Number of faceoffs won at even strength.
faceoffs-power-play-losses string optional
Number of faceoffs lost on power play.
faceoffs-power-play-total string optional
Number of faceoffs taken on power play.
faceoffs-power-play-win-percentage string optional
Percentage of faceoffs won on power play.
faceoffs-power-play-wins string optional
Number of faceoffs won on power play.
faceoffs-short-handed-losses string optional
Number of faceoffs lost while short-handed.
faceoffs-short-handed-total string optional
Number of faceoffs taken while short-handed.
faceoffs-short-handed-win-percentage string optional
Percentage of faceoffs won while short-handed.
faceoffs-short-handed-wins string optional
Number of faceoffs won while short-handed.
faceoffs-total string optional
Total number of faceoffs taken.
id ID optional
An XML-specific identifier for the element.
location string optional
Location of the action on the rink.
period-value string optional
Used for tracking stats and events by period.
player-count string optional
Number of players on the ice for the stat or action.
player-count-opposing string optional
Number of opposing players on the ice for the stat or action.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
zone restriction of string optional
The zone on the rink for the stat or action: offensive | defensive | neutral.
Source
<element name="stats-ice-hockey-faceoffs">
  <annotation>
    <documentation>Defensive stats for the team. | Specific to ice-hockey, including saves and shots allowed.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attributeGroup ref="sportsml:commonPropertiesIceHockey"/>
    <attribute name="faceoffs-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of faceoffs taken.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoff-wins" type="string" use="optional">
      <annotation>
        <documentation>Total number of won faceoffs.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoff-losses" type="string" use="optional">
      <annotation>
        <documentation>Total number of lost faceoffs.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoff-win-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of faceoffs that were won.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-even-strength-total" type="string" use="optional">
      <annotation>
        <documentation>Number of faceoffs taken at even strength.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-even-strength-wins" type="string" use="optional">
      <annotation>
        <documentation>Number of faceoffs won at even strength.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-even-strength-losses" type="string" use="optional">
      <annotation>
        <documentation>Number of faceoffs lost at even strength.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-even-strength-win-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of faceoffs won at even strength.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-power-play-total" type="string" use="optional">
      <annotation>
        <documentation>Number of faceoffs taken on power play.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-power-play-wins" type="string" use="optional">
      <annotation>
        <documentation>Number of faceoffs won on power play.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-power-play-losses" type="string" use="optional">
      <annotation>
        <documentation>Number of faceoffs lost on power play.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-power-play-win-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of faceoffs won on power play.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-short-handed-total" type="string" use="optional">
      <annotation>
        <documentation>Number of faceoffs taken while short-handed.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-short-handed-wins" type="string" use="optional">
      <annotation>
        <documentation>Number of faceoffs won while short-handed.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-short-handed-losses" type="string" use="optional">
      <annotation>
        <documentation>Number of faceoffs lost while short-handed.</documentation>
      </annotation>
    </attribute>
    <attribute name="faceoffs-short-handed-win-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of faceoffs won while short-handed.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:stats-ice-hockey-time-on-ice
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Defensive stats for the team. | Specific to ice-hockey, including saves and shots allowed.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_shifts sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_shifts-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_shifts-short-handed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_shifts-average sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_time-average-per-shift sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_time-average-even-strength sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_time-average-short-handed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_time-average-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_time-power-play sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_time-short-handed sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_time-even-strength sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_time-empty-net sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_time-power-play-empty-net sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_time-short-handed-empty-net sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice_time-even-strength-empty-net
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
location string optional
Location of the action on the rink.
period-value string optional
Used for tracking stats and events by period.
player-count string optional
Number of players on the ice for the stat or action.
player-count-opposing string optional
Number of opposing players on the ice for the stat or action.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
shifts string optional
Number of shifts played.
shifts-average string optional
Average number of shifts played.
shifts-power-play string optional
Number of power-play shifts played.
shifts-short-handed string optional
Number of short-handed shifts played.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
time-average-even-strength string optional
Average amount of time played at even strength.
time-average-per-shift string optional
Average amount of time played per shift.
time-average-power-play string optional
Average amount of time played on power play.
time-average-short-handed string optional
Average amount of time played short-handed.
time-empty-net string optional
Amount of time played with an empty net.
time-even-strength string optional
Amount of time played at even strength.
time-even-strength-empty-net string optional
Amount of time played even strength with empty net.
time-power-play string optional
Amount of time played on power play.
time-power-play-empty-net string optional
Amount of time played on power play with empty net.
time-short-handed string optional
Amount of time played short-handed.
time-short-handed-empty-net string optional
Amount of time played short-handed with empty net.
zone restriction of string optional
The zone on the rink for the stat or action: offensive | defensive | neutral.
Source
<element name="stats-ice-hockey-time-on-ice">
  <annotation>
    <documentation>Defensive stats for the team. | Specific to ice-hockey, including saves and shots allowed.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attributeGroup ref="sportsml:commonPropertiesIceHockey"/>
    <attribute name="shifts" type="string" use="optional">
      <annotation>
        <documentation>Number of shifts played.</documentation>
      </annotation>
    </attribute>
    <attribute name="shifts-power-play" type="string" use="optional">
      <annotation>
        <documentation>Number of power-play shifts played.</documentation>
      </annotation>
    </attribute>
    <attribute name="shifts-short-handed" type="string" use="optional">
      <annotation>
        <documentation>Number of short-handed shifts played.</documentation>
      </annotation>
    </attribute>
    <attribute name="shifts-average" type="string" use="optional">
      <annotation>
        <documentation>Average number of shifts played.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-average-per-shift" type="string" use="optional">
      <annotation>
        <documentation>Average amount of time played per shift.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-average-even-strength" type="string" use="optional">
      <annotation>
        <documentation>Average amount of time played at even strength.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-average-short-handed" type="string" use="optional">
      <annotation>
        <documentation>Average amount of time played short-handed.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-average-power-play" type="string" use="optional">
      <annotation>
        <documentation>Average amount of time played on power play.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-power-play" type="string" use="optional">
      <annotation>
        <documentation>Amount of time played on power play.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-short-handed" type="string" use="optional">
      <annotation>
        <documentation>Amount of time played short-handed.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-even-strength" type="string" use="optional">
      <annotation>
        <documentation>Amount of time played at even strength.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-empty-net" type="string" use="optional">
      <annotation>
        <documentation>Amount of time played with an empty net.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-power-play-empty-net" type="string" use="optional">
      <annotation>
        <documentation>Amount of time played on power play with empty net.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-short-handed-empty-net" type="string" use="optional">
      <annotation>
        <documentation>Amount of time played short-handed with empty net.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-even-strength-empty-net" type="string" use="optional">
      <annotation>
        <documentation>Amount of time played even strength with empty net.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:player-metadata-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Metadata for a player. | Specific to ice-hockey. Reserved for future use.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-ice-hockey_xsd.tmp#player-metadata-ice-hockey_shooting-hand sportsml-specific-ice-hockey_xsd.tmp#player-metadata-ice-hockey_catching-hand
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
catching-hand sportsml:bodySide.Core optional
The hand with which a player, generally a goaltender, catches the puck.
id ID optional
An XML-specific identifier for the element.
shooting-hand sportsml:bodySide.Core optional
The side from which a player normally shoots.
Source
<element name="player-metadata-ice-hockey">
  <annotation>
    <documentation>Metadata for a player. | Specific to ice-hockey. Reserved for future use.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="shooting-hand" type="sportsml:bodySide.Core" use="optional">
      <annotation>
        <documentation>The side from which a player normally shoots.</documentation>
      </annotation>
    </attribute>
    <attribute name="catching-hand" type="sportsml:bodySide.Core" use="optional">
      <annotation>
        <documentation>The hand with which a player, generally a goaltender, catches the puck.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:player-stats-ice-hockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Stats for a player specific to ice-hockey. | Includes the same offensive and defensive stats available for a team.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_plus-minus sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_plus-total sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_minus-total sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_minutes-played sportsml-specific-ice-hockey_xsd.tmp#player-stats-ice-hockey_penalty-minutes sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-offensive sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-defensive sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-faceoffs sportsml-specific-ice-hockey_xsd.tmp#stats-ice-hockey-time-on-ice
Properties
content: complex
Used by
Model sportsml:stats-ice-hockey-offensive* , sportsml:stats-ice-hockey-defensive* , sportsml:stats-ice-hockey-faceoffs* , sportsml:stats-ice-hockey-time-on-ice*
Children sportsml:stats-ice-hockey-defensive, sportsml:stats-ice-hockey-faceoffs, sportsml:stats-ice-hockey-offensive, sportsml:stats-ice-hockey-time-on-ice
Instance
<sportsml:player-stats-ice-hockey alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" minus-total="" minutes-played="" penalty-minutes="" period-value="" plus-minus="" plus-total="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-ice-hockey-offensive alignment-scope="" assists="" assists-game-tying="" assists-game-winning="" assists-overtime="" assists-power-play="" assists-short-handed="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" faceoff-losses="" faceoff-win-percentage="" faceoff-wins="" giveaways="" goals-empty-net="" goals-even-strength="" goals-game-tying="" goals-game-winning="" goals-overtime="" goals-penalty-shot="" goals-per-game="" goals-power-play="" goals-shootout="" goals-shootout-attempts="" goals-short-handed="" goals-total="" hat-tricks="" id="" location="" minutes-power-play="" period-value="" player-count="" player-count-opposing="" points="" points-power-play="" points-short-handed="" position-scope="" power-play-amount="" power-play-percentage="" record-making-scope="" scoping-label="" scoring-chances="" shot-attempts-blocked="" shots-blocked="" shots-even-strength="" shots-missed="" shots-penalty-shot-missed="" shots-penalty-shot-percentage="" shots-penalty-shot-taken="" shots-power-play="" shots-short-handed="" stats-coverage="" team-coverage="" zone="">{0,unbounded}</sportsml:stats-ice-hockey-offensive>
  <sportsml:stats-ice-hockey-defensive alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" goals-against-average="" goals-against-total="" goals-empty-net-allowed="" goals-penalty-shot-allowed="" goals-power-play-allowed="" goals-shootout-allowed="" goals-short-handed-allowed="" goaltender-losses="" goaltender-losses-overtime="" goaltender-ties="" goaltender-wins="" goaltender-wins-overtime="" hits="" id="" location="" minutes-penalty-killing="" penalty-killing-amount="" penalty-killing-percentage="" period-value="" player-count="" player-count-opposing="" position-scope="" record-making-scope="" save-percentage="" saves="" scoping-label="" shots-blocked="" shots-penalty-shot-allowed="" shots-power-play-allowed="" shots-shootout-allowed="" shutouts="" stats-coverage="" takeaways="" team-coverage="" zone="">{0,unbounded}</sportsml:stats-ice-hockey-defensive>
  <sportsml:stats-ice-hockey-faceoffs alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" faceoff-losses="" faceoffs-even-strength-losses="" faceoffs-even-strength-total="" faceoffs-even-strength-win-percentage="" faceoffs-even-strength-wins="" faceoffs-power-play-losses="" faceoffs-power-play-total="" faceoffs-power-play-win-percentage="" faceoffs-power-play-wins="" faceoffs-short-handed-losses="" faceoffs-short-handed-total="" faceoffs-short-handed-win-percentage="" faceoffs-short-handed-wins="" faceoffs-total="" faceoff-win-percentage="" faceoff-wins="" id="" location="" period-value="" player-count="" player-count-opposing="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" zone="">{0,unbounded}</sportsml:stats-ice-hockey-faceoffs>
  <sportsml:stats-ice-hockey-time-on-ice alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" location="" period-value="" player-count="" player-count-opposing="" position-scope="" record-making-scope="" scoping-label="" shifts="" shifts-average="" shifts-power-play="" shifts-short-handed="" stats-coverage="" team-coverage="" time-average-even-strength="" time-average-per-shift="" time-average-power-play="" time-average-short-handed="" time-empty-net="" time-even-strength="" time-even-strength-empty-net="" time-power-play="" time-power-play-empty-net="" time-short-handed="" time-short-handed-empty-net="" zone="">{0,unbounded}</sportsml:stats-ice-hockey-time-on-ice>
</sportsml:player-stats-ice-hockey>
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
minus-total string optional
Number of times player was on ice when opponent scored.
minutes-played string optional
Number of minutes player was on ice.
penalty-minutes string optional
Total number of penalty minutes accrued by a single player.
period-value string optional
Used for tracking stats and events by period.
plus-minus string optional
Number of times player was on ice when own team scored minus the number of times player was on ice when opponent scored.
plus-total string optional
Number of times player was on ice when own team scored.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source
<element name="player-stats-ice-hockey">
  <annotation>
    <documentation>Stats for a player specific to ice-hockey. | Includes the same offensive and defensive stats available for a team.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-ice-hockey-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-ice-hockey-defensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-ice-hockey-faceoffs" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-ice-hockey-time-on-ice" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="plus-minus" type="string" use="optional">
      <annotation>
        <documentation>Number of times player was on ice when own team scored minus the number of times player was on ice when opponent scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="plus-total" type="string" use="optional">
      <annotation>
        <documentation>Number of times player was on ice when own team scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="minus-total" type="string" use="optional">
      <annotation>
        <documentation>Number of times player was on ice when opponent scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="minutes-played" type="string" use="optional">
      <annotation>
        <documentation>Number of minutes player was on ice.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-minutes" type="string" use="optional">
      <annotation>
        <documentation>Total number of penalty minutes accrued by a single player.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Attribute sportsml:eventStateIceHockey / @period-value
Namespace No namespace
Annotations
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
Type string
Properties
use: optional
Used by
Source
<attribute name="period-value" type="string" use="optional">
  <annotation>
    <documentation>Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)</documentation>
  </annotation>
</attribute>
Attribute sportsml:eventStateIceHockey / @period-time-elapsed
Namespace No namespace
Annotations
The time elapsed in the period.
Type string
Properties
use: optional
Used by
Source
<attribute name="period-time-elapsed" type="string" use="optional">
  <annotation>
    <documentation>The time elapsed in the period.</documentation>
  </annotation>
</attribute>
Attribute sportsml:eventStateIceHockey / @period-time-remaining
Namespace No namespace
Annotations
The time remaining in the period.
Type string
Properties
use: optional
Used by
Source
<attribute name="period-time-remaining" type="string" use="optional">
  <annotation>
    <documentation>The time remaining in the period.</documentation>
  </annotation>
</attribute>
Attribute sportsml:eventStateIceHockey / @power-play-time-remaining
Namespace No namespace
Annotations
The time remaining in the power-play.
Type string
Properties
use: optional
Used by
Source
<attribute name="power-play-time-remaining" type="string" use="optional">
  <annotation>
    <documentation>The time remaining in the power-play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:eventStateIceHockey / @power-play-team-idref
Namespace No namespace
Annotations
The key of the team on power-play.
Type string
Properties
use: optional
Used by
Source
<attribute name="power-play-team-idref" type="string" use="optional">
  <annotation>
    <documentation>The key of the team on power-play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:eventStateIceHockey / @power-play-player-advantage
Namespace No namespace
Annotations
The number of extra players on ice for the team on power play.
Type string
Properties
use: optional
Used by
Source
<attribute name="power-play-player-advantage" type="string" use="optional">
  <annotation>
    <documentation>The number of extra players on ice for the team on power play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:eventStateIceHockey / @score-team
Namespace No namespace
Annotations
After an action has taken place, the score of the team that team-idref points to.
Type string
Properties
use: optional
Used by
Source
<attribute name="score-team" type="string" use="optional">
  <annotation>
    <documentation>After an action has taken place, the score of the team that team-idref points to.</documentation>
  </annotation>
</attribute>
Attribute sportsml:eventStateIceHockey / @score-team-opposing
Namespace No namespace
Annotations
After an action has taken place, the score of the team opposing that listed in team-idref.
Type string
Properties
use: optional
Used by
Source
<attribute name="score-team-opposing" type="string" use="optional">
  <annotation>
    <documentation>After an action has taken place, the score of the team opposing that listed in team-idref.</documentation>
  </annotation>
</attribute>
Attribute sportsml:commonPropertiesIceHockey / @player-count
Namespace No namespace
Annotations
Number of players on the ice for the stat or action.
Type string
Properties
use: optional
Used by
Source
<attribute name="player-count" type="string" use="optional">
  <annotation>
    <documentation>Number of players on the ice for the stat or action.</documentation>
  </annotation>
</attribute>
Attribute sportsml:commonPropertiesIceHockey / @player-count-opposing
Namespace No namespace
Annotations
Number of opposing players on the ice for the stat or action.
Type string
Properties
use: optional
Used by
Source
<attribute name="player-count-opposing" type="string" use="optional">
  <annotation>
    <documentation>Number of opposing players on the ice for the stat or action.</documentation>
  </annotation>
</attribute>
Attribute sportsml:commonPropertiesIceHockey / @zone
Namespace No namespace
Annotations
The zone on the rink for the stat or action: offensive | defensive | neutral.
Type restriction of string
Properties
use: optional
Facets
enumeration offensive
enumeration defensive
enumeration neutral
Used by
Source
<attribute name="zone" use="optional">
  <annotation>
    <documentation>The zone on the rink for the stat or action: offensive | defensive | neutral.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="offensive"/>
      <enumeration value="defensive"/>
      <enumeration value="neutral"/>
    </restriction>
  </simpleType>
</attribute>
Attribute sportsml:commonPropertiesIceHockey / @location
Namespace No namespace
Annotations
Location of the action on the rink.
Type string
Properties
use: optional
Used by
Source
<attribute name="location" type="string" use="optional">
  <annotation>
    <documentation>Location of the action on the rink.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-substitution / @person-type
Namespace No namespace
Annotations
The type of person who is substituting, for example: a player, a coach, a referree.
Type restriction of string
Properties
use: optional
Facets
enumeration player
enumeration auxilliary
enumeration official
Used by
Source
<attribute name="person-type" use="optional">
  <annotation>
    <documentation>The type of person who is substituting, for example: a player, a coach, a referree.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="player"/>
      <enumeration value="auxilliary"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Attribute sportsml:action-ice-hockey-substitution / @person-original-idref
Namespace No namespace
Annotations
A pointer to the player who left the ice.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="person-original-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player who left the ice.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-substitution / @person-original-position
Namespace No namespace
Annotations
The position of the player who left the ice. Could be a goalie.
Type sportsml:position.IceHockey
Properties
use: optional
Used by
Source
<attribute name="person-original-position" type="sportsml:position.IceHockey" use="optional">
  <annotation>
    <documentation>The position of the player who left the ice. Could be a goalie.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-substitution / @person-replacing-idref
Namespace No namespace
Annotations
A pointer to the player who now went on the ice.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="person-replacing-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player who now went on the ice.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-substitution / @person-replacing-position
Namespace No namespace
Annotations
The position of the player who went on the ice. If original player was a goalie, and this value is a forward, than the goalie has been pulled.
Type sportsml:position.IceHockey
Properties
use: optional
Used by
Source
<attribute name="person-replacing-position" type="sportsml:position.IceHockey" use="optional">
  <annotation>
    <documentation>The position of the player who went on the ice. If original player was a goalie, and this value is a forward, than the goalie has been pulled.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-substitution / @substitution-reason
Namespace No namespace
Annotations
The reason why a substitution was made.
Type string
Properties
use: optional
Used by
Source
<attribute name="substitution-reason" type="string" use="optional">
  <annotation>
    <documentation>The reason why a substitution was made.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-substitution / @comment
Namespace No namespace
Annotations
A textual comment.
Type string
Properties
use: optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score-attempt / @player-idref
Namespace No namespace
Annotations
A pointer to the player that attempted to score.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player that attempted to score.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score-attempt / @team-idref
Namespace No namespace
Annotations
A pointer to the team that attempted to score.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the team that attempted to score.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score-attempt / @score-attempt-type
Namespace No namespace
Annotations
The type of shot.
Type sportsml:scoreAttemptType.IceHockey
Properties
use: optional
Used by
Source
<attribute name="score-attempt-type" type="sportsml:scoreAttemptType.IceHockey" use="optional">
  <annotation>
    <documentation>The type of shot.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score-attempt / @score-attempt-result
Namespace No namespace
Annotations
The result of the shot.
Type sportsml:scoreAttemptResult.IceHockey
Properties
use: optional
Used by
Source
<attribute name="score-attempt-result" type="sportsml:scoreAttemptResult.IceHockey" use="optional">
  <annotation>
    <documentation>The result of the shot.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score-attempt / @skaters-on-ice
Namespace No namespace
Annotations
The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.
Type string
Properties
use: optional
Used by
Source
<attribute name="skaters-on-ice" type="string" use="optional">
  <annotation>
    <documentation>The number of non-goalie skaters on the ice when the team that did the shooting shot the puck.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score-attempt / @skaters-on-ice-opposing
Namespace No namespace
Annotations
The number of non-goalie skaters on the ice for the team that was shot upon.
Type string
Properties
use: optional
Used by
Source
<attribute name="skaters-on-ice-opposing" type="string" use="optional">
  <annotation>
    <documentation>The number of non-goalie skaters on the ice for the team that was shot upon.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score-attempt / @shootout-shot-order
Namespace No namespace
Annotations
When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).
Type string
Properties
use: optional
Used by
Source
<attribute name="shootout-shot-order" type="string" use="optional">
  <annotation>
    <documentation>When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score-attempt / @comment
Namespace No namespace
Annotations
A textual comment.
Type string
Properties
use: optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play-participant / @player-idref
Namespace No namespace
Annotations
A pointer to a player who participated in the play.
Type IDREF
Properties
use: required
Used by
Source
<attribute name="player-idref" type="IDREF" use="required">
  <annotation>
    <documentation>A pointer to a player who participated in the play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play-participant / @team-idref
Namespace No namespace
Annotations
A pointer to the participant's team.
Type IDREF
Properties
use: required
Used by
Source
<attribute name="team-idref" type="IDREF" use="required">
  <annotation>
    <documentation>A pointer to the participant's team.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play-participant / @role
Namespace No namespace
Annotations
A controlled vocabulary specifying a player's role during the play.
Type sportsml:participantRole.IceHockey
Properties
use: required
Used by
Source
<attribute name="role" type="sportsml:participantRole.IceHockey" use="required">
  <annotation>
    <documentation>A controlled vocabulary specifying a player's role during the play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play-participant / @goals-cumulative
Namespace No namespace
Annotations
Total number goals at time of goal scored.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-cumulative" type="string" use="optional">
  <annotation>
    <documentation>Total number goals at time of goal scored.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play-participant / @assists-cumulative
Namespace No namespace
Annotations
Total number assists at time of assist scored.
Type string
Properties
use: optional
Used by
Source
<attribute name="assists-cumulative" type="string" use="optional">
  <annotation>
    <documentation>Total number assists at time of assist scored.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-assisting-player / @player-idref
Namespace No namespace
Annotations
A pointer to a player who assisted in the score.
Type IDREF
Properties
use: required
Used by
Source
<attribute name="player-idref" type="IDREF" use="required">
  <annotation>
    <documentation>A pointer to a player who assisted in the score.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-scoring-players / @player-idref
Namespace No namespace
Annotations
A pointer to a player on ice during a score.
Type IDREF
Properties
use: required
Used by
Source
<attribute name="player-idref" type="IDREF" use="required">
  <annotation>
    <documentation>A pointer to a player on ice during a score.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-scored-on-players / @player-idref
Namespace No namespace
Annotations
A pointer to a player who was on ice when a score was made.
Type IDREF
Properties
use: required
Used by
Source
<attribute name="player-idref" type="IDREF" use="required">
  <annotation>
    <documentation>A pointer to a player who was on ice when a score was made.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @score-attempt-type
Namespace No namespace
Annotations
The type of shot. Called attempt because it shares the same values as score-attempt element.
Type sportsml:scoreAttemptType.IceHockey
Properties
use: optional
Used by
Source
<attribute name="score-attempt-type" type="sportsml:scoreAttemptType.IceHockey" use="optional">
  <annotation>
    <documentation>The type of shot. Called attempt because it shares the same values as score-attempt element.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @player-idref
Namespace No namespace
Annotations
DEPRECATE: in favour of action-ice-hockey-play-participant with role of "scorer".
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>DEPRECATE: in favour of action-ice-hockey-play-participant with role of "scorer".</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @team-idref
Namespace No namespace
Annotations
A pointer to the team that scored the goal.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the team that scored the goal.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @comment
Namespace No namespace
Annotations
A textual comment.
Type string
Properties
use: optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @skaters-on-ice
Namespace No namespace
Annotations
DEPRECATE: in favour of player-count.
Type string
Properties
use: optional
Used by
Source
<attribute name="skaters-on-ice" type="string" use="optional">
  <annotation>
    <documentation>DEPRECATE: in favour of player-count.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @skaters-on-ice-opposing
Namespace No namespace
Annotations
DEPRECATE: in favour of player-count-opposing.
Type string
Properties
use: optional
Used by
Source
<attribute name="skaters-on-ice-opposing" type="string" use="optional">
  <annotation>
    <documentation>DEPRECATE: in favour of player-count-opposing.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @shootout-shot-order
Namespace No namespace
Annotations
The sequence number of the shootout goal.
Type string
Properties
use: optional
Used by
Source
<attribute name="shootout-shot-order" type="string" use="optional">
  <annotation>
    <documentation>The sequence number of the shootout goal.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @sequence-number
Namespace No namespace
Annotations
The sequence number of the play within the game as a whole.
Type string
Properties
use: optional
Used by
Source
<attribute name="sequence-number" type="string" use="optional">
  <annotation>
    <documentation>The sequence number of the play within the game as a whole.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @strength
Namespace No namespace
Annotations
Denotes play-strength situation of the goal: even-strength | power-play | short-handed
Type sportsml:strength.IceHockey
Properties
use: optional
Used by
Source
<attribute name="strength" type="sportsml:strength.IceHockey" use="optional">
  <annotation>
    <documentation>Denotes play-strength situation of the goal: even-strength | power-play | short-handed</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @goal-zone
Namespace No namespace
Annotations
Area of the goal at which the scoring shot was aimed.
Type string
Properties
use: optional
Used by
Source
<attribute name="goal-zone" type="string" use="optional">
  <annotation>
    <documentation>Area of the goal at which the scoring shot was aimed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @shot-distance
Namespace No namespace
Annotations
The distance of the shot from the net.
Type string
Properties
use: optional
Used by
Source
<attribute name="shot-distance" type="string" use="optional">
  <annotation>
    <documentation>The distance of the shot from the net.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-score / @shot-type
Namespace No namespace
Annotations
The type of shot taken.
Type string
Properties
use: optional
Used by
Source
<attribute name="shot-type" type="string" use="optional">
  <annotation>
    <documentation>The type of shot taken.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @team-idref
Namespace No namespace
Annotations
A pointer to the team that attempted to score.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the team that attempted to score.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @score-attempt-type
Namespace No namespace
Annotations
The type of goal attempted.
Type sportsml:scoreAttemptType.IceHockey
Properties
use: optional
Used by
Source
<attribute name="score-attempt-type" type="sportsml:scoreAttemptType.IceHockey" use="optional">
  <annotation>
    <documentation>The type of goal attempted.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @score-attempt-result
Namespace No namespace
Annotations
The result of the score attempt.
Type sportsml:scoreAttemptResult.IceHockey
Properties
use: optional
Used by
Source
<attribute name="score-attempt-result" type="sportsml:scoreAttemptResult.IceHockey" use="optional">
  <annotation>
    <documentation>The result of the score attempt.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @shootout-shot-order
Namespace No namespace
Annotations
When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).
Type string
Properties
use: optional
Used by
Source
<attribute name="shootout-shot-order" type="string" use="optional">
  <annotation>
    <documentation>When this shot was take, amongst all the shootout shots of a game for one particular team. For example: 3 (if it was the third shot of the shootout).</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @comment
Namespace No namespace
Annotations
A textual comment.
Type string
Properties
use: optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @play-type
Namespace No namespace
Annotations
The type of play.
Type sportsml:playType.IceHockey
Properties
use: optional
Used by
Source
<attribute name="play-type" type="sportsml:playType.IceHockey" use="optional">
  <annotation>
    <documentation>The type of play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @sequence-number
Namespace No namespace
Annotations
The sequence number of the play within the game as a whole.
Type string
Properties
use: optional
Used by
Source
<attribute name="sequence-number" type="string" use="optional">
  <annotation>
    <documentation>The sequence number of the play within the game as a whole.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @strength
Namespace No namespace
Annotations
Denotes play-strength situation of the goal: even-strength | power-play | short-handed
Type sportsml:strength.IceHockey
Properties
use: optional
Used by
Source
<attribute name="strength" type="sportsml:strength.IceHockey" use="optional">
  <annotation>
    <documentation>Denotes play-strength situation of the goal: even-strength | power-play | short-handed</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @shot-distance
Namespace No namespace
Annotations
The distance of the shot from the net.
Type string
Properties
use: optional
Used by
Source
<attribute name="shot-distance" type="string" use="optional">
  <annotation>
    <documentation>The distance of the shot from the net.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @shot-type
Namespace No namespace
Annotations
The type of shot taken.
Type string
Properties
use: optional
Used by
Source
<attribute name="shot-type" type="string" use="optional">
  <annotation>
    <documentation>The type of shot taken.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @goal-zone
Namespace No namespace
Annotations
Area of the goal at which the score-attempt was aimed.
Type string
Properties
use: optional
Used by
Source
<attribute name="goal-zone" type="string" use="optional">
  <annotation>
    <documentation>Area of the goal at which the score-attempt was aimed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-play / @person-type
Namespace No namespace
Annotations
The type of person who is substituting, for example: a player, a coach, a referree.
Type restriction of string
Properties
use: optional
Facets
enumeration player
enumeration auxilliary
enumeration official
Used by
Source
<attribute name="person-type" use="optional">
  <annotation>
    <documentation>The type of person who is substituting, for example: a player, a coach, a referree.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="player"/>
      <enumeration value="auxilliary"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @recipient-type
Namespace No namespace
Annotations
Whether the receiver of the penalty was the team, the player, a coach, a ref, etc.
Type restriction of string
Properties
use: required
Facets
enumeration team
enumeration player
enumeration auxilliary
enumeration official
Used by
Source
<attribute name="recipient-type" use="required">
  <annotation>
    <documentation>Whether the receiver of the penalty was the team, the player, a coach, a ref, etc.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="team"/>
      <enumeration value="player"/>
      <enumeration value="auxilliary"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @team-idref
Namespace No namespace
Annotations
A pointer to the team of the penalized or the penalized team itself.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the team of the penalized or the penalized team itself.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @recipient-idref
Namespace No namespace
Annotations
A pointer to the receiver of the penalty.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="recipient-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the receiver of the penalty.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @served-by-idref
Namespace No namespace
Annotations
A pointer to the player that served the penalty.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="served-by-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player that served the penalty.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @caller-idref
Namespace No namespace
Annotations
A pointer to the official who called the penalty.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="caller-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the official who called the penalty.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @penalty-status
Namespace No namespace
Annotations
Whether this action indicates the start of a penalty, or the end of a penalty.
Type restriction of string
Properties
use: optional
Facets
enumeration start
enumeration end
Used by
Source
<attribute name="penalty-status" use="optional">
  <annotation>
    <documentation>Whether this action indicates the start of a penalty, or the end of a penalty.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="start"/>
      <enumeration value="end"/>
    </restriction>
  </simpleType>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @penalty-level
Namespace No namespace
Annotations
The severity or classification of the penalty eg. major, minor, game misconduct.
Type sportsml:penaltyLevel.IceHockey
Properties
use: optional
Used by
Source
<attribute name="penalty-level" type="sportsml:penaltyLevel.IceHockey" use="optional">
  <annotation>
    <documentation>The severity or classification of the penalty eg. major, minor, game misconduct.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @penalty-type
Namespace No namespace
Annotations
A Vocabulary of controlled codes describing the penalty. Called while a play is in progress.
Type sportsml:penaltyType.IceHockey
Properties
use: optional
Used by
Source
<attribute name="penalty-type" type="sportsml:penaltyType.IceHockey" use="optional">
  <annotation>
    <documentation>A Vocabulary of controlled codes describing the penalty. Called while a play is in progress.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @penalty-name
Namespace No namespace
Annotations
A non-code string describing the penalty.
Type string
Properties
use: optional
Used by
Source
<attribute name="penalty-name" type="string" use="optional">
  <annotation>
    <documentation>A non-code string describing the penalty.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @penalty-length
Namespace No namespace
Annotations
In minutes:seconds. Not necessarily the time actually served.
Type string
Properties
use: optional
Used by
Source
<attribute name="penalty-length" type="string" use="optional">
  <annotation>
    <documentation>In minutes:seconds. Not necessarily the time actually served.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @comment
Namespace No namespace
Annotations
A textual comment.
Type string
Properties
use: optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @sequence-number
Namespace No namespace
Annotations
The sequence number of the play within the game as a whole.
Type string
Properties
use: optional
Used by
Source
<attribute name="sequence-number" type="string" use="optional">
  <annotation>
    <documentation>The sequence number of the play within the game as a whole.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-penalty / @strength
Namespace No namespace
Annotations
Denotes play-strength situation of the goal: even-strength | power-play | short-handed
Type sportsml:strength.IceHockey
Properties
use: optional
Used by
Source
<attribute name="strength" type="sportsml:strength.IceHockey" use="optional">
  <annotation>
    <documentation>Denotes play-strength situation of the goal: even-strength | power-play | short-handed</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-timeout / @timeout-duration
Namespace No namespace
Annotations
How long a timeout was called for.
Type string
Properties
use: optional
Used by
Source
<attribute name="timeout-duration" type="string" use="optional">
  <annotation>
    <documentation>How long a timeout was called for.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-timeout / @caller
Namespace No namespace
Annotations
Who called the timeout, either team or official.
Type restriction of string
Properties
use: optional
Facets
enumeration team
enumeration official
Used by
Source
<attribute name="caller" use="optional">
  <annotation>
    <documentation>Who called the timeout, either team or official.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="team"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Attribute sportsml:action-ice-hockey-timeout / @caller-idref
Namespace No namespace
Annotations
If caller is team, say, a pointer to the team element.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="caller-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>If caller is team, say, a pointer to the team element.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-timeout / @comment
Namespace No namespace
Annotations
A textual comment.
Type string
Properties
use: optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-other / @action-source
Namespace No namespace
Annotations
The name of the controlled-vocabulary for the action-type attribute.
Type string
Properties
use: optional
Used by
Source
<attribute name="action-source" type="string" use="optional">
  <annotation>
    <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-other / @action-type
Namespace No namespace
Annotations
A selection from a controlled-vocabulary list maintained by the publisher.
Type string
Properties
use: optional
Used by
Source
<attribute name="action-type" type="string" use="optional">
  <annotation>
    <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-ice-hockey-other / @comment
Namespace No namespace
Annotations
Textual comment about the action.
Type string
Properties
use: optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the action.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-total
Namespace No namespace
Annotations
Total number of goals by the team. Could differ from the score if score-points are awarded for shootout, for example.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-total" type="string" use="optional">
  <annotation>
    <documentation>Total number of goals by the team. Could differ from the score if score-points are awarded for shootout, for example.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-game-winning
Namespace No namespace
Annotations
Goals that provided the winning margin in a game.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-game-winning" type="string" use="optional">
  <annotation>
    <documentation>Goals that provided the winning margin in a game.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-game-tying
Namespace No namespace
Annotations
Goals that caused the game to be tied.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-game-tying" type="string" use="optional">
  <annotation>
    <documentation>Goals that caused the game to be tied.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-power-play
Namespace No namespace
Annotations
Goals scored while the team was having a power-play.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-power-play" type="string" use="optional">
  <annotation>
    <documentation>Goals scored while the team was having a power-play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-short-handed
Namespace No namespace
Annotations
Goals scored while the team was playing short-handed.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-short-handed" type="string" use="optional">
  <annotation>
    <documentation>Goals scored while the team was playing short-handed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-even-strength
Namespace No namespace
Annotations
Goals scored while the teams were at even strength.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-even-strength" type="string" use="optional">
  <annotation>
    <documentation>Goals scored while the teams were at even strength.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-empty-net
Namespace No namespace
Annotations
Goals scored on an empty goal, with the opposing goalie pulled from the net.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-empty-net" type="string" use="optional">
  <annotation>
    <documentation>Goals scored on an empty goal, with the opposing goalie pulled from the net.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-overtime
Namespace No namespace
Annotations
Goals scored during overtime.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-overtime" type="string" use="optional">
  <annotation>
    <documentation>Goals scored during overtime.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-shootout
Namespace No namespace
Annotations
Goals scored during a shootout.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-shootout" type="string" use="optional">
  <annotation>
    <documentation>Goals scored during a shootout.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-shootout-attempts
Namespace No namespace
Annotations
Goals attempted during a shootout.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-shootout-attempts" type="string" use="optional">
  <annotation>
    <documentation>Goals attempted during a shootout.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-penalty-shot
Namespace No namespace
Annotations
Goals scored as penalty shots.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-penalty-shot" type="string" use="optional">
  <annotation>
    <documentation>Goals scored as penalty shots.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @goals-per-game
Namespace No namespace
Annotations
Average of goals scored per game.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-per-game" type="string" use="optional">
  <annotation>
    <documentation>Average of goals scored per game.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @assists
Namespace No namespace
Annotations
Total number of assists.
Type string
Properties
use: optional
Used by
Source
<attribute name="assists" type="string" use="optional">
  <annotation>
    <documentation>Total number of assists.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @assists-power-play
Namespace No namespace
Annotations
Total number of assists made during a power play.
Type string
Properties
use: optional
Used by
Source
<attribute name="assists-power-play" type="string" use="optional">
  <annotation>
    <documentation>Total number of assists made during a power play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @assists-short-handed
Namespace No namespace
Annotations
Total number of assists made while short-handed.
Type string
Properties
use: optional
Used by
Source
<attribute name="assists-short-handed" type="string" use="optional">
  <annotation>
    <documentation>Total number of assists made while short-handed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @assists-game-winning
Namespace No namespace
Annotations
Assists on goals that provided the winning margin in a game.
Type string
Properties
use: optional
Used by
Source
<attribute name="assists-game-winning" type="string" use="optional">
  <annotation>
    <documentation>Assists on goals that provided the winning margin in a game.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @assists-game-tying
Namespace No namespace
Annotations
Assists on goals that caused the game to be tied.
Type string
Properties
use: optional
Used by
Source
<attribute name="assists-game-tying" type="string" use="optional">
  <annotation>
    <documentation>Assists on goals that caused the game to be tied.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @assists-overtime
Namespace No namespace
Annotations
Assists on goals scored during overtime.
Type string
Properties
use: optional
Used by
Source
<attribute name="assists-overtime" type="string" use="optional">
  <annotation>
    <documentation>Assists on goals scored during overtime.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @points
Namespace No namespace
Annotations
Total number of points, with a score and an assist generally counted as one point each.
Type string
Properties
use: optional
Used by
Source
<attribute name="points" type="string" use="optional">
  <annotation>
    <documentation>Total number of points, with a score and an assist generally counted as one point each.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @points-power-play
Namespace No namespace
Annotations
Total number of points during power plays, with a score and an assist generally counted as one point each.
Type string
Properties
use: optional
Used by
Source
<attribute name="points-power-play" type="string" use="optional">
  <annotation>
    <documentation>Total number of points during power plays, with a score and an assist generally counted as one point each.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @points-short-handed
Namespace No namespace
Annotations
Total number of points while short-handed, with a score and an assist generally counted as one point each.
Type string
Properties
use: optional
Used by
Source
<attribute name="points-short-handed" type="string" use="optional">
  <annotation>
    <documentation>Total number of points while short-handed, with a score and an assist generally counted as one point each.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @power-play-amount
Namespace No namespace
Annotations
Number of power-play opportunities a team has had.
Type string
Properties
use: optional
Used by
Source
<attribute name="power-play-amount" type="string" use="optional">
  <annotation>
    <documentation>Number of power-play opportunities a team has had.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @power-play-percentage
Namespace No namespace
Annotations
Measure of success at power plays. Figured by dividing goals-power-play by power-play-amount.
Type string
Properties
use: optional
Used by
Source
<attribute name="power-play-percentage" type="string" use="optional">
  <annotation>
    <documentation>Measure of success at power plays. Figured by dividing goals-power-play by power-play-amount.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @shots-penalty-shot-taken
Namespace No namespace
Annotations
Total number of penalty shots taken by a shooting player.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-penalty-shot-taken" type="string" use="optional">
  <annotation>
    <documentation>Total number of penalty shots taken by a shooting player.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @shots-penalty-shot-missed
Namespace No namespace
Annotations
Total number of penalty shots missed by a shooting player.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-penalty-shot-missed" type="string" use="optional">
  <annotation>
    <documentation>Total number of penalty shots missed by a shooting player.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @shots-penalty-shot-percentage
Namespace No namespace
Annotations
Percentage of penalty shots that resulted in goals.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-penalty-shot-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of penalty shots that resulted in goals.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @giveaways
Namespace No namespace
Annotations
Number of times that passes were attempted but intercepted. A judgment call whose exact conditions vary.
Type string
Properties
use: optional
Used by
Source
<attribute name="giveaways" type="string" use="optional">
  <annotation>
    <documentation>Number of times that passes were attempted but intercepted. A judgment call whose exact conditions vary.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @minutes-power-play
Namespace No namespace
Annotations
Total number of minutes played in a power-play.
Type string
Properties
use: optional
Used by
Source
<attribute name="minutes-power-play" type="string" use="optional">
  <annotation>
    <documentation>Total number of minutes played in a power-play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @faceoff-wins
Namespace No namespace
Annotations
DEPRECATE: moved to stats-ice-faceoffs element
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoff-wins" type="string" use="optional">
  <annotation>
    <documentation>DEPRECATE: moved to stats-ice-faceoffs element</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @faceoff-losses
Namespace No namespace
Annotations
DEPRECATE: moved to stats-ice-faceoffs element
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoff-losses" type="string" use="optional">
  <annotation>
    <documentation>DEPRECATE: moved to stats-ice-faceoffs element</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @faceoff-win-percentage
Namespace No namespace
Annotations
DEPRECATE: moved to stats-ice-faceoffs element
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoff-win-percentage" type="string" use="optional">
  <annotation>
    <documentation>DEPRECATE: moved to stats-ice-faceoffs element</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @scoring-chances
Namespace No namespace
Annotations
Total number of qualified chances to score.
Type string
Properties
use: optional
Used by
Source
<attribute name="scoring-chances" type="string" use="optional">
  <annotation>
    <documentation>Total number of qualified chances to score.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @hat-tricks
Namespace No namespace
Annotations
Total number of hat-trick games.
Type string
Properties
use: optional
Used by
Source
<attribute name="hat-tricks" type="string" use="optional">
  <annotation>
    <documentation>Total number of hat-trick games.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @shots-missed
Namespace No namespace
Annotations
Total number of shots missed.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-missed" type="string" use="optional">
  <annotation>
    <documentation>Total number of shots missed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @shots-blocked
Namespace No namespace
Annotations
DEPRECATED: shot-attemts-blocked. Number of shots taken which were blocked by an opponent.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-blocked" type="string" use="optional">
  <annotation>
    <documentation>DEPRECATED: shot-attemts-blocked. Number of shots taken which were blocked by an opponent.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @shot-attempts-blocked
Namespace No namespace
Annotations
Number of shots taken which were blocked by an opponent.
Type string
Properties
use: optional
Used by
Source
<attribute name="shot-attempts-blocked" type="string" use="optional">
  <annotation>
    <documentation>Number of shots taken which were blocked by an opponent.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @shots-even-strength
Namespace No namespace
Annotations
Number of shots taken at even strength.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-even-strength" type="string" use="optional">
  <annotation>
    <documentation>Number of shots taken at even strength.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @shots-power-play
Namespace No namespace
Annotations
Number of shots taken on power play.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-power-play" type="string" use="optional">
  <annotation>
    <documentation>Number of shots taken on power play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-offensive / @shots-short-handed
Namespace No namespace
Annotations
Number of shots taken while short-handed.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-short-handed" type="string" use="optional">
  <annotation>
    <documentation>Number of shots taken while short-handed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @shots-power-play-allowed
Namespace No namespace
Annotations
Total number of shots on goal allowed during power-play.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-power-play-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of shots on goal allowed during power-play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @shots-penalty-shot-allowed
Namespace No namespace
Annotations
Total number of shots allowed as penalty-shots.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-penalty-shot-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of shots allowed as penalty-shots.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goals-power-play-allowed
Namespace No namespace
Annotations
Total number of goals allowed while the opposing team has a power-play.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-power-play-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of goals allowed while the opposing team has a power-play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goals-penalty-shot-allowed
Namespace No namespace
Annotations
Total number of goals allowed as penalty-shots.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-penalty-shot-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of goals allowed as penalty-shots.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goals-empty-net-allowed
Namespace No namespace
Annotations
Total number of goals allowed while the net was empty.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-empty-net-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of goals allowed while the net was empty.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goals-short-handed-allowed
Namespace No namespace
Annotations
Total number of goals allowed while playing short-handed.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-short-handed-allowed" type="string" use="optional">
  <annotation>
    <documentation>Total number of goals allowed while playing short-handed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goals-against-total
Namespace No namespace
Annotations
Total number of goals against for the given period. Could differ from the score if score-points are deducted for some reason.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-against-total" type="string" use="optional">
  <annotation>
    <documentation>Total number of goals against for the given period. Could differ from the score if score-points are deducted for some reason.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goals-against-average
Namespace No namespace
Annotations
Average number of goals per game allowed by the team.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-against-average" type="string" use="optional">
  <annotation>
    <documentation>Average number of goals per game allowed by the team.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @saves
Namespace No namespace
Annotations
Total number of saves.
Type string
Properties
use: optional
Used by
Source
<attribute name="saves" type="string" use="optional">
  <annotation>
    <documentation>Total number of saves.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @save-percentage
Namespace No namespace
Annotations
Percentage of saves compared to total number of shots.
Type string
Properties
use: optional
Used by
Source
<attribute name="save-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of saves compared to total number of shots.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goals-shootout-allowed
Namespace No namespace
Annotations
Number of shootout goals that went in for a score for the opposing team.
Type string
Properties
use: optional
Used by
Source
<attribute name="goals-shootout-allowed" type="string" use="optional">
  <annotation>
    <documentation>Number of shootout goals that went in for a score for the opposing team.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @shots-shootout-allowed
Namespace No namespace
Annotations
Number of shootout shots that were attempted by the opposing team.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-shootout-allowed" type="string" use="optional">
  <annotation>
    <documentation>Number of shootout shots that were attempted by the opposing team.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @penalty-killing-amount
Namespace No namespace
Annotations
Number of penalty-killing sessions, aka number of short-handed sessions.
Type string
Properties
use: optional
Used by
Source
<attribute name="penalty-killing-amount" type="string" use="optional">
  <annotation>
    <documentation>Number of penalty-killing sessions, aka number of short-handed sessions.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @penalty-killing-percentage
Namespace No namespace
Annotations
Equals goals-penalty-allowed divided by penalty-killing-amount.
Type string
Properties
use: optional
Used by
Source
<attribute name="penalty-killing-percentage" type="string" use="optional">
  <annotation>
    <documentation>Equals goals-penalty-allowed divided by penalty-killing-amount.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @shots-blocked
Namespace No namespace
Annotations
Number of shots that were blocked. This statistic is generally tracked for non-goalies.
Type string
Properties
use: optional
Used by
Source
<attribute name="shots-blocked" type="string" use="optional">
  <annotation>
    <documentation>Number of shots that were blocked. This statistic is generally tracked for non-goalies.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @takeaways
Namespace No namespace
Annotations
Number of intercepted passes. A judgment call whose exact conditions vary.
Type string
Properties
use: optional
Used by
Source
<attribute name="takeaways" type="string" use="optional">
  <annotation>
    <documentation>Number of intercepted passes. A judgment call whose exact conditions vary.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @shutouts
Namespace No namespace
Annotations
Total number of games where the opposing team did not score.
Type string
Properties
use: optional
Used by
Source
<attribute name="shutouts" type="string" use="optional">
  <annotation>
    <documentation>Total number of games where the opposing team did not score.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @minutes-penalty-killing
Namespace No namespace
Annotations
Total number of minutes played short-handed, while the other team had a power-play.
Type string
Properties
use: optional
Used by
Source
<attribute name="minutes-penalty-killing" type="string" use="optional">
  <annotation>
    <documentation>Total number of minutes played short-handed, while the other team had a power-play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @hits
Namespace No namespace
Annotations
Number of body checks made against an opposing player.
Type string
Properties
use: optional
Used by
Source
<attribute name="hits" type="string" use="optional">
  <annotation>
    <documentation>Number of body checks made against an opposing player.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goaltender-wins
Namespace No namespace
Annotations
Total number of games with this goaltender.
Type string
Properties
use: optional
Used by
Source
<attribute name="goaltender-wins" type="string" use="optional">
  <annotation>
    <documentation>Total number of games with this goaltender.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goaltender-losses
Namespace No namespace
Annotations
Total number of games lost with this goaltender.
Type string
Properties
use: optional
Used by
Source
<attribute name="goaltender-losses" type="string" use="optional">
  <annotation>
    <documentation>Total number of games lost with this goaltender.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goaltender-ties
Namespace No namespace
Annotations
Total number of games tied with this goaltender.
Type string
Properties
use: optional
Used by
Source
<attribute name="goaltender-ties" type="string" use="optional">
  <annotation>
    <documentation>Total number of games tied with this goaltender.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goaltender-wins-overtime
Namespace No namespace
Annotations
Number of games won while play is in overtime.
Type string
Properties
use: optional
Used by
Source
<attribute name="goaltender-wins-overtime" type="string" use="optional">
  <annotation>
    <documentation>Number of games won while play is in overtime.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-defensive / @goaltender-losses-overtime
Namespace No namespace
Annotations
Number of games lost while play is in overtime.
Type string
Properties
use: optional
Used by
Source
<attribute name="goaltender-losses-overtime" type="string" use="optional">
  <annotation>
    <documentation>Number of games lost while play is in overtime.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-total
Namespace No namespace
Annotations
Total number of faceoffs taken.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-total" type="string" use="optional">
  <annotation>
    <documentation>Total number of faceoffs taken.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoff-wins
Namespace No namespace
Annotations
Total number of won faceoffs.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoff-wins" type="string" use="optional">
  <annotation>
    <documentation>Total number of won faceoffs.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoff-losses
Namespace No namespace
Annotations
Total number of lost faceoffs.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoff-losses" type="string" use="optional">
  <annotation>
    <documentation>Total number of lost faceoffs.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoff-win-percentage
Namespace No namespace
Annotations
Percentage of faceoffs that were won.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoff-win-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of faceoffs that were won.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-even-strength-total
Namespace No namespace
Annotations
Number of faceoffs taken at even strength.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-even-strength-total" type="string" use="optional">
  <annotation>
    <documentation>Number of faceoffs taken at even strength.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-even-strength-wins
Namespace No namespace
Annotations
Number of faceoffs won at even strength.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-even-strength-wins" type="string" use="optional">
  <annotation>
    <documentation>Number of faceoffs won at even strength.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-even-strength-losses
Namespace No namespace
Annotations
Number of faceoffs lost at even strength.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-even-strength-losses" type="string" use="optional">
  <annotation>
    <documentation>Number of faceoffs lost at even strength.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-even-strength-win-percentage
Namespace No namespace
Annotations
Percentage of faceoffs won at even strength.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-even-strength-win-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of faceoffs won at even strength.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-power-play-total
Namespace No namespace
Annotations
Number of faceoffs taken on power play.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-power-play-total" type="string" use="optional">
  <annotation>
    <documentation>Number of faceoffs taken on power play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-power-play-wins
Namespace No namespace
Annotations
Number of faceoffs won on power play.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-power-play-wins" type="string" use="optional">
  <annotation>
    <documentation>Number of faceoffs won on power play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-power-play-losses
Namespace No namespace
Annotations
Number of faceoffs lost on power play.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-power-play-losses" type="string" use="optional">
  <annotation>
    <documentation>Number of faceoffs lost on power play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-power-play-win-percentage
Namespace No namespace
Annotations
Percentage of faceoffs won on power play.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-power-play-win-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of faceoffs won on power play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-short-handed-total
Namespace No namespace
Annotations
Number of faceoffs taken while short-handed.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-short-handed-total" type="string" use="optional">
  <annotation>
    <documentation>Number of faceoffs taken while short-handed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-short-handed-wins
Namespace No namespace
Annotations
Number of faceoffs won while short-handed.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-short-handed-wins" type="string" use="optional">
  <annotation>
    <documentation>Number of faceoffs won while short-handed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-short-handed-losses
Namespace No namespace
Annotations
Number of faceoffs lost while short-handed.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-short-handed-losses" type="string" use="optional">
  <annotation>
    <documentation>Number of faceoffs lost while short-handed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-faceoffs / @faceoffs-short-handed-win-percentage
Namespace No namespace
Annotations
Percentage of faceoffs won while short-handed.
Type string
Properties
use: optional
Used by
Source
<attribute name="faceoffs-short-handed-win-percentage" type="string" use="optional">
  <annotation>
    <documentation>Percentage of faceoffs won while short-handed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @shifts
Namespace No namespace
Annotations
Number of shifts played.
Type string
Properties
use: optional
Used by
Source
<attribute name="shifts" type="string" use="optional">
  <annotation>
    <documentation>Number of shifts played.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @shifts-power-play
Namespace No namespace
Annotations
Number of power-play shifts played.
Type string
Properties
use: optional
Used by
Source
<attribute name="shifts-power-play" type="string" use="optional">
  <annotation>
    <documentation>Number of power-play shifts played.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @shifts-short-handed
Namespace No namespace
Annotations
Number of short-handed shifts played.
Type string
Properties
use: optional
Used by
Source
<attribute name="shifts-short-handed" type="string" use="optional">
  <annotation>
    <documentation>Number of short-handed shifts played.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @shifts-average
Namespace No namespace
Annotations
Average number of shifts played.
Type string
Properties
use: optional
Used by
Source
<attribute name="shifts-average" type="string" use="optional">
  <annotation>
    <documentation>Average number of shifts played.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @time-average-per-shift
Namespace No namespace
Annotations
Average amount of time played per shift.
Type string
Properties
use: optional
Used by
Source
<attribute name="time-average-per-shift" type="string" use="optional">
  <annotation>
    <documentation>Average amount of time played per shift.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @time-average-even-strength
Namespace No namespace
Annotations
Average amount of time played at even strength.
Type string
Properties
use: optional
Used by
Source
<attribute name="time-average-even-strength" type="string" use="optional">
  <annotation>
    <documentation>Average amount of time played at even strength.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @time-average-short-handed
Namespace No namespace
Annotations
Average amount of time played short-handed.
Type string
Properties
use: optional
Used by
Source
<attribute name="time-average-short-handed" type="string" use="optional">
  <annotation>
    <documentation>Average amount of time played short-handed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @time-average-power-play
Namespace No namespace
Annotations
Average amount of time played on power play.
Type string
Properties
use: optional
Used by
Source
<attribute name="time-average-power-play" type="string" use="optional">
  <annotation>
    <documentation>Average amount of time played on power play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @time-power-play
Namespace No namespace
Annotations
Amount of time played on power play.
Type string
Properties
use: optional
Used by
Source
<attribute name="time-power-play" type="string" use="optional">
  <annotation>
    <documentation>Amount of time played on power play.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @time-short-handed
Namespace No namespace
Annotations
Amount of time played short-handed.
Type string
Properties
use: optional
Used by
Source
<attribute name="time-short-handed" type="string" use="optional">
  <annotation>
    <documentation>Amount of time played short-handed.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @time-even-strength
Namespace No namespace
Annotations
Amount of time played at even strength.
Type string
Properties
use: optional
Used by
Source
<attribute name="time-even-strength" type="string" use="optional">
  <annotation>
    <documentation>Amount of time played at even strength.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @time-empty-net
Namespace No namespace
Annotations
Amount of time played with an empty net.
Type string
Properties
use: optional
Used by
Source
<attribute name="time-empty-net" type="string" use="optional">
  <annotation>
    <documentation>Amount of time played with an empty net.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @time-power-play-empty-net
Namespace No namespace
Annotations
Amount of time played on power play with empty net.
Type string
Properties
use: optional
Used by
Source
<attribute name="time-power-play-empty-net" type="string" use="optional">
  <annotation>
    <documentation>Amount of time played on power play with empty net.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @time-short-handed-empty-net
Namespace No namespace
Annotations
Amount of time played short-handed with empty net.
Type string
Properties
use: optional
Used by
Source
<attribute name="time-short-handed-empty-net" type="string" use="optional">
  <annotation>
    <documentation>Amount of time played short-handed with empty net.</documentation>
  </annotation>
</attribute>
Attribute sportsml:stats-ice-hockey-time-on-ice / @time-even-strength-empty-net
Namespace No namespace
Annotations
Amount of time played even strength with empty net.
Type string
Properties
use: optional
Used by
Source
<attribute name="time-even-strength-empty-net" type="string" use="optional">
  <annotation>
    <documentation>Amount of time played even strength with empty net.</documentation>
  </annotation>
</attribute>
Attribute sportsml:team-stats-ice-hockey / @plus-minus
Namespace No namespace
Annotations
Number of times players on this team were on ice when own team scored minus the number of times players were on ice when opponent scored.
Type string
Properties
use: optional
Used by
Source
<attribute name="plus-minus" type="string" use="optional">
  <annotation>
    <documentation>Number of times players on this team were on ice when own team scored minus the number of times players were on ice when opponent scored.</documentation>
  </annotation>
</attribute>
Attribute sportsml:team-stats-ice-hockey / @plus-total
Namespace No namespace
Annotations
Number of times players on this team were on ice when own team scored.
Type string
Properties
use: optional
Used by
Source
<attribute name="plus-total" type="string" use="optional">
  <annotation>
    <documentation>Number of times players on this team were on ice when own team scored.</documentation>
  </annotation>
</attribute>
Attribute sportsml:team-stats-ice-hockey / @minus-total
Namespace No namespace
Annotations
Number of times players were on ice when opponent scored.
Type string
Properties
use: optional
Used by
Source
<attribute name="minus-total" type="string" use="optional">
  <annotation>
    <documentation>Number of times players were on ice when opponent scored.</documentation>
  </annotation>
</attribute>
Attribute sportsml:team-stats-ice-hockey / @penalty-minutes
Namespace No namespace
Annotations
Total number of penalty minutes accrued by a single team.
Type string
Properties
use: optional
Used by
Source
<attribute name="penalty-minutes" type="string" use="optional">
  <annotation>
    <documentation>Total number of penalty minutes accrued by a single team.</documentation>
  </annotation>
</attribute>
Attribute sportsml:player-metadata-ice-hockey / @shooting-hand
Namespace No namespace
Annotations
The side from which a player normally shoots.
Type sportsml:bodySide.Core
Properties
use: optional
Used by
Source
<attribute name="shooting-hand" type="sportsml:bodySide.Core" use="optional">
  <annotation>
    <documentation>The side from which a player normally shoots.</documentation>
  </annotation>
</attribute>
Attribute sportsml:player-metadata-ice-hockey / @catching-hand
Namespace No namespace
Annotations
The hand with which a player, generally a goaltender, catches the puck.
Type sportsml:bodySide.Core
Properties
use: optional
Used by
Source
<attribute name="catching-hand" type="sportsml:bodySide.Core" use="optional">
  <annotation>
    <documentation>The hand with which a player, generally a goaltender, catches the puck.</documentation>
  </annotation>
</attribute>
Attribute sportsml:player-stats-ice-hockey / @plus-minus
Namespace No namespace
Annotations
Number of times player was on ice when own team scored minus the number of times player was on ice when opponent scored.
Type string
Properties
use: optional
Used by
Source
<attribute name="plus-minus" type="string" use="optional">
  <annotation>
    <documentation>Number of times player was on ice when own team scored minus the number of times player was on ice when opponent scored.</documentation>
  </annotation>
</attribute>
Attribute sportsml:player-stats-ice-hockey / @plus-total
Namespace No namespace
Annotations
Number of times player was on ice when own team scored.
Type string
Properties
use: optional
Used by
Source
<attribute name="plus-total" type="string" use="optional">
  <annotation>
    <documentation>Number of times player was on ice when own team scored.</documentation>
  </annotation>
</attribute>
Attribute sportsml:player-stats-ice-hockey / @minus-total
Namespace No namespace
Annotations
Number of times player was on ice when opponent scored.
Type string
Properties
use: optional
Used by
Source
<attribute name="minus-total" type="string" use="optional">
  <annotation>
    <documentation>Number of times player was on ice when opponent scored.</documentation>
  </annotation>
</attribute>
Attribute sportsml:player-stats-ice-hockey / @minutes-played
Namespace No namespace
Annotations
Number of minutes player was on ice.
Type string
Properties
use: optional
Used by
Source
<attribute name="minutes-played" type="string" use="optional">
  <annotation>
    <documentation>Number of minutes player was on ice.</documentation>
  </annotation>
</attribute>
Attribute sportsml:player-stats-ice-hockey / @penalty-minutes
Namespace No namespace
Annotations
Total number of penalty minutes accrued by a single player.
Type string
Properties
use: optional
Used by
Source
<attribute name="penalty-minutes" type="string" use="optional">
  <annotation>
    <documentation>Total number of penalty minutes accrued by a single player.</documentation>
  </annotation>
</attribute>
Attribute Group sportsml:eventStateIceHockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Diagram
Diagram sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey_period-value sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey_period-time-elapsed sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey_period-time-remaining sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey_power-play-time-remaining sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey_power-play-team-idref sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey_power-play-player-advantage sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey_score-team sportsml-specific-ice-hockey_xsd.tmp#eventStateIceHockey_score-team-opposing
Used by
Attributes
QName Type Fixed Default Use Annotation
period-time-elapsed string optional
The time elapsed in the period.
period-time-remaining string optional
The time remaining in the period.
period-value string optional
Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)
power-play-player-advantage string optional
The number of extra players on ice for the team on power play.
power-play-team-idref string optional
The key of the team on power-play.
power-play-time-remaining string optional
The time remaining in the power-play.
score-team string optional
After an action has taken place, the score of the team that team-idref points to.
score-team-opposing string optional
After an action has taken place, the score of the team opposing that listed in team-idref.
Source
<attributeGroup name="eventStateIceHockey">
  <attribute name="period-value" type="string" use="optional">
    <annotation>
      <documentation>Identifier for which period of a game. (1,2,3 for main periods, 4 for first overtime, etc. shootout also allowed value.)</documentation>
    </annotation>
  </attribute>
  <attribute name="period-time-elapsed" type="string" use="optional">
    <annotation>
      <documentation>The time elapsed in the period.</documentation>
    </annotation>
  </attribute>
  <attribute name="period-time-remaining" type="string" use="optional">
    <annotation>
      <documentation>The time remaining in the period.</documentation>
    </annotation>
  </attribute>
  <attribute name="power-play-time-remaining" type="string" use="optional">
    <annotation>
      <documentation>The time remaining in the power-play.</documentation>
    </annotation>
  </attribute>
  <attribute name="power-play-team-idref" type="string" use="optional">
    <annotation>
      <documentation>The key of the team on power-play.</documentation>
    </annotation>
  </attribute>
  <attribute name="power-play-player-advantage" type="string" use="optional">
    <annotation>
      <documentation>The number of extra players on ice for the team on power play.</documentation>
    </annotation>
  </attribute>
  <attribute name="score-team" type="string" use="optional">
    <annotation>
      <documentation>After an action has taken place, the score of the team that team-idref points to.</documentation>
    </annotation>
  </attribute>
  <attribute name="score-team-opposing" type="string" use="optional">
    <annotation>
      <documentation>After an action has taken place, the score of the team opposing that listed in team-idref.</documentation>
    </annotation>
  </attribute>
</attributeGroup>
Attribute Group sportsml:commonPropertiesIceHockey
Namespace http://iptc.org/std/SportsML/2008-04-01/
Diagram
Diagram sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey_player-count sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey_player-count-opposing sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey_zone sportsml-specific-ice-hockey_xsd.tmp#commonPropertiesIceHockey_location
Used by
Attributes
QName Type Fixed Default Use Annotation
location string optional
Location of the action on the rink.
player-count string optional
Number of players on the ice for the stat or action.
player-count-opposing string optional
Number of opposing players on the ice for the stat or action.
zone restriction of string optional
The zone on the rink for the stat or action: offensive | defensive | neutral.
Source
<attributeGroup name="commonPropertiesIceHockey">
  <attribute name="player-count" type="string" use="optional">
    <annotation>
      <documentation>Number of players on the ice for the stat or action.</documentation>
    </annotation>
  </attribute>
  <attribute name="player-count-opposing" type="string" use="optional">
    <annotation>
      <documentation>Number of opposing players on the ice for the stat or action.</documentation>
    </annotation>
  </attribute>
  <attribute name="zone" use="optional">
    <annotation>
      <documentation>The zone on the rink for the stat or action: offensive | defensive | neutral.</documentation>
    </annotation>
    <simpleType>
      <restriction base="string">
        <enumeration value="offensive"/>
        <enumeration value="defensive"/>
        <enumeration value="neutral"/>
      </restriction>
    </simpleType>
  </attribute>
  <attribute name="location" type="string" use="optional">
    <annotation>
      <documentation>Location of the action on the rink.</documentation>
    </annotation>
  </attribute>
</attributeGroup>
