Included schema sportsml-specific-basketball.xsd
Namespace http://iptc.org/std/SportsML/2008-04-01/
Properties
attribute form default: unqualified
element form default: unqualified
version: 2.2
Element sportsml:event-metadata-basketball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Metadata about the event itself. | Includes what state the game is in.

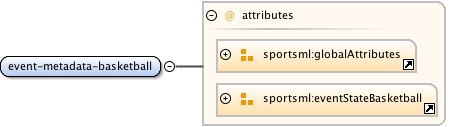

Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#eventStateBasketball
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the quarter or overtime period.
period-time-remaining string optional
The time remaining in the quarter or overtime period.
period-value string optional
An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.
Source
<element name="event-metadata-basketball">
  <annotation>
    <documentation>Metadata about the event itself. | Includes what state the game is in.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBasketball"/>
  </complexType>
</element>

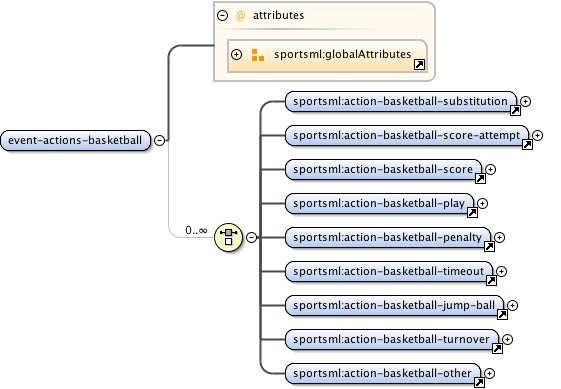

Element sportsml:event-actions-basketball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A container for specific basketball actions. | Generally ordered chronologically.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#action-basketball-substitution sportsml-specific-basketball_xsd.tmp#action-basketball-score-attempt sportsml-specific-basketball_xsd.tmp#action-basketball-score sportsml-specific-basketball_xsd.tmp#action-basketball-play sportsml-specific-basketball_xsd.tmp#action-basketball-penalty sportsml-specific-basketball_xsd.tmp#action-basketball-timeout sportsml-specific-basketball_xsd.tmp#action-basketball-jump-ball sportsml-specific-basketball_xsd.tmp#action-basketball-turnover sportsml-specific-basketball_xsd.tmp#action-basketball-other
Properties
content: complex
Used by
Model sportsml:action-basketball-substitution | sportsml:action-basketball-score-attempt | sportsml:action-basketball-score | sportsml:action-basketball-play | sportsml:action-basketball-penalty | sportsml:action-basketball-timeout | sportsml:action-basketball-jump-ball | sportsml:action-basketball-turnover | sportsml:action-basketball-other
Children sportsml:action-basketball-jump-ball, sportsml:action-basketball-other, sportsml:action-basketball-penalty, sportsml:action-basketball-play, sportsml:action-basketball-score, sportsml:action-basketball-score-attempt, sportsml:action-basketball-substitution, sportsml:action-basketball-timeout, sportsml:action-basketball-turnover
Instance
<sportsml:event-actions-basketball id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-basketball-substitution comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" person-original-idref="" person-original-position="" person-replacing-idref="" person-replacing-position="" person-type="" substitution-reason="">{1,1}</sportsml:action-basketball-substitution>
  <sportsml:action-basketball-score-attempt comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" score-attempt-result="" score-attempt-type="" shot-location="">{1,1}</sportsml:action-basketball-score-attempt>
  <sportsml:action-basketball-score comment="" id="" location="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" points="" score-attempt-type="" score-team="" score-team-opposing="">{1,1}</sportsml:action-basketball-score>

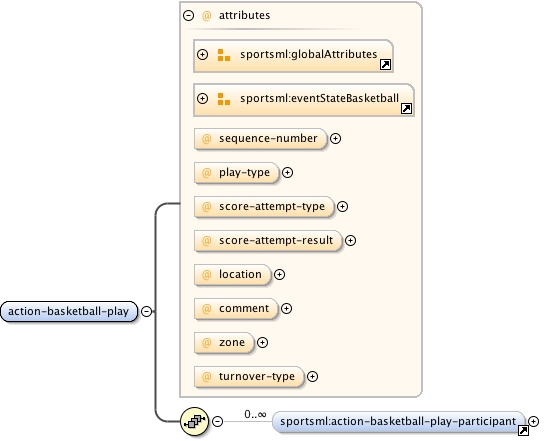

  <sportsml:action-basketball-play comment="" id="" location="" period-time-elapsed="" period-time-remaining="" period-value="" play-type="" score-attempt-result="" score-attempt-type="" sequence-number="" turnover-type="" zone="">{1,1}</sportsml:action-basketball-play>
  <sportsml:action-basketball-penalty caller-idref="" comment="" id="" penalty-count="" penalty-level="" penalty-side="" period-time-elapsed="" period-time-remaining="" period-value="" recipient-idref="" recipient-type="" zone="">{1,1}</sportsml:action-basketball-penalty>
  <sportsml:action-basketball-timeout caller="" caller-idref="" comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" timeout-duration="" timeouts-left="">{1,1}</sportsml:action-basketball-timeout>
  <sportsml:action-basketball-jump-ball comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" player-1-idref="" player-2-idref="" winning-player-idref="">{1,1}</sportsml:action-basketball-jump-ball>
  <sportsml:action-basketball-turnover comment="" id="" losing-player-idref="" period-time-elapsed="" period-time-remaining="" period-value="" recovering-player-idref="" turnover-type="">{1,1}</sportsml:action-basketball-turnover>

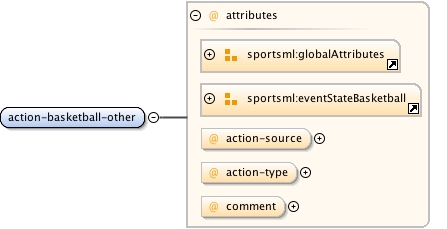

  <sportsml:action-basketball-other action-source="" action-type="" comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="">{1,1}</sportsml:action-basketball-other>
</sportsml:event-actions-basketball>
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="event-actions-basketball">
  <annotation>
    <documentation>A container for specific basketball actions. | Generally ordered chronologically.</documentation>
  </annotation>
  <complexType>
    <choice minOccurs="0" maxOccurs="unbounded">
      <element ref="sportsml:action-basketball-substitution"/>
      <element ref="sportsml:action-basketball-score-attempt"/>
      <element ref="sportsml:action-basketball-score"/>
      <element ref="sportsml:action-basketball-play"/>
      <element ref="sportsml:action-basketball-penalty"/>
      <element ref="sportsml:action-basketball-timeout"/>
      <element ref="sportsml:action-basketball-jump-ball"/>
      <element ref="sportsml:action-basketball-turnover"/>
      <element ref="sportsml:action-basketball-other"/>
    </choice>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>

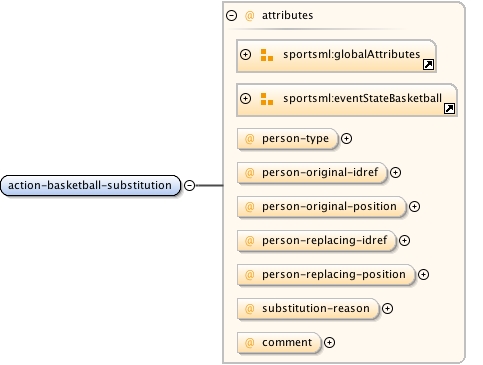

Element sportsml:action-basketball-substitution
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Used when one player comes in for another. | Simultaneous multiple replacements can be handled by using several of these elements, and leaving either the replacing or the original players blank.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#eventStateBasketball sportsml-specific-basketball_xsd.tmp#action-basketball-substitution_person-type sportsml-specific-basketball_xsd.tmp#action-basketball-substitution_person-original-idref sportsml-specific-basketball_xsd.tmp#action-basketball-substitution_person-original-position sportsml-specific-basketball_xsd.tmp#action-basketball-substitution_person-replacing-idref sportsml-specific-basketball_xsd.tmp#action-basketball-substitution_person-replacing-position sportsml-specific-basketball_xsd.tmp#action-basketball-substitution_substitution-reason sportsml-specific-basketball_xsd.tmp#action-basketball-substitution_comment
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the quarter or overtime period.
period-time-remaining string optional
The time remaining in the quarter or overtime period.
period-value string optional
An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.
person-original-idref IDREF optional
A pointer to the player who left the court.
person-original-position sportsml:position.Basketball optional
The position of the player who left the court.
person-replacing-idref IDREF optional
A pointer to the player who now went on the court.
person-replacing-position sportsml:position.Basketball optional
The position of the player who went on the court.
person-type restriction of string optional
Whether a player, a coach, or a referree.
substitution-reason string optional
The reason why a substitution was made.
Source
<element name="action-basketball-substitution">
  <annotation>
    <documentation>Used when one player comes in for another. | Simultaneous multiple replacements can be handled by using several of these elements, and leaving either the replacing or the original players blank.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBasketball"/>
    <attribute name="person-type" use="optional">
      <annotation>
        <documentation>Whether a player, a coach, or a referree.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="player"/>
          <enumeration value="auxilliary"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="person-original-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player who left the court.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-original-position" type="sportsml:position.Basketball" use="optional">
      <annotation>
        <documentation>The position of the player who left the court.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player who now went on the court.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-position" type="sportsml:position.Basketball" use="optional">
      <annotation>
        <documentation>The position of the player who went on the court.</documentation>
      </annotation>
    </attribute>
    <attribute name="substitution-reason" type="string" use="optional">
      <annotation>
        <documentation>The reason why a substitution was made.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

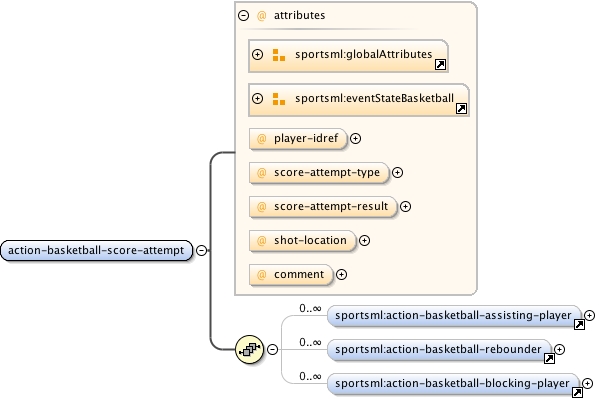

Element sportsml:action-basketball-score-attempt
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
DEPRECATE: in favour of action-basketball-play with play-type vocab.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#eventStateBasketball sportsml-specific-basketball_xsd.tmp#action-basketball-score-attempt_player-idref sportsml-specific-basketball_xsd.tmp#action-basketball-score-attempt_score-attempt-type sportsml-specific-basketball_xsd.tmp#action-basketball-score-attempt_score-attempt-result sportsml-specific-basketball_xsd.tmp#action-basketball-score-attempt_shot-location sportsml-specific-basketball_xsd.tmp#action-basketball-score-attempt_comment sportsml-specific-basketball_xsd.tmp#action-basketball-assisting-player sportsml-specific-basketball_xsd.tmp#action-basketball-rebounder sportsml-specific-basketball_xsd.tmp#action-basketball-blocking-player
Properties
content: complex
Used by
Model sportsml:action-basketball-assisting-player* , sportsml:action-basketball-rebounder* , sportsml:action-basketball-blocking-player*
Children sportsml:action-basketball-assisting-player, sportsml:action-basketball-blocking-player, sportsml:action-basketball-rebounder
Instance
<sportsml:action-basketball-score-attempt comment="" id="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" score-attempt-result="" score-attempt-type="" shot-location="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-basketball-assisting-player id="" player-idref="">{0,unbounded}</sportsml:action-basketball-assisting-player>
  <sportsml:action-basketball-rebounder id="" rebounder-idref="" rebounder-side="" rebounder-type="">{0,unbounded}</sportsml:action-basketball-rebounder>

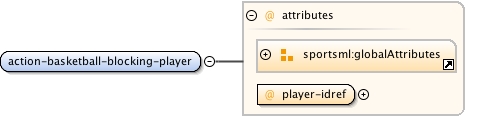

  <sportsml:action-basketball-blocking-player id="" player-idref="">{0,unbounded}</sportsml:action-basketball-blocking-player>
</sportsml:action-basketball-score-attempt>
Attributes
QName Type Fixed Default Use Annotation
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the quarter or overtime period.
period-time-remaining string optional
The time remaining in the quarter or overtime period.
period-value string optional
An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.
player-idref IDREF optional
A pointer to the player who attempted the shot.
score-attempt-result sportsml:scoreAttemptResult.Basketball optional
score-attempt-type sportsml:scoreAttemptType.Basketball optional
What type of shot it was.
shot-location string optional
A string indicating where on the court the shot was taken from. Could be an approximate region, or a more complex value adhering to some elaborate coordinate system.
Source
<element name="action-basketball-score-attempt">
  <annotation>
    <documentation>DEPRECATE: in favour of action-basketball-play with play-type vocab.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:action-basketball-assisting-player" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:action-basketball-rebounder" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:action-basketball-blocking-player" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBasketball"/>
    <attribute name="player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the player who attempted the shot.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-type" type="sportsml:scoreAttemptType.Basketball" use="optional">
      <annotation>
        <documentation>What type of shot it was.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-result" type="sportsml:scoreAttemptResult.Basketball" use="optional">
      <annotation>
        <documentation/>
      </annotation>
    </attribute>
    <attribute name="shot-location" type="string" use="optional">
      <annotation>
        <documentation>A string indicating where on the court the shot was taken from. Could be an approximate region, or a more complex value adhering to some elaborate coordinate system.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

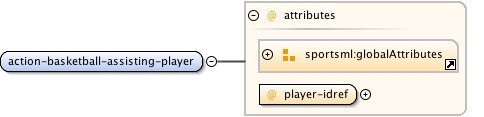

Element sportsml:action-basketball-assisting-player
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
DEPRECATE: in favour of action-basketball-play-participant with role vocab.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#action-basketball-assisting-player_player-idref
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
player-idref IDREF required
A pointer to a player who assisted in the score.
Source
<element name="action-basketball-assisting-player">
  <annotation>
    <documentation>DEPRECATE: in favour of action-basketball-play-participant with role vocab.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="player-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to a player who assisted in the score.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

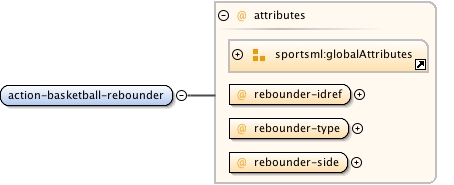

Element sportsml:action-basketball-rebounder
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
DEPRECATE: in favour of action-basketball-play-participant with role vocab.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#action-basketball-rebounder_rebounder-idref sportsml-specific-basketball_xsd.tmp#action-basketball-rebounder_rebounder-type sportsml-specific-basketball_xsd.tmp#action-basketball-rebounder_rebounder-side
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
rebounder-idref IDREF required
A pointer to a player or team who was credited with the rebound.
rebounder-side restriction of string required
Whether the team/player who got the rebound was playing offense or defense.
rebounder-type restriction of string required
Whether it was an individual or a team rebound.
Source
<element name="action-basketball-rebounder">
  <annotation>
    <documentation>DEPRECATE: in favour of action-basketball-play-participant with role vocab.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="rebounder-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to a player or team who was credited with the rebound.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounder-type" use="required">
      <annotation>
        <documentation>Whether it was an individual or a team rebound.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="team"/>
          <enumeration value="player"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="rebounder-side" use="required">
      <annotation>
        <documentation>Whether the team/player who got the rebound was playing offense or defense.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="offense"/>
          <enumeration value="defense"/>
        </restriction>
      </simpleType>
    </attribute>
  </complexType>
</element>
Element sportsml:action-basketball-blocking-player
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
DEPRECATE: in favour of action-basketball-play-participant with role vocab.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#action-basketball-blocking-player_player-idref
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
player-idref IDREF required
A pointer to a player who achieved the block.
Source
<element name="action-basketball-blocking-player">
  <annotation>
    <documentation>DEPRECATE: in favour of action-basketball-play-participant with role vocab.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="player-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to a player who achieved the block.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

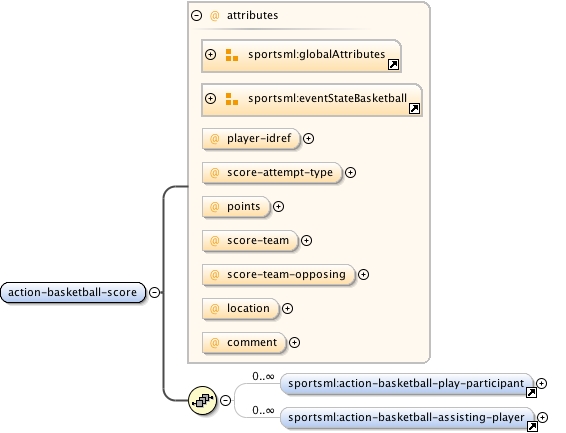

Element sportsml:action-basketball-score
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Used to record shots that were successful. | Can include update of what the new score is between teams.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#eventStateBasketball sportsml-specific-basketball_xsd.tmp#action-basketball-score_player-idref sportsml-specific-basketball_xsd.tmp#action-basketball-score_score-attempt-type sportsml-specific-basketball_xsd.tmp#action-basketball-score_points sportsml-specific-basketball_xsd.tmp#action-basketball-score_score-team sportsml-specific-basketball_xsd.tmp#action-basketball-score_score-team-opposing sportsml-specific-basketball_xsd.tmp#action-basketball-score_location sportsml-specific-basketball_xsd.tmp#action-basketball-score_comment sportsml-specific-basketball_xsd.tmp#action-basketball-play-participant sportsml-specific-basketball_xsd.tmp#action-basketball-assisting-player
Properties
content: complex
Used by
Model sportsml:action-basketball-play-participant* , sportsml:action-basketball-assisting-player*
Children sportsml:action-basketball-assisting-player, sportsml:action-basketball-play-participant
Instance
<sportsml:action-basketball-score comment="" id="" location="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" points="" score-attempt-type="" score-team="" score-team-opposing="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-basketball-play-participant id="" player-idref="" role="" team-idref="">{0,unbounded}</sportsml:action-basketball-play-participant>
  <sportsml:action-basketball-assisting-player id="" player-idref="">{0,unbounded}</sportsml:action-basketball-assisting-player>
</sportsml:action-basketball-score>
Attributes
QName Type Fixed Default Use Annotation
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
location string optional
A string indicating where on the court the shot was taken from. Could be an approximate region, or a more complex value adhering to some elaborate coordinate system.
period-time-elapsed string optional
The time elapsed in the quarter or overtime period.
period-time-remaining string optional
The time remaining in the quarter or overtime period.
period-value string optional
An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.
player-idref IDREF optional
DEPRECATE: in favour of action-basketball-play-participant with role of "scorer".
points string optional
How many points are given for the goal. Generally: 1, 2, or 3.
score-attempt-type sportsml:scoreAttemptType.Basketball optional
Accordning to a vocabulary that shows if the attempt was made as a free shot or a 2-point or 3-point field goal.
score-team string optional
The resulting new total score of the team that scored.
score-team-opposing string optional
The current total score of the team was scored upon.
Source
<element name="action-basketball-score">
  <annotation>
    <documentation>Used to record shots that were successful. | Can include update of what the new score is between teams.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:action-basketball-play-participant" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:action-basketball-assisting-player" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBasketball"/>
    <attribute name="player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>DEPRECATE: in favour of action-basketball-play-participant with role of "scorer".</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-type" type="sportsml:scoreAttemptType.Basketball" use="optional">
      <annotation>
        <documentation>Accordning to a vocabulary that shows if the attempt was made as a free shot or a 2-point or 3-point field goal.</documentation>
      </annotation>
    </attribute>
    <attribute name="points" type="string" use="optional">
      <annotation>
        <documentation>How many points are given for the goal. Generally: 1, 2, or 3.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-team" type="string" use="optional">
      <annotation>
        <documentation>The resulting new total score of the team that scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-team-opposing" type="string" use="optional">
      <annotation>
        <documentation>The current total score of the team was scored upon.</documentation>
      </annotation>
    </attribute>
    <attribute name="location" type="string" use="optional">
      <annotation>
        <documentation>A string indicating where on the court the shot was taken from. Could be an approximate region, or a more complex value adhering to some elaborate coordinate system.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

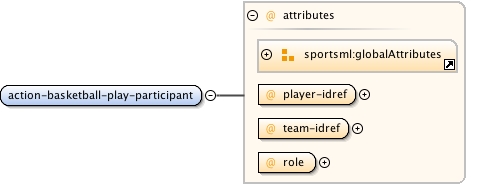

Element sportsml:action-basketball-play-participant
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A generic play participant element.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#action-basketball-play-participant_player-idref sportsml-specific-basketball_xsd.tmp#action-basketball-play-participant_team-idref sportsml-specific-basketball_xsd.tmp#action-basketball-play-participant_role
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
player-idref IDREF required
A pointer to a player who participated in the play.
role sportsml:participantRole.Basketball required
A controlled vocabulary specifying a player's role during the play.
team-idref IDREF required
A pointer to the participant's team.
Source
<element name="action-basketball-play-participant">
  <annotation>
    <documentation>A generic play participant element.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="player-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to a player who participated in the play.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="required">
      <annotation>
        <documentation>A pointer to the participant's team.</documentation>
      </annotation>
    </attribute>
    <attribute name="role" type="sportsml:participantRole.Basketball" use="required">
      <annotation>
        <documentation>A controlled vocabulary specifying a player's role during the play.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:action-basketball-play
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Any kind of on-court play indicated by play-type vocabulary.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#eventStateBasketball sportsml-specific-basketball_xsd.tmp#action-basketball-play_sequence-number sportsml-specific-basketball_xsd.tmp#action-basketball-play_play-type sportsml-specific-basketball_xsd.tmp#action-basketball-play_score-attempt-type sportsml-specific-basketball_xsd.tmp#action-basketball-play_score-attempt-result sportsml-specific-basketball_xsd.tmp#action-basketball-play_location sportsml-specific-basketball_xsd.tmp#action-basketball-play_comment sportsml-specific-basketball_xsd.tmp#action-basketball-play_zone sportsml-specific-basketball_xsd.tmp#action-basketball-play_turnover-type sportsml-specific-basketball_xsd.tmp#action-basketball-play-participant
Properties
content: complex
Used by
Model sportsml:action-basketball-play-participant*
Children sportsml:action-basketball-play-participant
Instance
<sportsml:action-basketball-play comment="" id="" location="" period-time-elapsed="" period-time-remaining="" period-value="" play-type="" score-attempt-result="" score-attempt-type="" sequence-number="" turnover-type="" zone="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-basketball-play-participant id="" player-idref="" role="" team-idref="">{0,unbounded}</sportsml:action-basketball-play-participant>
</sportsml:action-basketball-play>
Attributes
QName Type Fixed Default Use Annotation
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
location string optional
A string indicating where on the court the play occured. Could be an approximate region, or a more complex value adhering to some elaborate coordinate system.
period-time-elapsed string optional
The time elapsed in the quarter or overtime period.
period-time-remaining string optional
The time remaining in the quarter or overtime period.
period-value string optional
An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.
play-type sportsml:playType.Basketball optional
The type of play.
score-attempt-result sportsml:scoreAttemptResult.Basketball optional
The reason why the score attempt missed.
score-attempt-type sportsml:scoreAttemptType.Basketball optional
What type of shot it was. Free shot or field goal, 2 or 3 points.
sequence-number string optional
The sequence number of the play within the game as a whole.
turnover-type string optional
Controlled vocabulary such as steal or lost-ball.
zone restriction of string optional
The zone on the court for the stat or action: offense | defense | neutral.
Source
<element name="action-basketball-play">
  <annotation>
    <documentation>Any kind of on-court play indicated by play-type vocabulary.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:action-basketball-play-participant" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBasketball"/>
    <attribute name="sequence-number" type="string" use="optional">
      <annotation>
        <documentation>The sequence number of the play within the game as a whole.</documentation>
      </annotation>
    </attribute>
    <attribute name="play-type" type="sportsml:playType.Basketball" use="optional">
      <annotation>
        <documentation>The type of play.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-type" type="sportsml:scoreAttemptType.Basketball" use="optional">
      <annotation>
        <documentation>What type of shot it was. Free shot or field goal, 2 or 3 points.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-result" type="sportsml:scoreAttemptResult.Basketball" use="optional">
      <annotation>
        <documentation>The reason why the score attempt missed.</documentation>
      </annotation>
    </attribute>
    <attribute name="location" type="string" use="optional">
      <annotation>
        <documentation>A string indicating where on the court the play occured. Could be an approximate region, or a more complex value adhering to some elaborate coordinate system.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
    <attribute name="zone" use="optional">
      <annotation>
        <documentation>The zone on the court for the stat or action: offense | defense | neutral.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="offense"/>
          <enumeration value="defense"/>
          <enumeration value="neutral"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="turnover-type" type="string" use="optional">
      <annotation>
        <documentation>Controlled vocabulary such as steal or lost-ball.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:action-basketball-penalty
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Used when a foul is made. | Records who made the foul and who called the foul.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#eventStateBasketball sportsml-specific-basketball_xsd.tmp#action-basketball-penalty_recipient-type sportsml-specific-basketball_xsd.tmp#action-basketball-penalty_recipient-idref sportsml-specific-basketball_xsd.tmp#action-basketball-penalty_caller-idref sportsml-specific-basketball_xsd.tmp#action-basketball-penalty_penalty-count sportsml-specific-basketball_xsd.tmp#action-basketball-penalty_penalty-side sportsml-specific-basketball_xsd.tmp#action-basketball-penalty_penalty-level sportsml-specific-basketball_xsd.tmp#action-basketball-penalty_comment sportsml-specific-basketball_xsd.tmp#action-basketball-penalty_zone
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
caller-idref IDREF optional
A pointer to the official who called the penalty.
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
penalty-count string optional
How many penalties the recipient has received in this sports-event, including this one.
penalty-level sportsml:penaltyLevel.Basketball optional
The level of the penalty. According to a controlled vocabulary.
penalty-side sportsml:penaltySide.Basketball optional
Whether it was an offensive or defensive penalty.
period-time-elapsed string optional
The time elapsed in the quarter or overtime period.
period-time-remaining string optional
The time remaining in the quarter or overtime period.
period-value string optional
An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.
recipient-idref IDREF optional
A pointer to the receiver of the penalty.
recipient-type restriction of string required
Whether the receiver of the penalty was the team, the player, a coach, a ref, etc.
zone restriction of string optional
The zone on the court for the stat or action: offense | defense | neutral.
Source
<element name="action-basketball-penalty">
  <annotation>
    <documentation>Used when a foul is made. | Records who made the foul and who called the foul.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBasketball"/>
    <attribute name="recipient-type" use="required">
      <annotation>
        <documentation>Whether the receiver of the penalty was the team, the player, a coach, a ref, etc.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="team"/>
          <enumeration value="player"/>
          <enumeration value="auxilliary"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="recipient-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the receiver of the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="caller-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the official who called the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-count" type="string" use="optional">
      <annotation>
        <documentation>How many penalties the recipient has received in this sports-event, including this one.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-side" type="sportsml:penaltySide.Basketball" use="optional">
      <annotation>
        <documentation>Whether it was an offensive or defensive penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-level" type="sportsml:penaltyLevel.Basketball" use="optional">
      <annotation>
        <documentation>The level of the penalty. According to a controlled vocabulary.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
    <attribute name="zone" use="optional">
      <annotation>
        <documentation>The zone on the court for the stat or action: offense | defense | neutral.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="offense"/>
          <enumeration value="defense"/>
          <enumeration value="neutral"/>
        </restriction>
      </simpleType>
    </attribute>
  </complexType>
</element>

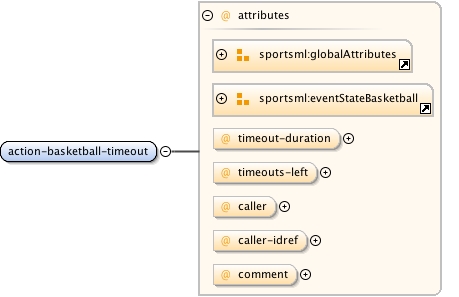

Element sportsml:action-basketball-timeout
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Used to record the calling of a timeout. | Also records who called for the timeout.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#eventStateBasketball sportsml-specific-basketball_xsd.tmp#action-basketball-timeout_timeout-duration sportsml-specific-basketball_xsd.tmp#action-basketball-timeout_timeouts-left sportsml-specific-basketball_xsd.tmp#action-basketball-timeout_caller sportsml-specific-basketball_xsd.tmp#action-basketball-timeout_caller-idref sportsml-specific-basketball_xsd.tmp#action-basketball-timeout_comment
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
caller restriction of string optional
Who called the timeout.
caller-idref IDREF optional
If caller is team, say, a pointer to the team element.
comment string optional
A textual comment.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the quarter or overtime period.
period-time-remaining string optional
The time remaining in the quarter or overtime period.
period-value string optional
An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.
timeout-duration string optional
The duration of the timeout.
timeouts-left string optional
The number of timeouts remaining once this timeout is finished.
Source
<element name="action-basketball-timeout">
  <annotation>
    <documentation>Used to record the calling of a timeout. | Also records who called for the timeout.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBasketball"/>
    <attribute name="timeout-duration" type="string" use="optional">
      <annotation>
        <documentation>The duration of the timeout.</documentation>
      </annotation>
    </attribute>
    <attribute name="timeouts-left" type="string" use="optional">
      <annotation>
        <documentation>The number of timeouts remaining once this timeout is finished.</documentation>
      </annotation>
    </attribute>
    <attribute name="caller" use="optional">
      <annotation>
        <documentation>Who called the timeout.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="team"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="caller-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>If caller is team, say, a pointer to the team element.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>A textual comment.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:action-basketball-jump-ball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
DEPRECATE. A jump ball. | For use when the referree throws a ball up for two opposing players to try to tip towards their team.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#eventStateBasketball sportsml-specific-basketball_xsd.tmp#action-basketball-jump-ball_player-1-idref sportsml-specific-basketball_xsd.tmp#action-basketball-jump-ball_player-2-idref sportsml-specific-basketball_xsd.tmp#action-basketball-jump-ball_winning-player-idref sportsml-specific-basketball_xsd.tmp#action-basketball-jump-ball_comment
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
comment string optional
Textual comment about the action.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the quarter or overtime period.
period-time-remaining string optional
The time remaining in the quarter or overtime period.
period-value string optional
An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.
player-1-idref IDREF optional
Identifier for one of the jump-ball participants.
player-2-idref IDREF optional
Identifier for the other jump-ball participant.
winning-player-idref IDREF optional
Identifier for the participant whose team recovered the ball after the jump.
Source
<element name="action-basketball-jump-ball">
  <annotation>
    <documentation>DEPRECATE. A jump ball. | For use when the referree throws a ball up for two opposing players to try to tip towards their team.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBasketball"/>
    <attribute name="player-1-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>Identifier for one of the jump-ball participants.</documentation>
      </annotation>
    </attribute>
    <attribute name="player-2-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>Identifier for the other jump-ball participant.</documentation>
      </annotation>
    </attribute>
    <attribute name="winning-player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>Identifier for the participant whose team recovered the ball after the jump.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

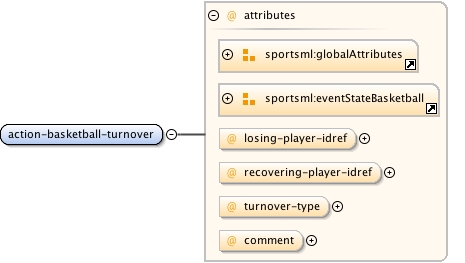

Element sportsml:action-basketball-turnover
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
DEPRECATE. When one team loses the ball, and the other team recovers. | Can be a steal, or just a lost ball.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#eventStateBasketball sportsml-specific-basketball_xsd.tmp#action-basketball-turnover_losing-player-idref sportsml-specific-basketball_xsd.tmp#action-basketball-turnover_recovering-player-idref sportsml-specific-basketball_xsd.tmp#action-basketball-turnover_turnover-type sportsml-specific-basketball_xsd.tmp#action-basketball-turnover_comment
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
comment string optional
Textual comment about the action.
id ID optional
An XML-specific identifier for the element.
losing-player-idref IDREF optional
Identifier for the participant who lost posession of the ball.
period-time-elapsed string optional
The time elapsed in the quarter or overtime period.
period-time-remaining string optional
The time remaining in the quarter or overtime period.
period-value string optional
An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.
recovering-player-idref IDREF optional
Identifier for the participant who gained posession of the ball, if any.
turnover-type string optional
Controlled vocabulary such as steal or lost-ball.
Source
<element name="action-basketball-turnover">
  <annotation>
    <documentation>DEPRECATE. When one team loses the ball, and the other team recovers. | Can be a steal, or just a lost ball.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBasketball"/>
    <attribute name="losing-player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>Identifier for the participant who lost posession of the ball.</documentation>
      </annotation>
    </attribute>
    <attribute name="recovering-player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>Identifier for the participant who gained posession of the ball, if any.</documentation>
      </annotation>
    </attribute>
    <attribute name="turnover-type" type="string" use="optional">
      <annotation>
        <documentation>Controlled vocabulary such as steal or lost-ball.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:action-basketball-other
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A custom action. | For use when none of the pre-build actions apply.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-basketball_xsd.tmp#eventStateBasketball sportsml-specific-basketball_xsd.tmp#action-basketball-other_action-source sportsml-specific-basketball_xsd.tmp#action-basketball-other_action-type sportsml-specific-basketball_xsd.tmp#action-basketball-other_comment
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
action-source string optional
The name of the controlled-vocabulary for the action-type attribute.
action-type string optional
A selection from a controlled-vocabulary list maintained by the publisher.
comment string optional
Textual comment about the action.
id ID optional
An XML-specific identifier for the element.
period-time-elapsed string optional
The time elapsed in the quarter or overtime period.
period-time-remaining string optional
The time remaining in the quarter or overtime period.
period-value string optional
An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.
Source
<element name="action-basketball-other">
  <annotation>
    <documentation>A custom action. | For use when none of the pre-build actions apply.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateBasketball"/>
    <attribute name="action-source" type="string" use="optional">
      <annotation>
        <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
      </annotation>
    </attribute>
    <attribute name="action-type" type="string" use="optional">
      <annotation>
        <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:team-metadata-basketball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Metadata about the team. | Specific to the sport of basketball.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="team-metadata-basketball">
  <annotation>
    <documentation>Metadata about the team. | Specific to the sport of basketball.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>

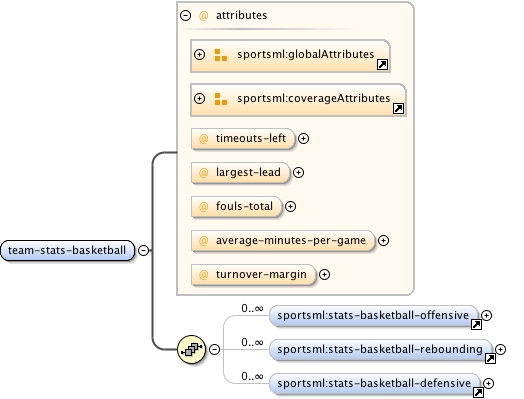

Element sportsml:team-stats-basketball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Specific statistics for basketball. | Includes offensive, rebounding, and defensive stats.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-basketball_xsd.tmp#team-stats-basketball_timeouts-left sportsml-specific-basketball_xsd.tmp#team-stats-basketball_largest-lead sportsml-specific-basketball_xsd.tmp#team-stats-basketball_fouls-total sportsml-specific-basketball_xsd.tmp#team-stats-basketball_average-minutes-per-game sportsml-specific-basketball_xsd.tmp#team-stats-basketball_turnover-margin sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive
Properties
content: complex
Used by
Model sportsml:stats-basketball-offensive* , sportsml:stats-basketball-rebounding* , sportsml:stats-basketball-defensive*
Children sportsml:stats-basketball-defensive, sportsml:stats-basketball-offensive, sportsml:stats-basketball-rebounding
Instance
<sportsml:team-stats-basketball alignment-scope="" average-minutes-per-game="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" fouls-total="" id="" largest-lead="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" timeouts-left="" turnover-margin="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-basketball-offensive alignment-scope="" assists-per-game="" assists-total="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" field-goals-attempted="" field-goals-attempted-per-game="" field-goals-made="" field-goals-percentage="" field-goals-percentage-adjusted="" field-goals-per-game="" free-throws-attempted="" free-throws-attempted-per-game="" free-throws-made="" free-throws-percentage="" free-throws-per-game="" id="" period-value="" points-scored-in-paint="" points-scored-off-turnovers="" points-scored-on-fast-break="" points-scored-on-second-chance="" points-scored-per-game="" points-scored-per-game-highest="" points-scored-per-shot="" points-scored-total="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" team-turnovers-per-game="" team-turnovers-total="" three-pointers-attempted="" three-pointers-attempted-per-game="" three-pointers-made="" three-pointers-percentage="" three-pointers-per-game="" turnovers-per-game="" turnovers-total="">{0,unbounded}</sportsml:stats-basketball-offensive>
  <sportsml:stats-basketball-rebounding alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" rebounds-defensive="" rebounds-defensive-percentage="" rebounds-defensive-per-game="" rebounds-differential="" rebounds-offensive="" rebounds-offensive-percentage="" rebounds-offensive-per-game="" rebounds-opponent-defensive="" rebounds-opponent-offensive="" rebounds-opponent-total="" rebounds-per-game="" rebounds-total="" rebounds-total-percentage="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" team-rebounds-defensive="" team-rebounds-defensive-percentage="" team-rebounds-offensive="" team-rebounds-offensive-percentage="" team-rebounds-opponent-defensive="" team-rebounds-opponent-offensive="" team-rebounds-opponent-total="" team-rebounds-per-game="" team-rebounds-total="" team-rebounds-total-percentage="">{0,unbounded}</sportsml:stats-basketball-rebounding>
  <sportsml:stats-basketball-defensive alignment-scope="" blocks-differential="" blocks-opponent="" blocks-per-game="" blocks-total="" charges-taken="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" field-goals-against-percentage="" field-goals-against-per-game="" id="" period-value="" points-scored-against-per-game="" points-scored-against-per-game-highest="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" steals-differential="" steals-opponent="" steals-per-game="" steals-total="" team-coverage="" team-turnovers-total="">{0,unbounded}</sportsml:stats-basketball-defensive>
</sportsml:team-stats-basketball>
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
average-minutes-per-game string optional
DEPRECATED.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
fouls-total string optional
Total number of fouls comitted by the team during this event.
id ID optional
An XML-specific identifier for the element.
largest-lead string optional
Largest number of points this team has led the opposition. Could be a negative number.
period-value string optional
Used for tracking stats and events by period.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
timeouts-left string optional
Number of timeouts a team has left during the current event.
turnover-margin string optional
Turnover margain is the number of turnovers made by this team minus the number of turnovers made by the opposing team.
Source
<element name="team-stats-basketball">
  <annotation>
    <documentation>Specific statistics for basketball. | Includes offensive, rebounding, and defensive stats.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-basketball-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-basketball-rebounding" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-basketball-defensive" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="timeouts-left" type="string" use="optional">
      <annotation>
        <documentation>Number of timeouts a team has left during the current event.</documentation>
      </annotation>
    </attribute>
    <attribute name="largest-lead" type="string" use="optional">
      <annotation>
        <documentation>Largest number of points this team has led the opposition. Could be a negative number.</documentation>
      </annotation>
    </attribute>
    <attribute name="fouls-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of fouls comitted by the team during this event.</documentation>
      </annotation>
    </attribute>
    <attribute name="average-minutes-per-game" type="string" use="optional">
      <annotation>
        <documentation>DEPRECATED.</documentation>
      </annotation>
    </attribute>
    <attribute name="turnover-margin" type="string" use="optional">
      <annotation>
        <documentation>Turnover margain is the number of turnovers made by this team minus the number of turnovers made by the opposing team.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

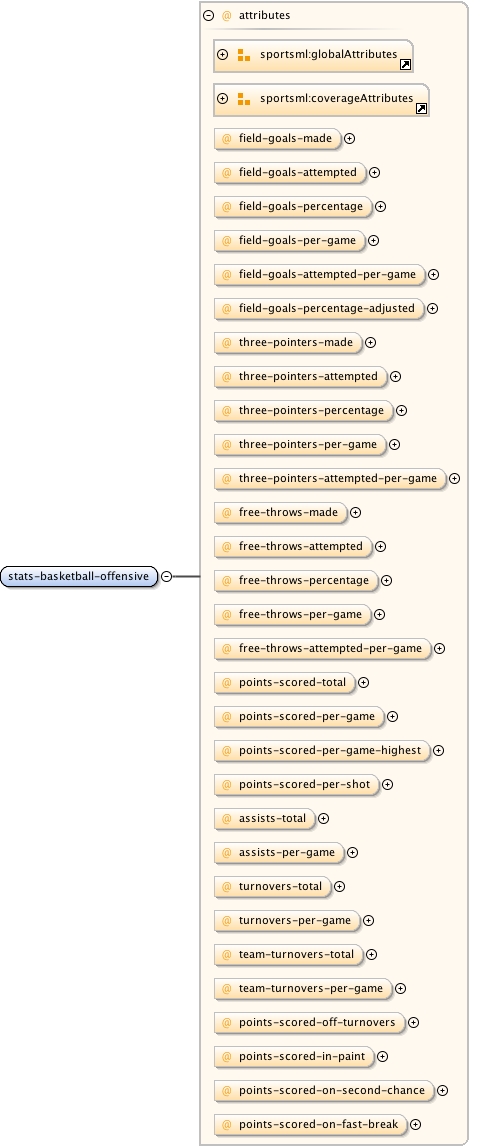

Element sportsml:stats-basketball-offensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Statistics for a team or player while they had possession of the ball. | Includes scoring and assisting stats.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_field-goals-made sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_field-goals-attempted sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_field-goals-percentage sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_field-goals-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_field-goals-attempted-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_field-goals-percentage-adjusted sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_three-pointers-made sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_three-pointers-attempted sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_three-pointers-percentage sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_three-pointers-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_three-pointers-attempted-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_free-throws-made sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_free-throws-attempted sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_free-throws-percentage sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_free-throws-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_free-throws-attempted-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_points-scored-total sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_points-scored-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_points-scored-per-game-highest sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_points-scored-per-shot sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_assists-total sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_assists-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_turnovers-total sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_turnovers-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_team-turnovers-total sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_team-turnovers-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_points-scored-off-turnovers sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_points-scored-in-paint sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_points-scored-on-second-chance sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive_points-scored-on-fast-break
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
assists-per-game string optional
Total number of assists per games played during the time span indicated in date coverage attributes.
assists-total string optional
Total number of assists during the time span indicated in date coverage attributes.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
field-goals-attempted string optional
Two-point shots that were attempted.
field-goals-attempted-per-game string optional
Average number of field goals attempted per game.
field-goals-made string optional
Shots made that were worth two points each.
field-goals-per-game string optional
Average number of field goals made per game.
field-goals-percentage string optional
Field goals made versus attempted. This could also be calculated from the above.
field-goals-percentage-adjusted string optional
A formula measuring shooting efficiency: [(points-scored-total - free-throws-made)/field-goals-attempted]/2.
free-throws-attempted string optional
One-point shots that were attempted.
free-throws-attempted-per-game string optional
Average number of free throws attempted per game.
free-throws-made string optional
Shots made that were worth one point each.
free-throws-per-game string optional
Average number of free throws made per game.
free-throws-percentage string optional
Free throws made versus attempted.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking stats and events by period.
points-scored-in-paint string optional
Total number of points scored from within the painted area surrounding the basket during the time span indicated in date coverage attributes..
points-scored-off-turnovers string optional
Total number of points scored off turnovers the time span indicated in date coverage attributes.
points-scored-on-fast-break string optional
Total number of points scored off a fast break during the time span indicated in date coverage attributes..
points-scored-on-second-chance string optional
Total number of points scored after fielding an offensive rebound during the time span indicated in date coverage attributes..
points-scored-per-game string optional
Average number of points scored in games played during the time span indicated in date coverage attributes.
points-scored-per-game-highest string optional
Highest number of points scored in one game played during the time span indicated in date coverage attributes.
points-scored-per-shot string optional
Calculated by dividing points-scored-total by field-goals-attempted.
points-scored-total string optional
Total number of points scored, over the time span indicated in date coverage attributes.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
team-turnovers-per-game string optional
Average number of team turnovers per game the time span indicated in date coverage attributes.
team-turnovers-total string optional
Total number of team turnovers during the time span indicated in date coverage attributes.
three-pointers-attempted string optional
Three-point shots that were attempted.
three-pointers-attempted-per-game string optional
Average number of three-pointers attempted per game.
three-pointers-made string optional
Shots made that were worth three points each.
three-pointers-per-game string optional
Average number of three-pointers made per game.
three-pointers-percentage string optional
Three-pointers made versus attempted. This could be calculated.
turnovers-per-game string optional
Average number of turnovers per game the time span indicated in date coverage attributes.
turnovers-total string optional
Total number of turnovers during the time span indicated in date coverage attributes.
Source
<element name="stats-basketball-offensive">
  <annotation>
    <documentation>Statistics for a team or player while they had possession of the ball. | Includes scoring and assisting stats.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="field-goals-made" type="string" use="optional">
      <annotation>
        <documentation>Shots made that were worth two points each.</documentation>
      </annotation>
    </attribute>
    <attribute name="field-goals-attempted" type="string" use="optional">
      <annotation>
        <documentation>Two-point shots that were attempted.</documentation>
      </annotation>
    </attribute>
    <attribute name="field-goals-percentage" type="string" use="optional">
      <annotation>
        <documentation>Field goals made versus attempted. This could also be calculated from the above.</documentation>
      </annotation>
    </attribute>
    <attribute name="field-goals-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of field goals made per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="field-goals-attempted-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of field goals attempted per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="field-goals-percentage-adjusted" type="string" use="optional">
      <annotation>
        <documentation>A formula measuring shooting efficiency: [(points-scored-total - free-throws-made)/field-goals-attempted]/2.</documentation>
      </annotation>
    </attribute>
    <attribute name="three-pointers-made" type="string" use="optional">
      <annotation>
        <documentation>Shots made that were worth three points each.</documentation>
      </annotation>
    </attribute>
    <attribute name="three-pointers-attempted" type="string" use="optional">
      <annotation>
        <documentation>Three-point shots that were attempted.</documentation>
      </annotation>
    </attribute>
    <attribute name="three-pointers-percentage" type="string" use="optional">
      <annotation>
        <documentation>Three-pointers made versus attempted. This could be calculated.</documentation>
      </annotation>
    </attribute>
    <attribute name="three-pointers-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of three-pointers made per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="three-pointers-attempted-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of three-pointers attempted per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="free-throws-made" type="string" use="optional">
      <annotation>
        <documentation>Shots made that were worth one point each.</documentation>
      </annotation>
    </attribute>
    <attribute name="free-throws-attempted" type="string" use="optional">
      <annotation>
        <documentation>One-point shots that were attempted.</documentation>
      </annotation>
    </attribute>
    <attribute name="free-throws-percentage" type="string" use="optional">
      <annotation>
        <documentation>Free throws made versus attempted.</documentation>
      </annotation>
    </attribute>
    <attribute name="free-throws-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of free throws made per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="free-throws-attempted-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of free throws attempted per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-scored-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of points scored, over the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-scored-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of points scored in games played during the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-scored-per-game-highest" type="string" use="optional">
      <annotation>
        <documentation>Highest number of points scored in one game played during the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-scored-per-shot" type="string" use="optional">
      <annotation>
        <documentation>Calculated by dividing points-scored-total by field-goals-attempted.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of assists during the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="assists-per-game" type="string" use="optional">
      <annotation>
        <documentation>Total number of assists per games played during the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="turnovers-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of turnovers during the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="turnovers-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of turnovers per game the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-turnovers-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of team turnovers during the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-turnovers-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of team turnovers per game the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-scored-off-turnovers" type="string" use="optional">
      <annotation>
        <documentation>Total number of points scored off turnovers the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-scored-in-paint" type="string" use="optional">
      <annotation>
        <documentation>Total number of points scored from within the painted area surrounding the basket during the time span indicated in date coverage attributes..</documentation>
      </annotation>
    </attribute>
    <attribute name="points-scored-on-second-chance" type="string" use="optional">
      <annotation>
        <documentation>Total number of points scored after fielding an offensive rebound during the time span indicated in date coverage attributes..</documentation>
      </annotation>
    </attribute>
    <attribute name="points-scored-on-fast-break" type="string" use="optional">
      <annotation>
        <documentation>Total number of points scored off a fast break during the time span indicated in date coverage attributes..</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:stats-basketball-rebounding
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Statistics for a team or player revolving around rebounds. | Includes rebounds credited to particular players, and credited to the entire team.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-total sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-total-percentage sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-defensive sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-opponent-defensive sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-defensive-percentage sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-offensive sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-offensive-percentage sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-opponent-offensive sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_team-rebounds-total sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_team-rebounds-total-percentage sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_team-rebounds-defensive sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_team-rebounds-defensive-percentage sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_team-rebounds-offensive sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_team-rebounds-offensive-percentage sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_team-rebounds-opponent-defensive sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_team-rebounds-opponent-offensive sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_team-rebounds-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-offensive-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-defensive-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-differential sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_rebounds-opponent-total sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding_team-rebounds-opponent-total
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking stats and events by period.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
rebounds-defensive string optional
The sum of all defensive rebounds credited to particular players. A defensive rebound occurs when the team is in defence but gains possession through a rebound.
rebounds-defensive-per-game string optional
The average numer of defensive personal rebounds per game.
rebounds-defensive-percentage string optional
The percentage of defensive rebounds.
rebounds-differential string optional
The differential between the total number of rebounds from this team compared to the opposing team.
rebounds-offensive string optional
The sum of all offensive rebounds credited to particular player. An offensive rebound is when the team keep possession of the ball through a rebound.
rebounds-offensive-per-game string optional
The average number of offensive personal rebounds per game.
rebounds-offensive-percentage string optional
The percentage of offensive rebounds.
rebounds-opponent-defensive string optional
The total defensive rebounds by the opposing team or player.
rebounds-opponent-offensive string optional
The total offensive rebounds by the opposing team or player.
rebounds-opponent-total string optional
The total number of rebounds (ofensive and defensive) by the opposing team or player.
rebounds-per-game string optional
The average number of personal rebounds per game.
rebounds-total string optional
The sum of all rebounds that were credited to particular players.
rebounds-total-percentage string optional
The percentage of rebounds total compared to total number of attempts.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
team-rebounds-defensive string optional
The sum of all defensive rebounds credited to the team as a whole.
team-rebounds-defensive-percentage string optional
The percentage of defensive rebounds credited to the team.
team-rebounds-offensive string optional
The sum of all offensive rebounds credited to the team as a whol.
team-rebounds-offensive-percentage string optional
The percentage of offensive rebounds credited to the team.
team-rebounds-opponent-defensive string optional
The total defensive team rebounds by the opposing team or player.
team-rebounds-opponent-offensive string optional
The total offensive team rebounds by the opposing team or player.
team-rebounds-opponent-total string optional
The total number of rebounds (ofensive and defensive) by the opponent which are credited to the team.
team-rebounds-per-game string optional
The average number of team rebounds per game.
team-rebounds-total string optional
The number of rebounds that did not credited to individual players, but were instead credited to the team as a whole.
team-rebounds-total-percentage string optional
Percentage of team rebounds.
Source
<element name="stats-basketball-rebounding">
  <annotation>
    <documentation>Statistics for a team or player revolving around rebounds. | Includes rebounds credited to particular players, and credited to the entire team.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="rebounds-total" type="string" use="optional">
      <annotation>
        <documentation>The sum of all rebounds that were credited to particular players.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-total-percentage" type="string" use="optional">
      <annotation>
        <documentation>The percentage of rebounds total compared to total number of attempts.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-defensive" type="string" use="optional">
      <annotation>
        <documentation>The sum of all defensive rebounds credited to particular players. A defensive rebound occurs when the team is in defence but gains possession through a rebound.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-opponent-defensive" type="string" use="optional">
      <annotation>
        <documentation>The total defensive rebounds by the opposing team or player.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-defensive-percentage" type="string" use="optional">
      <annotation>
        <documentation>The percentage of defensive rebounds.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-offensive" type="string" use="optional">
      <annotation>
        <documentation>The sum of all offensive rebounds credited to particular player. An offensive rebound is when the team keep possession of the ball through a rebound.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-offensive-percentage" type="string" use="optional">
      <annotation>
        <documentation>The percentage of offensive rebounds.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-opponent-offensive" type="string" use="optional">
      <annotation>
        <documentation>The total offensive rebounds by the opposing team or player.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-rebounds-total" type="string" use="optional">
      <annotation>
        <documentation>The number of rebounds that did not credited to individual players, but were instead credited to the team as a whole.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-rebounds-total-percentage" type="string" use="optional">
      <annotation>
        <documentation>Percentage of team rebounds.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-rebounds-defensive" type="string" use="optional">
      <annotation>
        <documentation>The sum of all defensive rebounds credited to the team as a whole.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-rebounds-defensive-percentage" type="string" use="optional">
      <annotation>
        <documentation>The percentage of defensive rebounds credited to the team.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-rebounds-offensive" type="string" use="optional">
      <annotation>
        <documentation>The sum of all offensive rebounds credited to the team as a whol.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-rebounds-offensive-percentage" type="string" use="optional">
      <annotation>
        <documentation>The percentage of offensive rebounds credited to the team.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-rebounds-opponent-defensive" type="string" use="optional">
      <annotation>
        <documentation>The total defensive team rebounds by the opposing team or player.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-rebounds-opponent-offensive" type="string" use="optional">
      <annotation>
        <documentation>The total offensive team rebounds by the opposing team or player.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-per-game" type="string" use="optional">
      <annotation>
        <documentation>The average number of personal rebounds per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-rebounds-per-game" type="string" use="optional">
      <annotation>
        <documentation>The average number of team rebounds per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-offensive-per-game" type="string" use="optional">
      <annotation>
        <documentation>The average number of offensive personal rebounds per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-defensive-per-game" type="string" use="optional">
      <annotation>
        <documentation>The average numer of defensive personal rebounds per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-differential" type="string" use="optional">
      <annotation>
        <documentation>The differential between the total number of rebounds from this team compared to the opposing team.</documentation>
      </annotation>
    </attribute>
    <attribute name="rebounds-opponent-total" type="string" use="optional">
      <annotation>
        <documentation>The total number of rebounds (ofensive and defensive) by the opposing team or player.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-rebounds-opponent-total" type="string" use="optional">
      <annotation>
        <documentation>The total number of rebounds (ofensive and defensive) by the opponent which are credited to the team.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:stats-basketball-defensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Statistics for a team or player while the other team was in possession of the ball. | Includes information on steals and blocks.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_steals-total sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_steals-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_steals-opponent sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_steals-differential sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_blocks-total sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_blocks-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_blocks-opponent sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_blocks-differential sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_points-scored-against-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_points-scored-against-per-game-highest sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_field-goals-against-per-game sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_field-goals-against-percentage sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_team-turnovers-total sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive_charges-taken
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
blocks-differential string optional
Total number of blocks made by this team compared to blocks made by the other team.
blocks-opponent string optional
Total number of blocks-against by opponent.
blocks-per-game string optional
Average number of blocks per game.
blocks-total string optional
Total number of blocks.
charges-taken string optional
Total number of charges taken. A charge is when the referee toss the ball and one player of each team try to give their team possession of the ball.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
field-goals-against-per-game string optional
The average number of field goals scored agains per game.
field-goals-against-percentage string optional
The percentage of field goals scored against.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking stats and events by period.
points-scored-against-per-game string optional
Average of points scored against per game.
points-scored-against-per-game-highest string optional
Highest number of points scored against in one game played during the time span indicated in date coverage attributes.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
steals-differential string optional
The number of steals made by this team compared to steals made by the other team.
steals-opponent string optional
Total number of steals-against by opponent.
steals-per-game string optional
Average number of steals per game.
steals-total string optional
Total number of steals.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
team-turnovers-total string optional
The total number of turnovers made by the team.
Source
<element name="stats-basketball-defensive">
  <annotation>
    <documentation>Statistics for a team or player while the other team was in possession of the ball. | Includes information on steals and blocks.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="steals-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of steals.</documentation>
      </annotation>
    </attribute>
    <attribute name="steals-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of steals per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="steals-opponent" type="string" use="optional">
      <annotation>
        <documentation>Total number of steals-against by opponent.</documentation>
      </annotation>
    </attribute>
    <attribute name="steals-differential" type="string" use="optional">
      <annotation>
        <documentation>The number of steals made by this team compared to steals made by the other team.</documentation>
      </annotation>
    </attribute>
    <attribute name="blocks-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of blocks.</documentation>
      </annotation>
    </attribute>
    <attribute name="blocks-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of blocks per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="blocks-opponent" type="string" use="optional">
      <annotation>
        <documentation>Total number of blocks-against by opponent.</documentation>
      </annotation>
    </attribute>
    <attribute name="blocks-differential" type="string" use="optional">
      <annotation>
        <documentation>Total number of blocks made by this team compared to blocks made by the other team.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-scored-against-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average of points scored against per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="points-scored-against-per-game-highest" type="string" use="optional">
      <annotation>
        <documentation>Highest number of points scored against in one game played during the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="field-goals-against-per-game" type="string" use="optional">
      <annotation>
        <documentation>The average number of field goals scored agains per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="field-goals-against-percentage" type="string" use="optional">
      <annotation>
        <documentation>The percentage of field goals scored against.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-turnovers-total" type="string" use="optional">
      <annotation>
        <documentation>The total number of turnovers made by the team.</documentation>
      </annotation>
    </attribute>
    <attribute name="charges-taken" type="string" use="optional">
      <annotation>
        <documentation>Total number of charges taken. A charge is when the referee toss the ball and one player of each team try to give their team possession of the ball.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:player-metadata-basketball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Metadata about the player. | Specific to the sport of basketball.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="player-metadata-basketball">
  <annotation>
    <documentation>Metadata about the player. | Specific to the sport of basketball.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Element sportsml:player-stats-basketball
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Specific statistics for basketball players. | Includes offensive, rebounding, and defensive stats.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-basketball_xsd.tmp#player-stats-basketball_minutes-played sportsml-specific-basketball_xsd.tmp#player-stats-basketball_games-played sportsml-specific-basketball_xsd.tmp#player-stats-basketball_games-started sportsml-specific-basketball_xsd.tmp#player-stats-basketball_average-minutes-per-game sportsml-specific-basketball_xsd.tmp#player-stats-basketball_personal-fouls-per-game sportsml-specific-basketball_xsd.tmp#player-stats-basketball_double-doubles sportsml-specific-basketball_xsd.tmp#player-stats-basketball_triple-doubles sportsml-specific-basketball_xsd.tmp#stats-basketball-offensive sportsml-specific-basketball_xsd.tmp#stats-basketball-rebounding sportsml-specific-basketball_xsd.tmp#stats-basketball-defensive
Properties
content: complex
Used by
Model sportsml:stats-basketball-offensive* , sportsml:stats-basketball-rebounding* , sportsml:stats-basketball-defensive*
Children sportsml:stats-basketball-defensive, sportsml:stats-basketball-offensive, sportsml:stats-basketball-rebounding
Instance
<sportsml:player-stats-basketball alignment-scope="" average-minutes-per-game="" competition-scope="" date-coverage-type="" date-coverage-value="" double-doubles="" duration-scope="" games-played="" games-started="" id="" minutes-played="" period-value="" personal-fouls-per-game="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" triple-doubles="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-basketball-offensive alignment-scope="" assists-per-game="" assists-total="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" field-goals-attempted="" field-goals-attempted-per-game="" field-goals-made="" field-goals-percentage="" field-goals-percentage-adjusted="" field-goals-per-game="" free-throws-attempted="" free-throws-attempted-per-game="" free-throws-made="" free-throws-percentage="" free-throws-per-game="" id="" period-value="" points-scored-in-paint="" points-scored-off-turnovers="" points-scored-on-fast-break="" points-scored-on-second-chance="" points-scored-per-game="" points-scored-per-game-highest="" points-scored-per-shot="" points-scored-total="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" team-turnovers-per-game="" team-turnovers-total="" three-pointers-attempted="" three-pointers-attempted-per-game="" three-pointers-made="" three-pointers-percentage="" three-pointers-per-game="" turnovers-per-game="" turnovers-total="">{0,unbounded}</sportsml:stats-basketball-offensive>
  <sportsml:stats-basketball-rebounding alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" rebounds-defensive="" rebounds-defensive-percentage="" rebounds-defensive-per-game="" rebounds-differential="" rebounds-offensive="" rebounds-offensive-percentage="" rebounds-offensive-per-game="" rebounds-opponent-defensive="" rebounds-opponent-offensive="" rebounds-opponent-total="" rebounds-per-game="" rebounds-total="" rebounds-total-percentage="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" team-rebounds-defensive="" team-rebounds-defensive-percentage="" team-rebounds-offensive="" team-rebounds-offensive-percentage="" team-rebounds-opponent-defensive="" team-rebounds-opponent-offensive="" team-rebounds-opponent-total="" team-rebounds-per-game="" team-rebounds-total="" team-rebounds-total-percentage="">{0,unbounded}</sportsml:stats-basketball-rebounding>
  <sportsml:stats-basketball-defensive alignment-scope="" blocks-differential="" blocks-opponent="" blocks-per-game="" blocks-total="" charges-taken="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" field-goals-against-percentage="" field-goals-against-per-game="" id="" period-value="" points-scored-against-per-game="" points-scored-against-per-game-highest="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" steals-differential="" steals-opponent="" steals-per-game="" steals-total="" team-coverage="" team-turnovers-total="">{0,unbounded}</sportsml:stats-basketball-defensive>
</sportsml:player-stats-basketball>
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
average-minutes-per-game string optional
Average number of minutes per game played by this player during the time span indicated in date coverage attributes.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
double-doubles string optional
A double digit number in any two of these categories: points, rebounds, assists, steals, and blocked shots.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
games-played string optional
Number of games played during the time span indicated in date coverage attributes.
games-started string optional
Number of games that started with this player on the court, during the time span indicated in date coverage attributes.
id ID optional
An XML-specific identifier for the element.
minutes-played string optional
Number of minutes this player has spent playing during a particular game.
period-value string optional
Used for tracking stats and events by period.
personal-fouls-per-game string optional
Average number of fouls made by the player per game.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
triple-doubles string optional
A double digit number in any three of these categories: points, rebounds, assists, steals, and blocked shots.
Source
<element name="player-stats-basketball">
  <annotation>
    <documentation>Specific statistics for basketball players. | Includes offensive, rebounding, and defensive stats.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-basketball-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-basketball-rebounding" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-basketball-defensive" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="minutes-played" type="string" use="optional">
      <annotation>
        <documentation>Number of minutes this player has spent playing during a particular game.</documentation>
      </annotation>
    </attribute>
    <attribute name="games-played" type="string" use="optional">
      <annotation>
        <documentation>Number of games played during the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="games-started" type="string" use="optional">
      <annotation>
        <documentation>Number of games that started with this player on the court, during the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="average-minutes-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of minutes per game played by this player during the time span indicated in date coverage attributes.</documentation>
      </annotation>
    </attribute>
    <attribute name="personal-fouls-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of fouls made by the player per game.</documentation>
      </annotation>
    </attribute>
    <attribute name="double-doubles" type="string" use="optional">
      <annotation>
        <documentation>A double digit number in any two of these categories: points, rebounds, assists, steals, and blocked shots.</documentation>
      </annotation>
    </attribute>
    <attribute name="triple-doubles" type="string" use="optional">
      <annotation>
        <documentation>A double digit number in any three of these categories: points, rebounds, assists, steals, and blocked shots.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Attribute sportsml:eventStateBasketball / @period-value
Namespace No namespace
Annotations
An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.
Type string
Properties
use: optional
Used by
Source
<attribute name="period-value" type="string" use="optional">
  <annotation>
    <documentation>An integer. 1,2,3,4 for the main quarters. 5,6,7,etc. for overtime periods.</documentation>
  </annotation>
</attribute>
Attribute sportsml:eventStateBasketball / @period-time-elapsed
Namespace No namespace
Annotations
The time elapsed in the quarter or overtime period.
Type string
Properties
use: optional
Used by
Source
<attribute name="period-time-elapsed" type="string" use="optional">
  <annotation>
    <documentation>The time elapsed in the quarter or overtime period.</documentation>
  </annotation>
</attribute>
Attribute sportsml:eventStateBasketball / @period-time-remaining
Namespace No namespace
Annotations
The time remaining in the quarter or overtime period.
Type string
Properties
use: optional
Used by
Source
<attribute name="period-time-remaining" type="string" use="optional">
  <annotation>
    <documentation>The time remaining in the quarter or overtime period.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-basketball-substitution / @person-type
Namespace No namespace
Annotations
Whether a player, a coach, or a referree.
Type restriction of string
Properties
use: optional
Facets
enumeration player
enumeration auxilliary
enumeration official
Used by
Source
<attribute name="person-type" use="optional">
  <annotation>
    <documentation>Whether a player, a coach, or a referree.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="player"/>
      <enumeration value="auxilliary"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Attribute sportsml:action-basketball-substitution / @person-original-idref
Namespace No namespace
Annotations
A pointer to the player who left the court.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="person-original-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player who left the court.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-basketball-substitution / @person-original-position
Namespace No namespace
Annotations
The position of the player who left the court.
Type sportsml:position.Basketball
Properties
use: optional
Used by
Source
<attribute name="person-original-position" type="sportsml:position.Basketball" use="optional">
  <annotation>
    <documentation>The position of the player who left the court.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-basketball-substitution / @person-replacing-idref
Namespace No namespace
Annotations
A pointer to the player who now went on the court.
Type IDREF
Properties
use: optional
Used by
Source
<attribute name="person-replacing-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the player who now went on the court.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-basketball-substitution / @person-replacing-position
Namespace No namespace
Annotations
The position of the player who went on the court.
Type sportsml:position.Basketball
Properties
use: optional
Used by
Source
<attribute name="person-replacing-position" type="sportsml:position.Basketball" use="optional">
  <annotation>
    <documentation>The position of the player who went on the court.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-basketball-substitution / @substitution-reason
Namespace No namespace
Annotations
The reason why a substitution was made.
Type string
Properties
use: optional
Used by
Source
<attribute name="substitution-reason" type="string" use="optional">
  <annotation>
    <documentation>The reason why a substitution was made.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-basketball-substitution / @comment
Namespace No namespace
Annotations
A textual comment.
Type string
Properties
use: optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>A textual comment.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-basketball-assisting-player / @player-idref
Namespace No namespace
Annotations
A pointer to a player who assisted in the score.
Type IDREF
Properties
use: required
Used by
Source
<attribute name="player-idref" type="IDREF" use="required">
  <annotation>
    <documentation>A pointer to a player who assisted in the score.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-basketball-rebounder / @rebounder-idref
Namespace No namespace
Annotations
A pointer to a player or team who was credited with the rebound.
Type IDREF
Properties
use: required
Used by
Source
<attribute name="rebounder-idref" type="IDREF" use="required">
  <annotation>
    <documentation>A pointer to a player or team who was credited with the rebound.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-basketball-rebounder / @rebounder-type
Namespace No namespace
Annotations
Whether it was an individual or a team rebound.
Type restriction of string
Properties
use: required
Facets
enumeration team
enumeration player
Used by
Source
<attribute name="rebounder-type" use="required">
  <annotation>
    <documentation>Whether it was an individual or a team rebound.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="team"/>
      <enumeration value="player"/>
    </restriction>
  </simpleType>
</attribute>
Attribute sportsml:action-basketball-rebounder / @rebounder-side
Namespace No namespace
Annotations
Whether the team/player who got the rebound was playing offense or defense.
Type restriction of string
Properties
use: required
Facets
enumeration offense
enumeration defense
Used by
Source
<attribute name="rebounder-side" use="required">
  <annotation>
    <documentation>Whether the team/player who got the rebound was playing offense or defense.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="offense"/>
      <enumeration value="defense"/>
    </restriction>
  </simpleType>
</attribute>
Attribute sportsml:action-basketball-blocking-player / @player-idref
Namespace No namespace
Annotations
A pointer to a player who achieved the block.
Type IDREF
Properties
use: required
Used by
Source
<attribute name="player-idref" type="IDREF" use="required">
  <annotation>
    <documentation>A pointer to a player who achieved the block.</documentation>
  </annotation>
</attribute>
Attribute sportsml:action-basketball-score-attempt / @player-idref
Namespace No namespace
Annotations
A pointer to the player who attempted the shot.
Type IDREF
Properties
use: optional
Used by
