Included schema sportsml-core.xsd
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
The SportsML Core schema contains properties common to all (or many) sports.
Properties
attribute form default: unqualified
element form default: unqualified
version: 2.2
Element sportsml:sports-content
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Metadata and coverage of sporting news. | Good for scores, schedules, standings, statistics, etc.

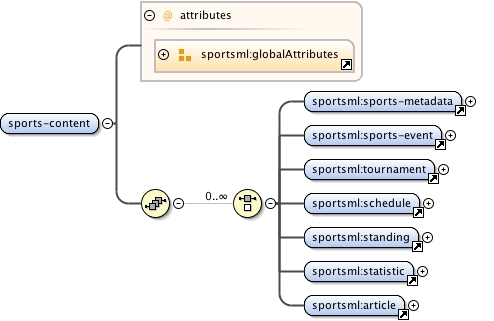

Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#sports-metadata sportsml-core_xsd.tmp#sports-event sportsml-core_xsd.tmp#tournament sportsml-core_xsd.tmp#schedule sportsml-core_xsd.tmp#standing sportsml-core_xsd.tmp#statistic sportsml-core_xsd.tmp#article
Properties
content: complex
Model (sportsml:sports-metadata | sportsml:sports-event | sportsml:tournament | sportsml:schedule | sportsml:standing | sportsml:statistic | sportsml:article)
Children sportsml:article, sportsml:schedule, sportsml:sports-event, sportsml:sports-metadata, sportsml:standing, sportsml:statistic, sportsml:tournament
Instance
<sportsml:sports-content id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:sports-metadata alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" date-time="" doc-id="" document-class="" duration-scope="" feature-name="" fixture-key="" fixture-name="" fixture-source="" id="" language="" period-value="" position-scope="" publisher="" record-making-scope="" scoping-label="" slug="" stats-coverage="" team-coverage="">{1,1}</sportsml:sports-metadata>
  <sportsml:sports-event id="">{1,1}</sportsml:sports-event>
  <sportsml:tournament id="">{1,1}</sportsml:tournament>
  <sportsml:schedule content-label="" date-label="" id="">{1,1}</sportsml:schedule>

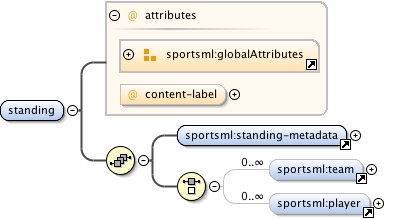

  <sportsml:standing content-label="" id="">{1,1}</sportsml:standing>
  <sportsml:statistic alignment-scope="" competition-scope="" content-label="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" type="">{1,1}</sportsml:statistic>
  <sportsml:article article-ref="" class="" format="" id="" style="">{1,1}</sportsml:article>
</sportsml:sports-content>
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="sports-content">
  <annotation>
    <documentation>Metadata and coverage of sporting news. | Good for scores, schedules, standings, statistics, etc.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <choice minOccurs="0" maxOccurs="unbounded">
        <element ref="sportsml:sports-metadata"/>
        <element ref="sportsml:sports-event"/>
        <element ref="sportsml:tournament"/>
        <element ref="sportsml:schedule"/>
        <element ref="sportsml:standing"/>
        <element ref="sportsml:statistic"/>
        <element ref="sportsml:article"/>
      </choice>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Element sportsml:sports-metadata
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Metadata for the document being published. | Holds metadata applying to the document as a whole.

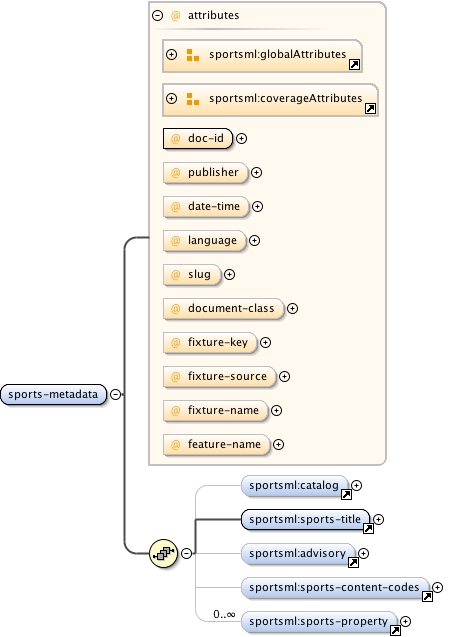

Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-core_xsd.tmp#sports-metadata_doc-id sportsml-core_xsd.tmp#sports-metadata_publisher sportsml-core_xsd.tmp#sports-metadata_date-time sportsml-core_xsd.tmp#sports-metadata_language sportsml-core_xsd.tmp#sports-metadata_slug sportsml-core_xsd.tmp#sports-metadata_document-class sportsml-core_xsd.tmp#sports-metadata_fixture-key sportsml-core_xsd.tmp#sports-metadata_fixture-source sportsml-core_xsd.tmp#sports-metadata_fixture-name sportsml-core_xsd.tmp#sports-metadata_feature-name sportsml-core_xsd.tmp#catalog sportsml-core_xsd.tmp#sports-title sportsml-core_xsd.tmp#advisory sportsml-core_xsd.tmp#sports-content-codes sportsml-core_xsd.tmp#sports-property
Properties
content: complex
Used by
Model sportsml:catalog{0,1} , sportsml:sports-title , sportsml:advisory{0,1} , sportsml:sports-content-codes{0,1} , sportsml:sports-property*
Children sportsml:advisory, sportsml:catalog, sportsml:sports-content-codes, sportsml:sports-property, sportsml:sports-title
Instance
<sportsml:sports-metadata alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" date-time="" doc-id="" document-class="" duration-scope="" feature-name="" fixture-key="" fixture-name="" fixture-source="" id="" language="" period-value="" position-scope="" publisher="" record-making-scope="" scoping-label="" slug="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:catalog href="" id="">{0,1}</sportsml:catalog>
  <sportsml:sports-title id="">{1,1}</sportsml:sports-title>
  <sportsml:advisory id="">{0,1}</sportsml:advisory>
  <sportsml:sports-content-codes id="">{0,1}</sportsml:sports-content-codes>

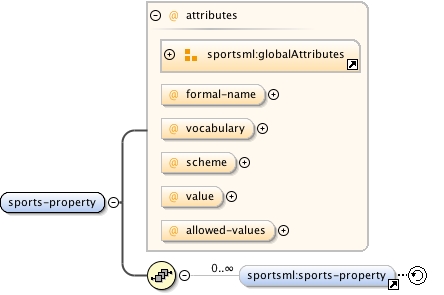

  <sportsml:sports-property allowed-values="" formal-name="" id="" scheme="" value="" vocabulary="">{0,unbounded}</sportsml:sports-property>
</sportsml:sports-metadata>
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
date-time sportsml:dateTime.Common optional
Date-timestamp for the document, normalized to ISO 8601 extended format: YYYY-MM-DDTHH:MM:SS+HH:MM. Use YYYY-MM-DD when no time is available
doc-id string required
The often-unique ID of the document, tracked by publishers.
document-class string optional
A category code for the fixture-key. Recommended categories are news (non-event-specific news reports for player, team, league, etc.), standings (or tables), schedules, statistics (for non-event-specific statistical reports), event-summary (for event-specific reports whether prose (i.e. previews and reviews) or statistical (i.e. boxscores)), event-action (for play actions within a single event), dynamic-resource-file (for team rosters (squad lists), athlete lists, league groupings and teams, etc.)
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
feature-name string optional
A publisher-created subset of the fixture-key.
fixture-key sportsml:genericKeyType optional
A consistent key for the type of regularly-published document being transmitted. External controlled vocabulary: fixture-key.list
fixture-name string optional
A displayable name for the fixture-key.
fixture-source string optional
The maintainer of the controlled-vocabulary of fixture-keys.
id ID optional
An XML-specific identifier for the element.
language string optional
The default language of the document. May be overridden via xml:lang. In ISO format - example: en-US.
period-value string optional
Used for tracking stats and events by period.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
publisher string optional
Publisher of the data.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
slug string optional
A keyword used by editors to refer to the document.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source
<element name="sports-metadata">
  <annotation>
    <documentation>Metadata for the document being published. | Holds metadata applying to the document as a whole.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:catalog" minOccurs="0"/>
      <element ref="sportsml:sports-title"/>
      <element ref="sportsml:advisory" minOccurs="0"/>
      <element ref="sportsml:sports-content-codes" minOccurs="0"/>
      <element ref="sportsml:sports-property" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="doc-id" type="string" use="required">
      <annotation>
        <documentation>The often-unique ID of the document, tracked by publishers.</documentation>
      </annotation>
    </attribute>
    <attribute name="publisher" type="string" use="optional">
      <annotation>
        <documentation>Publisher of the data.</documentation>
      </annotation>
    </attribute>
    <attribute name="date-time" type="sportsml:dateTime.Common" use="optional">
      <annotation>
        <documentation>Date-timestamp for the document, normalized to ISO 8601 extended format: YYYY-MM-DDTHH:MM:SS+HH:MM. Use YYYY-MM-DD when no time is available</documentation>
      </annotation>
    </attribute>
    <attribute name="language" type="string" use="optional">
      <annotation>
        <documentation>The default language of the document. May be overridden via xml:lang. In ISO format - example: en-US.</documentation>
      </annotation>
    </attribute>
    <attribute name="slug" type="string" use="optional">
      <annotation>
        <documentation>A keyword used by editors to refer to the document.</documentation>
      </annotation>
    </attribute>
    <attribute name="document-class" type="string" use="optional">
      <annotation>
        <documentation>A category code for the fixture-key. Recommended categories are news (non-event-specific news reports for player, team, league, etc.), standings (or tables), schedules, statistics (for non-event-specific statistical reports), event-summary (for event-specific reports whether prose (i.e. previews and reviews) or statistical (i.e. boxscores)), event-action (for play actions within a single event), dynamic-resource-file (for team rosters (squad lists), athlete lists, league groupings and teams, etc.)</documentation>
      </annotation>
    </attribute>
    <attribute name="fixture-key" type="sportsml:genericKeyType" use="optional">
      <annotation>
        <documentation>A consistent key for the type of regularly-published document being transmitted. External controlled vocabulary: fixture-key.list</documentation>
      </annotation>
    </attribute>
    <attribute name="fixture-source" type="string" use="optional">
      <annotation>
        <documentation>The maintainer of the controlled-vocabulary of fixture-keys.</documentation>
      </annotation>
    </attribute>
    <attribute name="fixture-name" type="string" use="optional">
      <annotation>
        <documentation>A displayable name for the fixture-key.</documentation>
      </annotation>
    </attribute>
    <attribute name="feature-name" type="string" use="optional">
      <annotation>
        <documentation>A publisher-created subset of the fixture-key.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

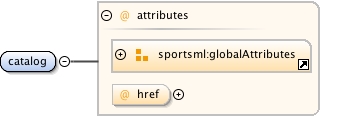

Element sportsml:catalog
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A reference to the document listing externally-supplied controlled vocabularies. | The catalog file can be in NewsML 1.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#catalog_href
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
href string optional
The URL for the catalog.
id ID optional
An XML-specific identifier for the element.
Source
<element name="catalog">
  <annotation>
    <documentation>A reference to the document listing externally-supplied controlled vocabularies. | The catalog file can be in NewsML 1.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="href" type="string" use="optional">
      <annotation>
        <documentation>The URL for the catalog.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:sports-title
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A short textual description of the document. | Can show up in search results.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes
Properties
content: complex
mixed: true
Used by
Model
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="sports-title">
  <annotation>
    <documentation>A short textual description of the document. | Can show up in search results.</documentation>
  </annotation>
  <complexType mixed="true">
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Element sportsml:advisory
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A short textual message to editors receiving the document. | Not generally published through to end-users.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes
Properties
content: complex
mixed: true
Used by
Model
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="advisory">
  <annotation>
    <documentation>A short textual message to editors receiving the document. | Not generally published through to end-users.</documentation>
  </annotation>
  <complexType mixed="true">
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>

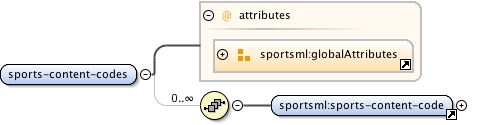

Element sportsml:sports-content-codes
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A container for content-codes. | Can hold as many codes as needed to describe all contents at this level and below.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#sports-content-code
Properties
content: complex
Used by
Model sportsml:sports-content-code
Children sportsml:sports-content-code
Instance
<sportsml:sports-content-codes id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:sports-content-code code-key="" code-name="" code-source="" code-type="" id="">{1,1}</sportsml:sports-content-code>
</sportsml:sports-content-codes>
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="sports-content-codes">
  <annotation>
    <documentation>A container for content-codes. | Can hold as many codes as needed to describe all contents at this level and below.</documentation>
  </annotation>
  <complexType>
    <sequence minOccurs="0" maxOccurs="unbounded">
      <element ref="sportsml:sports-content-code"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>

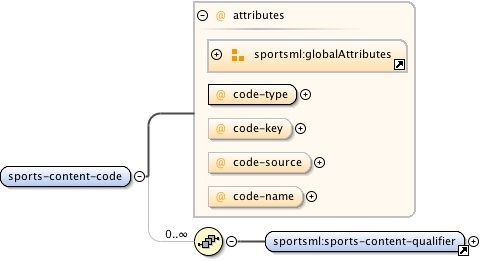

Element sportsml:sports-content-code
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
An individual code that describes an entity one may want to filter for. | Describes what sports, what teams, etc., are covered.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#sports-content-code_code-type sportsml-core_xsd.tmp#sports-content-code_code-key sportsml-core_xsd.tmp#sports-content-code_code-source sportsml-core_xsd.tmp#sports-content-code_code-name sportsml-core_xsd.tmp#sports-content-qualifier
Properties
content: complex
Used by
Model sportsml:sports-content-qualifier
Children sportsml:sports-content-qualifier
Instance
<sportsml:sports-content-code code-key="" code-name="" code-source="" code-type="" id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">

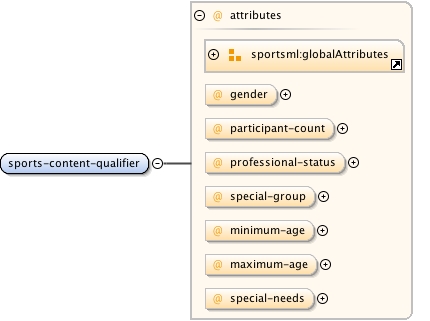

  <sportsml:sports-content-qualifier gender="" id="" maximum-age="" minimum-age="" participant-count="" professional-status="" special-group="" special-needs="">{1,1}</sportsml:sports-content-qualifier>
</sportsml:sports-content-code>
Attributes
QName Type Fixed Default Use Annotation
code-key sportsml:genericKeyType optional
The symbol for the identified content.
code-name string optional
A displayable name for the code.
code-source string optional
The maintainer of the controlled vocabulary for the code.
code-type sportsml:codeType.Core required
What type of item is being described.
id ID optional
An XML-specific identifier for the element.
Source
<element name="sports-content-code">
  <annotation>
    <documentation>An individual code that describes an entity one may want to filter for. | Describes what sports, what teams, etc., are covered.</documentation>
  </annotation>
  <complexType>
    <sequence minOccurs="0" maxOccurs="unbounded">
      <element ref="sportsml:sports-content-qualifier"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="code-type" type="sportsml:codeType.Core" use="required">
      <annotation>
        <documentation>What type of item is being described.</documentation>
      </annotation>
    </attribute>
    <attribute name="code-key" type="sportsml:genericKeyType" use="optional">
      <annotation>
        <documentation>The symbol for the identified content.</documentation>
      </annotation>
    </attribute>
    <attribute name="code-source" type="string" use="optional">
      <annotation>
        <documentation>The maintainer of the controlled vocabulary for the code.</documentation>
      </annotation>
    </attribute>
    <attribute name="code-name" type="string" use="optional">
      <annotation>
        <documentation>A displayable name for the code.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:sports-content-qualifier
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Further refinement/elaboration of a sports-content-code. | If the document covers more than one of these, additional sports-content-qualifier elements may be used.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#sports-content-qualifier_gender sportsml-core_xsd.tmp#sports-content-qualifier_participant-count sportsml-core_xsd.tmp#sports-content-qualifier_professional-status sportsml-core_xsd.tmp#sports-content-qualifier_special-group sportsml-core_xsd.tmp#sports-content-qualifier_minimum-age sportsml-core_xsd.tmp#sports-content-qualifier_maximum-age sportsml-core_xsd.tmp#sports-content-qualifier_special-needs
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
gender sportsml:gender.Core optional
One specific gender or mixed.
id ID optional
An XML-specific identifier for the element.
maximum-age string optional
Highest age for participants, in years. Examples: 8, 65, 120.
minimum-age string optional
Lowest age for participants, in years. Examples: 0, 14, 21.5.
participant-count sportsml:participantCount.Core optional
Number of participants playing on a team or side in the events covered.
professional-status sportsml:professionalStatus.Core optional
The professional-status of the events covered.
special-group sportsml:specialGroup.Core optional
If the events covered are for special groups. Can be school-oriented, age-oriented, or group names, like Firefighters.
special-needs sportsml:specialNeeds.Core optional
Events for persons with special-needs.
Source
<element name="sports-content-qualifier">
  <annotation>
    <documentation>Further refinement/elaboration of a sports-content-code. | If the document covers more than one of these, additional sports-content-qualifier elements may be used.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="gender" type="sportsml:gender.Core" use="optional">
      <annotation>
        <documentation>One specific gender or mixed.</documentation>
      </annotation>
    </attribute>
    <attribute name="participant-count" type="sportsml:participantCount.Core" use="optional">
      <annotation>
        <documentation>Number of participants playing on a team or side in the events covered.</documentation>
      </annotation>
    </attribute>
    <attribute name="professional-status" type="sportsml:professionalStatus.Core" use="optional">
      <annotation>
        <documentation>The professional-status of the events covered.</documentation>
      </annotation>
    </attribute>
    <attribute name="special-group" type="sportsml:specialGroup.Core" use="optional">
      <annotation>
        <documentation>If the events covered are for special groups. Can be school-oriented, age-oriented, or group names, like Firefighters.</documentation>
      </annotation>
    </attribute>
    <attribute name="minimum-age" type="string" use="optional">
      <annotation>
        <documentation>Lowest age for participants, in years. Examples: 0, 14, 21.5.</documentation>
      </annotation>
    </attribute>
    <attribute name="maximum-age" type="string" use="optional">
      <annotation>
        <documentation>Highest age for participants, in years. Examples: 8, 65, 120.</documentation>
      </annotation>
    </attribute>
    <attribute name="special-needs" type="sportsml:specialNeeds.Core" use="optional">
      <annotation>
        <documentation>Events for persons with special-needs.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:sports-property
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
An extensible property, similar to structures in NewsML 1.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#sports-property_formal-name sportsml-core_xsd.tmp#sports-property_vocabulary sportsml-core_xsd.tmp#sports-property_scheme sportsml-core_xsd.tmp#sports-property_value sportsml-core_xsd.tmp#sports-property_allowed-values sportsml-core_xsd.tmp#sports-property
Properties
content: complex
Used by
Model sportsml:sports-property*
Children sportsml:sports-property
Instance
<sportsml:sports-property allowed-values="" formal-name="" id="" scheme="" value="" vocabulary="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:sports-property allowed-values="" formal-name="" id="" scheme="" value="" vocabulary="">{0,unbounded}</sportsml:sports-property>
</sportsml:sports-property>
Attributes
QName Type Fixed Default Use Annotation
allowed-values string optional
Points to a controlled vocabulary that delimits the set of allowed values for the property.
formal-name string optional
The code or key for the property.
id ID optional
An XML-specific identifier for the element.
scheme string optional
Distinguishes which of possibly multiple naming schemes in the controlled vocabulary is the one that governs this formal-name.
value string optional
The value of the property. For example, if formal-name equals favorite-color, then value might equal blue.
vocabulary string optional
Provides a pointer to a Topic Set which is the controlled vocabulary that can be used to resolve the meaning of the formal-name.
Source
<element name="sports-property">
  <annotation>
    <documentation>An extensible property, similar to structures in NewsML 1.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:sports-property" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="formal-name" type="string" use="optional">
      <annotation>
        <documentation>The code or key for the property.</documentation>
      </annotation>
    </attribute>
    <attribute name="vocabulary" type="string" use="optional">
      <annotation>
        <documentation>Provides a pointer to a Topic Set which is the controlled vocabulary that can be used to resolve the meaning of the formal-name.</documentation>
      </annotation>
    </attribute>
    <attribute name="scheme" type="string" use="optional">
      <annotation>
        <documentation>Distinguishes which of possibly multiple naming schemes in the controlled vocabulary is the one that governs this formal-name.</documentation>
      </annotation>
    </attribute>
    <attribute name="value" type="string" use="optional">
      <annotation>
        <documentation>The value of the property. For example, if formal-name equals favorite-color, then value might equal blue.</documentation>
      </annotation>
    </attribute>
    <attribute name="allowed-values" type="string" use="optional">
      <annotation>
        <documentation>Points to a controlled vocabulary that delimits the set of allowed values for the property.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

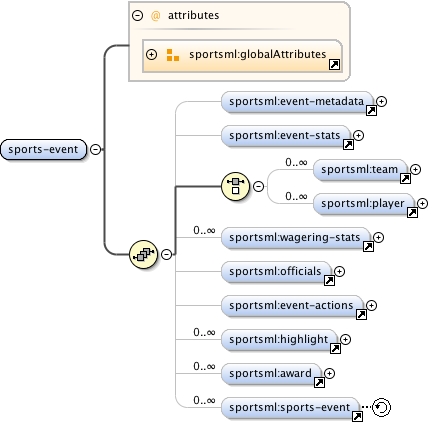

Element sportsml:sports-event
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A sporting competition. | A contest that generally ends with a winner.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#event-metadata sportsml-core_xsd.tmp#event-stats sportsml-core_xsd.tmp#team sportsml-core_xsd.tmp#player sportsml-core_xsd.tmp#wagering-stats sportsml-core_xsd.tmp#officials sportsml-core_xsd.tmp#event-actions sportsml-core_xsd.tmp#highlight sportsml-core_xsd.tmp#award sportsml-core_xsd.tmp#sports-event
Properties
content: complex
Used by
Model sportsml:event-metadata{0,1} , sportsml:event-stats{0,1} , (sportsml:team* | sportsml:player*) , sportsml:wagering-stats* , sportsml:officials{0,1} , sportsml:event-actions{0,1} , sportsml:highlight* , sportsml:award* , sportsml:sports-event*
Children sportsml:award, sportsml:event-actions, sportsml:event-metadata, sportsml:event-stats, sportsml:highlight, sportsml:officials, sportsml:player, sportsml:sports-event, sportsml:team, sportsml:wagering-stats
Instance
<sportsml:sports-event id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:event-metadata alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration="" duration-scope="" end-date-time="" end-weekday="" event-key="" event-name="" event-number="" event-of-day="" event-outcome-type="" event-recurring-key="" event-recurring-name="" events-day-total="" event-source="" event-status="" event-status-note="" event-status-reason="" event-style="" heat-number="" id="" period-value="" position-scope="" postponement-note="" postponement-status="" record-making-scope="" scoping-label="" season-key="" season-type="" series-index="" site-alignment="" site-attendance="" site-capacity="" site-city="" site-country="" site-county="" site-key="" site-name="" site-source="" site-state="" site-style="" site-surface="" site-temperature="" site-temperature-units="" site-weather-label="" site-weather-wind="" start-date-time="" start-weekday="" stats-coverage="" team-coverage="" time-certainty="">{0,1}</sportsml:event-metadata>
  <sportsml:event-stats alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{0,1}</sportsml:event-stats>
  <sportsml:team id="">{0,unbounded}</sportsml:team>
  <sportsml:player id="">{0,unbounded}</sportsml:player>

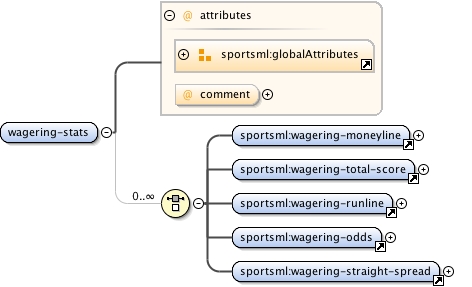

  <sportsml:wagering-stats comment="" id="">{0,unbounded}</sportsml:wagering-stats>
  <sportsml:officials id="">{0,1}</sportsml:officials>
  <sportsml:event-actions id="">{0,1}</sportsml:event-actions>
  <sportsml:highlight class="" id="" style="">{0,unbounded}</sportsml:highlight>

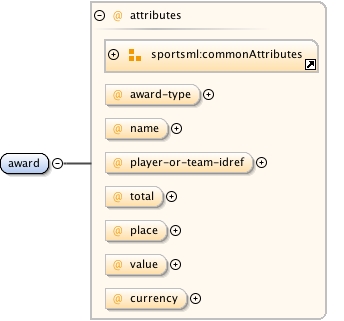

  <sportsml:award award-type="" class="" currency="" id="" name="" place="" player-or-team-idref="" style="" total="" value="">{0,unbounded}</sportsml:award>
  <sportsml:sports-event id="">{0,unbounded}</sportsml:sports-event>
</sportsml:sports-event>
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="sports-event">
  <annotation>
    <documentation>A sporting competition. | A contest that generally ends with a winner.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:event-metadata" minOccurs="0"/>
      <element ref="sportsml:event-stats" minOccurs="0"/>
      <choice>
        <element ref="sportsml:team" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="sportsml:player" minOccurs="0" maxOccurs="unbounded"/>
      </choice>
      <element ref="sportsml:wagering-stats" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:officials" minOccurs="0"/>
      <element ref="sportsml:event-actions" minOccurs="0"/>
      <element ref="sportsml:highlight" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:award" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:sports-event" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Element sportsml:event-metadata
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Background information about a game. | Where, when, and what an event is.

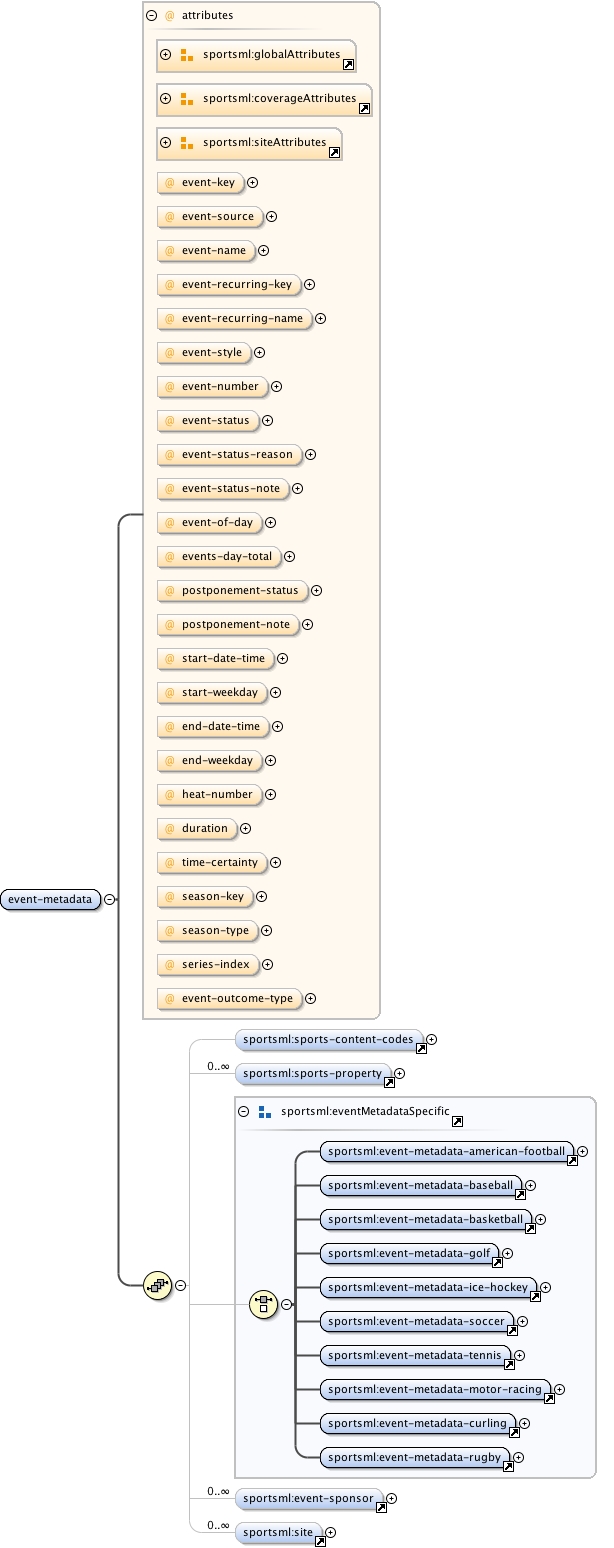

Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-core_xsd.tmp#siteAttributes sportsml-core_xsd.tmp#event-metadata_event-key sportsml-core_xsd.tmp#event-metadata_event-source sportsml-core_xsd.tmp#event-metadata_event-name sportsml-core_xsd.tmp#event-metadata_event-recurring-key sportsml-core_xsd.tmp#event-metadata_event-recurring-name sportsml-core_xsd.tmp#event-metadata_event-style sportsml-core_xsd.tmp#event-metadata_event-number sportsml-core_xsd.tmp#event-metadata_event-status sportsml-core_xsd.tmp#event-metadata_event-status-reason sportsml-core_xsd.tmp#event-metadata_event-status-note sportsml-core_xsd.tmp#event-metadata_event-of-day sportsml-core_xsd.tmp#event-metadata_events-day-total sportsml-core_xsd.tmp#event-metadata_postponement-status sportsml-core_xsd.tmp#event-metadata_postponement-note sportsml-core_xsd.tmp#event-metadata_start-date-time sportsml-core_xsd.tmp#event-metadata_start-weekday sportsml-core_xsd.tmp#event-metadata_end-date-time sportsml-core_xsd.tmp#event-metadata_end-weekday sportsml-core_xsd.tmp#event-metadata_heat-number sportsml-core_xsd.tmp#event-metadata_duration sportsml-core_xsd.tmp#event-metadata_time-certainty sportsml-core_xsd.tmp#event-metadata_season-key sportsml-core_xsd.tmp#event-metadata_season-type sportsml-core_xsd.tmp#event-metadata_series-index sportsml-core_xsd.tmp#event-metadata_event-outcome-type sportsml-core_xsd.tmp#sports-content-codes sportsml-core_xsd.tmp#sports-property sportsml-specific-american-football_xsd.tmp#event-metadata-american-football sportsml-specific-baseball_xsd.tmp#event-metadata-baseball sportsml-specific-basketball_xsd.tmp#event-metadata-basketball sportsml-specific-golf_xsd.tmp#event-metadata-golf sportsml-specific-ice-hockey_xsd.tmp#event-metadata-ice-hockey sportsml-specific-soccer_xsd.tmp#event-metadata-soccer sportsml-specific-tennis_xsd.tmp#event-metadata-tennis sportsml-specific-motor-racing_xsd.tmp#event-metadata-motor-racing sportsml-specific-curling_xsd.tmp#event-metadata-curling sportsml-specific-rugby_xsd.tmp#event-metadata-rugby sportsml_xsd.tmp#eventMetadataSpecific sportsml-core_xsd.tmp#event-sponsor sportsml-core_xsd.tmp#site
Properties
content: complex
Used by
Model sportsml:sports-content-codes{0,1} , sportsml:sports-property* , (sportsml:event-metadata-american-football | sportsml:event-metadata-baseball | sportsml:event-metadata-basketball | sportsml:event-metadata-golf | sportsml:event-metadata-ice-hockey | sportsml:event-metadata-soccer | sportsml:event-metadata-tennis | sportsml:event-metadata-motor-racing | sportsml:event-metadata-curling | sportsml:event-metadata-rugby) , sportsml:event-sponsor* , sportsml:site*
Children sportsml:event-metadata-american-football, sportsml:event-metadata-baseball, sportsml:event-metadata-basketball, sportsml:event-metadata-curling, sportsml:event-metadata-golf, sportsml:event-metadata-ice-hockey, sportsml:event-metadata-motor-racing, sportsml:event-metadata-rugby, sportsml:event-metadata-soccer, sportsml:event-metadata-tennis, sportsml:event-sponsor, sportsml:site, sportsml:sports-content-codes, sportsml:sports-property
Instance
<sportsml:event-metadata alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration="" duration-scope="" end-date-time="" end-weekday="" event-key="" event-name="" event-number="" event-of-day="" event-outcome-type="" event-recurring-key="" event-recurring-name="" events-day-total="" event-source="" event-status="" event-status-note="" event-status-reason="" event-style="" heat-number="" id="" period-value="" position-scope="" postponement-note="" postponement-status="" record-making-scope="" scoping-label="" season-key="" season-type="" series-index="" site-alignment="" site-attendance="" site-capacity="" site-city="" site-country="" site-county="" site-key="" site-name="" site-source="" site-state="" site-style="" site-surface="" site-temperature="" site-temperature-units="" site-weather-label="" site-weather-wind="" start-date-time="" start-weekday="" stats-coverage="" team-coverage="" time-certainty="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:sports-content-codes id="">{0,1}</sportsml:sports-content-codes>
  <sportsml:sports-property allowed-values="" formal-name="" id="" scheme="" value="" vocabulary="">{0,unbounded}</sportsml:sports-property>
  <sportsml:event-metadata-american-football clock-state="" distance-for-1st-down="" down="" field-line="" field-side="" id="" period-time-elapsed="" period-time-remaining="" period-value="" sequence-number="" team-in-possession-idref="" week="">{1,1}</sportsml:event-metadata-american-football>
  <sportsml:event-metadata-baseball at-bat-number="" balls="" batter-idref="" batter-side="" id="" inning-half="" inning-value="" outs="" pitcher-idref="" runner-on-first="" runner-on-first-idref="" runner-on-second="" runner-on-second-idref="" runner-on-third="" runner-on-third-idref="" runs-this-inning-half="" sequence-number="" strikes="">{1,1}</sportsml:event-metadata-baseball>
  <sportsml:event-metadata-basketball id="" period-time-elapsed="" period-time-remaining="" period-value="">{1,1}</sportsml:event-metadata-basketball>
  <sportsml:event-metadata-golf course-par="" course--rating="" course-yardage="" hole="" id="" round="" score="" score-against-par="" score-under-par="" slope-rating="" strokes="" time-elapsed="">{1,1}</sportsml:event-metadata-golf>
  <sportsml:event-metadata-ice-hockey id="" period-time-elapsed="" period-time-remaining="" period-value="" power-play-player-advantage="" power-play-team-idref="" power-play-time-remaining="" score-team="" score-team-opposing="">{1,1}</sportsml:event-metadata-ice-hockey>
  <sportsml:event-metadata-soccer id="" kick-off-team-idref="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" sequence-number="" week="">{1,1}</sportsml:event-metadata-soccer>
  <sportsml:event-metadata-tennis game="" id="" number-of-sets="" receiver-idref="" receiver-score="" serve-number="" server-idref="" server-score="" set="">{1,1}</sportsml:event-metadata-tennis>
  <sportsml:event-metadata-motor-racing flag-state="" id="" lap="" laps-remaining="" time-elapsed="">{1,1}</sportsml:event-metadata-motor-racing>
  <sportsml:event-metadata-curling draw="" id="" sheet="">{1,1}</sportsml:event-metadata-curling>
  <sportsml:event-metadata-rugby id="" kick-off-team-idref="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="">{1,1}</sportsml:event-metadata-rugby>
  <sportsml:event-sponsor id="" name="" type="">{0,unbounded}</sportsml:event-sponsor>
  <sportsml:site id="">{0,unbounded}</sportsml:site>
</sportsml:event-metadata>
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration sportsml:duration.Common optional
The length of time the event took place.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
end-date-time string optional
Time the game ends, normalized to ISO 8601 extended format: YYYY-MM-DDTHH:MM:SS+HH:MM. Use YYYY-MM-DD when no time is available.
end-weekday restriction of string optional
Day of the week in which the game ends.
event-key sportsml:genericKeyType optional
The symbol for the identified sports-event. Best if globally unique.
event-name string optional
A displayable name for the key.
event-number string optional
The ranked position this event had among other events.
event-of-day string optional
If the day had multiple events involving these competitors, which event of the day it was. Example values: 1, 2, 3, etc.
event-outcome-type restriction of string optional
What type of outcome. Includes overtime, random (eg. by coin toss), etc.
event-recurring-key sportsml:genericKeyType optional
The symbol for an identified sports-event that recurs every season. This same key should be used from season to season.
event-recurring-name string optional
A displayable name for the event-recurring-key.
event-source string optional
The maintainer of the controlled vocabulary for the key.
event-status sportsml:eventStatus.Core optional
The stage of the event, describing whether it has started, is in progress, etc.
event-status-note string optional
A textual description of the reason or context of the event-status or event-status-reason value.
event-status-reason sportsml:genericType optional
The reason for the event status. Eg. why the cancellation, postponement, etc.
event-style sportsml:eventStyle.Core optional
Indicates whether competitors are trying to defeat each other or just outdo one another.
events-day-total string optional
How many events involving these competitors have been planned for that day.
heat-number string optional
The ranked position this heat had among other heats.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking stats and events by period.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
postponement-note string optional
A displayable notice as to why an event was postponed. DEPRECATED in favour of more general event-status-note.
postponement-status sportsml:postponementStatus.Core optional
Either none, weather-delay, or other. DEPRECATED in favour of more general event-status-reason
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
season-key sportsml:genericKeyType optional
The season this event is in.
season-type sportsml:seasonType.Core optional
A subcategory of the season.
series-index string optional
The tournament division or series to which an event belongs.
site-alignment restriction of string optional
Whether the site is neutral with respect to the competitors, or is the often-used site of the home team. DEPRECATED in favor of site element.
site-attendance string optional
How many spectators attended during the event. DEPRECATED in favor of site element.
site-capacity string optional
How many spectators can fill the site. DEPRECATED in favor of site element.
site-city string optional
City in which the site is located. DEPRECATED in favor of site element.
site-country string optional
Country in which the site is located. Generally, a two-letter ISO code. DEPRECATED in favor of site element.
site-county string optional
County in which the site is located. DEPRECATED in favor of site element.
site-key sportsml:genericKeyType optional
The symbol for the site at which the event is played. DEPRECATED in favor of site element.
site-name string optional
A displayable name for the key. DEPRECATED in favor of site element.
site-source string optional
The maintainer of the controlled vocabulary for the key. DEPRECATED in favor of site element.
site-state string optional
State or province in which the site is located. DEPRECATED in favor of site element.
site-style sportsml:siteStyle.Core optional
Whether it is an indoor or outdoor site. DEPRECATED in favor of site element.
site-surface sportsml:siteSurface.Core optional
Describes the surface upon which events are played. For example, in tennis, could be hard-court or grass or clay. DEPRECATED in favor of site element.
site-temperature string optional
Temperature of the event recorded during the competition. DEPRECATED in favor of site element.
site-temperature-units string optional
Units of the temperature value. DEPRECATED in favor of site element.
site-weather-label string optional
Additional comment about the weather. DEPRECATED in favor of site element.
site-weather-wind string optional
Wind reading of the event recorded during the competition. DEPRECATED in favor of site element.
start-date-time string optional
Time the game starts, normalized to ISO 8601 extended format: YYYY-MM-DDTHH:MM:SS+HH:MM. Use YYYY-MM-DD when no time is available.
start-weekday restriction of string optional
Day of the week in which the game starts.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
time-certainty restriction of string optional
For TBA times.
Source
<element name="event-metadata">
  <annotation>
    <documentation>Background information about a game. | Where, when, and what an event is.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:sports-content-codes" minOccurs="0"/>
      <element ref="sportsml:sports-property" minOccurs="0" maxOccurs="unbounded"/>
      <group ref="sportsml:eventMetadataSpecific" minOccurs="0"/>
      <element ref="sportsml:event-sponsor" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:site" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>

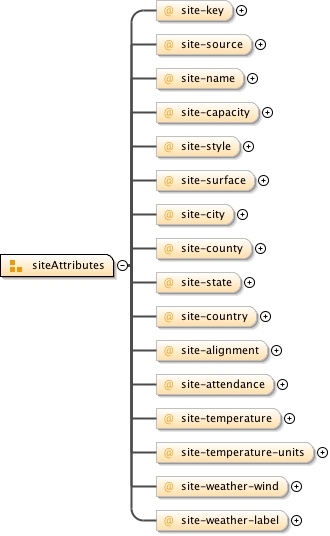

    <attributeGroup ref="sportsml:siteAttributes"/>
    <!-- DEPRECATED: use site element -->
    <attribute name="event-key" type="sportsml:genericKeyType" use="optional">
      <annotation>
        <documentation>The symbol for the identified sports-event. Best if globally unique.</documentation>
      </annotation>
    </attribute>
    <attribute name="event-source" type="string" use="optional">
      <annotation>
        <documentation>The maintainer of the controlled vocabulary for the key.</documentation>
      </annotation>
    </attribute>
    <attribute name="event-name" type="string" use="optional">
      <annotation>
        <documentation>A displayable name for the key.</documentation>
      </annotation>
    </attribute>
    <attribute name="event-recurring-key" type="sportsml:genericKeyType" use="optional">
      <annotation>
        <documentation>The symbol for an identified sports-event that recurs every season. This same key should be used from season to season.</documentation>
      </annotation>
    </attribute>
    <attribute name="event-recurring-name" type="string" use="optional">
      <annotation>
        <documentation>A displayable name for the event-recurring-key.</documentation>
      </annotation>
    </attribute>
    <attribute name="event-style" type="sportsml:eventStyle.Core" use="optional">
      <annotation>
        <documentation>Indicates whether competitors are trying to defeat each other or just outdo one another.</documentation>
      </annotation>
    </attribute>
    <attribute name="event-number" type="string" use="optional">
      <annotation>
        <documentation>The ranked position this event had among other events.</documentation>
      </annotation>
    </attribute>
    <attribute name="event-status" type="sportsml:eventStatus.Core" use="optional">
      <annotation>
        <documentation>The stage of the event, describing whether it has started, is in progress, etc.</documentation>
      </annotation>
    </attribute>
    <attribute name="event-status-reason" type="sportsml:genericType" use="optional">
      <annotation>
        <documentation>The reason for the event status. Eg. why the cancellation, postponement, etc.</documentation>
      </annotation>
    </attribute>
    <attribute name="event-status-note" type="string" use="optional">
      <annotation>
        <documentation>A textual description of the reason or context of the event-status or event-status-reason value.</documentation>
      </annotation>
    </attribute>
    <attribute name="event-of-day" type="string" use="optional">
      <annotation>
        <documentation>If the day had multiple events involving these competitors, which event of the day it was. Example values: 1, 2, 3, etc.</documentation>
      </annotation>
    </attribute>
    <attribute name="events-day-total" type="string" use="optional">
      <annotation>
        <documentation>How many events involving these competitors have been planned for that day.</documentation>
      </annotation>
    </attribute>
    <attribute name="postponement-status" type="sportsml:postponementStatus.Core" use="optional">
      <annotation>
        <documentation>Either none, weather-delay, or other. DEPRECATED in favour of more general event-status-reason</documentation>
      </annotation>
    </attribute>
    <attribute name="postponement-note" type="string" use="optional">
      <annotation>
        <documentation>A displayable notice as to why an event was postponed. DEPRECATED in favour of more general event-status-note.</documentation>
      </annotation>
    </attribute>
    <attribute name="start-date-time" type="string" use="optional">
      <annotation>
        <documentation>Time the game starts, normalized to ISO 8601 extended format: YYYY-MM-DDTHH:MM:SS+HH:MM. Use YYYY-MM-DD when no time is available.</documentation>
      </annotation>
    </attribute>
    <attribute name="start-weekday" use="optional">
      <annotation>
        <documentation>Day of the week in which the game starts.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="sunday"/>
          <enumeration value="monday"/>
          <enumeration value="tuesday"/>
          <enumeration value="wednesday"/>
          <enumeration value="thursday"/>
          <enumeration value="friday"/>
          <enumeration value="saturday"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="end-date-time" type="string" use="optional">
      <annotation>
        <documentation>Time the game ends, normalized to ISO 8601 extended format: YYYY-MM-DDTHH:MM:SS+HH:MM. Use YYYY-MM-DD when no time is available.</documentation>
      </annotation>
    </attribute>
    <attribute name="end-weekday" use="optional">
      <annotation>
        <documentation>Day of the week in which the game ends.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="sunday"/>
          <enumeration value="monday"/>
          <enumeration value="tuesday"/>
          <enumeration value="wednesday"/>
          <enumeration value="thursday"/>
          <enumeration value="friday"/>
          <enumeration value="saturday"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="heat-number" type="string" use="optional">
      <annotation>
        <documentation>The ranked position this heat had among other heats.</documentation>
      </annotation>
    </attribute>
    <attribute name="duration" type="sportsml:duration.Common" use="optional">
      <annotation>
        <documentation>The length of time the event took place.</documentation>
      </annotation>
    </attribute>
    <attribute name="time-certainty" use="optional">
      <annotation>
        <documentation>For TBA times.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="certain"/>
          <enumeration value="to-be-announced"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="season-key" type="sportsml:genericKeyType" use="optional">
      <annotation>
        <documentation>The season this event is in.</documentation>
      </annotation>
    </attribute>
    <attribute name="season-type" type="sportsml:seasonType.Core" use="optional">
      <annotation>
        <documentation>A subcategory of the season.</documentation>
      </annotation>
    </attribute>
    <attribute name="series-index" type="string" use="optional">
      <annotation>
        <documentation>The tournament division or series to which an event belongs.</documentation>
      </annotation>
    </attribute>
    <attribute name="event-outcome-type" use="optional">
      <annotation>
        <documentation>What type of outcome. Includes overtime, random (eg. by coin toss), etc.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="regular"/>
          <enumeration value="overtime"/>
          <enumeration value="shootout"/>
          <enumeration value="extra-time"/>
          <enumeration value="random"/>
          <enumeration value="authority-decision"/>
        </restriction>
      </simpleType>
    </attribute>
  </complexType>
</element>

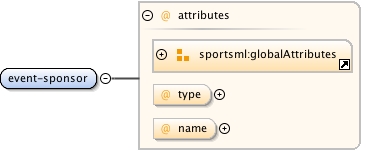

Element sportsml:event-sponsor
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A sponsor for an event. | Events can have more than one sponsor.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#event-sponsor_type sportsml-core_xsd.tmp#event-sponsor_name
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
name string optional
The name of the sponsor.
type string optional
Could be main, supporting, etc.
Source
<element name="event-sponsor">
  <annotation>
    <documentation>A sponsor for an event. | Events can have more than one sponsor.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="type" type="string" use="optional">
      <annotation>
        <documentation>Could be main, supporting, etc.</documentation>
      </annotation>
    </attribute>
    <attribute name="name" type="string" use="optional">
      <annotation>
        <documentation>The name of the sponsor.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

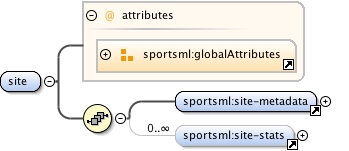

Element sportsml:site
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
An element housing data having to do with a venue, stadium, arena, field, etc.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#site-metadata sportsml-core_xsd.tmp#site-stats
Properties
content: complex
Used by
Model sportsml:site-metadata , sportsml:site-stats*
Children sportsml:site-metadata, sportsml:site-stats
Instance
<sportsml:site id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:site-metadata capacity="" home-page-url="" id="" incline="" length="" length-units="" shape="" site-key="" site-source="" style="" surface="" type="">{1,1}</sportsml:site-metadata>
  <sportsml:site-stats alignment="" alignment-scope="" attendance="" attendance-average="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" probability-of-precipitation="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" temperature="" temperature-units="" weather-code="" weather-label="" weather-prediction="" weather-wind="">{0,unbounded}</sportsml:site-stats>
</sportsml:site>
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="site">
  <annotation>
    <documentation>An element housing data having to do with a venue, stadium, arena, field, etc.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:site-metadata"/>
      <element ref="sportsml:site-stats" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>

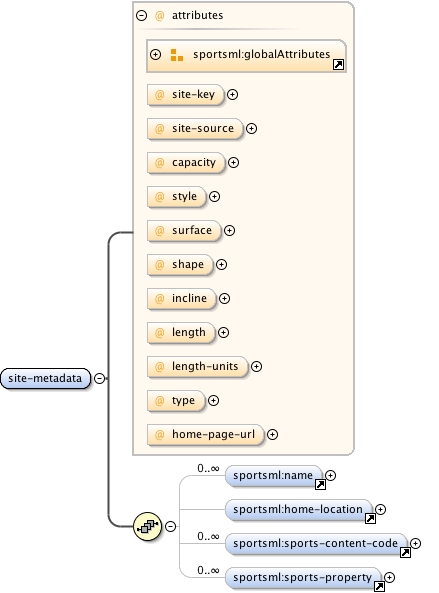

Element sportsml:site-metadata
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Metadata about the site.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#site-metadata_site-key sportsml-core_xsd.tmp#site-metadata_site-source sportsml-core_xsd.tmp#site-metadata_capacity sportsml-core_xsd.tmp#site-metadata_style sportsml-core_xsd.tmp#site-metadata_surface sportsml-core_xsd.tmp#site-metadata_shape sportsml-core_xsd.tmp#site-metadata_incline sportsml-core_xsd.tmp#site-metadata_length sportsml-core_xsd.tmp#site-metadata_length-units sportsml-core_xsd.tmp#site-metadata_type sportsml-core_xsd.tmp#site-metadata_home-page-url sportsml-core_xsd.tmp#name sportsml-core_xsd.tmp#home-location sportsml-core_xsd.tmp#sports-content-code sportsml-core_xsd.tmp#sports-property
Properties
content: complex
Used by
Element sportsml:site
Model sportsml:name* , sportsml:home-location{0,1} , sportsml:sports-content-code* , sportsml:sports-property*
Children sportsml:home-location, sportsml:name, sportsml:sports-content-code, sportsml:sports-property
Instance
<sportsml:site-metadata capacity="" home-page-url="" id="" incline="" length="" length-units="" shape="" site-key="" site-source="" style="" surface="" type="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:name abbreviation="" first="" full="" id="" language="" last="" middle="" nickname="" part="" prefix="" role="" suffix="">{0,unbounded}</sportsml:name>
  <sportsml:home-location alignment-scope="" area="" building="" city="" competition-scope="" country="" county="" date-coverage-type="" date-coverage-value="" duration-scope="" floor="" id="" latitude="" location-type="" longitude="" period-value="" position-scope="" postal-code="" record-making-scope="" scoping-label="" state="" stats-coverage="" street="" street-number="" street-prefix="" street-suffix="" suite="" team-coverage="" timezone="">{0,1}</sportsml:home-location>
  <sportsml:sports-content-code code-key="" code-name="" code-source="" code-type="" id="">{0,unbounded}</sportsml:sports-content-code>
  <sportsml:sports-property allowed-values="" formal-name="" id="" scheme="" value="" vocabulary="">{0,unbounded}</sportsml:sports-property>
</sportsml:site-metadata>
Attributes
QName Type Fixed Default Use Annotation
capacity string optional
How many spectators can fill the site.
home-page-url string optional
The website for the venue or arena.
id ID optional
An XML-specific identifier for the element.
incline string optional
The pitch or embankment of the field of play. Generally in degrees. Example for motor-racing: 13.
length string optional
The length of the arena or field of play.
length-units string optional
The units used for the length attribute.
shape string optional
A controlled vocabulary for the site's shape. Example for motor-racing: oval.
site-key sportsml:genericKeyType optional
The unique identifier for the site.
site-source string optional
The maintainer of the controlled vocabulary for the site-key.
style sportsml:siteStyle.Core optional
Whether it is an indoor or outdoor site.
surface string optional
Describes the surface upon which events are played. For example, in tennis, could be hard-court or grass or clay.
type string optional
A controlled vocabulary for the type or class of arena. Example for motor-racing: super-speedway.
Source
<element name="site-metadata">
  <annotation>
    <documentation>Metadata about the site.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:name" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:home-location" minOccurs="0"/>
      <element ref="sportsml:sports-content-code" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:sports-property" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="site-key" type="sportsml:genericKeyType" use="optional">
      <annotation>
        <documentation>The unique identifier for the site.</documentation>
      </annotation>
    </attribute>
    <attribute name="site-source" type="string" use="optional">
      <annotation>
        <documentation>The maintainer of the controlled vocabulary for the site-key.</documentation>
      </annotation>
    </attribute>
    <attribute name="capacity" type="string" use="optional">
      <annotation>
        <documentation>How many spectators can fill the site.</documentation>
      </annotation>
    </attribute>
    <attribute name="style" type="sportsml:siteStyle.Core" use="optional">
      <annotation>
        <documentation>Whether it is an indoor or outdoor site.</documentation>
      </annotation>
    </attribute>
    <attribute name="surface" type="string" use="optional">
      <annotation>
        <documentation>Describes the surface upon which events are played. For example, in tennis, could be hard-court or grass or clay.</documentation>
      </annotation>
    </attribute>
    <attribute name="shape" type="string" use="optional">
      <annotation>
        <documentation>A controlled vocabulary for the site's shape. Example for motor-racing: oval.</documentation>
      </annotation>
    </attribute>
    <attribute name="incline" type="string" use="optional">
      <annotation>
        <documentation>The pitch or embankment of the field of play. Generally in degrees. Example for motor-racing: 13.</documentation>
      </annotation>
    </attribute>
    <attribute name="length" type="string" use="optional">
      <annotation>
        <documentation>The length of the arena or field of play.</documentation>
      </annotation>
    </attribute>
    <attribute name="length-units" type="string" use="optional">
      <annotation>
        <documentation>The units used for the length attribute.</documentation>
      </annotation>
    </attribute>
    <attribute name="type" type="string" use="optional">
      <annotation>
        <documentation>A controlled vocabulary for the type or class of arena. Example for motor-racing: super-speedway.</documentation>
      </annotation>
    </attribute>
    <attribute name="home-page-url" type="string" use="optional">
      <annotation>
        <documentation>The website for the venue or arena.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>

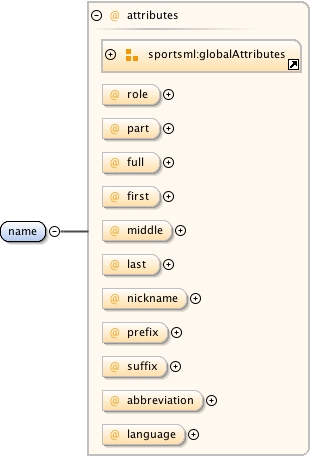

Element sportsml:name
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Name of a player, official, associate, team, etc. | Sometimes a person is referred-to by different names, depending upon the language in which the document is displayed.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#name_role sportsml-core_xsd.tmp#name_part sportsml-core_xsd.tmp#name_full sportsml-core_xsd.tmp#name_first sportsml-core_xsd.tmp#name_middle sportsml-core_xsd.tmp#name_last sportsml-core_xsd.tmp#name_nickname sportsml-core_xsd.tmp#name_prefix sportsml-core_xsd.tmp#name_suffix sportsml-core_xsd.tmp#name_abbreviation sportsml-core_xsd.tmp#name_language
Properties
content: complex
mixed: true
Used by
Model
Attributes
QName Type Fixed Default Use Annotation
abbreviation string optional
An abbreviation, usually used for teams in display locations where space is constrained.
first string optional
The first name refered to. For people, should be the given name. Also, if person has only one name, like Pele or Ronaldo, use this one.
full string optional
The entire name.
id ID optional
An XML-specific identifier for the element.
language string optional
A language code in which it is appropriate to display this name.
last string optional
The last name referred to. For people, should be the surname.
middle string optional
The middle name refered to.
nickname string optional
A nickname ascribed to the person or team.
part sportsml:genericKeyType optional
prefix string optional
A part of a name such as Mr. or Mrs. or Dr.
role sportsml:genericKeyListType optional
suffix string optional
A part of a name such as Jr. or III.
Source
<element name="name">
  <annotation>
    <documentation>Name of a player, official, associate, team, etc. | Sometimes a person is referred-to by different names, depending upon the language in which the document is displayed.</documentation>
  </annotation>
  <!-- changed to "mixed" for G2-compliance -->
  <complexType mixed="true">
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="role" type="sportsml:genericKeyListType"/>
    <attribute name="part" type="sportsml:genericKeyType"/>
    <attribute name="full" type="string" use="optional">
      <annotation>
        <documentation>The entire name.</documentation>
      </annotation>
    </attribute>
    <attribute name="first" type="string" use="optional">
      <annotation>
        <documentation>The first name refered to. For people, should be the given name. Also, if person has only one name, like Pele or Ronaldo, use this one.</documentation>
      </annotation>
    </attribute>
    <attribute name="middle" type="string" use="optional">
      <annotation>
        <documentation>The middle name refered to.</documentation>
      </annotation>
    </attribute>
    <attribute name="last" type="string" use="optional">
      <annotation>
        <documentation>The last name referred to. For people, should be the surname.</documentation>
      </annotation>
    </attribute>
    <attribute name="nickname" type="string" use="optional">
      <annotation>
        <documentation>A nickname ascribed to the person or team.</documentation>
      </annotation>
    </attribute>
    <attribute name="prefix" type="string" use="optional">
      <annotation>
        <documentation>A part of a name such as Mr. or Mrs. or Dr.</documentation>
      </annotation>
    </attribute>
    <attribute name="suffix" type="string" use="optional">
      <annotation>
        <documentation>A part of a name such as Jr. or III.</documentation>
      </annotation>
    </attribute>
    <attribute name="abbreviation" type="string" use="optional">
      <annotation>
        <documentation>An abbreviation, usually used for teams in display locations where space is constrained.</documentation>
      </annotation>
    </attribute>
    <attribute name="language" type="string" use="optional">
      <annotation>
        <documentation>A language code in which it is appropriate to display this name.</documentation>
      </annotation>
    </attribute>
    <!-- G2-compliant naming attributes -->
    <!-- Version 1 naming attributes are DEPRECATED. Will be removed from next major upgrade -->
  </complexType>
</element>

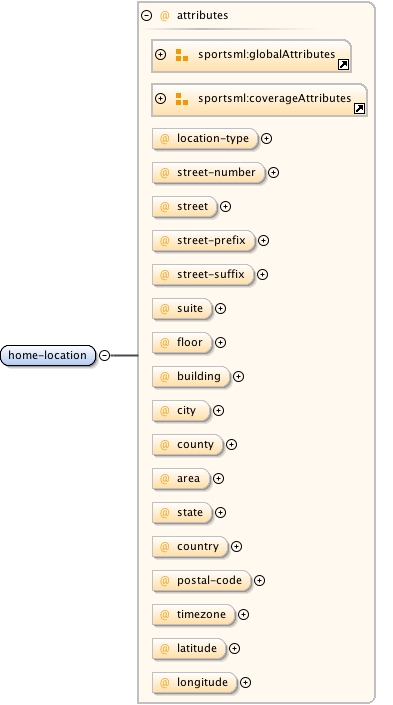

Element sportsml:home-location
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A location. | Could be the hometown of a person, or where a team usually plays.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-core_xsd.tmp#home-location_location-type sportsml-core_xsd.tmp#home-location_street-number sportsml-core_xsd.tmp#home-location_street sportsml-core_xsd.tmp#home-location_street-prefix sportsml-core_xsd.tmp#home-location_street-suffix sportsml-core_xsd.tmp#home-location_suite sportsml-core_xsd.tmp#home-location_floor sportsml-core_xsd.tmp#home-location_building sportsml-core_xsd.tmp#home-location_city sportsml-core_xsd.tmp#home-location_county sportsml-core_xsd.tmp#home-location_area sportsml-core_xsd.tmp#home-location_state sportsml-core_xsd.tmp#home-location_country sportsml-core_xsd.tmp#home-location_postal-code sportsml-core_xsd.tmp#home-location_timezone sportsml-core_xsd.tmp#home-location_latitude sportsml-core_xsd.tmp#home-location_longitude
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
area string optional
The name of the area of the location.
building string optional
The name of the building.
city string optional
The city.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
country string optional
The country. Generally, an ISO two-letter country-code.
county string optional
The county.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
floor string optional
The floor number.
id ID optional
An XML-specific identifier for the element.
latitude string optional
The latitude of the location.
location-type sportsml:locationType.Core optional
The kind of location, whether birthplace, place of residence, home town, etc.
longitude string optional
The longitude of the location.
period-value string optional
Used for tracking stats and events by period.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
postal-code string optional
The postal code.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
state string optional
The state or province.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
street string optional
The name of the street.
street-number string optional
The number of the street.
street-prefix string optional
The prefix of the street. For example, rue, calle de, etc.
street-suffix string optional
The suffix of the street. For example, boulevard, lance, etc.
suite string optional
The suite name or number.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
timezone string optional
The name of the time zone of the location.
Source
<element name="home-location">
  <annotation>
    <documentation>A location. | Could be the hometown of a person, or where a team usually plays.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="location-type" type="sportsml:locationType.Core" use="optional">
      <annotation>
        <documentation>The kind of location, whether birthplace, place of residence, home town, etc.</documentation>
      </annotation>
    </attribute>
    <attribute name="street-number" type="string" use="optional">
      <annotation>
        <documentation>The number of the street.</documentation>
      </annotation>
    </attribute>
    <attribute name="street" type="string" use="optional">
      <annotation>
        <documentation>The name of the street.</documentation>
      </annotation>
    </attribute>
    <attribute name="street-prefix" type="string" use="optional">
      <annotation>
        <documentation>The prefix of the street. For example, rue, calle de, etc.</documentation>
      </annotation>
    </attribute>
    <attribute name="street-suffix" type="string" use="optional">
      <annotation>
        <documentation>The suffix of the street. For example, boulevard, lance, etc.</documentation>
      </annotation>
    </attribute>
    <attribute name="suite" type="string" use="optional">
      <annotation>
        <documentation>The suite name or number.</documentation>
      </annotation>
    </attribute>
    <attribute name="floor" type="string" use="optional">
      <annotation>
        <documentation>The floor number.</documentation>
      </annotation>
    </attribute>
    <attribute name="building" type="string" use="optional">
      <annotation>
        <documentation>The name of the building.</documentation>
      </annotation>
    </attribute>
    <attribute name="city" type="string" use="optional">
      <annotation>
        <documentation>The city.</documentation>
      </annotation>
    </attribute>
    <attribute name="county" type="string" use="optional">
      <annotation>
        <documentation>The county.</documentation>
      </annotation>
    </attribute>
    <attribute name="area" type="string" use="optional">
      <annotation>
        <documentation>The name of the area of the location.</documentation>
      </annotation>
    </attribute>
    <attribute name="state" type="string" use="optional">
      <annotation>
        <documentation>The state or province.</documentation>
      </annotation>
    </attribute>
    <attribute name="country" type="string" use="optional">
      <annotation>
        <documentation>The country. Generally, an ISO two-letter country-code.</documentation>
      </annotation>
    </attribute>
    <attribute name="postal-code" type="string" use="optional">
      <annotation>
        <documentation>The postal code.</documentation>
      </annotation>
    </attribute>
    <attribute name="timezone" type="string" use="optional">
      <annotation>
        <documentation>The name of the time zone of the location.</documentation>
      </annotation>
    </attribute>
    <attribute name="latitude" type="string" use="optional">
      <annotation>
        <documentation>The latitude of the location.</documentation>
      </annotation>
    </attribute>
    <attribute name="longitude" type="string" use="optional">
      <annotation>
        <documentation>The longitude of the location.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:site-stats
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Holder for statistics about the site.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-core_xsd.tmp#site-stats_alignment sportsml-core_xsd.tmp#site-stats_attendance sportsml-core_xsd.tmp#site-stats_attendance-average sportsml-core_xsd.tmp#site-stats_temperature sportsml-core_xsd.tmp#site-stats_temperature-units sportsml-core_xsd.tmp#site-stats_weather-code sportsml-core_xsd.tmp#site-stats_weather-label sportsml-core_xsd.tmp#site-stats_weather-wind sportsml-core_xsd.tmp#site-stats_weather-prediction sportsml-core_xsd.tmp#site-stats_probability-of-precipitation
Properties
content: complex
Used by
Element sportsml:site
Attributes
QName Type Fixed Default Use Annotation
alignment restriction of string optional
Statistics about the site, accurate for a particular occasion.
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
attendance string optional
How many spectators attended during the event.
attendance-average string optional
Average number of spectators that have attended.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking stats and events by period.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
probability-of-precipitation string optional
Percentage likelihood of precipitation.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
temperature string optional
Temperature of the event recorded during the competition.
temperature-units string optional
Units of the temperature value.
weather-code string optional
A controlled-vocabulary description of the weather, such as sunny, partly-cloudy, etc.
weather-label string optional
Additional comment about the weather.
weather-prediction sportsml:weatherPrediction.Core optional
Predicted weather conditions for the event.
weather-wind string optional
Wind reading of the event recorded during the competition.
Source
<element name="site-stats">
  <annotation>
    <documentation>Holder for statistics about the site.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="alignment" use="optional">
      <annotation>
        <documentation>Statistics about the site, accurate for a particular occasion.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="home"/>
          <enumeration value="neutral"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="attendance" type="string" use="optional">
      <annotation>
        <documentation>How many spectators attended during the event.</documentation>
      </annotation>
    </attribute>
    <attribute name="attendance-average" type="string" use="optional">
      <annotation>
        <documentation>Average number of spectators that have attended.</documentation>
      </annotation>
    </attribute>
    <attribute name="temperature" type="string" use="optional">
      <annotation>
        <documentation>Temperature of the event recorded during the competition.</documentation>
      </annotation>
    </attribute>
    <attribute name="temperature-units" type="string" use="optional">
      <annotation>
        <documentation>Units of the temperature value.</documentation>
      </annotation>
    </attribute>
    <attribute name="weather-code" type="string" use="optional">
      <annotation>
        <documentation>A controlled-vocabulary description of the weather, such as sunny, partly-cloudy, etc.</documentation>
      </annotation>
    </attribute>
    <attribute name="weather-label" type="string" use="optional">
      <annotation>
        <documentation>Additional comment about the weather.</documentation>
      </annotation>
    </attribute>
    <attribute name="weather-wind" type="string" use="optional">
      <annotation>
        <documentation>Wind reading of the event recorded during the competition.</documentation>
      </annotation>
    </attribute>
    <attribute name="weather-prediction" type="sportsml:weatherPrediction.Core" use="optional">
      <annotation>
        <documentation>Predicted weather conditions for the event.</documentation>
      </annotation>
    </attribute>
    <attribute name="probability-of-precipitation" type="string" use="optional">
      <annotation>
        <documentation>Percentage likelihood of precipitation.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:event-stats
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Stats applying to the game as a whole. | Initially designed for motor-racing, but potentially applicable to many sports.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-core_xsd.tmp#sports-property sportsml-specific-motor-racing_xsd.tmp#event-stats-motor-racing sportsml_xsd.tmp#eventStatsSpecific
Properties
content: complex
Used by
Model sportsml:sports-property* , (sportsml:event-stats-motor-racing)
Children sportsml:event-stats-motor-racing, sportsml:sports-property
Instance
<sportsml:event-stats alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:sports-property allowed-values="" formal-name="" id="" scheme="" value="" vocabulary="">{0,unbounded}</sportsml:sports-property>
  <sportsml:event-stats-motor-racing alignment-scope="" caution-flags="" caution-flags-laps="" competition-scope="" date-coverage-type="" date-coverage-value="" distance-lap="" distance-total="" distance-units="" duration-scope="" id="" laps-total="" lead-changes="" lead-changes-drivers="" margin-of-victory="" period-value="" position-scope="" record-making-scope="" scoping-label="" speed-average="" speed-units="" stats-coverage="" team-coverage="">{1,1}</sportsml:event-stats-motor-racing>
</sportsml:event-stats>
Attributes
QName Type Fixed Default Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking stats and events by period.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source
<element name="event-stats">
  <annotation>
    <documentation>Stats applying to the game as a whole. | Initially designed for motor-racing, but potentially applicable to many sports.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:sports-property" minOccurs="0" maxOccurs="unbounded"/>
      <group ref="sportsml:eventStatsSpecific" minOccurs="0"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
  </complexType>
</element>
Element sportsml:team
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A team participating in a sporting event. | Holds metadata and statistical data for team.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#team-metadata sportsml-core_xsd.tmp#team-stats sportsml-core_xsd.tmp#player sportsml-core_xsd.tmp#wagering-stats sportsml-core_xsd.tmp#associate sportsml-core_xsd.tmp#affiliation sportsml-core_xsd.tmp#site
Properties
content: complex
Used by
Model sportsml:team-metadata , sportsml:team-stats* , sportsml:player* , sportsml:wagering-stats* , sportsml:associate* , sportsml:affiliation* , sportsml:site*
Children sportsml:affiliation, sportsml:associate, sportsml:player, sportsml:site, sportsml:team-metadata, sportsml:team-stats, sportsml:wagering-stats
Instance
<sportsml:team id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:team-metadata alignment="" home-page-url="" id="" round-position="" team-idref="" team-key="" team-source="">{1,1}</sportsml:team-metadata>
  <sportsml:team-stats adjusted-score-against="" adjusted-score-for="" alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" event-odds="" event-outcome="" events-played="" events-remaining="" event-standing-points="" event-standing-points-against="" games-back="" id="" period-value="" position-scope="" record-making-scope="" result-effect="" scoping-label="" score="" score-attempts="" score-attempts-on-goal="" score-attempts-on-goal-opposing="" score-attempts-opposing="" score-average="" score-behind="" score-opposing="" score-opposing-average="" score-percentage="" score-percentage-opposing="" score-type="" score-units="" series-score="" series-score-opposing="" standing-points="" stats-coverage="" streak="" team-coverage="" time-of-possession="" time-of-possession-average="" time-of-possession-average-opposing="" time-of-possession-percentage="" time-of-possession-percentage-opposing="" time-played-total="">{0,unbounded}</sportsml:team-stats>
  <sportsml:player id="">{0,unbounded}</sportsml:player>
  <sportsml:wagering-stats comment="" id="">{0,unbounded}</sportsml:wagering-stats>
  <sportsml:associate id="">{0,unbounded}</sportsml:associate>
  <sportsml:affiliation alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" membership-idref="" membership-key="" membership-name="" membership-type="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{0,unbounded}</sportsml:affiliation>
  <sportsml:site id="">{0,unbounded}</sportsml:site>
</sportsml:team>
Attributes
QName Type Fixed Default Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="team">
  <annotation>
    <documentation>A team participating in a sporting event. | Holds metadata and statistical data for team.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:team-metadata"/>
      <element ref="sportsml:team-stats" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:player" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:wagering-stats" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:associate" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:affiliation" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:site" minOccurs="0" maxOccurs="unbounded"/>
      <!-- DEPRECATED: moved to team-metadata -->
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Element sportsml:team-metadata
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Info about the team. Properties of a team that are not based on their competitive performance. | An included sports-content-code element can hold what division it is in, etc.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#team-metadata_team-key sportsml-core_xsd.tmp#team-metadata_team-source sportsml-core_xsd.tmp#team-metadata_alignment sportsml-core_xsd.tmp#team-metadata_team-idref sportsml-core_xsd.tmp#team-metadata_home-page-url sportsml-core_xsd.tmp#team-metadata_round-position sportsml-core_xsd.tmp#name sportsml-core_xsd.tmp#site sportsml-core_xsd.tmp#home-location sportsml-core_xsd.tmp#sports-content-code sportsml-core_xsd.tmp#sports-property sportsml-specific-american-football_xsd.tmp#team-metadata-american-football sportsml-specific-baseball_xsd.tmp#team-metadata-baseball sportsml-specific-basketball_xsd.tmp#team-metadata-basketball sportsml-specific-golf_xsd.tmp#team-metadata-golf sportsml-specific-ice-hockey_xsd.tmp#team-metadata-ice-hockey sportsml-specific-soccer_xsd.tmp#team-metadata-soccer sportsml-specific-tennis_xsd.tmp#team-metadata-tennis sportsml-specific-motor-racing_xsd.tmp#team-metadata-motor-racing sportsml_xsd.tmp#teamMetadataSpecific
Properties
content: complex
Used by
Element sportsml:team
Model sportsml:name* , sportsml:site* , sportsml:home-location{0,1} , sportsml:sports-content-code* , sportsml:sports-property* , (sportsml:team-metadata-american-football | sportsml:team-metadata-baseball | sportsml:team-metadata-basketball | sportsml:team-metadata-golf | sportsml:team-metadata-ice-hockey | sportsml:team-metadata-soccer | sportsml:team-metadata-tennis | sportsml:team-metadata-motor-racing)
Children sportsml:home-location, sportsml:name, sportsml:site, sportsml:sports-content-code, sportsml:sports-property, sportsml:team-metadata-american-football, sportsml:team-metadata-baseball, sportsml:team-metadata-basketball, sportsml:team-metadata-golf, sportsml:team-metadata-ice-hockey, sportsml:team-metadata-motor-racing, sportsml:team-metadata-soccer, sportsml:team-metadata-tennis
Instance
<sportsml:team-metadata alignment="" home-page-url="" id="" round-position="" team-idref="" team-key="" team-source="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:name abbreviation="" first="" full="" id="" language="" last="" middle="" nickname="" part="" prefix="" role="" suffix="">{0,unbounded}</sportsml:name>
  <sportsml:site id="">{0,unbounded}</sportsml:site>
  <sportsml:home-location alignment-scope="" area="" building="" city="" competition-scope="" country="" county="" date-coverage-type="" date-coverage-value="" duration-scope="" floor="" id="" latitude="" location-type="" longitude="" period-value="" position-scope="" postal-code="" record-making-scope="" scoping-label="" state="" stats-coverage="" street="" street-number="" street-prefix="" street-suffix="" suite="" team-coverage="" timezone="">{0,1}</sportsml:home-location>
  <sportsml:sports-content-code code-key="" code-name="" code-source="" code-type="" id="">{0,unbounded}</sportsml:sports-content-code>
  <sportsml:sports-property allowed-values="" formal-name="" id="" scheme="" value="" vocabulary="">{0,unbounded}</sportsml:sports-property>
  <sportsml:team-metadata-american-football id="">{1,1}</sportsml:team-metadata-american-football>
  <sportsml:team-metadata-baseball id="" probable-starting-pitcher-idref="">{1,1}</sportsml:team-metadata-baseball>
  <sportsml:team-metadata-basketball id="">{1,1}</sportsml:team-metadata-basketball>
  <sportsml:team-metadata-golf id="" rank="">{1,1}</sportsml:team-metadata-golf>
  <sportsml:team-metadata-ice-hockey id="">{1,1}</sportsml:team-metadata-ice-hockey>
  <sportsml:team-metadata-soccer id="">{1,1}</sportsml:team-metadata-soccer>
  <sportsml:team-metadata-tennis id="">{1,1}</sportsml:team-metadata-tennis>
  <sportsml:team-metadata-motor-racing id="">{1,1}</sportsml:team-metadata-motor-racing>
</sportsml:team-metadata>
Attributes
QName Type Fixed Default Use Annotation
alignment restriction of string optional
Home or visiting.
home-page-url string optional
The fully-qualified URL for the official home page of the team.
id ID optional
An XML-specific identifier for the element.
round-position string optional
The seed or position in this particular round for which this player started. Useful for bracketed tournaments, such as tennis.
team-idref IDREF optional
Optional reference to a team in which this team is a member. Example: The U.S. Davis Cup team consists of many sub-teams.
team-key sportsml:genericKeyType optional
A unique identifier for the team.
team-source string optional
The maintainer of the controlled vocabulary for the team-key. A reference to the catalog file, which holds the URL for the topic set in which the team-key is listed.
Source
<element name="team-metadata">
  <annotation>
    <documentation>Info about the team. Properties of a team that are not based on their competitive performance. | An included sports-content-code element can hold what division it is in, etc.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:name" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:site" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:home-location" minOccurs="0"/>
      <element ref="sportsml:sports-content-code" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:sports-property" minOccurs="0" maxOccurs="unbounded"/>
      <group ref="sportsml:teamMetadataSpecific" minOccurs="0"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attribute name="team-key" type="sportsml:genericKeyType" use="optional">
      <annotation>
        <documentation>A unique identifier for the team.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-source" type="string" use="optional">
      <annotation>
        <documentation>The maintainer of the controlled vocabulary for the team-key. A reference to the catalog file, which holds the URL for the topic set in which the team-key is listed.</documentation>
      </annotation>
    </attribute>
    <attribute name="alignment" use="optional">
      <annotation>
        <documentation>Home or visiting.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="home"/>
          <enumeration value="away"/>
          <enumeration value="none"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>Optional reference to a team in which this team is a member. Example: The U.S. Davis Cup team consists of many sub-teams.</documentation>
      </annotation>
    </attribute>
    <attribute name="home-page-url" type="string" use="optional">
      <annotation>
        <documentation>The fully-qualified URL for the official home page of the team.</documentation>
      </annotation>
    </attribute>
    <attribute name="round-position" type="string" use="optional">
      <annotation>
        <documentation>The seed or position in this particular round for which this player started. Useful for bracketed tournaments, such as tennis.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Element sportsml:team-stats
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Statistics that apply to the team as a whole. | Not all stats are used in every sport.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-core_xsd.tmp#statAttributes sportsml-core_xsd.tmp#team-stats_events-played sportsml-core_xsd.tmp#team-stats_time-played-total sportsml-core_xsd.tmp#team-stats_standing-points sportsml-core_xsd.tmp#team-stats_games-back sportsml-core_xsd.tmp#team-stats_streak sportsml-core_xsd.tmp#sub-score sportsml-core_xsd.tmp#sub-score-attempts sportsml-core_xsd.tmp#penalty-stats sportsml-core_xsd.tmp#outcome-totals sportsml-core_xsd.tmp#highlight sportsml-core_xsd.tmp#award sportsml-core_xsd.tmp#event-record sportsml-core_xsd.tmp#rank sportsml-core_xsd.tmp#rating sportsml-specific-american-football_xsd.tmp#team-stats-american-football sportsml-specific-baseball_xsd.tmp#team-stats-baseball sportsml-specific-basketball_xsd.tmp#team-stats-basketball sportsml-specific-golf_xsd.tmp#team-stats-golf sportsml-specific-ice-hockey_xsd.tmp#team-stats-ice-hockey sportsml-specific-soccer_xsd.tmp#team-stats-soccer sportsml-specific-tennis_xsd.tmp#team-stats-tennis sportsml-specific-motor-racing_xsd.tmp#team-stats-motor-racing sportsml-specific-curling_xsd.tmp#team-stats-curling sportsml-specific-rugby_xsd.tmp#team-stats-rugby sportsml_xsd.tmp#teamStatsSpecific sportsml-core_xsd.tmp#sports-property
Properties
content: complex
Used by
Element sportsml:team
Model sportsml:sub-score* , sportsml:sub-score-attempts* , sportsml:penalty-stats* , sportsml:outcome-totals* , sportsml:highlight* , sportsml:award* , sportsml:event-record* , sportsml:rank* , sportsml:rating* , (sportsml:team-stats-american-football | sportsml:team-stats-baseball | sportsml:team-stats-basketball | sportsml:team-stats-golf | sportsml:team-stats-ice-hockey | sportsml:team-stats-soccer | sportsml:team-stats-tennis | sportsml:team-stats-motor-racing | sportsml:team-stats-curling | sportsml:team-stats-rugby) , sportsml:sports-property*
Children sportsml:award, sportsml:event-record, sportsml:highlight, sportsml:outcome-totals, sportsml:penalty-stats, sportsml:rank, sportsml:rating, sportsml:sports-property, sportsml:sub-score, sportsml:sub-score-attempts, sportsml:team-stats-american-football, sportsml:team-stats-baseball, sportsml:team-stats-basketball, sportsml:team-stats-curling, sportsml:team-stats-golf, sportsml:team-stats-ice-hockey, sportsml:team-stats-motor-racing, sportsml:team-stats-rugby, sportsml:team-stats-soccer, sportsml:team-stats-tennis
Instance
<sportsml:team-stats adjusted-score-against="" adjusted-score-for="" alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" event-odds="" event-outcome="" events-played="" events-remaining="" event-standing-points="" event-standing-points-against="" games-back="" id="" period-value="" position-scope="" record-making-scope="" result-effect="" scoping-label="" score="" score-attempts="" score-attempts-on-goal="" score-attempts-on-goal-opposing="" score-attempts-opposing="" score-average="" score-behind="" score-opposing="" score-opposing-average="" score-percentage="" score-percentage-opposing="" score-type="" score-units="" series-score="" series-score-opposing="" standing-points="" stats-coverage="" streak="" team-coverage="" time-of-possession="" time-of-possession-average="" time-of-possession-average-opposing="" time-of-possession-percentage="" time-of-possession-percentage-opposing="" time-played-total="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:sub-score period-value="" rank="" score="" sub-score-key="" sub-score-name="" sub-score-type="" total-score="">{0,unbounded}</sportsml:sub-score>
  <sportsml:sub-score-attempts period-value="" score-attempts="">{0,unbounded}</sportsml:sub-score-attempts>
  <sportsml:penalty-stats count="" id="" type="" value="">{0,unbounded}</sportsml:penalty-stats>
  <sportsml:outcome-totals alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" events-played="" events-remaining="" games-back="" id="" losses="" losses-overtime="" period-value="" points-difference="" points-scored-against="" points-scored-for="" position-scope="" record-making-scope="" scoping-label="" standing-points="" standing-points-against="" stats-coverage="" streak-duration="" streak-end="" streak-start="" streak-total="" streak-type="" team-coverage="" ties="" undecideds="" winning-percentage="" wins="">{0,unbounded}</sportsml:outcome-totals>
  <sportsml:highlight class="" id="" style="">{0,unbounded}</sportsml:highlight>
  <sportsml:award award-type="" class="" currency="" id="" name="" place="" player-or-team-idref="" style="" total="" value="">{0,unbounded}</sportsml:award>
  <sportsml:event-record previous-record="" type="">{0,unbounded}</sportsml:event-record>
  <sportsml:rank alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" issuer="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" type="" value="" value-previous="">{0,unbounded}</sportsml:rank>
  <sportsml:rating id="" rating-issuer="" rating-maximum="" rating-type="" rating-value="">{0,unbounded}</sportsml:rating>
  <sportsml:team-stats-american-football alignment-scope="" average-starting-position="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" number-of-plays="" number-of-plays-gaining="" number-of-plays-losing="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" time-of-opposition-possession-average="" time-of-possession="" time-of-possession-average="" timeouts="" turnover-ratio="" yards-per-attempt="">{1,1}</sportsml:team-stats-american-football>
  <sportsml:team-stats-baseball alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{1,1}</sportsml:team-stats-baseball>
  <sportsml:team-stats-basketball alignment-scope="" average-minutes-per-game="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" fouls-total="" id="" largest-lead="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" timeouts-left="" turnover-margin="">{1,1}</sportsml:team-stats-basketball>
  <sportsml:team-stats-golf alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{1,1}</sportsml:team-stats-golf>
  <sportsml:team-stats-ice-hockey alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" minus-total="" penalty-minutes="" period-value="" plus-minus="" plus-total="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{1,1}</sportsml:team-stats-ice-hockey>
  <sportsml:team-stats-soccer alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" line-formation="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{1,1}</sportsml:team-stats-soccer>
  <sportsml:team-stats-tennis alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" net-points-played="" net-points-won="" net-points-won-pct="" period-value="" points-won="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" unforced-errors="" winners="" winners-backhand="" winners-forehand="" winners-volley="">{1,1}</sportsml:team-stats-tennis>
  <sportsml:team-stats-motor-racing alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{1,1}</sportsml:team-stats-motor-racing>
  <sportsml:team-stats-curling alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{1,1}</sportsml:team-stats-curling>
  <sportsml:team-stats-rugby alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{1,1}</sportsml:team-stats-rugby>
  <sportsml:sports-property allowed-values="" formal-name="" id="" scheme="" value="" vocabulary="">{0,unbounded}</sportsml:sports-property>
</sportsml:team-stats>
Attributes
QName Type Fixed Default Use Annotation
adjusted-score-against string optional
The final score against as adjusted by some authority. Usually as a result of some dispute or transgression that must be settled post-event and rendered in the score. Will differ from the regular score reflecting the number of actual goals scored in play. Should be tested for before displaying actual score.
adjusted-score-for string optional
The final score as adjusted by some authority. Usually as a result of some dispute or transgression that must be settled post-event and rendered in the score. Will differ from the regular score reflecting the number of actual goals scored in play. Should be tested for before displaying actual score.
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
event-odds string optional
The odds that this team or player would win the event. Candidate for deprecation.
event-outcome restriction of string optional
Whether the competitor won, lost, or tied.
event-standing-points string optional
How many points were earned as a result of the outcome of this particular event.
event-standing-points-against string optional
How many points were deducted as a result of the outcome of this particular event. This occurs, for example, in the German Handball leagues.
events-played string optional
The number of sports-events in which this team has already participated.
events-remaining string optional
Number of sports-events the player has yet to participate in.
games-back string optional
A number used to measure how behind one team is from first place. The first place team is 0 games back. DEPRECATED. Use outcome-totals instead.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking stats and events by period.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
result-effect sportsml:resultEffect.Core optional
Describes the effect that the result of the event or rank changing has had on the team. Example: Whether or not a team has qualified for the playoffs, or has been promoted or demoted to a different division.
scoping-label string optional
A textual description for the scope.
score string optional
Final or current score of the team or player.
score-attempts string optional
Final or current number of attempts to score by a team or player. Example: in ice hockey, would represent total shots on goal.
score-attempts-on-goal string optional
A subset of score-attempts. Only counts those attempts that were on-goal.
score-attempts-on-goal-opposing string optional
Final or current number of attempts to score by an opposing team or player that were on-goal.
score-attempts-opposing string optional
Final or current number of attempts to score by an opposing team or player.
score-average string optional
Average per-game score for the team or player.
score-behind string optional
The points or time behind the leading score.
score-opposing string optional
Final or current score of the opposing team or player.
score-opposing-average string optional
Average per-game score for the opposing team or player.
score-percentage string optional
Percentage of attempted scores that reached their mark.
score-percentage-opposing string optional
Percentage of attempted scores by opposing team or player that reached their mark.
score-type string optional
Qualifies "score" attribute.
score-units sportsml:scoreUnits.Core optional
Describes how the score and score-opposing is valued.
series-score string optional
Number of events in a series won by team or player.
series-score-opposing string optional
Number of events in a series won by opposing team or player.
standing-points string optional
A quantity used to rank teams, usually within a division, in order to decide who comes in first at the end of a season. DEPRECATED. Use outcome-totals instead.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
streak string optional
A value used to say how many events in a row the team has most recently won or lost. DEPRECATED. Use outcome-totals instead.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
time-of-possession string optional
Amount of time the team or player has possession of ball (or similar object like puck).
time-of-possession-average string optional
Amount of time the team or player has possession of ball (or similar object like puck) per game.
time-of-possession-average-opposing string optional
Amount of time the opposing team or player has possession of ball (or similar object like puck) per game.
time-of-possession-percentage string optional
Amount of time the team or player has possession of ball (or similar object like puck) expressed as a percentage of the full time of the match.
time-of-possession-percentage-opposing string optional
Amount of time the opposing team or player has possession of ball (or similar object like puck) expressed as a percentage of the full time of the match.
time-played-total string optional
Value for the amount of time played by the team over the course of a particular time-span, such as a season.
Source
<element name="team-stats">
  <annotation>
    <documentation>Statistics that apply to the team as a whole. | Not all stats are used in every sport.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:sub-score" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:sub-score-attempts" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:penalty-stats" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:outcome-totals" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:highlight" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:award" minOccurs="0" maxOccurs="unbounded"/>
      <element ref=
