Schema NewsML-G2_2.29-spec-NewsItem-Power.xsd


schema location NewsML-G2_2.29-spec-NewsItem-Power.xsd
attributeFormDefault unqualified
elementFormDefault qualified
targetNamespace http://iptc.org/std/nar/2006-10-01/

Elements  Complex types  Attr. groups
contentSet  RemoteContentPropType  newsContentAttributes
newsItem


schema location NewsML-G2_2.29-spec-Framework-Power.xsd
attributeFormDefault unqualified
elementFormDefault qualified
targetNamespace http://iptc.org/std/nar/2006-10-01/

Elements  Groups  Complex types  Simple types  Attr. groups

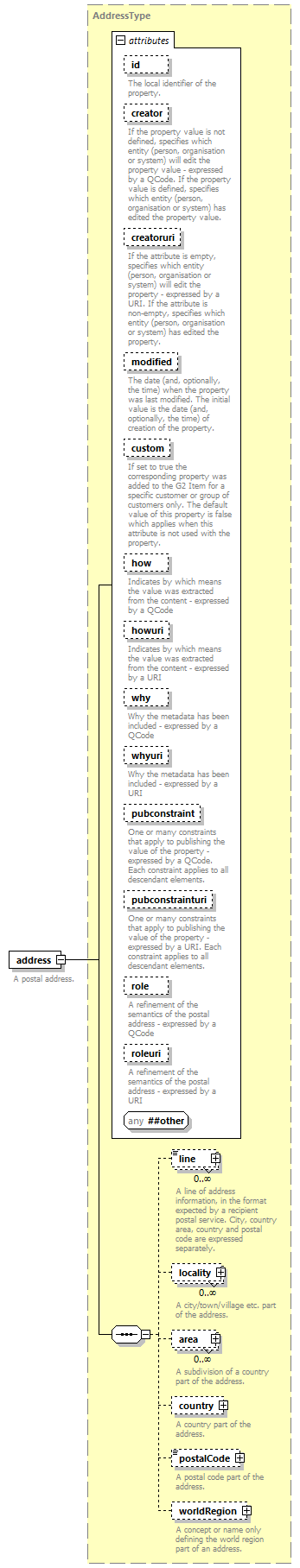

a  AdministrativeMetadataGroup  AddressType  ByDayListType  arbitraryValueAttributes
accountable  ConceptDefinitionGroup  AnyItemType  ByHourListType  commonPowerAttributes

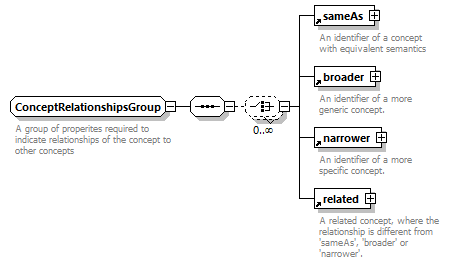

altId  ConceptRelationshipsGroup  ApproximateDateTimePropType  ByMinuteListType  confirmationStatusAttributes

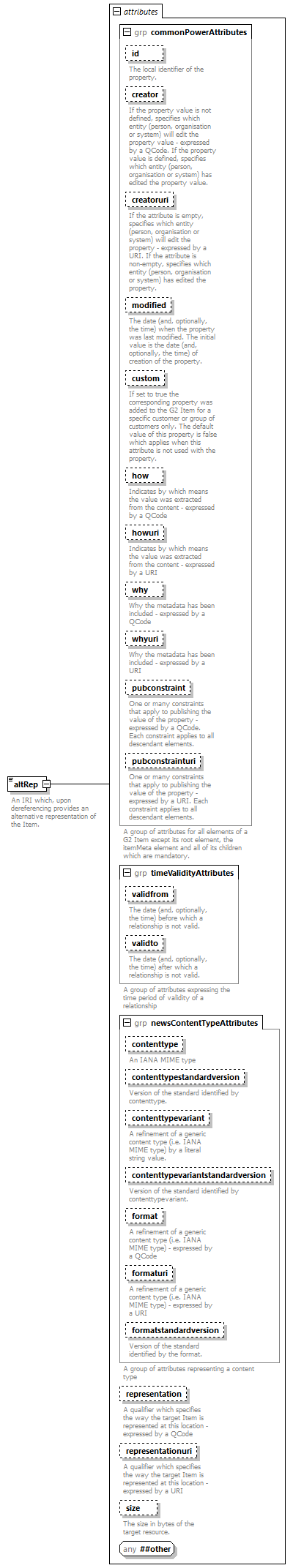

altLoc  DescriptiveMetadataCoreGroup  AssertType  ByMonthDayListType  deprecatedLinkAttributes

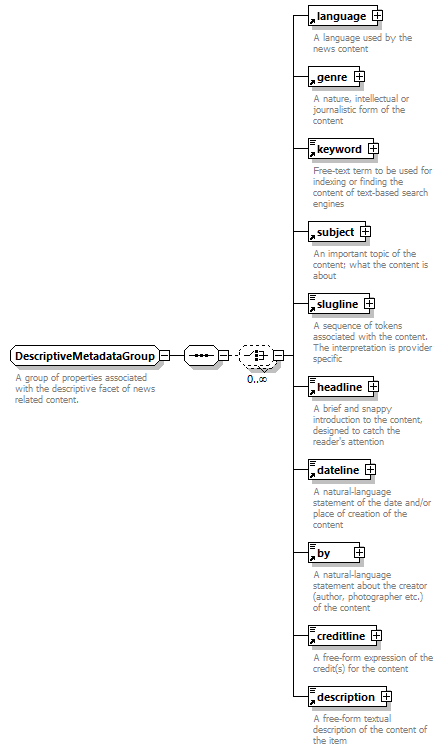

altRep  DescriptiveMetadataGroup  AudienceType  ByMonthListType  flexAttributes

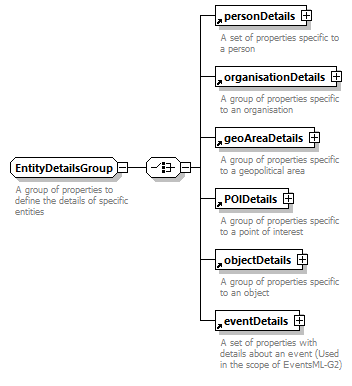

assert  EntityDetailsGroup  BlockType  BySecondListType  i18nAttributes

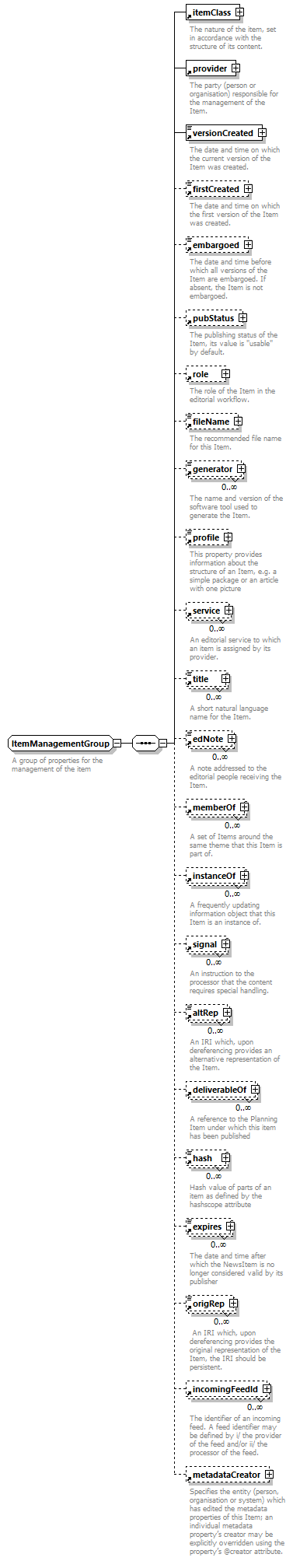

audience  ItemManagementGroup  ConceptIdType  BySetposListType  mediaContentCharacteristics1

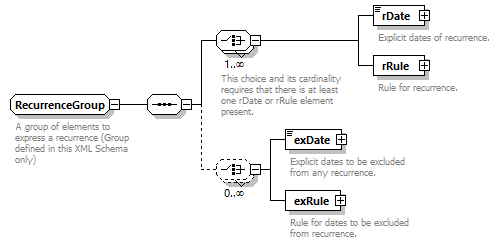

bag  RecurrenceGroup  ConceptNameType  ByWeekNoListType  newsContentCharacteristics
br  ContactInfoType  ByYearDayListType  newsContentTypeAttributes
broader  ContentMetadataAcDType  DateOptTimeType  persistentEditAttributes
by  ContentMetadataAfDType  EmptyStringType  qualifyingAttributes

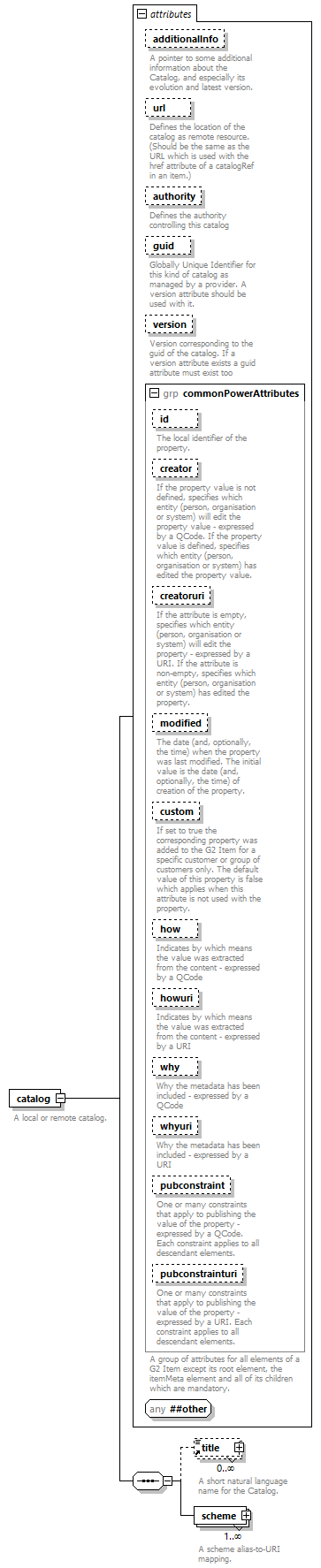

catalog  ContentMetadataCatType  g2normalizedString  quantifyAttributes

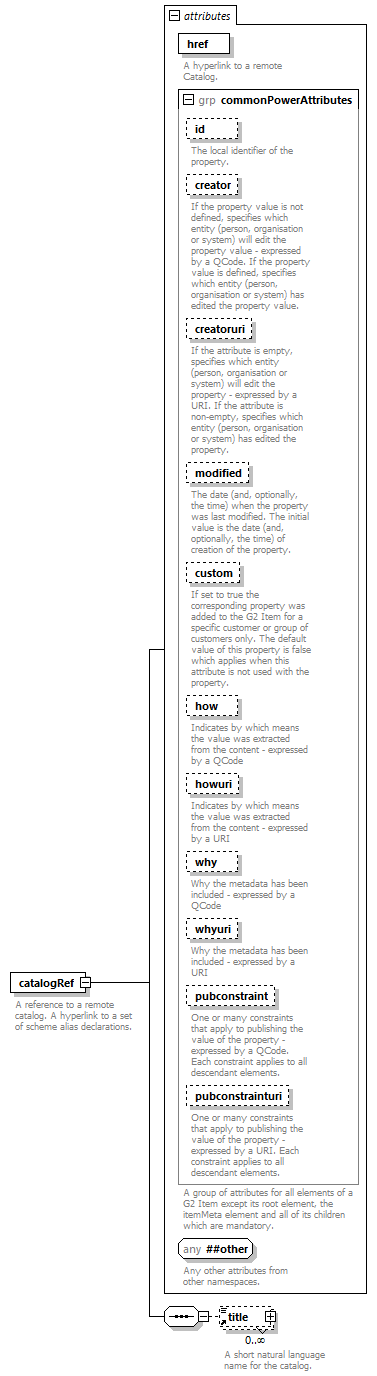

catalogRef  DateOptTimePropType  Int100Type  rankingAttributes

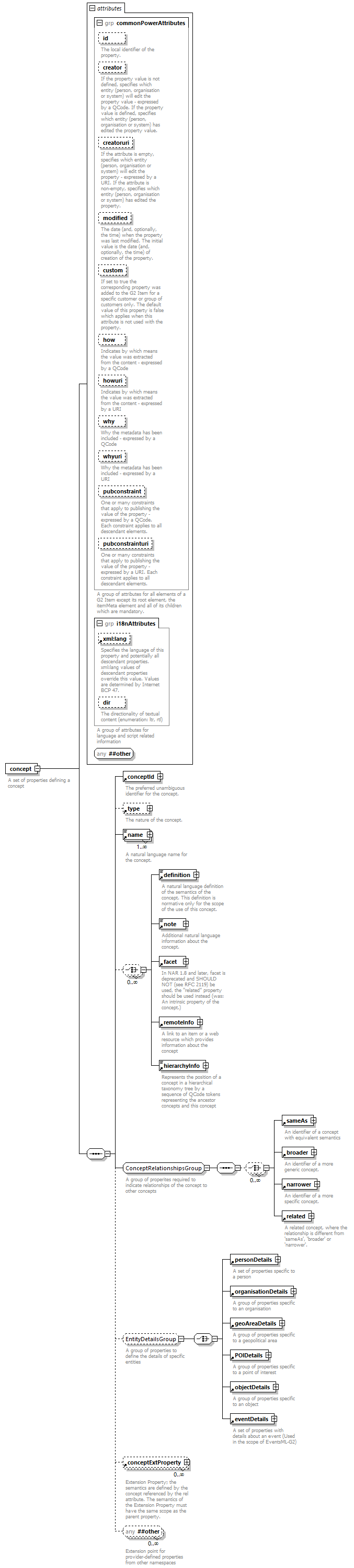

concept  DateTimeOrNullPropType  Int1to9Type  recurrenceRuleAttributes
conceptExtProperty  DateTimePropType  IRIListType  targetResourceAttributes
conceptId  ElectronicAddressTechType  IRIType  timeValidityAttributes
contentCreated  ElectronicAddressType  QCodeListType
contentMetaExtProperty  Flex1ConceptPropType  QCodeType

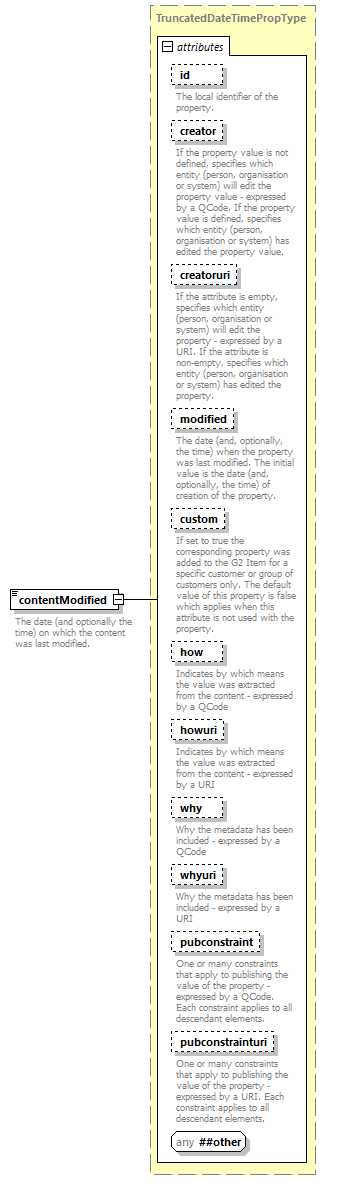

contentModified  Flex1ExtPropType  TruncatedDateTimeType
contributor  Flex1PartyPropType  UnionDateTimeEmptyStringType

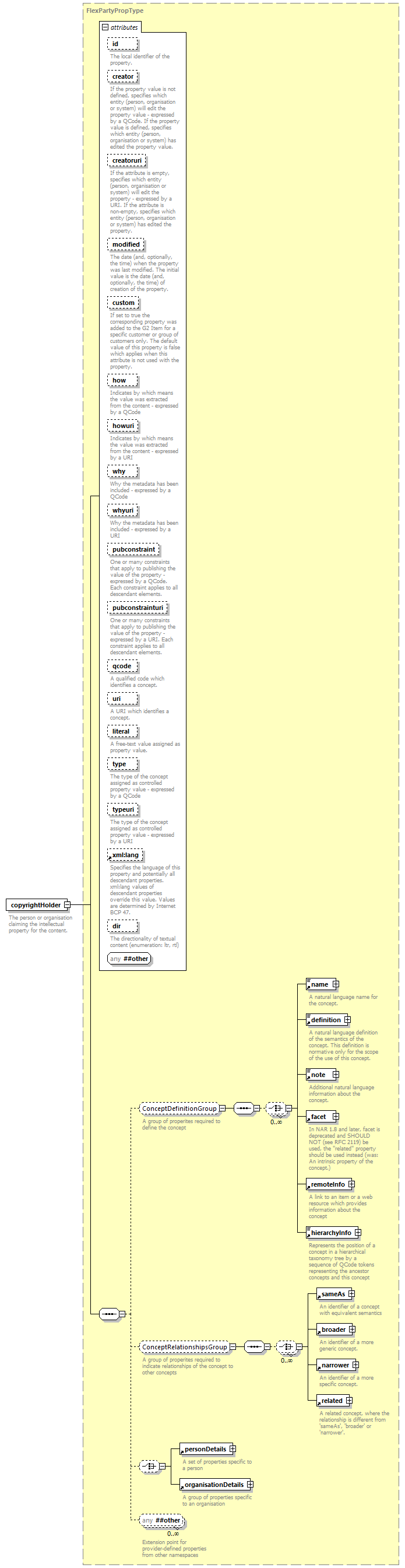

copyrightHolder  Flex1PropType  UnionDateTimeType
copyrightNotice  Flex1RolePropType
created  Flex2ExtPropType
creator  FlexAuthorPropType
creditline  FlexGeoAreaPropType
dateline  FlexLocationPropType
definition  FlexOrganisationPropType
deliverableOf  FlexPartyPropType
delivery  FlexPersonPropType
derivedFrom  FlexPOIPropType
derivedFromValue  FlexProp2Type
description  FlexPropType
edNote  FlexRelatedConceptType
embargoed  FlexRelatedPropType

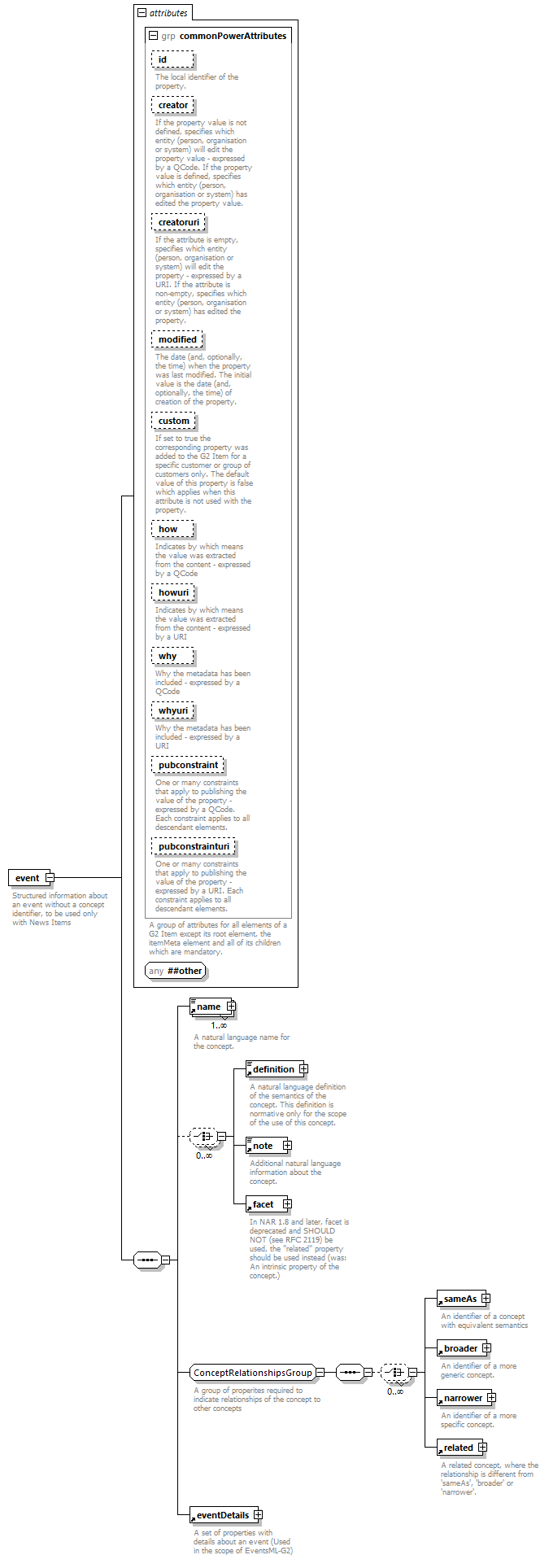

event  GeoCoordinatesType
eventDetails  IntlStringType
events  IntlStringType2
exclAudience  ItemMetadataType
expires  Label1Type
facet  Link1Type
facetConcept  OrganisationAffiliationType

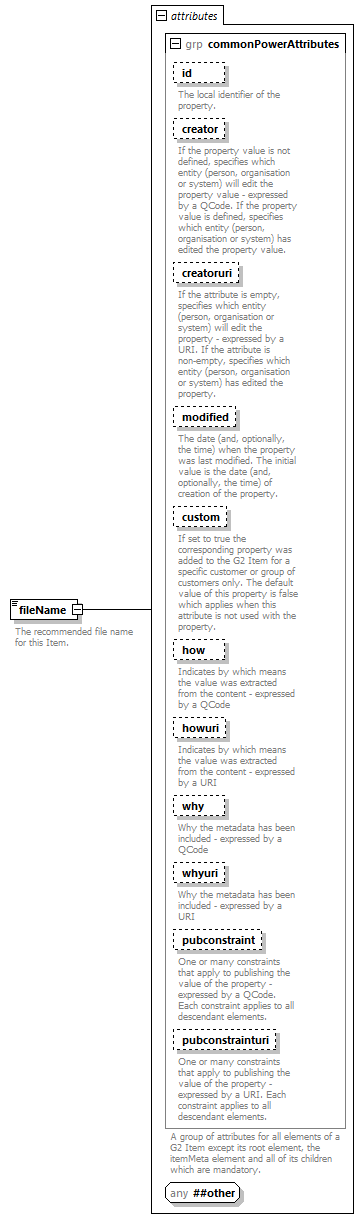

fileName  OrganisationLocationType
firstCreated  partMetaPropType

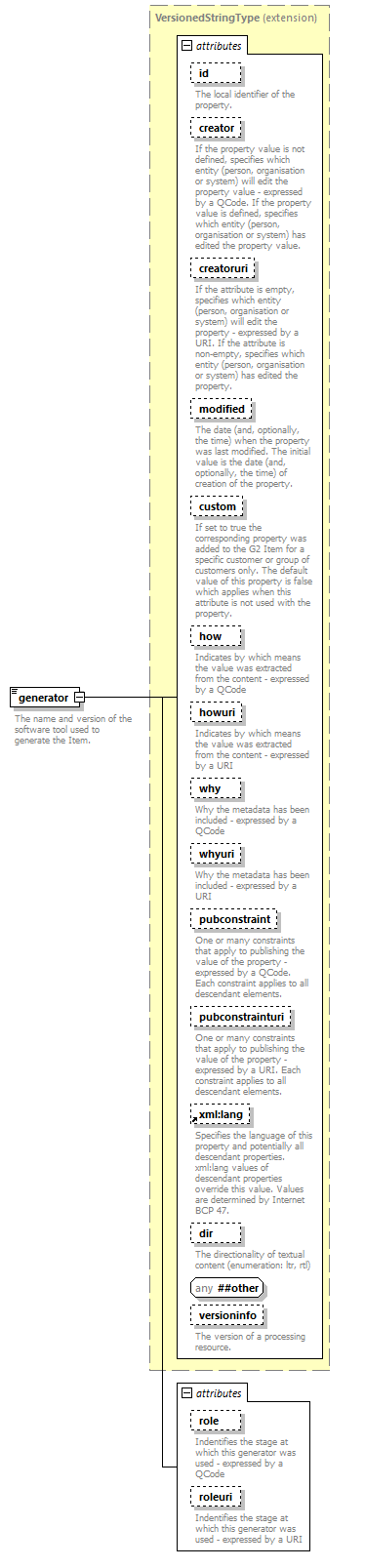

generator  PersonAffiliationType
genre  QCodePropType
geoAreaDetails  QualPropType

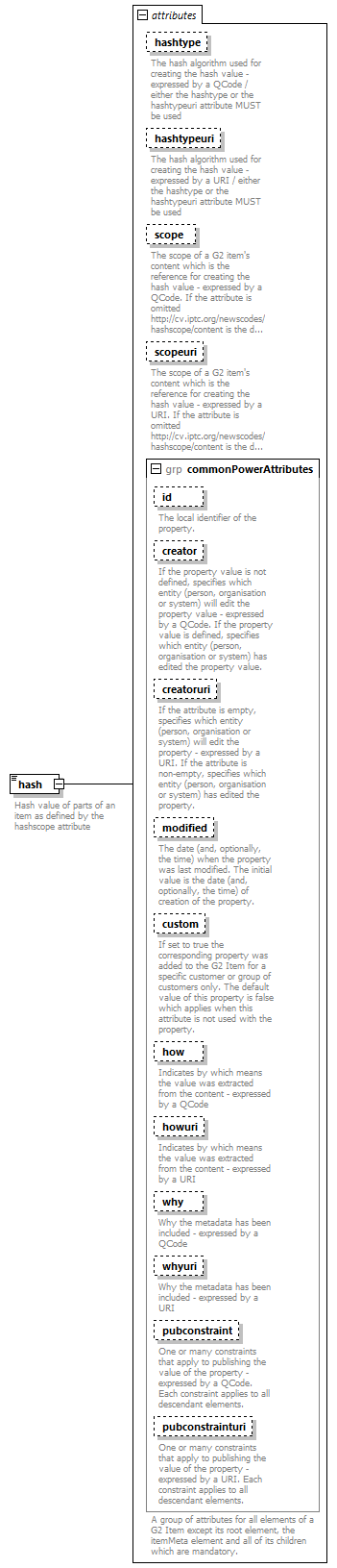

hash  QualRelPropType
headline  RelatedConceptType

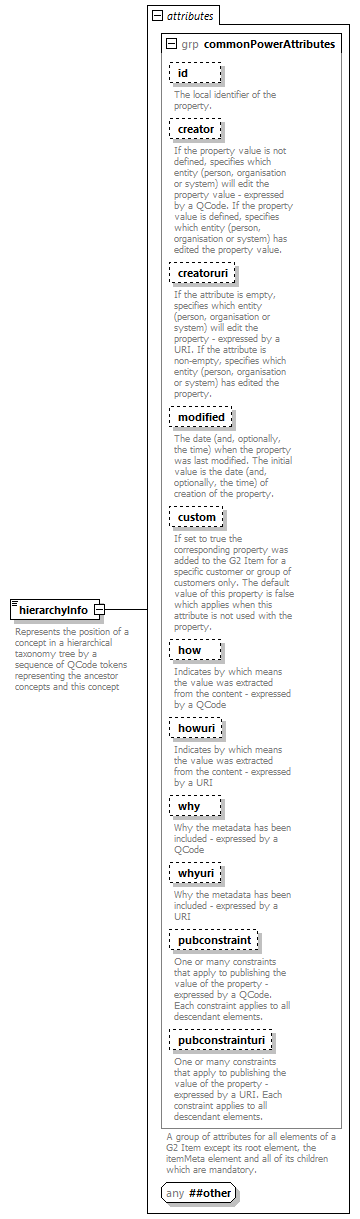

hierarchyInfo  RightsBlockType
hopHistory  RightsInfoType
icon  SameAsType
incomingFeedId  TruncatedDateTimePropType

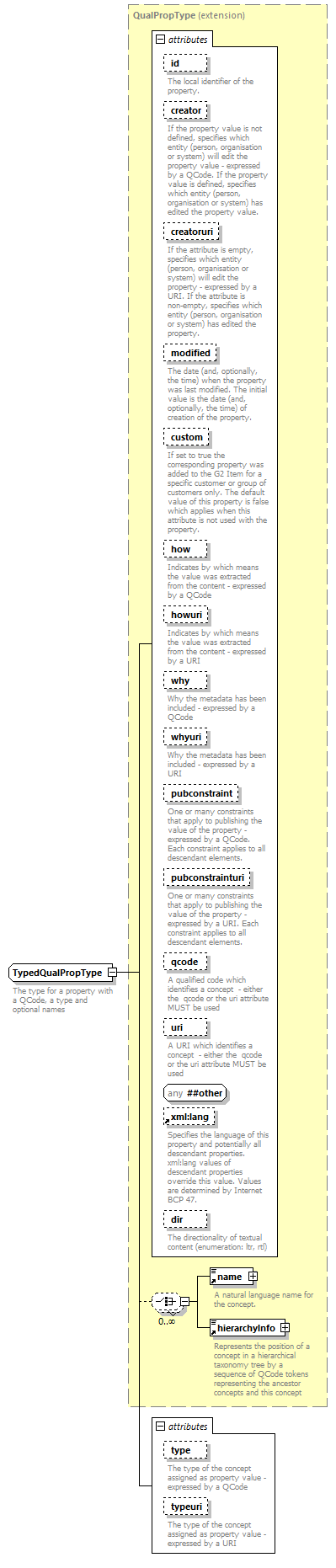

infoSource  TypedQualPropType
inline  VersionedStringType
inlineRef
instanceOf
itemClass
itemMeta
itemMetaExtProperty
keyword
language
link
located
mainConcept
memberOf
metadataCreator
name
narrower

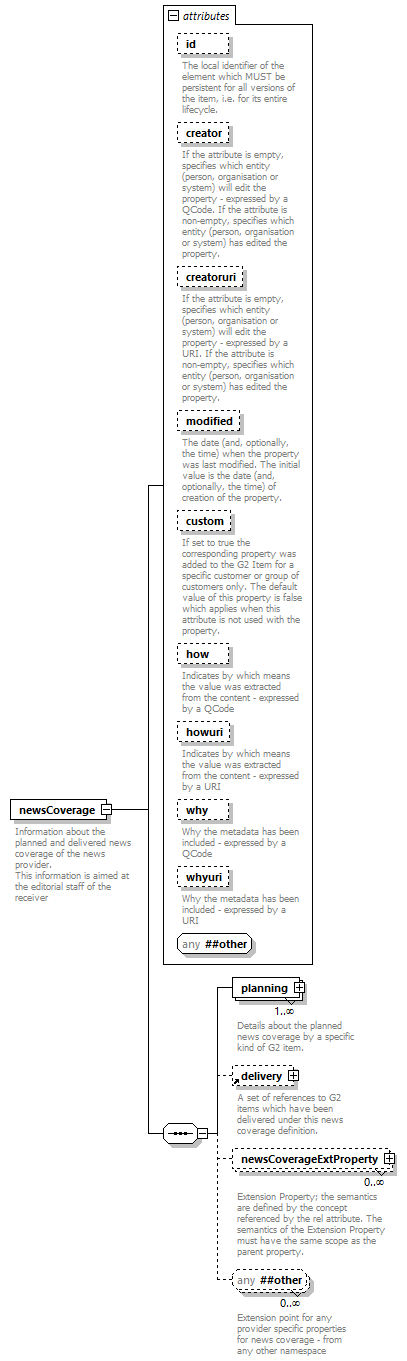

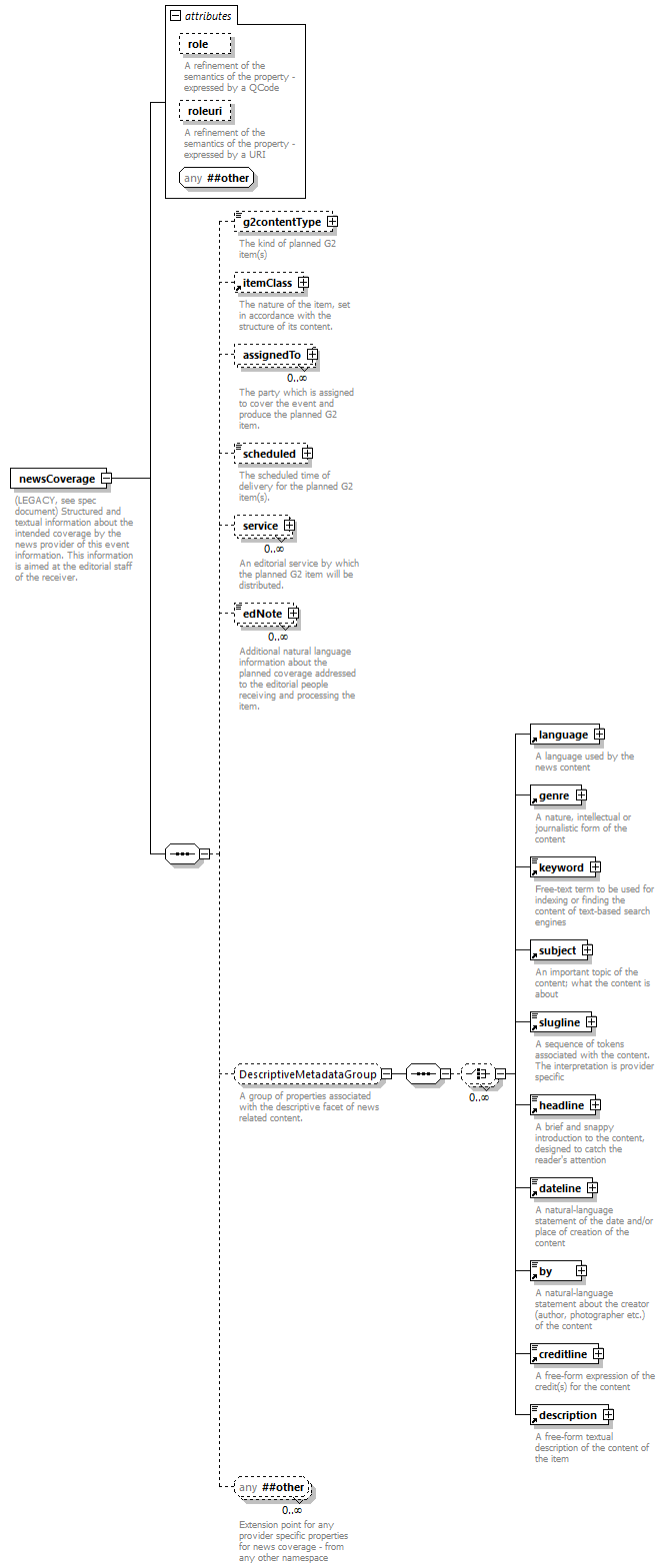

newsCoverage
note

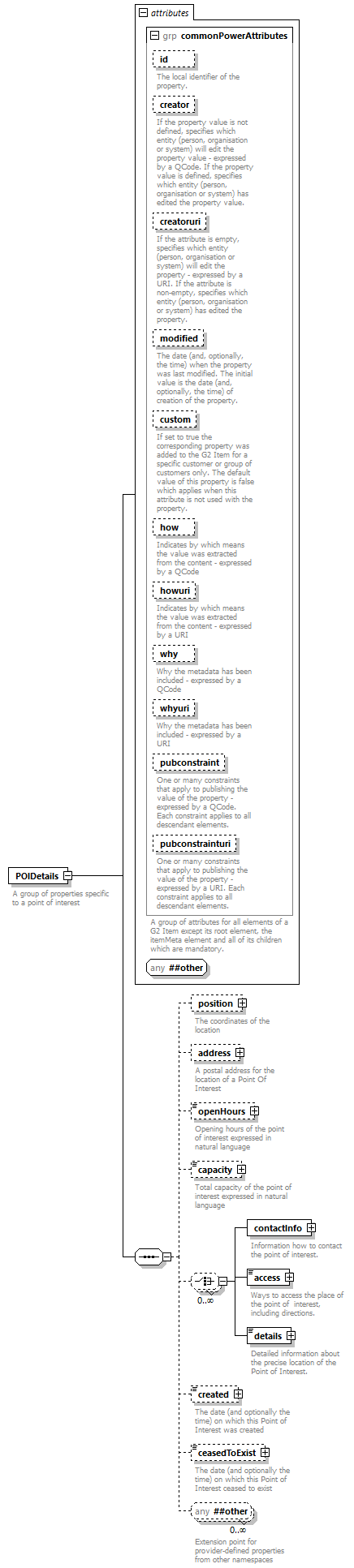

objectDetails

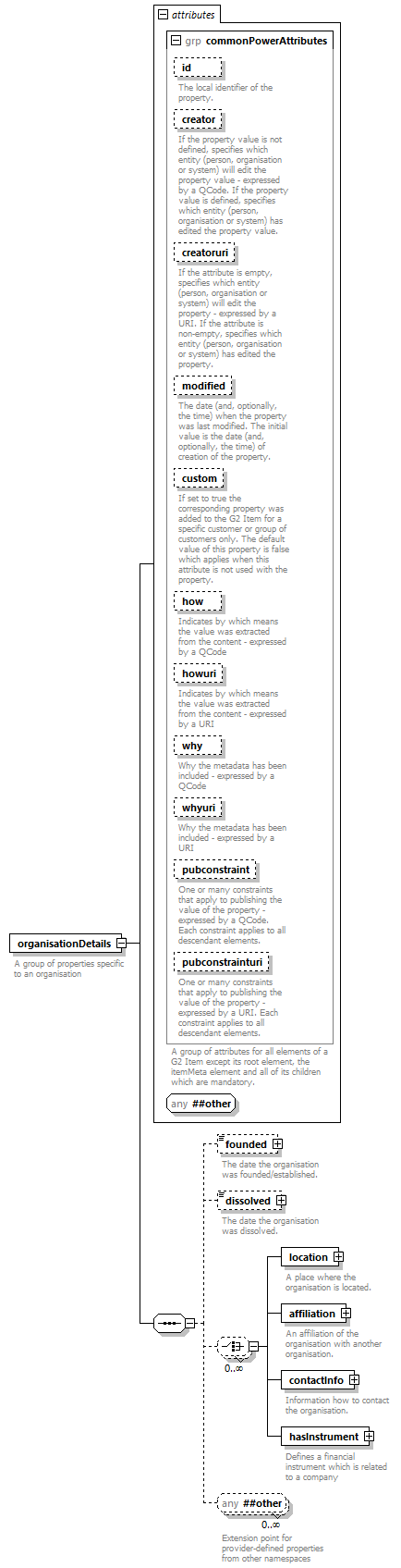

organisationDetails
origRep
partMeta
personDetails
POIDetails
position

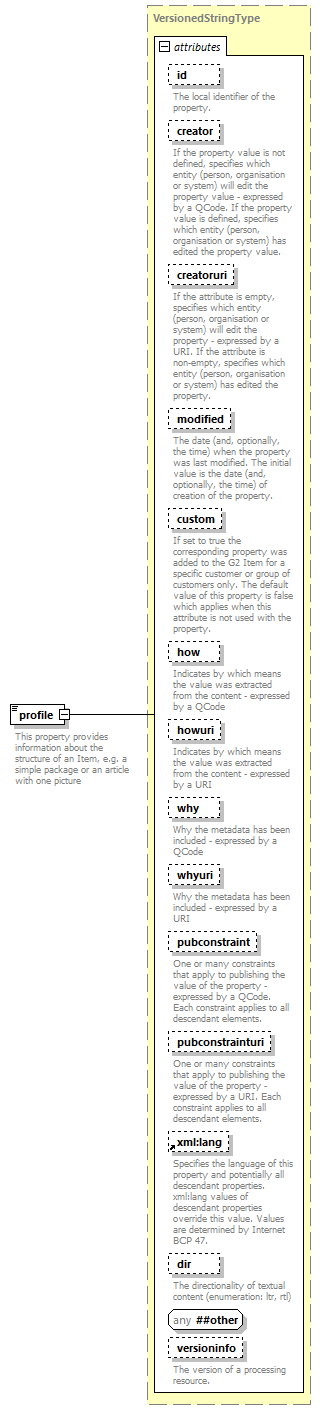

profile
provider

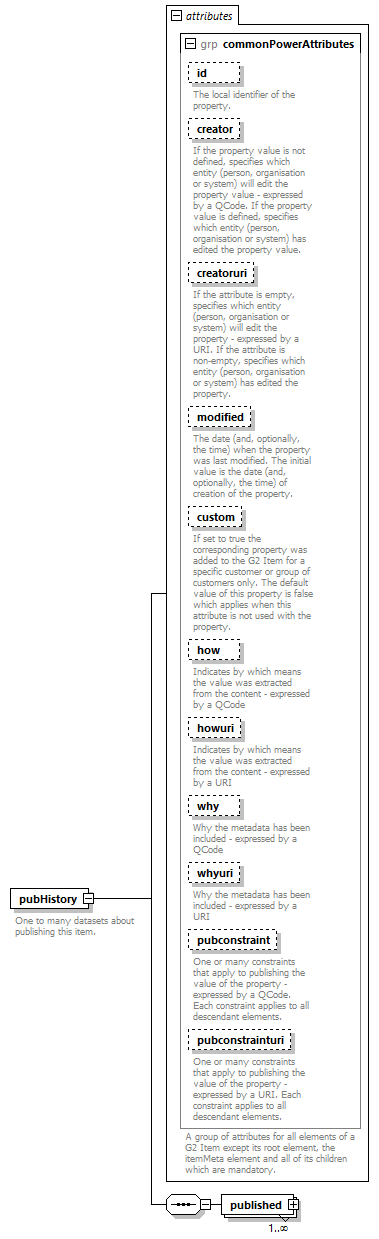

pubHistory
pubStatus
rating
rb
related
remoteInfo
rightsExpressionData
rightsExpressionXML
rightsInfo
rightsInfoExtProperty
role
rp
rt
ruby
sameAs
sameAsScheme
service
signal
slugline
span
subject
title
type
urgency
usageTerms

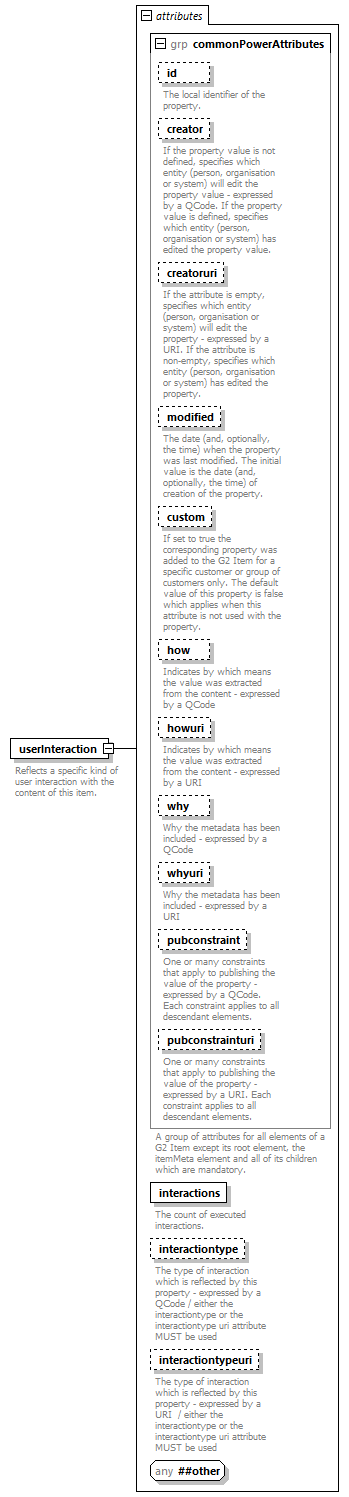

userInteraction
versionCreated


schema location C:\Program Files\Altova\Common2020\Schemas\schema\files\W3C_2001\xml.xsd
attributeFormDefault
elementFormDefault
targetNamespace http://www.w3.org/XML/1998/namespace

Attributes  Attr. groups
base  specialAttrs
id
lang
space

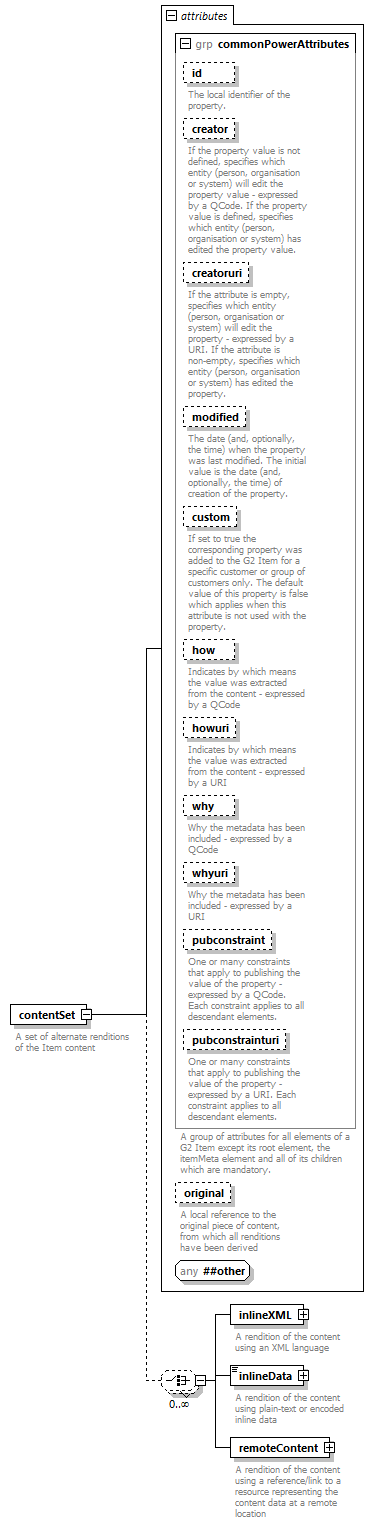

element contentSet
diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p1.png
namespace http://iptc.org/std/nar/2006-10-01/
properties
content complex
children inlineXML inlineData remoteContent
used by
element newsItem
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the property.
creator  QCodeType  optional
documentation
If the property value is not defined, specifies which entity (person, organisation or system) will edit the property value - expressed by a QCode. If the property value is defined, specifies which entity (person, organisation or system) has edited the property value.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
pubconstraint  QCodeListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi  IRIListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
original  xs:IDREF
documentation
A local reference to the original piece of content, from which all renditions have been derived
annotation
documentation
A set of alternate renditions of the Item content
source <xs:element name="contentSet">

<xs:annotation>

<xs:documentation>A set of alternate renditions of the Item content</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element name="inlineXML">

<xs:annotation>

<xs:documentation>A rendition of the content using an XML language</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:any namespace="##any" processContents="lax" minOccurs="0">

<xs:annotation>

<xs:documentation>XML elements from any namespace</xs:documentation>

</xs:annotation>

</xs:any>

</xs:sequence>

<xs:attributeGroup ref="newsContentAttributes"/>

<xs:attributeGroup ref="newsContentTypeAttributes"/>

<xs:attributeGroup ref="newsContentCharacteristics"/>

<xs:attributeGroup ref="i18nAttributes"/>

<xs:anyAttribute namespace="##other" processContents="lax"/>

</xs:complexType>

</xs:element>

<xs:element name="inlineData">

<xs:annotation>

<xs:documentation>A rendition of the content using plain-text or encoded inline data</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:simpleContent>

<xs:extension base="xs:string">

<xs:attributeGroup ref="newsContentAttributes"/>

<xs:attributeGroup ref="newsContentTypeAttributes"/>

<xs:attribute name="encoding" type="QCodeType">

<xs:annotation>

<xs:documentation>The encoding applied to the content before inclusion - expressed by a QCode</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="encodinguri" type="IRIType">

<xs:annotation>

<xs:documentation>The encoding applied to the content before inclusion - expressed by a URI</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attributeGroup ref="newsContentCharacteristics"/>

<xs:attributeGroup ref="i18nAttributes"/>

<xs:anyAttribute namespace="##other" processContents="lax"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element name="remoteContent" type="RemoteContentPropType">

<xs:annotation>

<xs:documentation>A rendition of the content using a reference/link to a resource representing the content data at a remote location</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attributeGroup ref="commonPowerAttributes"/>

<xs:attribute name="original" type="xs:IDREF">

<xs:annotation>

<xs:documentation>A local reference to the original piece of content, from which all renditions have been derived</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:anyAttribute namespace="##other" processContents="lax"/>

</xs:complexType>
</xs:element>

attribute contentSet/@original
type xs:IDREF
annotation
documentation
A local reference to the original piece of content, from which all renditions have been derived
source <xs:attribute name="original" type="xs:IDREF">

<xs:annotation>

<xs:documentation>A local reference to the original piece of content, from which all renditions have been derived</xs:documentation>

</xs:annotation>
</xs:attribute>

element contentSet/inlineXML
diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p2.png
namespace http://iptc.org/std/nar/2006-10-01/
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the element which MUST be persistent for all versions of the item, i.e. for its entire lifecycle.
creator  QCodeType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
rendition  QCodeType  optional
documentation
The specific rendition of content this component represents - expressed by a QCode
renditionuri  IRIType  optional
documentation
The specific rendition of content this component represents - expressed by a URI
generator  xs:string  optional
documentation
The name and version of the software tool used to generate the content
generated  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the content was generated
hascontent  xs:boolean  optional
documentation
Indicates if the digital data of this rendition is available or not.
contenttype  xs:string  optional
documentation
An IANA MIME type
contenttypestandardversion  xs:string  optional
documentation
Version of the standard identified by contenttype.
contenttypevariant  xs:string  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) by a literal string value.
contenttypevariantstandardversion  xs:string  optional
documentation
Version of the standard identified by contenttypevariant.
format  QCodeType  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) - expressed by a QCode
formaturi  IRIType  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) - expressed by a URI
formatstandardversion  xs:string  optional
documentation
Version of the standard identified by the format.
charcount  xs:nonNegativeInteger  optional
documentation
The count of characters of textual content.
wordcount  xs:nonNegativeInteger  optional
documentation
The count of words of textual content.
linecount  xs:nonNegativeInteger  optional
documentation
The count of lines of textual content
pagecount  xs:nonNegativeInteger  optional
documentation
The count of pages of the content
width  xs:nonNegativeInteger  optional
documentation
The image width for visual content.
widthunit  QCodeType  optional
documentation
If present defines the width unit for the width - expressed by a QCode
widthunituri  IRIType  optional
documentation
If present defines the width unit for the width - expressed by a URI
height  xs:nonNegativeInteger  optional
documentation
The height of visual content.
heightunit  QCodeType  optional
documentation
If present defines the height unit for the heigth - expressed by a QCode
heightunituri  IRIType  optional
documentation
If present defines the height unit for the heigth - expressed by a URI
orientation  xs:nonNegativeInteger  optional
documentation
The orientation of the visual content of an image in regard to the standard rendition of the digital image data
layoutorientation  QCodeType  optional
documentation
Indicates whether the human interpretation of the top of the image is aligned to its short or long side - expressed by a QCode
layoutorientationuri  IRIType  optional
documentation
Indicates whether the human interpretation of the top of the image is aligned to its short or long side - expressed by a URI
colourspace  QCodeType  optional
documentation
The colour space of an image - expressed by a QCode
colourspaceuri  IRIType  optional
documentation
The colour space of an image - expressed by a URI
colourindicator  QCodeType  optional
documentation
Indicates whether the still or moving image is coloured or black and white. The recommended vocabulary is the IPTC Colour Indicator NewsCodes http://cv.iptc.org/newscodes/colourindicator/  - expressed by a QCode
colourindicatoruri  IRIType  optional
documentation
Indicates whether the still or moving image is coloured or black and white. The recommended vocabulary is the IPTC Colour Indicator NewsCodes http://cv.iptc.org/newscodes/colourindicator/  - expressed by a URI
colourdepth  xs:nonNegativeInteger  optional
documentation
The bit depth defining the spread of colour data within each sample.
resolution  xs:positiveInteger  optional
documentation
The recommended printing resolution for an image in dots per inch
duration  xs:string  optional
documentation
The clip duration in time units defined by durationUnit. The default time unit is seconds. Applies to audio-visual content.
durationunit  QCodeType  optional
documentation
If present it defines the time unit for the duration attribute. Only codes for integer value time units of the recommended CV (available at http://cv.iptc.org/newscodes/timeunit/ )  must be applied - expressed by a QCode
durationunituri  IRIType  optional
documentation
If present it defines the time unit for the duration attribute. Only codes for integer value time units of the recommended CV (available at http://cv.iptc.org/newscodes/timeunit/ )  must be applied - expressed by a URI
audiocodec  QCodeType  optional
documentation
The applicable codec for audio data - expressed by a QCode
audiocodecuri  IRIType  optional
documentation
The applicable codec for audio data - expressed by a URI
audiobitrate  xs:positiveInteger  optional
documentation
The audio bit rate in  bits per second
audiovbr  xs:boolean  optional
documentation
An indication that the audio data is encoded with a variable bit rate
audiosamplesize  xs:positiveInteger  optional
documentation
The number of bits per audio sample
audiosamplerate  xs:positiveInteger  optional
documentation
The number of audio samples per second, expressed as a sampling frequency in Hz
audiochannels  QCodeType  optional
documentation
The audio sound system - expressed by a QCode
audiochannelsuri  IRIType  optional
documentation
The audio sound system - expressed by a URI
videocodec  QCodeType  optional
documentation
The applicable codec for video data - expressed by a QCode
videocodecuri  IRIType  optional
documentation
The applicable codec for video data - expressed by a URI
videoavgbitrate  xs:positiveInteger  optional
documentation
The video average bit rate in bits per second. Used when the bit rate is variable
videovbr  xs:boolean  optional
documentation
An indication that video data is encoded with a variable bit rate
videoframerate  xs:decimal  optional
documentation
The number of video frames per second, i.e. the rate at which the material should be shown in order to achieve the intended visual effect
videoscan  derived by: xs:string  optional
documentation
The video scan technique, progressive or interlaced
videoaspectratio  g2normalizedString  optional
documentation
The video aspect ratio
videosampling  g2normalizedString  optional
documentation
The video sampling method
videoscaling  QCodeType  optional
documentation
Indicates how the original content was scaled to this format - expressed by a QCode. The recommended vocabulary is the IPTC Video Scaling NewsCodes http://cv.iptc.org/newscodes/videoscaling/
videoscalinguri  IRIType  optional
documentation
Indicates how the original content was scaled to this format - expressed by a URI. The recommended vocabulary is the IPTC Video Scaling NewsCodes http://cv.iptc.org/newscodes/videoscaling/
videodefinition  QCodeType  optional
documentation
Indicates which video definition is applied to this rendition of video content - expressed by a QCode - but it does not imply any particular technical characteristics of the video.The recommended vocabulary is the IPTC Video Definition NewsCodes http://cv.iptc.org/newscodes/videodefinition/
videodefinitionuri  IRIType  optional
documentation
Indicates which video definition is applied to this rendition of video content - expressed by a URI - but it does not imply any particular technical characteristics of the video.The recommended vocabulary is the IPTC Video Definition NewsCodes http://cv.iptc.org/newscodes/videodefinition/
xml:lang  derived by: xs:language  optional
documentation
Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47.
dir  derived by: xs:NMTOKEN  optional
documentation
The directionality of textual content (enumeration: ltr, rtl)
annotation
documentation
A rendition of the content using an XML language
source <xs:element name="inlineXML">

<xs:annotation>

<xs:documentation>A rendition of the content using an XML language</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:any namespace="##any" processContents="lax" minOccurs="0">

<xs:annotation>

<xs:documentation>XML elements from any namespace</xs:documentation>

</xs:annotation>

</xs:any>

</xs:sequence>

<xs:attributeGroup ref="newsContentAttributes"/>

<xs:attributeGroup ref="newsContentTypeAttributes"/>

<xs:attributeGroup ref="newsContentCharacteristics"/>

<xs:attributeGroup ref="i18nAttributes"/>

<xs:anyAttribute namespace="##other" processContents="lax"/>

</xs:complexType>
</xs:element>

element contentSet/inlineData
diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p3.png
namespace http://iptc.org/std/nar/2006-10-01/
type extension of xs:string
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the element which MUST be persistent for all versions of the item, i.e. for its entire lifecycle.
creator  QCodeType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
rendition  QCodeType  optional
documentation
The specific rendition of content this component represents - expressed by a QCode
renditionuri  IRIType  optional
documentation
The specific rendition of content this component represents - expressed by a URI
generator  xs:string  optional
documentation
The name and version of the software tool used to generate the content
generated  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the content was generated
hascontent  xs:boolean  optional
documentation
Indicates if the digital data of this rendition is available or not.
contenttype  xs:string  optional
documentation
An IANA MIME type
contenttypestandardversion  xs:string  optional
documentation
Version of the standard identified by contenttype.
contenttypevariant  xs:string  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) by a literal string value.
contenttypevariantstandardversion  xs:string  optional
documentation
Version of the standard identified by contenttypevariant.
format  QCodeType  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) - expressed by a QCode
formaturi  IRIType  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) - expressed by a URI
formatstandardversion  xs:string  optional
documentation
Version of the standard identified by the format.
encoding  QCodeType
documentation
The encoding applied to the content before inclusion - expressed by a QCode
encodinguri  IRIType
documentation
The encoding applied to the content before inclusion - expressed by a URI
charcount  xs:nonNegativeInteger  optional
documentation
The count of characters of textual content.
wordcount  xs:nonNegativeInteger  optional
documentation
The count of words of textual content.
linecount  xs:nonNegativeInteger  optional
documentation
The count of lines of textual content
pagecount  xs:nonNegativeInteger  optional
documentation
The count of pages of the content
width  xs:nonNegativeInteger  optional
documentation
The image width for visual content.
widthunit  QCodeType  optional
documentation
If present defines the width unit for the width - expressed by a QCode
widthunituri  IRIType  optional
documentation
If present defines the width unit for the width - expressed by a URI
height  xs:nonNegativeInteger  optional
documentation
The height of visual content.
heightunit  QCodeType  optional
documentation
If present defines the height unit for the heigth - expressed by a QCode
heightunituri  IRIType  optional
documentation
If present defines the height unit for the heigth - expressed by a URI
orientation  xs:nonNegativeInteger  optional
documentation
The orientation of the visual content of an image in regard to the standard rendition of the digital image data
layoutorientation  QCodeType  optional
documentation
Indicates whether the human interpretation of the top of the image is aligned to its short or long side - expressed by a QCode
layoutorientationuri  IRIType  optional
documentation
Indicates whether the human interpretation of the top of the image is aligned to its short or long side - expressed by a URI
colourspace  QCodeType  optional
documentation
The colour space of an image - expressed by a QCode
colourspaceuri  IRIType  optional
documentation
The colour space of an image - expressed by a URI
colourindicator  QCodeType  optional
documentation
Indicates whether the still or moving image is coloured or black and white. The recommended vocabulary is the IPTC Colour Indicator NewsCodes http://cv.iptc.org/newscodes/colourindicator/  - expressed by a QCode
colourindicatoruri  IRIType  optional
documentation
Indicates whether the still or moving image is coloured or black and white. The recommended vocabulary is the IPTC Colour Indicator NewsCodes http://cv.iptc.org/newscodes/colourindicator/  - expressed by a URI
colourdepth  xs:nonNegativeInteger  optional
documentation
The bit depth defining the spread of colour data within each sample.
resolution  xs:positiveInteger  optional
documentation
The recommended printing resolution for an image in dots per inch
duration  xs:string  optional
documentation
The clip duration in time units defined by durationUnit. The default time unit is seconds. Applies to audio-visual content.
durationunit  QCodeType  optional
documentation
If present it defines the time unit for the duration attribute. Only codes for integer value time units of the recommended CV (available at http://cv.iptc.org/newscodes/timeunit/ )  must be applied - expressed by a QCode
durationunituri  IRIType  optional
documentation
If present it defines the time unit for the duration attribute. Only codes for integer value time units of the recommended CV (available at http://cv.iptc.org/newscodes/timeunit/ )  must be applied - expressed by a URI
audiocodec  QCodeType  optional
documentation
The applicable codec for audio data - expressed by a QCode
audiocodecuri  IRIType  optional
documentation
The applicable codec for audio data - expressed by a URI
audiobitrate  xs:positiveInteger  optional
documentation
The audio bit rate in  bits per second
audiovbr  xs:boolean  optional
documentation
An indication that the audio data is encoded with a variable bit rate
audiosamplesize  xs:positiveInteger  optional
documentation
The number of bits per audio sample
audiosamplerate  xs:positiveInteger  optional
documentation
The number of audio samples per second, expressed as a sampling frequency in Hz
audiochannels  QCodeType  optional
documentation
The audio sound system - expressed by a QCode
audiochannelsuri  IRIType  optional
documentation
The audio sound system - expressed by a URI
videocodec  QCodeType  optional
documentation
The applicable codec for video data - expressed by a QCode
videocodecuri  IRIType  optional
documentation
The applicable codec for video data - expressed by a URI
videoavgbitrate  xs:positiveInteger  optional
documentation
The video average bit rate in bits per second. Used when the bit rate is variable
videovbr  xs:boolean  optional
documentation
An indication that video data is encoded with a variable bit rate
videoframerate  xs:decimal  optional
documentation
The number of video frames per second, i.e. the rate at which the material should be shown in order to achieve the intended visual effect
videoscan  derived by: xs:string  optional
documentation
The video scan technique, progressive or interlaced
videoaspectratio  g2normalizedString  optional
documentation
The video aspect ratio
videosampling  g2normalizedString  optional
documentation
The video sampling method
videoscaling  QCodeType  optional
documentation
Indicates how the original content was scaled to this format - expressed by a QCode. The recommended vocabulary is the IPTC Video Scaling NewsCodes http://cv.iptc.org/newscodes/videoscaling/
videoscalinguri  IRIType  optional
documentation
Indicates how the original content was scaled to this format - expressed by a URI. The recommended vocabulary is the IPTC Video Scaling NewsCodes http://cv.iptc.org/newscodes/videoscaling/
videodefinition  QCodeType  optional
documentation
Indicates which video definition is applied to this rendition of video content - expressed by a QCode - but it does not imply any particular technical characteristics of the video.The recommended vocabulary is the IPTC Video Definition NewsCodes http://cv.iptc.org/newscodes/videodefinition/
videodefinitionuri  IRIType  optional
documentation
Indicates which video definition is applied to this rendition of video content - expressed by a URI - but it does not imply any particular technical characteristics of the video.The recommended vocabulary is the IPTC Video Definition NewsCodes http://cv.iptc.org/newscodes/videodefinition/
xml:lang  derived by: xs:language  optional
documentation
Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47.
dir  derived by: xs:NMTOKEN  optional
documentation
The directionality of textual content (enumeration: ltr, rtl)
annotation
documentation
A rendition of the content using plain-text or encoded inline data
source <xs:element name="inlineData">

<xs:annotation>

<xs:documentation>A rendition of the content using plain-text or encoded inline data</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:simpleContent>

<xs:extension base="xs:string">

<xs:attributeGroup ref="newsContentAttributes"/>

<xs:attributeGroup ref="newsContentTypeAttributes"/>

<xs:attribute name="encoding" type="QCodeType">

<xs:annotation>

<xs:documentation>The encoding applied to the content before inclusion - expressed by a QCode</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="encodinguri" type="IRIType">

<xs:annotation>

<xs:documentation>The encoding applied to the content before inclusion - expressed by a URI</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attributeGroup ref="newsContentCharacteristics"/>

<xs:attributeGroup ref="i18nAttributes"/>

<xs:anyAttribute namespace="##other" processContents="lax"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>
</xs:element>

attribute contentSet/inlineData/@encoding
type QCodeType
facets
Kind Value Annotation
pattern [^\s:]+:[^\s]+
annotation
documentation
The encoding applied to the content before inclusion - expressed by a QCode
source <xs:attribute name="encoding" type="QCodeType">

<xs:annotation>

<xs:documentation>The encoding applied to the content before inclusion - expressed by a QCode</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute contentSet/inlineData/@encodinguri
type IRIType
annotation
documentation
The encoding applied to the content before inclusion - expressed by a URI
source <xs:attribute name="encodinguri" type="IRIType">

<xs:annotation>

<xs:documentation>The encoding applied to the content before inclusion - expressed by a URI</xs:documentation>

</xs:annotation>
</xs:attribute>

element contentSet/remoteContent

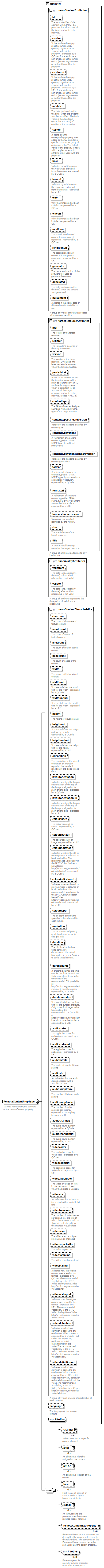

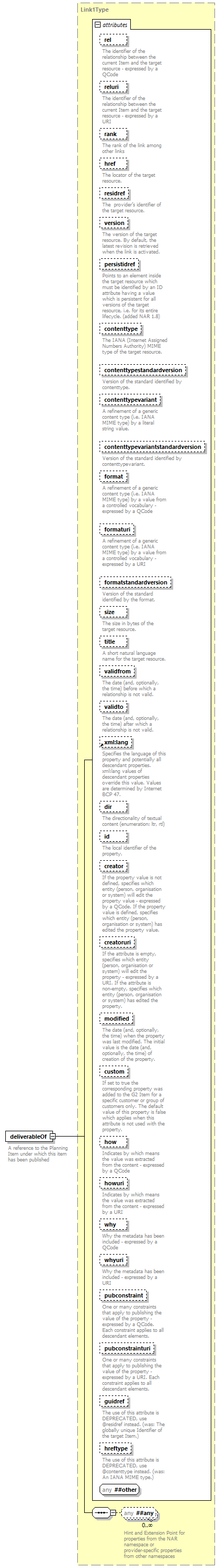

diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p4.png
namespace http://iptc.org/std/nar/2006-10-01/
type RemoteContentPropType
properties
content complex
children channel altId altLoc hash signal remoteContentExtProperty
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the element which MUST be persistent for all versions of the item, i.e. for its entire lifecycle.
creator  QCodeType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
rendition  QCodeType  optional
documentation
The specific rendition of content this component represents - expressed by a QCode
renditionuri  IRIType  optional
documentation
The specific rendition of content this component represents - expressed by a URI
generator  xs:string  optional
documentation
The name and version of the software tool used to generate the content
generated  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the content was generated
hascontent  xs:boolean  optional
documentation
Indicates if the digital data of this rendition is available or not.
href  IRIType  optional
documentation
The locator of the target resource.
residref  xs:string  optional
documentation
The  provider’s identifier of the target resource.
version  xs:positiveInteger  optional
documentation
The version of the target resource. By default, the latest revision is retrieved when the link is activated.
persistidref  xs:string  optional
documentation
Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8)
contenttype  xs:string  optional
documentation
The IANA (Internet Assigned Numbers Authority) MIME type of the target resource.
contenttypestandardversion  xs:string  optional
documentation
Version of the standard identified by contenttype.
contenttypevariant  xs:string  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) by a literal string value.
contenttypevariantstandardversion  xs:string  optional
documentation
Version of the standard identified by contenttypevariant.
format  QCodeType  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) by a value from a controlled vocabulary - expressed by a QCode
formaturi  IRIType  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) by a value from a controlled vocabulary - expressed by a URI
formatstandardversion  xs:string  optional
documentation
Version of the standard identified by the format.
size  xs:nonNegativeInteger  optional
documentation
The size in bytes of the target resource.
title  xs:string  optional
documentation
A short natural language name for the target resource.
validfrom  DateOptTimeType  optional
documentation
The date (and, optionally, the time) before which a relationship is not valid.
validto  DateOptTimeType  optional
documentation
The date (and, optionally, the time) after which a relationship is not valid.
charcount  xs:nonNegativeInteger  optional
documentation
The count of characters of textual content.
wordcount  xs:nonNegativeInteger  optional
documentation
The count of words of textual content.
linecount  xs:nonNegativeInteger  optional
documentation
The count of lines of textual content
pagecount  xs:nonNegativeInteger  optional
documentation
The count of pages of the content
width  xs:nonNegativeInteger  optional
documentation
The image width for visual content.
widthunit  QCodeType  optional
documentation
If present defines the width unit for the width - expressed by a QCode
widthunituri  IRIType  optional
documentation
If present defines the width unit for the width - expressed by a URI
height  xs:nonNegativeInteger  optional
documentation
The height of visual content.
heightunit  QCodeType  optional
documentation
If present defines the height unit for the heigth - expressed by a QCode
heightunituri  IRIType  optional
documentation
If present defines the height unit for the heigth - expressed by a URI
orientation  xs:nonNegativeInteger  optional
documentation
The orientation of the visual content of an image in regard to the standard rendition of the digital image data
layoutorientation  QCodeType  optional
documentation
Indicates whether the human interpretation of the top of the image is aligned to its short or long side - expressed by a QCode
layoutorientationuri  IRIType  optional
documentation
Indicates whether the human interpretation of the top of the image is aligned to its short or long side - expressed by a URI
colourspace  QCodeType  optional
documentation
The colour space of an image - expressed by a QCode
colourspaceuri  IRIType  optional
documentation
The colour space of an image - expressed by a URI
colourindicator  QCodeType  optional
documentation
Indicates whether the still or moving image is coloured or black and white. The recommended vocabulary is the IPTC Colour Indicator NewsCodes http://cv.iptc.org/newscodes/colourindicator/  - expressed by a QCode
colourindicatoruri  IRIType  optional
documentation
Indicates whether the still or moving image is coloured or black and white. The recommended vocabulary is the IPTC Colour Indicator NewsCodes http://cv.iptc.org/newscodes/colourindicator/  - expressed by a URI
colourdepth  xs:nonNegativeInteger  optional
documentation
The bit depth defining the spread of colour data within each sample.
resolution  xs:positiveInteger  optional
documentation
The recommended printing resolution for an image in dots per inch
duration  xs:string  optional
documentation
The clip duration in time units defined by durationUnit. The default time unit is seconds. Applies to audio-visual content.
durationunit  QCodeType  optional
documentation
If present it defines the time unit for the duration attribute. Only codes for integer value time units of the recommended CV (available at http://cv.iptc.org/newscodes/timeunit/ )  must be applied - expressed by a QCode
durationunituri  IRIType  optional
documentation
If present it defines the time unit for the duration attribute. Only codes for integer value time units of the recommended CV (available at http://cv.iptc.org/newscodes/timeunit/ )  must be applied - expressed by a URI
audiocodec  QCodeType  optional
documentation
The applicable codec for audio data - expressed by a QCode
audiocodecuri  IRIType  optional
documentation
The applicable codec for audio data - expressed by a URI
audiobitrate  xs:positiveInteger  optional
documentation
The audio bit rate in  bits per second
audiovbr  xs:boolean  optional
documentation
An indication that the audio data is encoded with a variable bit rate
audiosamplesize  xs:positiveInteger  optional
documentation
The number of bits per audio sample
audiosamplerate  xs:positiveInteger  optional
documentation
The number of audio samples per second, expressed as a sampling frequency in Hz
audiochannels  QCodeType  optional
documentation
The audio sound system - expressed by a QCode
audiochannelsuri  IRIType  optional
documentation
The audio sound system - expressed by a URI
videocodec  QCodeType  optional
documentation
The applicable codec for video data - expressed by a QCode
videocodecuri  IRIType  optional
documentation
The applicable codec for video data - expressed by a URI
videoavgbitrate  xs:positiveInteger  optional
documentation
The video average bit rate in bits per second. Used when the bit rate is variable
videovbr  xs:boolean  optional
documentation
An indication that video data is encoded with a variable bit rate
videoframerate  xs:decimal  optional
documentation
The number of video frames per second, i.e. the rate at which the material should be shown in order to achieve the intended visual effect
videoscan  derived by: xs:string  optional
documentation
The video scan technique, progressive or interlaced
videoaspectratio  g2normalizedString  optional
documentation
The video aspect ratio
videosampling  g2normalizedString  optional
documentation
The video sampling method
videoscaling  QCodeType  optional
documentation
Indicates how the original content was scaled to this format - expressed by a QCode. The recommended vocabulary is the IPTC Video Scaling NewsCodes http://cv.iptc.org/newscodes/videoscaling/
videoscalinguri  IRIType  optional
documentation
Indicates how the original content was scaled to this format - expressed by a URI. The recommended vocabulary is the IPTC Video Scaling NewsCodes http://cv.iptc.org/newscodes/videoscaling/
videodefinition  QCodeType  optional
documentation
Indicates which video definition is applied to this rendition of video content - expressed by a QCode - but it does not imply any particular technical characteristics of the video.The recommended vocabulary is the IPTC Video Definition NewsCodes http://cv.iptc.org/newscodes/videodefinition/
videodefinitionuri  IRIType  optional
documentation
Indicates which video definition is applied to this rendition of video content - expressed by a URI - but it does not imply any particular technical characteristics of the video.The recommended vocabulary is the IPTC Video Definition NewsCodes http://cv.iptc.org/newscodes/videodefinition/
language  xs:language
documentation
The language of the remote content
annotation
documentation
A rendition of the content using a reference/link to a resource representing the content data at a remote location
source <xs:element name="remoteContent" type="RemoteContentPropType">

<xs:annotation>

<xs:documentation>A rendition of the content using a reference/link to a resource representing the content data at a remote location</xs:documentation>

</xs:annotation>
</xs:element>

element newsItem

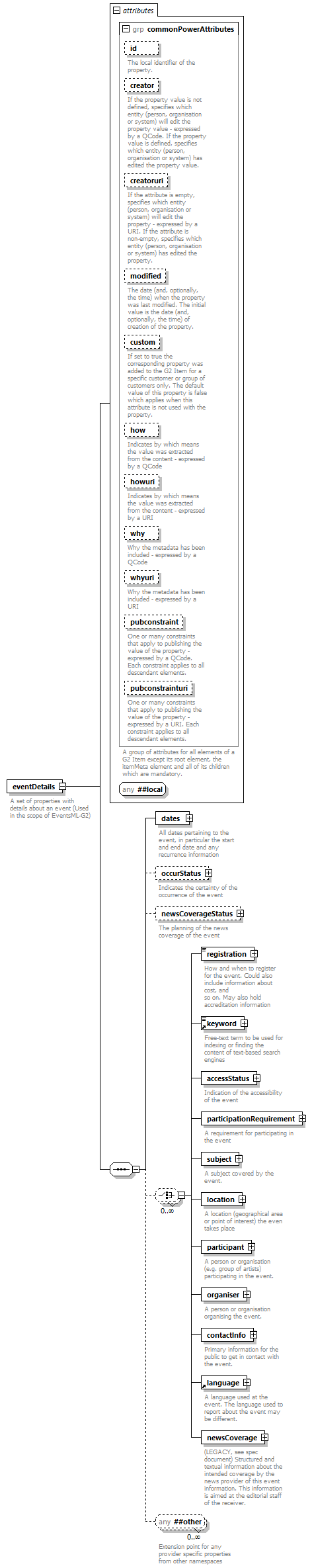

diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p5.png
namespace http://iptc.org/std/nar/2006-10-01/

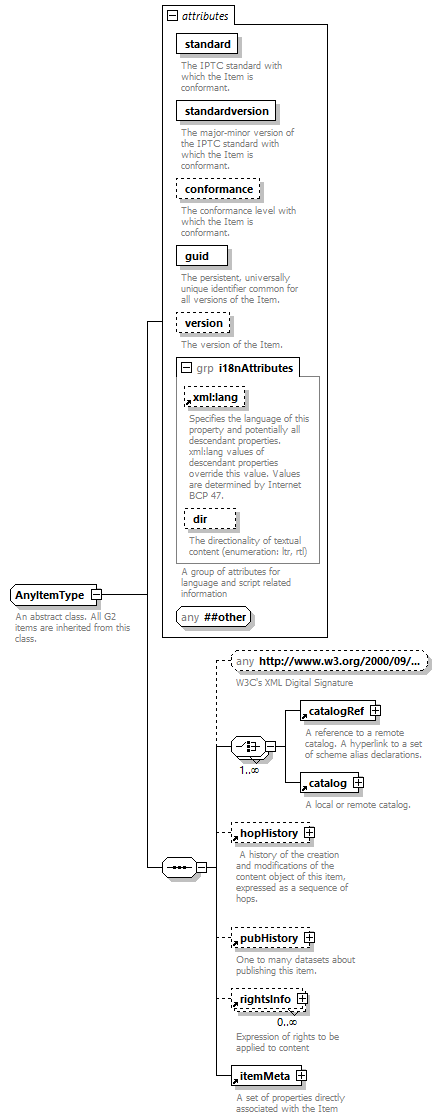

type extension of AnyItemType
properties
content complex
children catalogRef catalog hopHistory pubHistory rightsInfo itemMeta contentMeta partMeta assert inlineRef derivedFrom derivedFromValue contentSet
attributes
Name  Type  Use  Default  Fixed  Annotation
standard  xs:string  required
documentation
The IPTC standard with which the Item is conformant.
standardversion  derived by: xs:string  required
documentation
The major-minor version of the IPTC standard with which the Item is conformant.
conformance  xs:string  optional  core
documentation
The conformance level with which the Item is conformant.
guid  xs:string  required
documentation
The persistent, universally unique identifier common for all versions of the Item.
version  xs:positiveInteger  optional  1
documentation
The version of the Item.
xml:lang  derived by: xs:language  optional
documentation
Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47.
dir  derived by: xs:NMTOKEN  optional
documentation
The directionality of textual content (enumeration: ltr, rtl)
annotation
documentation
An Item containing news-related information
source <xs:element name="newsItem">

<xs:annotation>

<xs:documentation>An Item containing news-related information</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="AnyItemType">

<xs:sequence>

<xs:element name="contentMeta" type="ContentMetadataAfDType" minOccurs="0">

<xs:annotation>

<xs:documentation>A set of properties about the content</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element ref="partMeta" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="assert" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="inlineRef" minOccurs="0" maxOccurs="unbounded"/>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="derivedFrom"/>

<xs:element ref="derivedFromValue"/>

</xs:choice>

<xs:element ref="contentSet" minOccurs="0"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

element newsItem/contentMeta

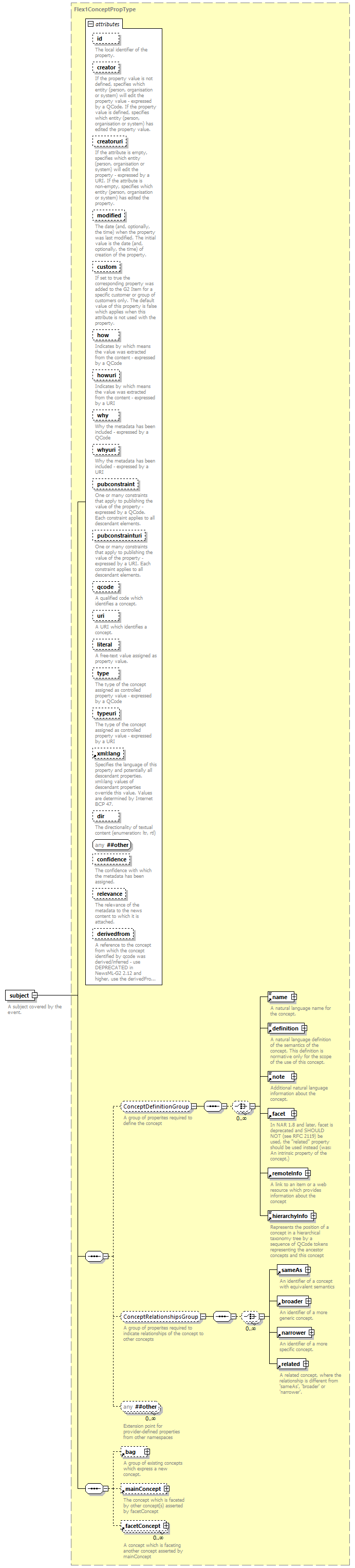

diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p6.png
namespace http://iptc.org/std/nar/2006-10-01/
type ContentMetadataAfDType
properties
minOcc 0
maxOcc 1
content complex
children icon urgency contentCreated contentModified located infoSource creator contributor audience exclAudience altId rating userInteraction language genre keyword subject slugline headline dateline by creditline description contentMetaExtProperty
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the property.
creator  QCodeType  optional
documentation
If the property value is not defined, specifies which entity (person, organisation or system) will edit the property value - expressed by a QCode. If the property value is defined, specifies which entity (person, organisation or system) has edited the property value.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
pubconstraint  QCodeListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi  IRIListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
xml:lang  derived by: xs:language  optional
documentation
Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47.
dir  derived by: xs:NMTOKEN  optional
documentation
The directionality of textual content (enumeration: ltr, rtl)
annotation
documentation
A set of properties about the content
source <xs:element name="contentMeta" type="ContentMetadataAfDType" minOccurs="0">

<xs:annotation>

<xs:documentation>A set of properties about the content</xs:documentation>

</xs:annotation>
</xs:element>

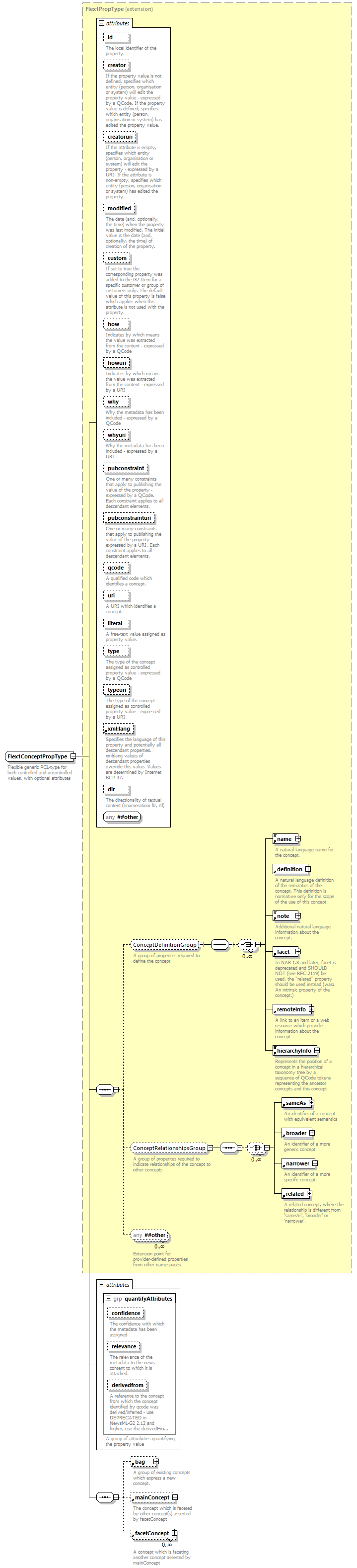

complexType RemoteContentPropType

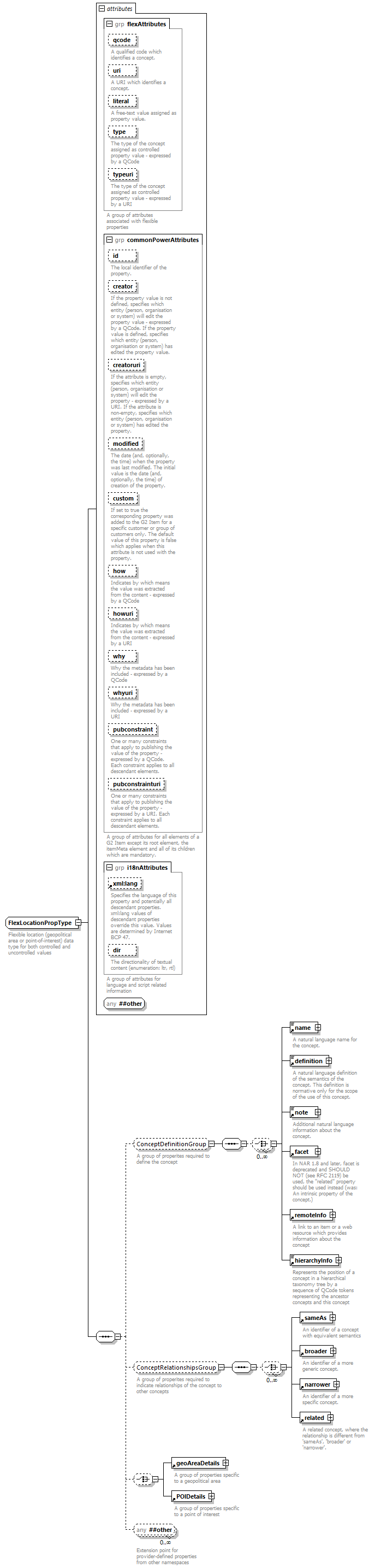

diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p7.png
namespace http://iptc.org/std/nar/2006-10-01/
children channel altId altLoc hash signal remoteContentExtProperty
used by
element contentSet/remoteContent
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the element which MUST be persistent for all versions of the item, i.e. for its entire lifecycle.
creator  QCodeType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
rendition  QCodeType  optional
documentation
The specific rendition of content this component represents - expressed by a QCode
renditionuri  IRIType  optional
documentation
The specific rendition of content this component represents - expressed by a URI
generator  xs:string  optional
documentation
The name and version of the software tool used to generate the content
generated  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the content was generated
hascontent  xs:boolean  optional
documentation
Indicates if the digital data of this rendition is available or not.
href  IRIType  optional
documentation
The locator of the target resource.
residref  xs:string  optional
documentation
The  provider’s identifier of the target resource.
version  xs:positiveInteger  optional
documentation
The version of the target resource. By default, the latest revision is retrieved when the link is activated.
persistidref  xs:string  optional
documentation
Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8)
contenttype  xs:string  optional
documentation
The IANA (Internet Assigned Numbers Authority) MIME type of the target resource.
contenttypestandardversion  xs:string  optional
documentation
Version of the standard identified by contenttype.
contenttypevariant  xs:string  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) by a literal string value.
contenttypevariantstandardversion  xs:string  optional
documentation
Version of the standard identified by contenttypevariant.
format  QCodeType  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) by a value from a controlled vocabulary - expressed by a QCode
formaturi  IRIType  optional
documentation
A refinement of a generic content type (i.e. IANA MIME type) by a value from a controlled vocabulary - expressed by a URI
formatstandardversion  xs:string  optional
documentation
Version of the standard identified by the format.
size  xs:nonNegativeInteger  optional
documentation
The size in bytes of the target resource.
title  xs:string  optional
documentation
A short natural language name for the target resource.
validfrom  DateOptTimeType  optional
documentation
The date (and, optionally, the time) before which a relationship is not valid.
validto  DateOptTimeType  optional
documentation
The date (and, optionally, the time) after which a relationship is not valid.
charcount  xs:nonNegativeInteger  optional
documentation
The count of characters of textual content.
wordcount  xs:nonNegativeInteger  optional
documentation
The count of words of textual content.
linecount  xs:nonNegativeInteger  optional
documentation
The count of lines of textual content
pagecount  xs:nonNegativeInteger  optional
documentation
The count of pages of the content
width  xs:nonNegativeInteger  optional
documentation
The image width for visual content.
widthunit  QCodeType  optional
documentation
If present defines the width unit for the width - expressed by a QCode
widthunituri  IRIType  optional
documentation
If present defines the width unit for the width - expressed by a URI
height  xs:nonNegativeInteger  optional
documentation
The height of visual content.
heightunit  QCodeType  optional
documentation
If present defines the height unit for the heigth - expressed by a QCode
heightunituri  IRIType  optional
documentation
If present defines the height unit for the heigth - expressed by a URI
orientation  xs:nonNegativeInteger  optional
documentation
The orientation of the visual content of an image in regard to the standard rendition of the digital image data
layoutorientation  QCodeType  optional
documentation
Indicates whether the human interpretation of the top of the image is aligned to its short or long side - expressed by a QCode
layoutorientationuri  IRIType  optional
documentation
Indicates whether the human interpretation of the top of the image is aligned to its short or long side - expressed by a URI
colourspace  QCodeType  optional
documentation
The colour space of an image - expressed by a QCode
colourspaceuri  IRIType  optional
documentation
The colour space of an image - expressed by a URI
colourindicator  QCodeType  optional
documentation
Indicates whether the still or moving image is coloured or black and white. The recommended vocabulary is the IPTC Colour Indicator NewsCodes http://cv.iptc.org/newscodes/colourindicator/  - expressed by a QCode
colourindicatoruri  IRIType  optional
documentation
Indicates whether the still or moving image is coloured or black and white. The recommended vocabulary is the IPTC Colour Indicator NewsCodes http://cv.iptc.org/newscodes/colourindicator/  - expressed by a URI
colourdepth  xs:nonNegativeInteger  optional
documentation
The bit depth defining the spread of colour data within each sample.
resolution  xs:positiveInteger  optional
documentation
The recommended printing resolution for an image in dots per inch
duration  xs:string  optional
documentation
The clip duration in time units defined by durationUnit. The default time unit is seconds. Applies to audio-visual content.
durationunit  QCodeType  optional
documentation
If present it defines the time unit for the duration attribute. Only codes for integer value time units of the recommended CV (available at http://cv.iptc.org/newscodes/timeunit/ )  must be applied - expressed by a QCode
durationunituri  IRIType  optional
documentation
If present it defines the time unit for the duration attribute. Only codes for integer value time units of the recommended CV (available at http://cv.iptc.org/newscodes/timeunit/ )  must be applied - expressed by a URI
audiocodec  QCodeType  optional
documentation
The applicable codec for audio data - expressed by a QCode
audiocodecuri  IRIType  optional
documentation
The applicable codec for audio data - expressed by a URI
audiobitrate  xs:positiveInteger  optional
documentation
The audio bit rate in  bits per second
audiovbr  xs:boolean  optional
documentation
An indication that the audio data is encoded with a variable bit rate
audiosamplesize  xs:positiveInteger  optional
documentation
The number of bits per audio sample
audiosamplerate  xs:positiveInteger  optional
documentation
The number of audio samples per second, expressed as a sampling frequency in Hz
audiochannels  QCodeType  optional
documentation
The audio sound system - expressed by a QCode
audiochannelsuri  IRIType  optional
documentation
The audio sound system - expressed by a URI
videocodec  QCodeType  optional
documentation
The applicable codec for video data - expressed by a QCode
videocodecuri  IRIType  optional
documentation
The applicable codec for video data - expressed by a URI
videoavgbitrate  xs:positiveInteger  optional
documentation
The video average bit rate in bits per second. Used when the bit rate is variable
videovbr  xs:boolean  optional
documentation
An indication that video data is encoded with a variable bit rate
videoframerate  xs:decimal  optional
documentation
The number of video frames per second, i.e. the rate at which the material should be shown in order to achieve the intended visual effect
videoscan  derived by: xs:string  optional
documentation
The video scan technique, progressive or interlaced
videoaspectratio  g2normalizedString  optional
documentation
The video aspect ratio
videosampling  g2normalizedString  optional
documentation
The video sampling method
videoscaling  QCodeType  optional
documentation
Indicates how the original content was scaled to this format - expressed by a QCode. The recommended vocabulary is the IPTC Video Scaling NewsCodes http://cv.iptc.org/newscodes/videoscaling/
videoscalinguri  IRIType  optional
documentation
Indicates how the original content was scaled to this format - expressed by a URI. The recommended vocabulary is the IPTC Video Scaling NewsCodes http://cv.iptc.org/newscodes/videoscaling/
videodefinition  QCodeType  optional
documentation
Indicates which video definition is applied to this rendition of video content - expressed by a QCode - but it does not imply any particular technical characteristics of the video.The recommended vocabulary is the IPTC Video Definition NewsCodes http://cv.iptc.org/newscodes/videodefinition/
videodefinitionuri  IRIType  optional
documentation
Indicates which video definition is applied to this rendition of video content - expressed by a URI - but it does not imply any particular technical characteristics of the video.The recommended vocabulary is the IPTC Video Definition NewsCodes http://cv.iptc.org/newscodes/videodefinition/
language  xs:language
documentation
The language of the remote content
annotation
documentation
A type representing the structure of the remoteContent property
source <xs:complexType name="RemoteContentPropType">

<xs:annotation>

<xs:documentation> A type representing the structure of the remoteContent property</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="channel" minOccurs="0" maxOccurs="unbounded">

<xs:annotation>

<xs:documentation>Information about a specific content channel.</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:attributeGroup ref="commonPowerAttributes"/>

<xs:attribute name="chnlid" type="xs:positiveInteger">

<xs:annotation>

<xs:documentation>A logical identifier of the channel</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="type" type="QCodeType">

<xs:annotation>

<xs:documentation>The media type of the data conveyed by the channel - expressed by a QCode</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="typeuri" type="IRIType">

<xs:annotation>

<xs:documentation>The media type of the data conveyed by the channel - expressed by a URI</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="role" type="QCodeType">

<xs:annotation>

<xs:documentation>The role the data of this channel plays in the scope of  the full content - expressed by a QCode</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="roleuri" type="IRIType">

<xs:annotation>

<xs:documentation>The role the data of this channel plays in the scope of  the full content - expressed by a URI</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="language" type="xs:language">

<xs:annotation>

<xs:documentation>The  language associated with the content of the channel</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attributeGroup ref="newsContentCharacteristics"/>

<xs:attribute name="g2flag" type="xs:string" use="optional" fixed="RCONT">

<xs:annotation>

<xs:documentation>DO NOT USE this attribute, for G2 internal maintenance purposes only.</xs:documentation>

</xs:annotation>

</xs:attribute>

</xs:complexType>

</xs:element>

<!-- NAR-EV-1.3.5 : add altId to remoteContent-->

<xs:element ref="altId" minOccurs="0" maxOccurs="unbounded"/>

<!-- NAR-EV-1.3.4 : add altLoc to remoteContent-->

<xs:element ref="altLoc" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="hash" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="signal" minOccurs="0" maxOccurs="unbounded"/>

<xs:element name="remoteContentExtProperty" type="Flex2ExtPropType" minOccurs="0" maxOccurs="unbounded">

<xs:annotation>

<xs:documentation>Extension Property; the semantics are defined by the concept referenced by the rel attribute. The semantics of the Extension Property must have the same scope as the parent property.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">

<xs:annotation>

<xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>

</xs:annotation>

</xs:any>

</xs:sequence>

<xs:attributeGroup ref="newsContentAttributes"/>

<xs:attributeGroup ref="targetResourceAttributes"/>

<xs:attributeGroup ref="timeValidityAttributes"/>

<xs:attributeGroup ref="newsContentCharacteristics"/>

<xs:attribute name="language" type="xs:language">

<xs:annotation>

<xs:documentation>The language of the remote content</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:anyAttribute namespace="##other" processContents="lax"/>
</xs:complexType>

attribute RemoteContentPropType/@language
type xs:language
annotation
documentation
The language of the remote content
source <xs:attribute name="language" type="xs:language">

<xs:annotation>

<xs:documentation>The language of the remote content</xs:documentation>

</xs:annotation>
</xs:attribute>

element RemoteContentPropType/channel
diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p8.png
namespace http://iptc.org/std/nar/2006-10-01/
properties
minOcc 0
maxOcc unbounded
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the property.
creator  QCodeType  optional
documentation
If the property value is not defined, specifies which entity (person, organisation or system) will edit the property value - expressed by a QCode. If the property value is defined, specifies which entity (person, organisation or system) has edited the property value.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
pubconstraint  QCodeListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi  IRIListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
chnlid  xs:positiveInteger
documentation
A logical identifier of the channel
type  QCodeType
documentation
The media type of the data conveyed by the channel - expressed by a QCode
typeuri  IRIType
documentation
The media type of the data conveyed by the channel - expressed by a URI
role  QCodeType
documentation
The role the data of this channel plays in the scope of  the full content - expressed by a QCode
roleuri  IRIType
documentation
The role the data of this channel plays in the scope of  the full content - expressed by a URI
language  xs:language
documentation
The  language associated with the content of the channel
charcount  xs:nonNegativeInteger  optional
documentation
The count of characters of textual content.
wordcount  xs:nonNegativeInteger  optional
documentation
The count of words of textual content.
linecount  xs:nonNegativeInteger  optional
documentation
The count of lines of textual content
pagecount  xs:nonNegativeInteger  optional
documentation
The count of pages of the content
width  xs:nonNegativeInteger  optional
documentation
The image width for visual content.
widthunit  QCodeType  optional
documentation
If present defines the width unit for the width - expressed by a QCode
widthunituri  IRIType  optional
documentation
If present defines the width unit for the width - expressed by a URI
height  xs:nonNegativeInteger  optional
documentation
The height of visual content.
heightunit  QCodeType  optional
documentation
If present defines the height unit for the heigth - expressed by a QCode
heightunituri  IRIType  optional
documentation
If present defines the height unit for the heigth - expressed by a URI
orientation  xs:nonNegativeInteger  optional
documentation
The orientation of the visual content of an image in regard to the standard rendition of the digital image data
layoutorientation  QCodeType  optional
documentation
Indicates whether the human interpretation of the top of the image is aligned to its short or long side - expressed by a QCode
layoutorientationuri  IRIType  optional
documentation
Indicates whether the human interpretation of the top of the image is aligned to its short or long side - expressed by a URI
colourspace  QCodeType  optional
documentation
The colour space of an image - expressed by a QCode
colourspaceuri  IRIType  optional
documentation
The colour space of an image - expressed by a URI
colourindicator  QCodeType  optional
documentation
Indicates whether the still or moving image is coloured or black and white. The recommended vocabulary is the IPTC Colour Indicator NewsCodes http://cv.iptc.org/newscodes/colourindicator/  - expressed by a QCode
colourindicatoruri  IRIType  optional
documentation
Indicates whether the still or moving image is coloured or black and white. The recommended vocabulary is the IPTC Colour Indicator NewsCodes http://cv.iptc.org/newscodes/colourindicator/  - expressed by a URI
colourdepth  xs:nonNegativeInteger  optional
documentation
The bit depth defining the spread of colour data within each sample.
resolution  xs:positiveInteger  optional
documentation
The recommended printing resolution for an image in dots per inch
duration  xs:string  optional
documentation
The clip duration in time units defined by durationUnit. The default time unit is seconds. Applies to audio-visual content.
durationunit  QCodeType  optional
documentation
If present it defines the time unit for the duration attribute. Only codes for integer value time units of the recommended CV (available at http://cv.iptc.org/newscodes/timeunit/ )  must be applied - expressed by a QCode
durationunituri  IRIType  optional
documentation
If present it defines the time unit for the duration attribute. Only codes for integer value time units of the recommended CV (available at http://cv.iptc.org/newscodes/timeunit/ )  must be applied - expressed by a URI
audiocodec  QCodeType  optional
documentation
The applicable codec for audio data - expressed by a QCode
audiocodecuri  IRIType  optional
documentation
The applicable codec for audio data - expressed by a URI
audiobitrate  xs:positiveInteger  optional
documentation
The audio bit rate in  bits per second
audiovbr  xs:boolean  optional
documentation
An indication that the audio data is encoded with a variable bit rate
audiosamplesize  xs:positiveInteger  optional
documentation
The number of bits per audio sample
audiosamplerate  xs:positiveInteger  optional
documentation
The number of audio samples per second, expressed as a sampling frequency in Hz
audiochannels  QCodeType  optional
documentation
The audio sound system - expressed by a QCode
audiochannelsuri  IRIType  optional
documentation
The audio sound system - expressed by a URI
videocodec  QCodeType  optional
documentation
The applicable codec for video data - expressed by a QCode
videocodecuri  IRIType  optional
documentation
The applicable codec for video data - expressed by a URI
videoavgbitrate  xs:positiveInteger  optional
documentation
The video average bit rate in bits per second. Used when the bit rate is variable
videovbr  xs:boolean  optional
documentation
An indication that video data is encoded with a variable bit rate
videoframerate  xs:decimal  optional
documentation
The number of video frames per second, i.e. the rate at which the material should be shown in order to achieve the intended visual effect
videoscan  derived by: xs:string  optional
documentation
The video scan technique, progressive or interlaced
videoaspectratio  g2normalizedString  optional
documentation
The video aspect ratio
videosampling  g2normalizedString  optional
documentation
The video sampling method
videoscaling  QCodeType  optional
documentation
Indicates how the original content was scaled to this format - expressed by a QCode. The recommended vocabulary is the IPTC Video Scaling NewsCodes http://cv.iptc.org/newscodes/videoscaling/
videoscalinguri  IRIType  optional
documentation
Indicates how the original content was scaled to this format - expressed by a URI. The recommended vocabulary is the IPTC Video Scaling NewsCodes http://cv.iptc.org/newscodes/videoscaling/
videodefinition  QCodeType  optional
documentation
Indicates which video definition is applied to this rendition of video content - expressed by a QCode - but it does not imply any particular technical characteristics of the video.The recommended vocabulary is the IPTC Video Definition NewsCodes http://cv.iptc.org/newscodes/videodefinition/
videodefinitionuri  IRIType  optional
documentation
Indicates which video definition is applied to this rendition of video content - expressed by a URI - but it does not imply any particular technical characteristics of the video.The recommended vocabulary is the IPTC Video Definition NewsCodes http://cv.iptc.org/newscodes/videodefinition/
g2flag  xs:string  optional    RCONT
documentation
DO NOT USE this attribute, for G2 internal maintenance purposes only.
annotation
documentation
Information about a specific content channel.
source <xs:element name="channel" minOccurs="0" maxOccurs="unbounded">

<xs:annotation>

<xs:documentation>Information about a specific content channel.</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:attributeGroup ref="commonPowerAttributes"/>

<xs:attribute name="chnlid" type="xs:positiveInteger">

<xs:annotation>

<xs:documentation>A logical identifier of the channel</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="type" type="QCodeType">

<xs:annotation>

<xs:documentation>The media type of the data conveyed by the channel - expressed by a QCode</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="typeuri" type="IRIType">

<xs:annotation>

<xs:documentation>The media type of the data conveyed by the channel - expressed by a URI</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="role" type="QCodeType">

<xs:annotation>

<xs:documentation>The role the data of this channel plays in the scope of  the full content - expressed by a QCode</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="roleuri" type="IRIType">

<xs:annotation>

<xs:documentation>The role the data of this channel plays in the scope of  the full content - expressed by a URI</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="language" type="xs:language">

<xs:annotation>

<xs:documentation>The  language associated with the content of the channel</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attributeGroup ref="newsContentCharacteristics"/>

<xs:attribute name="g2flag" type="xs:string" use="optional" fixed="RCONT">

<xs:annotation>

<xs:documentation>DO NOT USE this attribute, for G2 internal maintenance purposes only.</xs:documentation>

</xs:annotation>

</xs:attribute>

</xs:complexType>
</xs:element>

attribute RemoteContentPropType/channel/@chnlid
type xs:positiveInteger
annotation
documentation
A logical identifier of the channel
source <xs:attribute name="chnlid" type="xs:positiveInteger">

<xs:annotation>

<xs:documentation>A logical identifier of the channel</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute RemoteContentPropType/channel/@type
type QCodeType
facets
Kind Value Annotation
pattern [^\s:]+:[^\s]+
annotation
documentation
The media type of the data conveyed by the channel - expressed by a QCode
source <xs:attribute name="type" type="QCodeType">

<xs:annotation>

<xs:documentation>The media type of the data conveyed by the channel - expressed by a QCode</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute RemoteContentPropType/channel/@typeuri
type IRIType
annotation
documentation
The media type of the data conveyed by the channel - expressed by a URI
source <xs:attribute name="typeuri" type="IRIType">

<xs:annotation>

<xs:documentation>The media type of the data conveyed by the channel - expressed by a URI</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute RemoteContentPropType/channel/@role
type QCodeType
facets
Kind Value Annotation
pattern [^\s:]+:[^\s]+
annotation
documentation
The role the data of this channel plays in the scope of  the full content - expressed by a QCode
source <xs:attribute name="role" type="QCodeType">

<xs:annotation>

<xs:documentation>The role the data of this channel plays in the scope of  the full content - expressed by a QCode</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute RemoteContentPropType/channel/@roleuri
type IRIType
annotation
documentation
The role the data of this channel plays in the scope of  the full content - expressed by a URI
source <xs:attribute name="roleuri" type="IRIType">

<xs:annotation>

<xs:documentation>The role the data of this channel plays in the scope of  the full content - expressed by a URI</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute RemoteContentPropType/channel/@language
type xs:language
annotation
documentation
The  language associated with the content of the channel
source <xs:attribute name="language" type="xs:language">

<xs:annotation>

<xs:documentation>The  language associated with the content of the channel</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute RemoteContentPropType/channel/@g2flag
type xs:string
properties
use optional
fixed RCONT
annotation
documentation
DO NOT USE this attribute, for G2 internal maintenance purposes only.
source <xs:attribute name="g2flag" type="xs:string" use="optional" fixed="RCONT">

<xs:annotation>

<xs:documentation>DO NOT USE this attribute, for G2 internal maintenance purposes only.</xs:documentation>

</xs:annotation>
</xs:attribute>

element RemoteContentPropType/remoteContentExtProperty
diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p9.png
namespace http://iptc.org/std/nar/2006-10-01/
type Flex2ExtPropType
properties
minOcc 0
maxOcc unbounded
content complex
children name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the property.
creator  QCodeType  optional
documentation
If the property value is not defined, specifies which entity (person, organisation or system) will edit the property value - expressed by a QCode. If the property value is defined, specifies which entity (person, organisation or system) has edited the property value.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
pubconstraint  QCodeListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi  IRIListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
qcode  QCodeType  optional
documentation
A qualified code which identifies a concept.
uri  IRIType  optional
documentation
A URI which identifies a concept.
literal  g2normalizedString  optional
documentation
A free-text value assigned as property value.
type  QCodeType  optional
documentation
The type of the concept assigned as controlled property value - expressed by a QCode
typeuri  IRIType  optional
documentation
The type of the concept assigned as controlled property value - expressed by a URI
xml:lang  derived by: xs:language  optional
documentation
Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47.
dir  derived by: xs:NMTOKEN  optional
documentation
The directionality of textual content (enumeration: ltr, rtl)
value  xs:string  optional
documentation
The related value (see more in the spec document)
valuedatatype  xs:QName  optional
documentation
The datatype of the value attribute – it MUST be one of the built-in datatypes defined by XML Schema version 1.0.
valueunit  QCodeType  optional
documentation
The unit of the value attribute.
valueunituri  IRIType  optional
documentation
The unit of the value attribute - expressed by a URI
rel  QCodeType
documentation
The identifier of a concept defining the semantics of this property - expressed by a QCode / either the rel or the reluri attribute MUST be used
reluri  IRIType
documentation
The identifier of a concept defining the semantics of this property - expressed by a URI / either the rel or the reluri attribute MUST be used
validfrom  DateOptTimeType  optional
documentation
The date (and, optionally, the time) before which a relationship is not valid.
validto  DateOptTimeType  optional
documentation
The date (and, optionally, the time) after which a relationship is not valid.
annotation
documentation
Extension Property; the semantics are defined by the concept referenced by the rel attribute. The semantics of the Extension Property must have the same scope as the parent property.
source <xs:element name="remoteContentExtProperty" type="Flex2ExtPropType" minOccurs="0" maxOccurs="unbounded">

<xs:annotation>

<xs:documentation>Extension Property; the semantics are defined by the concept referenced by the rel attribute. The semantics of the Extension Property must have the same scope as the parent property.</xs:documentation>

</xs:annotation>
</xs:element>

attributeGroup newsContentAttributes
namespace http://iptc.org/std/nar/2006-10-01/
used by
elements contentSet/inlineData contentSet/inlineXML
complexType RemoteContentPropType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the element which MUST be persistent for all versions of the item, i.e. for its entire lifecycle.
creator  QCodeType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
rendition  QCodeType  optional
documentation
The specific rendition of content this component represents - expressed by a QCode
renditionuri  IRIType  optional
documentation
The specific rendition of content this component represents - expressed by a URI
generator  xs:string  optional
documentation
The name and version of the software tool used to generate the content
generated  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the content was generated
hascontent  xs:boolean  optional
documentation
Indicates if the digital data of this rendition is available or not.
annotation
documentation
A group of typical attributes associated with a content rendition
source <xs:attributeGroup name="newsContentAttributes">

<xs:annotation>

<xs:documentation>A group of typical attributes associated with a content rendition</xs:documentation>

</xs:annotation>

<xs:attribute name="id" type="xs:ID" use="optional">

<xs:annotation>

<xs:documentation>The local identifier of the element which MUST be persistent for all versions of the item, i.e. for its entire lifecycle.</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="creator" type="QCodeType" use="optional">

<xs:annotation>

<xs:documentation>If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="creatoruri" type="IRIType" use="optional">

<xs:annotation>

<xs:documentation>If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="modified" type="DateOptTimeType" use="optional">

<xs:annotation>

<xs:documentation>The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="custom" type="xs:boolean" use="optional">

<xs:annotation>

<xs:documentation>If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="how" type="QCodeType" use="optional">

<xs:annotation>

<xs:documentation>Indicates by which means the value was extracted from the content - expressed by a QCode</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="howuri" type="IRIType" use="optional">

<xs:annotation>

<xs:documentation>Indicates by which means the value was extracted from the content - expressed by a URI </xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="why" type="QCodeType" use="optional">

<xs:annotation>

<xs:documentation>Why the metadata has been included - expressed by a QCode</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="whyuri" type="IRIType" use="optional">

<xs:annotation>

<xs:documentation>Why the metadata has been included - expressed by a URI</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="rendition" type="QCodeType" use="optional">

<xs:annotation>

<xs:documentation>The specific rendition of content this component represents - expressed by a QCode</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="renditionuri" type="IRIType" use="optional">

<xs:annotation>

<xs:documentation>The specific rendition of content this component represents - expressed by a URI</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="generator" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>The name and version of the software tool used to generate the content</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="generated" type="DateOptTimeType" use="optional">

<xs:annotation>

<xs:documentation>The date (and, optionally, the time) when the content was generated</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="hascontent" type="xs:boolean" use="optional">

<xs:annotation>

<xs:documentation>Indicates if the digital data of this rendition is available or not. </xs:documentation>

</xs:annotation>

</xs:attribute>
</xs:attributeGroup>

attribute newsContentAttributes/@id
type xs:ID
properties
use optional
annotation
documentation
The local identifier of the element which MUST be persistent for all versions of the item, i.e. for its entire lifecycle.
source <xs:attribute name="id" type="xs:ID" use="optional">

<xs:annotation>

<xs:documentation>The local identifier of the element which MUST be persistent for all versions of the item, i.e. for its entire lifecycle.</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@creator
type QCodeType
properties
use optional
facets
Kind Value Annotation
pattern [^\s:]+:[^\s]+
annotation
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
source <xs:attribute name="creator" type="QCodeType" use="optional">

<xs:annotation>

<xs:documentation>If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a QCode. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@creatoruri
type IRIType
properties
use optional
annotation
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
source <xs:attribute name="creatoruri" type="IRIType" use="optional">

<xs:annotation>

<xs:documentation>If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@modified
type DateOptTimeType
properties
use optional
annotation
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
source <xs:attribute name="modified" type="DateOptTimeType" use="optional">

<xs:annotation>

<xs:documentation>The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@custom
type xs:boolean
properties
use optional
annotation
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
source <xs:attribute name="custom" type="xs:boolean" use="optional">

<xs:annotation>

<xs:documentation>If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@how
type QCodeType
properties
use optional
facets
Kind Value Annotation
pattern [^\s:]+:[^\s]+
annotation
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
source <xs:attribute name="how" type="QCodeType" use="optional">

<xs:annotation>

<xs:documentation>Indicates by which means the value was extracted from the content - expressed by a QCode</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@howuri
type IRIType
properties
use optional
annotation
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
source <xs:attribute name="howuri" type="IRIType" use="optional">

<xs:annotation>

<xs:documentation>Indicates by which means the value was extracted from the content - expressed by a URI </xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@why
type QCodeType
properties
use optional
facets
Kind Value Annotation
pattern [^\s:]+:[^\s]+
annotation
documentation
Why the metadata has been included - expressed by a QCode
source <xs:attribute name="why" type="QCodeType" use="optional">

<xs:annotation>

<xs:documentation>Why the metadata has been included - expressed by a QCode</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@whyuri
type IRIType
properties
use optional
annotation
documentation
Why the metadata has been included - expressed by a URI
source <xs:attribute name="whyuri" type="IRIType" use="optional">

<xs:annotation>

<xs:documentation>Why the metadata has been included - expressed by a URI</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@rendition
type QCodeType
properties
use optional
facets
Kind Value Annotation
pattern [^\s:]+:[^\s]+
annotation
documentation
The specific rendition of content this component represents - expressed by a QCode
source <xs:attribute name="rendition" type="QCodeType" use="optional">

<xs:annotation>

<xs:documentation>The specific rendition of content this component represents - expressed by a QCode</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@renditionuri
type IRIType
properties
use optional
annotation
documentation
The specific rendition of content this component represents - expressed by a URI
source <xs:attribute name="renditionuri" type="IRIType" use="optional">

<xs:annotation>

<xs:documentation>The specific rendition of content this component represents - expressed by a URI</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@generator
type xs:string
properties
use optional
annotation
documentation
The name and version of the software tool used to generate the content
source <xs:attribute name="generator" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>The name and version of the software tool used to generate the content</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@generated
type DateOptTimeType
properties
use optional
annotation
documentation
The date (and, optionally, the time) when the content was generated
source <xs:attribute name="generated" type="DateOptTimeType" use="optional">

<xs:annotation>

<xs:documentation>The date (and, optionally, the time) when the content was generated</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute newsContentAttributes/@hascontent
type xs:boolean
properties
use optional
annotation
documentation
Indicates if the digital data of this rendition is available or not.
source <xs:attribute name="hascontent" type="xs:boolean" use="optional">

<xs:annotation>

<xs:documentation>Indicates if the digital data of this rendition is available or not. </xs:documentation>

</xs:annotation>
</xs:attribute>

element a
diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p10.png
namespace http://iptc.org/std/nar/2006-10-01/
properties
content complex
mixed true
children inline span ruby
used by
complexTypes BlockType Label1Type
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the property.
creator  QCodeType  optional
documentation
If the property value is not defined, specifies which entity (person, organisation or system) will edit the property value - expressed by a QCode. If the property value is defined, specifies which entity (person, organisation or system) has edited the property value.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
pubconstraint  QCodeListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi  IRIListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
xml:lang  derived by: xs:language  optional
documentation
Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47.
dir  derived by: xs:NMTOKEN  optional
documentation
The directionality of textual content (enumeration: ltr, rtl)
class  xs:string  optional
documentation
An equivalent of the html class attribute
href  IRIType  optional
documentation
An equivalent of the html href attribute
hreflang  xs:string  optional
documentation
An equivalent of the html hreflang attribute
rel  xs:string  optional
documentation
An equivalent of the html rel attribute
rev  xs:string  optional
documentation
An equivalent of the html rev attribute
annotation
documentation
An anchor for inline linking like in HTML
source <xs:element name="a">

<xs:annotation>

<xs:documentation>An anchor for inline linking like in HTML</xs:documentation>

</xs:annotation>

<xs:complexType mixed="true">

<xs:choice maxOccurs="unbounded">

<xs:element ref="inline"/>

<xs:element ref="span"/>

<xs:element ref="ruby"/>

<xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">

<xs:annotation>

<xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>

</xs:annotation>

</xs:any>

</xs:choice>

<xs:attributeGroup ref="commonPowerAttributes"/>

<xs:attributeGroup ref="i18nAttributes"/>

<xs:attribute name="class" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>An equivalent of the html class attribute</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="href" type="IRIType" use="optional">

<xs:annotation>

<xs:documentation>An equivalent of the html href attribute</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="hreflang" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>An equivalent of the html hreflang attribute</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="rel" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>An equivalent of the html rel attribute</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:attribute name="rev" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>An equivalent of the html rev attribute</xs:documentation>

</xs:annotation>

</xs:attribute>

<xs:anyAttribute namespace="##other" processContents="lax"/>

</xs:complexType>
</xs:element>

attribute a/@class
type xs:string
properties
use optional
annotation
documentation
An equivalent of the html class attribute
source <xs:attribute name="class" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>An equivalent of the html class attribute</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute a/@href
type IRIType
properties
use optional
annotation
documentation
An equivalent of the html href attribute
source <xs:attribute name="href" type="IRIType" use="optional">

<xs:annotation>

<xs:documentation>An equivalent of the html href attribute</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute a/@hreflang
type xs:string
properties
use optional
annotation
documentation
An equivalent of the html hreflang attribute
source <xs:attribute name="hreflang" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>An equivalent of the html hreflang attribute</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute a/@rel
type xs:string
properties
use optional
annotation
documentation
An equivalent of the html rel attribute
source <xs:attribute name="rel" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>An equivalent of the html rel attribute</xs:documentation>

</xs:annotation>
</xs:attribute>

attribute a/@rev
type xs:string
properties
use optional
annotation
documentation
An equivalent of the html rev attribute
source <xs:attribute name="rev" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>An equivalent of the html rev attribute</xs:documentation>

</xs:annotation>
</xs:attribute>

element accountable
diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p11.png
namespace http://iptc.org/std/nar/2006-10-01/
type FlexPersonPropType
properties
content complex
children name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails
used by
complexType RightsInfoType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the property.
creator  QCodeType  optional
documentation
If the property value is not defined, specifies which entity (person, organisation or system) will edit the property value - expressed by a QCode. If the property value is defined, specifies which entity (person, organisation or system) has edited the property value.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
pubconstraint  QCodeListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi  IRIListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
qcode  QCodeType  optional
documentation
A qualified code which identifies a concept.
uri  IRIType  optional
documentation
A URI which identifies a concept.
literal  g2normalizedString  optional
documentation
A free-text value assigned as property value.
type  QCodeType  optional
documentation
The type of the concept assigned as controlled property value - expressed by a QCode
typeuri  IRIType  optional
documentation
The type of the concept assigned as controlled property value - expressed by a URI
xml:lang  derived by: xs:language  optional
documentation
Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47.
dir  derived by: xs:NMTOKEN  optional
documentation
The directionality of textual content (enumeration: ltr, rtl)
annotation
documentation
An individual accountable for the content in legal terms.
source <xs:element name="accountable" type="FlexPersonPropType">

<xs:annotation>

<xs:documentation>An individual accountable for the content in legal terms.</xs:documentation>

</xs:annotation>
</xs:element>

element altId
diagram NewsML-G2_2.29-spec-NewsItem-Power_diagrams/NewsML-G2_2.29-spec-NewsItem-Power_p12.png
namespace http://iptc.org/std/nar/2006-10-01/
type extension of IntlStringType2
properties
content complex
used by
complexTypes ContentMetadataCatType RemoteContentPropType
group AdministrativeMetadataGroup
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xs:ID  optional
documentation
The local identifier of the property.
creator  QCodeType  optional
documentation
If the property value is not defined, specifies which entity (person, organisation or system) will edit the property value - expressed by a QCode. If the property value is defined, specifies which entity (person, organisation or system) has edited the property value.
creatoruri  IRIType  optional
documentation
If the attribute is empty, specifies which entity (person, organisation or system) will edit the property - expressed by a URI. If the attribute is non-empty, specifies which entity (person, organisation or system) has edited the property.
modified  DateOptTimeType  optional
documentation
The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
custom  xs:boolean  optional
documentation
If set to true the corresponding property was added to the G2 Item for a specific customer or group of customers only. The default value of this property is false which applies when this attribute is not used with the property.
how  QCodeType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a QCode
howuri  IRIType  optional
documentation
Indicates by which means the value was extracted from the content - expressed by a URI
why  QCodeType  optional
documentation
Why the metadata has been included - expressed by a QCode
whyuri  IRIType  optional
documentation
Why the metadata has been included - expressed by a URI
pubconstraint  QCodeListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a QCode. Each constraint applies to all descendant elements.
pubconstrainturi  IRIListType  optional
documentation
One or many constraints that apply to publishing the value of the property - expressed by a URI. Each constraint applies to all descendant elements.
xml:lang  derived by: xs:language  optional
documentation
Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47.
dir  derived by: xs:NMTOKEN  optional
documentation
The directionality of textual content (enumeration: ltr, rtl)
type  QCodeType  optional
documentation
A qualifier which indicates the context within which the alternative identifier has been allocated - expressed by a QCode
typeuri  IRIType  optional
documentation
A qualifier which indicates the context within which the alternative identifier has been allocated - expressed by a URI
environment  QCodeListType  optional
documentation
A qualifier which indicates the business environment in which the identifier can be used to access the content - expressed by a QCode
environmenturi  IRIListType  optional
documentation
A qualifier which indicates the business environment in which the identifier can be used to access the content - expressed by a URI
idformat  QCodeType
documentation
Indicates the format of the value of the element - expressed by a QCode
idformaturi  IRIType
documentation
Indicates the format of the value of the element - expressed by a URI
role  QCodeType
documentation
A refinement of what kind of alternative is provided by this identifier - expressed by a QCode
roleuri  IRIType
documentation
A refinement of what kind of alternative is provided by this identifier - expressed by an URI
version  xs:string
documentation
The version of the object identified by the alternative id.
annotation
documentation
An alternative identifier ass
