Schema NewsML-G2_2.9-spec-PackageItem-Power.xsd

schema location:	http://www.iptc.org/std/NewsML-G2/2.9/specification/individual/NewsML-G2_2.9-spec-PackageItem-Power.xsd
attribute form default:	unqualified
element form default:	qualified
targetNamespace:	http://iptc.org/std/nar/2006-10-01/

Elements

packageItem

schema location:	http://www.iptc.org/std/NewsML-G2/2.9/specification/individual/NewsML-G2_2.9-spec-Framework-Power.xsd
attribute form default:	unqualified
element form default:	qualified
targetNamespace:	http://iptc.org/std/nar/2006-10-01/

Elements	Groups	Complex types	Simple types	Attr. groups
a	AdministrativeMetadataGroup	AnyItemType	ByDayListType	arbitraryValueAttributes
accountable	ConceptDefinitionGroup	ApproximateDateTimePropType	ByHourListType	deprecatedLinkAttributes
altId	ConceptRelationshipsGroup	AssertType	ByMinuteListType	editAttributes
altLoc	DescriptiveMetadataCoreGroup	AudienceType	ByMonthDayListType	flexAttributes
altRep	DescriptiveMetadataGroup	BlockType	ByMonthListType	i18nAttributes
assert	EntityDetailsGroup	ConceptIdType	BySecondListType	mediaContentCharacteristics1

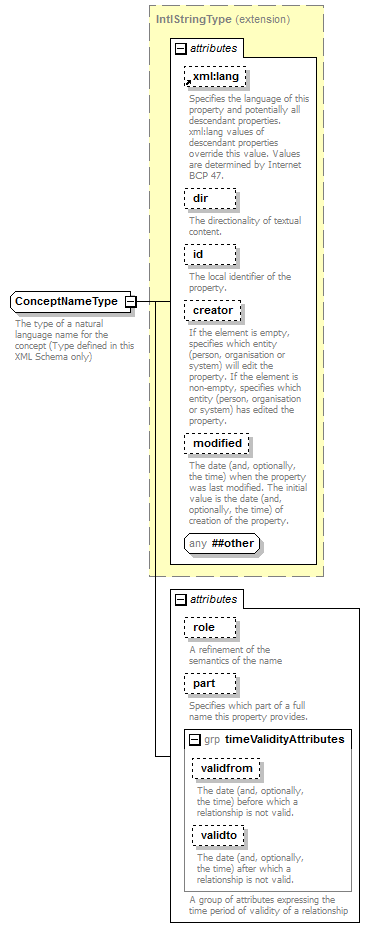

audience	ItemManagementGroup	ConceptNameType	BySetposListType	persistentEditAttributes
bag	RecurrenceGroup	ContactInfoType	ByWeekNoListType	qualifyingAttributes
br		ContentMetadataAcDType	ByYearDayListType	quantifyAttributes

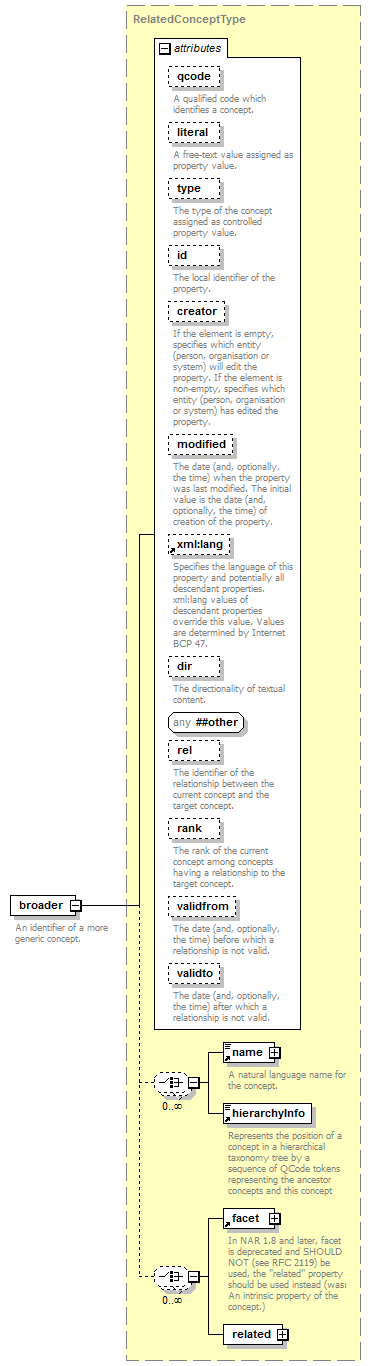

broader		ContentMetadataAfDType	DateOptTimeType	rankingAttributes
by		ContentMetadataType	EmptyStringType	recurrenceRuleAttributes
catalog		DateOptTimePropType	Int100Type	targetResourceAttributes
concept		DateTimeOrNullPropType	Int1to9Type	timeValidityAttributes
contentCreated		DateTimePropType	IRIType
contentModified		ElectronicAddressTechType	QCodeListType
contributor		ElectronicAddressType	QCodeType
copyrightHolder		Flex1ConceptPropType	TruncatedDateTimeType
copyrightNotice		Flex1ExtPropType	UnionDateTimeEmptyStringType
created		Flex1PartyPropType	UnionDateTimeType
creator		Flex1PropType
creditline		FlexAuthorPropType

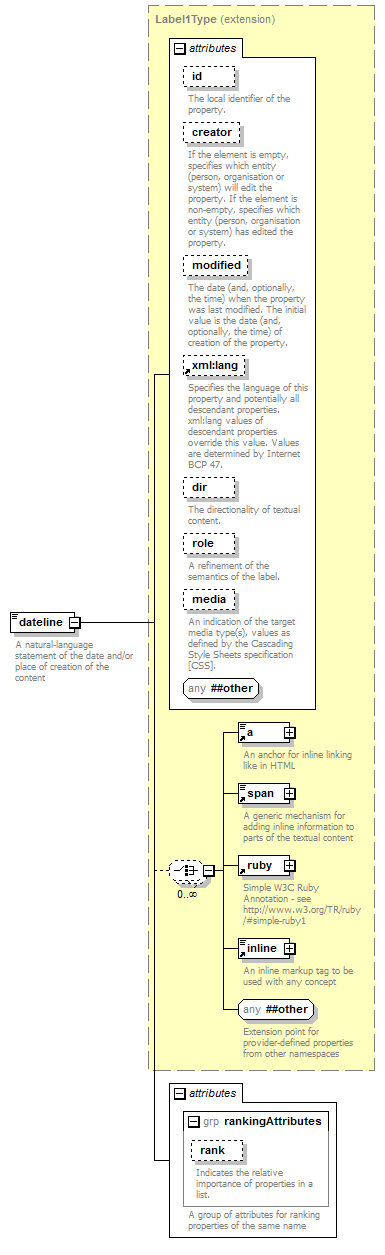

dateline		FlexGeoAreaPropType
definition		FlexLocationPropType

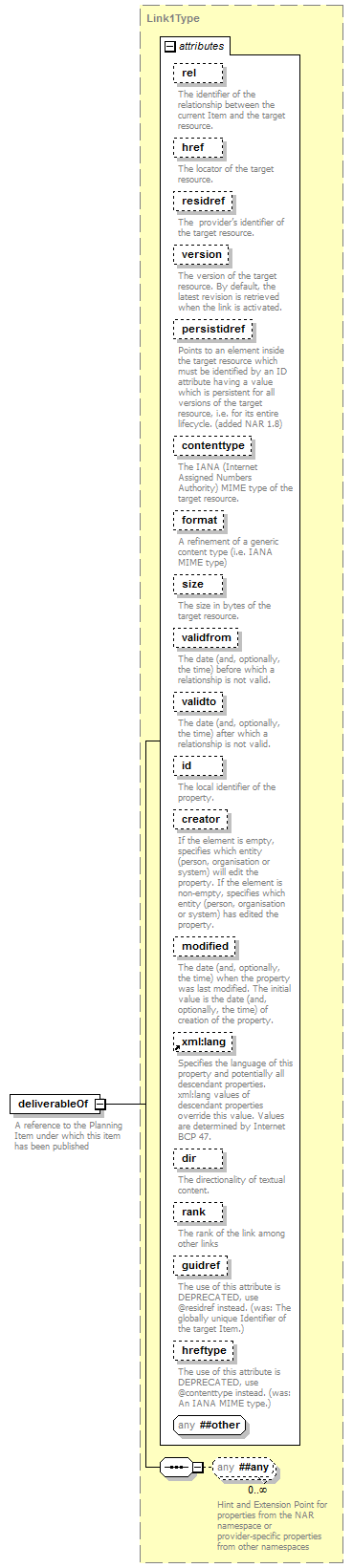

deliverableOf		FlexOrganisationPropType
delivery		FlexPartyPropType

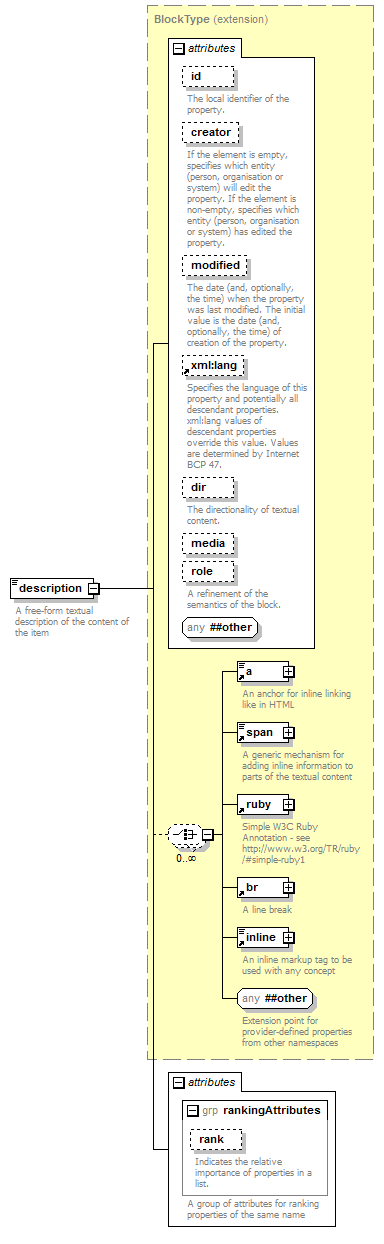

description		FlexPersonPropType
edNote		FlexPOIPropType
embargoed		FlexPropType

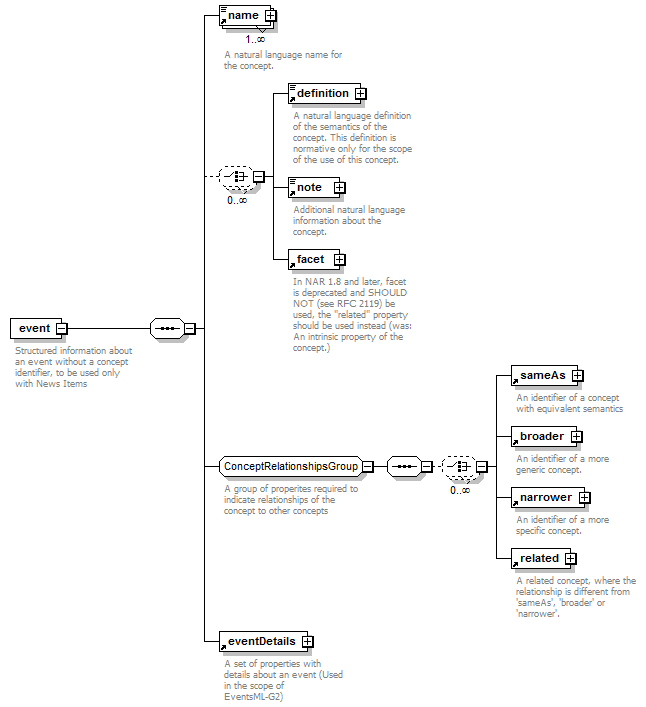

event		FlexRelatedConceptType

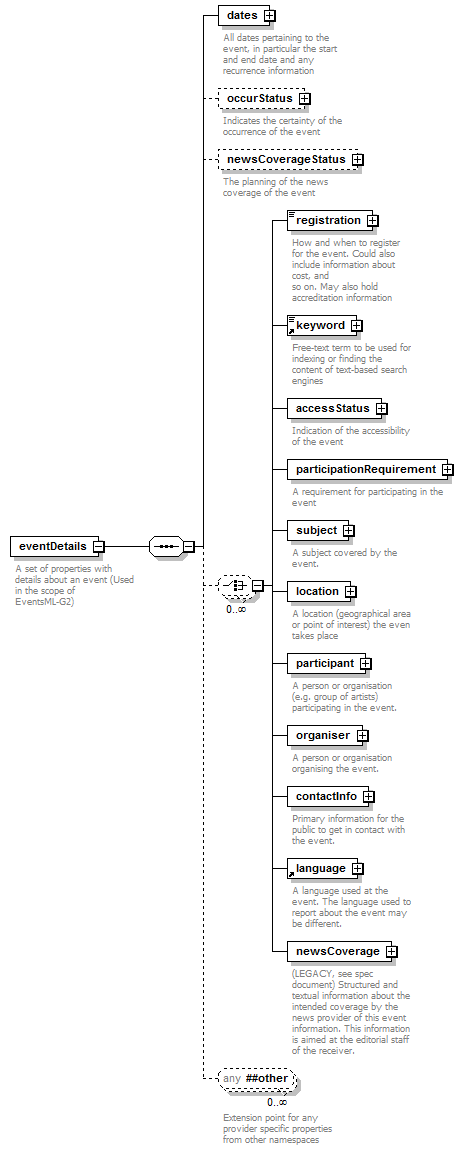

eventDetails		FlexRelatedPropType
events		GeoCoordinatesType
exclAudience		IntlStringType
facet		ItemMetadataType

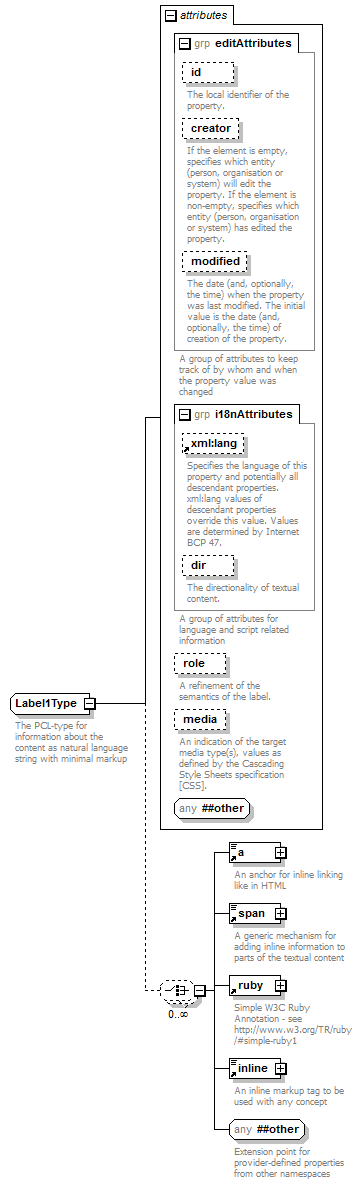

fileName		Label1Type
firstCreated		Link1Type
generator		OrganisationLocationType

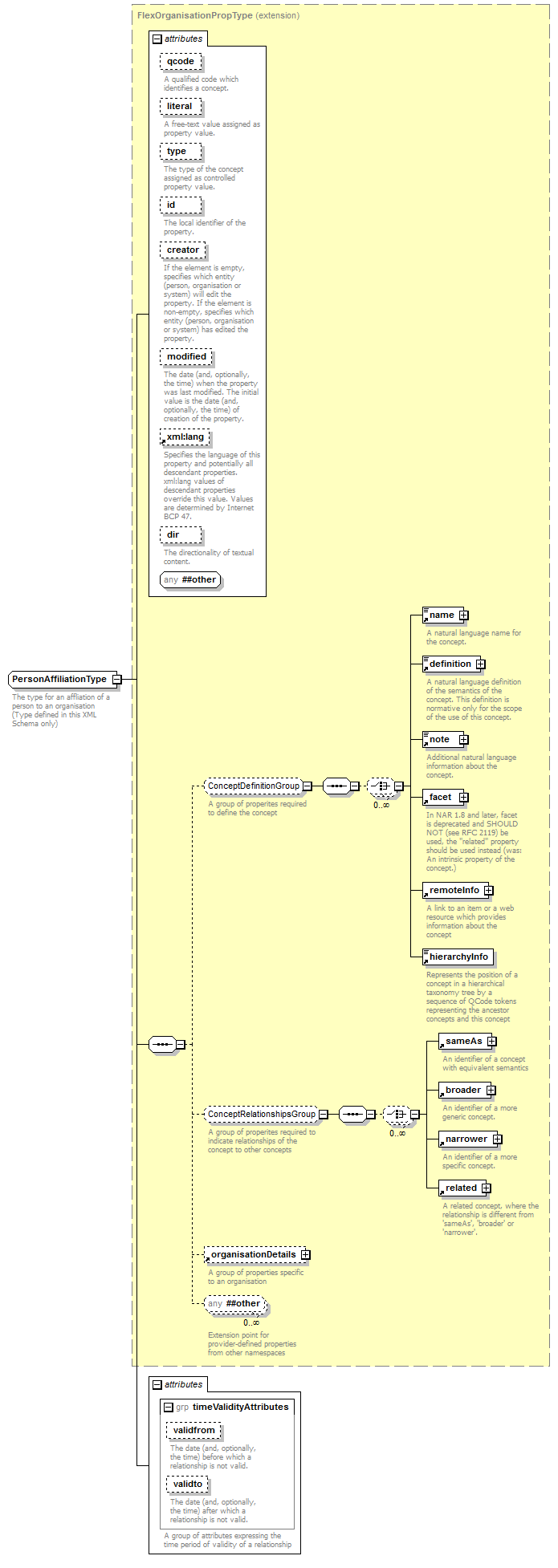

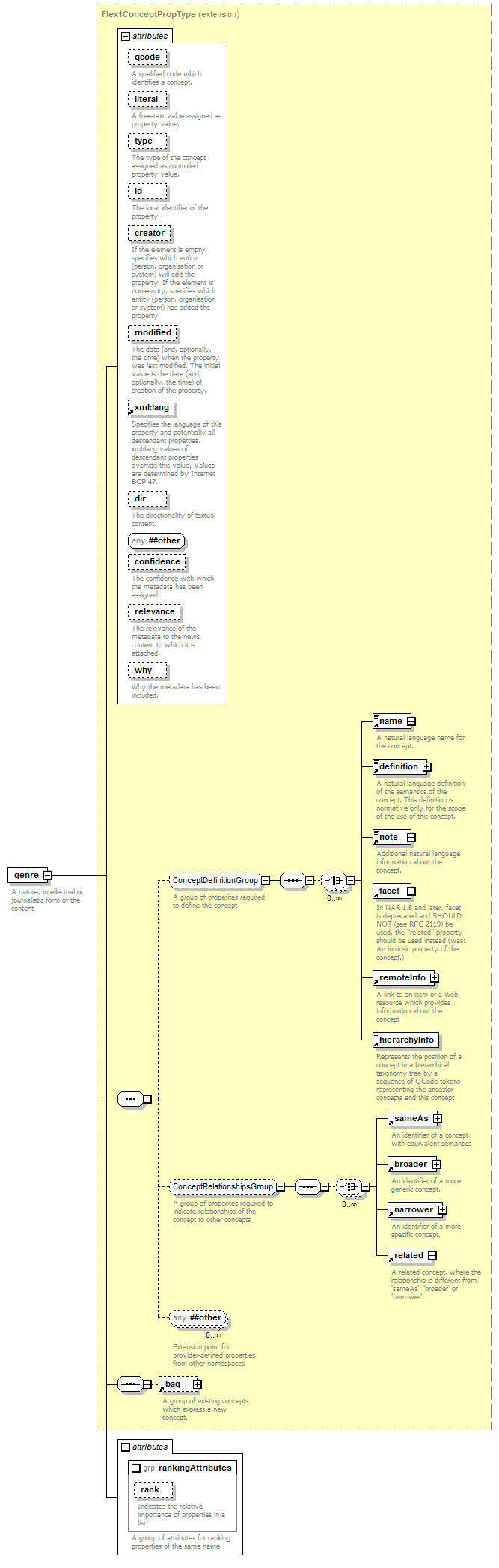

genre		PersonAffiliationType
geoAreaDetails		QCodePropType

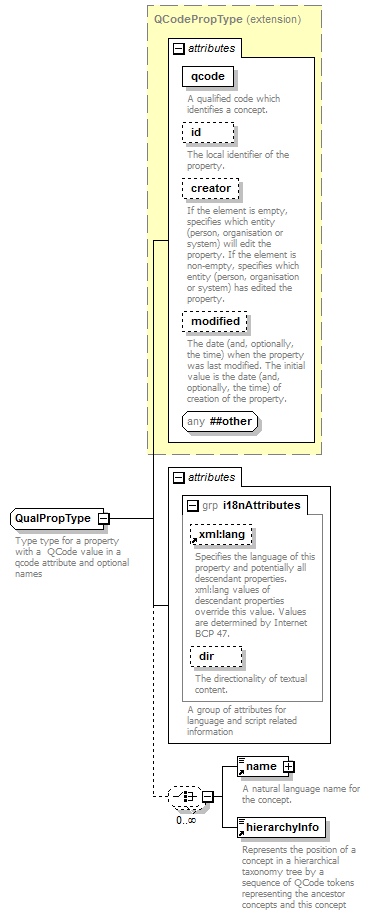

hash		QualPropType
headline		RelatedConceptType
hierarchyInfo		RightsBlockType

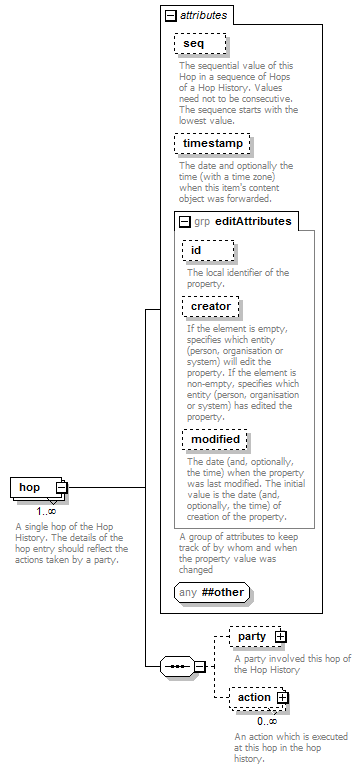

hopHistory		RightsInfoType

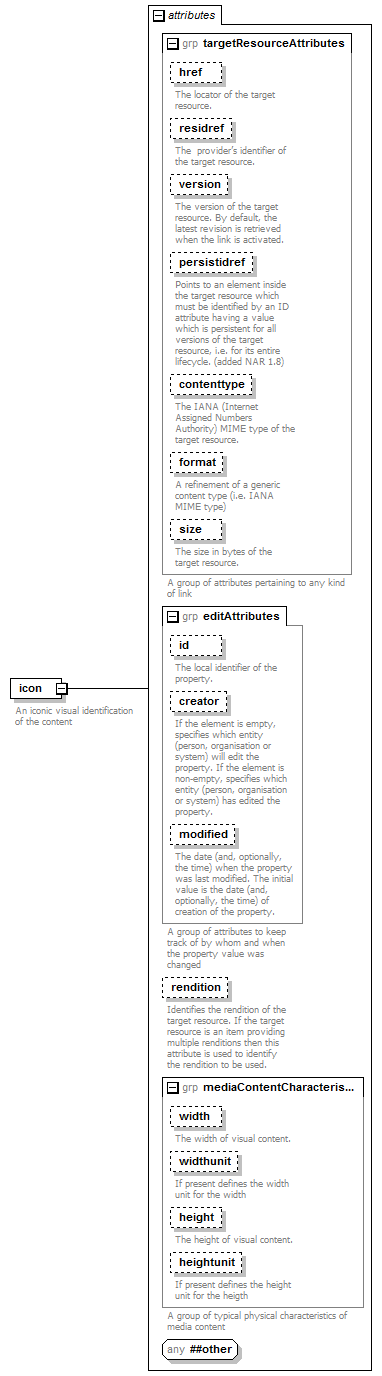

icon		SameAsType
infoSource		TruncatedDateTimePropType

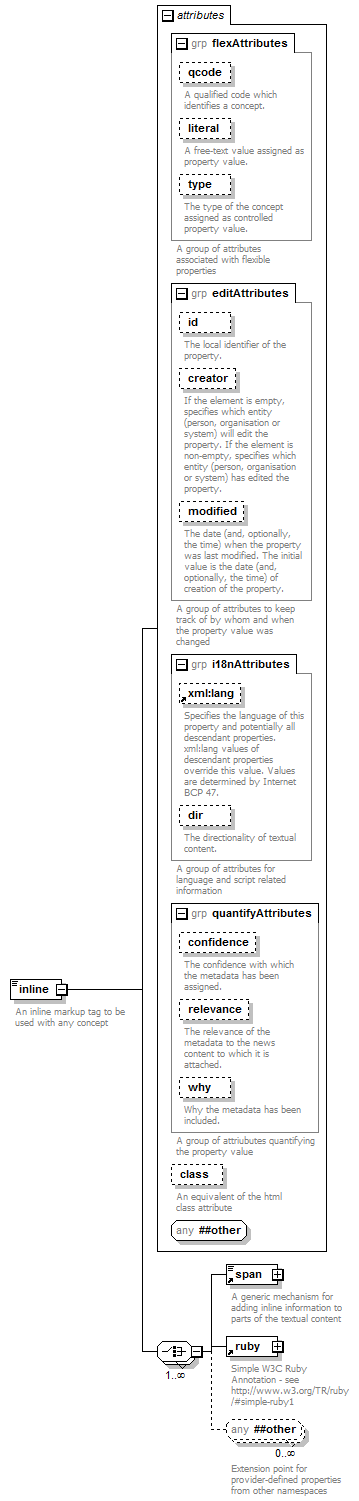

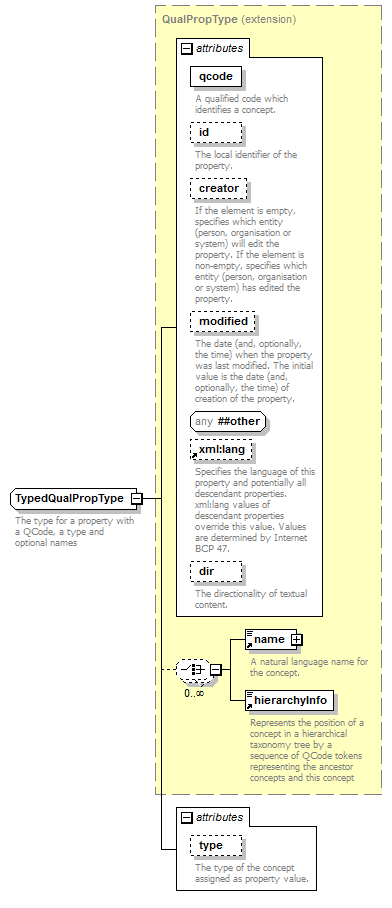

inline		TypedQualPropType
inlineRef		VersionedStringType
instanceOf
itemClass
keyword
language

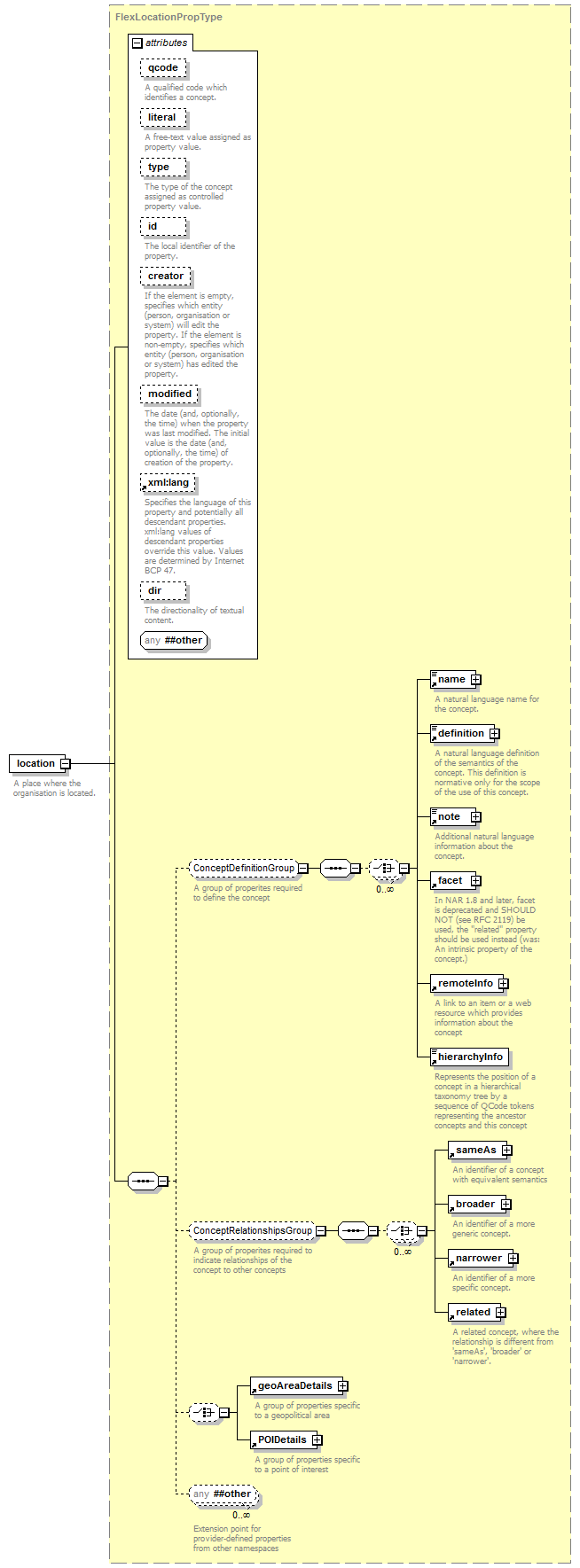

located
memberOf

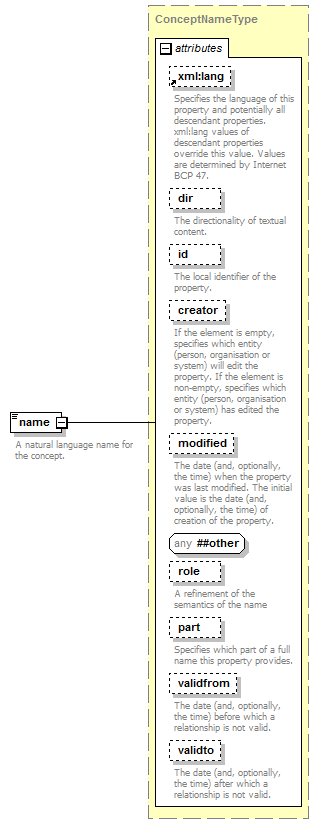

name
narrower

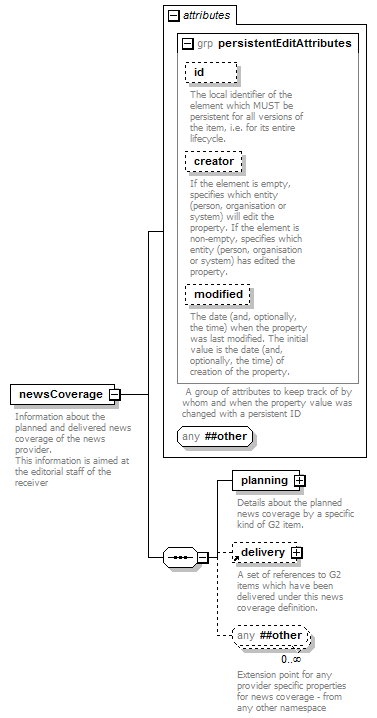

newsCoverage
note
objectDetails
organisationDetails
partMeta
personDetails
POIDetails
profile

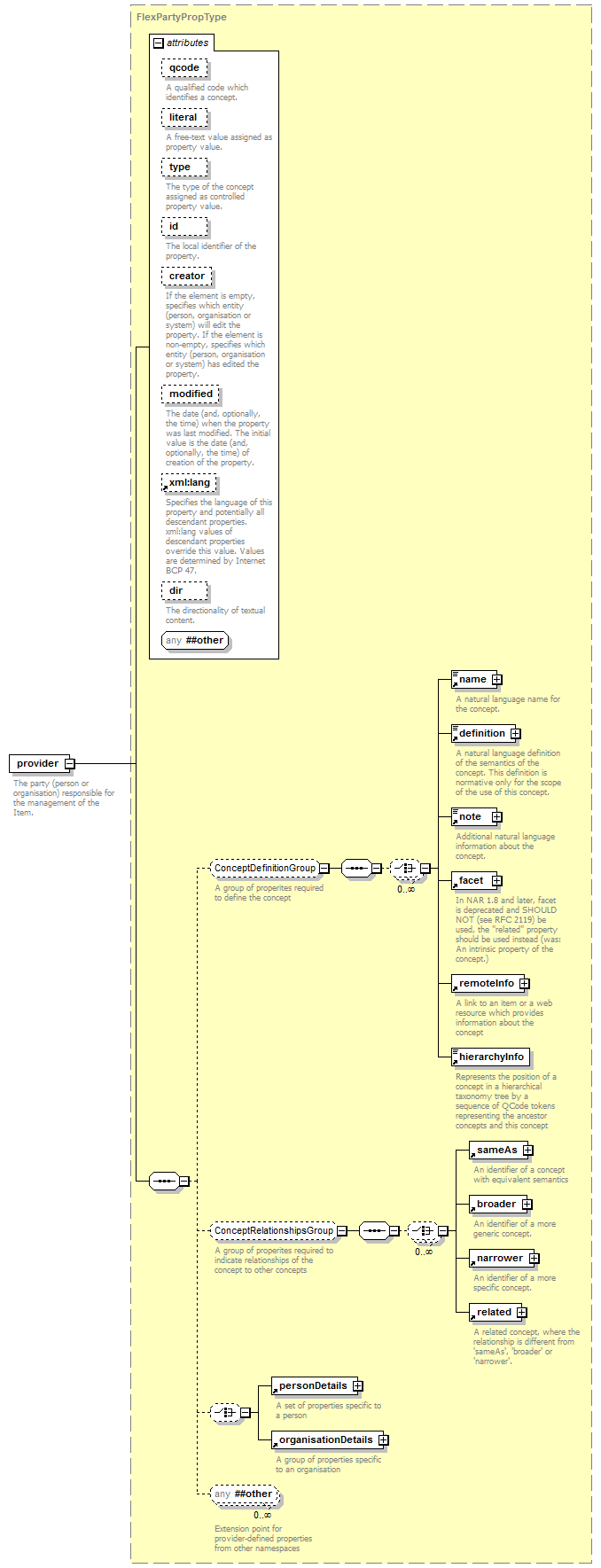

provider

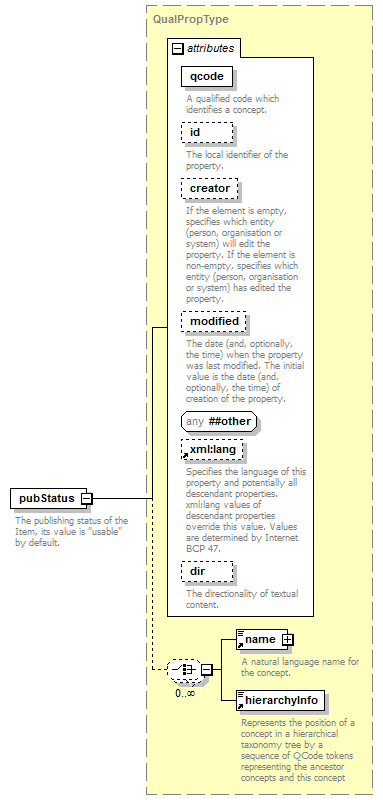

pubStatus
rb

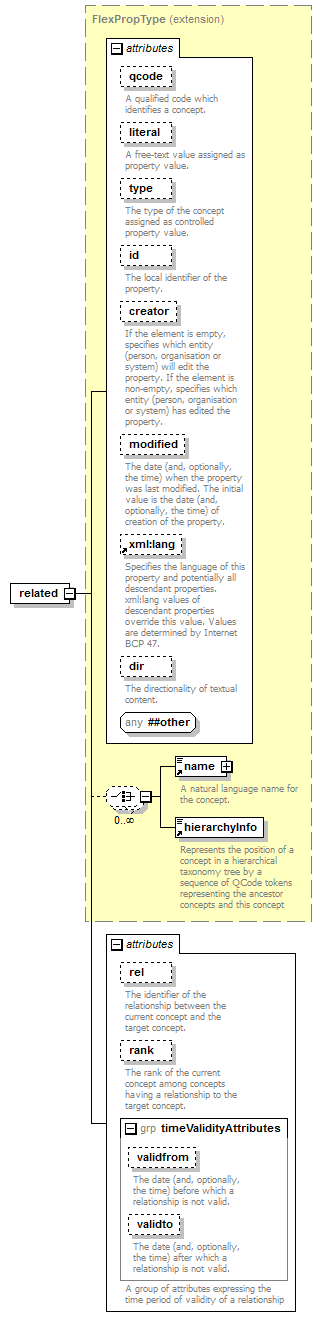

related
remoteInfo

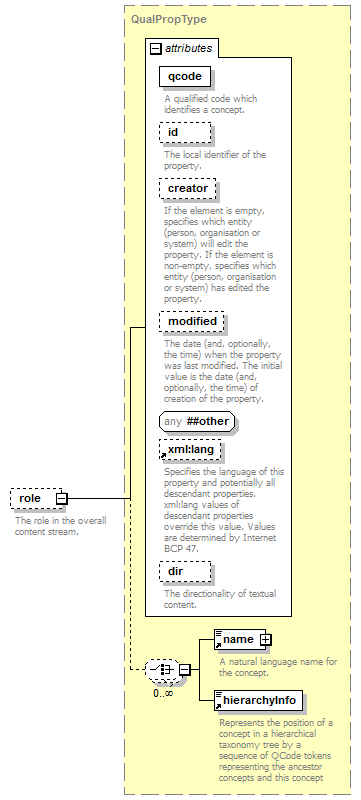

role
rp
rt

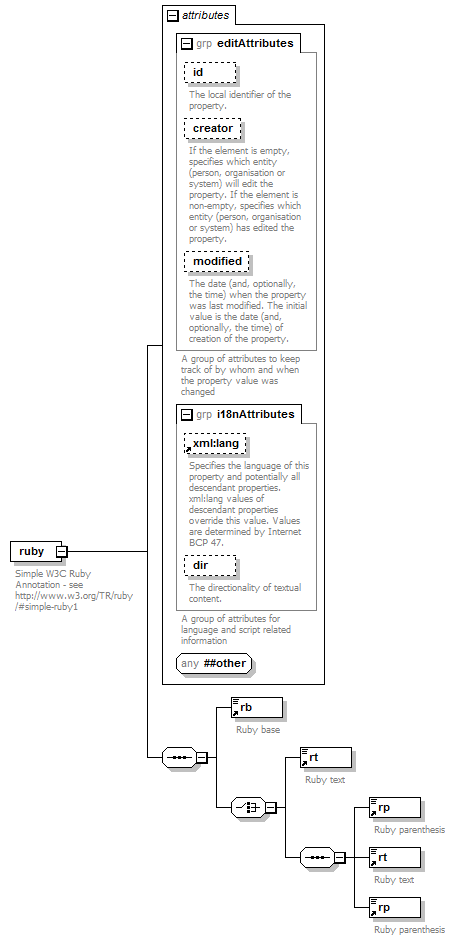

ruby

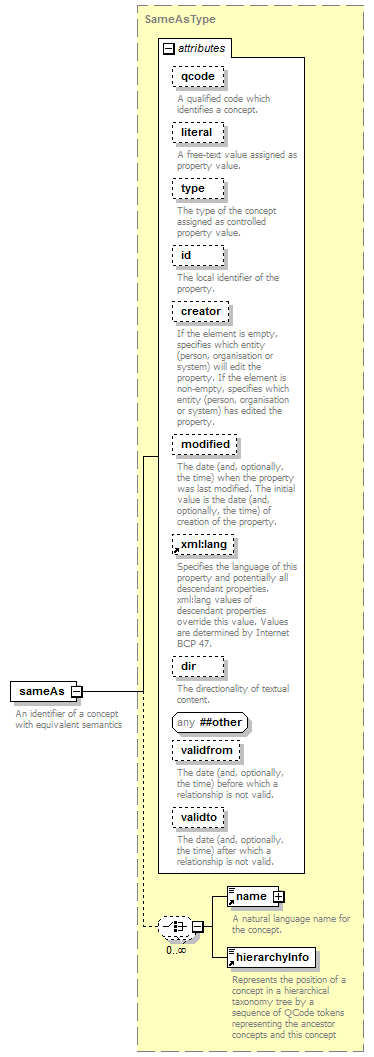

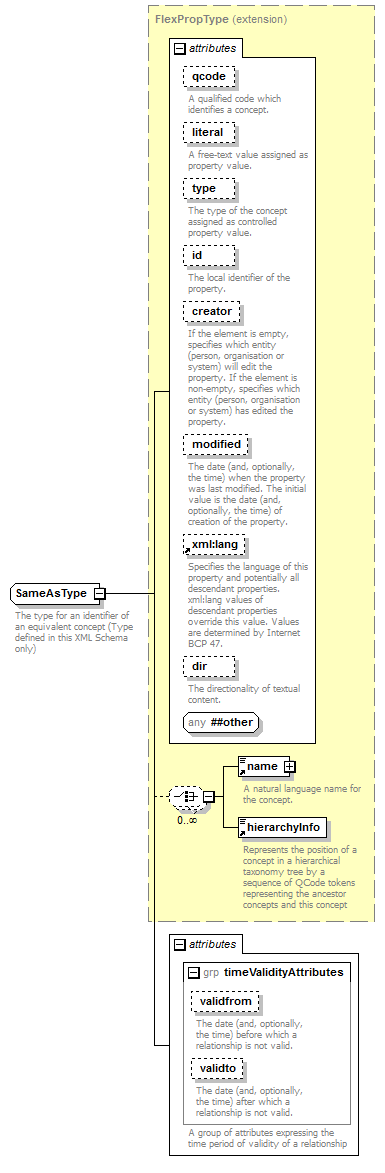

sameAs

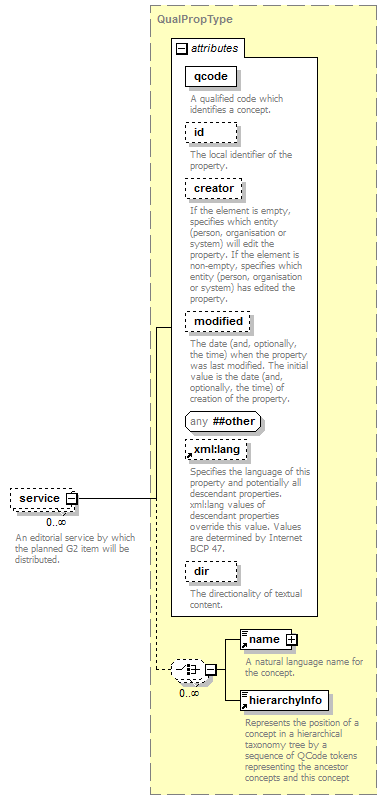

service
signal

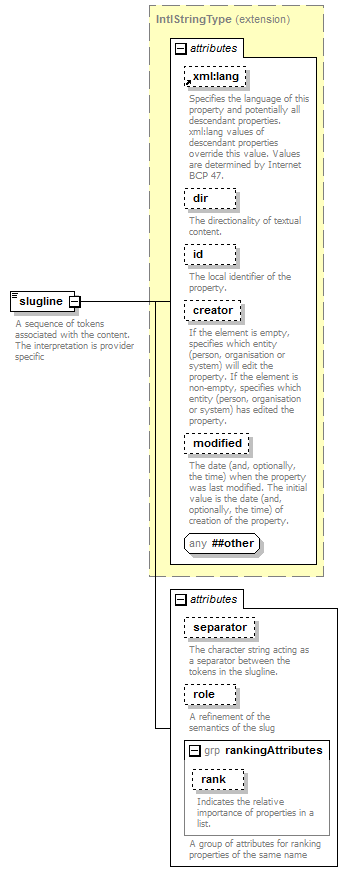

slugline

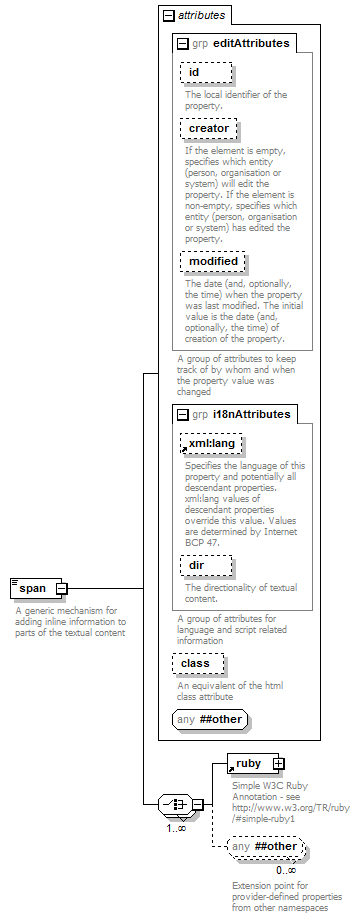

span

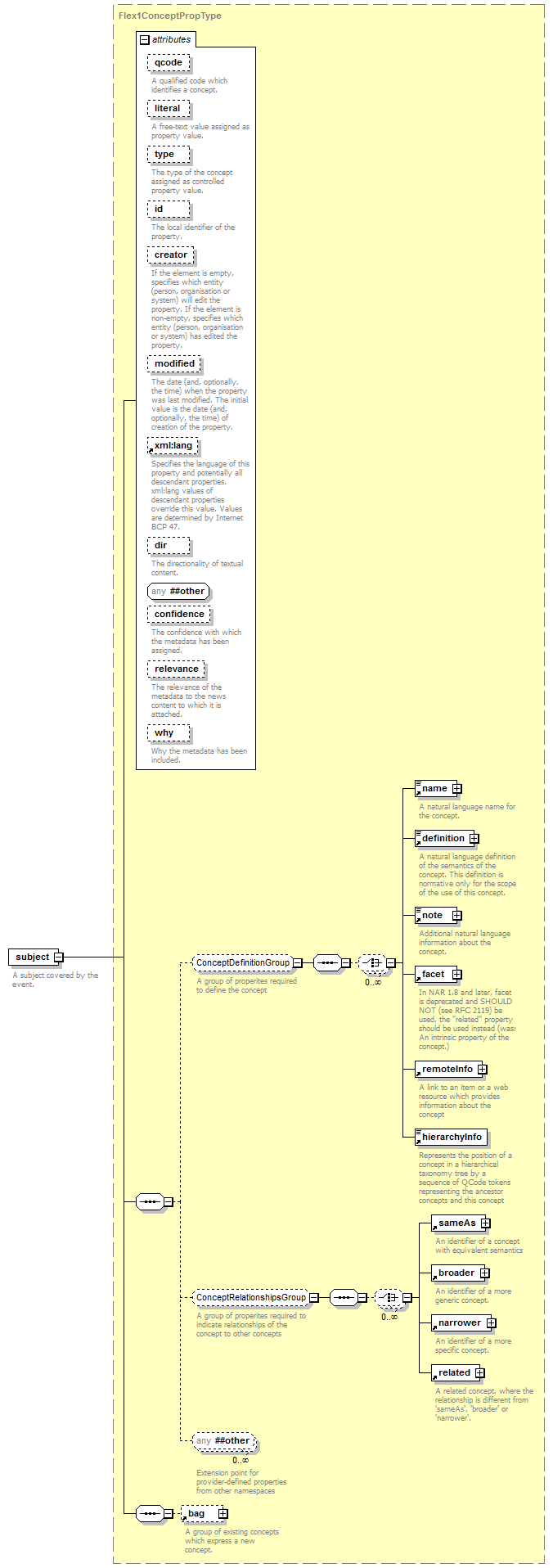

subject
title
urgency

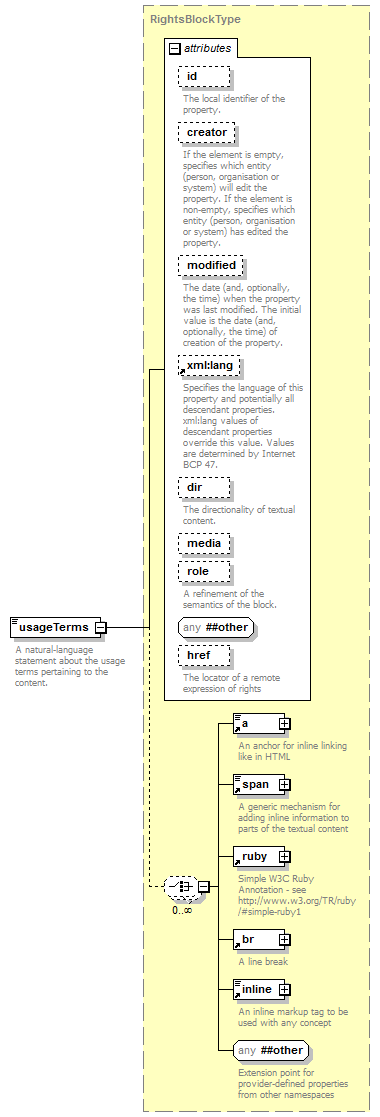

usageTerms
versionCreated

schema location:	altova://ystream/xml.xsd
attribute form default:
element form default:
targetNamespace:	http://www.w3.org/XML/1998/namespace

Attributes	Attr. groups
base	specialAttrs
id
lang
space

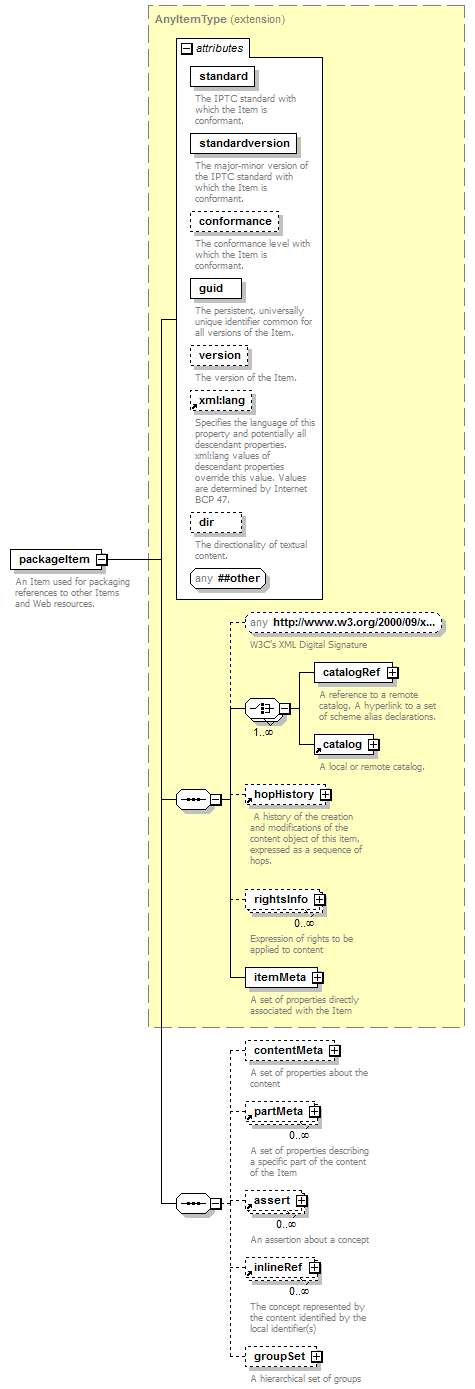

element packageItem

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of AnyItemType
properties	content  complex
children	catalogRef catalog hopHistory rightsInfo itemMeta contentMeta partMeta assert inlineRef groupSet
attributes	Name   Type   Use   Default   Fixed   annotation standard xs:string required         documentation The IPTC standard with which the Item is conformant. standardversion derived by: xs:string required         documentation The major-minor version of the IPTC standard with which the Item is conformant. conformance xs:string    core      documentation The conformance level with which the Item is conformant. guid xs:string required         documentation The persistent, universally unique identifier common for all versions of the Item. version xs:positiveInteger    1      documentation The version of the Item. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation An Item used for packaging references to other Items and Web resources.

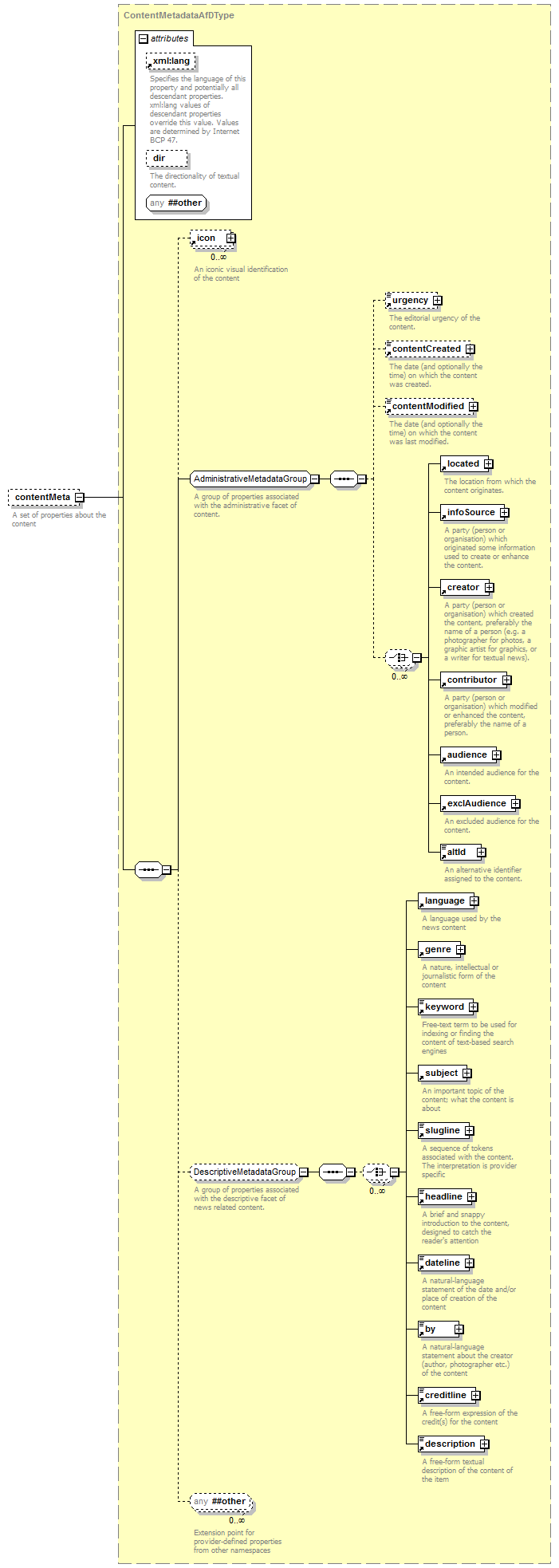

element packageItem/contentMeta

diagram
namespace	http://iptc.org/std/nar/2006-10-01/

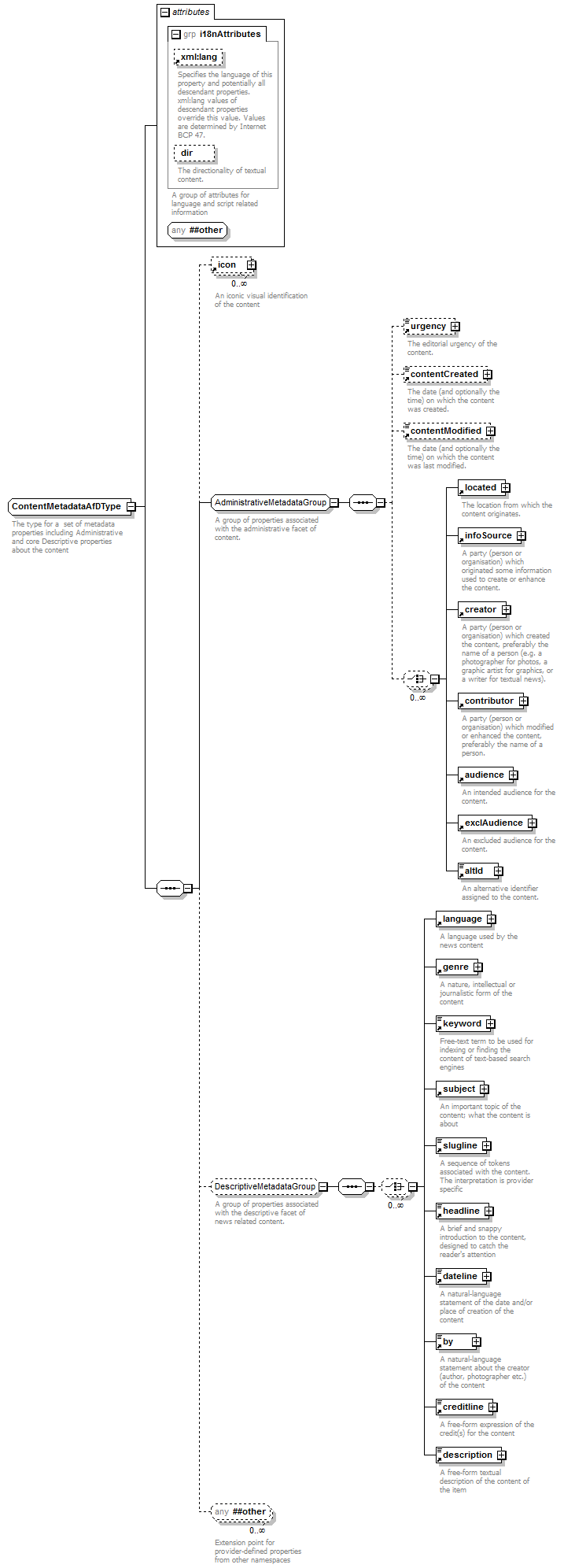

type	ContentMetadataAfDType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	icon urgency contentCreated contentModified located infoSource creator contributor audience exclAudience altId language genre keyword subject slugline headline dateline by creditline description
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A set of properties about the content

element packageItem/groupSet

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	group
attributes	Name   Type   Use   Default   Fixed   annotation root xs:IDREF required         documentation The reference to a local group acting as the root of the hierarchy of groups
annotation	documentation A hierarchical set of groups

attribute packageItem/groupSet/@root

type	xs:IDREF
properties	isRef  0 use  required
annotation	documentation The reference to a local group acting as the root of the hierarchy of groups

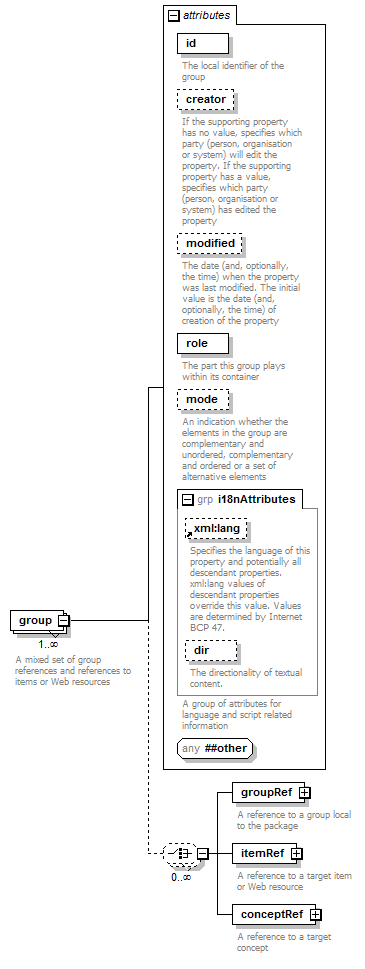

element packageItem/groupSet/group

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	groupRef itemRef conceptRef
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID required         documentation The local identifier of the group creator QCodeType          documentation If the supporting property has no value, specifies which party (person, organisation or system) will edit the property. If the supporting property has a value, specifies which party (person, organisation or system) has edited the property modified DateOptTimeType          documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property role QCodeType required         documentation The part this group plays within its container mode QCodeType          documentation An indication whether the elements in the group are complementary and unordered, complementary and ordered or a set of alternative elements lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A mixed set of group references and references to items or Web resources

attribute packageItem/groupSet/group/@id

type	xs:ID
properties	isRef  0 use  required
annotation	documentation The local identifier of the group

attribute packageItem/groupSet/group/@creator

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation If the supporting property has no value, specifies which party (person, organisation or system) will edit the property. If the supporting property has a value, specifies which party (person, organisation or system) has edited the property

attribute packageItem/groupSet/group/@modified

type	DateOptTimeType
properties	isRef  0
annotation	documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property

attribute packageItem/groupSet/group/@role

type	QCodeType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation The part this group plays within its container

attribute packageItem/groupSet/group/@mode

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation An indication whether the elements in the group are complementary and unordered, complementary and ordered or a set of alternative elements

element packageItem/groupSet/group/groupRef

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation idref xs:IDREF required         documentation The reference to the id of a local group
annotation	documentation A reference to a group local to the package

attribute packageItem/groupSet/group/groupRef/@idref

type	xs:IDREF
properties	isRef  0 use  required
annotation	documentation The reference to the id of a local group

element packageItem/groupSet/group/itemRef

diagram
namespace	http://iptc.org/std/nar/2006-10-01/

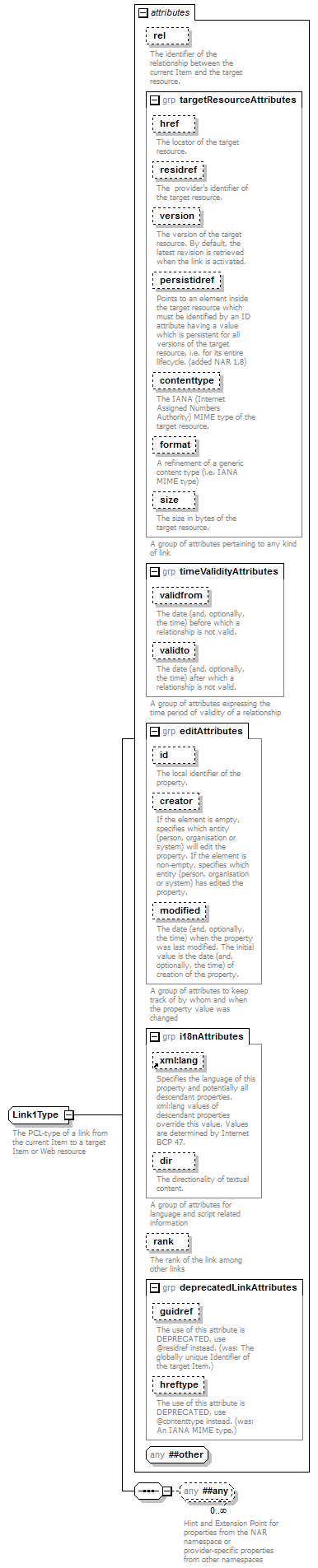

type	Link1Type
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation rel QCodeType          documentation The identifier of the relationship between the current Item and the target resource. href IRIType          documentation The locator of the target resource. residref xs:string          documentation The  provider’s identifier of the target resource. version xs:positiveInteger          documentation The version of the target resource. By default, the latest revision is retrieved when the link is activated. persistidref xs:string          documentation Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8) contenttype xs:string          documentation The IANA (Internet Assigned Numbers Authority) MIME type of the target resource. format QCodeType          documentation A refinement of a generic content type (i.e. IANA MIME type) size xs:nonNegativeInteger          documentation The size in bytes of the target resource. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. rank xs:nonNegativeInteger          documentation The rank of the link among other links guidref xs:string          documentation The use of this attribute is DEPRECATED, use @residref instead. (was: The globally unique Identifier of the target Item.) hreftype xs:string          documentation The use of this attribute is DEPRECATED, use @contenttype instead. (was: An IANA MIME type.)
annotation	documentation A reference to a target item or Web resource

element packageItem/groupSet/group/conceptRef

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of Flex1ConceptPropType
properties	isRef  0 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related bag
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. confidence Int100Type          documentation The confidence with which the metadata has been assigned. relevance Int100Type          documentation The relevance of the metadata to the news content to which it is attached. why QCodeType          documentation Why the metadata has been included.
annotation	documentation A reference to a target concept

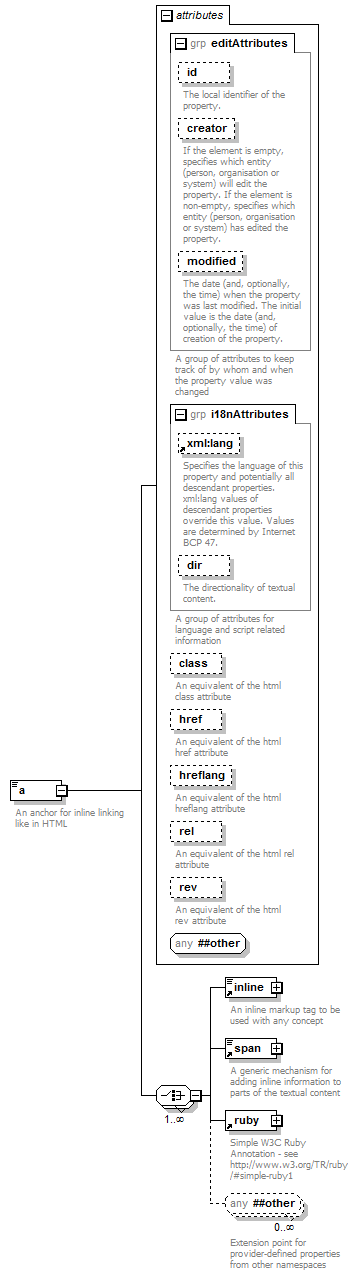

element a

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex mixed  true
children	inline span ruby
used by	complexTypes  BlockType Label1Type
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. class xs:string          documentation An equivalent of the html class attribute href IRIType          documentation An equivalent of the html href attribute hreflang xs:string          documentation An equivalent of the html hreflang attribute rel xs:string          documentation An equivalent of the html rel attribute rev xs:string          documentation An equivalent of the html rev attribute
annotation	documentation An anchor for inline linking like in HTML

attribute a/@class

type	xs:string
properties	isRef  0
annotation	documentation An equivalent of the html class attribute

attribute a/@href

type	IRIType
properties	isRef  0
annotation	documentation An equivalent of the html href attribute

attribute a/@hreflang

type	xs:string
properties	isRef  0
annotation	documentation An equivalent of the html hreflang attribute

attribute a/@rel

type	xs:string
properties	isRef  0
annotation	documentation An equivalent of the html rel attribute

attribute a/@rev

type	xs:string
properties	isRef  0
annotation	documentation An equivalent of the html rev attribute

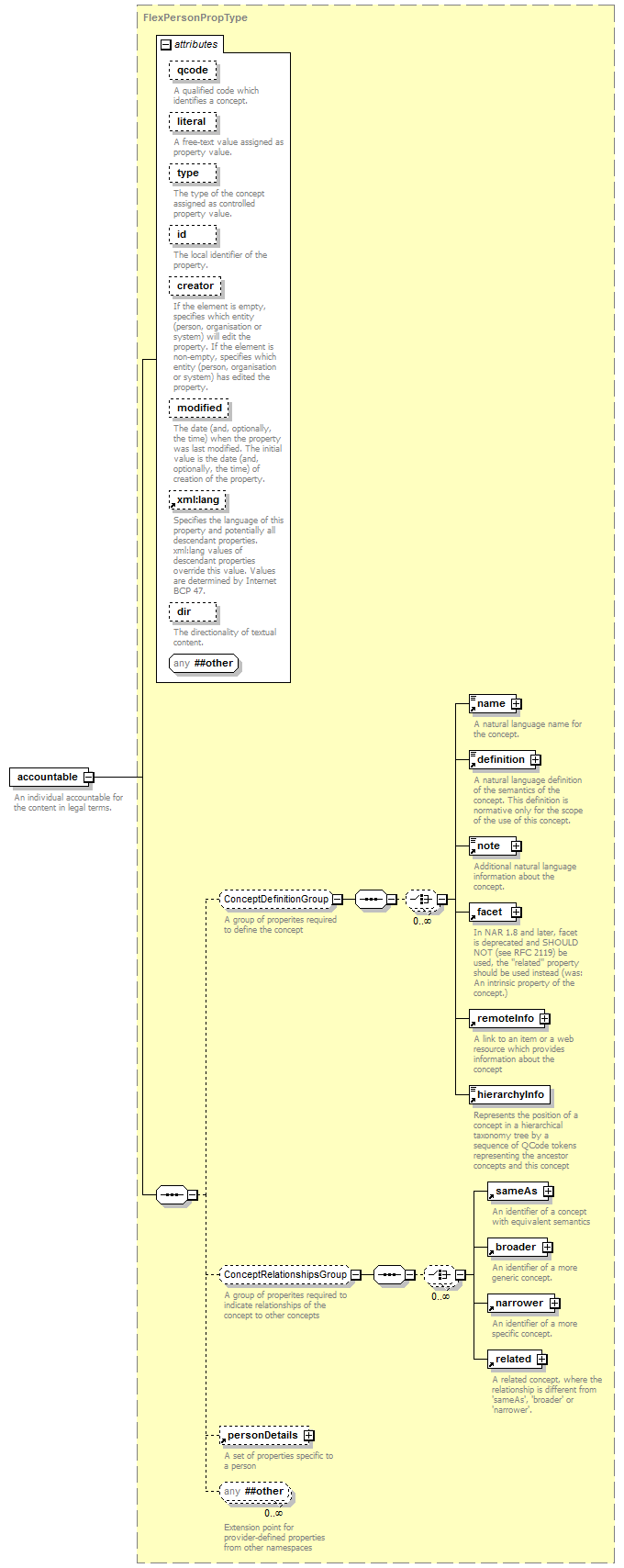

element accountable

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPersonPropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails
used by	complexType  RightsInfoType
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation An individual accountable for the content in legal terms.

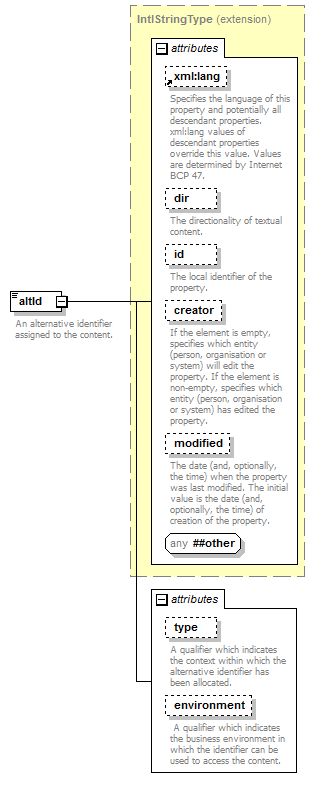

element altId

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of IntlStringType
properties	content  complex
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. type QCodeType          documentation A qualifier which indicates the context within which the alternative identifier has been allocated. environment QCodeListType          documentation A qualifier which indicates the business environment in which the identifier can be used to access the content.
annotation	documentation An alternative identifier assigned to the content.

attribute altId/@type

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation A qualifier which indicates the context within which the alternative identifier has been allocated.

attribute altId/@environment

type	QCodeListType
properties	isRef  0
annotation	documentation A qualifier which indicates the business environment in which the identifier can be used to access the content.

element altLoc

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of IRIType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   annotation type QCodeType          documentation A qualifier which indicates the context within which the alternative locator has been allocated. role QCodeType          documentation A refinement of the semantics or business purpose of the property.
annotation	documentation An alternative location of the content.

attribute altLoc/@type

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation A qualifier which indicates the context within which the alternative locator has been allocated.

attribute altLoc/@role

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation A refinement of the semantics or business purpose of the property.

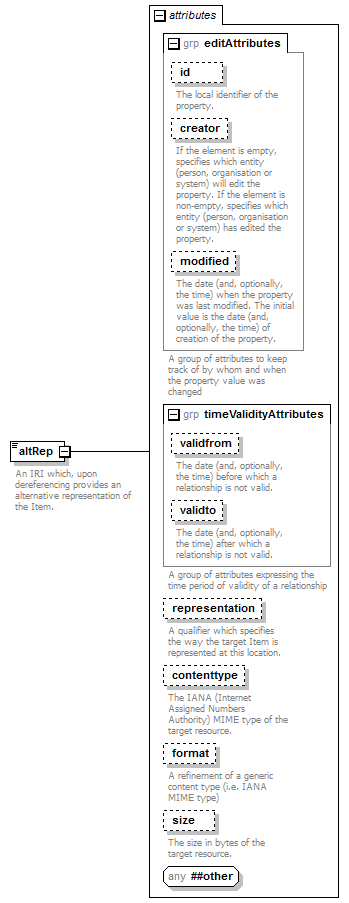

element altRep

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of IRIType
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid. representation QCodeType          documentation A qualifier which specifies the way the target Item is represented at this location. contenttype xs:string          documentation The IANA (Internet Assigned Numbers Authority) MIME type of the target resource. format QCodeType          documentation A refinement of a generic content type (i.e. IANA MIME type) size xs:nonNegativeInteger          documentation The size in bytes of the target resource.
annotation	documentation An IRI which, upon dereferencing provides an alternative representation of the Item.

attribute altRep/@representation

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation A qualifier which specifies the way the target Item is represented at this location.

attribute altRep/@contenttype

type	xs:string
properties	isRef  0
annotation	documentation The IANA (Internet Assigned Numbers Authority) MIME type of the target resource.

attribute altRep/@format

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation A refinement of a generic content type (i.e. IANA MIME type)

attribute altRep/@size

type	xs:nonNegativeInteger
properties	isRef  0
annotation	documentation The size in bytes of the target resource.

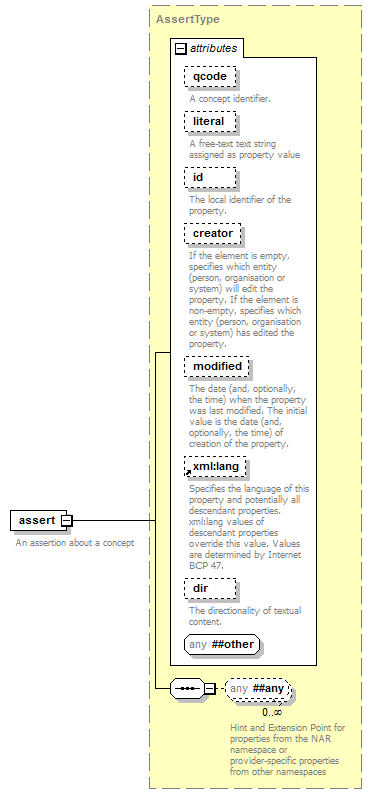

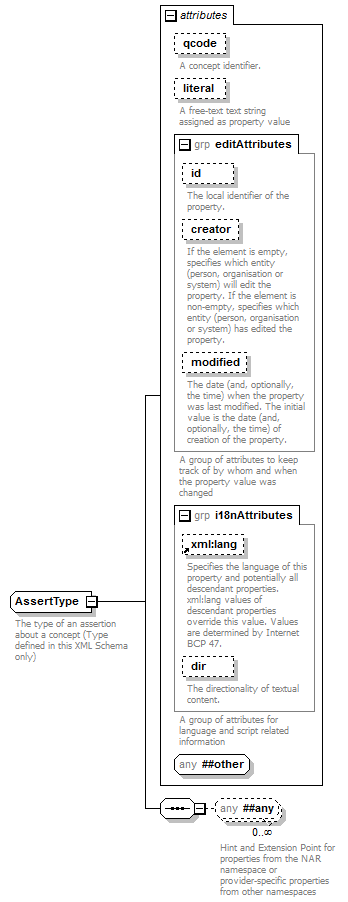

element assert

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	AssertType
properties	content  complex
used by	element  packageItem
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A concept identifier. literal xs:normalizedString          documentation A free-text text string assigned as property value id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation An assertion about a concept

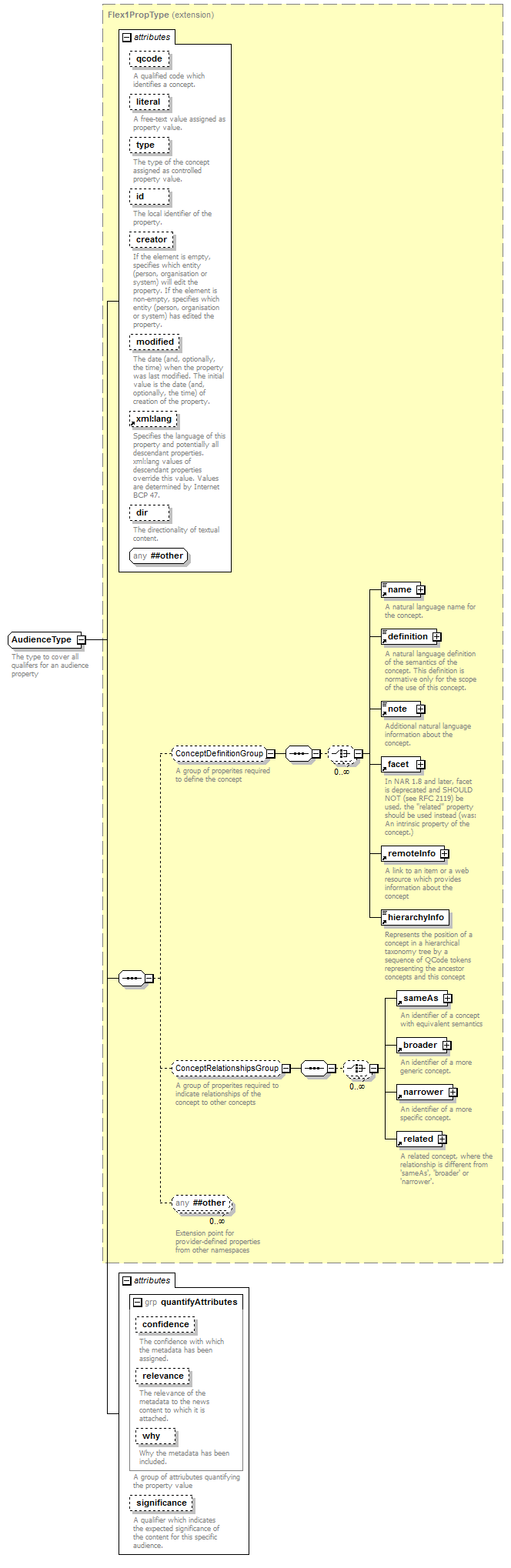

element audience

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	AudienceType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. confidence Int100Type          documentation The confidence with which the metadata has been assigned. relevance Int100Type          documentation The relevance of the metadata to the news content to which it is attached. why QCodeType          documentation Why the metadata has been included. significance Int1to9Type          documentation A qualifier which indicates the expected significance of the content for this specific audience.
annotation	documentation An intended audience for the content.

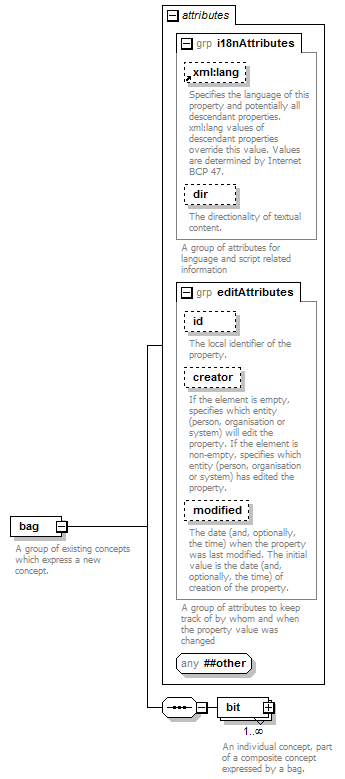

element bag

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	bit
used by	complexTypes  Flex1ConceptPropType FlexRelatedConceptType
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation A group of existing concepts which express a new concept.

element bag/bit

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of QCodePropType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. type QCodeType          documentation The type of the concept assigned as controlled property value. significance Int100Type          documentation Indicates how significant the event expressed by a bit of event concept type is to the concept expressed by this bit The scope of this relationship is limited to the bits of a single bag. See also the note below the table. confidence Int100Type          documentation The confidence with which the metadata has been assigned. relevance Int100Type          documentation The relevance of the metadata to the news content to which it is attached. why QCodeType          documentation Why the metadata has been included.
annotation	documentation An individual concept, part of a composite concept expressed by a bag.

attribute bag/bit/@type

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation The type of the concept assigned as controlled property value.

attribute bag/bit/@significance

type	Int100Type
properties	isRef  0
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  100
annotation	documentation Indicates how significant the event expressed by a bit of event concept type is to the concept expressed by this bit The scope of this relationship is limited to the bits of a single bag. See also the note below the table.

element br

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
used by	complexType  BlockType
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A line break

element broader

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	RelatedConceptType
properties	content  complex
children	name hierarchyInfo facet related
used by	group  ConceptRelationshipsGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. rel QCodeType          documentation The identifier of the relationship between the current concept and the target concept. rank xs:nonNegativeInteger          documentation The rank of the current concept among concepts having a relationship to the target concept. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid.
annotation	documentation An identifier of a more generic concept.

element by

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of Label1Type
properties	content  complex
children	a span ruby inline
used by	group  DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the label. media xs:NMTOKENS          documentation An indication of the target media type(s), values as defined by the Cascading Style Sheets specification [CSS]. rank xs:nonNegativeInteger optional         documentation Indicates the relative importance of properties in a list.
annotation	documentation A natural-language statement about the creator (author, photographer etc.) of the content

element catalog

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	title scheme
used by	complexType  AnyItemType
attributes	Name   Type   Use   Default   Fixed   annotation additionalInfo IRIType          documentation A pointer to some additional information about the Catalog, and especially its evolution and latest version. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation A local or remote catalog.

attribute catalog/@additionalInfo

type	IRIType
properties	isRef  0
annotation	documentation A pointer to some additional information about the Catalog, and especially its evolution and latest version.

element catalog/scheme

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	sameAs
attributes	Name   Type   Use   Default   Fixed   annotation alias xs:NCName required         documentation A short string used by the provider as a replacement for a scheme URI. uri IRIType required         documentation The URI which identifies the scheme. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation A scheme alias-to-URI mapping.

attribute catalog/scheme/@alias

type	xs:NCName
properties	isRef  0 use  required
annotation	documentation A short string used by the provider as a replacement for a scheme URI.

attribute catalog/scheme/@uri

type	IRIType
properties	isRef  0 use  required
annotation	documentation The URI which identifies the scheme.

element catalog/scheme/sameAs

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	IRIType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
used by	group  ConceptRelationshipsGroup
annotation	documentation A URI which identifies another scheme with concepts that use the same codes and are semantically equivalent to the concepts of this scheme

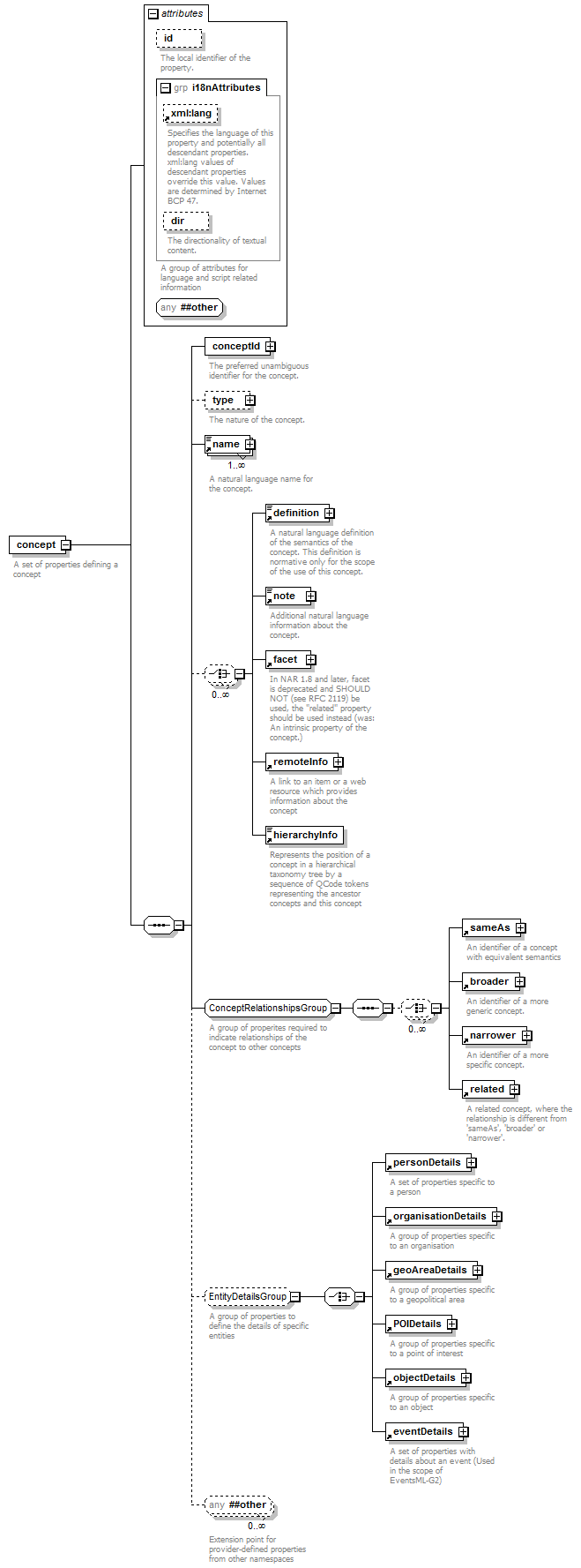

element concept

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	conceptId type name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails geoAreaDetails POIDetails objectDetails eventDetails
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          documentation The local identifier of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A set of properties defining a concept

attribute concept/@id

type	xs:ID
properties	isRef  0
annotation	documentation The local identifier of the property.

element concept/conceptId

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ConceptIdType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         created DateOptTimeType          documentation The date (and, optionally, the time) when the concept identifier was created. retired DateOptTimeType          documentation The date (and, optionally, the time) after which the concept identifier should not be applied as the value of a property anymore.
annotation	documentation The preferred unambiguous identifier for the concept.

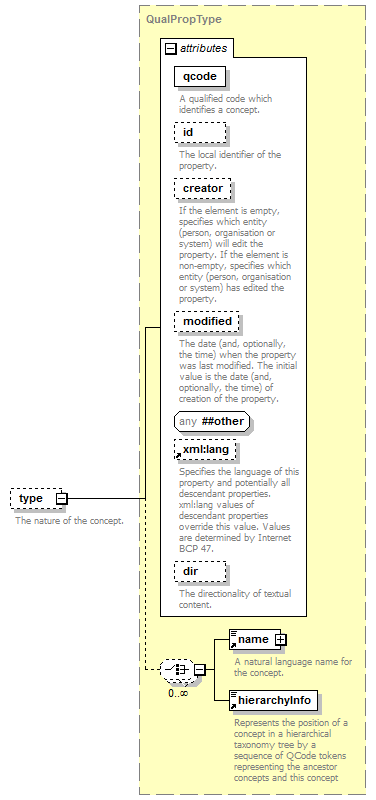

element concept/type

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation The nature of the concept.

element contentCreated

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	content  complex
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date (and optionally the time) on which the content was created.

element contentModified

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	content  complex
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date (and optionally the time) on which the content was last modified.

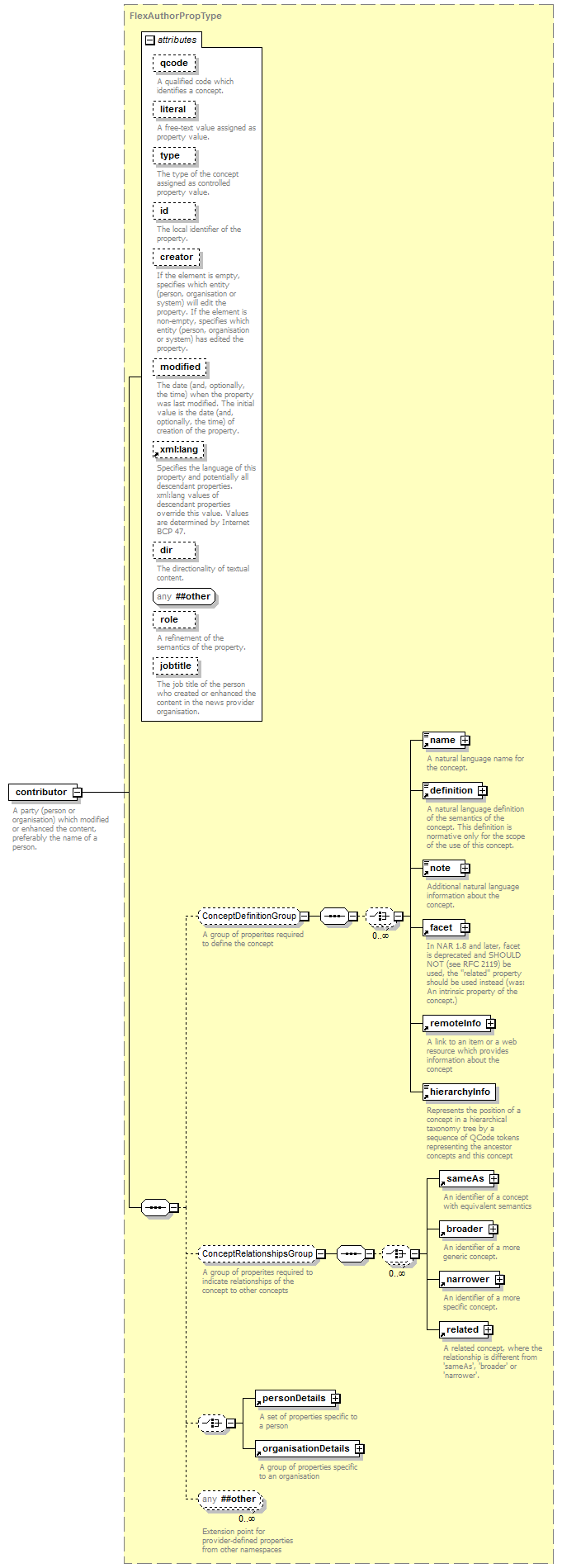

element contributor

diagram
namespace	http://iptc.org/std/nar/2006-10-01/

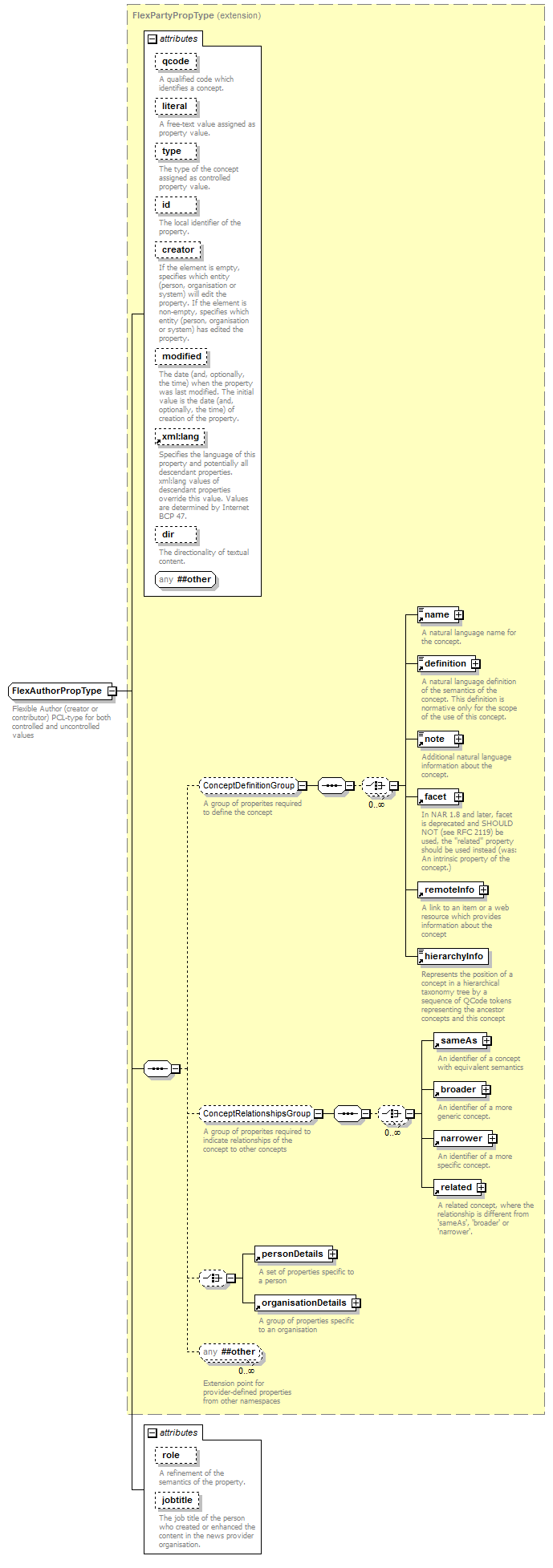

type	FlexAuthorPropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the property. jobtitle QCodeType          documentation The job title of the person who created or enhanced the content in the news provider organisation.
annotation	documentation A party (person or organisation) which modified or enhanced the content, preferably the name of a person.

element copyrightHolder

diagram
namespace	http://iptc.org/std/nar/2006-10-01/

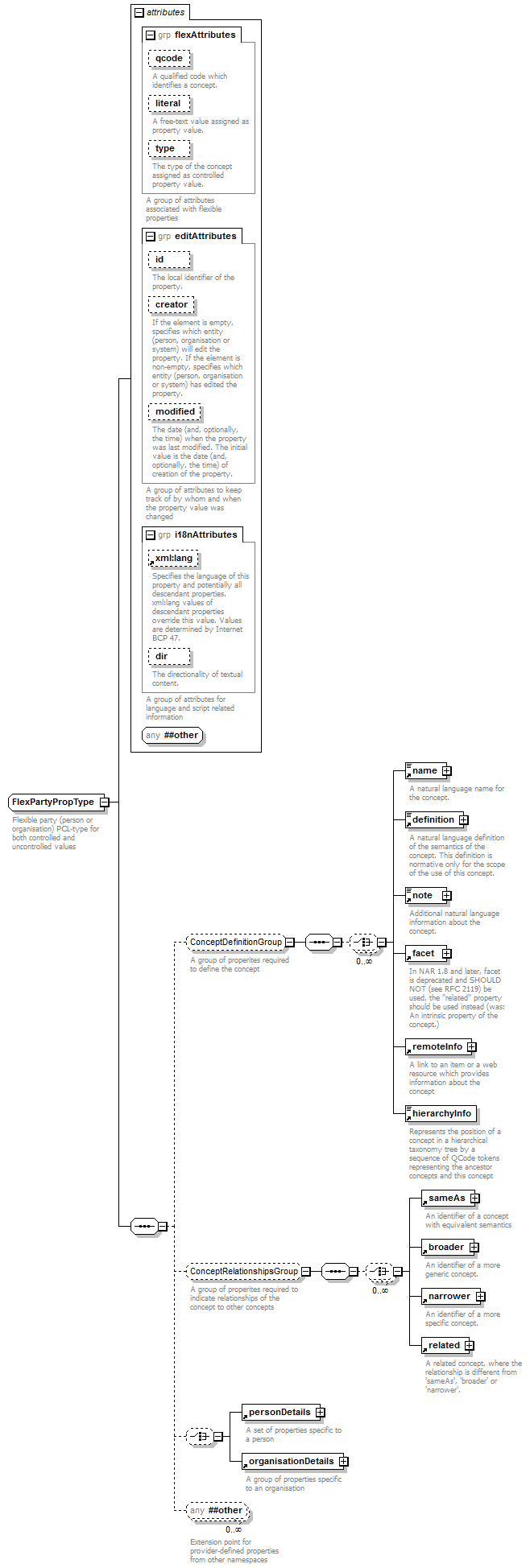

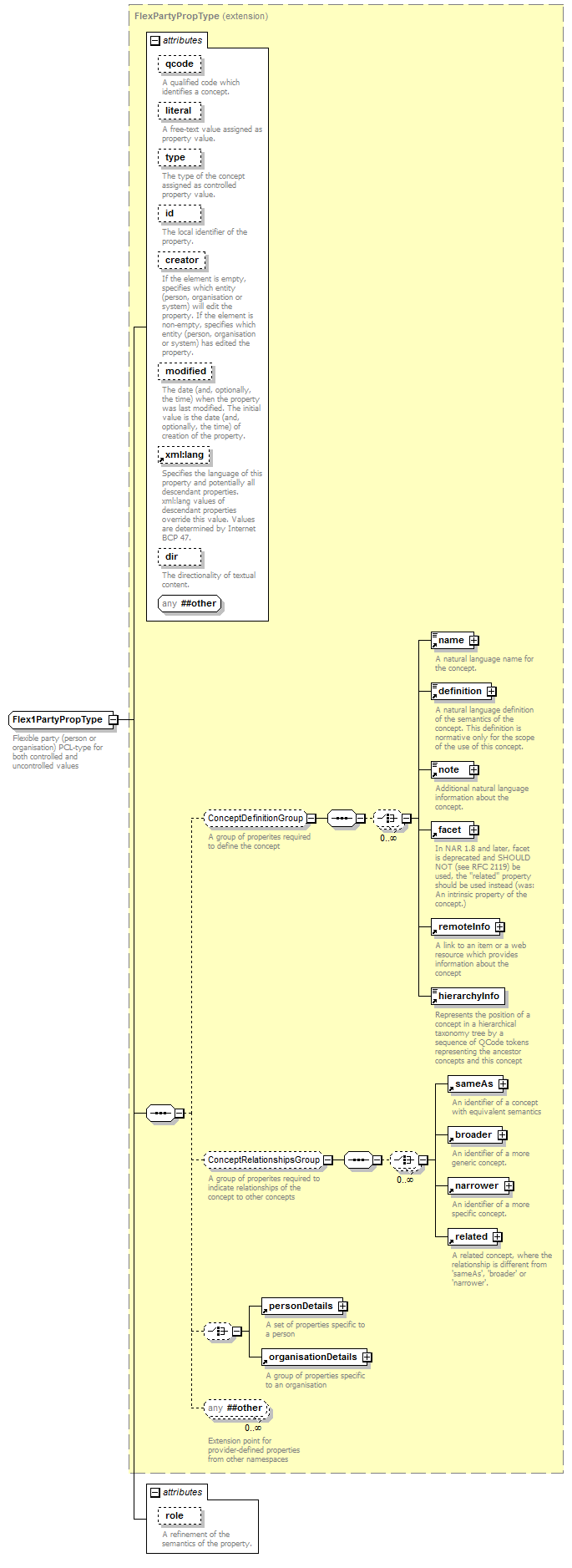

type	FlexPartyPropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails
used by	complexType  RightsInfoType
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation The person or organisation claiming the intellectual property for the content.

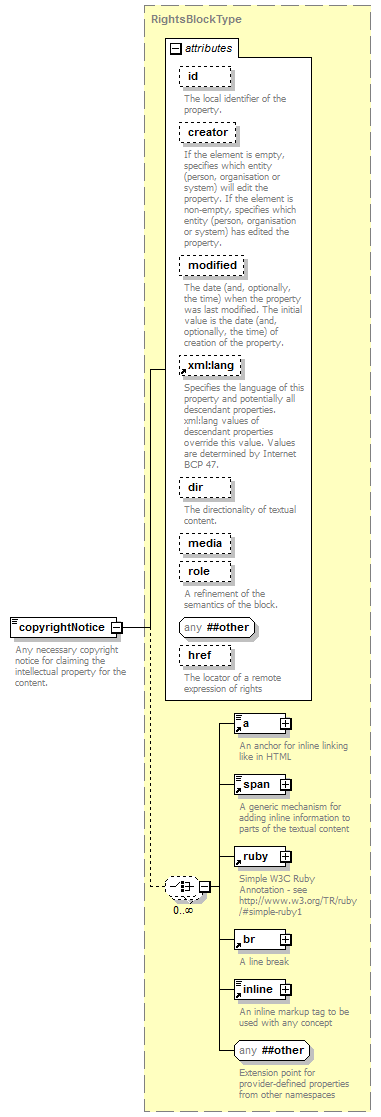

element copyrightNotice

diagram
namespace	http://iptc.org/std/nar/2006-10-01/

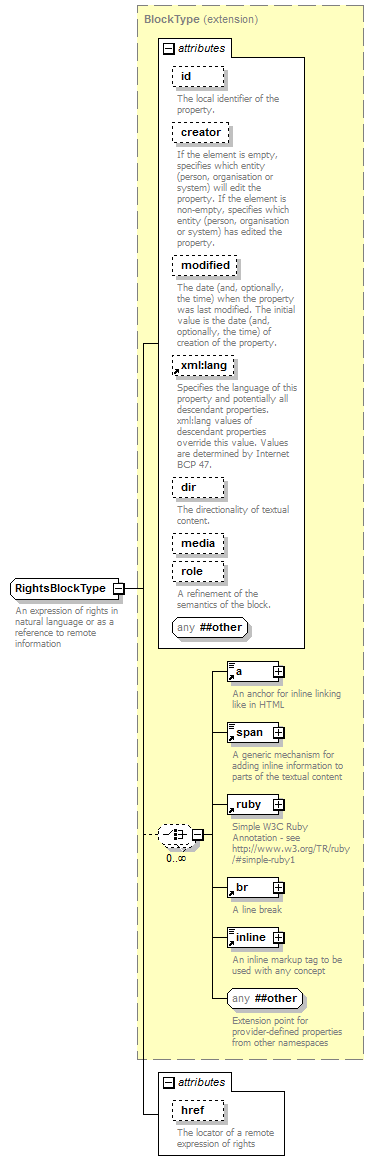

type	RightsBlockType
properties	content  complex mixed  true
children	a span ruby br inline
used by	element  objectDetails complexType  RightsInfoType
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. media xs:NMTOKENS          role QCodeListType          documentation A refinement of the semantics of the block. href IRIType          documentation The locator of a remote expression of rights
annotation	documentation Any necessary copyright notice for claiming the intellectual property for the content.

element created

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date (and optionally the time) on which the resource was created.

element creator

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexAuthorPropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails
used by	element  objectDetails group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the property. jobtitle QCodeType          documentation The job title of the person who created or enhanced the content in the news provider organisation.
annotation	documentation A party (person or organisation) which created the resource.

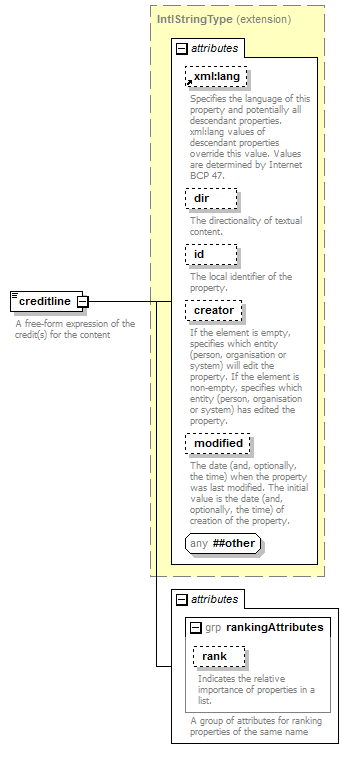

element creditline

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of IntlStringType
properties	content  complex
used by	group  DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. rank xs:nonNegativeInteger optional         documentation Indicates the relative importance of properties in a list.
annotation	documentation A free-form expression of the credit(s) for the content

element dateline

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of Label1Type
properties	content  complex
children	a span ruby inline
used by	group  DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the label. media xs:NMTOKENS          documentation An indication of the target media type(s), values as defined by the Cascading Style Sheets specification [CSS]. rank xs:nonNegativeInteger optional         documentation Indicates the relative importance of properties in a list.
annotation	documentation A natural-language statement of the date and/or place of creation of the content

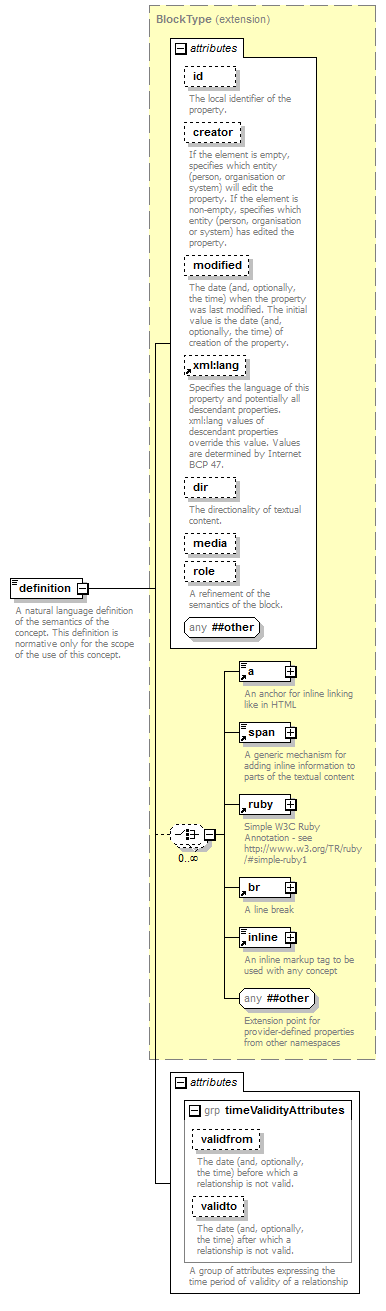

element definition

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of BlockType
properties	content  complex mixed  true
children	a span ruby br inline
used by	elements  concept event group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. media xs:NMTOKENS          role QCodeListType          documentation A refinement of the semantics of the block. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid.
annotation	documentation A natural language definition of the semantics of the concept. This definition is normative only for the scope of the use of this concept.

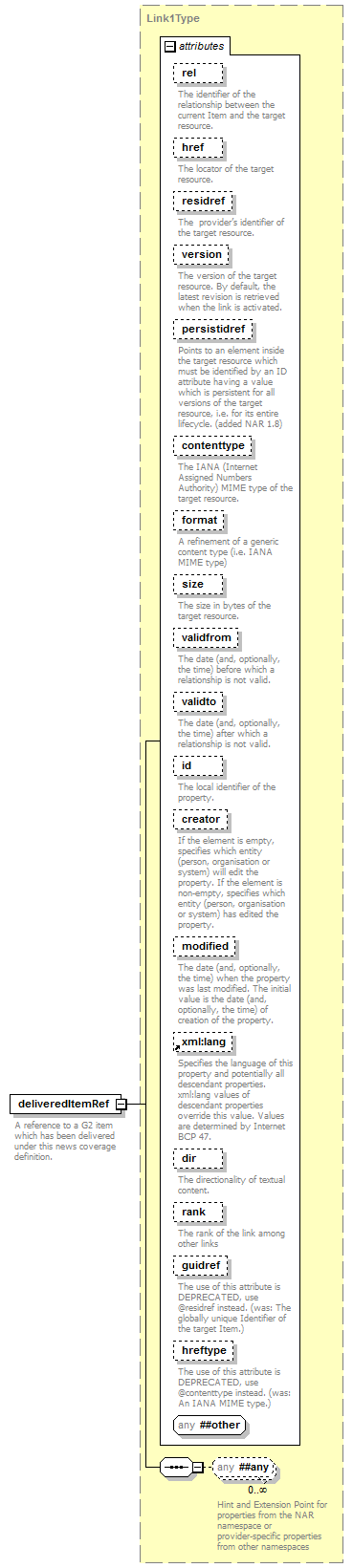

element deliverableOf

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Link1Type
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation rel QCodeType          documentation The identifier of the relationship between the current Item and the target resource. href IRIType          documentation The locator of the target resource. residref xs:string          documentation The  provider’s identifier of the target resource. version xs:positiveInteger          documentation The version of the target resource. By default, the latest revision is retrieved when the link is activated. persistidref xs:string          documentation Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8) contenttype xs:string          documentation The IANA (Internet Assigned Numbers Authority) MIME type of the target resource. format QCodeType          documentation A refinement of a generic content type (i.e. IANA MIME type) size xs:nonNegativeInteger          documentation The size in bytes of the target resource. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. rank xs:nonNegativeInteger          documentation The rank of the link among other links guidref xs:string          documentation The use of this attribute is DEPRECATED, use @residref instead. (was: The globally unique Identifier of the target Item.) hreftype xs:string          documentation The use of this attribute is DEPRECATED, use @contenttype instead. (was: An IANA MIME type.)
annotation	documentation A reference to the Planning Item under which this item has been published

element delivery

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	deliveredItemRef
used by	element  newsCoverage
annotation	documentation A set of references to G2 items which have been delivered under this news coverage definition.

element delivery/deliveredItemRef

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Link1Type
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation rel QCodeType          documentation The identifier of the relationship between the current Item and the target resource. href IRIType          documentation The locator of the target resource. residref xs:string          documentation The  provider’s identifier of the target resource. version xs:positiveInteger          documentation The version of the target resource. By default, the latest revision is retrieved when the link is activated. persistidref xs:string          documentation Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8) contenttype xs:string          documentation The IANA (Internet Assigned Numbers Authority) MIME type of the target resource. format QCodeType          documentation A refinement of a generic content type (i.e. IANA MIME type) size xs:nonNegativeInteger          documentation The size in bytes of the target resource. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. rank xs:nonNegativeInteger          documentation The rank of the link among other links guidref xs:string          documentation The use of this attribute is DEPRECATED, use @residref instead. (was: The globally unique Identifier of the target Item.) hreftype xs:string          documentation The use of this attribute is DEPRECATED, use @contenttype instead. (was: An IANA MIME type.)
annotation	documentation A reference to a G2 item which has been delivered under this news coverage definition.

element description

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of BlockType
properties	content  complex
children	a span ruby br inline
used by	groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. media xs:NMTOKENS          role QCodeListType          documentation A refinement of the semantics of the block. rank xs:nonNegativeInteger optional         documentation Indicates the relative importance of properties in a list.
annotation	documentation A free-form textual description of the content of the item

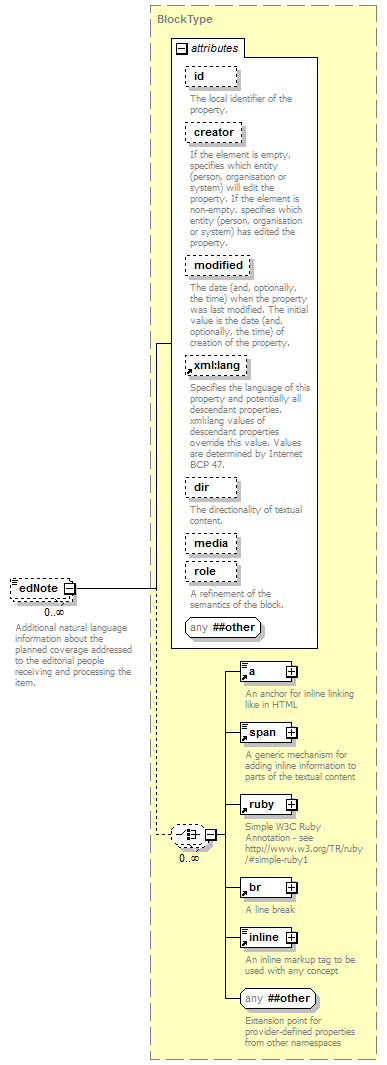

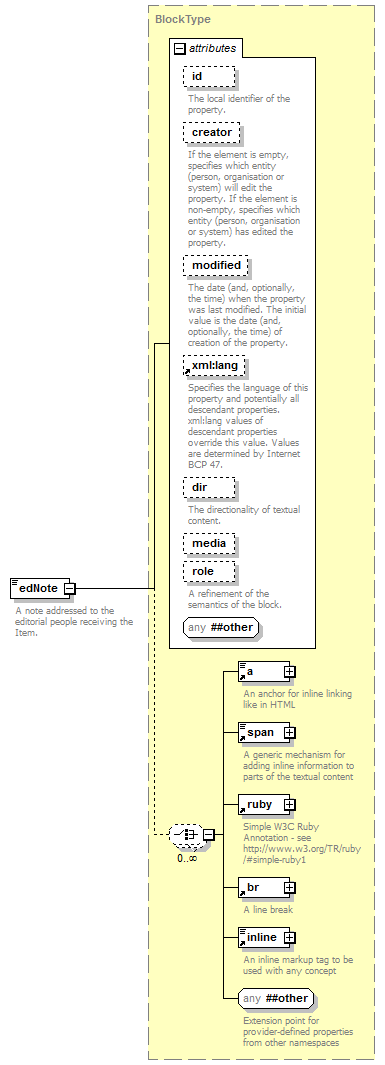

element edNote

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	content  complex mixed  true
children	a span ruby br inline
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. media xs:NMTOKENS          role QCodeListType          documentation A refinement of the semantics of the block.
annotation	documentation A note addressed to the editorial people receiving the Item.

element embargoed

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	DateTimeOrNullPropType
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date and time before which all versions of the Item are embargoed. If absent, the Item is not embargoed.

element event

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	name definition note facet sameAs broader narrower related eventDetails
used by	element  events
annotation	documentation Structured information about an event without a concept identifier, to be used only with News Items

element eventDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	dates occurStatus newsCoverageStatus registration keyword accessStatus participationRequirement subject location participant organiser contactInfo language newsCoverage
used by	element  event group  EntityDetailsGroup
annotation	documentation A set of properties with details about an event (Used in the scope of EventsML-G2)

element eventDetails/dates

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
children	start end duration rDate rRule exDate exRule confirmation
annotation	documentation All dates pertaining to the event, in particular the start and end date and any recurrence information

element eventDetails/dates/start

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ApproximateDateTimePropType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. approxstart TruncatedDateTimeType optional         documentation The date (and optionally time) at which the approximation range begins. approxend TruncatedDateTimeType optional         documentation The date (and optionally the time) at which the approximation range ends.
annotation	documentation The date the event commences.

element eventDetails/dates/end

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ApproximateDateTimePropType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. approxstart TruncatedDateTimeType optional         documentation The date (and optionally time) at which the approximation range begins. approxend TruncatedDateTimeType optional         documentation The date (and optionally the time) at which the approximation range ends.
annotation	documentation The date the event ends.

element eventDetails/dates/duration

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	xs:duration
properties	isRef  0 content  simple
annotation	documentation The period the event will last.

element eventDetails/dates/confirmation

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QCodePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation Flags to indicate if start and/or end date and times are confirmed.

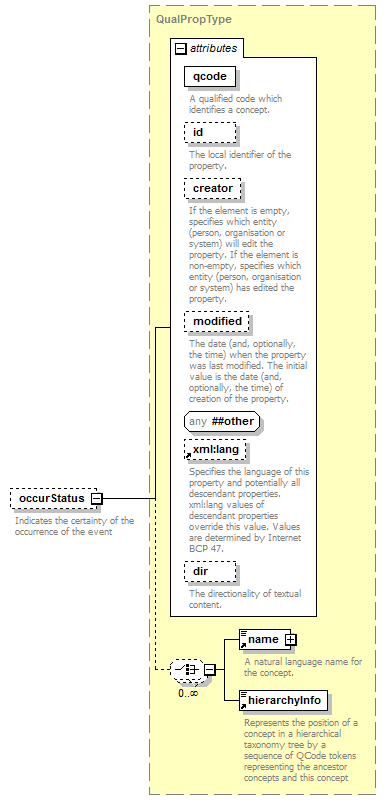

element eventDetails/occurStatus

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation Indicates the certainty of the occurrence of the event

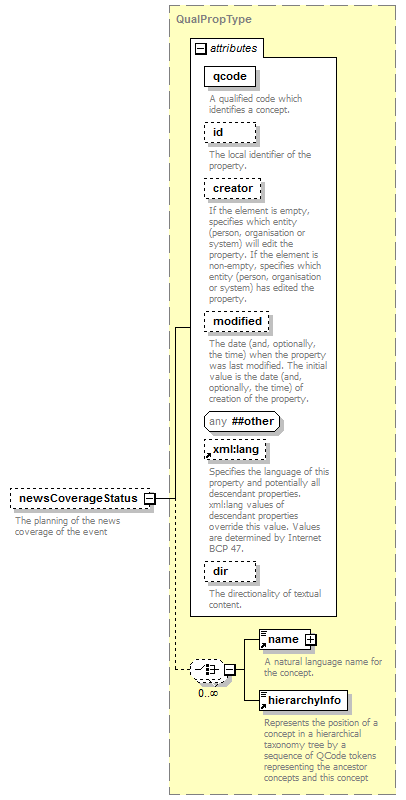

element eventDetails/newsCoverageStatus

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation The planning of the news coverage of the event

element eventDetails/registration

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	isRef  0 content  complex mixed  true
children	a span ruby br inline
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. media xs:NMTOKENS          role QCodeListType          documentation A refinement of the semantics of the block.
annotation	documentation How and when to register for the event. Could also include information about cost, and so on. May also hold accreditation information

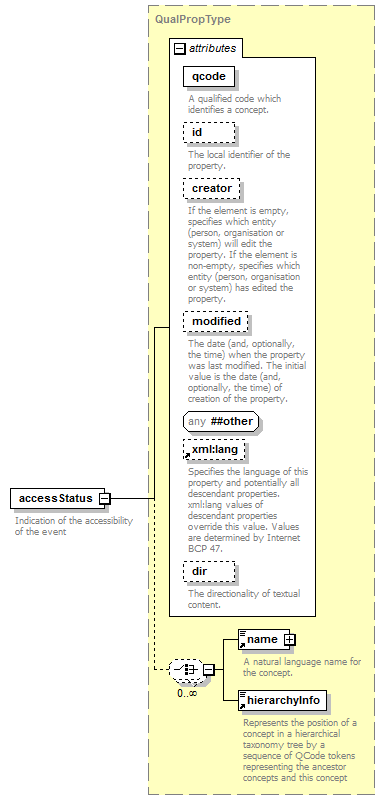

element eventDetails/accessStatus

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	isRef  0 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation Indication of the accessibility of the event

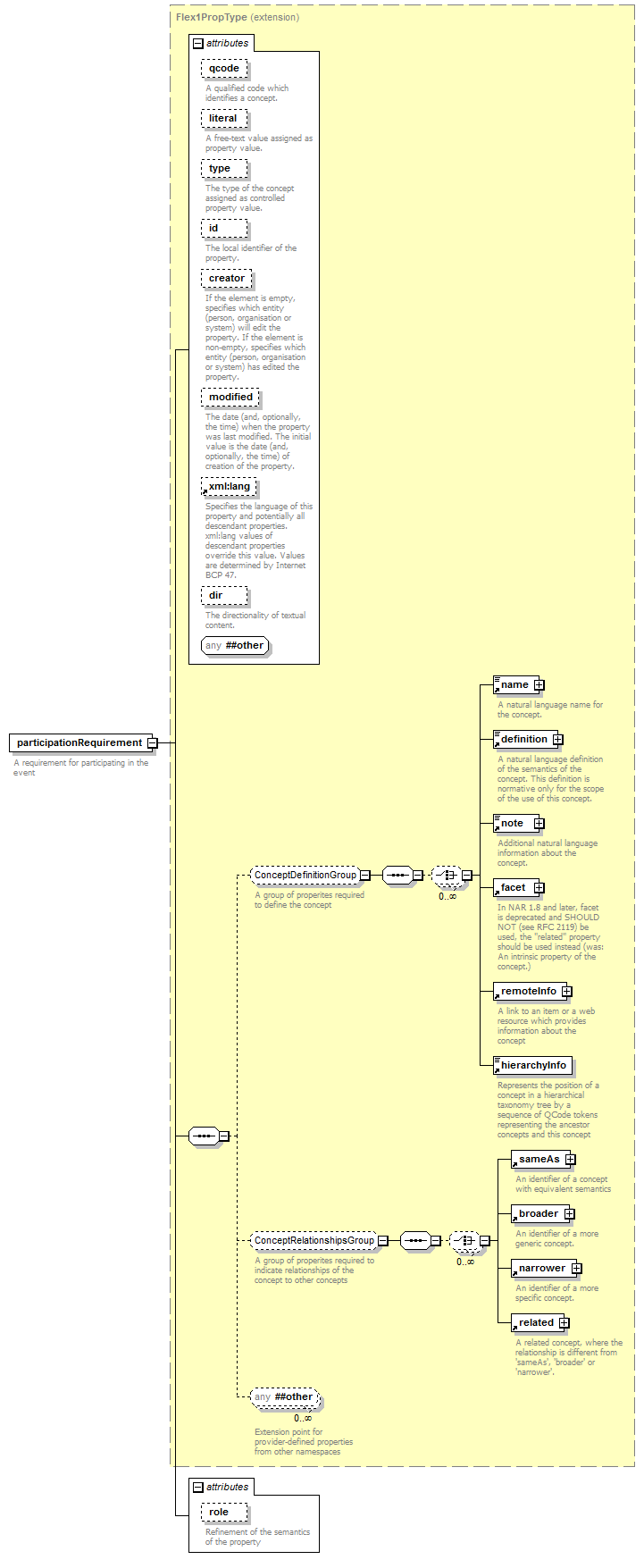

element eventDetails/participationRequirement

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of Flex1PropType
properties	isRef  0 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation Refinement of the semantics of the property
annotation	documentation A requirement for participating in the event

attribute eventDetails/participationRequirement/@role

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation Refinement of the semantics of the property

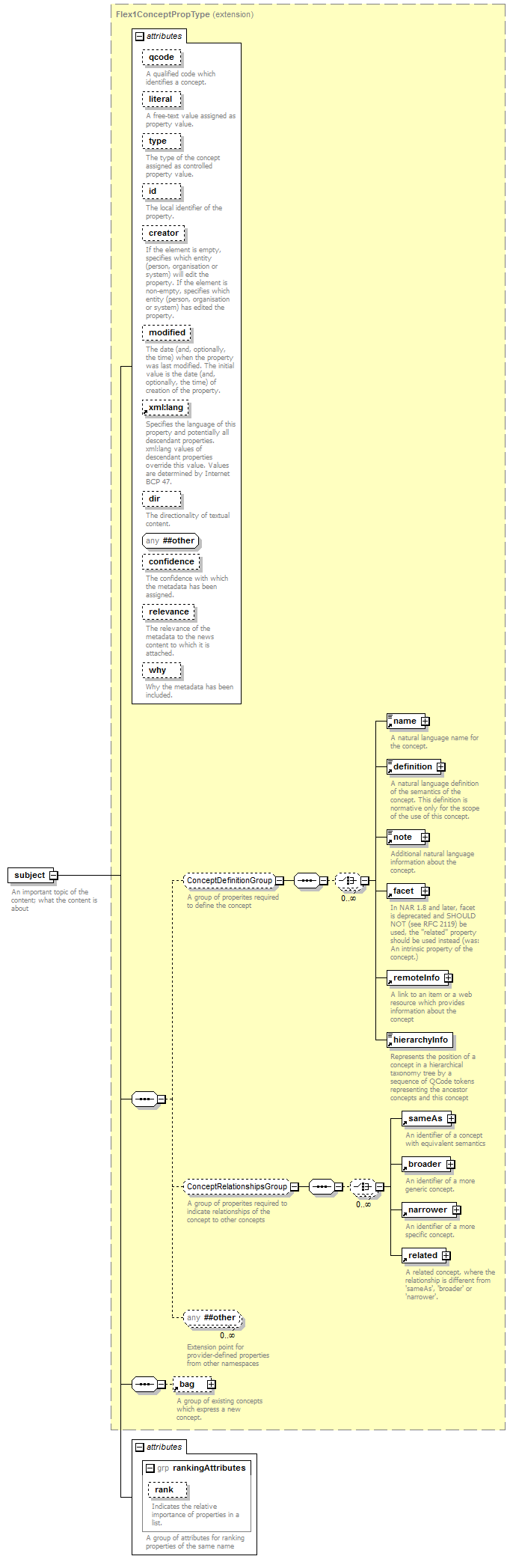

element eventDetails/subject

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Flex1ConceptPropType
properties	isRef  0 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related bag
used by	groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. confidence Int100Type          documentation The confidence with which the metadata has been assigned. relevance Int100Type          documentation The relevance of the metadata to the news content to which it is attached. why QCodeType          documentation Why the metadata has been included.
annotation	documentation A subject covered by the event.

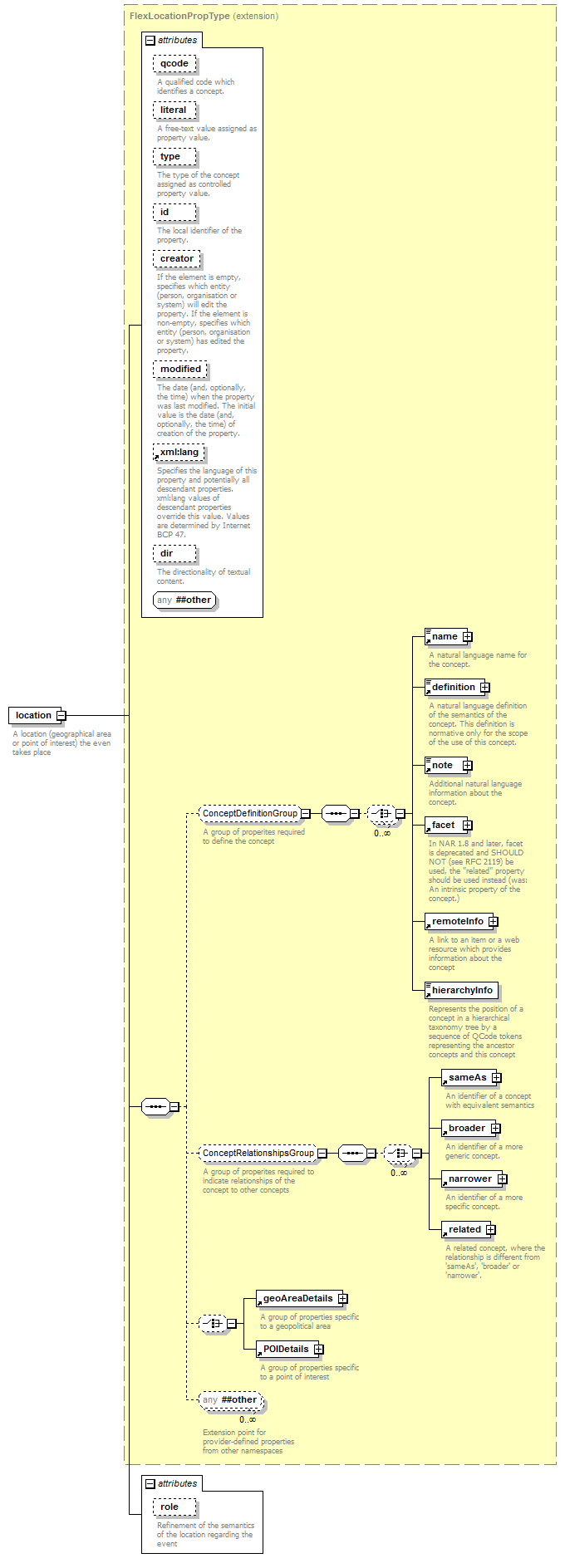

element eventDetails/location

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of FlexLocationPropType
properties	isRef  0 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related geoAreaDetails POIDetails
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role          documentation Refinement of the semantics of the location regarding the event
annotation	documentation A location (geographical area or point of interest) the even takes place

attribute eventDetails/location/@role

properties	isRef  0
annotation	documentation Refinement of the semantics of the location regarding the event

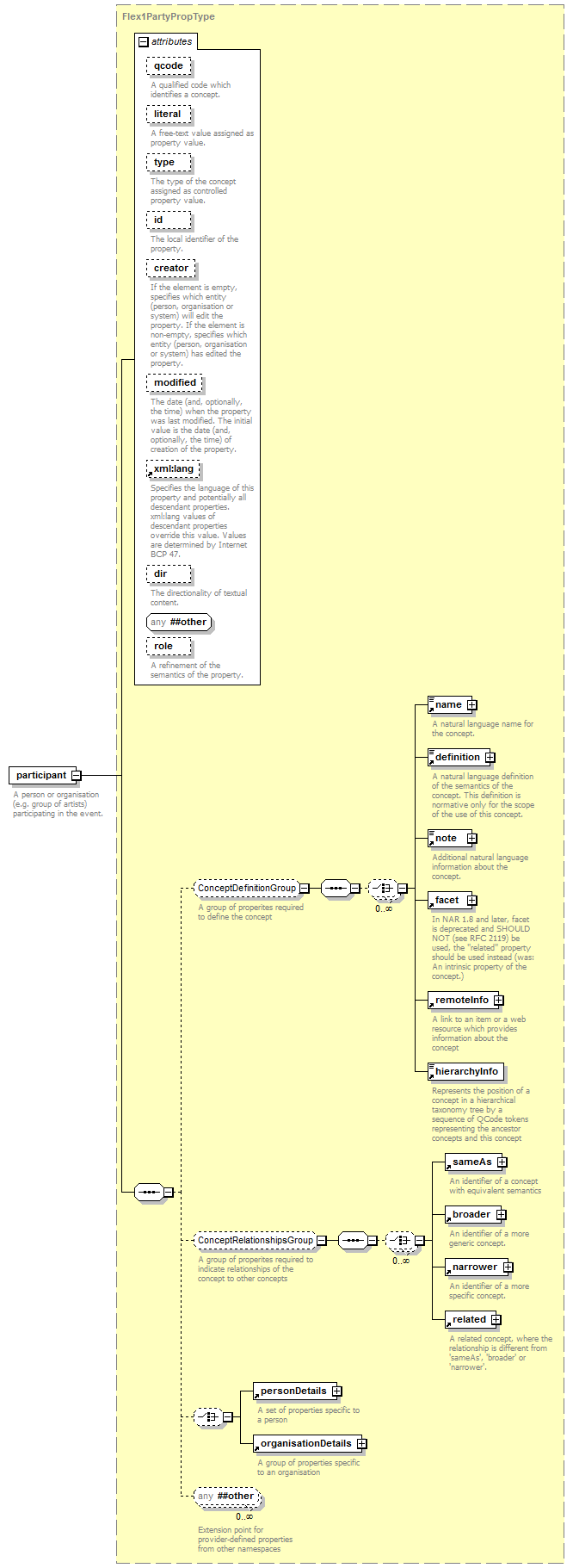

element eventDetails/participant

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Flex1PartyPropType
properties	isRef  0 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the property.
annotation	documentation A person or organisation (e.g. group of artists) participating in the event.

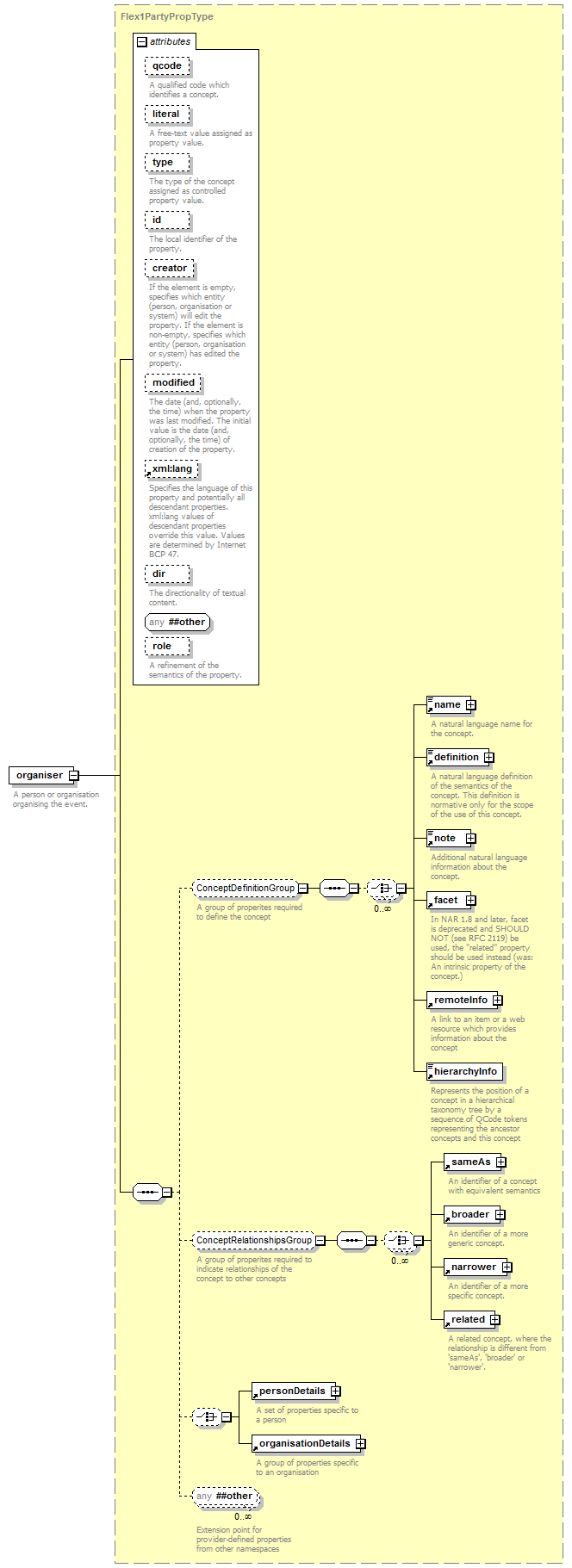

element eventDetails/organiser

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Flex1PartyPropType
properties	isRef  0 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the property.
annotation	documentation A person or organisation organising the event.

element eventDetails/contactInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ContactInfoType
properties	isRef  0 content  complex
children	email im phone fax web address note
attributes	Name   Type   Use   Default   Fixed   annotation role QCodeListType          documentation A refinement of the semantics of a contact information.
annotation	documentation Primary information for the public to get in contact with the event.

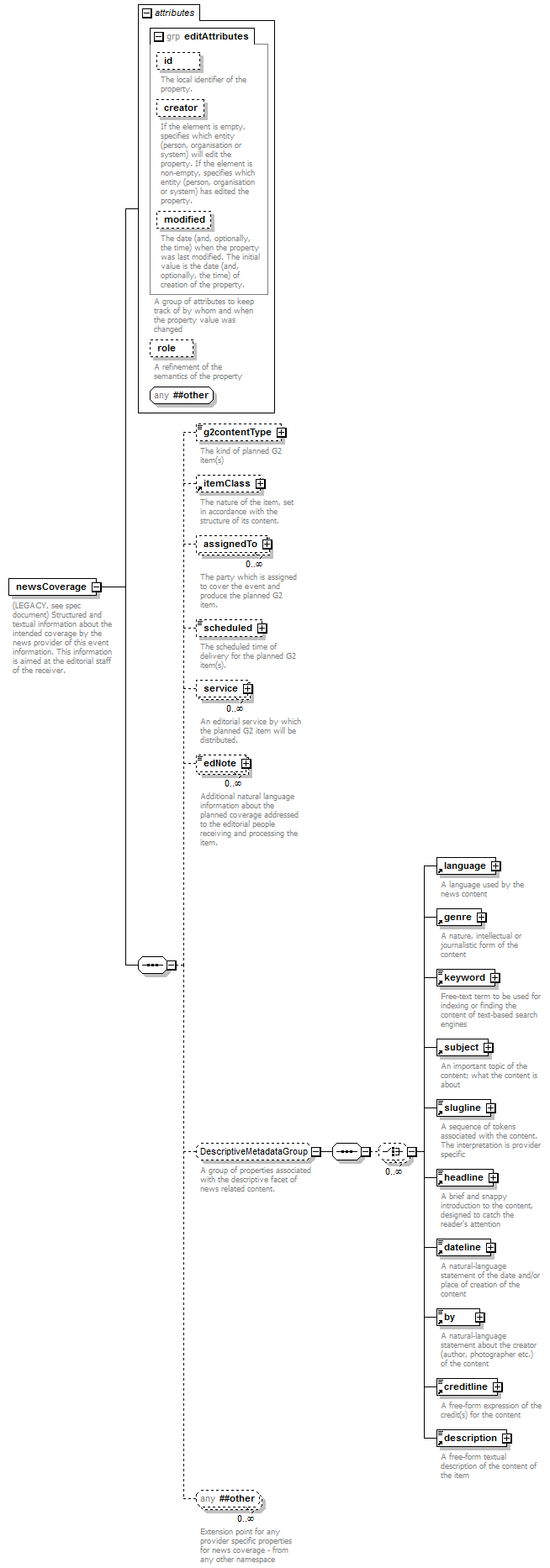

element eventDetails/newsCoverage

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
children	g2contentType itemClass assignedTo scheduled service edNote language genre keyword subject slugline headline dateline by creditline description
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. role QCodeType          documentation A refinement of the semantics of the property
annotation	documentation (LEGACY, see spec document) Structured and textual information about the intended coverage by the news provider of this event information. This information is aimed at the editorial staff of the receiver.

attribute eventDetails/newsCoverage/@role

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation A refinement of the semantics of the property

element eventDetails/newsCoverage/g2contentType

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The kind of planned G2 item(s)

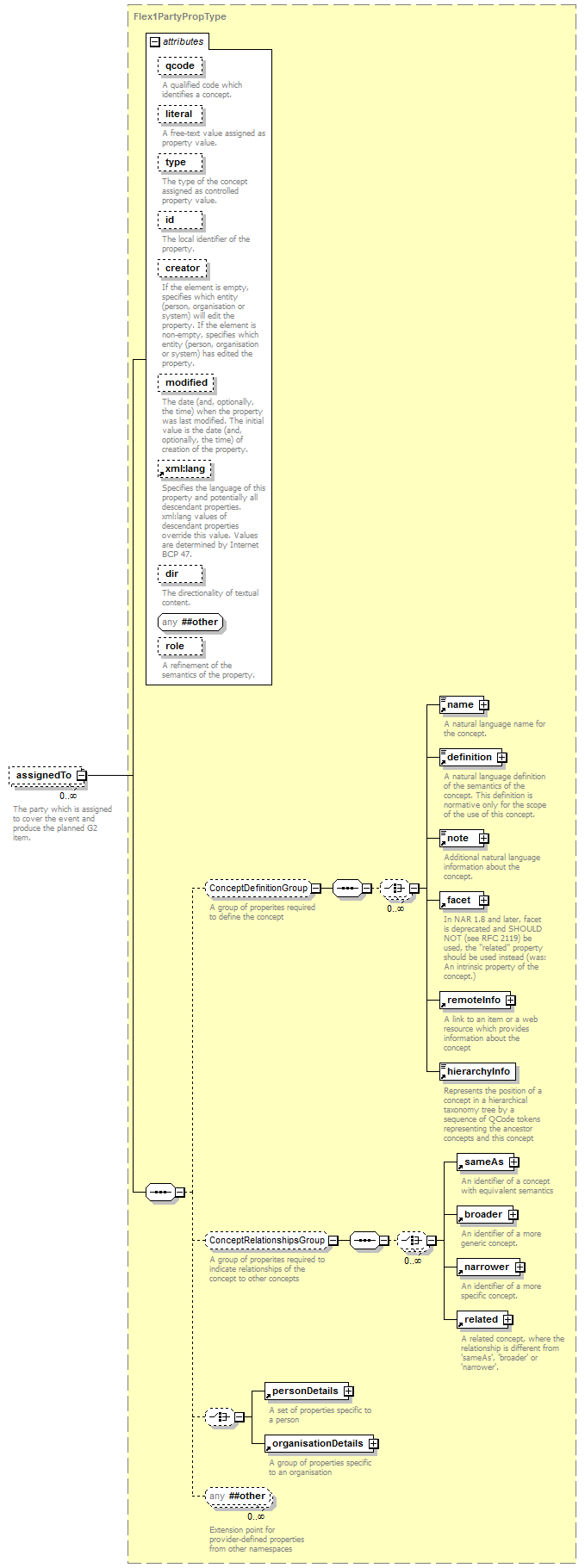

element eventDetails/newsCoverage/assignedTo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Flex1PartyPropType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the property.
annotation	documentation The party which is assigned to cover the event and produce the planned G2 item.

element eventDetails/newsCoverage/scheduled

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ApproximateDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. approxstart TruncatedDateTimeType optional         documentation The date (and optionally time) at which the approximation range begins. approxend TruncatedDateTimeType optional         documentation The date (and optionally the time) at which the approximation range ends.
annotation	documentation The scheduled time of delivery for the planned G2 item(s).

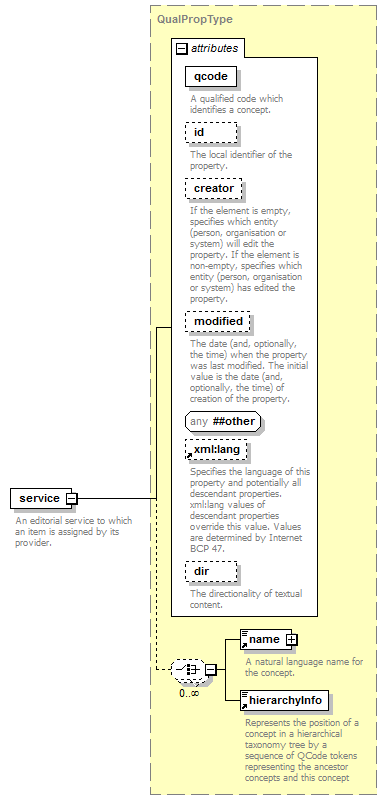

element eventDetails/newsCoverage/service

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation An editorial service by which the planned G2 item will be distributed.

element eventDetails/newsCoverage/edNote

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex mixed  true
children	a span ruby br inline
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. media xs:NMTOKENS          role QCodeListType          documentation A refinement of the semantics of the block.
annotation	documentation Additional natural language information about the planned coverage addressed to the editorial people receiving and processing the item.

element events

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	event
annotation	documentation A wrapper for events in a News Item.

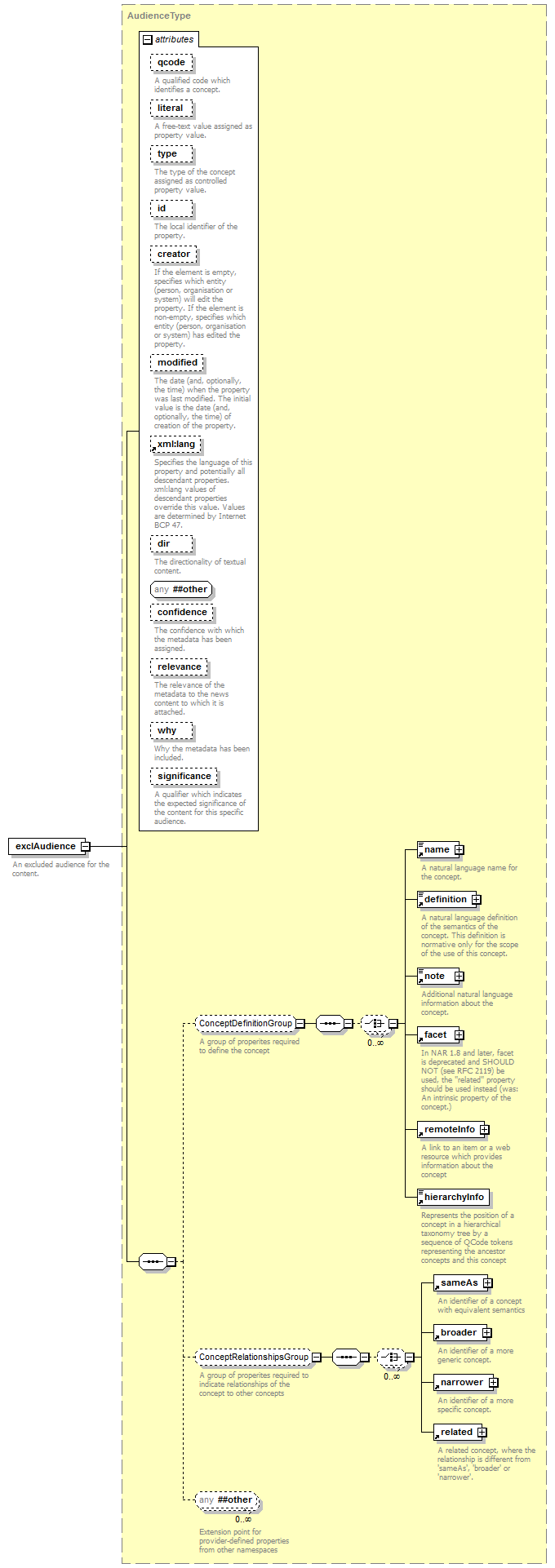

element exclAudience

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	AudienceType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. confidence Int100Type          documentation The confidence with which the metadata has been assigned. relevance Int100Type          documentation The relevance of the metadata to the news content to which it is attached. why QCodeType          documentation Why the metadata has been included. significance Int1to9Type          documentation A qualifier which indicates the expected significance of the content for this specific audience.
annotation	documentation An excluded audience for the content.

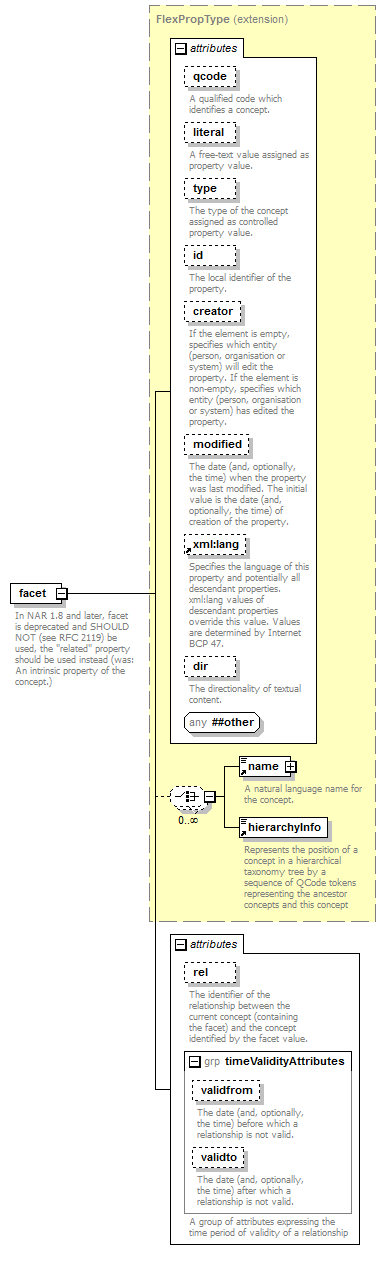

element facet

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	elements  concept event complexType  RelatedConceptType group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. rel QCodeType          documentation The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid.
annotation	documentation In NAR 1.8 and later, facet is deprecated and SHOULD NOT (see RFC 2119) be used, the "related" property should be used instead (was: An intrinsic property of the concept.)

attribute facet/@rel

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value.

element fileName

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of xs:normalizedString
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The recommended file name for this Item.

element firstCreated

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	DateTimePropType
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date and time on which the first version of the Item was created.

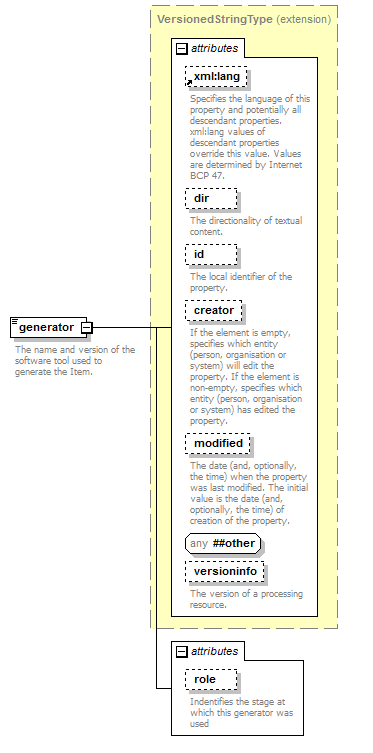

element generator

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of VersionedStringType
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. versioninfo xs:string          documentation The version of a processing resource. role QCodeType          documentation Indentifies the stage at which this generator was used
annotation	documentation The name and version of the software tool used to generate the Item.

attribute generator/@role

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation Indentifies the stage at which this generator was used

element genre

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of Flex1ConceptPropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related bag
used by	group  DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. confidence Int100Type          documentation The confidence with which the metadata has been assigned. relevance Int100Type          documentation The relevance of the metadata to the news content to which it is attached. why QCodeType          documentation Why the metadata has been included. rank xs:nonNegativeInteger optional         documentation Indicates the relative importance of properties in a list.
annotation	documentation A nature, intellectual or journalistic form of the content

element geoAreaDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	position founded dissolved
used by	complexTypes  FlexGeoAreaPropType FlexLocationPropType group  EntityDetailsGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A group of properties specific to a geopolitical area

element geoAreaDetails/position

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	GeoCoordinatesType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation latitude xs:decimal required         documentation The latitude in decimal degrees. longitude xs:decimal required         documentation The longitude in decimal degrees. altitude xs:integer          documentation The altitude in meters above the zero elevation of the reference system (sea level). gpsdatum xs:string          documentation The GPS datum associated with the measure.
annotation	documentation The coordinates of the location

element geoAreaDetails/founded

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date the geopolitical area was founded/established.

element geoAreaDetails/dissolved

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date the geopolitical area was dissolved.

element hash

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of xs:string
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation hashtype QCodeType required         documentation The hash algorithm used for creating the hash value. scope QCodeType          documentation The scope of a G2 item's content which is the reference for creating the hash value. If the attribute is omitted http://cv.iptc.org/newscodes/hashscope/content is the default value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation Hash value of parts of an item as defined by the hashscope attribute

attribute hash/@hashtype

type	QCodeType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation The hash algorithm used for creating the hash value.

attribute hash/@scope

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation The scope of a G2 item's content which is the reference for creating the hash value. If the attribute is omitted http://cv.iptc.org/newscodes/hashscope/content is the default value.

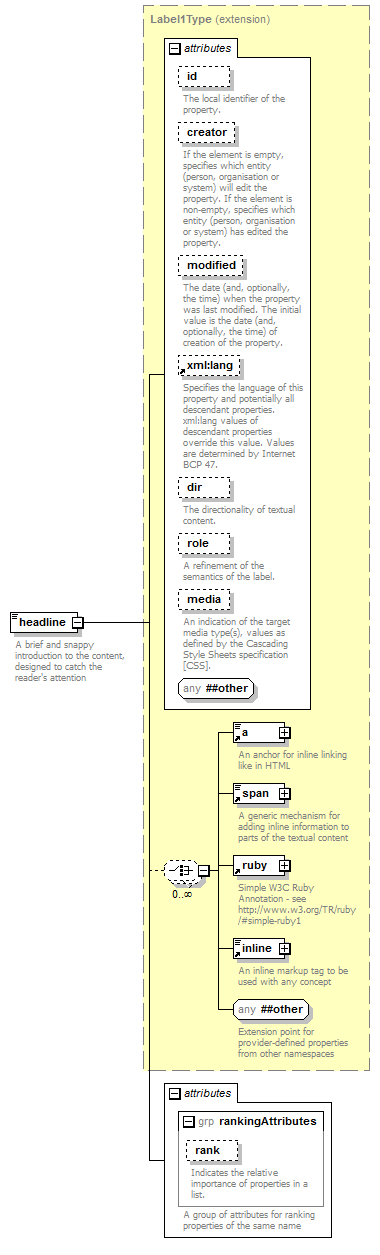

element headline

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of Label1Type
properties	content  complex
children	a span ruby inline
used by	groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the label. media xs:NMTOKENS          documentation An indication of the target media type(s), values as defined by the Cascading Style Sheets specification [CSS]. rank xs:nonNegativeInteger optional         documentation Indicates the relative importance of properties in a list.
annotation	documentation A brief and snappy introduction to the content, designed to catch the reader's attention

element hierarchyInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	xs:NMTOKENS
properties	content  simple
used by	element  concept complexTypes  FlexPropType QualPropType group  ConceptDefinitionGroup
annotation	documentation Represents the position of a concept in a hierarchical taxonomy tree by a sequence of QCode tokens representing the ancestor concepts and this concept

element hopHistory

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	hop
used by	complexType  AnyItemType
annotation	documentation A history of the creation and modifications of the content object of this item, expressed as a sequence of hops.

element hopHistory/hop

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	party action
attributes	Name   Type   Use   Default   Fixed   annotation seq xs:nonNegativeInteger          documentation The sequential value of this Hop in a sequence of Hops of a Hop History. Values need not to be consecutive. The sequence starts with the lowest value. timestamp xs:dateTime          documentation The date and optionally the time (with a time zone) when this item's content object was forwarded. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation A single hop of the Hop History. The details of the hop entry should reflect the actions taken by a party.

attribute hopHistory/hop/@seq

type	xs:nonNegativeInteger
properties	isRef  0
annotation	documentation The sequential value of this Hop in a sequence of Hops of a Hop History. Values need not to be consecutive. The sequence starts with the lowest value.

attribute hopHistory/hop/@timestamp

type	xs:dateTime
properties	isRef  0
annotation	documentation The date and optionally the time (with a time zone) when this item's content object was forwarded.

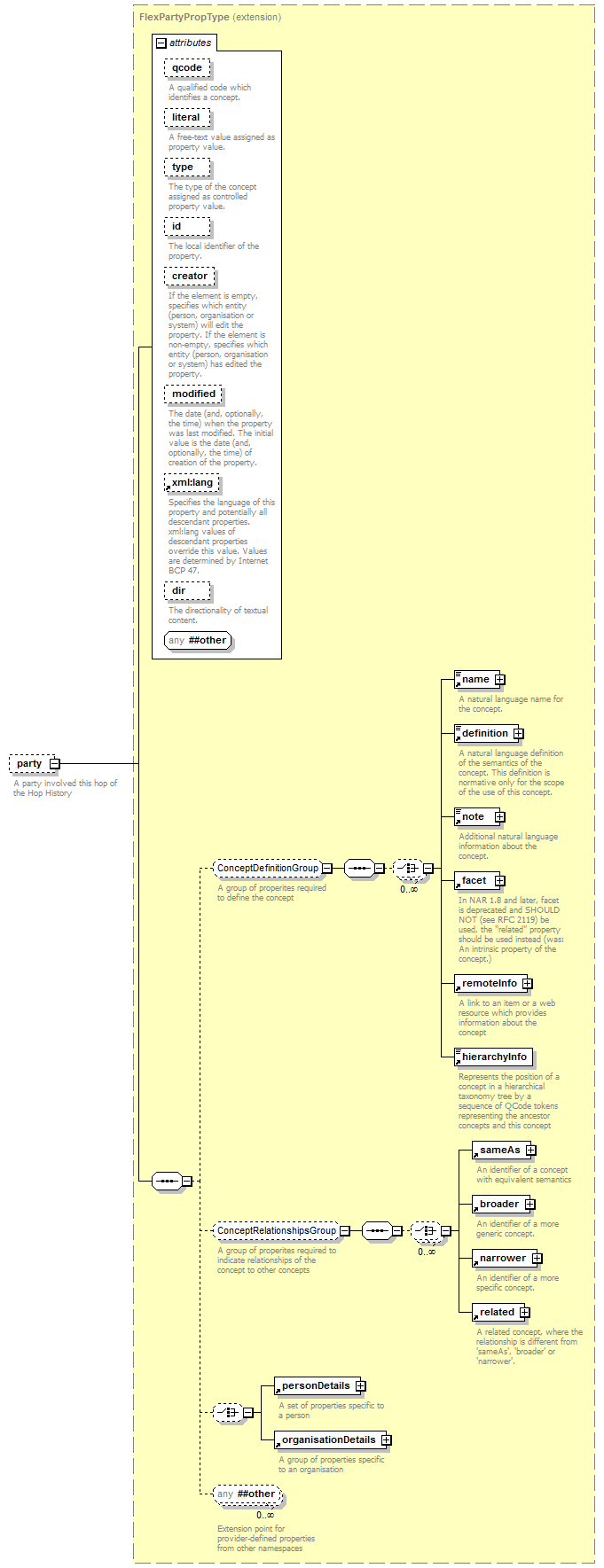

element hopHistory/hop/party

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of FlexPartyPropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A party involved this hop of  the Hop History

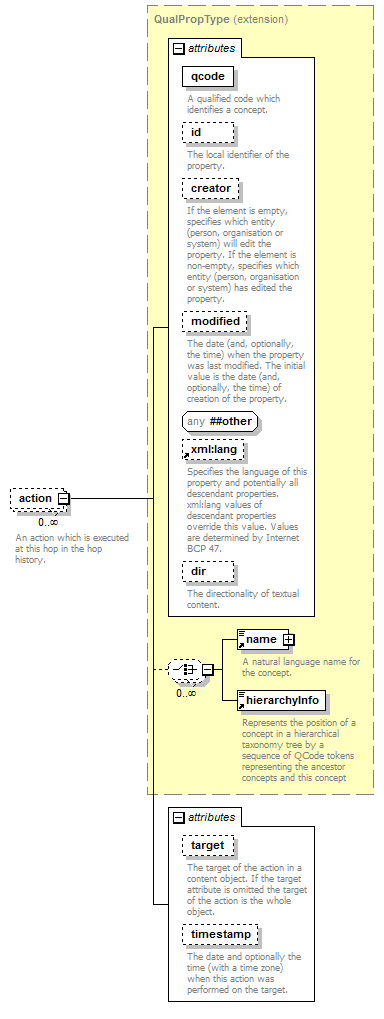

element hopHistory/hop/action

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of QualPropType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. target QCodeType          documentation The target of the action in a content object. If the target attribute is omitted the target of the action is the whole object. timestamp xs:dateTime          documentation The date and optionally the time (with a time zone) when this action was performed on the target.
annotation	documentation An action which is executed at this hop in the hop history.

attribute hopHistory/hop/action/@target

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation The target of the action in a content object. If the target attribute is omitted the target of the action is the whole object.

attribute hopHistory/hop/action/@timestamp

type	xs:dateTime
properties	isRef  0
annotation	documentation The date and optionally the time (with a time zone) when this action was performed on the target.

element icon

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
used by	element  partMeta complexTypes  ContentMetadataAcDType ContentMetadataAfDType ContentMetadataType
attributes	Name   Type   Use   Default   Fixed   annotation href IRIType          documentation The locator of the target resource. residref xs:string          documentation The  provider’s identifier of the target resource. version xs:positiveInteger          documentation The version of the target resource. By default, the latest revision is retrieved when the link is activated. persistidref xs:string          documentation Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8) contenttype xs:string          documentation The IANA (Internet Assigned Numbers Authority) MIME type of the target resource. format QCodeType          documentation A refinement of a generic content type (i.e. IANA MIME type) size xs:nonNegativeInteger          documentation The size in bytes of the target resource. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. rendition QCodeType          documentation Identifies the rendition of the target resource. If the target resource is an item providing multiple renditions then this attribute is used to identify the rendition to be used. width xs:nonNegativeInteger          documentation The width of visual content. widthunit QCodeType          documentation If present defines the width unit for the width height xs:nonNegativeInteger          documentation The height of visual content. heightunit QCodeType          documentation If present defines the height unit for the heigth
annotation	documentation An iconic visual identification of the content

attribute icon/@rendition

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation Identifies the rendition of the target resource. If the target resource is an item providing multiple renditions then this attribute is used to identify the rendition to be used.

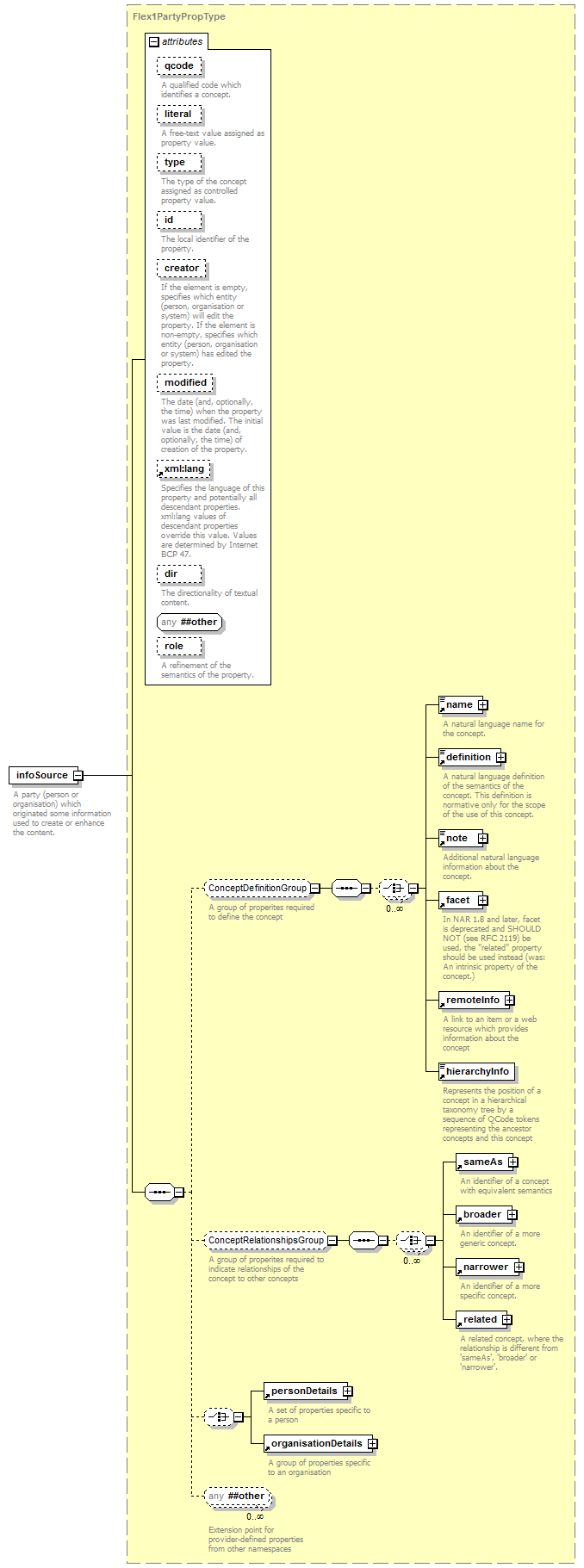

element infoSource

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Flex1PartyPropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the property.
annotation	documentation A party (person or organisation) which originated some information used to create or enhance the content.

element inline

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex mixed  true
children	span ruby
used by	element  a complexTypes  BlockType Label1Type
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. confidence Int100Type          documentation The confidence with which the metadata has been assigned. relevance Int100Type          documentation The relevance of the metadata to the news content to which it is attached. why QCodeType          documentation Why the metadata has been included. class xs:string          documentation An equivalent of the html class attribute
annotation	documentation An inline markup tag to be used with any concept

attribute inline/@class

type	xs:string
properties	isRef  0
annotation	documentation An equivalent of the html class attribute

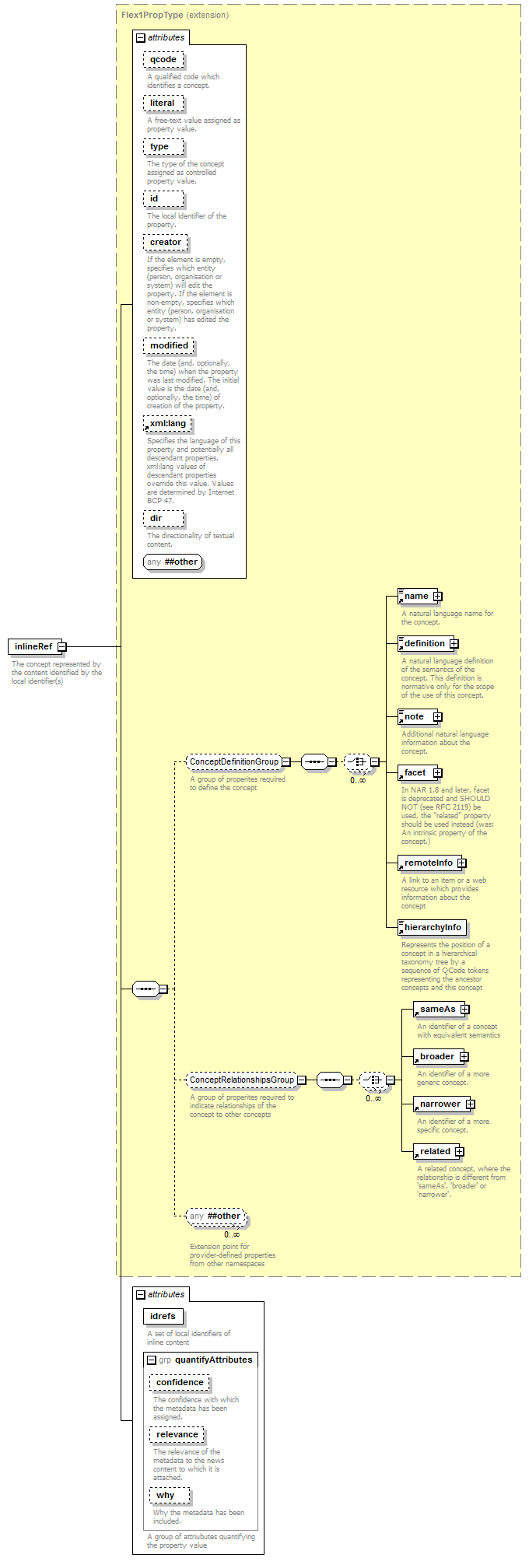

element inlineRef

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of Flex1PropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related
used by	element  packageItem
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. idrefs xs:IDREFS required         documentation A set of local identifiers of inline content confidence Int100Type          documentation The confidence with which the metadata has been assigned. relevance Int100Type          documentation The relevance of the metadata to the news content to which it is attached. why QCodeType          documentation Why the metadata has been included.
annotation	documentation The concept represented by the content identified by the local identifier(s)

attribute inlineRef/@idrefs

type	xs:IDREFS
properties	isRef  0 use  required
annotation	documentation A set of local identifiers of inline content

element instanceOf

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Flex1PropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A frequently updating information object that this Item is an instance of.

element itemClass

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	content  complex
children	name hierarchyInfo
used by	elements  eventDetails/newsCoverage newsCoverage/planning group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation The nature of the item, set in accordance with the structure of its content.

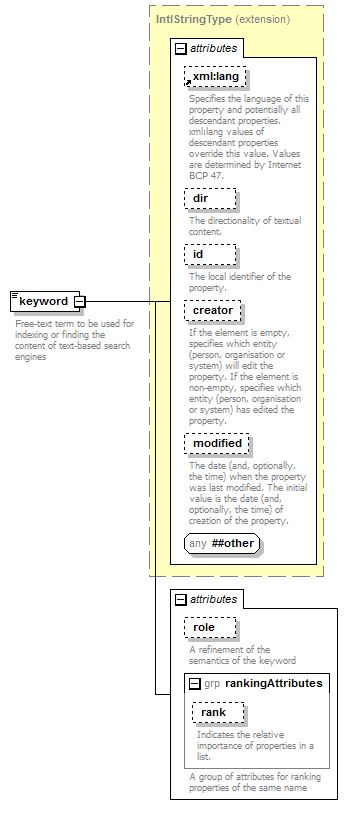

element keyword

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of IntlStringType
properties	content  complex
used by	element  eventDetails groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. role QCodeListType          documentation A refinement of the semantics of the keyword rank xs:nonNegativeInteger optional         documentation Indicates the relative importance of properties in a list.
annotation	documentation Free-text term to be used for indexing or finding the content of text-based search engines

attribute keyword/@role

type	QCodeListType
properties	isRef  0
annotation	documentation A refinement of the semantics of the keyword

element language

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	name
used by	element  eventDetails groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. tag xs:language required         documentation The language tag. Values must be valid BCP 47 language tags role QCodeListType          documentation A refinement of the semantics of the property rank xs:nonNegativeInteger optional         documentation Indicates the relative importance of properties in a list.
annotation	documentation A language used by the news content

attribute language/@tag

type	xs:language
properties	isRef  0 use  required
annotation	documentation The language tag. Values must be valid BCP 47 language tags

attribute language/@role

type	QCodeListType
properties	isRef  0
annotation	documentation A refinement of the semantics of the property

element language/name

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	IntlStringType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
used by	elements  concept event complexTypes  FlexPropType QualPropType group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation A name for a concept assigned as property value.

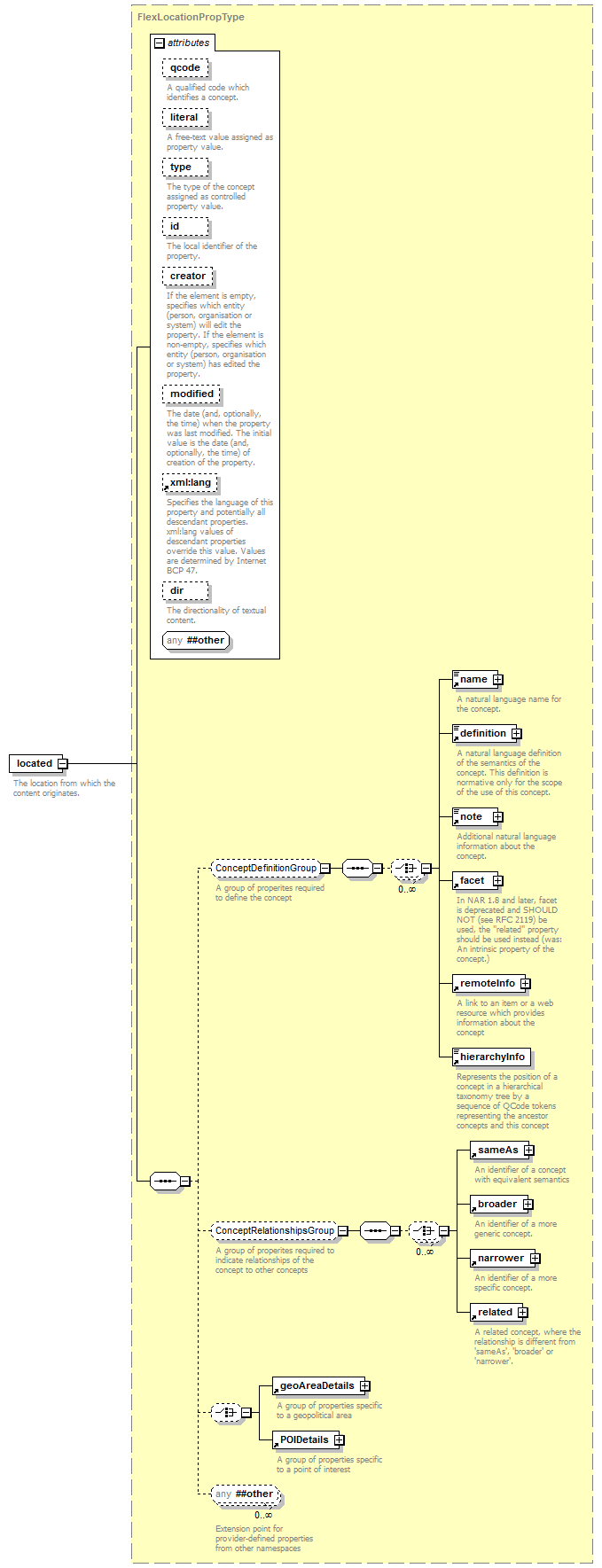

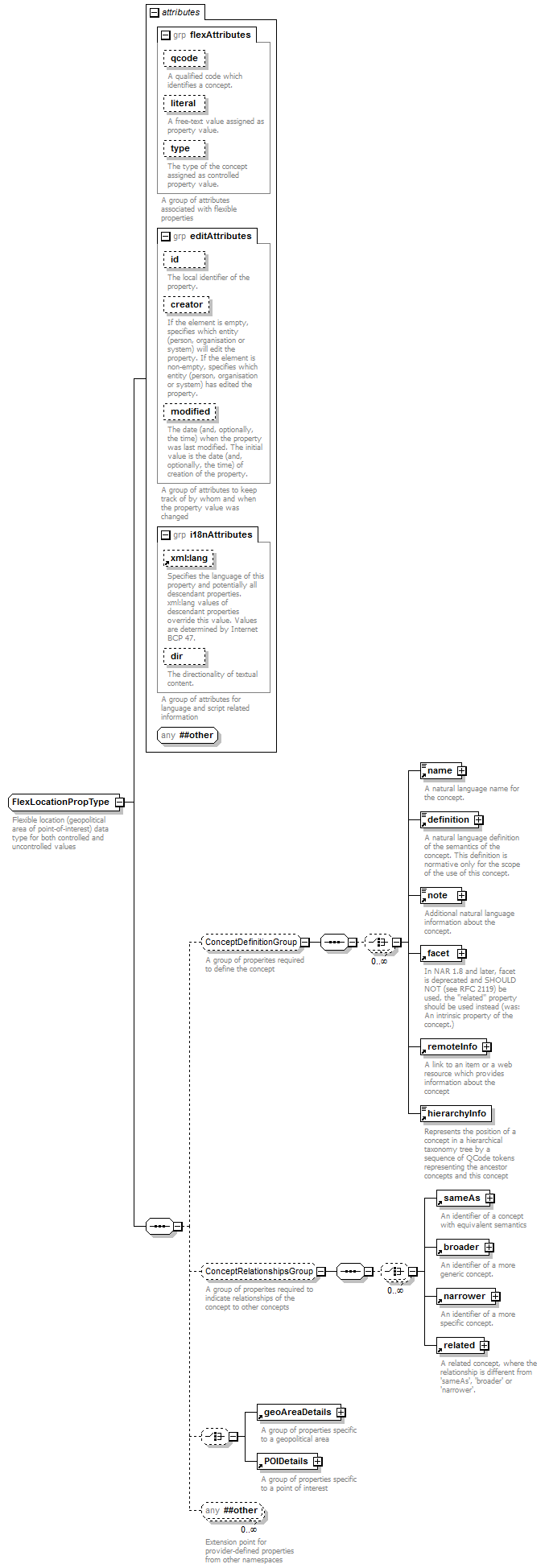

element located

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexLocationPropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related geoAreaDetails POIDetails
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation The location from which the content originates.

element memberOf

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Flex1PropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A set of Items around the same theme that this Item is part of.

element name

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ConceptNameType
properties	content  complex
used by	elements  concept event complexTypes  FlexPropType QualPropType group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. role QCodeListType          documentation A refinement of the semantics of the name part QCodeType          documentation Specifies which part of a full name this property provides. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid.
annotation	documentation A natural language name for the concept.

element narrower

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	RelatedConceptType
properties	content  complex
children	name hierarchyInfo facet related
used by	group  ConceptRelationshipsGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. rel QCodeType          documentation The identifier of the relationship between the current concept and the target concept. rank xs:nonNegativeInteger          documentation The rank of the current concept among concepts having a relationship to the target concept. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid.
annotation	documentation An identifier of a more specific concept.

element newsCoverage

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	planning delivery
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the element which MUST be persistent for all versions of the item, i.e. for its entire lifecycle. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation Information about the planned and delivered news coverage of the news provider. This information is aimed at the editorial staff of the receiver

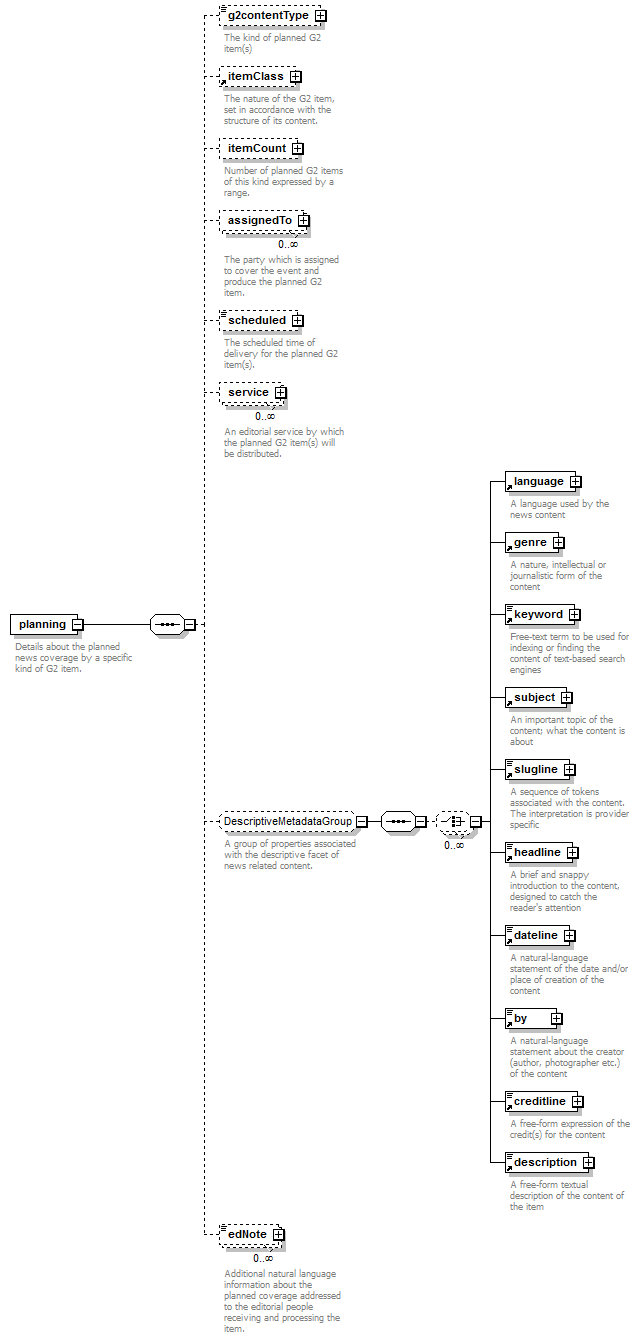

element newsCoverage/planning

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
children	g2contentType itemClass itemCount assignedTo scheduled service language genre keyword subject slugline headline dateline by creditline description edNote
annotation	documentation Details about the planned news coverage by a specific kind of G2 item.

element newsCoverage/planning/g2contentType

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The kind of planned G2 item(s)

element newsCoverage/planning/itemCount

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. rangefrom xs:nonNegativeInteger required         rangeto xs:positiveInteger required
annotation	documentation Number of planned G2 items of this kind expressed by a range.

attribute newsCoverage/planning/itemCount/@rangefrom

type	xs:nonNegativeInteger
properties	isRef  0 use  required

attribute newsCoverage/planning/itemCount/@rangeto

type	xs:positiveInteger
properties	isRef  0 use  required

element newsCoverage/planning/assignedTo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Flex1PartyPropType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the property.
annotation	documentation The party which is assigned to cover the event and produce the planned G2 item.

element newsCoverage/planning/scheduled

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ApproximateDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. approxstart TruncatedDateTimeType optional         documentation The date (and optionally time) at which the approximation range begins. approxend TruncatedDateTimeType optional         documentation The date (and optionally the time) at which the approximation range ends.
annotation	documentation The scheduled time of delivery for the planned G2 item(s).

element newsCoverage/planning/service

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation An editorial service by which the planned G2 item(s) will be distributed.

element newsCoverage/planning/edNote

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex mixed  true
children	a span ruby br inline
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. media xs:NMTOKENS          role QCodeListType          documentation A refinement of the semantics of the block.
annotation	documentation Additional natural language information about the planned coverage addressed to the editorial people receiving and processing the item.

element note

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of BlockType
properties	content  complex mixed  true
children	a span ruby br inline
used by	elements  concept event complexType  ContactInfoType group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. media xs:NMTOKENS          role QCodeListType          documentation A refinement of the semantics of the block. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid.
annotation	documentation Additional natural language information about the concept.

element objectDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	created copyrightNotice creator ceasedToExist
used by	group  EntityDetailsGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A group of properties specific to an object

element objectDetails/created

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date (and optionally the time) on which this object was created

element objectDetails/ceasedToExist

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date (and optionally the time) on which this object ceased to exist.

element organisationDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	founded dissolved location contactInfo
used by	complexTypes  FlexOrganisationPropType FlexPartyPropType group  EntityDetailsGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A group of properties specific to an organisation

element organisationDetails/founded

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date the organisation was founded/established.

element organisationDetails/dissolved

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date the organisation was dissolved.

element organisationDetails/location

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexLocationPropType
properties	isRef  0 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related geoAreaDetails POIDetails
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A place where the organisation is located.

element organisationDetails/contactInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ContactInfoType
properties	isRef  0 content  complex
children	email im phone fax web address note
attributes	Name   Type   Use   Default   Fixed   annotation role QCodeListType          documentation A refinement of the semantics of a contact information.
annotation	documentation Information how to contact the organisation.

element partMeta

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	icon timeDelim regionDelim role urgency contentCreated contentModified located infoSource creator contributor audience exclAudience altId language genre keyword subject slugline headline dateline by creditline description
used by	element  packageItem
attributes	Name   Type   Use   Default   Fixed   annotation partid xs:ID          documentation The identifier of the part seq xs:nonNegativeInteger          documentation The sequence number of the part contentrefs xs:IDREFS          documentation A list of identifiers of XML elements containing content which is described by this partMeta structure. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A set of properties describing a specific part of the content of the Item

attribute partMeta/@partid

type	xs:ID
properties	isRef  0
annotation	documentation The identifier of the part

attribute partMeta/@seq

type	xs:nonNegativeInteger
properties	isRef  0
annotation	documentation The sequence number of the part

attribute partMeta/@contentrefs

type	xs:IDREFS
properties	isRef  0
annotation	documentation A list of identifiers of XML elements containing content which is described by this partMeta structure.

element partMeta/timeDelim

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation start xs:string required         documentation The timestamp corresponding to the start of the part end xs:string required         documentation The timestamp corresponding to the end of the part timeunit QCodeType required         documentation The unit used for the start and end timestamps id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation A delimiter for a piece of streaming media content, expressed in various time formats

attribute partMeta/timeDelim/@start

type	xs:string
properties	isRef  0 use  required
annotation	documentation The timestamp corresponding to the start of the part

attribute partMeta/timeDelim/@end

type	xs:string
properties	isRef  0 use  required
annotation	documentation The timestamp corresponding to the end of the part

attribute partMeta/timeDelim/@timeunit

type	QCodeType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation The unit used for the start and end timestamps

element partMeta/regionDelim

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation x xs:integer          documentation The x-axis coordinate of the side of the rectangle which has the smaller x-axis coordinate value in the current user coordinate system y xs:integer          documentation The y-axis coordinate of the side of the rectangle which has the smaller y-axis coordinate value in the current user coordinate system width xs:integer          documentation The width of the rectangle height xs:integer          documentation The height of the rectangle id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation A delimiter for a rectangular region in a piece of visual content

attribute partMeta/regionDelim/@x

type	xs:integer
properties	isRef  0
annotation	documentation The x-axis coordinate of the side of the rectangle which has the smaller x-axis coordinate value in the current user coordinate system

attribute partMeta/regionDelim/@y

type	xs:integer
properties	isRef  0
annotation	documentation The y-axis coordinate of the side of the rectangle which has the smaller y-axis coordinate value in the current user coordinate system

attribute partMeta/regionDelim/@width

type	xs:integer
properties	isRef  0
annotation	documentation The width of the rectangle

attribute partMeta/regionDelim/@height

type	xs:integer
properties	isRef  0
annotation	documentation The height of the rectangle

element partMeta/role

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation The role in the overall content stream.

element personDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	born died affiliation contactInfo
used by	complexTypes  FlexPartyPropType FlexPersonPropType group  EntityDetailsGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A set of properties specific to a person

element personDetails/born

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date the person was born.

element personDetails/died

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date the person died.

element personDetails/affiliation

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	PersonAffiliationType
properties	isRef  0 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related organisationDetails
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid.
annotation	documentation An affiliation of the person with an organisation.

element personDetails/contactInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ContactInfoType
properties	isRef  0 content  complex
children	email im phone fax web address note
attributes	Name   Type   Use   Default   Fixed   annotation role QCodeListType          documentation A refinement of the semantics of a contact information.
annotation	documentation Information how to contact the person.

element POIDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	position address openHours capacity contactInfo access details created ceasedToExist
used by	complexTypes  FlexLocationPropType FlexPOIPropType group  EntityDetailsGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A group of properties specific to a point of interest

element POIDetails/position

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	GeoCoordinatesType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation latitude xs:decimal required         documentation The latitude in decimal degrees. longitude xs:decimal required         documentation The longitude in decimal degrees. altitude xs:integer          documentation The altitude in meters above the zero elevation of the reference system (sea level). gpsdatum xs:string          documentation The GPS datum associated with the measure.
annotation	documentation The coordinates of the location

element POIDetails/address

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	line locality area country postalCode
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A postal address for the location of a Point Of Interest

element POIDetails/address/line

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	IntlStringType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation A line of address information, in the format expected by a recipient postal service. City, country area, country and postal code are expressed separately.

element POIDetails/address/locality

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Flex1PropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A city/town/village etc. part of the address.

element POIDetails/address/area

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Flex1PropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A subdivision of a country part of the address.

element POIDetails/address/country

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Flex1PropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A country part of the address.

element POIDetails/address/postalCode

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	IntlStringType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation A postal code part of the address.

element POIDetails/openHours

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Label1Type
properties	isRef  0 minOcc  0 maxOcc  1 content  complex mixed  true
children	a span ruby inline
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the label. media xs:NMTOKENS          documentation An indication of the target media type(s), values as defined by the Cascading Style Sheets specification [CSS].
annotation	documentation Opening hours of the point of interest expressed in natural language

element POIDetails/capacity

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Label1Type
properties	isRef  0 minOcc  0 maxOcc  1 content  complex mixed  true
children	a span ruby inline
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the label. media xs:NMTOKENS          documentation An indication of the target media type(s), values as defined by the Cascading Style Sheets specification [CSS].
annotation	documentation Total capacity of the point of interest expressed in natural language

element POIDetails/contactInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ContactInfoType
properties	isRef  0 content  complex
children	email im phone fax web address note
attributes	Name   Type   Use   Default   Fixed   annotation role QCodeListType          documentation A refinement of the semantics of a contact information.
annotation	documentation Information how to contact the point of interest.

element POIDetails/access

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	isRef  0 content  complex mixed  true
children	a span ruby br inline
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. media xs:NMTOKENS          role QCodeListType          documentation A refinement of the semantics of the block.
annotation	documentation Ways to access the place of the point of  interest, including directions.

element POIDetails/details

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	isRef  0 content  complex mixed  true
children	a span ruby br inline
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. media xs:NMTOKENS          role QCodeListType          documentation A refinement of the semantics of the block.
annotation	documentation Detailed information about the precise location of the Point of Interest.

element POIDetails/created

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date (and optionally the time) on which this Point of Interest was created

element POIDetails/ceasedToExist

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation The date (and optionally the time) on which this Point of Interest ceased to exist

element profile

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	VersionedStringType
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. versioninfo xs:string          documentation The version of a processing resource.
annotation	documentation The name of the structural template (aka profile) used for the generation of the Item.

element provider

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPartyPropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation The party (person or organisation) responsible for the management of the Item.

element pubStatus

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation The publishing status of the Item, its value is "usable" by default.

element rb

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	xs:string
properties	content  simple
used by	element  ruby
annotation	documentation Ruby base

element related

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexRelatedConceptType
properties	content  complex
children	name hierarchyInfo facet related bag
used by	group  ConceptRelationshipsGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. rel QCodeType          documentation The identifier of the relationship between the current concept and the target concept. rank xs:nonNegativeInteger          documentation The rank of the current concept among concepts having a relationship to the target concept. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid. value xs:string optional         documentation The related value (see more in the spec document) valuedatatype xs:QName optional         documentation The datatype of the value attribute – it MUST be one of the built-in datatypes defined by XML Schema version 1.0. valueunit QCodeType optional         documentation The unit of the value attribute.
annotation	documentation A related concept, where the relationship is different from 'sameAs', 'broader' or 'narrower'.

element remoteInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Link1Type
properties	content  complex
used by	element  concept group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation rel QCodeType          documentation The identifier of the relationship between the current Item and the target resource. href IRIType          documentation The locator of the target resource. residref xs:string          documentation The  provider’s identifier of the target resource. version xs:positiveInteger          documentation The version of the target resource. By default, the latest revision is retrieved when the link is activated. persistidref xs:string          documentation Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8) contenttype xs:string          documentation The IANA (Internet Assigned Numbers Authority) MIME type of the target resource. format QCodeType          documentation A refinement of a generic content type (i.e. IANA MIME type) size xs:nonNegativeInteger          documentation The size in bytes of the target resource. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. rank xs:nonNegativeInteger          documentation The rank of the link among other links guidref xs:string          documentation The use of this attribute is DEPRECATED, use @residref instead. (was: The globally unique Identifier of the target Item.) hreftype xs:string          documentation The use of this attribute is DEPRECATED, use @contenttype instead. (was: An IANA MIME type.)
annotation	documentation A link to an item or a web resource which provides information about the concept

element role

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation The role of the Item in the editorial workflow.

element rp

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	xs:string
properties	content  simple
used by	elements  ruby ruby
annotation	documentation Ruby parenthesis

element rt

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	xs:string
properties	content  simple
used by	elements  ruby ruby
annotation	documentation Ruby text

element ruby

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	rb rt rp
used by	elements  a inline span complexTypes  BlockType Label1Type
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation Simple W3C Ruby Annotation - see http://www.w3.org/TR/ruby/#simple-ruby1

element sameAs

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	SameAsType
properties	content  complex
children	name hierarchyInfo
used by	group  ConceptRelationshipsGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. validfrom DateOptTimeType          documentation The date (and, optionally, the time) before which a relationship is not valid. validto DateOptTimeType          documentation The date (and, optionally, the time) after which a relationship is not valid.
annotation	documentation An identifier of a concept with equivalent semantics

element service

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation An editorial service to which an item is assigned by its provider.

element signal

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of QualPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. severity QCodeType          documentation Indicates how severe the impact from the signal is. The recommended vocabular is the IPTC Severity NewsCodes  http://cv.iptc.org/newscodes/severity/
annotation	documentation An instruction to the processor that the content requires special handling.

attribute signal/@severity

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation Indicates how severe the impact from the signal is. The recommended vocabular is the IPTC Severity NewsCodes  http://cv.iptc.org/newscodes/severity/

element slugline

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of IntlStringType
properties	content  complex
used by	groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. separator xs:string          documentation The character string acting as a separator between the tokens in the slugline. role QCodeType          documentation A refinement of the semantics of the slug rank xs:nonNegativeInteger optional         documentation Indicates the relative importance of properties in a list.
annotation	documentation A sequence of tokens associated with the content. The interpretation is provider specific

attribute slugline/@separator

type	xs:string
properties	isRef  0
annotation	documentation The character string acting as a separator between the tokens in the slugline.

attribute slugline/@role

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation A refinement of the semantics of the slug

element span

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex mixed  true
children	ruby
used by	elements  a inline complexTypes  BlockType Label1Type
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. class xs:string          documentation An equivalent of the html class attribute
annotation	documentation A generic mechanism for adding inline information to parts of the textual content

attribute span/@class

type	xs:string
properties	isRef  0
annotation	documentation An equivalent of the html class attribute

element subject

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of Flex1ConceptPropType
properties	content  complex
children	name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related bag
used by	groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. confidence Int100Type          documentation The confidence with which the metadata has been assigned. relevance Int100Type          documentation The relevance of the metadata to the news content to which it is attached. why QCodeType          documentation Why the metadata has been included. rank xs:nonNegativeInteger optional         documentation Indicates the relative importance of properties in a list.
annotation	documentation An important topic of the content; what the content is about

element title

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	Label1Type
properties	content  complex mixed  true
children	a span ruby inline
used by	elements  catalog AnyItemType/catalogRef group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property. lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeListType          documentation A refinement of the semantics of the label. media xs:NMTOKENS          documentation An indication of the target media type(s), values as defined by the Cascading Style Sheets specification [CSS].
annotation	documentation A short, natural-language name

element urgency

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of Int1to9Type
properties	content  complex
used by	group  AdministrativeMetadataGroup
facets	Kind  Value  annotation  minInclusive  1  maxInclusive  9
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the property. creator QCodeType optional
