Schema NewsML-G2_2.9-spec-NewsMessage-Core.xsd

schema location:	http://www.iptc.org/std/NewsML-G2/2.9/specification/individual/NewsML-G2_2.9-spec-NewsMessage-Core.xsd
attribute form default:	unqualified
element form default:	qualified
targetNamespace:	http://iptc.org/std/nar/2006-10-01/

Elements	Complex types
newsMessage	StringType

schema location:	http://www.iptc.org/std/NewsML-G2/2.9/specification/individual/NewsML-G2_2.9-spec-Framework-Core.xsd
attribute form default:	unqualified
element form default:	qualified
targetNamespace:	http://iptc.org/std/nar/2006-10-01/

Elements	Groups	Complex types	Simple types	Attr. groups

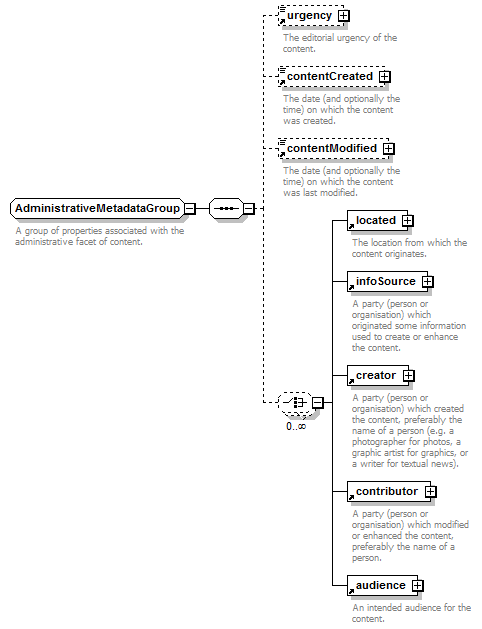

accountable	AdministrativeMetadataGroup	AnyItemType	ByDayListType	arbitraryValueAttributes
audience	ConceptDefinitionGroup	ApproximateDateTimePropType	ByHourListType	deprecatedLinkAttributes
br	ConceptRelationshipsGroup	BlockType	ByMinuteListType	flexAttributes
broader	DescriptiveMetadataCoreGroup	ConceptIdType	ByMonthDayListType	i18nAttributes
by	DescriptiveMetadataGroup	ContactInfoType	ByMonthListType	mediaContentCharacteristics1
catalog	EntityDetailsGroup	ContentMetadataAcDType	BySecondListType	persistentEditAttributes

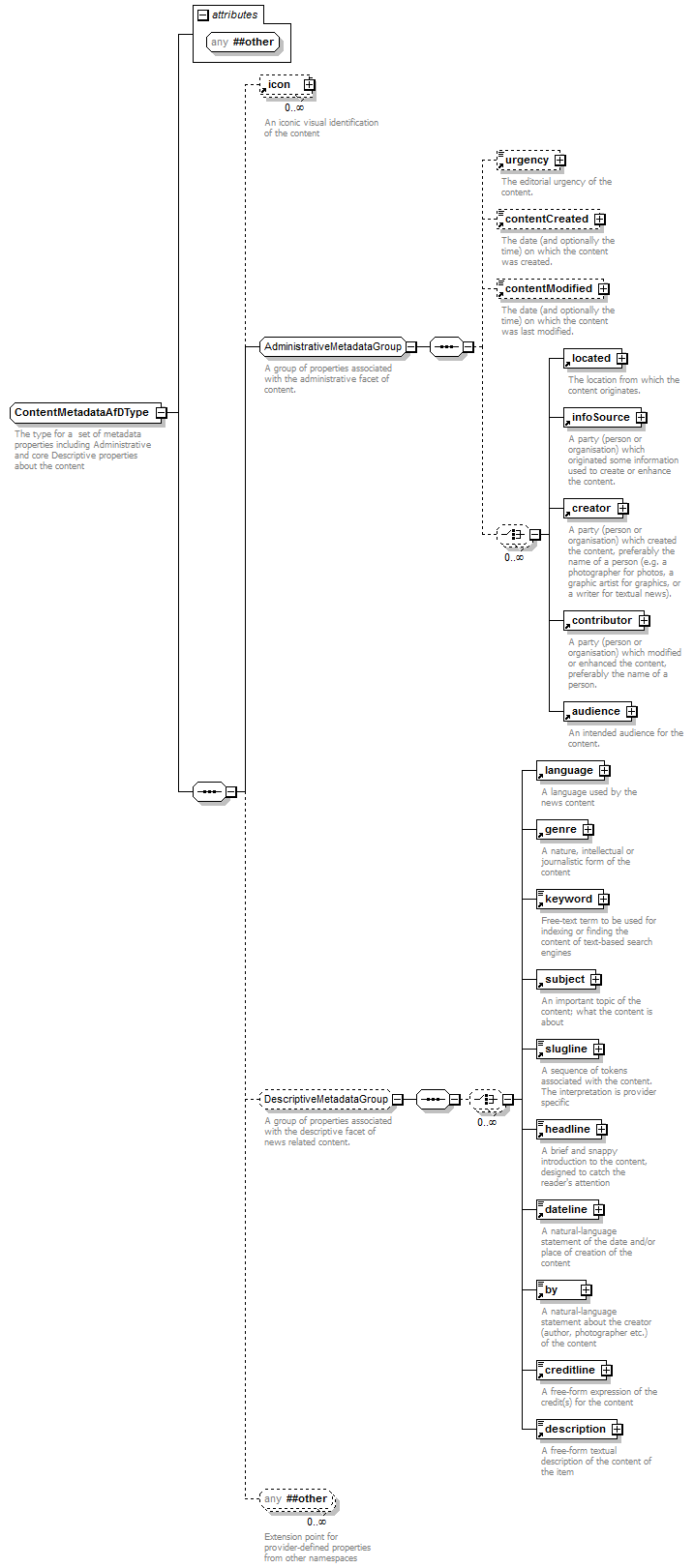

concept	ItemManagementGroup	ContentMetadataAfDType	BySetposListType	qualifyingAttributes
contentCreated	RecurrenceGroup	ContentMetadataType	ByWeekNoListType	rankingAttributes
contentModified		DateOptTimePropType	ByYearDayListType	recurrenceRuleAttributes
contributor		DateTimeOrNullPropType	DateOptTimeType	targetResourceAttributes
copyrightHolder		DateTimePropType	EmptyStringType
copyrightNotice		ElectronicAddressType	Int100Type
created		FlexPropType	Int1to9Type
creator		FlexRelatedPropType	IRIType
creditline		GeoCoordinatesType	QCodeType
dateline		IntlStringType	TruncatedDateTimeType
definition		ItemMetadataType	UnionDateTimeEmptyStringType

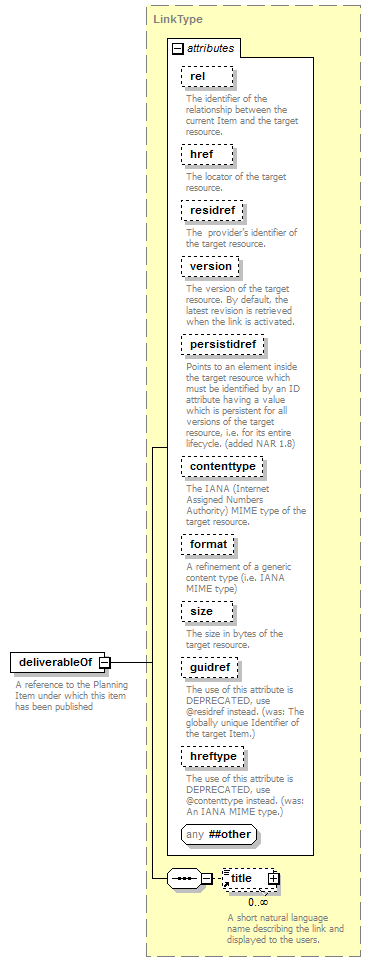

deliverableOf		LabelType	UnionDateTimeType

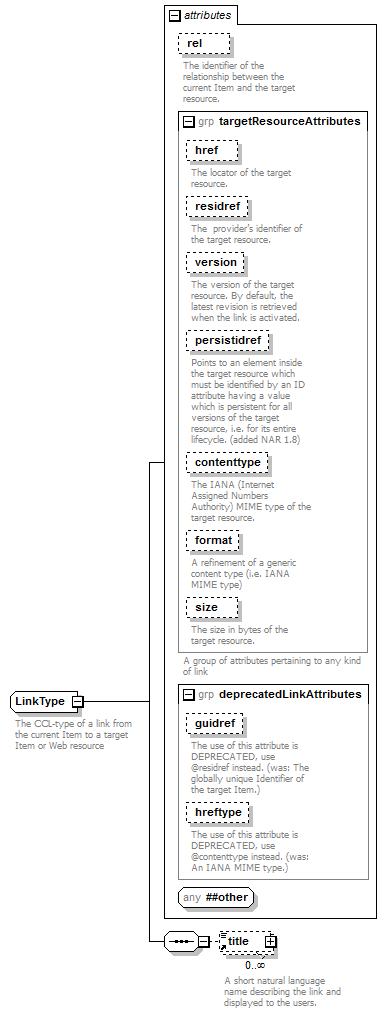

delivery		LinkType
description		QCodePropType
edNote		QualPropType
embargoed		RightsInfoType

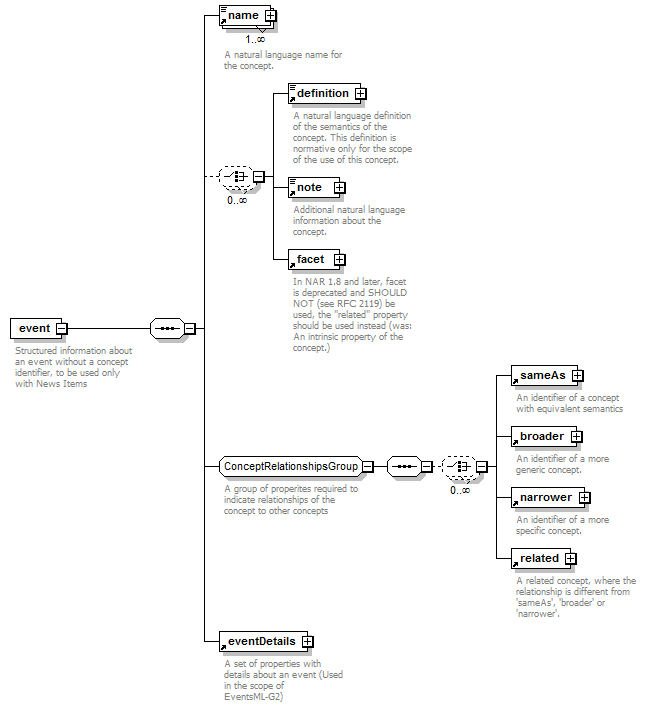

event		TruncatedDateTimePropType
eventDetails		TypedQualPropType
events
facet
fileName
firstCreated
genre
geoAreaDetails
hash
headline
hierarchyInfo
hopHistory

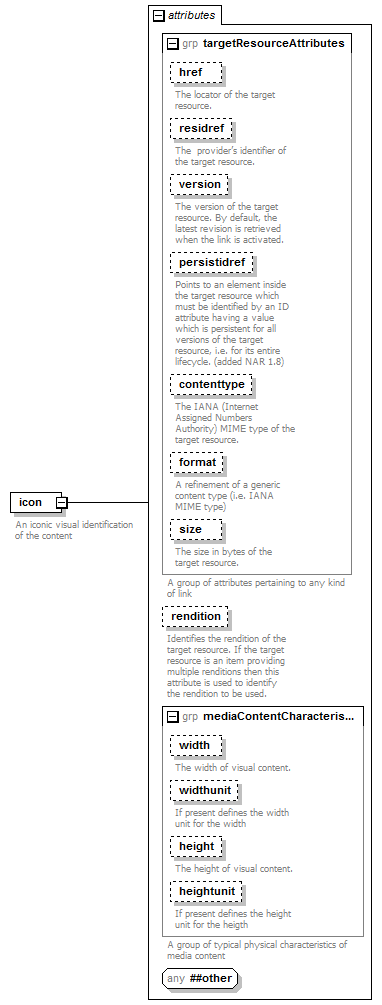

icon
infoSource
itemClass
keyword
language
located
name
narrower

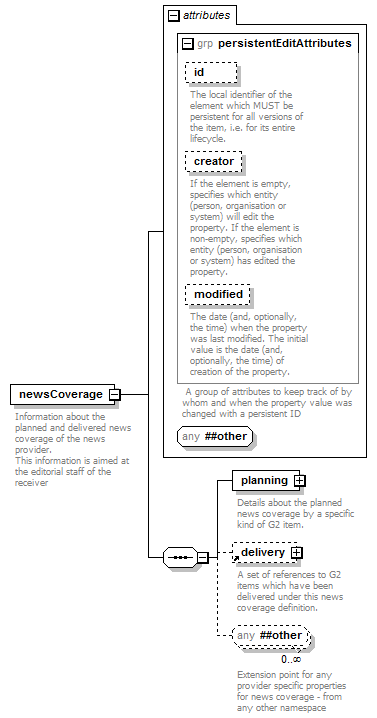

newsCoverage
note
objectDetails
organisationDetails
personDetails

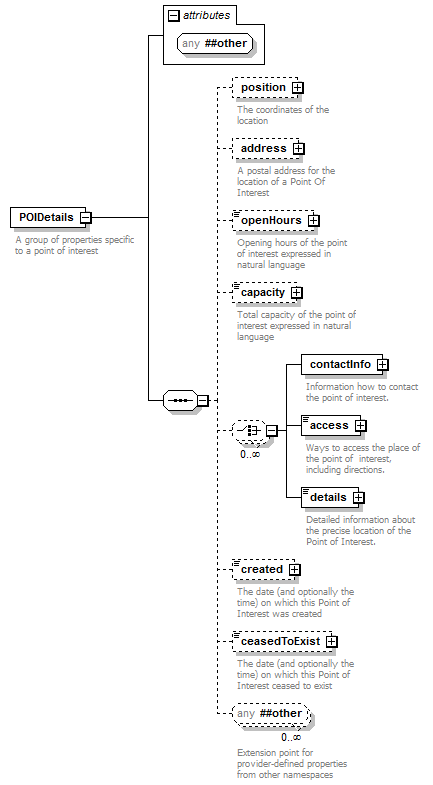

POIDetails
provider
pubStatus
related

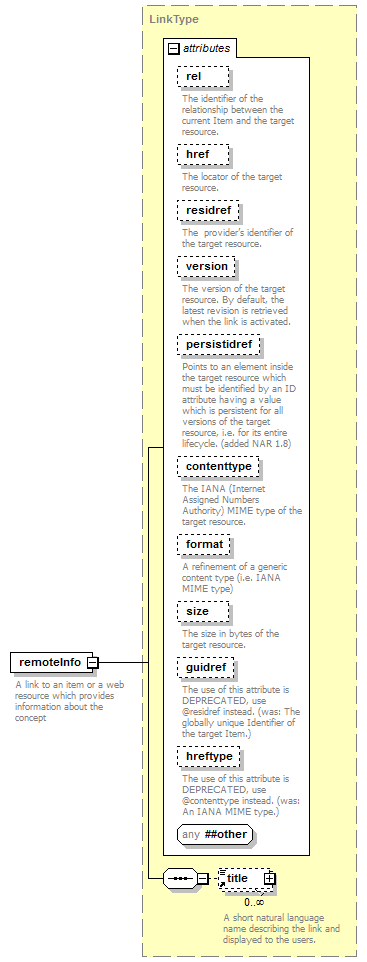

remoteInfo
role
sameAs
service
slugline
subject
title
urgency
usageTerms
versionCreated

schema location:	altova://ystream/xml.xsd
attribute form default:
element form default:
targetNamespace:	http://www.w3.org/XML/1998/namespace

Attributes	Attr. groups
base	specialAttrs
id
lang
space

element newsMessage

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	header itemSet
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A container to exchange one or more items

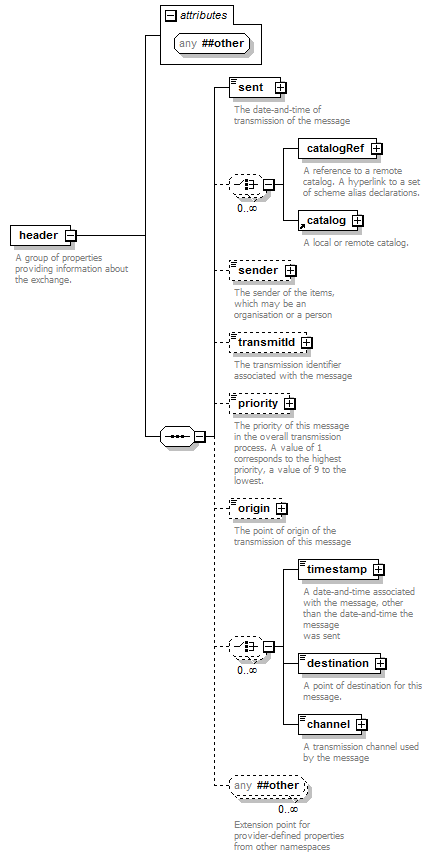

element newsMessage/header

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
children	sent catalogRef catalog sender transmitId priority origin timestamp destination channel
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A group of properties providing information about the exchange.

element newsMessage/header/sent

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	DateTimePropType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date-and-time of transmission of the message

element newsMessage/header/catalogRef

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
children	title
attributes	Name   Type   Use   Default   Fixed   annotation href IRIType required         documentation A hyperlink to a remote Catalog.
annotation	documentation A reference to a remote catalog. A hyperlink to a set of scheme alias declarations.

attribute newsMessage/header/catalogRef/@href

type	IRIType
properties	isRef  0 use  required
annotation	documentation A hyperlink to a remote Catalog.

element newsMessage/header/sender

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of StringType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType optional         documentation A qualified code assigned as a property value. literal xs:normalizedString optional         documentation A free-text value assigned as a property value. type QCodeType optional         documentation The type of the concept assigned as a controlled or an uncontrolled property value. role QCodeType optional         documentation A refinement of the semantics of the property.
annotation	documentation The sender of the items, which may be an organisation or a person

element newsMessage/header/transmitId

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	StringType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The transmission identifier associated with the message

element newsMessage/header/priority

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of Int1to9Type
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  minInclusive  1  maxInclusive  9
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The priority of this message in the overall transmission process. A value of 1 corresponds to the highest priority, a value of 9 to the lowest.

element newsMessage/header/origin

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of StringType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType optional         documentation A qualified code assigned as a property value. literal xs:normalizedString optional         documentation A free-text value assigned as a property value. type QCodeType optional         documentation The type of the concept assigned as a controlled or an uncontrolled property value. role QCodeType optional         documentation A refinement of the semantics of the property.
annotation	documentation The point of origin of the transmission of this message

element newsMessage/header/timestamp

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of DateTimePropType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation role xs:string          documentation A refinement of the semantics of the property. The string value may take a QCode. That the string should be interpreted as a QCode has to be defined outside of the G2 specification by the creator of the News Message.
annotation	documentation A date-and-time associated with the message, other than the date-and-time the message was sent

attribute newsMessage/header/timestamp/@role

type	xs:string
properties	isRef  0
annotation	documentation A refinement of the semantics of the property. The string value may take a QCode. That the string should be interpreted as a QCode has to be defined outside of the G2 specification by the creator of the News Message.

element newsMessage/header/destination

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of StringType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType optional         documentation A qualified code assigned as a property value. literal xs:normalizedString optional         documentation A free-text value assigned as a property value. type QCodeType optional         documentation The type of the concept assigned as a controlled or an uncontrolled property value. role QCodeType optional         documentation A refinement of the semantics of the property.
annotation	documentation A point of destination for this message.

element newsMessage/header/channel

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of StringType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType optional         documentation A qualified code assigned as a property value. literal xs:normalizedString optional         documentation A free-text value assigned as a property value. type QCodeType optional         documentation The type of the concept assigned as a controlled or an uncontrolled property value. role QCodeType optional         documentation A refinement of the semantics of the property.
annotation	documentation A transmission channel used by the message

element newsMessage/itemSet

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The set of items to be exchanged.

complexType StringType

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of xs:string
properties	base  xs:string
used by	elements  newsMessage/header/channel newsMessage/header/destination newsMessage/header/origin newsMessage/header/sender newsMessage/header/transmitId
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The type of a string value. Type defined in this XML Schema only

element accountable

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	complexType  RightsInfoType
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation An individual accountable for the content in legal terms.

element audience

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation An intended audience for the content.

element br

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
used by	complexType  BlockType
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A line break

element broader

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ConceptRelationshipsGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation An identifier of a more generic concept.

element by

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of LabelType
properties	content  complex
used by	group  DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the label.
annotation	documentation A natural-language statement about the creator (author, photographer etc.) of the content

element catalog

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	title scheme
used by	element  newsMessage/header complexType  AnyItemType
attributes	Name   Type   Use   Default   Fixed   annotation additionalInfo IRIType          documentation A pointer to some additional information about the Catalog, and especially its evolution and latest version.
annotation	documentation A local or remote catalog.

attribute catalog/@additionalInfo

type	IRIType
properties	isRef  0
annotation	documentation A pointer to some additional information about the Catalog, and especially its evolution and latest version.

element catalog/scheme

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	sameAs
attributes	Name   Type   Use   Default   Fixed   annotation alias xs:NCName required         documentation A short string used by the provider as a replacement for a scheme URI. uri IRIType required         documentation The URI which identifies the scheme.
annotation	documentation A scheme alias-to-URI mapping.

attribute catalog/scheme/@alias

type	xs:NCName
properties	isRef  0 use  required
annotation	documentation A short string used by the provider as a replacement for a scheme URI.

attribute catalog/scheme/@uri

type	IRIType
properties	isRef  0 use  required
annotation	documentation The URI which identifies the scheme.

element catalog/scheme/sameAs

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	IRIType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
used by	group  ConceptRelationshipsGroup
annotation	documentation A URI which identifies another scheme with concepts that use the same codes and are semantically equivalent to the concepts of this scheme

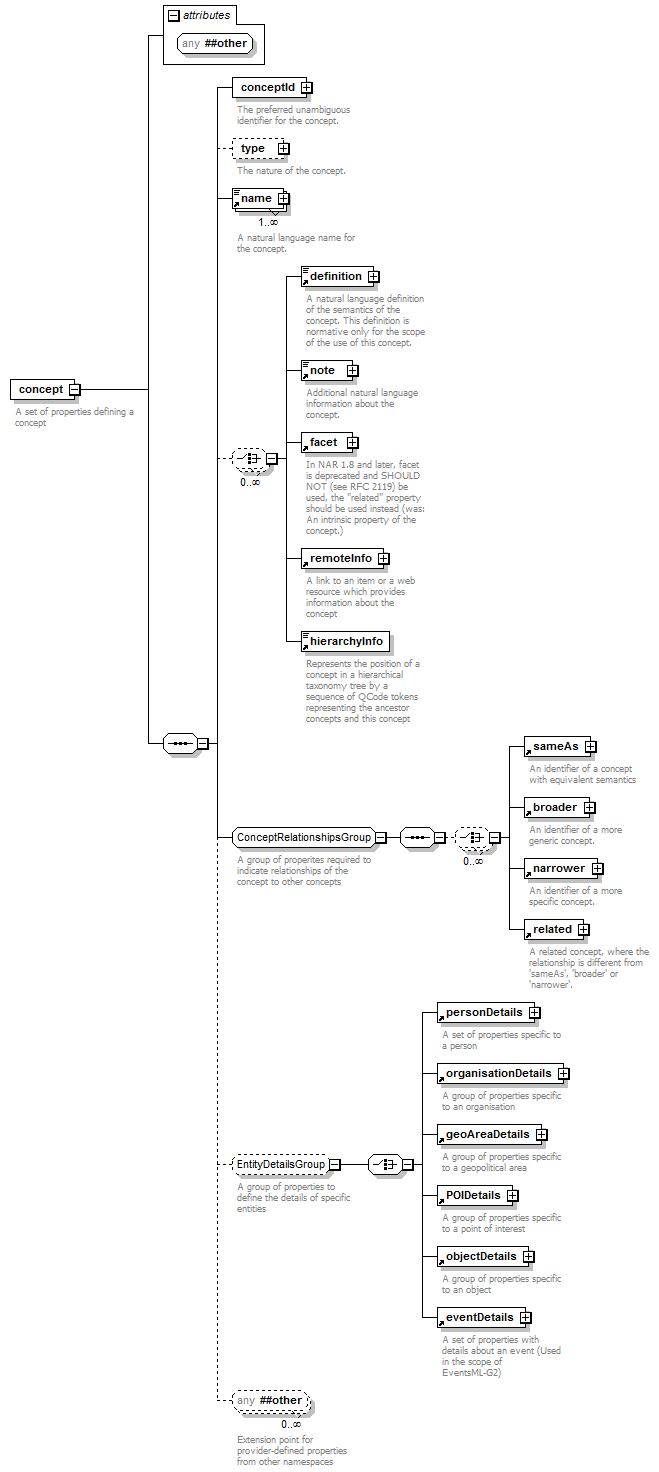

element concept

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	conceptId type name definition note facet remoteInfo hierarchyInfo sameAs broader narrower related personDetails organisationDetails geoAreaDetails POIDetails objectDetails eventDetails
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A set of properties defining a concept

element concept/conceptId

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ConceptIdType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         created DateOptTimeType          documentation The date (and, optionally, the time) when the concept identifier was created. retired DateOptTimeType          documentation The date (and, optionally, the time) after which the concept identifier should not be applied as the value of a property anymore.
annotation	documentation The preferred unambiguous identifier for the concept.

element concept/type

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept.
annotation	documentation The nature of the concept.

element contentCreated

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	content  complex
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date (and optionally the time) on which the content was created.

element contentModified

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	content  complex
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date (and optionally the time) on which the content was last modified.

element contributor

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A party (person or organisation) which modified or enhanced the content, preferably the name of a person.

element copyrightHolder

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	complexType  RightsInfoType
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation The person or organisation claiming the intellectual property for the content.

element copyrightNotice

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	content  complex mixed  true
children	br
used by	element  objectDetails complexType  RightsInfoType
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the block.
annotation	documentation Any necessary copyright notice for claiming the intellectual property for the content.

element created

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date (and optionally the time) on which the resource was created.

element creator

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	element  objectDetails group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A party (person or organisation) which created the resource.

element creditline

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of IntlStringType
properties	content  complex

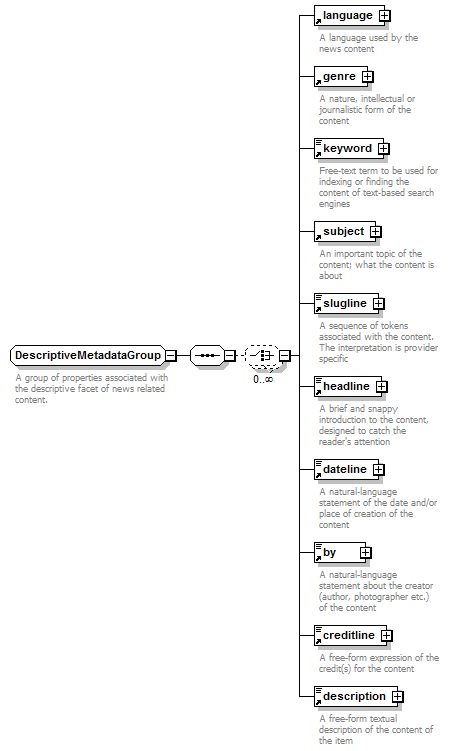

used by	group  DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A free-form expression of the credit(s) for the content

element dateline

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of LabelType
properties	content  complex
used by	group  DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the label.
annotation	documentation A natural-language statement of the date and/or place of creation of the content

element definition

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of BlockType
properties	content  complex mixed  true
children	br
used by	elements  concept event group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the block.
annotation	documentation A natural language definition of the semantics of the concept. This definition is normative only for the scope of the use of this concept.

element deliverableOf

diagram
namespace	http://iptc.org/std/nar/2006-10-01/

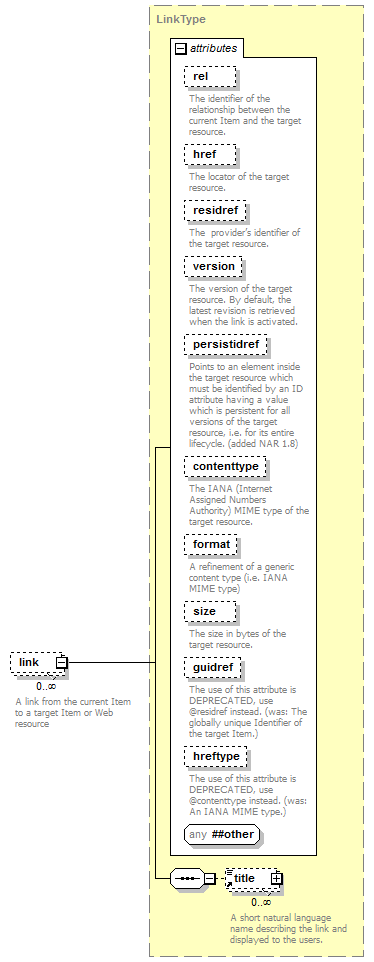

type	LinkType
properties	content  complex
children	title
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation rel QCodeType          documentation The identifier of the relationship between the current Item and the target resource. href IRIType          documentation The locator of the target resource. residref xs:string          documentation The  provider’s identifier of the target resource. version xs:positiveInteger          documentation The version of the target resource. By default, the latest revision is retrieved when the link is activated. persistidref xs:string          documentation Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8) contenttype xs:string          documentation The IANA (Internet Assigned Numbers Authority) MIME type of the target resource. format QCodeType          documentation A refinement of a generic content type (i.e. IANA MIME type) size xs:nonNegativeInteger          documentation The size in bytes of the target resource. guidref xs:string          documentation The use of this attribute is DEPRECATED, use @residref instead. (was: The globally unique Identifier of the target Item.) hreftype xs:string          documentation The use of this attribute is DEPRECATED, use @contenttype instead. (was: An IANA MIME type.)
annotation	documentation A reference to the Planning Item under which this item has been published

element delivery

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	deliveredItemRef
used by	element  newsCoverage
annotation	documentation A set of references to G2 items which have been delivered under this news coverage definition.

element delivery/deliveredItemRef

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	LinkType
properties	isRef  0 content  complex
children	title
attributes	Name   Type   Use   Default   Fixed   annotation rel QCodeType          documentation The identifier of the relationship between the current Item and the target resource. href IRIType          documentation The locator of the target resource. residref xs:string          documentation The  provider’s identifier of the target resource. version xs:positiveInteger          documentation The version of the target resource. By default, the latest revision is retrieved when the link is activated. persistidref xs:string          documentation Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8) contenttype xs:string          documentation The IANA (Internet Assigned Numbers Authority) MIME type of the target resource. format QCodeType          documentation A refinement of a generic content type (i.e. IANA MIME type) size xs:nonNegativeInteger          documentation The size in bytes of the target resource. guidref xs:string          documentation The use of this attribute is DEPRECATED, use @residref instead. (was: The globally unique Identifier of the target Item.) hreftype xs:string          documentation The use of this attribute is DEPRECATED, use @contenttype instead. (was: An IANA MIME type.)
annotation	documentation A reference to a G2 item which has been delivered under this news coverage definition.

element description

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of BlockType
properties	content  complex
children	br
used by	groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the block.
annotation	documentation A free-form textual description of the content of the item

element edNote

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	content  complex mixed  true
children	br
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the block.
annotation	documentation A note addressed to the editorial people receiving the Item.

element embargoed

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	DateTimeOrNullPropType
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date and time before which all versions of the Item are embargoed. If absent, the Item is not embargoed.

element event

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	name definition note facet sameAs broader narrower related eventDetails
used by	element  events
annotation	documentation Structured information about an event without a concept identifier, to be used only with News Items

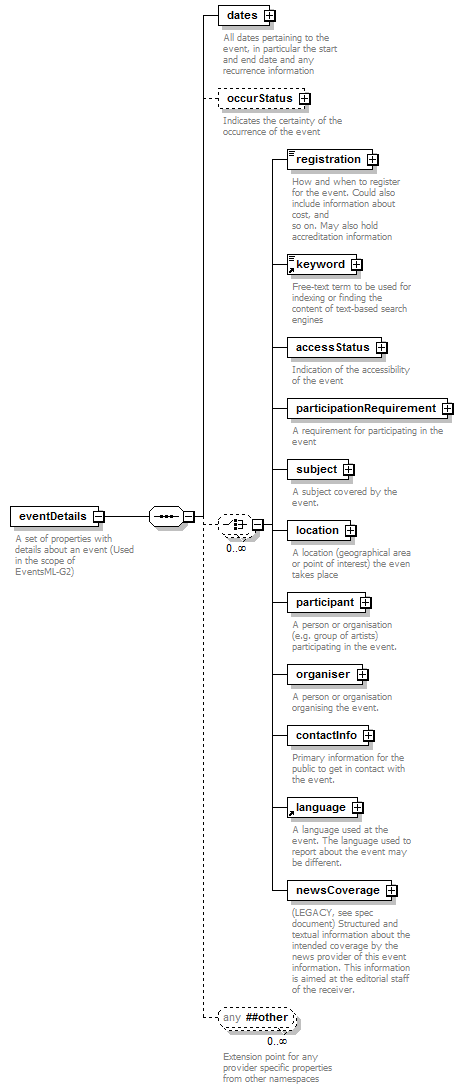

element eventDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	dates occurStatus registration keyword accessStatus participationRequirement subject location participant organiser contactInfo language newsCoverage
used by	element  event group  EntityDetailsGroup
annotation	documentation A set of properties with details about an event (Used in the scope of EventsML-G2)

element eventDetails/dates

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
children	start end duration rDate rRule exDate exRule confirmation
annotation	documentation All dates pertaining to the event, in particular the start and end date and any recurrence information

element eventDetails/dates/start

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ApproximateDateTimePropType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation approxstart TruncatedDateTimeType optional         documentation The date (and optionally time) at which the approximation range begins. approxend TruncatedDateTimeType optional         documentation The date (and optionally the time) at which the approximation range ends.
annotation	documentation The date the event commences.

element eventDetails/dates/end

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ApproximateDateTimePropType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation approxstart TruncatedDateTimeType optional         documentation The date (and optionally time) at which the approximation range begins. approxend TruncatedDateTimeType optional         documentation The date (and optionally the time) at which the approximation range ends.
annotation	documentation The date the event ends.

element eventDetails/dates/duration

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	xs:duration
properties	isRef  0 content  simple
annotation	documentation The period the event will last.

element eventDetails/dates/confirmation

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QCodePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept.
annotation	documentation Flags to indicate if start and/or end date and times are confirmed.

element eventDetails/occurStatus

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept.
annotation	documentation Indicates the certainty of the occurrence of the event

element eventDetails/registration

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	isRef  0 content  complex mixed  true
children	br
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the block.
annotation	documentation How and when to register for the event. Could also include information about cost, and so on. May also hold accreditation information

element eventDetails/accessStatus

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	isRef  0 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept.
annotation	documentation Indication of the accessibility of the event

element eventDetails/participationRequirement

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of FlexPropType
properties	isRef  0 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A requirement for participating in the event

element eventDetails/subject

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	isRef  0 content  complex
children	name hierarchyInfo
used by	groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A subject covered by the event.

element eventDetails/location

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of FlexPropType
properties	isRef  0 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A location (geographical area or point of interest) the even takes place

element eventDetails/participant

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	isRef  0 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A person or organisation (e.g. group of artists) participating in the event.

element eventDetails/organiser

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	isRef  0 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A person or organisation organising the event.

element eventDetails/contactInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ContactInfoType
properties	isRef  0 content  complex
children	email im phone fax web address note
attributes	Name   Type   Use   Default   Fixed   annotation role QCodeType          documentation A refinement of the semantics of a contact information.
annotation	documentation Primary information for the public to get in contact with the event.

element eventDetails/newsCoverage

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
children	edNote
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation (LEGACY, see spec document) Structured and textual information about the intended coverage by the news provider of this event information. This information is aimed at the editorial staff of the receiver.

element eventDetails/newsCoverage/edNote

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex mixed  true
children	br
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the block.
annotation	documentation Additional natural language information about the planned coverage addressed to the editorial people receiving and processing the item.

element events

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	event
annotation	documentation A wrapper for events in a News Item.

element facet

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	elements  concept event group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. rel QCodeType          documentation The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value.
annotation	documentation In NAR 1.8 and later, facet is deprecated and SHOULD NOT (see RFC 2119) be used, the "related" property should be used instead (was: An intrinsic property of the concept.)

attribute facet/@rel

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value.

element fileName

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of xs:normalizedString
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The recommended file name for this Item.

element firstCreated

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	DateTimePropType
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date and time on which the first version of the Item was created.

element genre

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	group  DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A nature, intellectual or journalistic form of the content

element geoAreaDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	position founded dissolved
used by	group  EntityDetailsGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A group of properties specific to a geopolitical area

element geoAreaDetails/position

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	GeoCoordinatesType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation latitude xs:decimal required         documentation The latitude in decimal degrees. longitude xs:decimal required         documentation The longitude in decimal degrees. altitude xs:integer          documentation The altitude in meters above the zero elevation of the reference system (sea level). gpsdatum xs:string          documentation The GPS datum associated with the measure.
annotation	documentation The coordinates of the location

element geoAreaDetails/founded

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date the geopolitical area was founded/established.

element geoAreaDetails/dissolved

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date the geopolitical area was dissolved.

element hash

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of xs:string
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation hashtype QCodeType required         documentation The hash algorithm used for creating the hash value. scope QCodeType          documentation The scope of a G2 item's content which is the reference for creating the hash value. If the attribute is omitted http://cv.iptc.org/newscodes/hashscope/content is the default value.
annotation	documentation Hash value of parts of an item as defined by the hashscope attribute

attribute hash/@hashtype

type	QCodeType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation The hash algorithm used for creating the hash value.

attribute hash/@scope

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation The scope of a G2 item's content which is the reference for creating the hash value. If the attribute is omitted http://cv.iptc.org/newscodes/hashscope/content is the default value.

element headline

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of LabelType
properties	content  complex
used by	groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the label.
annotation	documentation A brief and snappy introduction to the content, designed to catch the reader's attention

element hierarchyInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	xs:NMTOKENS
properties	content  simple
used by	element  concept complexTypes  FlexPropType QualPropType group  ConceptDefinitionGroup
annotation	documentation Represents the position of a concept in a hierarchical taxonomy tree by a sequence of QCode tokens representing the ancestor concepts and this concept

element hopHistory

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	hop

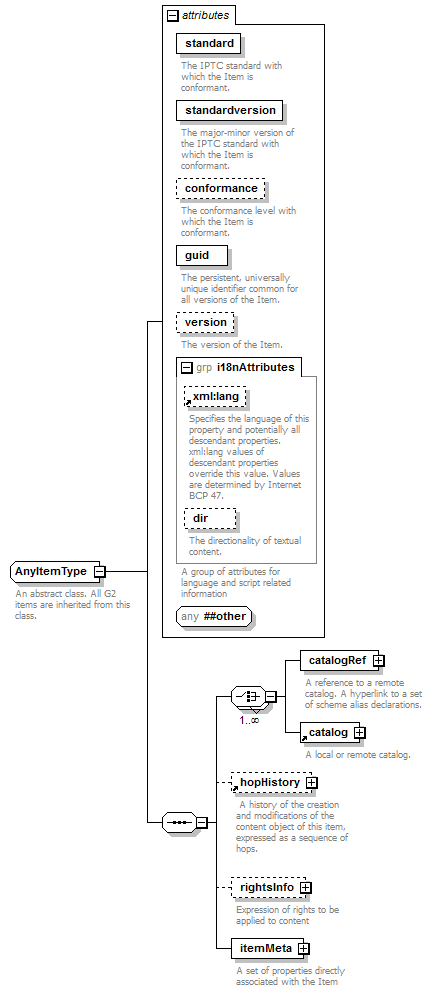

used by	complexType  AnyItemType
annotation	documentation A history of the creation and modifications of the content object of this item, expressed as a sequence of hops.

element hopHistory/hop

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	party action
attributes	Name   Type   Use   Default   Fixed   annotation seq xs:nonNegativeInteger          documentation The sequential value of this Hop in a sequence of Hops of a Hop History. Values need not to be consecutive. The sequence starts with the lowest value. timestamp xs:dateTime          documentation The date and optionally the time (with a time zone) when this item's content object was forwarded.
annotation	documentation A single hop of the Hop History. The details of the hop entry should reflect the actions taken by a party.

attribute hopHistory/hop/@seq

type	xs:nonNegativeInteger
properties	isRef  0
annotation	documentation The sequential value of this Hop in a sequence of Hops of a Hop History. Values need not to be consecutive. The sequence starts with the lowest value.

attribute hopHistory/hop/@timestamp

type	xs:dateTime
properties	isRef  0
annotation	documentation The date and optionally the time (with a time zone) when this item's content object was forwarded.

element hopHistory/hop/party

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of FlexPropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A party involved this hop of  the Hop History

element hopHistory/hop/action

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of QualPropType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept. target QCodeType          documentation The target of the action in a content object. If the target attribute is omitted the target of the action is the whole object. timestamp xs:dateTime          documentation The date and optionally the time (with a time zone) when this action was performed on the target.
annotation	documentation An action which is executed at this hop in the hop history.

attribute hopHistory/hop/action/@target

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation The target of the action in a content object. If the target attribute is omitted the target of the action is the whole object.

attribute hopHistory/hop/action/@timestamp

type	xs:dateTime
properties	isRef  0
annotation	documentation The date and optionally the time (with a time zone) when this action was performed on the target.

element icon

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
used by	complexTypes  ContentMetadataAcDType ContentMetadataAfDType ContentMetadataType
attributes	Name   Type   Use   Default   Fixed   annotation href IRIType          documentation The locator of the target resource. residref xs:string          documentation The  provider’s identifier of the target resource. version xs:positiveInteger          documentation The version of the target resource. By default, the latest revision is retrieved when the link is activated. persistidref xs:string          documentation Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8) contenttype xs:string          documentation The IANA (Internet Assigned Numbers Authority) MIME type of the target resource. format QCodeType          documentation A refinement of a generic content type (i.e. IANA MIME type) size xs:nonNegativeInteger          documentation The size in bytes of the target resource. rendition QCodeType          documentation Identifies the rendition of the target resource. If the target resource is an item providing multiple renditions then this attribute is used to identify the rendition to be used. width xs:nonNegativeInteger          documentation The width of visual content. widthunit QCodeType          documentation If present defines the width unit for the width height xs:nonNegativeInteger          documentation The height of visual content. heightunit QCodeType          documentation If present defines the height unit for the heigth
annotation	documentation An iconic visual identification of the content

attribute icon/@rendition

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation Identifies the rendition of the target resource. If the target resource is an item providing multiple renditions then this attribute is used to identify the rendition to be used.

element infoSource

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A party (person or organisation) which originated some information used to create or enhance the content.

element itemClass

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept.
annotation	documentation The nature of the item, set in accordance with the structure of its content.

element keyword

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of IntlStringType
properties	content  complex
used by	element  eventDetails groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the keyword
annotation	documentation Free-text term to be used for indexing or finding the content of text-based search engines

attribute keyword/@role

type	QCodeType
properties	isRef  0
facets	Kind  Value  annotation  pattern  [^\s:]+:[^\s]+
annotation	documentation A refinement of the semantics of the keyword

element language

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	name
used by	element  eventDetails groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation tag xs:language required         documentation The language tag. Values must be valid BCP 47 language tags
annotation	documentation A language used by the news content

attribute language/@tag

type	xs:language
properties	isRef  0 use  required
annotation	documentation The language tag. Values must be valid BCP 47 language tags

element language/name

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	IntlStringType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
used by	elements  concept event complexTypes  FlexPropType QualPropType group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A name for a concept assigned as property value.

element located

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	group  AdministrativeMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation The location from which the content originates.

element name

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	IntlStringType
properties	content  complex
used by	elements  concept event complexTypes  FlexPropType QualPropType group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A natural language name for the concept.

element narrower

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ConceptRelationshipsGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation An identifier of a more specific concept.

element newsCoverage

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	planning delivery
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID optional         documentation The local identifier of the element which MUST be persistent for all versions of the item, i.e. for its entire lifecycle. creator QCodeType optional         documentation If the element is empty, specifies which entity (person, organisation or system) will edit the property. If the element is non-empty, specifies which entity (person, organisation or system) has edited the property. modified DateOptTimeType optional         documentation The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property.
annotation	documentation Information about the planned and delivered news coverage of the news provider. This information is aimed at the editorial staff of the receiver

element newsCoverage/planning

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
children	edNote
annotation	documentation Details about the planned news coverage by a specific kind of G2 item.

element newsCoverage/planning/edNote

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex mixed  true
children	br
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the block.
annotation	documentation Additional natural language information about the planned coverage addressed to the editorial people receiving and processing the item.

element note

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of BlockType
properties	content  complex mixed  true
children	br
used by	elements  concept event complexType  ContactInfoType group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the block.
annotation	documentation Additional natural language information about the concept.

element objectDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	created copyrightNotice creator ceasedToExist
used by	group  EntityDetailsGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A group of properties specific to an object

element objectDetails/created

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date (and optionally the time) on which this object was created

element objectDetails/ceasedToExist

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date (and optionally the time) on which this object ceased to exist.

element organisationDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	founded dissolved location contactInfo
used by	group  EntityDetailsGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A group of properties specific to an organisation

element organisationDetails/founded

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date the organisation was founded/established.

element organisationDetails/dissolved

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date the organisation was dissolved.

element organisationDetails/location

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	isRef  0 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A place where the organisation is located.

element organisationDetails/contactInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ContactInfoType
properties	isRef  0 content  complex
children	email im phone fax web address note
attributes	Name   Type   Use   Default   Fixed   annotation role QCodeType          documentation A refinement of the semantics of a contact information.
annotation	documentation Information how to contact the organisation.

element personDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	born died affiliation contactInfo
used by	group  EntityDetailsGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A set of properties specific to a person

element personDetails/born

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date the person was born.

element personDetails/died

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date the person died.

element personDetails/affiliation

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	isRef  0 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation An affiliation of the person with an organisation.

element personDetails/contactInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ContactInfoType
properties	isRef  0 content  complex
children	email im phone fax web address note
attributes	Name   Type   Use   Default   Fixed   annotation role QCodeType          documentation A refinement of the semantics of a contact information.
annotation	documentation Information how to contact the person.

element POIDetails

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	content  complex
children	position address openHours capacity contactInfo access details created ceasedToExist
used by	group  EntityDetailsGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A group of properties specific to a point of interest

element POIDetails/position

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	GeoCoordinatesType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation latitude xs:decimal required         documentation The latitude in decimal degrees. longitude xs:decimal required         documentation The longitude in decimal degrees. altitude xs:integer          documentation The altitude in meters above the zero elevation of the reference system (sea level). gpsdatum xs:string          documentation The GPS datum associated with the measure.
annotation	documentation The coordinates of the location

element POIDetails/address

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	line locality area country postalCode
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation A postal address for the location of a Point Of Interest

element POIDetails/address/line

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	IntlStringType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A line of address information, in the format expected by a recipient postal service. City, country area, country and postal code are expressed separately.

element POIDetails/address/locality

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A city/town/village etc. part of the address.

element POIDetails/address/area

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A subdivision of a country part of the address.

element POIDetails/address/country

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name hierarchyInfo
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation A country part of the address.

element POIDetails/address/postalCode

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	IntlStringType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content.
annotation	documentation A postal code part of the address.

element POIDetails/openHours

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	LabelType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the label.
annotation	documentation Opening hours of the point of interest expressed in natural language

element POIDetails/capacity

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	LabelType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the label.
annotation	documentation Total capacity of the point of interest expressed in natural language

element POIDetails/contactInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	ContactInfoType
properties	isRef  0 content  complex
children	email im phone fax web address note
attributes	Name   Type   Use   Default   Fixed   annotation role QCodeType          documentation A refinement of the semantics of a contact information.
annotation	documentation Information how to contact the point of interest.

element POIDetails/access

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	isRef  0 content  complex mixed  true
children	br
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the block.
annotation	documentation Ways to access the place of the point of  interest, including directions.

element POIDetails/details

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	isRef  0 content  complex mixed  true
children	br
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the block.
annotation	documentation Detailed information about the precise location of the Point of Interest.

element POIDetails/created

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date (and optionally the time) on which this Point of Interest was created

element POIDetails/ceasedToExist

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	TruncatedDateTimePropType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date (and optionally the time) on which this Point of Interest ceased to exist

element provider

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation The party (person or organisation) responsible for the management of the Item.

element pubStatus

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept.
annotation	documentation The publishing status of the Item, its value is "usable" by default.

element related

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexRelatedPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ConceptRelationshipsGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value. rel QCodeType          documentation The identifier of the relationship between the concept containing the related property and the concept identified by the related value.
annotation	documentation A related concept, where the relationship is different from 'sameAs', 'broader' or 'narrower'.

element remoteInfo

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	LinkType
properties	content  complex
children	title
used by	element  concept group  ConceptDefinitionGroup
attributes	Name   Type   Use   Default   Fixed   annotation rel QCodeType          documentation The identifier of the relationship between the current Item and the target resource. href IRIType          documentation The locator of the target resource. residref xs:string          documentation The  provider’s identifier of the target resource. version xs:positiveInteger          documentation The version of the target resource. By default, the latest revision is retrieved when the link is activated. persistidref xs:string          documentation Points to an element inside the target resource which must be identified by an ID attribute having a value which is persistent for all versions of the target resource, i.e. for its entire lifecycle. (added NAR 1.8) contenttype xs:string          documentation The IANA (Internet Assigned Numbers Authority) MIME type of the target resource. format QCodeType          documentation A refinement of a generic content type (i.e. IANA MIME type) size xs:nonNegativeInteger          documentation The size in bytes of the target resource. guidref xs:string          documentation The use of this attribute is DEPRECATED, use @residref instead. (was: The globally unique Identifier of the target Item.) hreftype xs:string          documentation The use of this attribute is DEPRECATED, use @contenttype instead. (was: An IANA MIME type.)
annotation	documentation A link to an item or a web resource which provides information about the concept

element role

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept.
annotation	documentation The role of the Item in the editorial workflow.

element sameAs

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ConceptRelationshipsGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation An identifier of a concept with equivalent semantics

element service

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	QualPropType
properties	content  complex
children	name hierarchyInfo
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType required         documentation A qualified code which identifies a concept.
annotation	documentation An editorial service to which an item is assigned by its provider.

element slugline

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of IntlStringType
properties	content  complex
used by	groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. separator xs:string          documentation The character string acting as a separator between the tokens in the slugline.
annotation	documentation A sequence of tokens associated with the content. The interpretation is provider specific

attribute slugline/@separator

type	xs:string
properties	isRef  0
annotation	documentation The character string acting as a separator between the tokens in the slugline.

element subject

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of FlexPropType
properties	content  complex
children	name hierarchyInfo
used by	groups  DescriptiveMetadataCoreGroup DescriptiveMetadataGroup
attributes	Name   Type   Use   Default   Fixed   annotation qcode QCodeType          documentation A qualified code which identifies a concept. literal xs:normalizedString          documentation A free-text value assigned as property value. type QCodeType          documentation The type of the concept assigned as controlled property value.
annotation	documentation An important topic of the content; what the content is about

element title

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	LabelType
properties	content  complex
used by	elements  catalog newsMessage/header/catalogRef AnyItemType/catalogRef complexType  LinkType group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the label.
annotation	documentation A short, natural-language name

element urgency

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	extension of Int1to9Type
properties	content  complex
used by	group  AdministrativeMetadataGroup
facets	Kind  Value  annotation  minInclusive  1  maxInclusive  9
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The editorial urgency of the content.

element usageTerms

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	BlockType
properties	content  complex mixed  true
children	br
used by	complexType  RightsInfoType
attributes	Name   Type   Use   Default   Fixed   annotation lang derived by: xs:language          documentation Specifies the language of this property and potentially all descendant properties. xml:lang values of descendant properties override this value. Values are determined by Internet BCP 47. dir derived by: xs:string          documentation The directionality of textual content. role QCodeType          documentation A refinement of the semantics of the block.
annotation	documentation A natural-language statement about the usage terms pertaining to the content.

element versionCreated

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	DateTimePropType
properties	content  complex
used by	group  ItemManagementGroup
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation The date and time on which the current version of the Item was created.

group AdministrativeMetadataGroup

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
children	urgency contentCreated contentModified located infoSource creator contributor audience
used by	complexTypes  ContentMetadataAcDType ContentMetadataAfDType ContentMetadataType
annotation	documentation A group of properties associated with the administrative facet of content.

group ConceptDefinitionGroup

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
children	name definition note facet remoteInfo hierarchyInfo
annotation	documentation A group of properites required to define the concept

group ConceptRelationshipsGroup

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
children	sameAs broader narrower related
used by	elements  concept event
annotation	documentation A group of properites required to indicate relationships of the concept to other concepts

group DescriptiveMetadataCoreGroup

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
children	language keyword subject slugline headline description
used by	complexType  ContentMetadataAcDType
annotation	documentation A group of properties associated with the core descriptive facet of different types of content.

group DescriptiveMetadataGroup

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
children	language genre keyword subject slugline headline dateline by creditline description
used by	complexType  ContentMetadataAfDType
annotation	documentation A group of properties associated with the descriptive facet of news related content.

group EntityDetailsGroup

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
children	personDetails organisationDetails geoAreaDetails POIDetails objectDetails eventDetails
used by	element  concept
annotation	documentation A group of properties to define the details of specific entities

group ItemManagementGroup

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
children	itemClass provider versionCreated firstCreated embargoed pubStatus role fileName service title edNote deliverableOf hash
used by	complexType  ItemMetadataType
annotation	documentation A group of properties for the management of the item

group RecurrenceGroup

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
children	rDate rRule exDate exRule
used by	element  eventDetails/dates
annotation	documentation A group of elements to express a recurrence (Group defined in this XML Schema only)

element RecurrenceGroup/rDate

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	DateOptTimePropType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation Explicit dates of recurrence.

element RecurrenceGroup/rRule

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation freq derived by: xs:string required         documentation The FREQ rule part identifies the type of recurrence rule. interval xs:positiveInteger          documentation The INTERVAL rule part contains a positive integer representing how often the recurrence rule repeats. until DateOptTimeType          documentation The UNTIL rule part defines a date-time value which bounds the recurrence rule in an inclusive manner. count xs:positiveInteger          documentation The COUNT rule part defines the number of occurrences at which to range-bound the recurrence. bysecond derived by: BySecondListType          documentation The BYSECOND rule part specifies a space separated list of seconds within a minute byminute derived by: ByMinuteListType          documentation The BYMINUTE rule part specifies a space separated list of minutes within an hour. byhour derived by: ByHourListType          documentation The BYHOUR rule part specifies space separated list of hours of the day. byday derived by: ByDayListType          documentation The BYDAY rule part specifies a space separated list of days of the week bymonthday derived by: ByMonthDayListType          documentation The BYMONTHDAY rule part specifies a space separated list of days of the month. bymonth derived by: ByMonthListType          documentation The BYMONTH rule part specifies a space separated list of months of the year. byyearday derived by: ByYearDayListType          documentation The BYYEARDAY rule part specifies a  space separated list of days of the year. byweekno derived by: ByWeekNoListType          documentation The BYWEEKNO rule part specifies a space separated list of ordinals specifying weeks of the year. bysetpos derived by: BySetposListType          documentation The BYSETPOS rule part specifies a space separated list of values which corresponds to the nth occurrence    within the set of events specified by the rule. wkst derived by: xs:string          documentation The WKST rule part specifies the day on which the workweek starts.
annotation	documentation Rule for recurrence.

element RecurrenceGroup/exDate

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
type	DateOptTimePropType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation
annotation	documentation Explicit dates to be excluded from any recurrence.

element RecurrenceGroup/exRule

diagram
namespace	http://iptc.org/std/nar/2006-10-01/
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation freq derived by: xs:string required         documentation The FREQ rule part identifies the type of recurrence rule. interval xs:positiveInteger          documentation The INTERVAL rule part contains a positive integer representing how often the recurrence rule repeats. until DateOptTimeType          documentation The UNTIL rule part defines a date-time value which bounds the recurrence rule in an inclusive manner. count xs:positiveInteger          documentation The COUNT rule part defines the number of occurrences at which to range-bound the recurrence. bysecond derived by: BySecondListType          documentation The BYSECOND rule part specifies a space separated list of seconds within a minute byminute derived by: ByMinuteListType          documentation The BYMINUTE rule part specifies a space separated list of minutes within an hour. byhour derived by: ByHourListType
