Schema nitf-3-6.xsd

schema location:	http://www.iptc.org/std/NITF/3.6/specification/nitf-3-6.xsd
attribute form default:
element form default:
targetNamespace:	http://iptc.org/std/NITF/2006-10-18/

Elements	Groups	Attr. groups
a	blockContent	cellAlign
abstract	enrichedText	cellVAlign
addressee		commonNITFAttributes
alt-code		globalNITFAttributes
bibliography
block
body
body.content
body.end
body.head
bq
br
byline
byttl
caption
care.of
chron

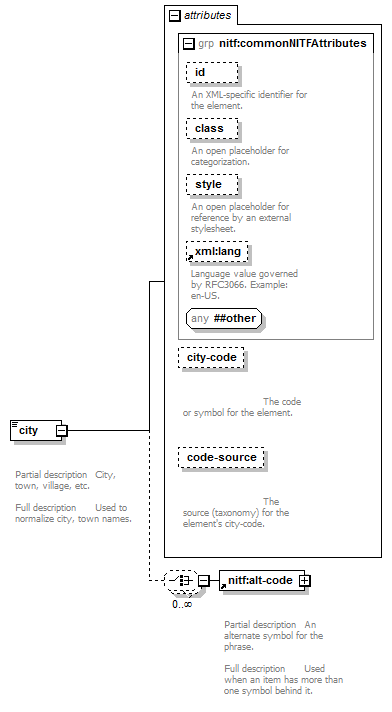

city

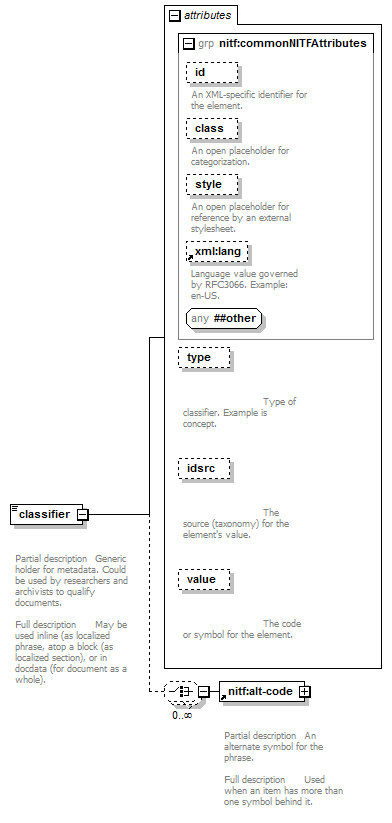

classifier

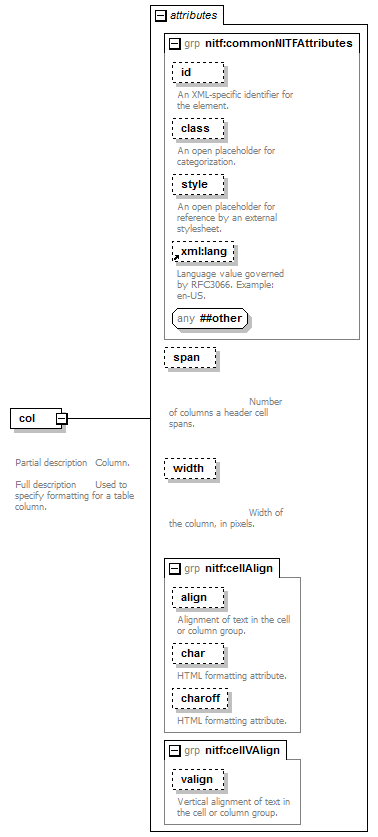

col

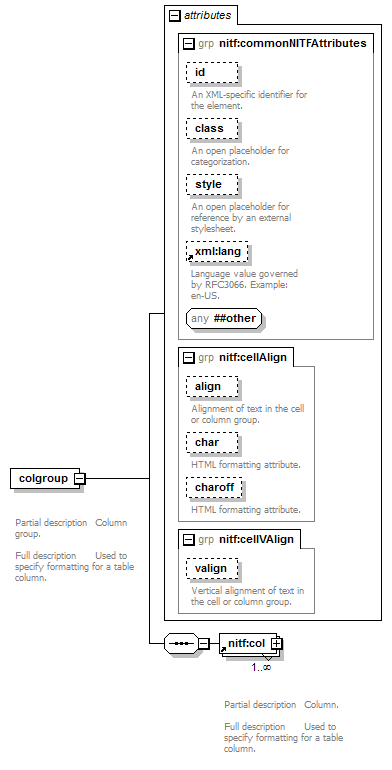

colgroup
copyrite

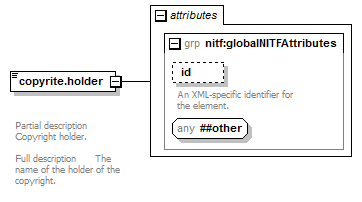

copyrite.holder

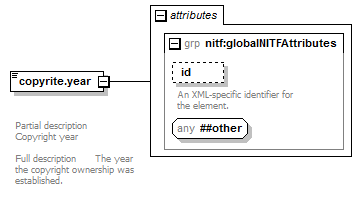

copyrite.year

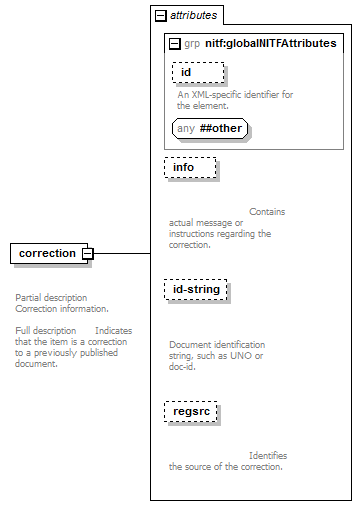

correction

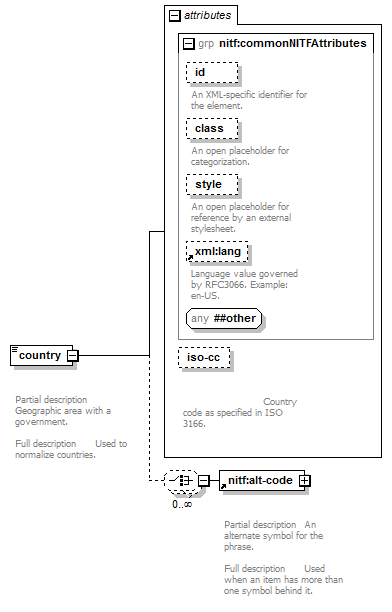

country
credit

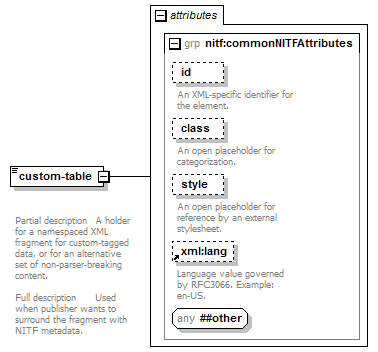

custom-table
datasource

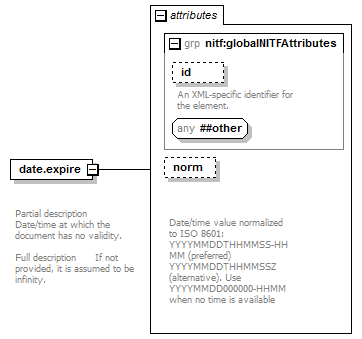

date.expire
date.issue
date.release

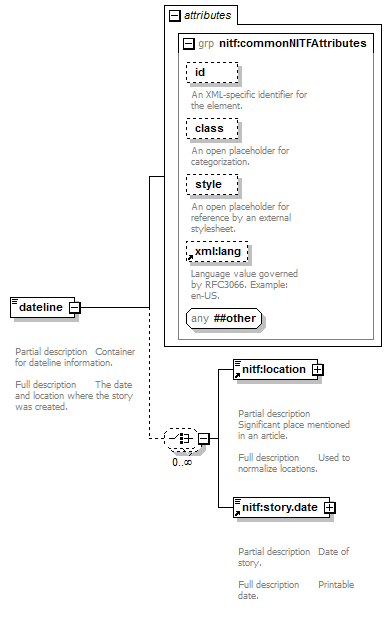

dateline
dd

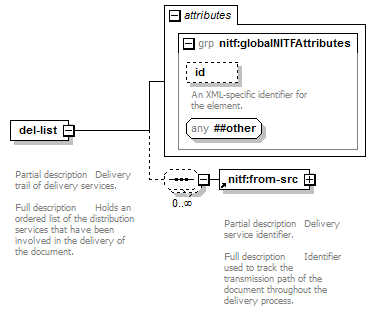

del-list
delivery.office

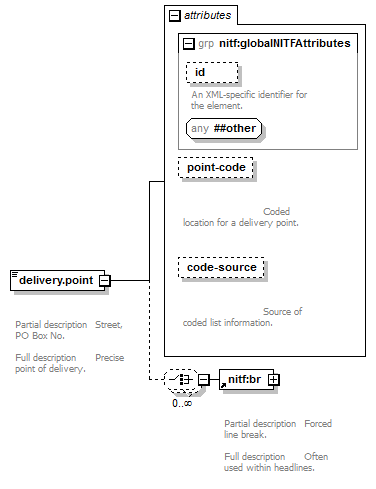

delivery.point
denom

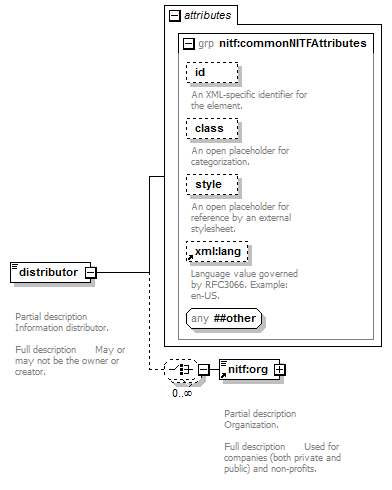

distributor

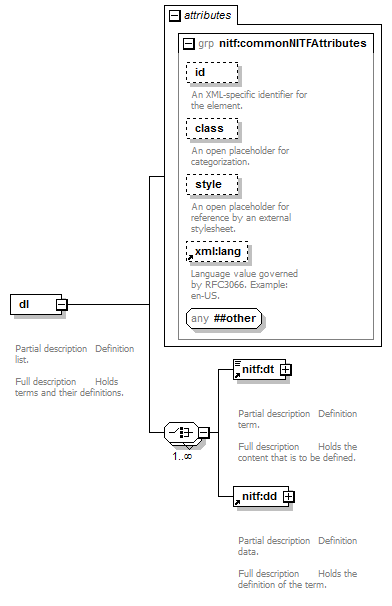

dl
doc-id
doc-scope

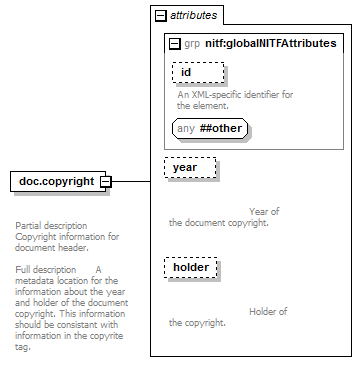

doc.copyright
doc.rights
docdata
ds
dt

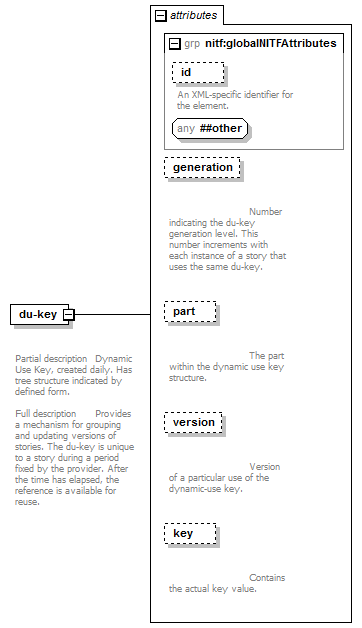

du-key

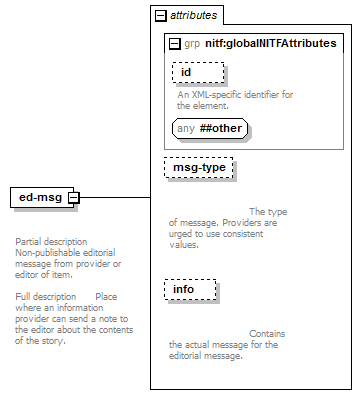

ed-msg
em

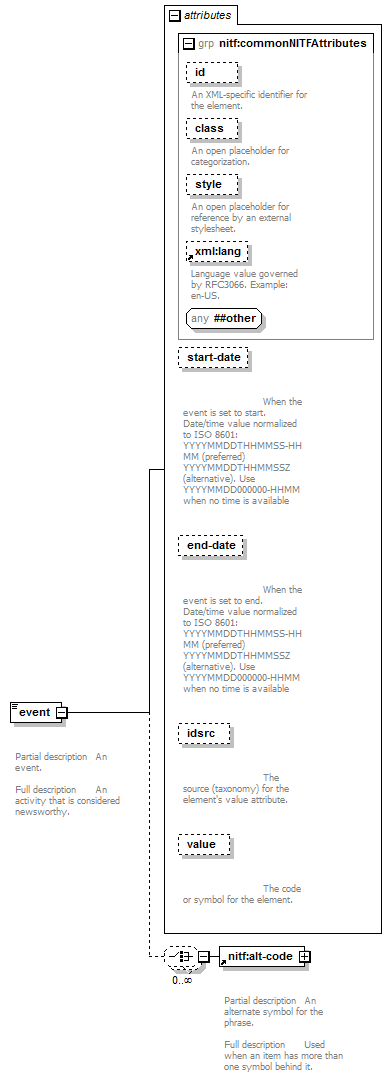

event

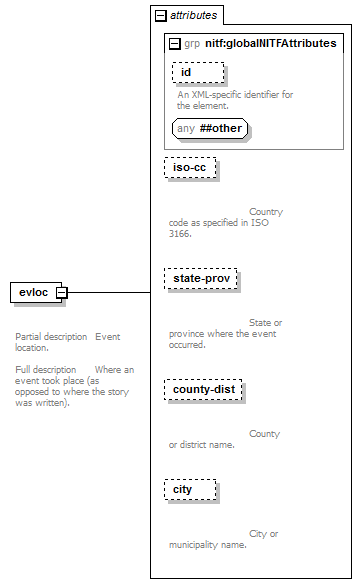

evloc
fixture

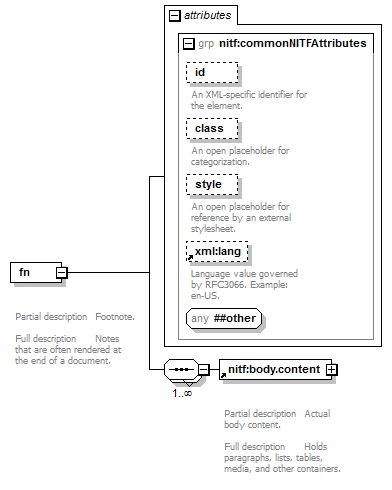

fn
frac

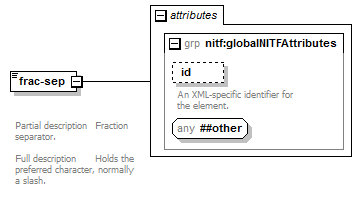

frac-sep

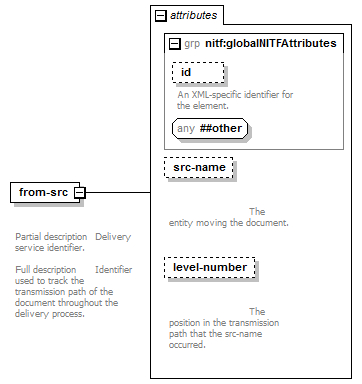

from-src

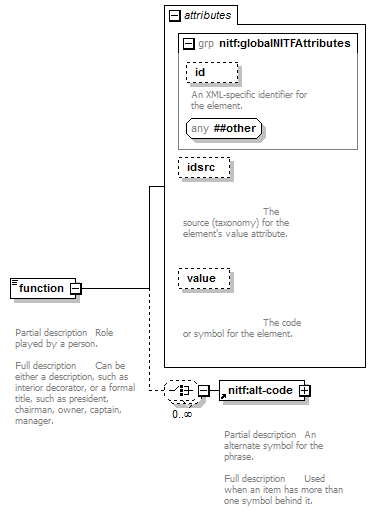

function

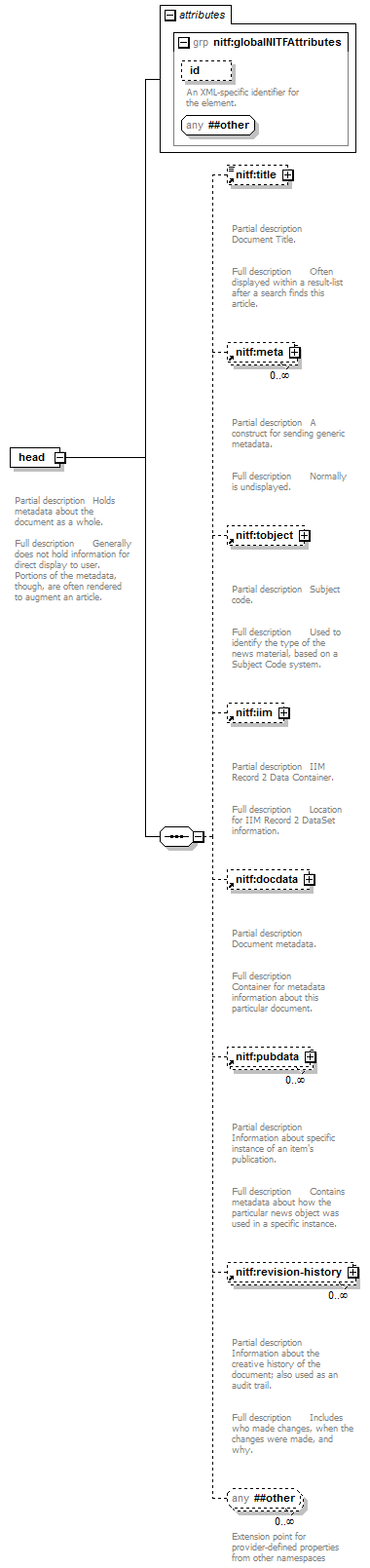

head

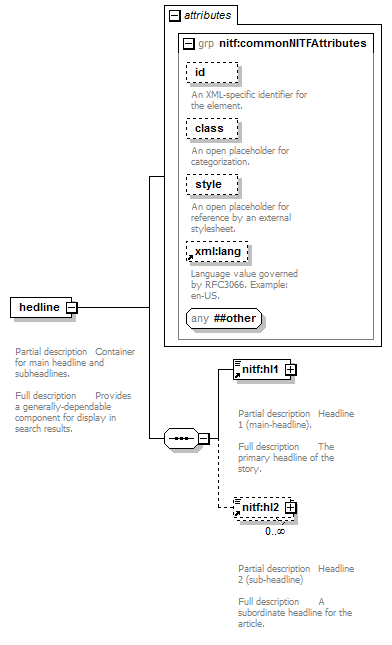

hedline
hl1
hl2

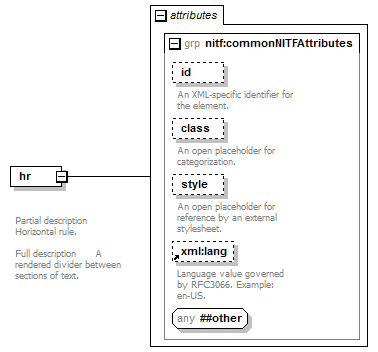

hr

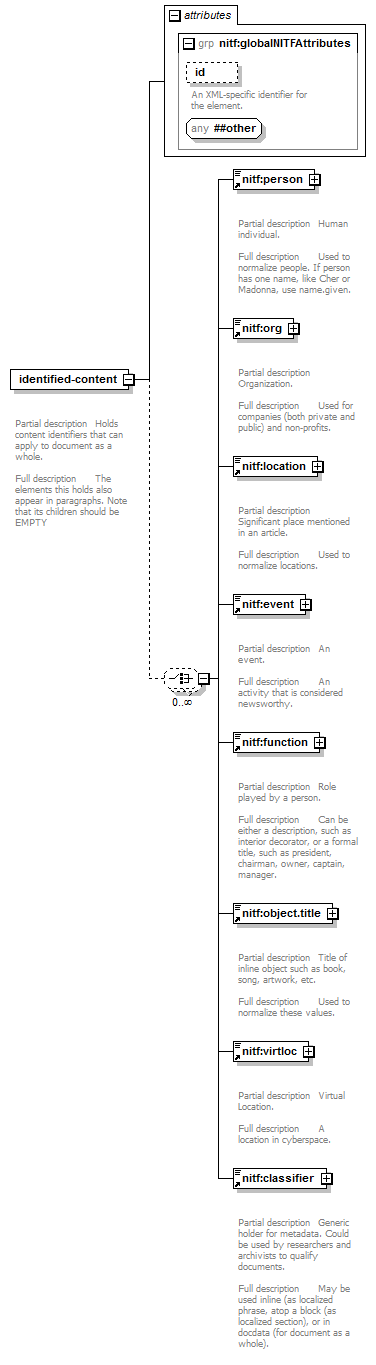

identified-content

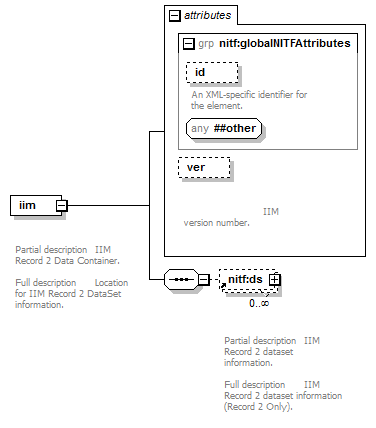

iim

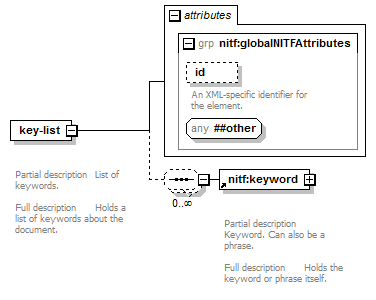

key-list
keyword
lang
li

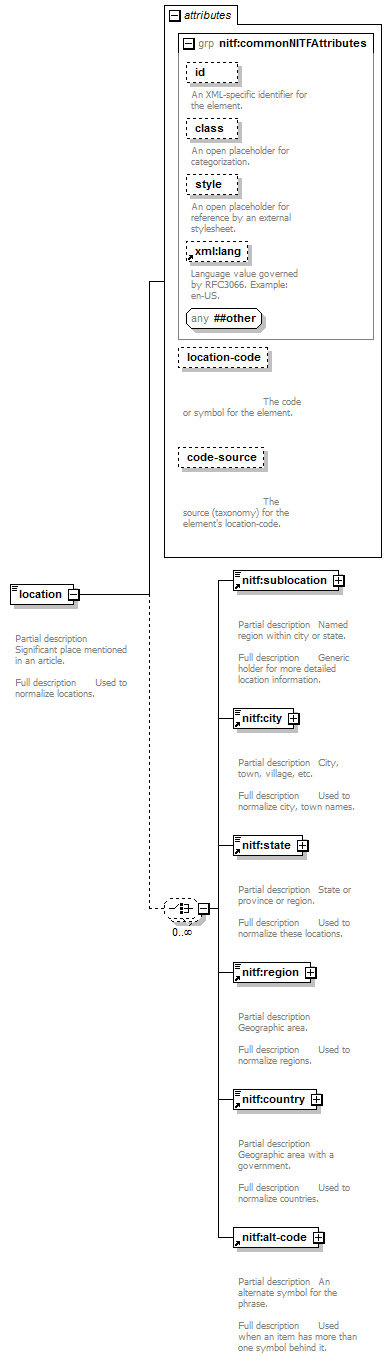

location
media
media-caption

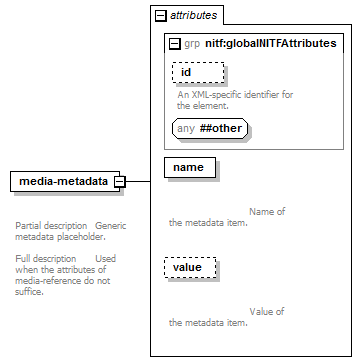

media-metadata
media-object
media-producer

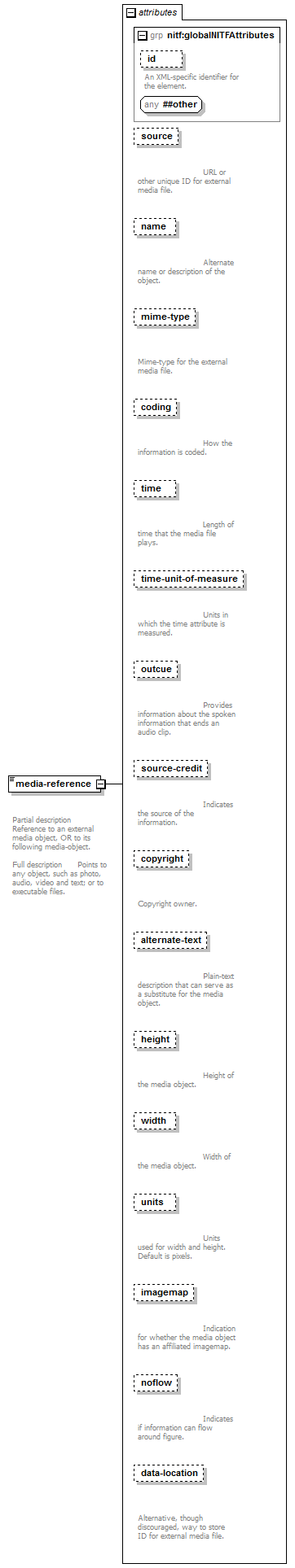

media-reference
meta

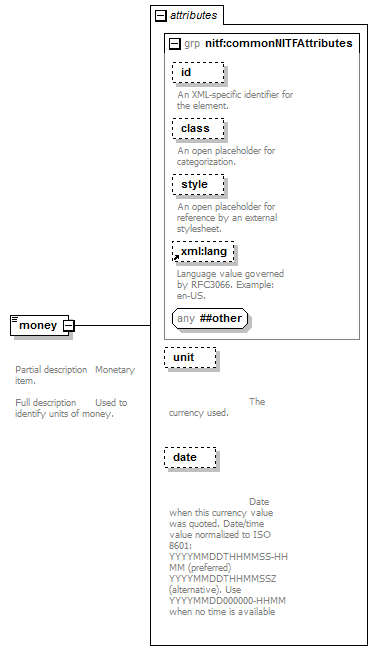

money

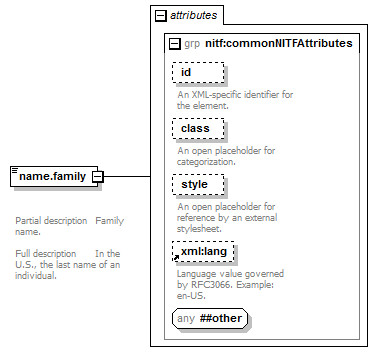

name.family
name.given
nitf
nitf-col

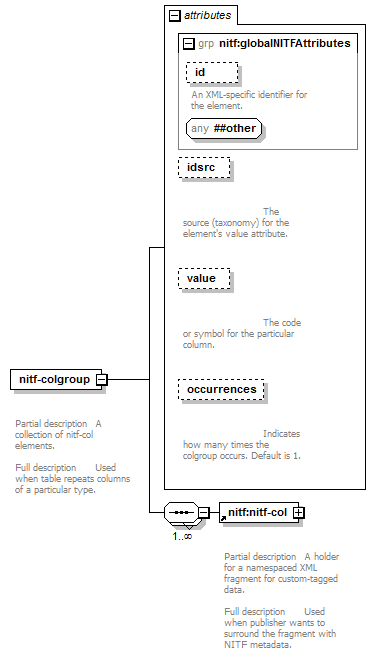

nitf-colgroup

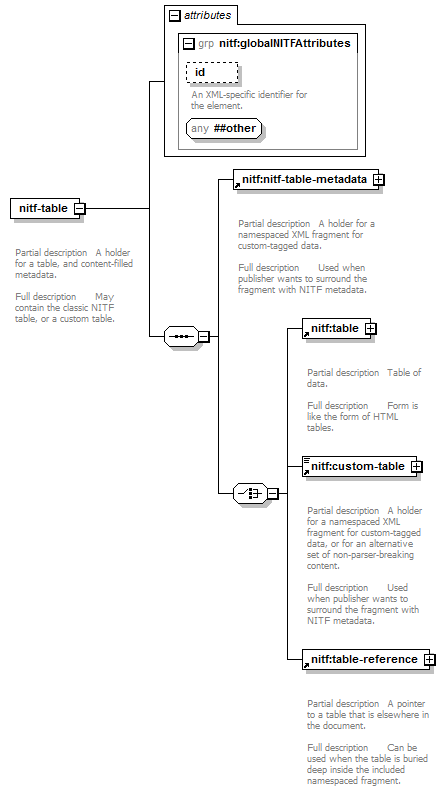

nitf-table
nitf-table-metadata

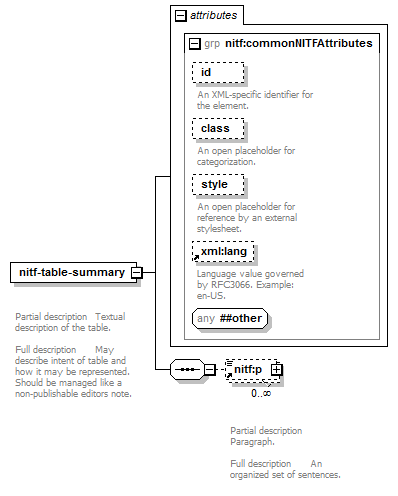

nitf-table-summary

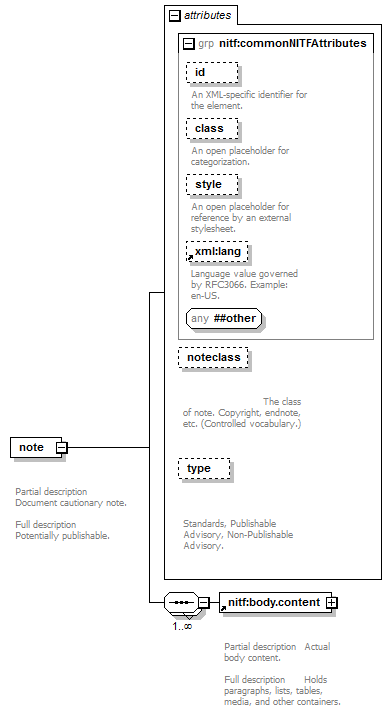

note

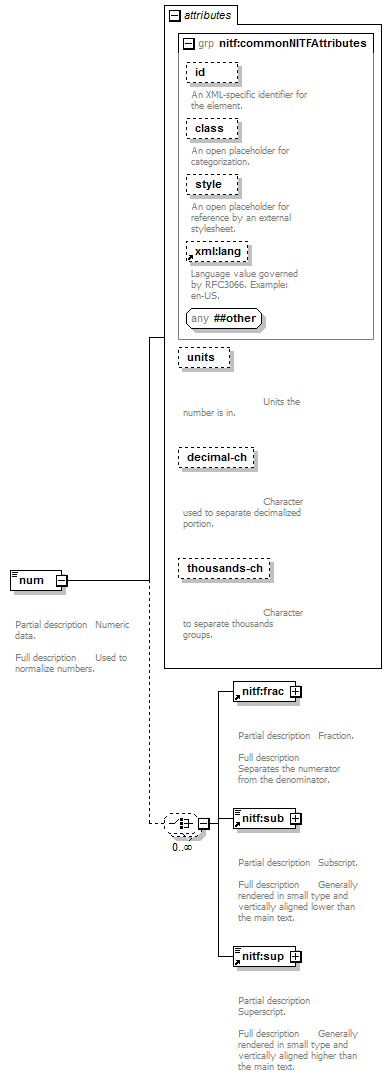

num

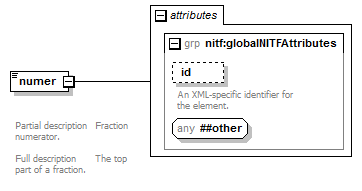

numer

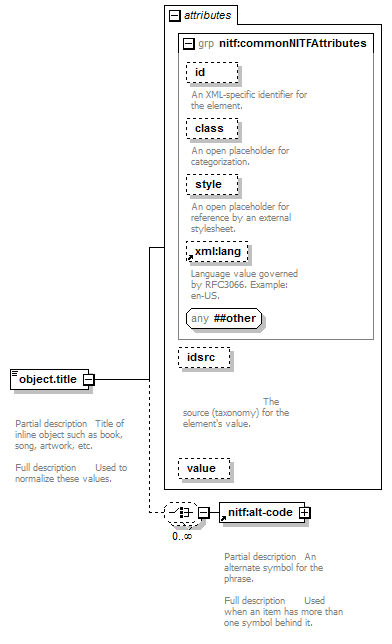

object.title

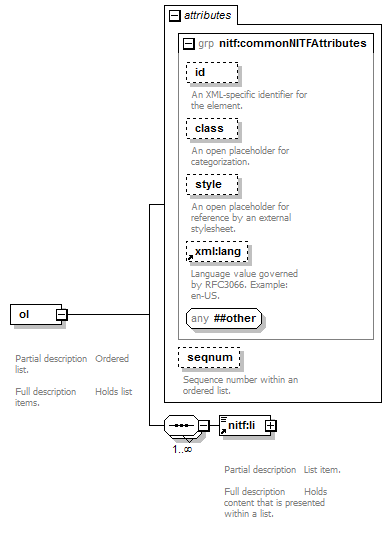

ol
org
p
person

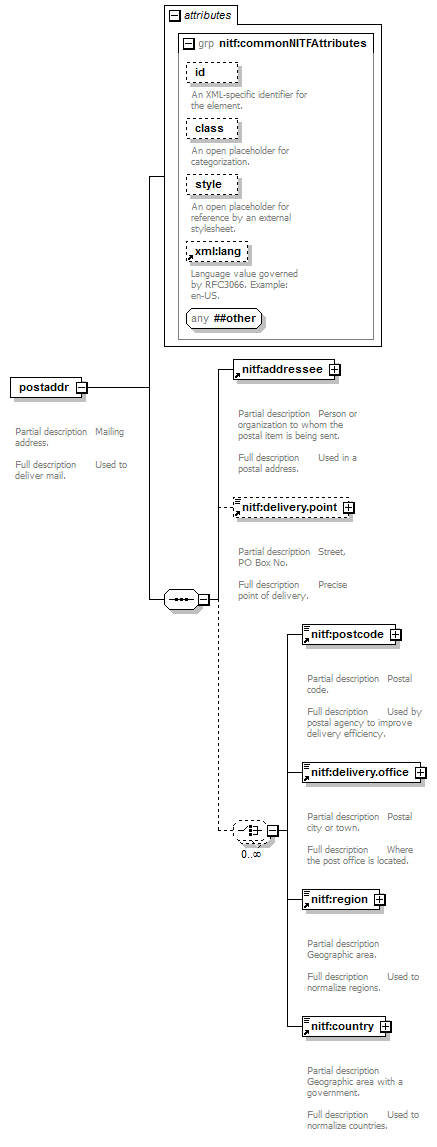

postaddr
postcode

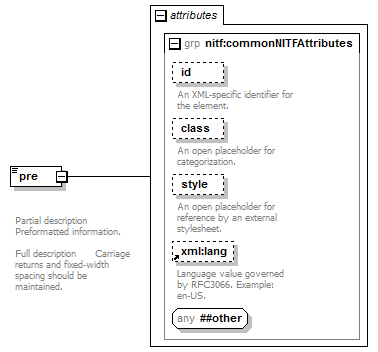

pre
pronounce
pubdata
q

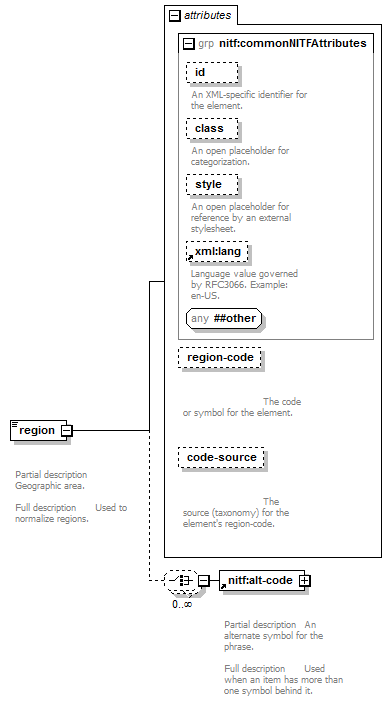

region

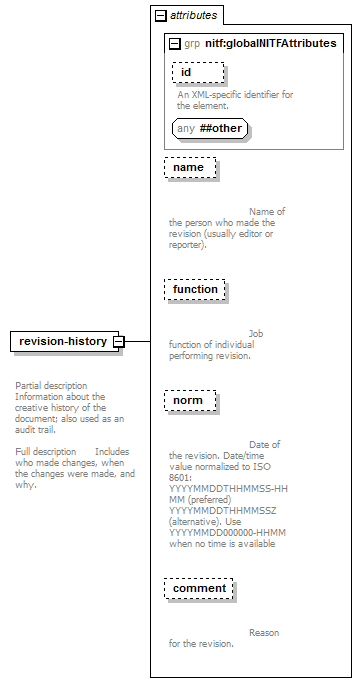

revision-history

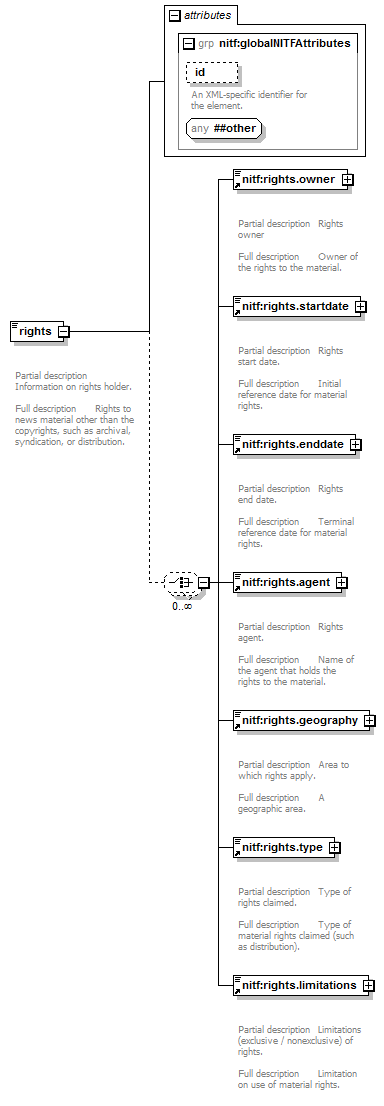

rights

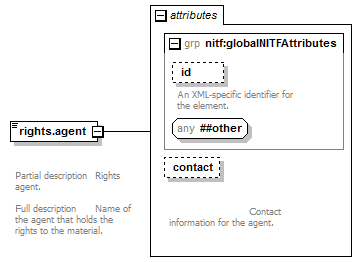

rights.agent

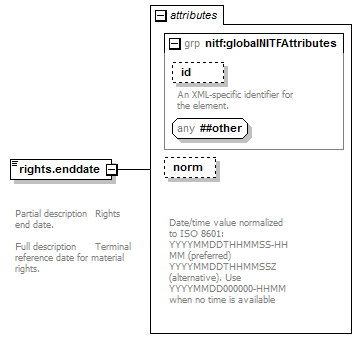

rights.enddate

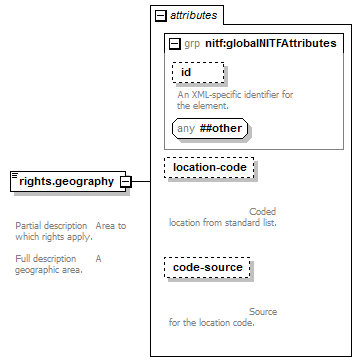

rights.geography
rights.limitations
rights.owner
rights.startdate
rights.type

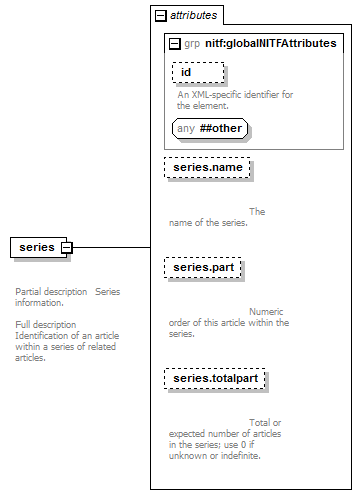

series
state

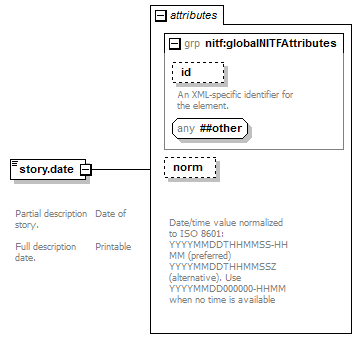

story.date

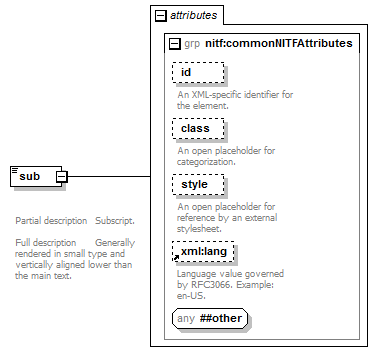

sub

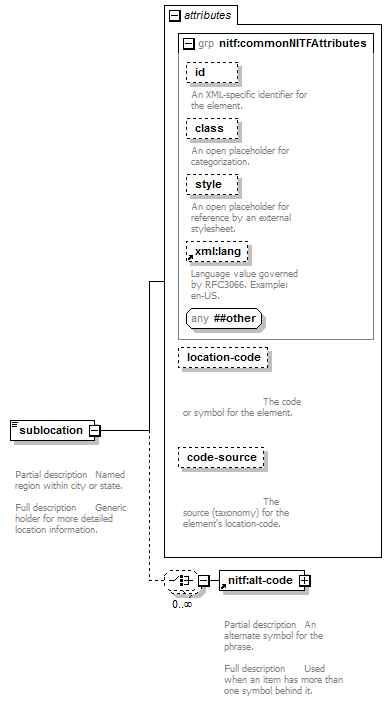

sublocation

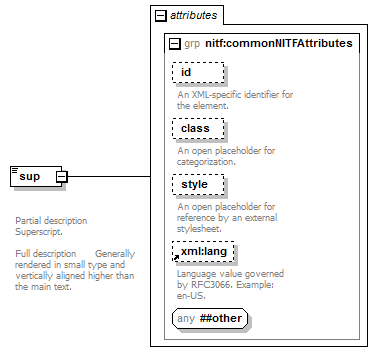

sup

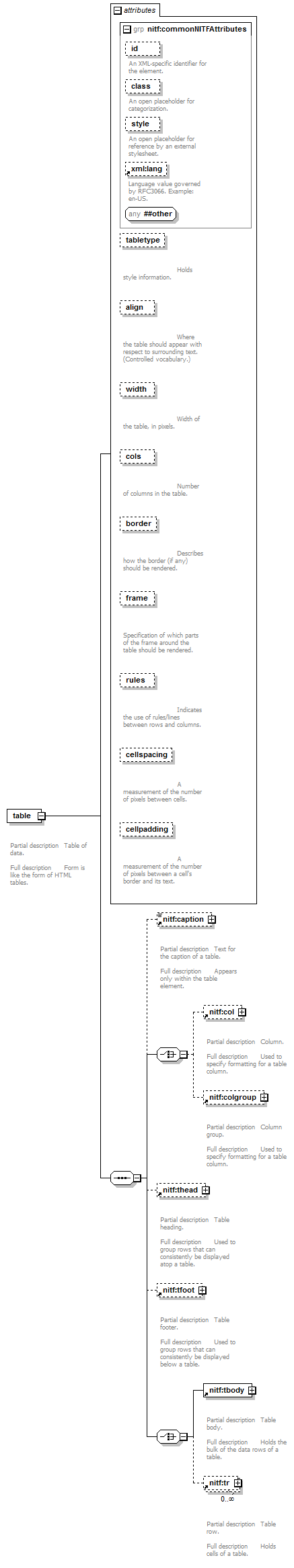

table

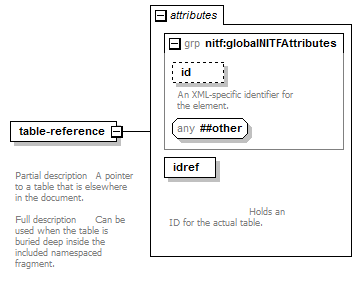

table-reference
tagline
tbody
td

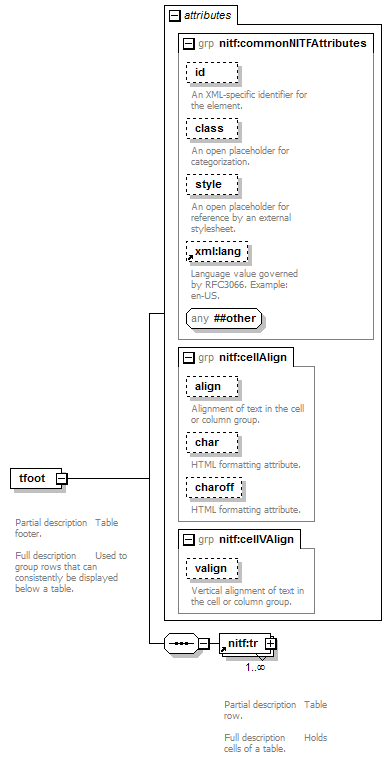

tfoot
th
thead

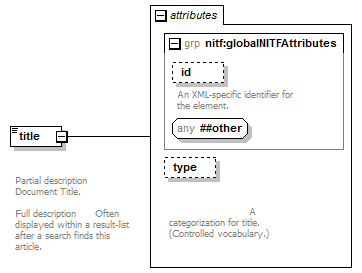

title

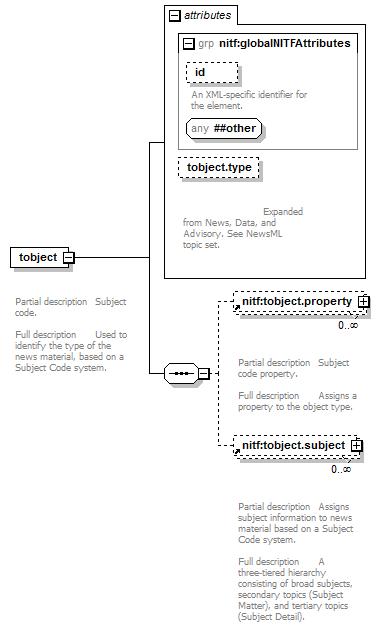

tobject

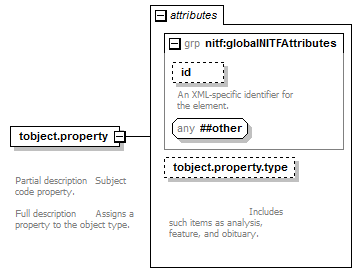

tobject.property

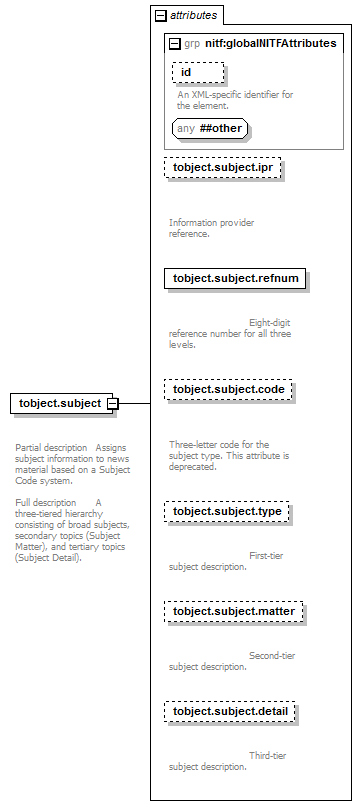

tobject.subject

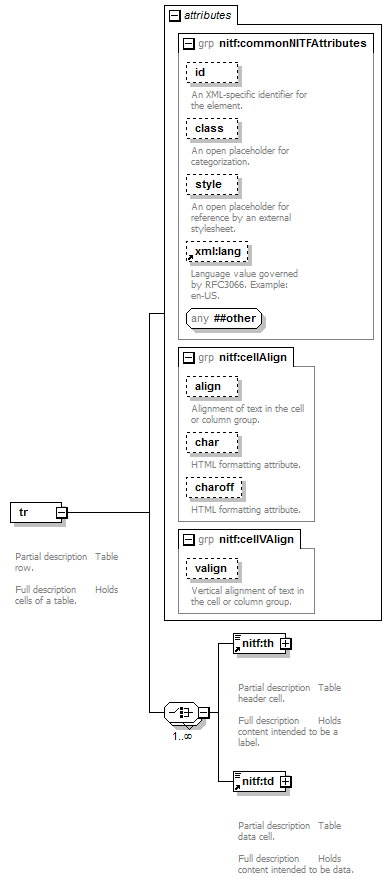

tr
ul

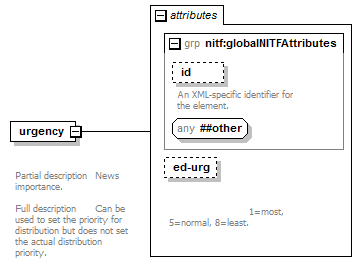

urgency
virtloc

schema location:	http://www.iptc.org/std/NITF/3.6/specification/nitf-3-6-ruby-include.xsd
attribute form default:
element form default:
targetNamespace:	http://iptc.org/std/NITF/2006-10-18/

Elements

rb

rbc

rp

rt

rtc

ruby

schema location:	altova://ystream/xml.xsd
attribute form default:
element form default:
targetNamespace:	http://www.w3.org/XML/1998/namespace

Attributes	Attr. groups
base	specialAttrs
id
lang
space

element a

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. href string optional         documentation URL for where the hypertext anchor leads. name string optional         documentation Alternate name or description of the link, such as Link to News Item. rel NMTOKEN optional         documentation Specifies the relationship from the source to the target. rev NMTOKEN optional         documentation Specifies the relationship from the target to the source. title string optional         documentation Title for the document to be linked to.
annotation	documentation Partial description Anchor for hypertext links. Full description Allows users to traverse to other documents.
source	<element name="a">   <annotation>     <documentation> Partial description Anchor for hypertext links. Full description Allows users to traverse to other documents. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="href" type="string" use="optional">       <annotation>         <documentation> URL for where the hypertext anchor leads. </documentation>       </annotation>     </attribute>     <attribute name="name" type="string" use="optional">       <annotation>         <documentation> Alternate name or description of the link, such as Link to News Item. </documentation>       </annotation>     </attribute>     <attribute name="rel" type="NMTOKEN" use="optional">       <annotation>         <documentation> Specifies the relationship from the source to the target. </documentation>       </annotation>     </attribute>     <attribute name="rev" type="NMTOKEN" use="optional">       <annotation>         <documentation> Specifies the relationship from the target to the source. </documentation>       </annotation>     </attribute>     <attribute name="title" type="string" use="optional">       <annotation>         <documentation> Title for the document to be linked to. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute a/@href

type	string
properties	isRef  0 use  optional
annotation	documentation URL for where the hypertext anchor leads.
source	<attribute name="href" type="string" use="optional">   <annotation>     <documentation> URL for where the hypertext anchor leads. </documentation>   </annotation> </attribute>

attribute a/@name

type	string
properties	isRef  0 use  optional
annotation	documentation Alternate name or description of the link, such as Link to News Item.
source	<attribute name="name" type="string" use="optional">   <annotation>     <documentation> Alternate name or description of the link, such as Link to News Item. </documentation>   </annotation> </attribute>

attribute a/@rel

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Specifies the relationship from the source to the target.
source	<attribute name="rel" type="NMTOKEN" use="optional">   <annotation>     <documentation> Specifies the relationship from the source to the target. </documentation>   </annotation> </attribute>

attribute a/@rev

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Specifies the relationship from the target to the source.
source	<attribute name="rev" type="NMTOKEN" use="optional">   <annotation>     <documentation> Specifies the relationship from the target to the source. </documentation>   </annotation> </attribute>

attribute a/@title

type	string
properties	isRef  0 use  optional
annotation	documentation Title for the document to be linked to.
source	<attribute name="title" type="string" use="optional">   <annotation>     <documentation> Title for the document to be linked to. </documentation>   </annotation> </attribute>

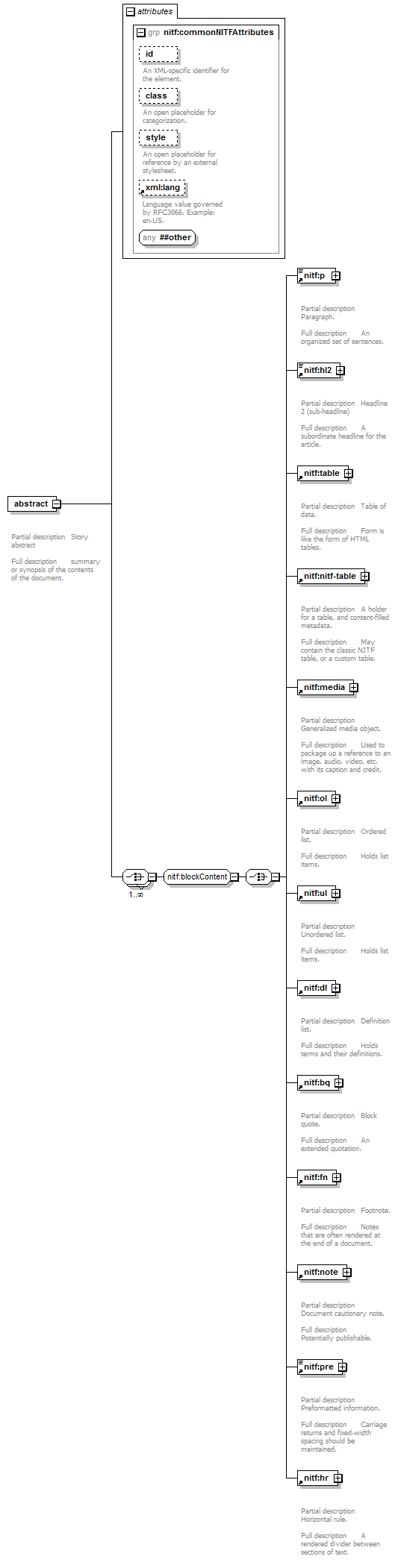

element abstract

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:p nitf:hl2 nitf:table nitf:nitf-table nitf:media nitf:ol nitf:ul nitf:dl nitf:bq nitf:fn nitf:note nitf:pre nitf:hr
used by	elements  block body.head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Story abstract Full description summary or synopsis of the contents of the document.
source	<element name="abstract">   <annotation>     <documentation> Partial description Story abstract Full description summary or synopsis of the contents of the document. </documentation>   </annotation>   <complexType>     <choice maxOccurs="unbounded">       <group ref="nitf:blockContent"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

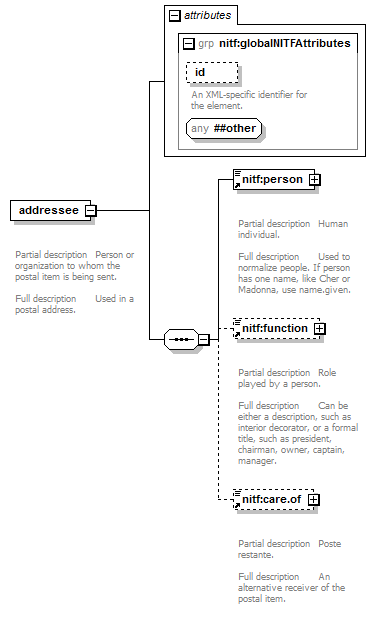

element addressee

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:person nitf:function nitf:care.of
used by	element  postaddr
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Person or organization to whom the postal item is being sent. Full description Used in a postal address.
source	<element name="addressee">   <annotation>     <documentation> Partial description Person or organization to whom the postal item is being sent. Full description Used in a postal address. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:person"/>       <element ref="nitf:function" minOccurs="0"/>       <element ref="nitf:care.of" minOccurs="0"/>     </sequence>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

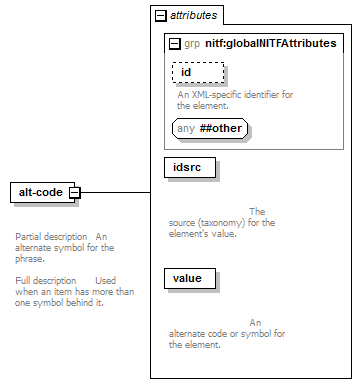

element alt-code

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	elements  city classifier country event function location object.title org person region state sublocation virtloc
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. idsrc string required         documentation The source (taxonomy) for the element's value. value string required         documentation An alternate code or symbol for the element.
annotation	documentation Partial description An alternate symbol for the phrase. Full description Used when an item has more than one symbol behind it.
source	<element name="alt-code">   <annotation>     <documentation> Partial description An alternate symbol for the phrase. Full description Used when an item has more than one symbol behind it. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="idsrc" type="string" use="required">       <annotation>         <documentation> The source (taxonomy) for the element's value. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="required">       <annotation>         <documentation> An alternate code or symbol for the element. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute alt-code/@idsrc

type	string
properties	isRef  0 use  required
annotation	documentation The source (taxonomy) for the element's value.
source	<attribute name="idsrc" type="string" use="required">   <annotation>     <documentation> The source (taxonomy) for the element's value. </documentation>   </annotation> </attribute>

attribute alt-code/@value

type	string
properties	isRef  0 use  required
annotation	documentation An alternate code or symbol for the element.
source	<attribute name="value" type="string" use="required">   <annotation>     <documentation> An alternate code or symbol for the element. </documentation>   </annotation> </attribute>

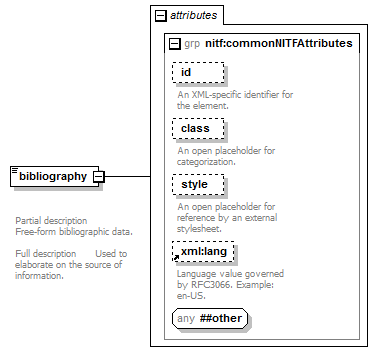

element bibliography

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  body.end
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Free-form bibliographic data. Full description Used to elaborate on the source of information.
source	<element name="bibliography">   <annotation>     <documentation> Partial description Free-form bibliographic data. Full description Used to elaborate on the source of information. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element block

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:tobject nitf:key-list nitf:classifier nitf:byline nitf:dateline nitf:copyrite nitf:abstract nitf:p nitf:hl2 nitf:table nitf:nitf-table nitf:media nitf:ol nitf:ul nitf:dl nitf:bq nitf:fn nitf:note nitf:pre nitf:hr nitf:datasource
used by	elements  body.content bq dd
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description A group of related containers. Full description This container can be used to organize a set of related containers, such as a sidebar.
source	<element name="block">   <annotation>     <documentation> Partial description A group of related containers. Full description This container can be used to organize a set of related containers, such as a sidebar. </documentation>   </annotation>   <complexType>     <sequence>       <sequence minOccurs="0">         <element ref="nitf:tobject" minOccurs="0"/>         <element ref="nitf:key-list" minOccurs="0"/>         <element ref="nitf:classifier" minOccurs="0" maxOccurs="unbounded"/>         <element ref="nitf:byline" minOccurs="0"/>         <element ref="nitf:dateline" minOccurs="0"/>         <element ref="nitf:copyrite" minOccurs="0"/>         <element ref="nitf:abstract" minOccurs="0" maxOccurs="unbounded"/>       </sequence>       <choice minOccurs="0" maxOccurs="unbounded">         <group ref="nitf:blockContent"/>       </choice>       <sequence minOccurs="0">         <element ref="nitf:datasource" minOccurs="0"/>       </sequence>       <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">         <annotation>           <documentation>Extension point for provider-defined properties from other namespaces</documentation>         </annotation>       </any>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

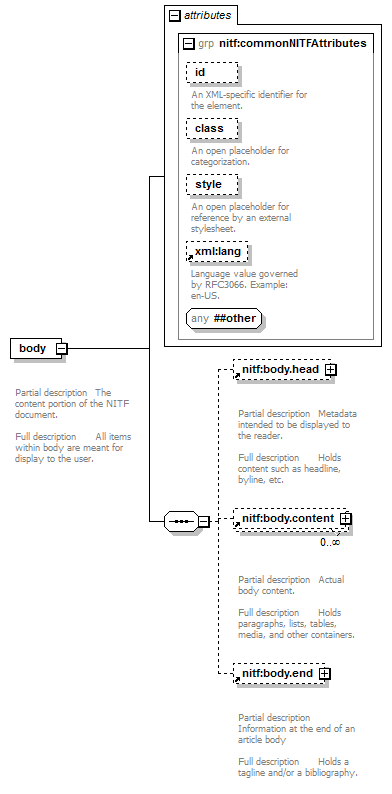

element body

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:body.head nitf:body.content nitf:body.end
used by	element  nitf
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description The content portion of the NITF document. Full description All items within body are meant for display to the user.
source	<element name="body">   <annotation>     <documentation> Partial description The content portion of the NITF document. Full description All items within body are meant for display to the user. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:body.head" minOccurs="0"/>       <element ref="nitf:body.content" minOccurs="0" maxOccurs="unbounded"/>       <element ref="nitf:body.end" minOccurs="0"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

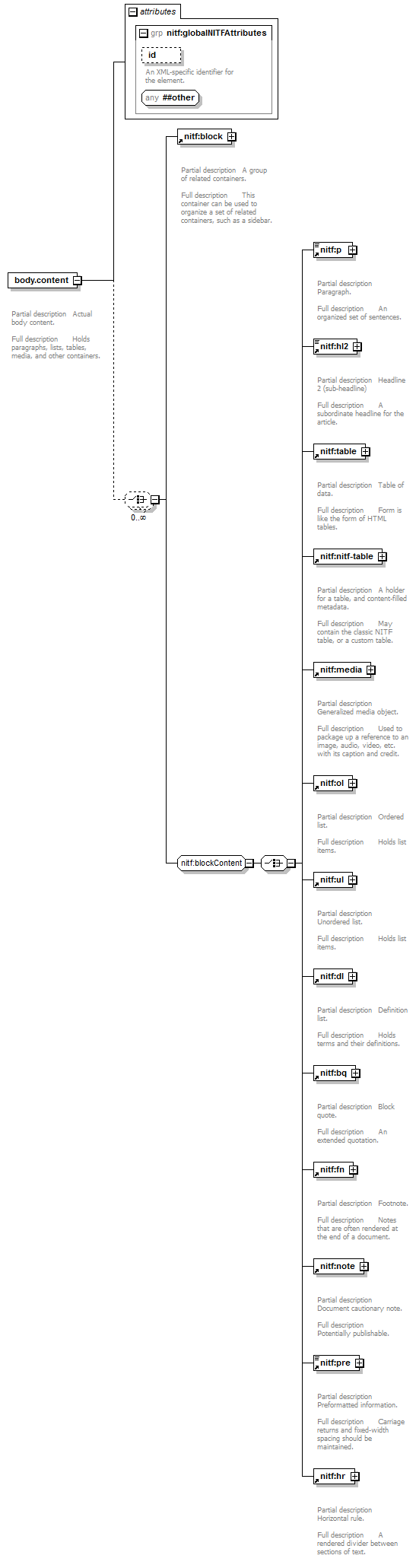

element body.content

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:block nitf:p nitf:hl2 nitf:table nitf:nitf-table nitf:media nitf:ol nitf:ul nitf:dl nitf:bq nitf:fn nitf:note nitf:pre nitf:hr
used by	elements  body fn note
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Actual body content. Full description Holds paragraphs, lists, tables, media, and other containers.
source	<element name="body.content">   <annotation>     <documentation> Partial description Actual body content. Full description Holds paragraphs, lists, tables, media, and other containers. </documentation>   </annotation>   <complexType>     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:block"/>       <group ref="nitf:blockContent"/>     </choice>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

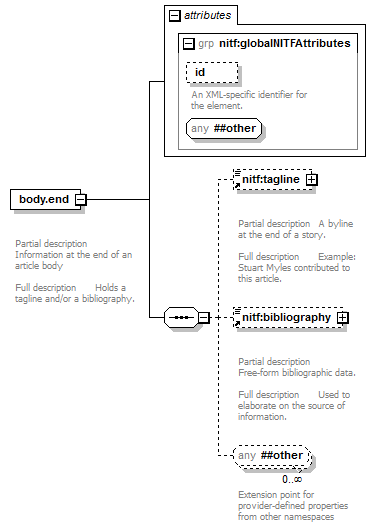

element body.end

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:tagline nitf:bibliography
used by	element  body
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Information at the end of an article body Full description Holds a tagline and/or a bibliography.
source	<element name="body.end">   <annotation>     <documentation> Partial description Information at the end of an article body Full description Holds a tagline and/or a bibliography. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:tagline" minOccurs="0"/>       <element ref="nitf:bibliography" minOccurs="0"/>       <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">         <annotation>           <documentation>Extension point for provider-defined properties from other namespaces</documentation>         </annotation>       </any>     </sequence>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element body.head

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:hedline nitf:note nitf:rights nitf:byline nitf:distributor nitf:dateline nitf:abstract nitf:series
used by	element  body
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Metadata intended to be displayed to the reader. Full description Holds content such as headline, byline, etc.
source	<element name="body.head">   <annotation>     <documentation> Partial description Metadata intended to be displayed to the reader. Full description Holds content such as headline, byline, etc. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:hedline" minOccurs="0" maxOccurs="unbounded"/>       <element ref="nitf:note" minOccurs="0" maxOccurs="unbounded"/>       <element ref="nitf:rights" minOccurs="0"/>       <element ref="nitf:byline" minOccurs="0" maxOccurs="unbounded"/>       <element ref="nitf:distributor" minOccurs="0"/>       <element ref="nitf:dateline" minOccurs="0" maxOccurs="unbounded"/>       <element ref="nitf:abstract" minOccurs="0" maxOccurs="unbounded"/>       <element ref="nitf:series" minOccurs="0"/>       <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">         <annotation>           <documentation>Extension point for provider-defined properties from other namespaces</documentation>         </annotation>       </any>     </sequence>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

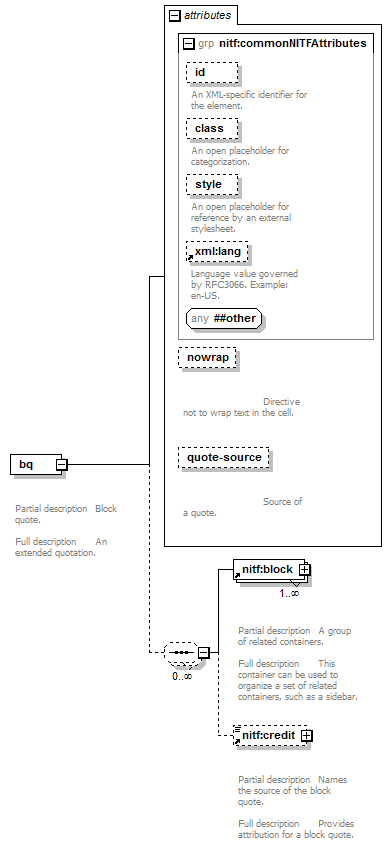

element bq

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:block nitf:credit
used by	group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. nowrap derived by: string optional         documentation Directive not to wrap text in the cell. quote-source string optional         documentation Source of a quote.
annotation	documentation Partial description Block quote. Full description An extended quotation.
source	<element name="bq">   <annotation>     <documentation> Partial description Block quote. Full description An extended quotation. </documentation>   </annotation>   <complexType>     <sequence minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:block" maxOccurs="unbounded"/>       <element ref="nitf:credit" minOccurs="0"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="nowrap" use="optional">       <annotation>         <documentation> Directive not to wrap text in the cell. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="nowrap"/>         </restriction>       </simpleType>     </attribute>     <attribute name="quote-source" type="string" use="optional">       <annotation>         <documentation> Source of a quote. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute bq/@nowrap

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  nowrap
annotation	documentation Directive not to wrap text in the cell.
source	<attribute name="nowrap" use="optional">   <annotation>     <documentation> Directive not to wrap text in the cell. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="nowrap"/>     </restriction>   </simpleType> </attribute>

attribute bq/@quote-source

type	string
properties	isRef  0 use  optional
annotation	documentation Source of a quote.
source	<attribute name="quote-source" type="string" use="optional">   <annotation>     <documentation> Source of a quote. </documentation>   </annotation> </attribute>

element br

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	elements  delivery.office delivery.point group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Forced line break. Full description Often used within headlines.
source	<element name="br">   <annotation>     <documentation> Partial description Forced line break. Full description Often used within headlines. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

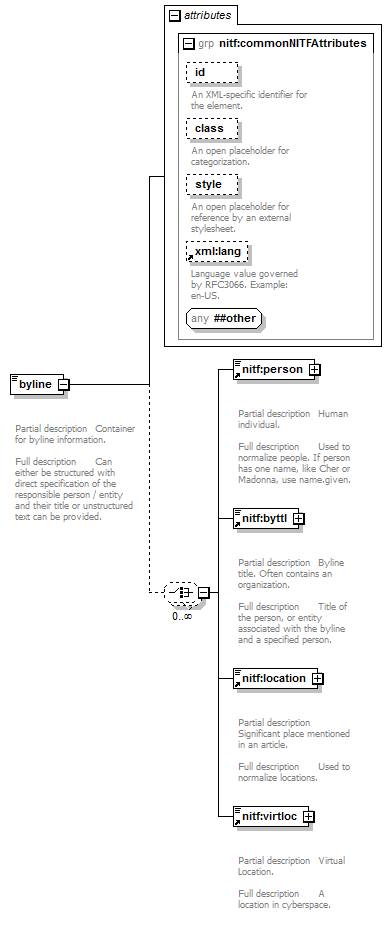

element byline

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:person nitf:byttl nitf:location nitf:virtloc
used by	elements  block body.head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Container for byline information. Full description Can either be structured with direct specification of the responsible person / entity and their title or unstructured text can be provided.
source	<element name="byline">   <annotation>     <documentation> Partial description Container for byline information. Full description Can either be structured with direct specification of the responsible person / entity and their title or unstructured text can be provided. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:person"/>       <element ref="nitf:byttl"/>       <element ref="nitf:location"/>       <element ref="nitf:virtloc"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

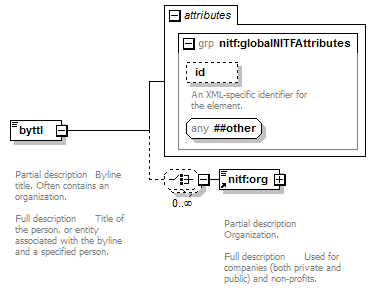

element byttl

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:org
used by	element  byline
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Byline title. Often contains an organization. Full description Title of the person, or entity associated with the byline and a specified person.
source	<element name="byttl">   <annotation>     <documentation> Partial description Byline title. Often contains an organization. Full description Title of the person, or entity associated with the byline and a specified person. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:org"/>     </choice>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element caption

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q nitf:p nitf:hl2 nitf:table nitf:nitf-table nitf:media nitf:ol nitf:ul nitf:dl nitf:bq nitf:fn nitf:note nitf:pre nitf:hr
used by	element  table
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. align derived by: string optional         documentation Alignment of the text in the caption.
annotation	documentation Partial description Text for the caption of a table. Full description Appears only within the table element.
source	<element name="caption">   <annotation>     <documentation> Partial description Text for the caption of a table. Full description Appears only within the table element. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>       <group ref="nitf:blockContent"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="align" use="optional">       <annotation>         <documentation> Alignment of the text in the caption. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="top"/>           <enumeration value="bottom"/>           <enumeration value="left"/>           <enumeration value="right"/>         </restriction>       </simpleType>     </attribute>   </complexType> </element>

attribute caption/@align

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  top  enumeration  bottom  enumeration  left  enumeration  right
annotation	documentation Alignment of the text in the caption.
source	<attribute name="align" use="optional">   <annotation>     <documentation> Alignment of the text in the caption. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="top"/>       <enumeration value="bottom"/>       <enumeration value="left"/>       <enumeration value="right"/>     </restriction>   </simpleType> </attribute>

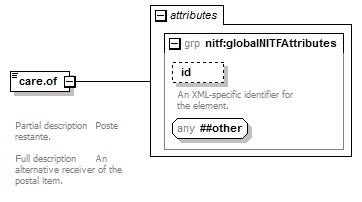

element care.of

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  addressee
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Poste restante. Full description An alternative receiver of the postal item.
source	<element name="care.of">   <annotation>     <documentation> Partial description Poste restante. Full description An alternative receiver of the postal item. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

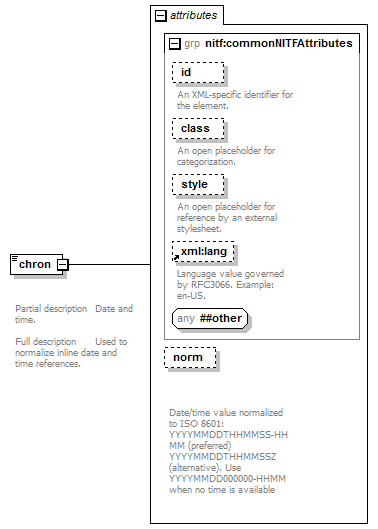

element chron

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. norm string optional         documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
annotation	documentation Partial description Date and time. Full description Used to normalize inline date and time references.
source	<element name="chron">   <annotation>     <documentation> Partial description Date and time. Full description Used to normalize inline date and time references. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="norm" type="string" use="optional">       <annotation>         <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute chron/@norm

type	string
properties	isRef  0 use  optional
annotation	documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="norm" type="string" use="optional">   <annotation>     <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

element city

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:alt-code
used by	element  location
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. city-code string optional         documentation The code or symbol for the element. code-source string optional         documentation The source (taxonomy) for the element's city-code.
annotation	documentation Partial description City, town, village, etc. Full description Used to normalize city, town names.
source	<element name="city">   <annotation>     <documentation> Partial description City, town, village, etc. Full description Used to normalize city, town names. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="city-code" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. </documentation>       </annotation>     </attribute>     <attribute name="code-source" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's city-code. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute city/@city-code

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element.
source	<attribute name="city-code" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. </documentation>   </annotation> </attribute>

attribute city/@code-source

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's city-code.
source	<attribute name="code-source" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's city-code. </documentation>   </annotation> </attribute>

element classifier

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:alt-code
used by	elements  block identified-content group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. type string optional         documentation Type of classifier. Example is concept. idsrc string optional         documentation The source (taxonomy) for the element's value. value string optional         documentation The code or symbol for the element.
annotation	documentation Partial description Generic holder for metadata. Could be used by researchers and archivists to qualify documents. Full description May be used inline (as localized phrase, atop a block (as localized section), or in docdata (for document as a whole).
source	<element name="classifier">   <annotation>     <documentation> Partial description Generic holder for metadata. Could be used by researchers and archivists to qualify documents. Full description May be used inline (as localized phrase, atop a block (as localized section), or in docdata (for document as a whole). </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="type" type="string" use="optional">       <annotation>         <documentation> Type of classifier. Example is concept. </documentation>       </annotation>     </attribute>     <attribute name="idsrc" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's value. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute classifier/@type

type	string
properties	isRef  0 use  optional
annotation	documentation Type of classifier. Example is concept.
source	<attribute name="type" type="string" use="optional">   <annotation>     <documentation> Type of classifier. Example is concept. </documentation>   </annotation> </attribute>

attribute classifier/@idsrc

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's value.
source	<attribute name="idsrc" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's value. </documentation>   </annotation> </attribute>

attribute classifier/@value

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. </documentation>   </annotation> </attribute>

element col

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	elements  colgroup table
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. span NMTOKEN optional   1      documentation Number of columns a header cell spans. width string optional         documentation Width of the column, in pixels. align derived by: string optional         documentation Alignment of text in the cell or column group. char string optional         documentation HTML formatting attribute. charoff string optional         documentation HTML formatting attribute. valign derived by: string optional         documentation Vertical alignment of text in the cell or column group.
annotation	documentation Partial description Column. Full description Used to specify formatting for a table column.
source	<element name="col">   <annotation>     <documentation> Partial description Column. Full description Used to specify formatting for a table column. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="span" type="NMTOKEN" use="optional" default="1">       <annotation>         <documentation> Number of columns a header cell spans. </documentation>       </annotation>     </attribute>     <attribute name="width" type="string" use="optional">       <annotation>         <documentation> Width of the column, in pixels. </documentation>       </annotation>     </attribute>     <attributeGroup ref="nitf:cellAlign"/>     <attributeGroup ref="nitf:cellVAlign"/>   </complexType> </element>

attribute col/@span

type	NMTOKEN
properties	isRef  0 default  1 use  optional
annotation	documentation Number of columns a header cell spans.
source	<attribute name="span" type="NMTOKEN" use="optional" default="1">   <annotation>     <documentation> Number of columns a header cell spans. </documentation>   </annotation> </attribute>

attribute col/@width

type	string
properties	isRef  0 use  optional
annotation	documentation Width of the column, in pixels.
source	<attribute name="width" type="string" use="optional">   <annotation>     <documentation> Width of the column, in pixels. </documentation>   </annotation> </attribute>

element colgroup

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:col
used by	element  table
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. align derived by: string optional         documentation Alignment of text in the cell or column group. char string optional         documentation HTML formatting attribute. charoff string optional         documentation HTML formatting attribute. valign derived by: string optional         documentation Vertical alignment of text in the cell or column group.
annotation	documentation Partial description Column group. Full description Used to specify formatting for a table column.
source	<element name="colgroup">   <annotation>     <documentation> Partial description Column group. Full description Used to specify formatting for a table column. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:col" maxOccurs="unbounded"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attributeGroup ref="nitf:cellAlign"/>     <attributeGroup ref="nitf:cellVAlign"/>   </complexType> </element>

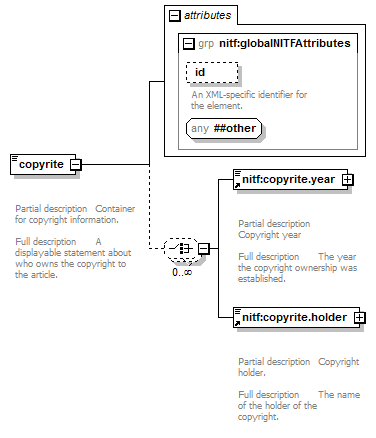

element copyrite

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:copyrite.year nitf:copyrite.holder
used by	element  block group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Container for copyright information. Full description A displayable statement about who owns the copyright to the article.
source	<element name="copyrite">   <annotation>     <documentation> Partial description Container for copyright information. Full description A displayable statement about who owns the copyright to the article. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:copyrite.year"/>       <element ref="nitf:copyrite.holder"/>     </choice>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element copyrite.holder

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  copyrite
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Copyright holder. Full description The name of the holder of the copyright.
source	<element name="copyrite.holder">   <annotation>     <documentation> Partial description Copyright holder. Full description The name of the holder of the copyright. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element copyrite.year

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  copyrite
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Copyright year Full description The year the copyright ownership was established.
source	<element name="copyrite.year">   <annotation>     <documentation> Partial description Copyright year Full description The year the copyright ownership was established. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element correction

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. info string optional         documentation Contains actual message or instructions regarding the correction. id-string string optional         documentation Document identification string, such as UNO or doc-id. regsrc string optional         documentation Identifies the source of the correction.
annotation	documentation Partial description Correction information. Full description Indicates that the item is a correction to a previously published document.
source	<element name="correction">   <annotation>     <documentation> Partial description Correction information. Full description Indicates that the item is a correction to a previously published document. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="info" type="string" use="optional">       <annotation>         <documentation> Contains actual message or instructions regarding the correction. </documentation>       </annotation>     </attribute>     <attribute name="id-string" type="string" use="optional">       <annotation>         <documentation> Document identification string, such as UNO or doc-id. </documentation>       </annotation>     </attribute>     <attribute name="regsrc" type="string" use="optional">       <annotation>         <documentation> Identifies the source of the correction. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute correction/@info

type	string
properties	isRef  0 use  optional
annotation	documentation Contains actual message or instructions regarding the correction.
source	<attribute name="info" type="string" use="optional">   <annotation>     <documentation> Contains actual message or instructions regarding the correction. </documentation>   </annotation> </attribute>

attribute correction/@id-string

type	string
properties	isRef  0 use  optional
annotation	documentation Document identification string, such as UNO or doc-id.
source	<attribute name="id-string" type="string" use="optional">   <annotation>     <documentation> Document identification string, such as UNO or doc-id. </documentation>   </annotation> </attribute>

attribute correction/@regsrc

type	string
properties	isRef  0 use  optional
annotation	documentation Identifies the source of the correction.
source	<attribute name="regsrc" type="string" use="optional">   <annotation>     <documentation> Identifies the source of the correction. </documentation>   </annotation> </attribute>

element country

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:alt-code
used by	elements  location postaddr
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. iso-cc string optional         documentation Country code as specified in ISO 3166.
annotation	documentation Partial description Geographic area with a government. Full description Used to normalize countries.
source	<element name="country">   <annotation>     <documentation> Partial description Geographic area with a government. Full description Used to normalize countries. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="iso-cc" type="string" use="optional">       <annotation>         <documentation> Country code as specified in ISO 3166. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute country/@iso-cc

type	string
properties	isRef  0 use  optional
annotation	documentation Country code as specified in ISO 3166.
source	<attribute name="iso-cc" type="string" use="optional">   <annotation>     <documentation> Country code as specified in ISO 3166. </documentation>   </annotation> </attribute>

element credit

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	element  bq
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Names the source of the block quote. Full description Provides attribution for a block quote.
source	<element name="credit">   <annotation>     <documentation> Partial description Names the source of the block quote. Full description Provides attribution for a block quote. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element custom-table

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  nitf-table
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description A holder for a namespaced XML fragment for custom-tagged data, or for an alternative set of non-parser-breaking content. Full description Used when publisher wants to surround the fragment with NITF metadata.
source	<element name="custom-table">   <annotation>     <documentation> Partial description A holder for a namespaced XML fragment for custom-tagged data, or for an alternative set of non-parser-breaking content. Full description Used when publisher wants to surround the fragment with NITF metadata. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

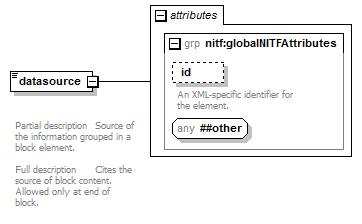

element datasource

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  block
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Source of the information grouped in a block element. Full description Cites the source of block content. Allowed only at end of block.
source	<element name="datasource">   <annotation>     <documentation> Partial description Source of the information grouped in a block element. Full description Cites the source of block content. Allowed only at end of block. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element date.expire

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. norm string optional         documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
annotation	documentation Partial description Date/time at which the document has no validity. Full description If not provided, it is assumed to be infinity.
source	<element name="date.expire">   <annotation>     <documentation> Partial description Date/time at which the document has no validity. Full description If not provided, it is assumed to be infinity. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="norm" type="string" use="optional">       <annotation>         <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute date.expire/@norm

type	string
properties	isRef  0 use  optional
annotation	documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="norm" type="string" use="optional">   <annotation>     <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

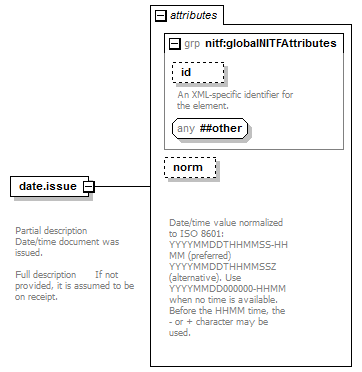

element date.issue

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. norm string optional         documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available. Before the HHMM time, the - or + character may be used.
annotation	documentation Partial description Date/time document was issued. Full description If not provided, it is assumed to be on receipt.
source	<element name="date.issue">   <annotation>     <documentation> Partial description Date/time document was issued. Full description If not provided, it is assumed to be on receipt. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="norm" type="string" use="optional">       <annotation>         <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available. Before the HHMM time, the - or + character may be used. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute date.issue/@norm

type	string
properties	isRef  0 use  optional
annotation	documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available. Before the HHMM time, the - or + character may be used.
source	<attribute name="norm" type="string" use="optional">   <annotation>     <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available. Before the HHMM time, the - or + character may be used. </documentation>   </annotation> </attribute>

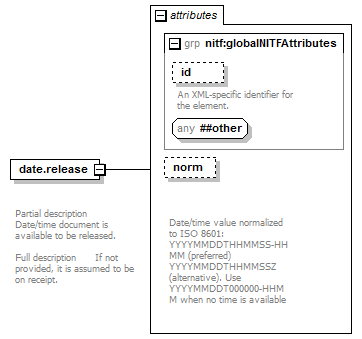

element date.release

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. norm string optional         documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDDT000000-HHMM when no time is available
annotation	documentation Partial description Date/time document is available to be released. Full description If not provided, it is assumed to be on receipt.
source	<element name="date.release">   <annotation>     <documentation> Partial description Date/time document is available to be released. Full description If not provided, it is assumed to be on receipt. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="norm" type="string" use="optional">       <annotation>         <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDDT000000-HHMM when no time is available </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute date.release/@norm

type	string
properties	isRef  0 use  optional
annotation	documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDDT000000-HHMM when no time is available
source	<attribute name="norm" type="string" use="optional">   <annotation>     <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDDT000000-HHMM when no time is available </documentation>   </annotation> </attribute>

element dateline

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:location nitf:story.date
used by	elements  block body.head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Container for dateline information. Full description The date and location where the story was created.
source	<element name="dateline">   <annotation>     <documentation> Partial description Container for dateline information. Full description The date and location where the story was created. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:location"/>       <element ref="nitf:story.date"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element dd

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q nitf:p nitf:hl2 nitf:table nitf:nitf-table nitf:media nitf:ol nitf:ul nitf:dl nitf:bq nitf:fn nitf:note nitf:pre nitf:hr nitf:block
used by	element  dl
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Definition data. Full description Holds the definition of the term.
source	<element name="dd">   <annotation>     <documentation> Partial description Definition data. Full description Holds the definition of the term. </documentation>   </annotation>   <complexType>     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>       <group ref="nitf:blockContent"/>       <element ref="nitf:block"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element del-list

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:from-src
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Delivery trail of delivery services. Full description Holds an ordered list of the distribution services that have been involved in the delivery of the document.
source	<element name="del-list">   <annotation>     <documentation> Partial description Delivery trail of delivery services. Full description Holds an ordered list of the distribution services that have been involved in the delivery of the document. </documentation>   </annotation>   <complexType>     <sequence minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:from-src"/>     </sequence>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

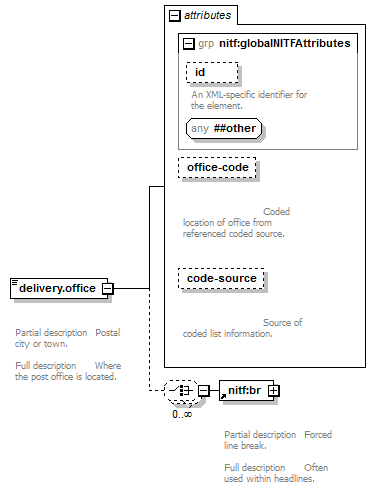

element delivery.office

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:br
used by	element  postaddr
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. office-code string optional         documentation Coded location of office from referenced coded source. code-source string optional         documentation Source of coded list information.
annotation	documentation Partial description Postal city or town. Full description Where the post office is located.
source	<element name="delivery.office">   <annotation>     <documentation> Partial description Postal city or town. Full description Where the post office is located. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:br"/>     </choice>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="office-code" type="string" use="optional">       <annotation>         <documentation> Coded location of office from referenced coded source. </documentation>       </annotation>     </attribute>     <attribute name="code-source" type="string" use="optional">       <annotation>         <documentation> Source of coded list information. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute delivery.office/@office-code

type	string
properties	isRef  0 use  optional
annotation	documentation Coded location of office from referenced coded source.
source	<attribute name="office-code" type="string" use="optional">   <annotation>     <documentation> Coded location of office from referenced coded source. </documentation>   </annotation> </attribute>

attribute delivery.office/@code-source

type	string
properties	isRef  0 use  optional
annotation	documentation Source of coded list information.
source	<attribute name="code-source" type="string" use="optional">   <annotation>     <documentation> Source of coded list information. </documentation>   </annotation> </attribute>

element delivery.point

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:br
used by	element  postaddr
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. point-code string optional         documentation Coded location for a delivery point. code-source string optional         documentation Source of coded list information.
annotation	documentation Partial description Street, PO Box No. Full description Precise point of delivery.
source	<element name="delivery.point">   <annotation>     <documentation> Partial description Street, PO Box No. Full description Precise point of delivery. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:br"/>     </choice>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="point-code" type="string" use="optional">       <annotation>         <documentation> Coded location for a delivery point. </documentation>       </annotation>     </attribute>     <attribute name="code-source" type="string" use="optional">       <annotation>         <documentation> Source of coded list information. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute delivery.point/@point-code

type	string
properties	isRef  0 use  optional
annotation	documentation Coded location for a delivery point.
source	<attribute name="point-code" type="string" use="optional">   <annotation>     <documentation> Coded location for a delivery point. </documentation>   </annotation> </attribute>

attribute delivery.point/@code-source

type	string
properties	isRef  0 use  optional
annotation	documentation Source of coded list information.
source	<attribute name="code-source" type="string" use="optional">   <annotation>     <documentation> Source of coded list information. </documentation>   </annotation> </attribute>

element denom

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  frac
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Fraction denominator. Full description The bottom part of a fraction.
source	<element name="denom">   <annotation>     <documentation> Partial description Fraction denominator. Full description The bottom part of a fraction. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element distributor

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:org
used by	element  body.head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Information distributor. Full description May or may not be the owner or creator.
source	<element name="distributor">   <annotation>     <documentation> Partial description Information distributor. Full description May or may not be the owner or creator. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:org"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element dl

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:dt nitf:dd
used by	group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Definition list. Full description Holds terms and their definitions.
source	<element name="dl">   <annotation>     <documentation> Partial description Definition list. Full description Holds terms and their definitions. </documentation>   </annotation>   <complexType>     <choice maxOccurs="unbounded">       <element ref="nitf:dt"/>       <element ref="nitf:dd"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

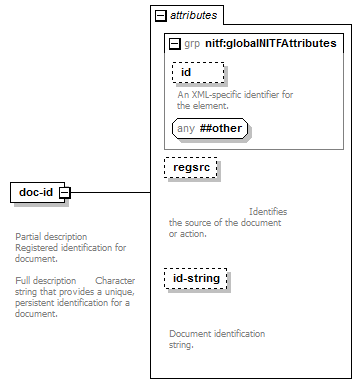

element doc-id

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. regsrc string optional         documentation Identifies the source of the document or action. id-string string optional         documentation Document identification string.
annotation	documentation Partial description Registered identification for document. Full description Character string that provides a unique, persistent identification for a document.
source	<element name="doc-id">   <annotation>     <documentation> Partial description Registered identification for document. Full description Character string that provides a unique, persistent identification for a document. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="regsrc" type="string" use="optional">       <annotation>         <documentation> Identifies the source of the document or action. </documentation>       </annotation>     </attribute>     <attribute name="id-string" type="string" use="optional">       <annotation>         <documentation> Document identification string. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute doc-id/@regsrc

type	string
properties	isRef  0 use  optional
annotation	documentation Identifies the source of the document or action.
source	<attribute name="regsrc" type="string" use="optional">   <annotation>     <documentation> Identifies the source of the document or action. </documentation>   </annotation> </attribute>

attribute doc-id/@id-string

type	string
properties	isRef  0 use  optional
annotation	documentation Document identification string.
source	<attribute name="id-string" type="string" use="optional">   <annotation>     <documentation> Document identification string. </documentation>   </annotation> </attribute>

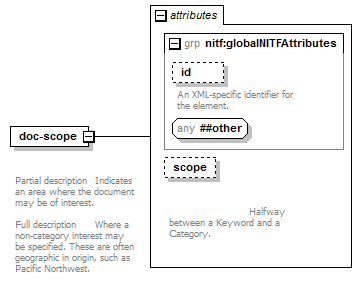

element doc-scope

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. scope string optional         documentation Halfway between a Keyword and a Category.
annotation	documentation Partial description Indicates an area where the document may be of interest. Full description Where a non-category interest may be specified. These are often geographic in origin, such as Pacific Northwest.
source	<element name="doc-scope">   <annotation>     <documentation> Partial description Indicates an area where the document may be of interest. Full description Where a non-category interest may be specified. These are often geographic in origin, such as Pacific Northwest. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="scope" type="string" use="optional">       <annotation>         <documentation> Halfway between a Keyword and a Category. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute doc-scope/@scope

type	string
properties	isRef  0 use  optional
annotation	documentation Halfway between a Keyword and a Category.
source	<attribute name="scope" type="string" use="optional">   <annotation>     <documentation> Halfway between a Keyword and a Category. </documentation>   </annotation> </attribute>

element doc.copyright

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. year NMTOKEN optional         documentation Year of the document copyright. holder string optional         documentation Holder of the copyright.
annotation	documentation Partial description Copyright information for document header. Full description A metadata location for the information about the year and holder of the document copyright. This information should be consistant with information in the copyrite tag.
source	<element name="doc.copyright">   <annotation>     <documentation> Partial description Copyright information for document header. Full description A metadata location for the information about the year and holder of the document copyright. This information should be consistant with information in the copyrite tag. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="year" type="NMTOKEN" use="optional">       <annotation>         <documentation> Year of the document copyright. </documentation>       </annotation>     </attribute>     <attribute name="holder" type="string" use="optional">       <annotation>         <documentation> Holder of the copyright. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute doc.copyright/@year

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Year of the document copyright.
source	<attribute name="year" type="NMTOKEN" use="optional">   <annotation>     <documentation> Year of the document copyright. </documentation>   </annotation> </attribute>

attribute doc.copyright/@holder

type	string
properties	isRef  0 use  optional
annotation	documentation Holder of the copyright.
source	<attribute name="holder" type="string" use="optional">   <annotation>     <documentation> Holder of the copyright. </documentation>   </annotation> </attribute>

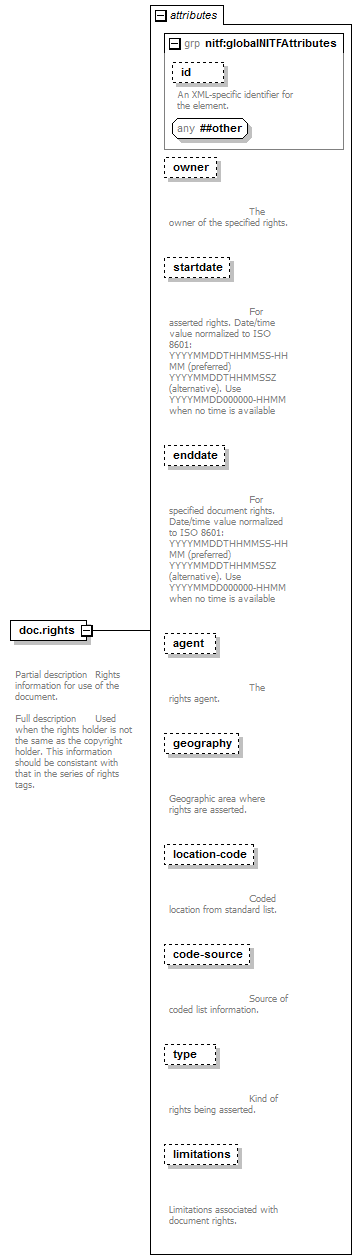

element doc.rights

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. owner string optional         documentation The owner of the specified rights. startdate string optional         documentation For asserted rights. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available enddate string optional         documentation For specified document rights. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available agent string optional         documentation The rights agent. geography string optional         documentation Geographic area where rights are asserted. location-code string optional         documentation Coded location from standard list. code-source string optional         documentation Source of coded list information. type string optional         documentation Kind of rights being asserted. limitations string optional         documentation Limitations associated with document rights.
annotation	documentation Partial description Rights information for use of the document. Full description Used when the rights holder is not the same as the copyright holder. This information should be consistant with that in the series of rights tags.
source	<element name="doc.rights">   <annotation>     <documentation> Partial description Rights information for use of the document. Full description Used when the rights holder is not the same as the copyright holder. This information should be consistant with that in the series of rights tags. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="owner" type="string" use="optional">       <annotation>         <documentation> The owner of the specified rights. </documentation>       </annotation>     </attribute>     <attribute name="startdate" type="string" use="optional">       <annotation>         <documentation> For asserted rights. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>     <attribute name="enddate" type="string" use="optional">       <annotation>         <documentation> For specified document rights. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>     <attribute name="agent" type="string" use="optional">       <annotation>         <documentation> The rights agent. </documentation>       </annotation>     </attribute>     <attribute name="geography" type="string" use="optional">       <annotation>         <documentation> Geographic area where rights are asserted. </documentation>       </annotation>     </attribute>     <attribute name="location-code" type="string" use="optional">       <annotation>         <documentation> Coded location from standard list. </documentation>       </annotation>     </attribute>     <attribute name="code-source" type="string" use="optional">       <annotation>         <documentation> Source of coded list information. </documentation>       </annotation>     </attribute>     <attribute name="type" type="string" use="optional">       <annotation>         <documentation> Kind of rights being asserted. </documentation>       </annotation>     </attribute>     <attribute name="limitations" type="string" use="optional">       <annotation>         <documentation> Limitations associated with document rights. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute doc.rights/@owner

type	string
properties	isRef  0 use  optional
annotation	documentation The owner of the specified rights.
source	<attribute name="owner" type="string" use="optional">   <annotation>     <documentation> The owner of the specified rights. </documentation>   </annotation> </attribute>

attribute doc.rights/@startdate

type	string
properties	isRef  0 use  optional
annotation	documentation For asserted rights. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="startdate" type="string" use="optional">   <annotation>     <documentation> For asserted rights. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

attribute doc.rights/@enddate

type	string
properties	isRef  0 use  optional
annotation	documentation For specified document rights. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="enddate" type="string" use="optional">   <annotation>     <documentation> For specified document rights. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

attribute doc.rights/@agent

type	string
properties	isRef  0 use  optional
annotation	documentation The rights agent.
source	<attribute name="agent" type="string" use="optional">   <annotation>     <documentation> The rights agent. </documentation>   </annotation> </attribute>

attribute doc.rights/@geography

type	string
properties	isRef  0 use  optional
annotation	documentation Geographic area where rights are asserted.
source	<attribute name="geography" type="string" use="optional">   <annotation>     <documentation> Geographic area where rights are asserted. </documentation>   </annotation> </attribute>

attribute doc.rights/@location-code

type	string
properties	isRef  0 use  optional
annotation	documentation Coded location from standard list.
source	<attribute name="location-code" type="string" use="optional">   <annotation>     <documentation> Coded location from standard list. </documentation>   </annotation> </attribute>

attribute doc.rights/@code-source

type	string
properties	isRef  0 use  optional
annotation	documentation Source of coded list information.
source	<attribute name="code-source" type="string" use="optional">   <annotation>     <documentation> Source of coded list information. </documentation>   </annotation> </attribute>

attribute doc.rights/@type

type	string
properties	isRef  0 use  optional
annotation	documentation Kind of rights being asserted.
source	<attribute name="type" type="string" use="optional">   <annotation>     <documentation> Kind of rights being asserted. </documentation>   </annotation> </attribute>

attribute doc.rights/@limitations

type	string
properties	isRef  0 use  optional
annotation	documentation Limitations associated with document rights.
source	<attribute name="limitations" type="string" use="optional">   <annotation>     <documentation> Limitations associated with document rights. </documentation>   </annotation> </attribute>

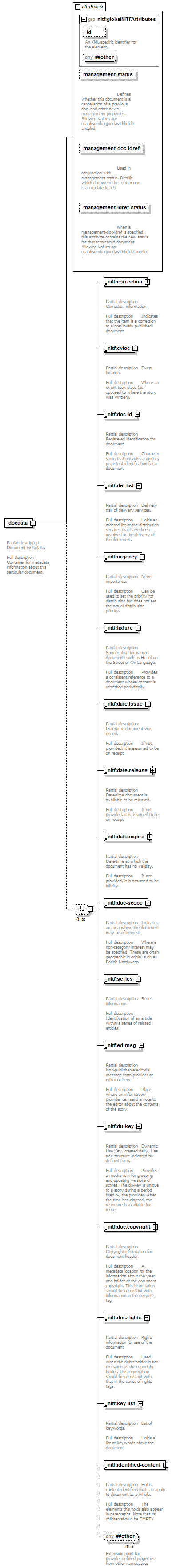

element docdata

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:correction nitf:evloc nitf:doc-id nitf:del-list nitf:urgency nitf:fixture nitf:date.issue nitf:date.release nitf:date.expire nitf:doc-scope nitf:series nitf:ed-msg nitf:du-key nitf:doc.copyright nitf:doc.rights nitf:key-list nitf:identified-content
used by	element  head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. management-status string optional         documentation Defines whether this document is a cancellation of a previous doc, and other news management properties. Allowed values are usable,embargoed,withheld,canceled. management-doc-idref string optional         documentation Used in conjunction with management-status. Details which document the current one is an update to, etc. management-idref-status string optional         documentation When a management-doc-idref is specified, this attribute contains the new status for that referenced document. Allowed values are usable,embargoed,withheld,canceled.
annotation	documentation Partial description Document metadata. Full description Container for metadata information about this particular document.
source	<element name="docdata">   <annotation>     <documentation> Partial description Document metadata. Full description Container for metadata information about this particular document. </documentation>   </annotation>   <complexType>     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:correction"/>       <element ref="nitf:evloc"/>       <element ref="nitf:doc-id"/>       <element ref="nitf:del-list"/>       <element ref="nitf:urgency"/>       <element ref="nitf:fixture"/>       <element ref="nitf:date.issue"/>       <element ref="nitf:date.release"/>       <element ref="nitf:date.expire"/>       <element ref="nitf:doc-scope"/>       <element ref="nitf:series"/>       <element ref="nitf:ed-msg"/>       <element ref="nitf:du-key"/>       <element ref="nitf:doc.copyright"/>       <element ref="nitf:doc.rights"/>       <element ref="nitf:key-list"/>       <element ref="nitf:identified-content"/>       <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">         <annotation>           <documentation>Extension point for provider-defined properties from other namespaces</documentation>         </annotation>       </any>     </choice>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="management-status" type="string" use="optional">       <annotation>         <documentation> Defines whether this document is a cancellation of a previous doc, and other news management properties. Allowed values are usable,embargoed,withheld,canceled. </documentation>       </annotation>     </attribute>     <attribute name="management-doc-idref" type="string" use="optional">       <annotation>         <documentation> Used in conjunction with management-status. Details which document the current one is an update to, etc. </documentation>       </annotation>     </attribute>     <attribute name="management-idref-status" type="string" use="optional">       <annotation>         <documentation> When a management-doc-idref is specified, this attribute contains the new status for that referenced document. Allowed values are usable,embargoed,withheld,canceled. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute docdata/@management-status

type	string
properties	isRef  0 use  optional
annotation	documentation Defines whether this document is a cancellation of a previous doc, and other news management properties. Allowed values are usable,embargoed,withheld,canceled.
source	<attribute name="management-status" type="string" use="optional">   <annotation>     <documentation> Defines whether this document is a cancellation of a previous doc, and other news management properties. Allowed values are usable,embargoed,withheld,canceled. </documentation>   </annotation> </attribute>

attribute docdata/@management-doc-idref

type	string
properties	isRef  0 use  optional
annotation	documentation Used in conjunction with management-status. Details which document the current one is an update to, etc.
source	<attribute name="management-doc-idref" type="string" use="optional">   <annotation>     <documentation> Used in conjunction with management-status. Details which document the current one is an update to, etc. </documentation>   </annotation> </attribute>

attribute docdata/@management-idref-status

type	string
properties	isRef  0 use  optional
annotation	documentation When a management-doc-idref is specified, this attribute contains the new status for that referenced document. Allowed values are usable,embargoed,withheld,canceled.
source	<attribute name="management-idref-status" type="string" use="optional">   <annotation>     <documentation> When a management-doc-idref is specified, this attribute contains the new status for that referenced document. Allowed values are usable,embargoed,withheld,canceled. </documentation>   </annotation> </attribute>

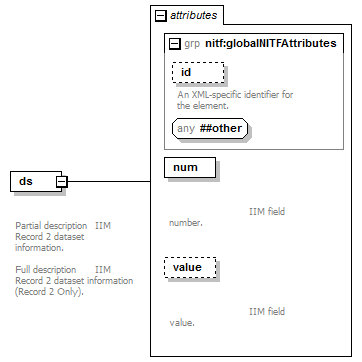

element ds

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  iim
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. num NMTOKEN required         documentation IIM field number. value string optional         documentation IIM field value.
annotation	documentation Partial description IIM Record 2 dataset information. Full description IIM Record 2 dataset information (Record 2 Only).
source	<element name="ds">   <annotation>     <documentation> Partial description IIM Record 2 dataset information. Full description IIM Record 2 dataset information (Record 2 Only). </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="num" type="NMTOKEN" use="required">       <annotation>         <documentation> IIM field number. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> IIM field value. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute ds/@num

type	NMTOKEN
properties	isRef  0 use  required
annotation	documentation IIM field number.
source	<attribute name="num" type="NMTOKEN" use="required">   <annotation>     <documentation> IIM field number. </documentation>   </annotation> </attribute>

attribute ds/@value

type	string
properties	isRef  0 use  optional
annotation	documentation IIM field value.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> IIM field value. </documentation>   </annotation> </attribute>

element dt

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	element  dl
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Definition term. Full description Holds the content that is to be defined.
source	<element name="dt">   <annotation>     <documentation> Partial description Definition term. Full description Holds the content that is to be defined. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element du-key

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. generation NMTOKEN optional         documentation Number indicating the du-key generation level. This number increments with each instance of a story that uses the same du-key. part NMTOKEN optional         documentation The part within the dynamic use key structure. version NMTOKEN optional         documentation Version of a particular use of the dynamic-use key. key string optional         documentation Contains the actual key value.
annotation	documentation Partial description Dynamic Use Key, created daily. Has tree structure indicated by defined form. Full description Provides a mechanism for grouping and updating versions of stories. The du-key is unique to a story during a period fixed by the provider. After the time has elapsed, the reference is available for reuse.
source	<element name="du-key">   <annotation>     <documentation> Partial description Dynamic Use Key, created daily. Has tree structure indicated by defined form. Full description Provides a mechanism for grouping and updating versions of stories. The du-key is unique to a story during a period fixed by the provider. After the time has elapsed, the reference is available for reuse. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="generation" type="NMTOKEN" use="optional">       <annotation>         <documentation> Number indicating the du-key generation level. This number increments with each instance of a story that uses the same du-key. </documentation>       </annotation>     </attribute>     <attribute name="part" type="NMTOKEN" use="optional">       <annotation>         <documentation> The part within the dynamic use key structure. </documentation>       </annotation>     </attribute>     <attribute name="version" type="NMTOKEN" use="optional">       <annotation>         <documentation> Version of a particular use of the dynamic-use key. </documentation>       </annotation>     </attribute>     <attribute name="key" type="string" use="optional">       <annotation>         <documentation> Contains the actual key value. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute du-key/@generation

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Number indicating the du-key generation level. This number increments with each instance of a story that uses the same du-key.
source	<attribute name="generation" type="NMTOKEN" use="optional">   <annotation>     <documentation> Number indicating the du-key generation level. This number increments with each instance of a story that uses the same du-key. </documentation>   </annotation> </attribute>

attribute du-key/@part

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation The part within the dynamic use key structure.
source	<attribute name="part" type="NMTOKEN" use="optional">   <annotation>     <documentation> The part within the dynamic use key structure. </documentation>   </annotation> </attribute>

attribute du-key/@version

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Version of a particular use of the dynamic-use key.
source	<attribute name="version" type="NMTOKEN" use="optional">   <annotation>     <documentation> Version of a particular use of the dynamic-use key. </documentation>   </annotation> </attribute>

attribute du-key/@key

type	string
properties	isRef  0 use  optional
annotation	documentation Contains the actual key value.
source	<attribute name="key" type="string" use="optional">   <annotation>     <documentation> Contains the actual key value. </documentation>   </annotation> </attribute>

element ed-msg

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. msg-type string optional         documentation The type of message. Providers are urged to use consistent values. info string optional         documentation Contains the actual message for the editorial message.
annotation	documentation Partial description Non-publishable editorial message from provider or editor of item. Full description Place where an information provider can send a note to the editor about the contents of the story.
source	<element name="ed-msg">   <annotation>     <documentation> Partial description Non-publishable editorial message from provider or editor of item. Full description Place where an information provider can send a note to the editor about the contents of the story. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="msg-type" type="string" use="optional">       <annotation>         <documentation> The type of message. Providers are urged to use consistent values. </documentation>       </annotation>     </attribute>     <attribute name="info" type="string" use="optional">       <annotation>         <documentation> Contains the actual message for the editorial message. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute ed-msg/@msg-type

type	string
properties	isRef  0 use  optional
annotation	documentation The type of message. Providers are urged to use consistent values.
source	<attribute name="msg-type" type="string" use="optional">   <annotation>     <documentation> The type of message. Providers are urged to use consistent values. </documentation>   </annotation> </attribute>

attribute ed-msg/@info

type	string
properties	isRef  0 use  optional
annotation	documentation Contains the actual message for the editorial message.
source	<attribute name="info" type="string" use="optional">   <annotation>     <documentation> Contains the actual message for the editorial message. </documentation>   </annotation> </attribute>

element em

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Emphasis. Full description Can be rendered as bold, italics, or another style.
source	<element name="em">   <annotation>     <documentation> Partial description Emphasis. Full description Can be rendered as bold, italics, or another style. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element event

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:alt-code
used by	element  identified-content group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. start-date string optional         documentation When the event is set to start. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available end-date string optional         documentation When the event is set to end. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available idsrc string optional         documentation The source (taxonomy) for the element's value attribute. value string optional         documentation The code or symbol for the element.
annotation	documentation Partial description An event. Full description An activity that is considered newsworthy.
source	<element name="event">   <annotation>     <documentation> Partial description An event. Full description An activity that is considered newsworthy. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="start-date" type="string" use="optional">       <annotation>         <documentation> When the event is set to start. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>     <attribute name="end-date" type="string" use="optional">       <annotation>         <documentation> When the event is set to end. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>     <attribute name="idsrc" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's value attribute. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute event/@start-date

type	string
properties	isRef  0 use  optional
annotation	documentation When the event is set to start. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="start-date" type="string" use="optional">   <annotation>     <documentation> When the event is set to start. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

attribute event/@end-date

type	string
properties	isRef  0 use  optional
annotation	documentation When the event is set to end. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="end-date" type="string" use="optional">   <annotation>     <documentation> When the event is set to end. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

attribute event/@idsrc

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's value attribute.
source	<attribute name="idsrc" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's value attribute. </documentation>   </annotation> </attribute>

attribute event/@value

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. </documentation>   </annotation> </attribute>

element evloc

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. iso-cc string optional         documentation Country code as specified in ISO 3166. state-prov string optional         documentation State or province where the event occurred. county-dist string optional         documentation County or district name. city string optional         documentation City or municipality name.
annotation	documentation Partial description Event location. Full description Where an event took place (as opposed to where the story was written).
source	<element name="evloc">   <annotation>     <documentation> Partial description Event location. Full description Where an event took place (as opposed to where the story was written). </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="iso-cc" type="string" use="optional">       <annotation>         <documentation> Country code as specified in ISO 3166. </documentation>       </annotation>     </attribute>     <attribute name="state-prov" type="string" use="optional">       <annotation>         <documentation> State or province where the event occurred. </documentation>       </annotation>     </attribute>     <attribute name="county-dist" type="string" use="optional">       <annotation>         <documentation> County or district name. </documentation>       </annotation>     </attribute>     <attribute name="city" type="string" use="optional">       <annotation>         <documentation> City or municipality name. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute evloc/@iso-cc

type	string
properties	isRef  0 use  optional
annotation	documentation Country code as specified in ISO 3166.
source	<attribute name="iso-cc" type="string" use="optional">   <annotation>     <documentation> Country code as specified in ISO 3166. </documentation>   </annotation> </attribute>

attribute evloc/@state-prov

type	string
properties	isRef  0 use  optional
annotation	documentation State or province where the event occurred.
source	<attribute name="state-prov" type="string" use="optional">   <annotation>     <documentation> State or province where the event occurred. </documentation>   </annotation> </attribute>

attribute evloc/@county-dist

type	string
properties	isRef  0 use  optional
annotation	documentation County or district name.
source	<attribute name="county-dist" type="string" use="optional">   <annotation>     <documentation> County or district name. </documentation>   </annotation> </attribute>

attribute evloc/@city

type	string
properties	isRef  0 use  optional
annotation	documentation City or municipality name.
source	<attribute name="city" type="string" use="optional">   <annotation>     <documentation> City or municipality name. </documentation>   </annotation> </attribute>

element fixture

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. fix-id string optional         documentation The name of the fixture.
annotation	documentation Partial description Specification for named document, such as Heard on the Street or On Language. Full description Provides a consistent reference to a document whose content is refreshed periodically.
source	<element name="fixture">   <annotation>     <documentation> Partial description Specification for named document, such as Heard on the Street or On Language. Full description Provides a consistent reference to a document whose content is refreshed periodically. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="fix-id" type="string" use="optional">       <annotation>         <documentation> The name of the fixture. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute fixture/@fix-id

type	string
properties	isRef  0 use  optional
annotation	documentation The name of the fixture.
source	<attribute name="fix-id" type="string" use="optional">   <annotation>     <documentation> The name of the fixture. </documentation>   </annotation> </attribute>

element fn

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:body.content
used by	group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Footnote. Full description Notes that are often rendered at the end of a document.
source	<element name="fn">   <annotation>     <documentation> Partial description Footnote. Full description Notes that are often rendered at the end of a document. </documentation>   </annotation>   <complexType>     <sequence maxOccurs="unbounded">       <element ref="nitf:body.content"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element frac

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:numer nitf:frac-sep nitf:denom
used by	element  num
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Fraction. Full description Separates the numerator from the denominator.
source	<element name="frac">   <annotation>     <documentation> Partial description Fraction. Full description Separates the numerator from the denominator. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:numer"/>       <element ref="nitf:frac-sep" minOccurs="0"/>       <element ref="nitf:denom"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element frac-sep

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  frac
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Fraction separator. Full description Holds the preferred character, normally a slash.
source	<element name="frac-sep">   <annotation>     <documentation> Partial description Fraction separator. Full description Holds the preferred character, normally a slash. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element from-src

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  del-list
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. src-name string optional         documentation The entity moving the document. level-number string optional         documentation The position in the transmission path that the src-name occurred.
annotation	documentation Partial description Delivery service identifier. Full description Identifier used to track the transmission path of the document throughout the delivery process.
source	<element name="from-src">   <annotation>     <documentation> Partial description Delivery service identifier. Full description Identifier used to track the transmission path of the document throughout the delivery process. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="src-name" type="string" use="optional">       <annotation>         <documentation> The entity moving the document. </documentation>       </annotation>     </attribute>     <attribute name="level-number" type="string" use="optional">       <annotation>         <documentation> The position in the transmission path that the src-name occurred. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute from-src/@src-name

type	string
properties	isRef  0 use  optional
annotation	documentation The entity moving the document.
source	<attribute name="src-name" type="string" use="optional">   <annotation>     <documentation> The entity moving the document. </documentation>   </annotation> </attribute>

attribute from-src/@level-number

type	string
properties	isRef  0 use  optional
annotation	documentation The position in the transmission path that the src-name occurred.
source	<attribute name="level-number" type="string" use="optional">   <annotation>     <documentation> The position in the transmission path that the src-name occurred. </documentation>   </annotation> </attribute>

element function

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:alt-code
used by	elements  addressee identified-content person group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. idsrc string optional         documentation The source (taxonomy) for the element's value attribute. value string optional         documentation The code or symbol for the element.
annotation	documentation Partial description Role played by a person. Full description Can be either a description, such as interior decorator, or a formal title, such as president, chairman, owner, captain, manager.
source	<element name="function">   <annotation>     <documentation> Partial description Role played by a person. Full description Can be either a description, such as interior decorator, or a formal title, such as president, chairman, owner, captain, manager. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="idsrc" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's value attribute. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute function/@idsrc

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's value attribute.
source	<attribute name="idsrc" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's value attribute. </documentation>   </annotation> </attribute>

attribute function/@value

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. </documentation>   </annotation> </attribute>

element head

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:title nitf:meta nitf:tobject nitf:iim nitf:docdata nitf:pubdata nitf:revision-history
used by	element  nitf
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Holds metadata about the document as a whole. Full description Generally does not hold information for direct display to user. Portions of the metadata, though, are often rendered to augment an article.
source	<element name="head">   <annotation>     <documentation> Partial description Holds metadata about the document as a whole. Full description Generally does not hold information for direct display to user. Portions of the metadata, though, are often rendered to augment an article. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:title" minOccurs="0">         <annotation>           <documentation> Partial description Document Title. Full description Often displayed within a result-list after a search finds this article. </documentation>         </annotation>       </element>       <element ref="nitf:meta" minOccurs="0" maxOccurs="unbounded">         <annotation>           <documentation> Partial description A construct for sending generic metadata. Full description Normally is undisplayed. </documentation>         </annotation>       </element>       <element ref="nitf:tobject" minOccurs="0">         <annotation>           <documentation> Partial description Subject code. Full description Used to identify the type of the news material, based on a Subject Code system. </documentation>         </annotation>       </element>       <element ref="nitf:iim" minOccurs="0">         <annotation>           <documentation> Partial description IIM Record 2 Data Container. Full description Location for IIM Record 2 DataSet information. </documentation>         </annotation>       </element>       <element ref="nitf:docdata" minOccurs="0">         <annotation>           <documentation> Partial description Document metadata. Full description Container for metadata information about this particular document. </documentation>         </annotation>       </element>       <element ref="nitf:pubdata" minOccurs="0" maxOccurs="unbounded">         <annotation>           <documentation> Partial description Information about specific instance of an item's publication. Full description Contains metadata about how the particular news object was used in a specific instance. </documentation>         </annotation>       </element>       <element ref="nitf:revision-history" minOccurs="0" maxOccurs="unbounded">         <annotation>           <documentation> Partial description Information about the creative history of the document; also used as an audit trail. Full description Includes who made changes, when the changes were made, and why. </documentation>         </annotation>       </element>       <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">         <annotation>           <documentation>Extension point for provider-defined properties from other namespaces</documentation>         </annotation>       </any>     </sequence>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element hedline

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:hl1 nitf:hl2
used by	element  body.head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Container for main headline and subheadlines. Full description Provides a generally-dependable component for display in search results.
source	<element name="hedline">   <annotation>     <documentation> Partial description Container for main headline and subheadlines. Full description Provides a generally-dependable component for display in search results. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:hl1"/>       <element ref="nitf:hl2" minOccurs="0" maxOccurs="unbounded"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element hl1

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	element  hedline
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Headline 1 (main-headline). Full description The primary headline of the story.
source	<element name="hl1">   <annotation>     <documentation> Partial description Headline 1 (main-headline). Full description The primary headline of the story. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element hl2

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	element  hedline group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Headline 2 (sub-headline) Full description A subordinate headline for the article.
source	<element name="hl2">   <annotation>     <documentation> Partial description Headline 2 (sub-headline) Full description A subordinate headline for the article. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element hr

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Horizontal rule. Full description A rendered divider between sections of text.
source	<element name="hr">   <annotation>     <documentation> Partial description Horizontal rule. Full description A rendered divider between sections of text. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element identified-content

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:person nitf:org nitf:location nitf:event nitf:function nitf:object.title nitf:virtloc nitf:classifier
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Holds content identifiers that can apply to document as a whole. Full description The elements this holds also appear in paragraphs. Note that its children should be EMPTY
source	<element name="identified-content">   <annotation>     <documentation> Partial description Holds content identifiers that can apply to document as a whole. Full description The elements this holds also appear in paragraphs. Note that its children should be EMPTY </documentation>   </annotation>   <complexType>     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:person"/>       <element ref="nitf:org"/>       <element ref="nitf:location"/>       <element ref="nitf:event"/>       <element ref="nitf:function"/>       <element ref="nitf:object.title"/>       <element ref="nitf:virtloc"/>       <element ref="nitf:classifier"/>     </choice>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element iim

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:ds
used by	element  head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. ver NMTOKEN optional         documentation IIM version number.
annotation	documentation Partial description IIM Record 2 Data Container. Full description Location for IIM Record 2 DataSet information.
source	<element name="iim">   <annotation>     <documentation> Partial description IIM Record 2 Data Container. Full description Location for IIM Record 2 DataSet information. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:ds" minOccurs="0" maxOccurs="unbounded"/>     </sequence>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="ver" type="NMTOKEN" use="optional">       <annotation>         <documentation> IIM version number. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute iim/@ver

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation IIM version number.
source	<attribute name="ver" type="NMTOKEN" use="optional">   <annotation>     <documentation> IIM version number. </documentation>   </annotation> </attribute>

element key-list

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:keyword
used by	elements  block docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description List of keywords. Full description Holds a list of keywords about the document.
source	<element name="key-list">   <annotation>     <documentation> Partial description List of keywords. Full description Holds a list of keywords about the document. </documentation>   </annotation>   <complexType>     <sequence minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:keyword"/>     </sequence>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

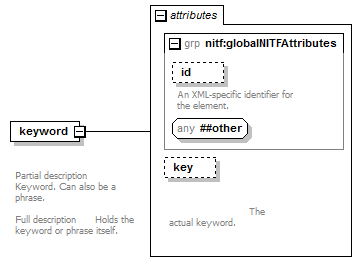

element keyword

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  key-list
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. key string optional         documentation The actual keyword.
annotation	documentation Partial description Keyword. Can also be a phrase. Full description Holds the keyword or phrase itself.
source	<element name="keyword">   <annotation>     <documentation> Partial description Keyword. Can also be a phrase. Full description Holds the keyword or phrase itself. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="key" type="string" use="optional">       <annotation>         <documentation> The actual keyword. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute keyword/@key

type	string
properties	isRef  0 use  optional
annotation	documentation The actual keyword.
source	<attribute name="key" type="string" use="optional">   <annotation>     <documentation> The actual keyword. </documentation>   </annotation> </attribute>

element lang

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. idsrc string optional         documentation The source (taxonomy) for the element's value attribute. Often: ISO 639/RFC 1766. value string optional         documentation The code or symbol for the element. Example: fr-ca.
annotation	documentation Partial description Language identifier. Full description Used to separate inline changes of language.
source	<element name="lang">   <annotation>     <documentation> Partial description Language identifier. Full description Used to separate inline changes of language. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="idsrc" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's value attribute. Often: ISO 639/RFC 1766. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. Example: fr-ca. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute lang/@idsrc

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's value attribute. Often: ISO 639/RFC 1766.
source	<attribute name="idsrc" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's value attribute. Often: ISO 639/RFC 1766. </documentation>   </annotation> </attribute>

attribute lang/@value

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element. Example: fr-ca.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. Example: fr-ca. </documentation>   </annotation> </attribute>

element li

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q nitf:p nitf:hl2 nitf:table nitf:nitf-table nitf:media nitf:ol nitf:ul nitf:dl nitf:bq nitf:fn nitf:note nitf:pre nitf:hr
used by	elements  ol ul
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description List item. Full description Holds content that is presented within a list.
source	<element name="li">   <annotation>     <documentation> Partial description List item. Full description Holds content that is presented within a list. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>       <group ref="nitf:blockContent"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element location

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:sublocation nitf:city nitf:state nitf:region nitf:country nitf:alt-code
used by	elements  byline dateline identified-content group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. location-code string optional         documentation The code or symbol for the element. code-source string optional         documentation The source (taxonomy) for the element's location-code.
annotation	documentation Partial description Significant place mentioned in an article. Full description Used to normalize locations.
source	<element name="location">   <annotation>     <documentation> Partial description Significant place mentioned in an article. Full description Used to normalize locations. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:sublocation"/>       <element ref="nitf:city"/>       <element ref="nitf:state"/>       <element ref="nitf:region"/>       <element ref="nitf:country"/>       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="location-code" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. </documentation>       </annotation>     </attribute>     <attribute name="code-source" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's location-code. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute location/@location-code

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element.
source	<attribute name="location-code" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. </documentation>   </annotation> </attribute>

attribute location/@code-source

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's location-code.
source	<attribute name="code-source" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's location-code. </documentation>   </annotation> </attribute>

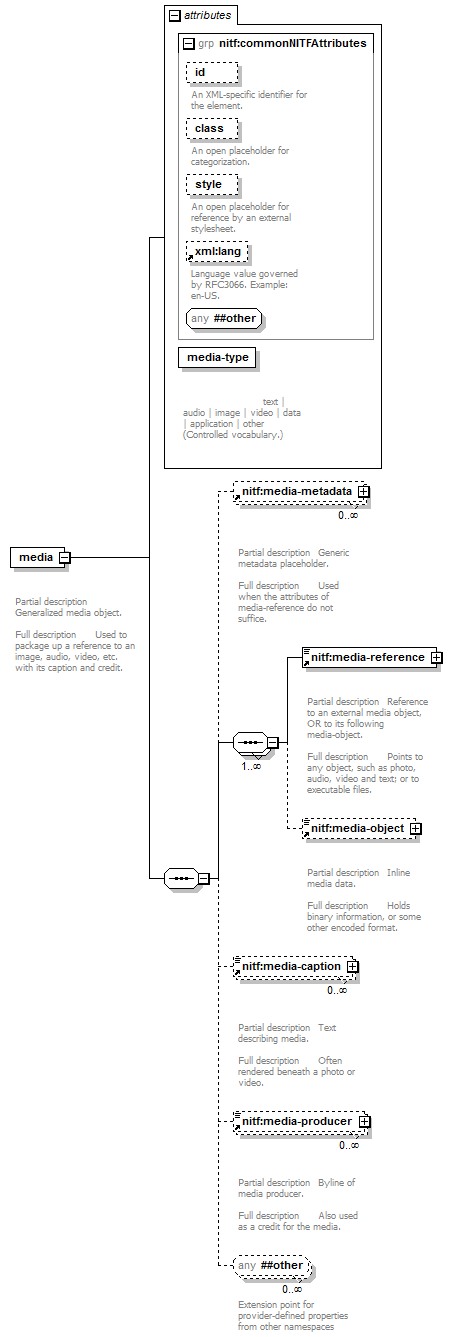

element media

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:media-metadata nitf:media-reference nitf:media-object nitf:media-caption nitf:media-producer
used by	group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. media-type string required         documentation text | audio | image | video | data | application | other (Controlled vocabulary.)
annotation	documentation Partial description Generalized media object. Full description Used to package up a reference to an image, audio, video, etc. with its caption and credit.
source	<element name="media">   <annotation>     <documentation> Partial description Generalized media object. Full description Used to package up a reference to an image, audio, video, etc. with its caption and credit. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:media-metadata" minOccurs="0" maxOccurs="unbounded"/>       <sequence maxOccurs="unbounded">         <element ref="nitf:media-reference"/>         <element ref="nitf:media-object" minOccurs="0"/>       </sequence>       <element ref="nitf:media-caption" minOccurs="0" maxOccurs="unbounded"/>       <element ref="nitf:media-producer" minOccurs="0" maxOccurs="unbounded"/>       <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">         <annotation>           <documentation>Extension point for provider-defined properties from other namespaces</documentation>         </annotation>       </any>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="media-type" type="string" use="required">       <annotation>         <documentation> text | audio | image | video | data | application | other (Controlled vocabulary.) </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute media/@media-type

type	string
properties	isRef  0 use  required
annotation	documentation text | audio | image | video | data | application | other (Controlled vocabulary.)
source	<attribute name="media-type" type="string" use="required">   <annotation>     <documentation> text | audio | image | video | data | application | other (Controlled vocabulary.) </documentation>   </annotation> </attribute>

element media-caption

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q nitf:p nitf:hl2 nitf:table nitf:nitf-table nitf:media nitf:ol nitf:ul nitf:dl nitf:bq nitf:fn nitf:note nitf:pre nitf:hr
used by	element  media
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Text describing media. Full description Often rendered beneath a photo or video.
source	<element name="media-caption">   <annotation>     <documentation> Partial description Text describing media. Full description Often rendered beneath a photo or video. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>       <group ref="nitf:blockContent"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element media-metadata

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  media
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. name string required         documentation Name of the metadata item. value string optional         documentation Value of the metadata item.
annotation	documentation Partial description Generic metadata placeholder. Full description Used when the attributes of media-reference do not suffice.
source	<element name="media-metadata">   <annotation>     <documentation> Partial description Generic metadata placeholder. Full description Used when the attributes of media-reference do not suffice. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="name" type="string" use="required">       <annotation>         <documentation> Name of the metadata item. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> Value of the metadata item. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute media-metadata/@name

type	string
properties	isRef  0 use  required
annotation	documentation Name of the metadata item.
source	<attribute name="name" type="string" use="required">   <annotation>     <documentation> Name of the metadata item. </documentation>   </annotation> </attribute>

attribute media-metadata/@value

type	string
properties	isRef  0 use  optional
annotation	documentation Value of the metadata item.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> Value of the metadata item. </documentation>   </annotation> </attribute>

element media-object

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  media
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. encoding string required         documentation Format the encoded data is in.
annotation	documentation Partial description Inline media data. Full description Holds binary information, or some other encoded format.
source	<element name="media-object">   <annotation>     <documentation> Partial description Inline media data. Full description Holds binary information, or some other encoded format. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="encoding" type="string" use="required">       <annotation>         <documentation> Format the encoded data is in. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute media-object/@encoding

type	string
properties	isRef  0 use  required
annotation	documentation Format the encoded data is in.
source	<attribute name="encoding" type="string" use="required">   <annotation>     <documentation> Format the encoded data is in. </documentation>   </annotation> </attribute>

element media-producer

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	element  media
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Byline of media producer. Full description Also used as a credit for the media.
source	<element name="media-producer">   <annotation>     <documentation> Partial description Byline of media producer. Full description Also used as a credit for the media. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element media-reference

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  media
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. source string optional         documentation URL or other unique ID for external media file. name string optional         documentation Alternate name or description of the object. mime-type string optional         documentation Mime-type for the external media file. coding string optional         documentation How the information is coded. time string optional         documentation Length of time that the media file plays. time-unit-of-measure string optional         documentation Units in which the time attribute is measured. outcue string optional         documentation Provides information about the spoken information that ends an audio clip. source-credit string optional         documentation Indicates the source of the information. copyright string optional         documentation Copyright owner. alternate-text string optional         documentation Plain-text description that can serve as a substitute for the media object. height NMTOKEN optional         documentation Height of the media object. width NMTOKEN optional         documentation Width of the media object. units derived by: string optional         documentation Units used for width and height. Default is pixels. imagemap string optional         documentation Indication for whether the media object has an affiliated imagemap. noflow derived by: string optional         documentation Indicates if information can flow around figure. data-location string optional         documentation Alternative, though discouraged, way to store ID for external media file.
annotation	documentation Partial description Reference to an external media object, OR to its following media-object. Full description Points to any object, such as photo, audio, video and text; or to executable files.
source	<element name="media-reference">   <annotation>     <documentation> Partial description Reference to an external media object, OR to its following media-object. Full description Points to any object, such as photo, audio, video and text; or to executable files. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="source" type="string" use="optional">       <annotation>         <documentation> URL or other unique ID for external media file. </documentation>       </annotation>     </attribute>     <attribute name="name" type="string" use="optional">       <annotation>         <documentation> Alternate name or description of the object. </documentation>       </annotation>     </attribute>     <attribute name="mime-type" type="string" use="optional">       <annotation>         <documentation> Mime-type for the external media file. </documentation>       </annotation>     </attribute>     <attribute name="coding" type="string" use="optional">       <annotation>         <documentation> How the information is coded. </documentation>       </annotation>     </attribute>     <attribute name="time" type="string" use="optional">       <annotation>         <documentation> Length of time that the media file plays. </documentation>       </annotation>     </attribute>     <attribute name="time-unit-of-measure" type="string" use="optional">       <annotation>         <documentation> Units in which the time attribute is measured. </documentation>       </annotation>     </attribute>     <attribute name="outcue" type="string" use="optional">       <annotation>         <documentation> Provides information about the spoken information that ends an audio clip. </documentation>       </annotation>     </attribute>     <attribute name="source-credit" type="string" use="optional">       <annotation>         <documentation> Indicates the source of the information. </documentation>       </annotation>     </attribute>     <attribute name="copyright" type="string" use="optional">       <annotation>         <documentation> Copyright owner. </documentation>       </annotation>     </attribute>     <attribute name="alternate-text" type="string" use="optional">       <annotation>         <documentation> Plain-text description that can serve as a substitute for the media object. </documentation>       </annotation>     </attribute>     <attribute name="height" type="NMTOKEN" use="optional">       <annotation>         <documentation> Height of the media object. </documentation>       </annotation>     </attribute>     <attribute name="width" type="NMTOKEN" use="optional">       <annotation>         <documentation> Width of the media object. </documentation>       </annotation>     </attribute>     <attribute name="units" use="optional">       <annotation>         <documentation> Units used for width and height. Default is pixels. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="pixels"/>         </restriction>       </simpleType>     </attribute>     <attribute name="imagemap" type="string" use="optional">       <annotation>         <documentation> Indication for whether the media object has an affiliated imagemap. </documentation>       </annotation>     </attribute>     <attribute name="noflow" use="optional">       <annotation>         <documentation> Indicates if information can flow around figure. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="noflow"/>         </restriction>       </simpleType>     </attribute>     <attribute name="data-location" type="string" use="optional">       <annotation>         <documentation> Alternative, though discouraged, way to store ID for external media file. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute media-reference/@source

type	string
properties	isRef  0 use  optional
annotation	documentation URL or other unique ID for external media file.
source	<attribute name="source" type="string" use="optional">   <annotation>     <documentation> URL or other unique ID for external media file. </documentation>   </annotation> </attribute>

attribute media-reference/@name

type	string
properties	isRef  0 use  optional
annotation	documentation Alternate name or description of the object.
source	<attribute name="name" type="string" use="optional">   <annotation>     <documentation> Alternate name or description of the object. </documentation>   </annotation> </attribute>

attribute media-reference/@mime-type

type	string
properties	isRef  0 use  optional
annotation	documentation Mime-type for the external media file.
source	<attribute name="mime-type" type="string" use="optional">   <annotation>     <documentation> Mime-type for the external media file. </documentation>   </annotation> </attribute>

attribute media-reference/@coding

type	string
properties	isRef  0 use  optional
annotation	documentation How the information is coded.
source	<attribute name="coding" type="string" use="optional">   <annotation>     <documentation> How the information is coded. </documentation>   </annotation> </attribute>

attribute media-reference/@time

type	string
properties	isRef  0 use  optional
annotation	documentation Length of time that the media file plays.
source	<attribute name="time" type="string" use="optional">   <annotation>     <documentation> Length of time that the media file plays. </documentation>   </annotation> </attribute>

attribute media-reference/@time-unit-of-measure

type	string
properties	isRef  0 use  optional
annotation	documentation Units in which the time attribute is measured.
source	<attribute name="time-unit-of-measure" type="string" use="optional">   <annotation>     <documentation> Units in which the time attribute is measured. </documentation>   </annotation> </attribute>

attribute media-reference/@outcue

type	string
properties	isRef  0 use  optional
annotation	documentation Provides information about the spoken information that ends an audio clip.
source	<attribute name="outcue" type="string" use="optional">   <annotation>     <documentation> Provides information about the spoken information that ends an audio clip. </documentation>   </annotation> </attribute>

attribute media-reference/@source-credit

type	string
properties	isRef  0 use  optional
annotation	documentation Indicates the source of the information.
source	<attribute name="source-credit" type="string" use="optional">   <annotation>     <documentation> Indicates the source of the information. </documentation>   </annotation> </attribute>

attribute media-reference/@copyright

type	string
properties	isRef  0 use  optional
annotation	documentation Copyright owner.
source	<attribute name="copyright" type="string" use="optional">   <annotation>     <documentation> Copyright owner. </documentation>   </annotation> </attribute>

attribute media-reference/@alternate-text

type	string
properties	isRef  0 use  optional
annotation	documentation Plain-text description that can serve as a substitute for the media object.
source	<attribute name="alternate-text" type="string" use="optional">   <annotation>     <documentation> Plain-text description that can serve as a substitute for the media object. </documentation>   </annotation> </attribute>

attribute media-reference/@height

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Height of the media object.
source	<attribute name="height" type="NMTOKEN" use="optional">   <annotation>     <documentation> Height of the media object. </documentation>   </annotation> </attribute>

attribute media-reference/@width

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Width of the media object.
source	<attribute name="width" type="NMTOKEN" use="optional">   <annotation>     <documentation> Width of the media object. </documentation>   </annotation> </attribute>

attribute media-reference/@units

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  pixels
annotation	documentation Units used for width and height. Default is pixels.
source	<attribute name="units" use="optional">   <annotation>     <documentation> Units used for width and height. Default is pixels. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="pixels"/>     </restriction>   </simpleType> </attribute>

attribute media-reference/@imagemap

type	string
properties	isRef  0 use  optional
annotation	documentation Indication for whether the media object has an affiliated imagemap.
source	<attribute name="imagemap" type="string" use="optional">   <annotation>     <documentation> Indication for whether the media object has an affiliated imagemap. </documentation>   </annotation> </attribute>

attribute media-reference/@noflow

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  noflow
annotation	documentation Indicates if information can flow around figure.
source	<attribute name="noflow" use="optional">   <annotation>     <documentation> Indicates if information can flow around figure. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="noflow"/>     </restriction>   </simpleType> </attribute>

attribute media-reference/@data-location

type	string
properties	isRef  0 use  optional
annotation	documentation Alternative, though discouraged, way to store ID for external media file.
source	<attribute name="data-location" type="string" use="optional">   <annotation>     <documentation> Alternative, though discouraged, way to store ID for external media file. </documentation>   </annotation> </attribute>

element meta

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. http-equiv NMTOKEN optional         documentation HTTP response header name. name NMTOKEN optional         documentation Name used for this piece of metadata. content string required         documentation Content associated with the specified name.
annotation	documentation Partial description A construct for sending generic metadata. Full description Normally is undisplayed.
source	<element name="meta">   <annotation>     <documentation> Partial description A construct for sending generic metadata. Full description Normally is undisplayed. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="http-equiv" type="NMTOKEN" use="optional">       <annotation>         <documentation> HTTP response header name. </documentation>       </annotation>     </attribute>     <attribute name="name" type="NMTOKEN" use="optional">       <annotation>         <documentation> Name used for this piece of metadata. </documentation>       </annotation>     </attribute>     <attribute name="content" type="string" use="required">       <annotation>         <documentation> Content associated with the specified name. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute meta/@http-equiv

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation HTTP response header name.
source	<attribute name="http-equiv" type="NMTOKEN" use="optional">   <annotation>     <documentation> HTTP response header name. </documentation>   </annotation> </attribute>

attribute meta/@name

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Name used for this piece of metadata.
source	<attribute name="name" type="NMTOKEN" use="optional">   <annotation>     <documentation> Name used for this piece of metadata. </documentation>   </annotation> </attribute>

attribute meta/@content

type	string
properties	isRef  0 use  required
annotation	documentation Content associated with the specified name.
source	<attribute name="content" type="string" use="required">   <annotation>     <documentation> Content associated with the specified name. </documentation>   </annotation> </attribute>

element money

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. unit string optional         documentation The currency used. date string optional         documentation Date when this currency value was quoted. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
annotation	documentation Partial description Monetary item. Full description Used to identify units of money.
source	<element name="money">   <annotation>     <documentation> Partial description Monetary item. Full description Used to identify units of money. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="unit" type="string" use="optional">       <annotation>         <documentation> The currency used. </documentation>       </annotation>     </attribute>     <attribute name="date" type="string" use="optional">       <annotation>         <documentation> Date when this currency value was quoted. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute money/@unit

type	string
properties	isRef  0 use  optional
annotation	documentation The currency used.
source	<attribute name="unit" type="string" use="optional">   <annotation>     <documentation> The currency used. </documentation>   </annotation> </attribute>

attribute money/@date

type	string
properties	isRef  0 use  optional
annotation	documentation Date when this currency value was quoted. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="date" type="string" use="optional">   <annotation>     <documentation> Date when this currency value was quoted. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

element name.family

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  person
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Family name. Full description In the U.S., the last name of an individual.
source	<element name="name.family">   <annotation>     <documentation> Partial description Family name. Full description In the U.S., the last name of an individual. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element name.given

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  person
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Given name. Full description In the U.S., the first name of an individual. Also used if person has only one name.
source	<element name="name.given">   <annotation>     <documentation> Partial description Given name. Full description In the U.S., the first name of an individual. Also used if person has only one name. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element nitf

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:head nitf:body
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. uno string optional         documentation The universally unique identifier for the document. version string       -//IPTC//DTD NITF 3.6//EN   documentation This DTD's formal public identifier. change.date string       September 11, 2009   documentation Date when this DTD was last changed. change.time string       12:26   documentation Time when this DTD was last changed. baselang string optional         documentation Base language for document. Uses en-US (per ISO 639 and 3166). class NMTOKENS optional         documentation An open placeholder for categorization.
annotation	documentation Partial description The root element for NITF. Full description News Industry Text Format instance. Holds head and body.
source	<element name="nitf">   <annotation>     <documentation> Partial description The root element for NITF. Full description News Industry Text Format instance. Holds head and body. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:head" minOccurs="0"/>       <element ref="nitf:body"/>       <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">         <annotation>           <documentation>Extension point for provider-defined properties from other namespaces</documentation>         </annotation>       </any>     </sequence>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="uno" type="string" use="optional">       <annotation>         <documentation> The universally unique identifier for the document. </documentation>       </annotation>     </attribute>     <attribute name="version" type="string" fixed="-//IPTC//DTD NITF 3.6//EN">       <annotation>         <documentation> This DTD's formal public identifier. </documentation>       </annotation>     </attribute>     <attribute name="change.date" type="string" fixed="September 11, 2009">       <annotation>         <documentation> Date when this DTD was last changed. </documentation>       </annotation>     </attribute>     <attribute name="change.time" type="string" fixed="12:26">       <annotation>         <documentation> Time when this DTD was last changed. </documentation>       </annotation>     </attribute>     <attribute name="baselang" type="string" use="optional">       <annotation>         <documentation> Base language for document. Uses en-US (per ISO 639 and 3166). </documentation>       </annotation>     </attribute>     <attribute name="class" type="NMTOKENS" use="optional">       <annotation>         <documentation> An open placeholder for categorization. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute nitf/@uno

type	string
properties	isRef  0 use  optional
annotation	documentation The universally unique identifier for the document.
source	<attribute name="uno" type="string" use="optional">   <annotation>     <documentation> The universally unique identifier for the document. </documentation>   </annotation> </attribute>

attribute nitf/@version

type	string
properties	isRef  0 fixed  -//IPTC//DTD NITF 3.6//EN
annotation	documentation This DTD's formal public identifier.
source	<attribute name="version" type="string" fixed="-//IPTC//DTD NITF 3.6//EN">   <annotation>     <documentation> This DTD's formal public identifier. </documentation>   </annotation> </attribute>

attribute nitf/@change.date

type	string
properties	isRef  0 fixed  September 11, 2009
annotation	documentation Date when this DTD was last changed.
source	<attribute name="change.date" type="string" fixed="September 11, 2009">   <annotation>     <documentation> Date when this DTD was last changed. </documentation>   </annotation> </attribute>

attribute nitf/@change.time

type	string
properties	isRef  0 fixed  12:26
annotation	documentation Time when this DTD was last changed.
source	<attribute name="change.time" type="string" fixed="12:26">   <annotation>     <documentation> Time when this DTD was last changed. </documentation>   </annotation> </attribute>

attribute nitf/@baselang

type	string
properties	isRef  0 use  optional
annotation	documentation Base language for document. Uses en-US (per ISO 639 and 3166).
source	<attribute name="baselang" type="string" use="optional">   <annotation>     <documentation> Base language for document. Uses en-US (per ISO 639 and 3166). </documentation>   </annotation> </attribute>

attribute nitf/@class

type	NMTOKENS
properties	isRef  0 use  optional
annotation	documentation An open placeholder for categorization.
source	<attribute name="class" type="NMTOKENS" use="optional">   <annotation>     <documentation> An open placeholder for categorization. </documentation>   </annotation> </attribute>

element nitf-col

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	elements  nitf-colgroup nitf-table-metadata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. idsrc string optional         documentation The source (taxonomy) for the element's value attribute. value string optional         documentation The code or symbol for the particular column. occurrences string optional         documentation Indicates how many times the col occurs. Default is 1. data-type derived by: string optional         documentation The general type of data within the column. data-format string optional         documentation An expanded definition of the data, based on the data-type.
annotation	documentation Partial description A holder for a namespaced XML fragment for custom-tagged data. Full description Used when publisher wants to surround the fragment with NITF metadata.
source	<element name="nitf-col">   <annotation>     <documentation> Partial description A holder for a namespaced XML fragment for custom-tagged data. Full description Used when publisher wants to surround the fragment with NITF metadata. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="idsrc" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's value attribute. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the particular column. </documentation>       </annotation>     </attribute>     <attribute name="occurrences" type="string" use="optional">       <annotation>         <documentation> Indicates how many times the col occurs. Default is 1. </documentation>       </annotation>     </attribute>     <attribute name="data-type" use="optional">       <annotation>         <documentation> The general type of data within the column. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="text"/>           <enumeration value="number"/>           <enumeration value="graphic"/>           <enumeration value="other"/>         </restriction>       </simpleType>     </attribute>     <attribute name="data-format" type="string" use="optional">       <annotation>         <documentation> An expanded definition of the data, based on the data-type. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute nitf-col/@idsrc

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's value attribute.
source	<attribute name="idsrc" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's value attribute. </documentation>   </annotation> </attribute>

attribute nitf-col/@value

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the particular column.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the particular column. </documentation>   </annotation> </attribute>

attribute nitf-col/@occurrences

type	string
properties	isRef  0 use  optional
annotation	documentation Indicates how many times the col occurs. Default is 1.
source	<attribute name="occurrences" type="string" use="optional">   <annotation>     <documentation> Indicates how many times the col occurs. Default is 1. </documentation>   </annotation> </attribute>

attribute nitf-col/@data-type

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  text  enumeration  number  enumeration  graphic  enumeration  other
annotation	documentation The general type of data within the column.
source	<attribute name="data-type" use="optional">   <annotation>     <documentation> The general type of data within the column. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="text"/>       <enumeration value="number"/>       <enumeration value="graphic"/>       <enumeration value="other"/>     </restriction>   </simpleType> </attribute>

attribute nitf-col/@data-format

type	string
properties	isRef  0 use  optional
annotation	documentation An expanded definition of the data, based on the data-type.
source	<attribute name="data-format" type="string" use="optional">   <annotation>     <documentation> An expanded definition of the data, based on the data-type. </documentation>   </annotation> </attribute>

element nitf-colgroup

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:nitf-col
used by	element  nitf-table-metadata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. idsrc string optional         documentation The source (taxonomy) for the element's value attribute. value string optional         documentation The code or symbol for the particular column. occurrences string optional         documentation Indicates how many times the colgroup occurs. Default is 1.
annotation	documentation Partial description A collection of nitf-col elements. Full description Used when table repeats columns of a particular type.
source	<element name="nitf-colgroup">   <annotation>     <documentation> Partial description A collection of nitf-col elements. Full description Used when table repeats columns of a particular type. </documentation>   </annotation>   <complexType>     <sequence maxOccurs="unbounded">       <element ref="nitf:nitf-col"/>     </sequence>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="idsrc" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's value attribute. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the particular column. </documentation>       </annotation>     </attribute>     <attribute name="occurrences" type="string" use="optional">       <annotation>         <documentation> Indicates how many times the colgroup occurs. Default is 1. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute nitf-colgroup/@idsrc

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's value attribute.
source	<attribute name="idsrc" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's value attribute. </documentation>   </annotation> </attribute>

attribute nitf-colgroup/@value

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the particular column.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the particular column. </documentation>   </annotation> </attribute>

attribute nitf-colgroup/@occurrences

type	string
properties	isRef  0 use  optional
annotation	documentation Indicates how many times the colgroup occurs. Default is 1.
source	<attribute name="occurrences" type="string" use="optional">   <annotation>     <documentation> Indicates how many times the colgroup occurs. Default is 1. </documentation>   </annotation> </attribute>

element nitf-table

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:nitf-table-metadata nitf:table nitf:custom-table nitf:table-reference
used by	group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description A holder for a table, and content-filled metadata. Full description May contain the classic NITF table, or a custom table.
source	<element name="nitf-table">   <annotation>     <documentation> Partial description A holder for a table, and content-filled metadata. Full description May contain the classic NITF table, or a custom table. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:nitf-table-metadata"/>       <choice>         <element ref="nitf:table"/>         <element ref="nitf:custom-table"/>         <element ref="nitf:table-reference"/>       </choice>     </sequence>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element nitf-table-metadata

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:nitf-table-summary nitf:nitf-colgroup nitf:nitf-col
used by	element  nitf-table
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. subclass string optional         documentation A further refinement of the class attribute. idsrc string optional         documentation The source (taxonomy) for the element's value attribute. value string optional         documentation The code or symbol for the particular table. status derived by: string optional         documentation Measure of finality of the values of the table. Interim is the end of a logical break. snap-shot is any point in time. column-count string optional         documentation Number of columns in the entire table. row-count string optional         documentation Number of rows in the entire table.
annotation	documentation Partial description A holder for a namespaced XML fragment for custom-tagged data. Full description Used when publisher wants to surround the fragment with NITF metadata.
source	<element name="nitf-table-metadata">   <annotation>     <documentation> Partial description A holder for a namespaced XML fragment for custom-tagged data. Full description Used when publisher wants to surround the fragment with NITF metadata. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:nitf-table-summary" minOccurs="0"/>       <choice maxOccurs="unbounded">         <element ref="nitf:nitf-colgroup"/>         <element ref="nitf:nitf-col"/>       </choice>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="subclass" type="string" use="optional">       <annotation>         <documentation> A further refinement of the class attribute. </documentation>       </annotation>     </attribute>     <attribute name="idsrc" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's value attribute. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the particular table. </documentation>       </annotation>     </attribute>     <attribute name="status" use="optional">       <annotation>         <documentation> Measure of finality of the values of the table. Interim is the end of a logical break. snap-shot is any point in time. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="pre"/>           <enumeration value="snap-shot"/>           <enumeration value="interim"/>           <enumeration value="final"/>           <enumeration value="official"/>         </restriction>       </simpleType>     </attribute>     <attribute name="column-count" type="string" use="optional">       <annotation>         <documentation> Number of columns in the entire table. </documentation>       </annotation>     </attribute>     <attribute name="row-count" type="string" use="optional">       <annotation>         <documentation> Number of rows in the entire table. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute nitf-table-metadata/@subclass

type	string
properties	isRef  0 use  optional
annotation	documentation A further refinement of the class attribute.
source	<attribute name="subclass" type="string" use="optional">   <annotation>     <documentation> A further refinement of the class attribute. </documentation>   </annotation> </attribute>

attribute nitf-table-metadata/@idsrc

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's value attribute.
source	<attribute name="idsrc" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's value attribute. </documentation>   </annotation> </attribute>

attribute nitf-table-metadata/@value

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the particular table.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the particular table. </documentation>   </annotation> </attribute>

attribute nitf-table-metadata/@status

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  pre  enumeration  snap-shot  enumeration  interim  enumeration  final  enumeration  official
annotation	documentation Measure of finality of the values of the table. Interim is the end of a logical break. snap-shot is any point in time.
source	<attribute name="status" use="optional">   <annotation>     <documentation> Measure of finality of the values of the table. Interim is the end of a logical break. snap-shot is any point in time. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="pre"/>       <enumeration value="snap-shot"/>       <enumeration value="interim"/>       <enumeration value="final"/>       <enumeration value="official"/>     </restriction>   </simpleType> </attribute>

attribute nitf-table-metadata/@column-count

type	string
properties	isRef  0 use  optional
annotation	documentation Number of columns in the entire table.
source	<attribute name="column-count" type="string" use="optional">   <annotation>     <documentation> Number of columns in the entire table. </documentation>   </annotation> </attribute>

attribute nitf-table-metadata/@row-count

type	string
properties	isRef  0 use  optional
annotation	documentation Number of rows in the entire table.
source	<attribute name="row-count" type="string" use="optional">   <annotation>     <documentation> Number of rows in the entire table. </documentation>   </annotation> </attribute>

element nitf-table-summary

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:p
used by	element  nitf-table-metadata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Textual description of the table. Full description May describe intent of table and how it may be represented. Should be managed like a non-publishable editors note.
source	<element name="nitf-table-summary">   <annotation>     <documentation> Partial description Textual description of the table. Full description May describe intent of table and how it may be represented. Should be managed like a non-publishable editors note. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:p" minOccurs="0" maxOccurs="unbounded"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element note

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:body.content
used by	element  body.head group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. noteclass derived by: string optional         documentation The class of note. Copyright, endnote, etc. (Controlled vocabulary.) type derived by: string optional   std      documentation Standards, Publishable Advisory, Non-Publishable Advisory.
annotation	documentation Partial description Document cautionary note. Full description Potentially publishable.
source	<element name="note">   <annotation>     <documentation> Partial description Document cautionary note. Full description Potentially publishable. </documentation>   </annotation>   <complexType>     <sequence maxOccurs="unbounded">       <element ref="nitf:body.content"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="noteclass" use="optional">       <annotation>         <documentation> The class of note. Copyright, endnote, etc. (Controlled vocabulary.) </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="cpyrt"/>           <enumeration value="end"/>           <enumeration value="hd"/>           <enumeration value="editorsnote"/>           <enumeration value="trademk"/>           <enumeration value="undef"/>         </restriction>       </simpleType>     </attribute>     <attribute name="type" use="optional" default="std">       <annotation>         <documentation> Standards, Publishable Advisory, Non-Publishable Advisory. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="std"/>           <enumeration value="pa"/>           <enumeration value="npa"/>         </restriction>       </simpleType>     </attribute>   </complexType> </element>

attribute note/@noteclass

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  cpyrt  enumeration  end  enumeration  hd  enumeration  editorsnote  enumeration  trademk  enumeration  undef
annotation	documentation The class of note. Copyright, endnote, etc. (Controlled vocabulary.)
source	<attribute name="noteclass" use="optional">   <annotation>     <documentation> The class of note. Copyright, endnote, etc. (Controlled vocabulary.) </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="cpyrt"/>       <enumeration value="end"/>       <enumeration value="hd"/>       <enumeration value="editorsnote"/>       <enumeration value="trademk"/>       <enumeration value="undef"/>     </restriction>   </simpleType> </attribute>

attribute note/@type

type	restriction of string
properties	isRef  0 default  std use  optional
facets	Kind  Value  annotation  enumeration  std  enumeration  pa  enumeration  npa
annotation	documentation Standards, Publishable Advisory, Non-Publishable Advisory.
source	<attribute name="type" use="optional" default="std">   <annotation>     <documentation> Standards, Publishable Advisory, Non-Publishable Advisory. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="std"/>       <enumeration value="pa"/>       <enumeration value="npa"/>     </restriction>   </simpleType> </attribute>

element num

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:frac nitf:sub nitf:sup
used by	group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. units string optional         documentation Units the number is in. decimal-ch string optional         documentation Character used to separate decimalized portion. thousands-ch string optional         documentation Character to separate thousands groups.
annotation	documentation Partial description Numeric data. Full description Used to normalize numbers.
source	<element name="num">   <annotation>     <documentation> Partial description Numeric data. Full description Used to normalize numbers. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:frac"/>       <element ref="nitf:sub"/>       <element ref="nitf:sup"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="units" type="string" use="optional">       <annotation>         <documentation> Units the number is in. </documentation>       </annotation>     </attribute>     <attribute name="decimal-ch" type="string" use="optional">       <annotation>         <documentation> Character used to separate decimalized portion. </documentation>       </annotation>     </attribute>     <attribute name="thousands-ch" type="string" use="optional">       <annotation>         <documentation> Character to separate thousands groups. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute num/@units

type	string
properties	isRef  0 use  optional
annotation	documentation Units the number is in.
source	<attribute name="units" type="string" use="optional">   <annotation>     <documentation> Units the number is in. </documentation>   </annotation> </attribute>

attribute num/@decimal-ch

type	string
properties	isRef  0 use  optional
annotation	documentation Character used to separate decimalized portion.
source	<attribute name="decimal-ch" type="string" use="optional">   <annotation>     <documentation> Character used to separate decimalized portion. </documentation>   </annotation> </attribute>

attribute num/@thousands-ch

type	string
properties	isRef  0 use  optional
annotation	documentation Character to separate thousands groups.
source	<attribute name="thousands-ch" type="string" use="optional">   <annotation>     <documentation> Character to separate thousands groups. </documentation>   </annotation> </attribute>

element numer

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  frac
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Fraction numerator. Full description The top part of a fraction.
source	<element name="numer">   <annotation>     <documentation> Partial description Fraction numerator. Full description The top part of a fraction. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element object.title

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:alt-code
used by	element  identified-content group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. idsrc string optional         documentation The source (taxonomy) for the element's value. value string optional
annotation	documentation Partial description Title of inline object such as book, song, artwork, etc. Full description Used to normalize these values.
source	<element name="object.title">   <annotation>     <documentation> Partial description Title of inline object such as book, song, artwork, etc. Full description Used to normalize these values. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="idsrc" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's value. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional"/>   </complexType> </element>

attribute object.title/@idsrc

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's value.
source	<attribute name="idsrc" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's value. </documentation>   </annotation> </attribute>

attribute object.title/@value

type	string
properties	isRef  0 use  optional
source	<attribute name="value" type="string" use="optional"/>

element ol

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:li
used by	group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. seqnum NMTOKEN optional         documentation Sequence number within an ordered list.
annotation	documentation Partial description Ordered list. Full description Holds list items.
source	<element name="ol">   <annotation>     <documentation> Partial description Ordered list. Full description Holds list items. </documentation>   </annotation>   <complexType>     <sequence maxOccurs="unbounded">       <element ref="nitf:li"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="seqnum" type="NMTOKEN" use="optional">       <annotation>         <documentation>Sequence number within an ordered list.</documentation>       </annotation>     </attribute>   </complexType> </element>

attribute ol/@seqnum

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Sequence number within an ordered list.
source	<attribute name="seqnum" type="NMTOKEN" use="optional">   <annotation>     <documentation>Sequence number within an ordered list.</documentation>   </annotation> </attribute>

element org

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:alt-code
used by	elements  byttl distributor identified-content group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. idsrc string optional         documentation The source (taxonomy) for the element's value. value string optional         documentation The code or symbol for the element.
annotation	documentation Partial description Organization. Full description Used for companies (both private and public) and non-profits.
source	<element name="org">   <annotation>     <documentation> Partial description Organization. Full description Used for companies (both private and public) and non-profits. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="idsrc" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's value. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute org/@idsrc

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's value.
source	<attribute name="idsrc" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's value. </documentation>   </annotation> </attribute>

attribute org/@value

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. </documentation>   </annotation> </attribute>

element p

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	element  nitf-table-summary group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. lede string optional         documentation Indicates that the paragraph is the lead paragraph(s) to the news object. Either true or false. summary string optional         documentation Indicates that the associated paragraphs form a summary. Either true or false. optional-text string optional         documentation Indicates that the paragraph could be considered optional. Either true or false.
annotation	documentation Partial description Paragraph. Full description An organized set of sentences.
source	<element name="p">   <annotation>     <documentation> Partial description Paragraph. Full description An organized set of sentences. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="lede" type="string" use="optional">       <annotation>         <documentation> Indicates that the paragraph is the lead paragraph(s) to the news object. Either true or false. </documentation>       </annotation>     </attribute>     <attribute name="summary" type="string" use="optional">       <annotation>         <documentation> Indicates that the associated paragraphs form a summary. Either true or false. </documentation>       </annotation>     </attribute>     <attribute name="optional-text" type="string" use="optional">       <annotation>         <documentation> Indicates that the paragraph could be considered optional. Either true or false. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute p/@lede

type	string
properties	isRef  0 use  optional
annotation	documentation Indicates that the paragraph is the lead paragraph(s) to the news object. Either true or false.
source	<attribute name="lede" type="string" use="optional">   <annotation>     <documentation> Indicates that the paragraph is the lead paragraph(s) to the news object. Either true or false. </documentation>   </annotation> </attribute>

attribute p/@summary

type	string
properties	isRef  0 use  optional
annotation	documentation Indicates that the associated paragraphs form a summary. Either true or false.
source	<attribute name="summary" type="string" use="optional">   <annotation>     <documentation> Indicates that the associated paragraphs form a summary. Either true or false. </documentation>   </annotation> </attribute>

attribute p/@optional-text

type	string
properties	isRef  0 use  optional
annotation	documentation Indicates that the paragraph could be considered optional. Either true or false.
source	<attribute name="optional-text" type="string" use="optional">   <annotation>     <documentation> Indicates that the paragraph could be considered optional. Either true or false. </documentation>   </annotation> </attribute>

element person

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:name.given nitf:name.family nitf:function nitf:alt-code
used by	elements  addressee byline identified-content group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. idsrc string optional         documentation The source (taxonomy) for the element's value. value string optional         documentation The code or symbol for the element. gender derived by: string optional         documentation either male or female
annotation	documentation Partial description Human individual. Full description Used to normalize people. If person has one name, like Cher or Madonna, use name.given.
source	<element name="person">   <annotation>     <documentation> Partial description Human individual. Full description Used to normalize people. If person has one name, like Cher or Madonna, use name.given. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:name.given"/>       <element ref="nitf:name.family"/>       <element ref="nitf:function"/>       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="idsrc" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's value. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. </documentation>       </annotation>     </attribute>     <attribute name="gender" use="optional">       <annotation>         <documentation> either male or female </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="male"/>           <enumeration value="female"/>         </restriction>       </simpleType>     </attribute>   </complexType> </element>

attribute person/@idsrc

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's value.
source	<attribute name="idsrc" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's value. </documentation>   </annotation> </attribute>

attribute person/@value

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. </documentation>   </annotation> </attribute>

attribute person/@gender

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  male  enumeration  female
annotation	documentation either male or female
source	<attribute name="gender" use="optional">   <annotation>     <documentation> either male or female </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="male"/>       <enumeration value="female"/>     </restriction>   </simpleType> </attribute>

element postaddr

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:addressee nitf:delivery.point nitf:postcode nitf:delivery.office nitf:region nitf:country
used by	group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Mailing address. Full description Used to deliver mail.
source	<element name="postaddr">   <annotation>     <documentation> Partial description Mailing address. Full description Used to deliver mail. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:addressee"/>       <element ref="nitf:delivery.point" minOccurs="0"/>       <choice minOccurs="0" maxOccurs="unbounded">         <element ref="nitf:postcode"/>         <element ref="nitf:delivery.office"/>         <element ref="nitf:region"/>         <element ref="nitf:country"/>       </choice>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element postcode

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  postaddr
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. code-source string optional         documentation Source of coded list information.
annotation	documentation Partial description Postal code. Full description Used by postal agency to improve delivery efficiency.
source	<element name="postcode">   <annotation>     <documentation> Partial description Postal code. Full description Used by postal agency to improve delivery efficiency. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="code-source" type="string" use="optional">       <annotation>         <documentation> Source of coded list information. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute postcode/@code-source

type	string
properties	isRef  0 use  optional
annotation	documentation Source of coded list information.
source	<attribute name="code-source" type="string" use="optional">   <annotation>     <documentation> Source of coded list information. </documentation>   </annotation> </attribute>

element pre

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Preformatted information. Full description Carriage returns and fixed-width spacing should be maintained.
source	<element name="pre">   <annotation>     <documentation> Partial description Preformatted information. Full description Carriage returns and fixed-width spacing should be maintained. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element pronounce

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. guide string optional         documentation Source used to create pronunciation. phonetic string optional         documentation Phonetic pronunciation of an phrase.
annotation	documentation Partial description Pronunciation Information. Full description Used to elaborate on how a term is spoken.
source	<element name="pronounce">   <annotation>     <documentation> Partial description Pronunciation Information. Full description Used to elaborate on how a term is spoken. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="guide" type="string" use="optional">       <annotation>         <documentation> Source used to create pronunciation. </documentation>       </annotation>     </attribute>     <attribute name="phonetic" type="string" use="optional">       <annotation>         <documentation> Phonetic pronunciation of an phrase. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute pronounce/@guide

type	string
properties	isRef  0 use  optional
annotation	documentation Source used to create pronunciation.
source	<attribute name="guide" type="string" use="optional">   <annotation>     <documentation> Source used to create pronunciation. </documentation>   </annotation> </attribute>

attribute pronounce/@phonetic

type	string
properties	isRef  0 use  optional
annotation	documentation Phonetic pronunciation of an phrase.
source	<attribute name="phonetic" type="string" use="optional">   <annotation>     <documentation> Phonetic pronunciation of an phrase. </documentation>   </annotation> </attribute>

element pubdata

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. type derived by: string optional         documentation Transport medium, such as print, streaming video or broadcast. item-length string optional         documentation Length of the item; see also unit-of-measure. unit-of-measure string optional         documentation Measure associated with the length of the item; see also item-length. Sample values include word, character, byte, inch, pica, cm, hour, minute, second, other. date.publication string optional         documentation For date object was used. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available name string optional         documentation Title of the publication. issn string optional         documentation The International Standard Serial Number (ISSN) of the publication in which the news object occurred. volume string optional         documentation Volume of the publication in which the information appeared. number string optional         documentation Publication number, often associated with a volume number. issue string optional         documentation The name of the issue of the publication where the news object occurred. Examples include June, fall, Olympic Special, year-end, etc. edition.name string optional         documentation Name of the edition in which the news object was distributed. edition.area string optional         documentation Area / zone where news object was distributed. position.section string optional         documentation Named section of a publication where a news object appeared, such as Science, Sports, Weekend, etc. position.sequence string optional         documentation Where a news object appeared among a list of items; often the page number. ex-ref string optional         documentation External reference to the rendering of the news object as published, in the form of a URL or URN.
annotation	documentation Partial description Information about specific instance of an item's publication. Full description Contains metadata about how the particular news object was used in a specific instance.
source	<element name="pubdata">   <annotation>     <documentation> Partial description Information about specific instance of an item's publication. Full description Contains metadata about how the particular news object was used in a specific instance. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="type" use="optional">       <annotation>         <documentation> Transport medium, such as print, streaming video or broadcast. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="print"/>           <enumeration value="audio"/>           <enumeration value="video"/>           <enumeration value="web"/>           <enumeration value="appliance"/>           <enumeration value="other"/>         </restriction>       </simpleType>     </attribute>     <attribute name="item-length" type="string" use="optional">       <annotation>         <documentation> Length of the item; see also unit-of-measure. </documentation>       </annotation>     </attribute>     <attribute name="unit-of-measure" type="string" use="optional">       <annotation>         <documentation> Measure associated with the length of the item; see also item-length. Sample values include word, character, byte, inch, pica, cm, hour, minute, second, other. </documentation>       </annotation>     </attribute>     <attribute name="date.publication" type="string" use="optional">       <annotation>         <documentation> For date object was used. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>     <attribute name="name" type="string" use="optional">       <annotation>         <documentation> Title of the publication. </documentation>       </annotation>     </attribute>     <attribute name="issn" type="string" use="optional">       <annotation>         <documentation> The International Standard Serial Number (ISSN) of the publication in which the news object occurred. </documentation>       </annotation>     </attribute>     <attribute name="volume" type="string" use="optional">       <annotation>         <documentation> Volume of the publication in which the information appeared. </documentation>       </annotation>     </attribute>     <attribute name="number" type="string" use="optional">       <annotation>         <documentation> Publication number, often associated with a volume number. </documentation>       </annotation>     </attribute>     <attribute name="issue" type="string" use="optional">       <annotation>         <documentation> The name of the issue of the publication where the news object occurred. Examples include June, fall, Olympic Special, year-end, etc. </documentation>       </annotation>     </attribute>     <attribute name="edition.name" type="string" use="optional">       <annotation>         <documentation> Name of the edition in which the news object was distributed. </documentation>       </annotation>     </attribute>     <attribute name="edition.area" type="string" use="optional">       <annotation>         <documentation> Area / zone where news object was distributed. </documentation>       </annotation>     </attribute>     <attribute name="position.section" type="string" use="optional">       <annotation>         <documentation> Named section of a publication where a news object appeared, such as Science, Sports, Weekend, etc. </documentation>       </annotation>     </attribute>     <attribute name="position.sequence" type="string" use="optional">       <annotation>         <documentation> Where a news object appeared among a list of items; often the page number. </documentation>       </annotation>     </attribute>     <attribute name="ex-ref" type="string" use="optional">       <annotation>         <documentation> External reference to the rendering of the news object as published, in the form of a URL or URN. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute pubdata/@type

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  print  enumeration  audio  enumeration  video  enumeration  web  enumeration  appliance  enumeration  other
annotation	documentation Transport medium, such as print, streaming video or broadcast.
source	<attribute name="type" use="optional">   <annotation>     <documentation> Transport medium, such as print, streaming video or broadcast. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="print"/>       <enumeration value="audio"/>       <enumeration value="video"/>       <enumeration value="web"/>       <enumeration value="appliance"/>       <enumeration value="other"/>     </restriction>   </simpleType> </attribute>

attribute pubdata/@item-length

type	string
properties	isRef  0 use  optional
annotation	documentation Length of the item; see also unit-of-measure.
source	<attribute name="item-length" type="string" use="optional">   <annotation>     <documentation> Length of the item; see also unit-of-measure. </documentation>   </annotation> </attribute>

attribute pubdata/@unit-of-measure

type	string
properties	isRef  0 use  optional
annotation	documentation Measure associated with the length of the item; see also item-length. Sample values include word, character, byte, inch, pica, cm, hour, minute, second, other.
source	<attribute name="unit-of-measure" type="string" use="optional">   <annotation>     <documentation> Measure associated with the length of the item; see also item-length. Sample values include word, character, byte, inch, pica, cm, hour, minute, second, other. </documentation>   </annotation> </attribute>

attribute pubdata/@date.publication

type	string
properties	isRef  0 use  optional
annotation	documentation For date object was used. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="date.publication" type="string" use="optional">   <annotation>     <documentation> For date object was used. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

attribute pubdata/@name

type	string
properties	isRef  0 use  optional
annotation	documentation Title of the publication.
source	<attribute name="name" type="string" use="optional">   <annotation>     <documentation> Title of the publication. </documentation>   </annotation> </attribute>

attribute pubdata/@issn

type	string
properties	isRef  0 use  optional
annotation	documentation The International Standard Serial Number (ISSN) of the publication in which the news object occurred.
source	<attribute name="issn" type="string" use="optional">   <annotation>     <documentation> The International Standard Serial Number (ISSN) of the publication in which the news object occurred. </documentation>   </annotation> </attribute>

attribute pubdata/@volume

type	string
properties	isRef  0 use  optional
annotation	documentation Volume of the publication in which the information appeared.
source	<attribute name="volume" type="string" use="optional">   <annotation>     <documentation> Volume of the publication in which the information appeared. </documentation>   </annotation> </attribute>

attribute pubdata/@number

type	string
properties	isRef  0 use  optional
annotation	documentation Publication number, often associated with a volume number.
source	<attribute name="number" type="string" use="optional">   <annotation>     <documentation> Publication number, often associated with a volume number. </documentation>   </annotation> </attribute>

attribute pubdata/@issue

type	string
properties	isRef  0 use  optional
annotation	documentation The name of the issue of the publication where the news object occurred. Examples include June, fall, Olympic Special, year-end, etc.
source	<attribute name="issue" type="string" use="optional">   <annotation>     <documentation> The name of the issue of the publication where the news object occurred. Examples include June, fall, Olympic Special, year-end, etc. </documentation>   </annotation> </attribute>

attribute pubdata/@edition.name

type	string
properties	isRef  0 use  optional
annotation	documentation Name of the edition in which the news object was distributed.
source	<attribute name="edition.name" type="string" use="optional">   <annotation>     <documentation> Name of the edition in which the news object was distributed. </documentation>   </annotation> </attribute>

attribute pubdata/@edition.area

type	string
properties	isRef  0 use  optional
annotation	documentation Area / zone where news object was distributed.
source	<attribute name="edition.area" type="string" use="optional">   <annotation>     <documentation> Area / zone where news object was distributed. </documentation>   </annotation> </attribute>

attribute pubdata/@position.section

type	string
properties	isRef  0 use  optional
annotation	documentation Named section of a publication where a news object appeared, such as Science, Sports, Weekend, etc.
source	<attribute name="position.section" type="string" use="optional">   <annotation>     <documentation> Named section of a publication where a news object appeared, such as Science, Sports, Weekend, etc. </documentation>   </annotation> </attribute>

attribute pubdata/@position.sequence

type	string
properties	isRef  0 use  optional
annotation	documentation Where a news object appeared among a list of items; often the page number.
source	<attribute name="position.sequence" type="string" use="optional">   <annotation>     <documentation> Where a news object appeared among a list of items; often the page number. </documentation>   </annotation> </attribute>

attribute pubdata/@ex-ref

type	string
properties	isRef  0 use  optional
annotation	documentation External reference to the rendering of the news object as published, in the form of a URL or URN.
source	<attribute name="ex-ref" type="string" use="optional">   <annotation>     <documentation> External reference to the rendering of the news object as published, in the form of a URL or URN. </documentation>   </annotation> </attribute>

element q

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. quote-source string optional         documentation Who said or wrote the quotation.
annotation	documentation Partial description Quotation. Full description Words directly attributed to an individual.
source	<element name="q">   <annotation>     <documentation> Partial description Quotation. Full description Words directly attributed to an individual. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="quote-source" type="string" use="optional">       <annotation>         <documentation> Who said or wrote the quotation. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute q/@quote-source

type	string
properties	isRef  0 use  optional
annotation	documentation Who said or wrote the quotation.
source	<attribute name="quote-source" type="string" use="optional">   <annotation>     <documentation> Who said or wrote the quotation. </documentation>   </annotation> </attribute>

element region

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:alt-code
used by	elements  location postaddr
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. region-code string optional         documentation The code or symbol for the element. code-source string optional         documentation The source (taxonomy) for the element's region-code.
annotation	documentation Partial description Geographic area. Full description Used to normalize regions.
source	<element name="region">   <annotation>     <documentation> Partial description Geographic area. Full description Used to normalize regions. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="region-code" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. </documentation>       </annotation>     </attribute>     <attribute name="code-source" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's region-code. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute region/@region-code

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element.
source	<attribute name="region-code" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. </documentation>   </annotation> </attribute>

attribute region/@code-source

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's region-code.
source	<attribute name="code-source" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's region-code. </documentation>   </annotation> </attribute>

element revision-history

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. name string optional         documentation Name of the person who made the revision (usually editor or reporter). function derived by: string optional         documentation Job function of individual performing revision. norm string optional         documentation Date of the revision. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available comment string optional         documentation Reason for the revision.
annotation	documentation Partial description Information about the creative history of the document; also used as an audit trail. Full description Includes who made changes, when the changes were made, and why.
source	<element name="revision-history">   <annotation>     <documentation> Partial description Information about the creative history of the document; also used as an audit trail. Full description Includes who made changes, when the changes were made, and why. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="name" type="string" use="optional">       <annotation>         <documentation> Name of the person who made the revision (usually editor or reporter). </documentation>       </annotation>     </attribute>     <attribute name="function" use="optional">       <annotation>         <documentation> Job function of individual performing revision. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="writer-author"/>           <enumeration value="editor"/>           <enumeration value="producer"/>           <enumeration value="archivist"/>           <enumeration value="videographer"/>           <enumeration value="graphic-artist"/>           <enumeration value="photographer"/>           <enumeration value="statistician"/>           <enumeration value="other"/>         </restriction>       </simpleType>     </attribute>     <attribute name="norm" type="string" use="optional">       <annotation>         <documentation> Date of the revision. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>     <attribute name="comment" type="string" use="optional">       <annotation>         <documentation> Reason for the revision. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute revision-history/@name

type	string
properties	isRef  0 use  optional
annotation	documentation Name of the person who made the revision (usually editor or reporter).
source	<attribute name="name" type="string" use="optional">   <annotation>     <documentation> Name of the person who made the revision (usually editor or reporter). </documentation>   </annotation> </attribute>

attribute revision-history/@function

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  writer-author  enumeration  editor  enumeration  producer  enumeration  archivist  enumeration  videographer  enumeration  graphic-artist  enumeration  photographer  enumeration  statistician  enumeration  other
annotation	documentation Job function of individual performing revision.
source	<attribute name="function" use="optional">   <annotation>     <documentation> Job function of individual performing revision. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="writer-author"/>       <enumeration value="editor"/>       <enumeration value="producer"/>       <enumeration value="archivist"/>       <enumeration value="videographer"/>       <enumeration value="graphic-artist"/>       <enumeration value="photographer"/>       <enumeration value="statistician"/>       <enumeration value="other"/>     </restriction>   </simpleType> </attribute>

attribute revision-history/@norm

type	string
properties	isRef  0 use  optional
annotation	documentation Date of the revision. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="norm" type="string" use="optional">   <annotation>     <documentation> Date of the revision. Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

attribute revision-history/@comment

type	string
properties	isRef  0 use  optional
annotation	documentation Reason for the revision.
source	<attribute name="comment" type="string" use="optional">   <annotation>     <documentation> Reason for the revision. </documentation>   </annotation> </attribute>

element rights

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:rights.owner nitf:rights.startdate nitf:rights.enddate nitf:rights.agent nitf:rights.geography nitf:rights.type nitf:rights.limitations
used by	element  body.head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Information on rights holder. Full description Rights to news material other than the copyrights, such as archival, syndication, or distribution.
source	<element name="rights">   <annotation>     <documentation> Partial description Information on rights holder. Full description Rights to news material other than the copyrights, such as archival, syndication, or distribution. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:rights.owner"/>       <element ref="nitf:rights.startdate"/>       <element ref="nitf:rights.enddate"/>       <element ref="nitf:rights.agent"/>       <element ref="nitf:rights.geography"/>       <element ref="nitf:rights.type"/>       <element ref="nitf:rights.limitations"/>     </choice>     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element rights.agent

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  rights
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. contact string optional         documentation Contact information for the agent.
annotation	documentation Partial description Rights agent. Full description Name of the agent that holds the rights to the material.
source	<element name="rights.agent">   <annotation>     <documentation> Partial description Rights agent. Full description Name of the agent that holds the rights to the material. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="contact" type="string" use="optional">       <annotation>         <documentation> Contact information for the agent. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute rights.agent/@contact

type	string
properties	isRef  0 use  optional
annotation	documentation Contact information for the agent.
source	<attribute name="contact" type="string" use="optional">   <annotation>     <documentation> Contact information for the agent. </documentation>   </annotation> </attribute>

element rights.enddate

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  rights
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. norm string optional         documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
annotation	documentation Partial description Rights end date. Full description Terminal reference date for material rights.
source	<element name="rights.enddate">   <annotation>     <documentation> Partial description Rights end date. Full description Terminal reference date for material rights. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="norm" type="string" use="optional">       <annotation>         <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute rights.enddate/@norm

type	string
properties	isRef  0 use  optional
annotation	documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="norm" type="string" use="optional">   <annotation>     <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

element rights.geography

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  rights
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. location-code string optional         documentation Coded location from standard list. code-source string optional         documentation Source for the location code.
annotation	documentation Partial description Area to which rights apply. Full description A geographic area.
source	<element name="rights.geography">   <annotation>     <documentation> Partial description Area to which rights apply. Full description A geographic area. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="location-code" type="string" use="optional">       <annotation>         <documentation> Coded location from standard list. </documentation>       </annotation>     </attribute>     <attribute name="code-source" type="string" use="optional">       <annotation>         <documentation> Source for the location code. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute rights.geography/@location-code

type	string
properties	isRef  0 use  optional
annotation	documentation Coded location from standard list.
source	<attribute name="location-code" type="string" use="optional">   <annotation>     <documentation> Coded location from standard list. </documentation>   </annotation> </attribute>

attribute rights.geography/@code-source

type	string
properties	isRef  0 use  optional
annotation	documentation Source for the location code.
source	<attribute name="code-source" type="string" use="optional">   <annotation>     <documentation> Source for the location code. </documentation>   </annotation> </attribute>

element rights.limitations

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  rights
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Limitations (exclusive / nonexclusive) of rights. Full description Limitation on use of material rights.
source	<element name="rights.limitations">   <annotation>     <documentation> Partial description Limitations (exclusive / nonexclusive) of rights. Full description Limitation on use of material rights. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element rights.owner

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  rights
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. contact string optional         documentation Contact information for the owner.
annotation	documentation Partial description Rights owner Full description Owner of the rights to the material.
source	<element name="rights.owner">   <annotation>     <documentation> Partial description Rights owner Full description Owner of the rights to the material. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="contact" type="string" use="optional">       <annotation>         <documentation> Contact information for the owner. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute rights.owner/@contact

type	string
properties	isRef  0 use  optional
annotation	documentation Contact information for the owner.
source	<attribute name="contact" type="string" use="optional">   <annotation>     <documentation> Contact information for the owner. </documentation>   </annotation> </attribute>

element rights.startdate

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  rights
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. norm string optional         documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
annotation	documentation Partial description Rights start date. Full description Initial reference date for material rights.
source	<element name="rights.startdate">   <annotation>     <documentation> Partial description Rights start date. Full description Initial reference date for material rights. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="norm" type="string" use="optional">       <annotation>         <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute rights.startdate/@norm

type	string
properties	isRef  0 use  optional
annotation	documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="norm" type="string" use="optional">   <annotation>     <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

element rights.type

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  rights
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
annotation	documentation Partial description Type of rights claimed. Full description Type of material rights claimed (such as distribution).
source	<element name="rights.type">   <annotation>     <documentation> Partial description Type of rights claimed. Full description Type of material rights claimed (such as distribution). </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>   </complexType> </element>

element series

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	elements  body.head docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. series.name string optional         documentation The name of the series. series.part NMTOKEN optional   0      documentation Numeric order of this article within the series. series.totalpart NMTOKEN optional   0      documentation Total or expected number of articles in the series; use 0 if unknown or indefinite.
annotation	documentation Partial description Series information. Full description Identification of an article within a series of related articles.
source	<element name="series">   <annotation>     <documentation> Partial description Series information. Full description Identification of an article within a series of related articles. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="series.name" type="string" use="optional">       <annotation>         <documentation> The name of the series. </documentation>       </annotation>     </attribute>     <attribute name="series.part" type="NMTOKEN" use="optional" default="0">       <annotation>         <documentation> Numeric order of this article within the series. </documentation>       </annotation>     </attribute>     <attribute name="series.totalpart" type="NMTOKEN" use="optional" default="0">       <annotation>         <documentation> Total or expected number of articles in the series; use 0 if unknown or indefinite. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute series/@series.name

type	string
properties	isRef  0 use  optional
annotation	documentation The name of the series.
source	<attribute name="series.name" type="string" use="optional">   <annotation>     <documentation> The name of the series. </documentation>   </annotation> </attribute>

attribute series/@series.part

type	NMTOKEN
properties	isRef  0 default  0 use  optional
annotation	documentation Numeric order of this article within the series.
source	<attribute name="series.part" type="NMTOKEN" use="optional" default="0">   <annotation>     <documentation> Numeric order of this article within the series. </documentation>   </annotation> </attribute>

attribute series/@series.totalpart

type	NMTOKEN
properties	isRef  0 default  0 use  optional
annotation	documentation Total or expected number of articles in the series; use 0 if unknown or indefinite.
source	<attribute name="series.totalpart" type="NMTOKEN" use="optional" default="0">   <annotation>     <documentation> Total or expected number of articles in the series; use 0 if unknown or indefinite. </documentation>   </annotation> </attribute>

element state

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:alt-code
used by	element  location
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. state-code string optional         documentation The code or symbol for the element. code-source string optional         documentation The source (taxonomy) for the element's state-code.
annotation	documentation Partial description State or province or region. Full description Used to normalize these locations.
source	<element name="state">   <annotation>     <documentation> Partial description State or province or region. Full description Used to normalize these locations. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="state-code" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. </documentation>       </annotation>     </attribute>     <attribute name="code-source" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's state-code. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute state/@state-code

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element.
source	<attribute name="state-code" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. </documentation>   </annotation> </attribute>

attribute state/@code-source

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's state-code.
source	<attribute name="code-source" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's state-code. </documentation>   </annotation> </attribute>

element story.date

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  dateline
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. norm string optional         documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
annotation	documentation Partial description Date of story. Full description Printable date.
source	<element name="story.date">   <annotation>     <documentation> Partial description Date of story. Full description Printable date. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="norm" type="string" use="optional">       <annotation>         <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute story.date/@norm

type	string
properties	isRef  0 use  optional
annotation	documentation Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available
source	<attribute name="norm" type="string" use="optional">   <annotation>     <documentation> Date/time value normalized to ISO 8601: YYYYMMDDTHHMMSS-HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000-HHMM when no time is available </documentation>   </annotation> </attribute>

element sub

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  num
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Subscript. Full description Generally rendered in small type and vertically aligned lower than the main text.
source	<element name="sub">   <annotation>     <documentation> Partial description Subscript. Full description Generally rendered in small type and vertically aligned lower than the main text. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element sublocation

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:alt-code
used by	element  location
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. location-code string optional         documentation The code or symbol for the element. code-source string optional         documentation The source (taxonomy) for the element's location-code.
annotation	documentation Partial description Named region within city or state. Full description Generic holder for more detailed location information.
source	<element name="sublocation">   <annotation>     <documentation> Partial description Named region within city or state. Full description Generic holder for more detailed location information. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="location-code" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. </documentation>       </annotation>     </attribute>     <attribute name="code-source" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's location-code. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute sublocation/@location-code

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element.
source	<attribute name="location-code" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. </documentation>   </annotation> </attribute>

attribute sublocation/@code-source

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's location-code.
source	<attribute name="code-source" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's location-code. </documentation>   </annotation> </attribute>

element sup

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  num
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Superscript. Full description Generally rendered in small type and vertically aligned higher than the main text.
source	<element name="sup">   <annotation>     <documentation> Partial description Superscript. Full description Generally rendered in small type and vertically aligned higher than the main text. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element table

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:caption nitf:col nitf:colgroup nitf:thead nitf:tfoot nitf:tbody nitf:tr
used by	element  nitf-table group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. tabletype ENTITY optional         documentation Holds style information. align derived by: string optional         documentation Where the table should appear with respect to surrounding text. (Controlled vocabulary.) width string optional         documentation Width of the table, in pixels. cols NMTOKEN optional         documentation Number of columns in the table. border string optional         documentation Describes how the border (if any) should be rendered. frame derived by: string optional         documentation Specification of which parts of the frame around the table should be rendered. rules derived by: string optional         documentation Indicates the use of rules/lines between rows and columns. cellspacing string optional         documentation A measurement of the number of pixels between cells. cellpadding string optional         documentation A measurement of the number of pixels between a cell's border and its text.
annotation	documentation Partial description Table of data. Full description Form is like the form of HTML tables.
source	<element name="table">   <annotation>     <documentation> Partial description Table of data. Full description Form is like the form of HTML tables. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:caption" minOccurs="0"/>       <choice>         <element ref="nitf:col" minOccurs="0"/>         <element ref="nitf:colgroup" minOccurs="0"/>       </choice>       <element ref="nitf:thead" minOccurs="0"/>       <element ref="nitf:tfoot" minOccurs="0"/>       <choice>         <element ref="nitf:tbody"/>         <element ref="nitf:tr" minOccurs="0" maxOccurs="unbounded"/>       </choice>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="tabletype" type="ENTITY" use="optional">       <annotation>         <documentation> Holds style information. </documentation>       </annotation>     </attribute>     <attribute name="align" use="optional">       <annotation>         <documentation> Where the table should appear with respect to surrounding text. (Controlled vocabulary.) </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="left"/>           <enumeration value="center"/>           <enumeration value="right"/>         </restriction>       </simpleType>     </attribute>     <attribute name="width" type="string" use="optional">       <annotation>         <documentation> Width of the table, in pixels. </documentation>       </annotation>     </attribute>     <attribute name="cols" type="NMTOKEN" use="optional">       <annotation>         <documentation> Number of columns in the table. </documentation>       </annotation>     </attribute>     <attribute name="border" type="string" use="optional">       <annotation>         <documentation> Describes how the border (if any) should be rendered. </documentation>       </annotation>     </attribute>     <attribute name="frame" use="optional">       <annotation>         <documentation> Specification of which parts of the frame around the table should be rendered. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="void"/>           <enumeration value="above"/>           <enumeration value="below"/>           <enumeration value="hsides"/>           <enumeration value="lhs"/>           <enumeration value="rhs"/>           <enumeration value="vsides"/>           <enumeration value="box"/>           <enumeration value="border"/>         </restriction>       </simpleType>     </attribute>     <attribute name="rules" use="optional">       <annotation>         <documentation> Indicates the use of rules/lines between rows and columns. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="none"/>           <enumeration value="basic"/>           <enumeration value="rows"/>           <enumeration value="cols"/>           <enumeration value="all"/>         </restriction>       </simpleType>     </attribute>     <attribute name="cellspacing" type="string" use="optional">       <annotation>         <documentation> A measurement of the number of pixels between cells. </documentation>       </annotation>     </attribute>     <attribute name="cellpadding" type="string" use="optional">       <annotation>         <documentation> A measurement of the number of pixels between a cell's border and its text. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute table/@tabletype

type	ENTITY
properties	isRef  0 use  optional
annotation	documentation Holds style information.
source	<attribute name="tabletype" type="ENTITY" use="optional">   <annotation>     <documentation> Holds style information. </documentation>   </annotation> </attribute>

attribute table/@align

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  left  enumeration  center  enumeration  right
annotation	documentation Where the table should appear with respect to surrounding text. (Controlled vocabulary.)
source	<attribute name="align" use="optional">   <annotation>     <documentation> Where the table should appear with respect to surrounding text. (Controlled vocabulary.) </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="left"/>       <enumeration value="center"/>       <enumeration value="right"/>     </restriction>   </simpleType> </attribute>

attribute table/@width

type	string
properties	isRef  0 use  optional
annotation	documentation Width of the table, in pixels.
source	<attribute name="width" type="string" use="optional">   <annotation>     <documentation> Width of the table, in pixels. </documentation>   </annotation> </attribute>

attribute table/@cols

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Number of columns in the table.
source	<attribute name="cols" type="NMTOKEN" use="optional">   <annotation>     <documentation> Number of columns in the table. </documentation>   </annotation> </attribute>

attribute table/@border

type	string
properties	isRef  0 use  optional
annotation	documentation Describes how the border (if any) should be rendered.
source	<attribute name="border" type="string" use="optional">   <annotation>     <documentation> Describes how the border (if any) should be rendered. </documentation>   </annotation> </attribute>

attribute table/@frame

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  void  enumeration  above  enumeration  below  enumeration  hsides  enumeration  lhs  enumeration  rhs  enumeration  vsides  enumeration  box  enumeration  border
annotation	documentation Specification of which parts of the frame around the table should be rendered.
source	<attribute name="frame" use="optional">   <annotation>     <documentation> Specification of which parts of the frame around the table should be rendered. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="void"/>       <enumeration value="above"/>       <enumeration value="below"/>       <enumeration value="hsides"/>       <enumeration value="lhs"/>       <enumeration value="rhs"/>       <enumeration value="vsides"/>       <enumeration value="box"/>       <enumeration value="border"/>     </restriction>   </simpleType> </attribute>

attribute table/@rules

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  none  enumeration  basic  enumeration  rows  enumeration  cols  enumeration  all
annotation	documentation Indicates the use of rules/lines between rows and columns.
source	<attribute name="rules" use="optional">   <annotation>     <documentation> Indicates the use of rules/lines between rows and columns. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="none"/>       <enumeration value="basic"/>       <enumeration value="rows"/>       <enumeration value="cols"/>       <enumeration value="all"/>     </restriction>   </simpleType> </attribute>

attribute table/@cellspacing

type	string
properties	isRef  0 use  optional
annotation	documentation A measurement of the number of pixels between cells.
source	<attribute name="cellspacing" type="string" use="optional">   <annotation>     <documentation> A measurement of the number of pixels between cells. </documentation>   </annotation> </attribute>

attribute table/@cellpadding

type	string
properties	isRef  0 use  optional
annotation	documentation A measurement of the number of pixels between a cell's border and its text.
source	<attribute name="cellpadding" type="string" use="optional">   <annotation>     <documentation> A measurement of the number of pixels between a cell's border and its text. </documentation>   </annotation> </attribute>

element table-reference

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  nitf-table
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. idref string required         documentation Holds an ID for the actual table.
annotation	documentation Partial description A pointer to a table that is elsewhere in the document. Full description Can be used when the table is buried deep inside the included namespaced fragment.
source	<element name="table-reference">   <annotation>     <documentation> Partial description A pointer to a table that is elsewhere in the document. Full description Can be used when the table is buried deep inside the included namespaced fragment. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="idref" type="string" use="required">       <annotation>         <documentation> Holds an ID for the actual table. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute table-reference/@idref

type	string
properties	isRef  0 use  required
annotation	documentation Holds an ID for the actual table.
source	<attribute name="idref" type="string" use="required">   <annotation>     <documentation> Holds an ID for the actual table. </documentation>   </annotation> </attribute>

element tagline

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	element  body.end
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. type derived by: string optional   std      documentation Standard, publishable-advisory, non-publishable advisory.
annotation	documentation Partial description A byline at the end of a story. Full description Example: Stuart Myles contributed to this article.
source	<element name="tagline">   <annotation>     <documentation> Partial description A byline at the end of a story. Full description Example: Stuart Myles contributed to this article. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="type" use="optional" default="std">       <annotation>         <documentation> Standard, publishable-advisory, non-publishable advisory. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="std"/>           <enumeration value="pa"/>           <enumeration value="npa"/>         </restriction>       </simpleType>     </attribute>   </complexType> </element>

attribute tagline/@type

type	restriction of string
properties	isRef  0 default  std use  optional
facets	Kind  Value  annotation  enumeration  std  enumeration  pa  enumeration  npa
annotation	documentation Standard, publishable-advisory, non-publishable advisory.
source	<attribute name="type" use="optional" default="std">   <annotation>     <documentation> Standard, publishable-advisory, non-publishable advisory. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="std"/>       <enumeration value="pa"/>       <enumeration value="npa"/>     </restriction>   </simpleType> </attribute>

element tbody

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:tr
used by	element  table
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. align derived by: string optional         documentation Alignment of text in the cell or column group. char string optional         documentation HTML formatting attribute. charoff string optional         documentation HTML formatting attribute. valign derived by: string optional         documentation Vertical alignment of text in the cell or column group.
annotation	documentation Partial description Table body. Full description Holds the bulk of the data rows of a table.
source	<element name="tbody">   <annotation>     <documentation> Partial description Table body. Full description Holds the bulk of the data rows of a table. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:tr" maxOccurs="unbounded"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attributeGroup ref="nitf:cellAlign"/>     <attributeGroup ref="nitf:cellVAlign"/>   </complexType> </element>

element td

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q nitf:p nitf:hl2 nitf:table nitf:nitf-table nitf:media nitf:ol nitf:ul nitf:dl nitf:bq nitf:fn nitf:note nitf:pre nitf:hr
used by	element  tr
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. axis string optional         documentation HTML formatting attribute. axes string optional         documentation HTML formatting attribute. nowrap derived by: string optional         documentation Directive not to wrap text in the cell. rowspan NMTOKEN optional         documentation Number of horizontal rows a cell spans. colspan NMTOKEN optional         documentation Number of vertical columns a cell spans. align derived by: string optional         documentation Alignment of text in the cell or column group. char string optional         documentation HTML formatting attribute. charoff string optional         documentation HTML formatting attribute. valign derived by: string optional         documentation Vertical alignment of text in the cell or column group.
annotation	documentation Partial description Table data cell. Full description Holds content intended to be data.
source	<element name="td">   <annotation>     <documentation> Partial description Table data cell. Full description Holds content intended to be data. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>       <group ref="nitf:blockContent"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="axis" type="string" use="optional">       <annotation>         <documentation> HTML formatting attribute. </documentation>       </annotation>     </attribute>     <attribute name="axes" type="string" use="optional">       <annotation>         <documentation> HTML formatting attribute. </documentation>       </annotation>     </attribute>     <attribute name="nowrap" use="optional">       <annotation>         <documentation> Directive not to wrap text in the cell. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="nowrap"/>         </restriction>       </simpleType>     </attribute>     <attribute name="rowspan" type="NMTOKEN" use="optional">       <annotation>         <documentation> Number of horizontal rows a cell spans. </documentation>       </annotation>     </attribute>     <attribute name="colspan" type="NMTOKEN" use="optional">       <annotation>         <documentation> Number of vertical columns a cell spans. </documentation>       </annotation>     </attribute>     <attributeGroup ref="nitf:cellAlign"/>     <attributeGroup ref="nitf:cellVAlign"/>   </complexType> </element>

attribute td/@axis

type	string
properties	isRef  0 use  optional
annotation	documentation HTML formatting attribute.
source	<attribute name="axis" type="string" use="optional">   <annotation>     <documentation> HTML formatting attribute. </documentation>   </annotation> </attribute>

attribute td/@axes

type	string
properties	isRef  0 use  optional
annotation	documentation HTML formatting attribute.
source	<attribute name="axes" type="string" use="optional">   <annotation>     <documentation> HTML formatting attribute. </documentation>   </annotation> </attribute>

attribute td/@nowrap

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  nowrap
annotation	documentation Directive not to wrap text in the cell.
source	<attribute name="nowrap" use="optional">   <annotation>     <documentation> Directive not to wrap text in the cell. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="nowrap"/>     </restriction>   </simpleType> </attribute>

attribute td/@rowspan

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Number of horizontal rows a cell spans.
source	<attribute name="rowspan" type="NMTOKEN" use="optional">   <annotation>     <documentation> Number of horizontal rows a cell spans. </documentation>   </annotation> </attribute>

attribute td/@colspan

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Number of vertical columns a cell spans.
source	<attribute name="colspan" type="NMTOKEN" use="optional">   <annotation>     <documentation> Number of vertical columns a cell spans. </documentation>   </annotation> </attribute>

element tfoot

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:tr
used by	element  table
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. align derived by: string optional         documentation Alignment of text in the cell or column group. char string optional         documentation HTML formatting attribute. charoff string optional         documentation HTML formatting attribute. valign derived by: string optional         documentation Vertical alignment of text in the cell or column group.
annotation	documentation Partial description Table footer. Full description Used to group rows that can consistently be displayed below a table.
source	<element name="tfoot">   <annotation>     <documentation> Partial description Table footer. Full description Used to group rows that can consistently be displayed below a table. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:tr" maxOccurs="unbounded"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attributeGroup ref="nitf:cellAlign"/>     <attributeGroup ref="nitf:cellVAlign"/>   </complexType> </element>

element th

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q nitf:p nitf:hl2 nitf:table nitf:nitf-table nitf:media nitf:ol nitf:ul nitf:dl nitf:bq nitf:fn nitf:note nitf:pre nitf:hr
used by	element  tr
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. axis string optional         documentation HTML formatting attribute. axes string optional         documentation HTML formatting attribute. nowrap derived by: string optional         documentation Directive not to wrap text in the cell. rowspan NMTOKEN optional         documentation Number of horizontal rows a cell spans. colspan NMTOKEN optional         documentation Number of vertical columns a cell spans. align derived by: string optional         documentation Alignment of text in the cell or column group. char string optional         documentation HTML formatting attribute. charoff string optional         documentation HTML formatting attribute. valign derived by: string optional         documentation Vertical alignment of text in the cell or column group.
annotation	documentation Partial description Table header cell. Full description Holds content intended to be a label.
source	<element name="th">   <annotation>     <documentation> Partial description Table header cell. Full description Holds content intended to be a label. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <group ref="nitf:enrichedText"/>       <group ref="nitf:blockContent"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="axis" type="string" use="optional">       <annotation>         <documentation> HTML formatting attribute. </documentation>       </annotation>     </attribute>     <attribute name="axes" type="string" use="optional">       <annotation>         <documentation> HTML formatting attribute. </documentation>       </annotation>     </attribute>     <attribute name="nowrap" use="optional">       <annotation>         <documentation> Directive not to wrap text in the cell. </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="nowrap"/>         </restriction>       </simpleType>     </attribute>     <attribute name="rowspan" type="NMTOKEN" use="optional">       <annotation>         <documentation> Number of horizontal rows a cell spans. </documentation>       </annotation>     </attribute>     <attribute name="colspan" type="NMTOKEN" use="optional">       <annotation>         <documentation> Number of vertical columns a cell spans. </documentation>       </annotation>     </attribute>     <attributeGroup ref="nitf:cellAlign"/>     <attributeGroup ref="nitf:cellVAlign"/>   </complexType> </element>

attribute th/@axis

type	string
properties	isRef  0 use  optional
annotation	documentation HTML formatting attribute.
source	<attribute name="axis" type="string" use="optional">   <annotation>     <documentation> HTML formatting attribute. </documentation>   </annotation> </attribute>

attribute th/@axes

type	string
properties	isRef  0 use  optional
annotation	documentation HTML formatting attribute.
source	<attribute name="axes" type="string" use="optional">   <annotation>     <documentation> HTML formatting attribute. </documentation>   </annotation> </attribute>

attribute th/@nowrap

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  nowrap
annotation	documentation Directive not to wrap text in the cell.
source	<attribute name="nowrap" use="optional">   <annotation>     <documentation> Directive not to wrap text in the cell. </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="nowrap"/>     </restriction>   </simpleType> </attribute>

attribute th/@rowspan

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Number of horizontal rows a cell spans.
source	<attribute name="rowspan" type="NMTOKEN" use="optional">   <annotation>     <documentation> Number of horizontal rows a cell spans. </documentation>   </annotation> </attribute>

attribute th/@colspan

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation Number of vertical columns a cell spans.
source	<attribute name="colspan" type="NMTOKEN" use="optional">   <annotation>     <documentation> Number of vertical columns a cell spans. </documentation>   </annotation> </attribute>

element thead

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:tr
used by	element  table
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. align derived by: string optional         documentation Alignment of text in the cell or column group. char string optional         documentation HTML formatting attribute. charoff string optional         documentation HTML formatting attribute. valign derived by: string optional         documentation Vertical alignment of text in the cell or column group.
annotation	documentation Partial description Table heading. Full description Used to group rows that can consistently be displayed atop a table.
source	<element name="thead">   <annotation>     <documentation> Partial description Table heading. Full description Used to group rows that can consistently be displayed atop a table. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:tr" maxOccurs="unbounded"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attributeGroup ref="nitf:cellAlign"/>     <attributeGroup ref="nitf:cellVAlign"/>   </complexType> </element>

element title

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	element  head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. type derived by: string optional         documentation A categorization for title. (Controlled vocabulary.)
annotation	documentation Partial description Document Title. Full description Often displayed within a result-list after a search finds this article.
source	<element name="title">   <annotation>     <documentation> Partial description Document Title. Full description Often displayed within a result-list after a search finds this article. </documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="type" use="optional">       <annotation>         <documentation> A categorization for title. (Controlled vocabulary.) </documentation>       </annotation>       <simpleType>         <restriction base="string">           <enumeration value="main"/>           <enumeration value="subtitle"/>           <enumeration value="parttitle"/>           <enumeration value="alternate"/>           <enumeration value="abbrev"/>           <enumeration value="other"/>         </restriction>       </simpleType>     </attribute>   </complexType> </element>

attribute title/@type

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  main  enumeration  subtitle  enumeration  parttitle  enumeration  alternate  enumeration  abbrev  enumeration  other
annotation	documentation A categorization for title. (Controlled vocabulary.)
source	<attribute name="type" use="optional">   <annotation>     <documentation> A categorization for title. (Controlled vocabulary.) </documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="main"/>       <enumeration value="subtitle"/>       <enumeration value="parttitle"/>       <enumeration value="alternate"/>       <enumeration value="abbrev"/>       <enumeration value="other"/>     </restriction>   </simpleType> </attribute>

element tobject

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:tobject.property nitf:tobject.subject
used by	elements  block head
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. tobject.type string optional   news      documentation Expanded from News, Data, and Advisory. See NewsML topic set.
annotation	documentation Partial description Subject code. Full description Used to identify the type of the news material, based on a Subject Code system.
source	<element name="tobject">   <annotation>     <documentation> Partial description Subject code. Full description Used to identify the type of the news material, based on a Subject Code system. </documentation>   </annotation>   <complexType>     <sequence>       <element ref="nitf:tobject.property" minOccurs="0" maxOccurs="unbounded"/>       <element ref="nitf:tobject.subject" minOccurs="0" maxOccurs="unbounded"/>     </sequence>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="tobject.type" type="string" use="optional" default="news">       <annotation>         <documentation> Expanded from News, Data, and Advisory. See NewsML topic set. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute tobject/@tobject.type

type	string
properties	isRef  0 default  news use  optional
annotation	documentation Expanded from News, Data, and Advisory. See NewsML topic set.
source	<attribute name="tobject.type" type="string" use="optional" default="news">   <annotation>     <documentation> Expanded from News, Data, and Advisory. See NewsML topic set. </documentation>   </annotation> </attribute>

element tobject.property

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  tobject
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. tobject.property.type string optional   current      documentation Includes such items as analysis, feature, and obituary.
annotation	documentation Partial description Subject code property. Full description Assigns a property to the object type.
source	<element name="tobject.property">   <annotation>     <documentation> Partial description Subject code property. Full description Assigns a property to the object type. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="tobject.property.type" type="string" use="optional" default="current">       <annotation>         <documentation> Includes such items as analysis, feature, and obituary. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute tobject.property/@tobject.property.type

type	string
properties	isRef  0 default  current use  optional
annotation	documentation Includes such items as analysis, feature, and obituary.
source	<attribute name="tobject.property.type" type="string" use="optional" default="current">   <annotation>     <documentation> Includes such items as analysis, feature, and obituary. </documentation>   </annotation> </attribute>

element tobject.subject

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  tobject
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. tobject.subject.ipr string optional   IPTC      documentation Information provider reference. tobject.subject.refnum NMTOKEN required         documentation Eight-digit reference number for all three levels. tobject.subject.code string optional         documentation Three-letter code for the subject type. This attribute is deprecated. tobject.subject.type string optional         documentation First-tier subject description. tobject.subject.matter string optional         documentation Second-tier subject description. tobject.subject.detail string optional         documentation Third-tier subject description.
annotation	documentation Partial description Assigns subject information to news material based on a Subject Code system. Full description A three-tiered hierarchy consisting of broad subjects, secondary topics (Subject Matter), and tertiary topics (Subject Detail).
source	<element name="tobject.subject">   <annotation>     <documentation> Partial description Assigns subject information to news material based on a Subject Code system. Full description A three-tiered hierarchy consisting of broad subjects, secondary topics (Subject Matter), and tertiary topics (Subject Detail). </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="tobject.subject.ipr" type="string" use="optional" default="IPTC">       <annotation>         <documentation> Information provider reference. </documentation>       </annotation>     </attribute>     <attribute name="tobject.subject.refnum" type="NMTOKEN" use="required">       <annotation>         <documentation> Eight-digit reference number for all three levels. </documentation>       </annotation>     </attribute>     <attribute name="tobject.subject.code" type="string" use="optional">       <annotation>         <documentation> Three-letter code for the subject type. This attribute is deprecated. </documentation>       </annotation>     </attribute>     <attribute name="tobject.subject.type" type="string" use="optional">       <annotation>         <documentation> First-tier subject description. </documentation>       </annotation>     </attribute>     <attribute name="tobject.subject.matter" type="string" use="optional">       <annotation>         <documentation> Second-tier subject description. </documentation>       </annotation>     </attribute>     <attribute name="tobject.subject.detail" type="string" use="optional">       <annotation>         <documentation> Third-tier subject description. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute tobject.subject/@tobject.subject.ipr

type	string
properties	isRef  0 default  IPTC use  optional
annotation	documentation Information provider reference.
source	<attribute name="tobject.subject.ipr" type="string" use="optional" default="IPTC">   <annotation>     <documentation> Information provider reference. </documentation>   </annotation> </attribute>

attribute tobject.subject/@tobject.subject.refnum

type	NMTOKEN
properties	isRef  0 use  required
annotation	documentation Eight-digit reference number for all three levels.
source	<attribute name="tobject.subject.refnum" type="NMTOKEN" use="required">   <annotation>     <documentation> Eight-digit reference number for all three levels. </documentation>   </annotation> </attribute>

attribute tobject.subject/@tobject.subject.code

type	string
properties	isRef  0 use  optional
annotation	documentation Three-letter code for the subject type. This attribute is deprecated.
source	<attribute name="tobject.subject.code" type="string" use="optional">   <annotation>     <documentation> Three-letter code for the subject type. This attribute is deprecated. </documentation>   </annotation> </attribute>

attribute tobject.subject/@tobject.subject.type

type	string
properties	isRef  0 use  optional
annotation	documentation First-tier subject description.
source	<attribute name="tobject.subject.type" type="string" use="optional">   <annotation>     <documentation> First-tier subject description. </documentation>   </annotation> </attribute>

attribute tobject.subject/@tobject.subject.matter

type	string
properties	isRef  0 use  optional
annotation	documentation Second-tier subject description.
source	<attribute name="tobject.subject.matter" type="string" use="optional">   <annotation>     <documentation> Second-tier subject description. </documentation>   </annotation> </attribute>

attribute tobject.subject/@tobject.subject.detail

type	string
properties	isRef  0 use  optional
annotation	documentation Third-tier subject description.
source	<attribute name="tobject.subject.detail" type="string" use="optional">   <annotation>     <documentation> Third-tier subject description. </documentation>   </annotation> </attribute>

element tr

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:th nitf:td
used by	elements  table tbody tfoot thead
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. align derived by: string optional         documentation Alignment of text in the cell or column group. char string optional         documentation HTML formatting attribute. charoff string optional         documentation HTML formatting attribute. valign derived by: string optional         documentation Vertical alignment of text in the cell or column group.
annotation	documentation Partial description Table row. Full description Holds cells of a table.
source	<element name="tr">   <annotation>     <documentation> Partial description Table row. Full description Holds cells of a table. </documentation>   </annotation>   <complexType>     <choice maxOccurs="unbounded">       <element ref="nitf:th"/>       <element ref="nitf:td"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attributeGroup ref="nitf:cellAlign"/>     <attributeGroup ref="nitf:cellVAlign"/>   </complexType> </element>

element ul

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:li
used by	group  blockContent
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
annotation	documentation Partial description Unordered list. Full description Holds list items.
source	<element name="ul">   <annotation>     <documentation> Partial description Unordered list. Full description Holds list items. </documentation>   </annotation>   <complexType>     <sequence maxOccurs="unbounded">       <element ref="nitf:li"/>     </sequence>     <attributeGroup ref="nitf:commonNITFAttributes"/>   </complexType> </element>

element urgency

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
used by	element  docdata
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. ed-urg NMTOKEN optional         documentation 1=most, 5=normal, 8=least.
annotation	documentation Partial description News importance. Full description Can be used to set the priority for distribution but does not set the actual distribution priority.
source	<element name="urgency">   <annotation>     <documentation> Partial description News importance. Full description Can be used to set the priority for distribution but does not set the actual distribution priority. </documentation>   </annotation>   <complexType>     <attributeGroup ref="nitf:globalNITFAttributes"/>     <attribute name="ed-urg" type="NMTOKEN" use="optional">       <annotation>         <documentation> 1=most, 5=normal, 8=least. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute urgency/@ed-urg

type	NMTOKEN
properties	isRef  0 use  optional
annotation	documentation 1=most, 5=normal, 8=least.
source	<attribute name="ed-urg" type="NMTOKEN" use="optional">   <annotation>     <documentation> 1=most, 5=normal, 8=least. </documentation>   </annotation> </attribute>

element virtloc

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
children	nitf:alt-code
used by	elements  byline identified-content group  enrichedText
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US. idsrc string optional         documentation The source (taxonomy) for the element's value attribute. value string optional         documentation The code or symbol for the element.
annotation	documentation Partial description Virtual Location. Full description A location in cyberspace.
source	<element name="virtloc">   <annotation>     <documentation> Partial description Virtual Location. Full description A location in cyberspace. </documentation>   </annotation>   <complexType mixed="true">     <choice minOccurs="0" maxOccurs="unbounded">       <element ref="nitf:alt-code"/>     </choice>     <attributeGroup ref="nitf:commonNITFAttributes"/>     <attribute name="idsrc" type="string" use="optional">       <annotation>         <documentation> The source (taxonomy) for the element's value attribute. </documentation>       </annotation>     </attribute>     <attribute name="value" type="string" use="optional">       <annotation>         <documentation> The code or symbol for the element. </documentation>       </annotation>     </attribute>   </complexType> </element>

attribute virtloc/@idsrc

type	string
properties	isRef  0 use  optional
annotation	documentation The source (taxonomy) for the element's value attribute.
source	<attribute name="idsrc" type="string" use="optional">   <annotation>     <documentation> The source (taxonomy) for the element's value attribute. </documentation>   </annotation> </attribute>

attribute virtloc/@value

type	string
properties	isRef  0 use  optional
annotation	documentation The code or symbol for the element.
source	<attribute name="value" type="string" use="optional">   <annotation>     <documentation> The code or symbol for the element. </documentation>   </annotation> </attribute>

group blockContent

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
children	nitf:p nitf:hl2 nitf:table nitf:nitf-table nitf:media nitf:ol nitf:ul nitf:dl nitf:bq nitf:fn nitf:note nitf:pre nitf:hr
used by	elements  abstract block body.content caption dd li media-caption td th
source	<group name="blockContent">   <choice>     <element ref="nitf:p"/>     <element ref="nitf:hl2"/>     <element ref="nitf:table"/>     <element ref="nitf:nitf-table"/>     <element ref="nitf:media"/>     <element ref="nitf:ol"/>     <element ref="nitf:ul"/>     <element ref="nitf:dl"/>     <element ref="nitf:bq"/>     <element ref="nitf:fn"/>     <element ref="nitf:note"/>     <element ref="nitf:pre"/>     <element ref="nitf:hr"/>   </choice> </group>

group enrichedText

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
children	nitf:chron nitf:classifier nitf:copyrite nitf:event nitf:function nitf:location nitf:money nitf:num nitf:object.title nitf:org nitf:person nitf:postaddr nitf:virtloc nitf:a nitf:br nitf:em nitf:lang nitf:pronounce nitf:q
used by	elements  a caption credit dd dt em hl1 hl2 lang li media-caption media-producer p pronounce q tagline td th
source	<group name="enrichedText">   <choice>     <element ref="nitf:chron"/>     <element ref="nitf:classifier"/>     <element ref="nitf:copyrite"/>     <element ref="nitf:event"/>     <element ref="nitf:function"/>     <element ref="nitf:location"/>     <element ref="nitf:money"/>     <element ref="nitf:num"/>     <element ref="nitf:object.title"/>     <element ref="nitf:org"/>     <element ref="nitf:person"/>     <element ref="nitf:postaddr"/>     <element ref="nitf:virtloc"/>     <element ref="nitf:a"/>     <element ref="nitf:br"/>     <element ref="nitf:em"/>     <element ref="nitf:lang"/>     <element ref="nitf:pronounce"/>     <element ref="nitf:q"/>     <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">       <annotation>         <documentation>Extension point for provider-defined properties from other namespaces</documentation>       </annotation>     </any>   </choice> </group>

attributeGroup cellAlign

namespace	http://iptc.org/std/NITF/2006-10-18/
used by	elements  col colgroup tbody td tfoot th thead tr
attributes	Name   Type   Use   Default   Fixed   annotation align derived by: string optional         documentation Alignment of text in the cell or column group. char string optional         documentation HTML formatting attribute. charoff string optional         documentation HTML formatting attribute.
source	<attributeGroup name="cellAlign">   <attribute name="align" use="optional">     <annotation>       <documentation>Alignment of text in the cell or column group.</documentation>     </annotation>     <simpleType>       <restriction base="string">         <enumeration value="left"/>         <enumeration value="center"/>         <enumeration value="right"/>         <enumeration value="justify"/>         <enumeration value="char"/>       </restriction>     </simpleType>   </attribute>   <attribute name="char" type="string" use="optional">     <annotation>       <documentation>HTML formatting attribute.</documentation>     </annotation>   </attribute>   <attribute name="charoff" type="string" use="optional">     <annotation>       <documentation>HTML formatting attribute.</documentation>     </annotation>   </attribute> </attributeGroup>

attribute cellAlign/@align

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  left  enumeration  center  enumeration  right  enumeration  justify  enumeration  char
annotation	documentation Alignment of text in the cell or column group.
source	<attribute name="align" use="optional">   <annotation>     <documentation>Alignment of text in the cell or column group.</documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="left"/>       <enumeration value="center"/>       <enumeration value="right"/>       <enumeration value="justify"/>       <enumeration value="char"/>     </restriction>   </simpleType> </attribute>

attribute cellAlign/@char

type	string
properties	isRef  0 use  optional
annotation	documentation HTML formatting attribute.
source	<attribute name="char" type="string" use="optional">   <annotation>     <documentation>HTML formatting attribute.</documentation>   </annotation> </attribute>

attribute cellAlign/@charoff

type	string
properties	isRef  0 use  optional
annotation	documentation HTML formatting attribute.
source	<attribute name="charoff" type="string" use="optional">   <annotation>     <documentation>HTML formatting attribute.</documentation>   </annotation> </attribute>

attributeGroup cellVAlign

namespace	http://iptc.org/std/NITF/2006-10-18/
used by	elements  col colgroup tbody td tfoot th thead tr
attributes	Name   Type   Use   Default   Fixed   annotation valign derived by: string optional         documentation Vertical alignment of text in the cell or column group.
source	<attributeGroup name="cellVAlign">   <attribute name="valign" use="optional">     <annotation>       <documentation>Vertical alignment of text in the cell or column group.</documentation>     </annotation>     <simpleType>       <restriction base="string">         <enumeration value="top"/>         <enumeration value="middle"/>         <enumeration value="bottom"/>         <enumeration value="baseline"/>       </restriction>     </simpleType>   </attribute> </attributeGroup>

attribute cellVAlign/@valign

type	restriction of string
properties	isRef  0 use  optional
facets	Kind  Value  annotation  enumeration  top  enumeration  middle  enumeration  bottom  enumeration  baseline
annotation	documentation Vertical alignment of text in the cell or column group.
source	<attribute name="valign" use="optional">   <annotation>     <documentation>Vertical alignment of text in the cell or column group.</documentation>   </annotation>   <simpleType>     <restriction base="string">       <enumeration value="top"/>       <enumeration value="middle"/>       <enumeration value="bottom"/>       <enumeration value="baseline"/>     </restriction>   </simpleType> </attribute>

attributeGroup commonNITFAttributes

namespace	http://iptc.org/std/NITF/2006-10-18/
used by	elements  a abstract bibliography block body bq byline caption chron city classifier col colgroup country credit custom-table dateline dd distributor dl dt em event fn frac hedline hl1 hl2 hr lang li location media media-caption media-object media-producer money name.family name.given nitf-table-metadata nitf-table-summary note num object.title ol org p person postaddr pre pronounce q region state sub sublocation sup table tagline tbody td tfoot th thead tr ul virtloc
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element. class string optional         documentation An open placeholder for categorization. style string optional         documentation An open placeholder for reference by an external stylesheet. lang derived by: language optional         documentation Language value governed by RFC3066. Example: en-US.
source	<attributeGroup name="commonNITFAttributes">   <attribute name="id" type="ID" use="optional">     <annotation>       <documentation>An XML-specific identifier for the element.</documentation>     </annotation>   </attribute>   <attribute name="class" type="string" use="optional">     <annotation>       <documentation>An open placeholder for categorization.</documentation>     </annotation>   </attribute>   <attribute name="style" type="string" use="optional">     <annotation>       <documentation>An open placeholder for reference by an external stylesheet.</documentation>     </annotation>   </attribute>   <attribute ref="xml:lang" use="optional">     <annotation>       <documentation>Language value governed by RFC3066. Example: en-US.</documentation>     </annotation>   </attribute>   <anyAttribute namespace="##other" processContents="lax"/> </attributeGroup>

attribute commonNITFAttributes/@id

type	ID
properties	isRef  0 use  optional
annotation	documentation An XML-specific identifier for the element.
source	<attribute name="id" type="ID" use="optional">   <annotation>     <documentation>An XML-specific identifier for the element.</documentation>   </annotation> </attribute>

attribute commonNITFAttributes/@class

type	string
properties	isRef  0 use  optional
annotation	documentation An open placeholder for categorization.
source	<attribute name="class" type="string" use="optional">   <annotation>     <documentation>An open placeholder for categorization.</documentation>   </annotation> </attribute>

attribute commonNITFAttributes/@style

type	string
properties	isRef  0 use  optional
annotation	documentation An open placeholder for reference by an external stylesheet.
source	<attribute name="style" type="string" use="optional">   <annotation>     <documentation>An open placeholder for reference by an external stylesheet.</documentation>   </annotation> </attribute>

attributeGroup globalNITFAttributes

namespace	http://iptc.org/std/NITF/2006-10-18/
used by	elements  addressee alt-code body.content body.end body.head br byttl care.of copyrite copyrite.holder copyrite.year correction datasource date.expire date.issue date.release del-list delivery.office delivery.point denom doc-id doc-scope doc.copyright doc.rights docdata ds du-key ed-msg evloc fixture frac-sep from-src function head identified-content iim key-list keyword media-metadata media-reference meta nitf nitf-col nitf-colgroup nitf-table numer postcode pubdata revision-history rights rights.agent rights.enddate rights.geography rights.limitations rights.owner rights.startdate rights.type series story.date table-reference title tobject tobject.property tobject.subject urgency
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         documentation An XML-specific identifier for the element.
source	<attributeGroup name="globalNITFAttributes">   <attribute name="id" type="ID" use="optional">     <annotation>       <documentation>An XML-specific identifier for the element.</documentation>     </annotation>   </attribute>   <anyAttribute namespace="##other" processContents="lax"/> </attributeGroup>

attribute globalNITFAttributes/@id

type	ID
properties	isRef  0 use  optional
annotation	documentation An XML-specific identifier for the element.
source	<attribute name="id" type="ID" use="optional">   <annotation>     <documentation>An XML-specific identifier for the element.</documentation>   </annotation> </attribute>

element rb

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	elements  rbc ruby
source	<element name="rb">   <complexType mixed="true"/> </element>

element rbc

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:rb
used by	element  ruby
source	<element name="rbc">   <complexType>     <sequence>       <element ref="nitf:rb" maxOccurs="unbounded"/>     </sequence>   </complexType> </element>

element rp

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	elements  ruby ruby
source	<element name="rp">   <complexType mixed="true"/> </element>

element rt

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex mixed  true
used by	elements  rtc ruby ruby
attributes	Name   Type   Use   Default   Fixed   annotation rbspan string optional
source	<element name="rt">   <complexType mixed="true">     <attribute name="rbspan" type="string" use="optional"/>   </complexType> </element>

attribute rt/@rbspan

type	string
properties	isRef  0 use  optional
source	<attribute name="rbspan" type="string" use="optional"/>

element rtc

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:rt
used by	elements  ruby ruby
source	<element name="rtc">   <complexType>     <sequence>       <element ref="nitf:rt" maxOccurs="unbounded"/>     </sequence>   </complexType> </element>

element ruby

diagram
namespace	http://iptc.org/std/NITF/2006-10-18/
properties	content  complex
children	nitf:rb nitf:rt nitf:rp nitf:rbc nitf:rtc
source	<element name="ruby">   <complexType>     <choice>       <sequence>         <element ref="nitf:rb"/>         <choice>           <element ref="nitf:rt"/>           <sequence>             <element ref="nitf:rp"/>             <element ref="nitf:rt"/>             <element ref="nitf:rp"/>           </sequence>         </choice>       </sequence>       <sequence>         <element ref="nitf:rbc"/>         <element ref="nitf:rtc"/>         <element ref="nitf:rtc" minOccurs="0"/>       </sequence>     </choice>   </complexType> </element>

attribute base

namespace	http://www.w3.org/XML/1998/namespace
type	anyURI
used by	attributeGroup  specialAttrs
annotation	documentation <div> <h3>base (as an attribute name)</h3> <p>        denotes an attribute whose value        provides a URI to be used as the base for interpreting any        relative URIs in the scope of the element on which it        appears; its value is inherited.  This name is reserved        by virtue of its definition in the XML Base specification.</p> <p>       See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>       for information about this attribute.      </p> </div>
source	<attribute name="base" type="xs:anyURI">   <annotation>     <documentation>       <div>         <h3>base (as an attribute name)</h3>         <p>        denotes an attribute whose value        provides a URI to be used as the base for interpreting any        relative URIs in the scope of the element on which it        appears; its value is inherited.  This name is reserved        by virtue of its definition in the XML Base specification.</p>         <p>       See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>       for information about this attribute.      </p>       </div>     </documentation>   </annotation> </attribute>

attribute id

namespace	http://www.w3.org/XML/1998/namespace
type	ID
used by	attributeGroup  specialAttrs
annotation	documentation <div> <h3>id (as an attribute name)</h3> <p>        denotes an attribute whose value        should be interpreted as if declared to be of type ID.        This name is reserved by virtue of its definition in the        xml:id specification.</p> <p>       See <a href="http://www.w3.org/TR/xml-id/">http://www.w3.org/TR/xml-id/</a>       for information about this attribute.      </p> </div>
source	<attribute name="id" type="xs:ID">   <annotation>     <documentation>       <div>         <h3>id (as an attribute name)</h3>         <p>        denotes an attribute whose value        should be interpreted as if declared to be of type ID.        This name is reserved by virtue of its definition in the        xml:id specification.</p>         <p>       See <a href="http://www.w3.org/TR/xml-id/">http://www.w3.org/TR/xml-id/</a>       for information about this attribute.      </p>       </div>     </documentation>   </annotation> </attribute>

attribute lang

namespace	http://www.w3.org/XML/1998/namespace
type	union of (language, restriction of string)
used by	attributeGroups  commonNITFAttributes specialAttrs
annotation	documentation <div> <h3>lang (as an attribute name)</h3> <p>        denotes an attribute whose value        is a language code for the natural language of the content of        any element; its value is inherited.  This name is reserved        by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>       Attempting to install the relevant ISO 2- and 3-letter       codes as the enumerated possible values is probably never       going to be a realistic possibility.       </p> <p>       See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">        http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>       and the IANA language subtag registry at       <a href="http://www.iana.org/assignments/language-subtag-registry">        http://www.iana.org/assignments/language-subtag-registry</a>       for further information.      </p> <p>       The union allows for the 'un-declaration' of xml:lang with       the empty string.      </p> </div>
source	<attribute name="lang">   <annotation>     <documentation>       <div>         <h3>lang (as an attribute name)</h3>         <p>        denotes an attribute whose value        is a language code for the natural language of the content of        any element; its value is inherited.  This name is reserved        by virtue of its definition in the XML specification.</p>       </div>       <div>         <h4>Notes</h4>         <p>       Attempting to install the relevant ISO 2- and 3-letter       codes as the enumerated possible values is probably never       going to be a realistic possibility.       </p>         <p>       See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">        http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>       and the IANA language subtag registry at       <a href="http://www.iana.org/assignments/language-subtag-registry">        http://www.iana.org/assignments/language-subtag-registry</a>       for further information.      </p>         <p>       The union allows for the 'un-declaration' of xml:lang with       the empty string.      </p>       </div>     </documentation>   </annotation>   <simpleType>     <union memberTypes="xs:language">       <simpleType>         <restriction base="xs:string">           <enumeration value=""/>         </restriction>       </simpleType>     </union>   </simpleType> </attribute>

attribute space

namespace	http://www.w3.org/XML/1998/namespace
type	restriction of NCName
used by	attributeGroup  specialAttrs
facets	Kind  Value  annotation  enumeration  default  enumeration  preserve
annotation	documentation <div> <h3>space (as an attribute name)</h3> <p>        denotes an attribute whose        value is a keyword indicating what whitespace processing        discipline is intended for the content of the element; its        value is inherited.  This name is reserved by virtue of its        definition in the XML specification.</p> </div>
source	<attribute name="space">   <annotation>     <documentation>       <div>         <h3>space (as an attribute name)</h3>         <p>        denotes an attribute whose        value is a keyword indicating what whitespace processing        discipline is intended for the content of the element; its        value is inherited.  This name is reserved by virtue of its        definition in the XML specification.</p>       </div>     </documentation>   </annotation>   <simpleType>     <restriction base="xs:NCName">       <enumeration value="default"/>       <enumeration value="preserve"/>     </restriction>   </simpleType> </attribute>

attributeGroup specialAttrs

namespace	http://www.w3.org/XML/1998/namespace
attributes	Name   Type   Use   Default   Fixed   annotation base anyURI          documentation <div> <h3>base (as an attribute name)</h3> <p>        denotes an attribute whose value        provides a URI to be used as the base for interpreting any        relative URIs in the scope of the element on which it        appears; its value is inherited.  This name is reserved        by virtue of its definition in the XML Base specification.</p> <p>       See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>       for information about this attribute.      </p> </div> lang derived by: language          documentation <div> <h3>lang (as an attribute name)</h3> <p>        denotes an attribute whose value        is a language code for the natural language of the content of        any element; its value is inherited.  This name is reserved        by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>       Attempting to install the relevant ISO 2- and 3-letter       codes as the enumerated possible values is probably never       going to be a realistic possibility.       </p> <p>       See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">        http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>       and the IANA language subtag registry at       <a href="http://www.iana.org/assignments/language-subtag-registry">        http://www.iana.org/assignments/language-subtag-registry</a>       for further information.      </p> <p>       The union allows for the 'un-declaration' of xml:lang with       the empty string.      </p> </div> space derived by: NCName          documentation <div> <h3>space (as an attribute name)</h3> <p>        denotes an attribute whose        value is a keyword indicating what whitespace processing        discipline is intended for the content of the element; its        value is inherited.  This name is reserved by virtue of its        definition in the XML specification.</p> </div> id ID          documentation <div> <h3>id (as an attribute name)</h3> <p>        denotes an attribute whose value        should be interpreted as if declared to be of type ID.        This name is reserved by virtue of its definition in the        xml:id specification.</p> <p>       See <a href="http://www.w3.org/TR/xml-id/">http://www.w3.org/TR/xml-id/</a>       for information about this attribute.      </p> </div>
source	<attributeGroup name="specialAttrs">   <attribute ref="xml:base"/>   <attribute ref="xml:lang"/>   <attribute ref="xml:space"/>   <attribute ref="xml:id"/> </attributeGroup>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
